Schneider Electric LC1D32BD — 32A IEC Contactor Buying Guide

By Abdullah Zahid
14 min read

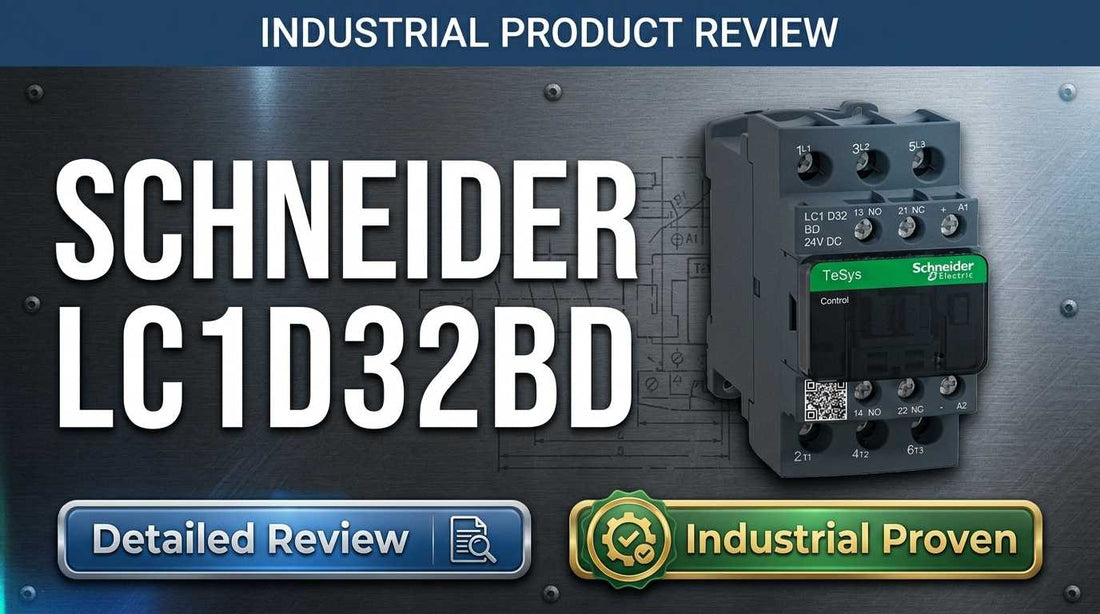

Schneider Electric LC1D32BD 32A 3-pole IEC contactor with 24V DC coil for DIN rail motor control

Schneider Electric LC1D32BD IEC Contactor, TeSys D/Deca, 3-Pole (3 NO), 32A, 24VDC Coil, AC-3/AC-3e Rated: Specs, Pricing, Alternatives and Selection Guide

When a controls engineer or maintenance technician searches for the Schneider Electric LC1D32BD by catalog number, the decision is almost always already made on paper — the question is whether the specs hold up, the coil voltage is correct, and the price and lead time are workable. The LC1D32BD is a 3-pole, 32A AC-3 rated IEC magnetic contactor with a 24V DC coil, built for direct-on-line motor control of 3-phase AC induction motors in factory automation, HVAC, pump control, and similar applications. It mounts on standard TS35 DIN rail, fits within a 45mm width, and ships with a built-in 1 NO and 1 NC auxiliary contact already integrated — a design feature that eliminates a separate accessory purchase in the majority of installations.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D32BD — and Who Should Not

The LC1D32BD is the right contactor when all of the following apply to your application:

  • Your motor's full-load amps (FLA) from the nameplate does not exceed 32A at the operating voltage (208V, 230V, 460V, or 575V in North American installations)
  • Your control cabinet has a 24V DC supply available — the coil operates in the 21–27V DC range and requires at least 0.1A of available current
  • You need a 3-pole, all normally open main contact configuration for standard 3-phase motor switching
  • DIN rail space is confirmed: 45mm width and 102mm mounted height must be available on the TS35 rail
  • The installation requires IEC 60947 compliance with 690V insulation rating and 100 kA SCCR
  • Direct-on-line (DOL) switching is appropriate — no soft-start ramp, no variable speed, no forward-reverse capability required

If your motor FLA exceeds 32A, the LC1D65BD (65A, same coil voltage) is the correct next step. If your cabinet runs 120V AC control voltage, the LC1D32BL is the appropriate coil voltage variant. Do not substitute — coil voltage mismatches are the single most common ordering error on this model.

On this page:

What the LC1D32BD Actually Does in a Motor Control Circuit

The LC1D32BD is not a motor protection device — it is a remotely operated power switch. When a 24V DC signal arrives at the coil terminals (A1 and A2), the electromagnetic coil pulls the contact bridge closed, connecting the three-phase AC power source directly to the motor load. When the coil signal drops, the contacts open and the motor is disconnected. That switching action is the entirety of the contactor's role: it does not limit inrush current, it does not detect overloads, and it does not control motor speed.

What makes the LC1D32BD the persistent standard in North American motor control cabinets is what surrounds that core function. The 32A AC-3 inductive rating covers the motor current range that includes the majority of pump, fan, compressor, and machine tool applications from roughly 10 HP through 20 HP at 480V, with a practical ceiling at approximately 20–28A FLA before the next contactor size becomes appropriate. The built-in 1 NO and 1 NC auxiliary contacts on the base unit allow PLC feedback and seal-in circuits without an additional block purchase — a design choice that competitors including comparable Siemens and ABB models have not universally matched. The coil dissipates only 2W, keeping thermal load in the cabinet minimal even in multi-contactor installations.

The LC1D32BD has no built-in thermal overload protection. Pairing it with a compatible LRD overload relay is not optional in any motor branch circuit installation — it is required for code compliance and motor protection. This pairing is the foundation of every DOL starter built around this contactor.

Typical System Architecture for a DOL Motor Starter

The LC1D32BD sits in the power switching layer of a motor branch circuit, positioned between the branch circuit disconnect and the motor terminals. A typical installation looks like this:

  • Upstream: Branch circuit disconnect (lockable, 32A minimum) connected to 3-phase AC supply (208V, 230V, 460V, or 575V)
  • Control layer: PLC digital output or manual pushstation supplies 24V DC to coil terminals A1 and A2 on the LC1D32BD
  • Switching layer: LC1D32BD main contacts (terminals 1, 3, 5 input — 2, 4, 6 output) pass 3-phase power to the load when energized
  • Protection layer: LRD overload relay mounted on the contactor base monitors motor current through all three phases and trips the circuit on overload or phase loss
  • Downstream: Motor terminals receive 3-phase power through the overload relay output; motor FLA must not exceed 32A

Where the LC1D32BD Gets Installed: Industries and Use Cases

The most common deployment is a direct-on-line motor starter for 3-phase AC induction motors in the 10–20 HP range at 480V. Manufacturing facilities use the LC1D32BD to control conveyor drives, mixer motors, and machine tool spindle and auxiliary motors from PLC outputs. HVAC system integrators wire it into rooftop unit fan control circuits and air handling unit supply fans running on building automation system schedules. In water and wastewater treatment, it appears in pump starter panels where simple on/off switching is sufficient and variable speed is not required.

Oil and gas facilities use the LC1D32BD in motor branch circuits for smaller compressors, cooling fans, and auxiliary skid motors where the 24V DC coil integrates cleanly with safety PLC outputs. Food and beverage processing plants standardize on the TeSys D family across multiple machine frames, taking advantage of the consistent accessory ecosystem when expansion — additional auxiliary contacts, overload relay upgrades — is needed mid-production run. Data center cooling skids and mining fan control applications appear in secondary deployment scenarios where DIN rail space is constrained and the 45mm footprint matters.

Application Typical Deployment
DOL pump starter (water/wastewater) LC1D32BD + LRD overload relay in panel; PLC digital output coil control
HVAC fan motor control BAS output triggers 24V DC coil; contactor switches 3-phase fan motor on schedule
Machine tool spindle motor PLC output controls contactor; built-in NC auxiliary used for E-stop feedback loop
VFD bypass circuit LC1D32BD provides manual bypass path when variable frequency drive is taken offline for service
Compressor unloading circuit Solenoid pilot relay controls contactor coil to cycle compressor load during unloaded run periods
Food and beverage process machinery Standardized across multi-motor frame; uniform auxiliary block and overload relay ecosystem

Purchase-Decision Specifications and Variant Comparison

Specification Value
Rated Current AC-3 (inductive motor load) 32A
Rated Current AC-1 (resistive load) 50A
Coil Voltage 24V DC (operating range 21–27V DC)
Main Pole Configuration 3-pole, all normally open (3PST-NO)
Built-in Auxiliary Contacts 1 NO + 1 NC (integrated base contacts)
Rated Insulation Voltage (Ue) 690V IEC / 600V UL-CSA
Impulse Withstand Voltage (Vimp) 6 kV
Short-Circuit Current Rating (SCCR) 100 kA
DIN Rail Footprint (W x H x D) 45mm x 102mm x 98mm
Operating Temperature -25°C to +55°C (no derating to 3000m altitude)

Full technical specifications are available on the product page at LeadTime.ca.

Model Rated Current Coil Voltage Main Advantage vs LC1D32BD Best Fit Scenario
LC1D32BD 32A AC-3 24V DC Baseline — widest availability, proven ecosystem Motors up to ~20–28A FLA at 480V; DOL control
LC1D32BL 32A AC-3 120V AC Correct coil for 120V AC control cabinets Same current rating; legacy 120V AC control circuits
LC1D65BD 65A AC-3 24V DC Handles motors up to ~50 HP at 480V Motor FLA between 32A and 65A; same coil voltage
LC1D95BD 95A AC-3 24V DC Large motor applications far exceeding 32A FLA Motors above 50 HP at 480V
Siemens 3RT2025 25A AC-3 24V DC IEC equivalent; strong in European-spec systems When Siemens ecosystem is already installed; note lower 25A rating
ABB AF16-30-10 30A AC-3 24V DC Compact design; comparable ratings Alternative when ABB ecosystem is preferred; note 30A vs 32A difference

If your motor FLA falls above 32A, the LC1D65BD is the direct upgrade in the same TeSys family with the same 24V DC coil — check current availability at LeadTime.ca and confirm the correct size before placing your order.

Expert Verdict: Is the LC1D32BD the Right Contactor for Your Project?

The LC1D32BD earns its position as the default specification for DOL motor control in the 10–20 HP range at 480V by doing a small number of things consistently and correctly. The 32A AC-3 rating, 24V DC coil, and built-in 1 NO and 1 NC auxiliary contacts address the most common motor control requirement without requiring accessory purchases to achieve basic PLC feedback. The 100 kA SCCR and 6 kV impulse withstand rating give it the electrical ruggedness for industrial panel environments, and the 15 million cycle mechanical durability rating translates to a service life measured in years under typical duty cycles. Maintenance teams standardizing on proven hardware and OEMs specifying motor starters for pumps, fans, compressors, and machine tools in the sub-30 HP range will find the LC1D32BD a reliable, well-supported choice with the widest accessory ecosystem available for any contactor in its class.

Where the LC1D32BD does not belong is equally important to understand. If a motor's nameplate FLA exceeds 32A, this contactor is the wrong part — full stop. The LC1D65BD or LC1D95BD must be specified instead, and no amount of margin reasoning justifies using an undersized contactor. The LC1D32BD is also not a reversing contactor; forward-reverse motor control requires two contactors in a mechanically interlocked reversing starter configuration. Applications requiring soft-start voltage ramping, variable speed, or integrated electronic overload in a single module should look to soft starters or VFDs rather than a basic switching contactor. And critically, the LC1D32BD has no built-in thermal overload — pairing it with a compatible LRD overload relay is a hard requirement for any motor branch circuit application, not a suggested best practice.

From a procurement standpoint, the LC1D32BD is one of the most readily available industrial contactors in the market, with stock confirmed through major MRO distributors and typical lead times in the 1–7 day range from stocking channels. The value of ordering through a specialist distributor like LeadTime.ca is not purely about speed — it is about confirming the exact coil voltage variant, verifying current stock rather than relying on catalog availability signals, and sourcing the complete assembly (contactor, overload relay, auxiliary blocks) on a single purchase order. Wrong-coil-voltage shipments from generic channels are the leading cause of project delays on this exact model. Review current pricing and availability at LeadTime.ca before committing to your bill of materials.

For volume pricing, lead time confirmation before build commitment, or help specifying the complete motor starter assembly, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D32BD

The LC1D32BD is a mature industrial component with a 30-year track record in motor control cabinets across manufacturing, HVAC, and process automation. Its absence from online troubleshooting forums is not a data gap — it reflects the reality that engineers who specify this contactor typically do so from memory or a standing BOM, receive it, install it, and move on. Questions about the LC1D32BD are almost always resolved through distributor technical support or Schneider Electric's direct channels rather than public communities, because the product's simplicity leaves little room for ambiguity once the correct variant is identified.

What does generate confusion — and what specialist distributors field regularly — is variant misidentification. The LC1D32BD is one of many coil voltage variants in the LC1D32 series. The BD suffix designates 24V DC. The BL suffix designates 120V AC. Other coil voltage suffixes exist. A buyer who focuses on the current rating (32A) and overlooks the coil voltage suffix will receive a contactor that physically mounts and looks identical to the correct part but cannot be energized by the available control supply. This is the most commonly reported ordering mistake across the LC1D product family, and it is entirely preventable with one verification step at PO time.

A second knowledge gap involves the overload relay. The LC1D32BD's built-in 1 NO and 1 NC auxiliary contacts are sometimes mistaken for motor protection contacts. They are not. They are status signaling contacts — they tell the PLC whether the contactor is energized, nothing more. Thermal overload protection requires a separate LRD series overload relay connected in series with the motor current path. Engineers specifying the LC1D32BD for a new installation should verify this pairing is in the BOM before the panel builder starts work. The wrong-part prevention checklist below covers every verification step required before ordering.

Wiring and Installation Overview

  • Mount on standard TS35 DIN rail by aligning the top clip first, then snapping the retention clip; leave 5mm side clearance when mounting adjacent devices
  • Connect 3-phase AC power source to main input terminals 1, 3, and 5; connect motor load to output terminals 2, 4, and 6 using wire gauge appropriate for 32A current
  • Wire the 24V DC coil supply to terminals A1 and A2; the coil operating range is 21–27V DC and draws approximately 0.15–0.2A — confirm the 24V source has sufficient current capacity before energizing
  • Use the built-in NO auxiliary contact for PLC run-feedback and the NC auxiliary for E-stop or interlock circuits; additional auxiliary blocks screw onto the sides or top of the contactor base for expanded signaling
  • Verify upstream branch circuit disconnect is lockable and rated for at least 32A; ensure cabinet metallic frame is bonded to facility ground before energizing — do not energize without a confirmed overload relay installed in the motor current path

Compatible Accessories and Expansion Modules

The TeSys D/Deca family is designed for modular expansion without replacing the base contactor. The following accessories are confirmed compatible with the LC1D32BD:

  • LRD3 Overload Relay — thermal motor protection for smaller motors on the LC1D32BD; screw-mounts directly onto the contactor base with adjustable thermal band; required for code-compliant motor branch circuits
  • LRD10 Overload Relay — thermal motor protection for larger motors approaching the 32A limit; same mounting method as LRD3
  • CAD3 / LA1-KN Auxiliary Contact Block — adds 1 NO + 1 NC signaling contacts; screws onto side or top of contactor for PLC feedback expansion beyond the built-in base contacts
  • RC-VZ Coil Suppression Diode — suppresses inductive voltage spike from the 24V DC coil when de-energizing; protects PLC digital output from back-EMF; optional but recommended in PLC-controlled installations
  • DC1 Dust Cover — optional environmental accessory providing additional protection beyond the base IP 2X rating; suitable for dusty or fibrous environments

Wrong-Part Prevention Checklist

Before placing your purchase order for the LC1D32BD, verify every item on this checklist. Each point represents a confirmed category of ordering error on this model:

  1. Confirm motor nameplate full-load amps (FLA) does not exceed 32A inductive rating
  2. Verify 24V DC coil supply is available in your control cabinet (do not order if you have 120V AC or 48V DC only)
  3. Check motor operating voltage matches the contactor rating (690V max, typically used at 208V, 230V, 460V, or 575V in North America)
  4. Confirm you need exactly 3 NO poles (if you need 1 NO and 1 NC permanently, this model has that built-in; if you need 2 NO and 1 NC, use auxiliary block)
  5. Verify DIN rail space available (45mm width, 102mm height when mounted)
  6. Check that the installation does not require integrated mechanical interlock (use a separate reversing starter for that)
  7. Ensure facility can handle IEC-rated impulse withstand (6 kV) and 690V insulation level (standard for industrial use)

If any item on this checklist cannot be confirmed before ordering, contact LeadTime.ca — our team can verify the correct variant against your motor nameplate data and cabinet specifications before the PO is placed.

Frequently Asked Questions

Does the LC1D32BD include overload protection, or do I need to buy a separate relay?

The LC1D32BD has no built-in thermal or electronic overload protection. It is a switching device only. For any motor branch circuit, a compatible LRD overload relay (such as the LRD3 or LRD10) must be specified and installed separately. The built-in 1 NO and 1 NC auxiliary contacts on the base unit are status signaling contacts, not protection contacts — they indicate whether the contactor is energized, not whether the motor is overloaded.

My motor nameplate shows 30A FLA at 480V — is the LC1D32BD safe to use, or should I step up?

A 30A FLA motor sits 2A below the LC1D32BD's 32A AC-3 inductive rating, which is technically within spec. However, with that narrow margin, most experienced panel builders would specify the LC1D65BD to provide thermal headroom during motor starting inrush and prevent accelerated contact wear. If the motor is operating in a high-ambient-temperature environment or runs at continuous duty, stepping up is the conservative and recommended choice.

What is the difference between the LC1D32BD and the LC1D32BL?

The only difference is the coil voltage. The BD suffix designates a 24V DC coil operating in the 21–27V DC range. The BL suffix designates a 120V AC coil. All other electrical and physical specifications — 32A AC-3 rating, 3-pole configuration, 690V insulation, DIN rail footprint — are identical. Verify which control voltage your cabinet uses before placing the order; these two variants are physically interchangeable on the rail but electrically incompatible with the wrong supply.

Can the LC1D32BD be used for forward-reverse motor control?

No. The LC1D32BD is a non-reversing contactor. Forward-reverse motor control requires two contactors wired in a reversing starter configuration with mechanical and electrical interlocking to prevent simultaneous energization. A single LC1D32BD cannot provide this function regardless of how it is wired.

What does the 15 million cycle mechanical durability rating mean in practical terms?

At 50 switching operations per day over 250 working days per year, 15 million cycles translates to approximately 1,200 years of service — meaning the contactor will almost certainly be replaced during a panel upgrade or component standardization cycle long before mechanical wear becomes a failure mode. Some distributor sources cite 30 million cycles; verify against the current Schneider Electric datasheet for the production batch you receive, as this figure has appeared with variance across documentation sources.

Will the LC1D32BD energize if my 24V DC supply drops to 20V under load?

The coil's minimum operating voltage is 21V DC. A supply that drops below 21V under load will cause the contactor to either fail to pull in or chatter during operation. If your 24V supply shows voltage droop under current demand, increase the supply wire gauge to reduce voltage drop, or verify the 24V power supply has adequate output current capacity. Coil draw at pull-in is approximately 0.15–0.2A; confirm your supply can maintain 21–27V under that load.

Why Order from LeadTime.ca

  • Confirmed stock of the correct coil voltage variant — the BD (24V DC) designation is verified at order, not assumed
  • Single-PO sourcing for the complete motor starter assembly: LC1D32BD contactor, compatible LRD overload relay, and auxiliary contact blocks together
  • Global shipping to any destination — no regional restrictions on order fulfilment
  • Pre-purchase technical consultation available for motor sizing gray zones or variant confirmation
  • Volume pricing available for multi-unit panel builds and OEM blanket orders — contact for current terms

At-a-Glance Summary

  • 32A AC-3 inductive rating — confirms compatibility with 3-phase motors up to approximately 20–28A FLA at 480V
  • 24V DC coil, operating range 21–27V DC — must be verified against cabinet control supply before ordering
  • 3-pole, all normally open main contacts plus 1 NO + 1 NC built-in auxiliary contacts on the base unit
  • 690V rated insulation voltage, 6 kV impulse withstand, 100 kA SCCR — meets IEC 60947 and UL/CSA standards
  • 45mm width x 102mm height x 98mm depth on TS35 DIN rail — verify enclosure space before ordering
  • Operating temperature -25°C to +55°C with no derating to 3000m altitude
  • Coil power dissipation 2W — minimal cabinet thermal contribution in multi-contactor installations
  • 15 million mechanical operating cycles per Schneider Electric documentation (verify current datasheet for production batch)
  • No built-in overload protection — LRD overload relay is a required companion, not an optional accessory
  • Non-reversing only — forward-reverse applications require a two-contactor reversing starter configuration
