Schneider LC1D32B7 IEC Contactor 32A — Selection Guide & Review

By Abdullah Zahid
17 min read

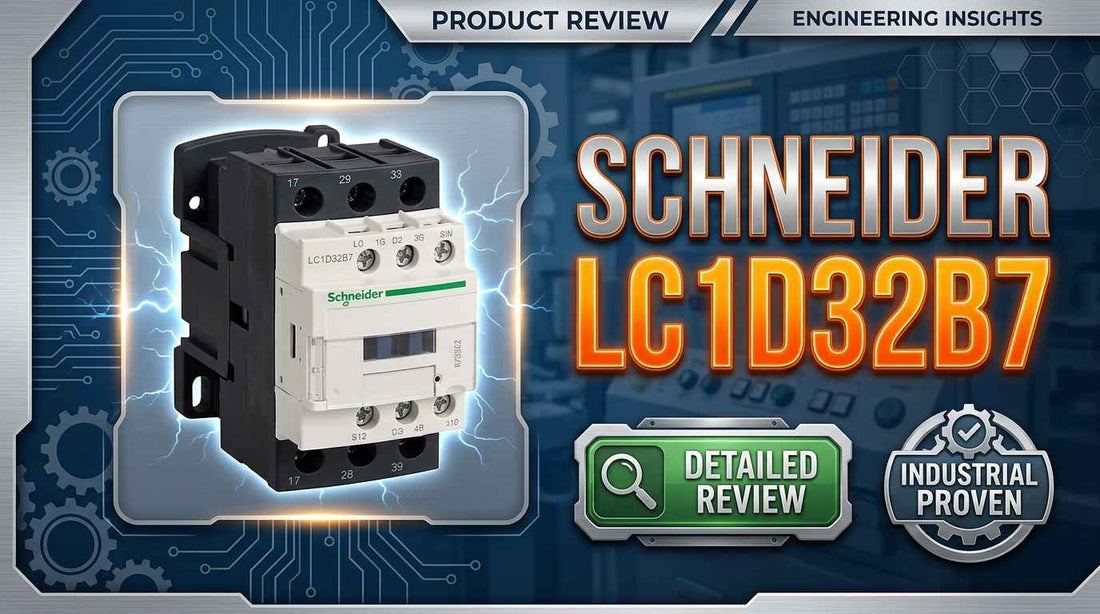

Schneider LC1D32B7 TeSys Deca 32A 3-phase IEC contactor with 24V AC coil mounted on 35mm DIN rail in industrial motor control panel

Schneider LC1D32B7 IEC Contactor, TeSys Deca, Non-reversing, 32A, 20HP at 480VAC, Up to 100kA SCCR, 3 Phase, 3NO, 24VAC 50/60Hz Coil, Open — Specs, Selection Guide and Procurement Review

Controls engineers and panel builders searching for a 3-phase magnetic contactor in the 32-amp class are usually at the final step of procurement — confirming that the part number on the BOM matches the application before a purchase order goes out. The Schneider LC1D32B7 is a three-pole, non-reversing electromechanical contactor rated 32A in AC-3 duty, with a 24V AC 50/60Hz coil, designed for direct-on-line motor starters and bypass circuits controlling motors up to 20 HP at 460V. It mounts on standard 35mm DIN rail, fits within a 45mm panel width, and ships with 1 normally open and 1 normally closed auxiliary contact integrated into the body.

If you have already confirmed this is the correct part for your application, check current pricing and availability for the LC1D32B7 at LeadTime.ca — we ship worldwide.

Who Should Buy the LC1D32B7 — and Who Should Not

The LC1D32B7 is the right contactor when all five of the following conditions are true for your application:

  • Your control circuit operates at 24V AC 50/60Hz — not 24V DC, not 120V AC, not 240V AC
  • Your motor's full-load current at operating voltage does not exceed 32A per phase
  • Your application is non-reversing motor start/stop — no forward/reverse sequencing required
  • The control circuit requires exactly 1 normally open and 1 normally closed auxiliary contact, or you are prepared to add external LADN auxiliary modules for expanded contact count
  • Your panel backplate uses standard 35mm DIN rail and your motor system voltage does not exceed 600VAC phase-to-phase

If your control system runs 24V DC logic, do not order this model — the LC1D32BD7 is the correct DC coil variant. If your motor exceeds 20 HP at 460V or motor current exceeds 32A, step up to the LC1D40B7 or LC1D65B7 within the TeSys Deca family.

On this page:

What the LC1D32B7 Does in a Real Motor Control System

The LC1D32B7 is an electromechanical switching device — when 24V AC energizes the coil across terminals A1 and A2, the electromagnetic plunger closes three main power contacts simultaneously, completing the three-phase circuit to the motor. When the coil is de-energized, spring force opens those contacts and the motor de-energizes. That switching action is the entire operational principle, and it is exactly what motor control applications from food processing conveyors to HVAC compressors have relied on for decades.

In AC-3 duty — the standard rating for squirrel-cage induction motor control — the LC1D32B7 is rated for 32A at 600VAC. In AC-1 duty (resistive or slightly inductive loads), the contacts handle 50A. The difference matters when someone applies a contactor to a resistive heating load rather than a motor; the higher AC-1 figure does not apply to motor starting. The coil draws a nominal 5W, which is low enough that multiple contactors can share a single 24V AC control transformer without risking overload on the supply.

The integrated auxiliary contacts — 1 normally open and 1 normally closed — serve the control circuit. The NO contact is typically wired to a PLC input or pilot light to confirm that the contactor has pulled in and the motor is running. The NC contact provides a hardwired interlock to prevent a second device from energizing while this contactor is active. These two contacts are built into the contactor body; additional contacts require bolt-on LADN front-mounted or side-mounted auxiliary contact modules.

The TeSys Deca series, of which the LC1D32B7 is a member, holds IEC 60947-4-1 certification for low-voltage switching devices and meets UL 508 requirements for North American motor starter installations. Its 100kA short-circuit current rating assumes the presence of an external circuit breaker or fused disconnect — the contactor itself is not a current-interrupting protective device and must always be used with appropriately rated upstream protection.

Typical System Architecture for the LC1D32B7

The LC1D32B7 sits between the upstream motor protection device and the motor terminal block — it is the power-switching element that receives control commands and translates them into motor run/stop action.

  • Upstream: 3-phase AC supply enters through a fused disconnect or motor circuit protector rated for the installation fault level (up to 100kA SCCR when coordinated with appropriate breaker)
  • Through a thermal overload relay (typically mounted directly below or to the side of the contactor on the same DIN rail) for motor overcurrent protection
  • LC1D32B7 main contacts (L1/L2/L3 in, T1/T2/T3 out) provide the remote-controlled switching point
  • Control circuit: PLC digital output or hardwired pushbutton station delivers 24V AC to coil terminals A1 and A2; auxiliary NO contact feeds run-confirmation signal back to PLC input
  • Downstream: T1/T2/T3 terminals connect directly to motor terminal block or VFD bypass circuit output

Typical Applications and Deployment Scenarios

The LC1D32B7 covers the most common motor sizes found in light industrial and commercial facilities — those in the 10 to 20 HP range operating at 460V or 575V. Its 32A AC-3 rating handles a 20 HP motor drawing approximately 26A at 460V with a margin, or a 10 HP motor at 230V drawing approximately 28A with a tighter but acceptable margin. At 575V, a 20 HP motor draws roughly 20A, giving the contactor a comfortable 1.6 times safety factor.

In direct-on-line starter applications, this is the primary switching element — coil energizes from a start button or PLC output, contacts close, motor starts at full voltage. No soft-start ramp is involved. This configuration remains the most cost-effective motor starting method for applications where voltage dip on the supply and mechanical shock to the driven load are acceptable.

In VFD bypass circuits, the LC1D32B7 operates in parallel with a variable frequency drive. During steady-state operation, the contactor closes to route motor current directly through the power contacts rather than the VFD's output stage, reducing heat dissipation in the drive and extending its service life. The contactor must only close after the VFD has ramped the motor to line frequency — control logic sequencing is external to the contactor itself.

In multi-motor sequencing panels, multiple LC1D32B7 units share a common DIN rail alongside overload relays and a PLC, with each contactor coil driven by a separate PLC digital output channel. The 45mm width per unit allows efficient panel layout; nine contactors fit within a standard 450mm panel width.

Application Typical Deployment
Direct-on-line motor starter LC1D32B7 as main switching element; coil driven by PLC output or pushbutton; overload relay mounted below on same DIN rail
VFD bypass contactor Contactor closes in parallel with VFD output after ramp to line frequency; protects VFD output stage during steady-state run
HVAC compressor start/stop Contactor cycles compressor motor on demand signal; 1NC auxiliary used to interlock against simultaneous condenser fan startup
Pump and wastewater control Single contactor per pump in multi-pump panel; PLC sequences start order to prevent simultaneous inrush on same supply transformer
Soft-starter bypass after ramp Contactor energizes after soft-starter completes ramp; reduces heat dissipation in solid-state starter during continuous run
Conveyor and material handling Contactor provides remote start/stop for conveyor drive motor; NO auxiliary confirms run state to SCADA or HMI input

Key Specifications and Variant Comparison for the LC1D32B7

Specification Value
Main Contact Rating — AC-3 Duty 32A at 600VAC
Main Contact Rating — AC-1 Duty 50A at 600VAC
Coil Voltage 24V AC 50/60Hz
Horsepower Rating at 460V 20 HP (3-phase)
Horsepower Rating at 230V 10 HP (3-phase)
Maximum System Voltage 600VAC phase-to-phase
Auxiliary Contact Configuration 1 normally open + 1 normally closed
Short-Circuit Current Rating (SCCR) Up to 100kA (with external circuit protection)
Mounting 35mm DIN rail, snap-on clip
Width / IP Rating 45mm / IP00 (open; panel-mount only)

Full technical specifications are available on the product page at LeadTime.ca.

The table below compares variants within the LC1D32 coil family and against competing 3-phase contactors in the same current class. Use this to confirm you are specifying the exact configuration your control system requires.

Model Coil Voltage Main Rating (AC-3) Reversing? Auxiliary Contacts Horsepower at 460V
LC1D32B7 (this model) 24V AC 50/60Hz 32A at 600VAC No 1NO + 1NC 20 HP
LC1D32M7 120V AC 50/60Hz 32A at 600VAC No 1NO + 1NC 20 HP
LC1D32F7 240V AC 50/60Hz 32A at 600VAC Yes (with mechanical interlock) 1NO + 1NC 20 HP
LC1D32BD7 24V DC 32A at 600VAC No 1NO + 1NC 20 HP
LC1D40B7 24V AC 50/60Hz 40A at 600VAC No 1NO + 1NC Above 20 HP
LC1D65B7 24V AC 50/60Hz 65A at 600VAC No 1NO + 1NC Above 20 HP
Feature Schneider LC1D32B7 ABB A30-30-10 Siemens 3RT1035-1AP00 Eaton DIL M32
Main Current Rating (AC-3) 32A at 600VAC 30A at 500VAC 35A at 690VAC 32A at 440VAC
Coil Voltage 24V AC 50/60Hz 24V AC 50/60Hz 24V AC 50/60Hz 24V AC 50/60Hz
Horsepower at 460V 20 HP 15 HP 18 HP 20 HP
Auxiliary Contacts (native) 1NO + 1NC 3NO 2NO + 2NC 1NO + 1NC
DIN Rail Mount 35mm standard 35mm standard 35mm standard 35mm standard
North American Distributor Support Excellent Excellent Good Good

If your application requires native 3NO auxiliary contacts without an external module, the ABB A30-30-10 or Siemens 3RT1035-1AP00 may serve that specific need — but both carry a lower horsepower rating at 460V than the LC1D32B7. If current or horsepower is the constraint, confirm availability of the LC1D32B7 and its TeSys Deca family variants at LeadTime.ca.

Expert Verdict: Is the LC1D32B7 the Right Contactor for Your Project?

The LC1D32B7 occupies exactly the right position for panel builders, systems integrators, and maintenance teams specifying a non-reversing 3-phase contactor for motors in the 10 to 20 HP range at facilities running 460V or 600V supply. Its 32A AC-3 rating provides a 1.23-times margin over the full-load current of a typical 20 HP motor at 460V — tight but within safe continuous duty parameters. At 575V, the same motor draws approximately 20A, giving a 1.6-times margin that is comfortable for applications with variable load cycles. The compact 45mm width on 35mm DIN rail, IEC 60947-4-1 certification, and UL 508 compliance make it immediately integrable into code-compliant North American motor starters without secondary verification. For procurement teams maintaining spare parts inventory, the LC1D32B7's widespread stocking across major industrial distributors means replacement units are typically available within 1 to 2 business days from in-stock positions — a critical advantage when a failed contactor means production downtime.

Where the LC1D32B7 has real limits: if the motor exceeds 20 HP at 460V, or if the motor's full-load current at 208V reaches the 88A range typical of a 15 HP motor at that voltage, this contactor is undersized and the LC1D40B7 or LC1D65B7 is the correct selection. If the control system operates on 24V DC logic — common in modern PLC-controlled panels — the LC1D32BD7 is required; the LC1D32B7's AC coil will not function reliably on DC supply and may overheat under sustained energization. For reversing motor control where forward and reverse circuits must be interlocked to prevent simultaneous energization, the LC1D32F7 with its integrated mechanical interlock is the correct choice — the LC1D32B7 has no interlock provision and must never be used in reversing duty without external hardware. Applications requiring more than one NO and one NC auxiliary contact must either add LADN front-mounted or side-mounted auxiliary contact modules, or select an alternate model with a native expanded auxiliary contact configuration.

From a procurement standpoint, the LC1D32B7 represents one of the more straightforward buying decisions in the IEC contactor category — provided coil voltage is verified before ordering. The single most costly mistake in this product category is ordering an AC coil contactor for a DC control circuit. One measurement with a multimeter before placing the order eliminates that risk entirely. For global buyers, LeadTime.ca maintains stock and ships worldwide, with the technical pre-sale support to confirm the correct coil voltage, auxiliary contact configuration, and variant before your order is placed. View current availability and pricing for the LC1D32B7 at LeadTime.ca.

For volume pricing on multi-unit orders or to confirm lead time before committing to a project build schedule, contact the LeadTime.ca team directly — we ship worldwide and can advise on the full TeSys Deca family.

What Engineers Need to Know Before Ordering the LC1D32B7

Because community forum data specific to the LC1D32B7 is sparse compared to higher-profile PLC and drive products, buyers ordering this contactor often rely on distributor expertise rather than peer review threads to resolve pre-sale questions. That makes the quality of technical support at point of purchase more consequential than it might be for a product with a dense online knowledge base. The three recurring specification questions that drive the most ordering mistakes in this product category — and the answers based on verified manufacturer data — are worth addressing directly.

The first and most consequential question is coil voltage identification. The LC1D32B7 carries a 24V AC coil. The LC1D32BD7 carries a 24V DC coil. Both read nominally as 24 volts on a multimeter, but they are not interchangeable. An AC coil in a DC circuit will not develop the sustained magnetic force needed to hold the contacts closed, and may overheat under continuous DC energization. A DC coil in an AC circuit experiences a different impedance characteristic and may chatter or fail. The only reliable verification method is to measure the control circuit voltage with a multimeter and confirm whether the waveform is oscillating (AC) or steady (DC). If there is any uncertainty, the control panel supplier or OEM documentation will specify the control voltage standard used in the design.

The second question concerns motor current matching. At 208V, a 15 HP three-phase motor draws approximately 88A at full load — well beyond the 32A rating of this contactor. At 460V, a 20 HP motor draws approximately 26A, which the LC1D32B7 handles with margin. The voltage at which the motor operates determines the current demand, and engineers working on 208V systems must not use the 460V horsepower rating as a guide for contactor selection. Always use the motor nameplate full-load current as the selection criterion, and confirm that the contactor's 32A AC-3 rating equals or exceeds the motor FLC at the actual operating voltage. If the FLC approaches or exceeds 32A, move to the LC1D40B7.

The third question is auxiliary contact count. The 1NO/1NC configuration integrated into the LC1D32B7 body is sufficient for a single run-confirmation signal to a PLC input and a single hardwired interlock. Applications with multi-zone alarm panels, dual-channel safety relays, or multiple downstream interlocks may need 2NO/2NC or 3NO configurations. LADN front-mounted auxiliary contact modules bolt onto the contactor body to expand the contact count — but they must be specified and ordered separately. Engineers who discover the auxiliary count shortfall during installation rather than during procurement face rewiring delays. The contact configuration must be confirmed in the bill of materials before the order is placed.

Wiring and Installation Overview

The following points summarize the key installation requirements for the LC1D32B7. Engineers requiring full procedures, torque specifications, and wiring diagrams should refer to Schneider Electric's official TeSys Deca installation documentation.

  • Mount on horizontal 35mm DIN rail using the snap-on rear clip — insert at a 45-degree angle, slide horizontally until the clip locks; verify the unit sits flush against the backplate before wiring
  • Connect three-phase supply to L1, L2, L3 (top terminals) and motor output to T1, T2, T3 (bottom terminals); terminal type is screw clamp — not spring clamp; use wire sized for the 32A AC-3 rating and torque to the manufacturer specification
  • Connect 24V AC supply to coil terminal A1 and 24V AC return (neutral) to coil terminal A2; use 1.5mm² or 18-22 AWG wire for the coil circuit; the coil draws a nominal 5W
  • Wire the 1NO auxiliary contact to the PLC run-confirmation input or pilot light; wire the 1NC auxiliary contact into the hardwired interlock circuit; auxiliary contacts operate at control circuit voltage
  • Confirm that upstream circuit protection (fused disconnect or motor circuit protector) is correctly coordinated with the contactor's 100kA SCCR; the contactor alone provides no short-circuit interrupting capacity

Compatible Expansion Modules for the LC1D32B7

The LC1D32B7 accepts front-mounted and side-mounted auxiliary contact modules from the Schneider TeSys Deca accessory range. These are ordered separately and clip or bolt onto the contactor body to expand auxiliary contact count without replacing the main unit.

  • LADN auxiliary contact modules — front-mounted; expand the auxiliary contact count for multi-signal control circuits requiring 2NO, 3NO, 2NC, or mixed configurations beyond the native 1NO/1NC
  • LAD9 series surge suppression modules — mount at the coil terminals A1/A2 to suppress inductive voltage spikes on the coil circuit; recommended when the coil is driven from a transistor output PLC module rather than a relay output
  • LRD overload relay series — mount directly below the LC1D32B7 on the same DIN rail and connect mechanically for compact motor starter assembly; select the LRD model matched to the motor FLC
  • LADN11 and LADN20 — specific LADN variants providing 1NO/1NC and 2NO configurations respectively; confirm compatibility with TeSys Deca generation before ordering

Wrong-Part Prevention Checklist Before Ordering the LC1D32B7

Use this checklist before placing any order for the LC1D32B7. These checks prevent the most common and costly procurement errors in this product category.

  1. Verify the main control voltage (24V AC 50/60Hz required; do not confuse with 24V DC which requires LC1D32BD7 variant)
  2. Confirm the motor's full-load current (FLC) is 32 amperes or less at the rated voltage; if FLC exceeds 35-40A, step up to LC1D40B7
  3. Check that only 1 normally open and 1 normally closed auxiliary contact are needed; if 3NO contacts are required, order a model with 3NO auxiliaries or add external LADN module
  4. Ensure the control panel backplate accepts standard 35mm DIN rail; panel-mounted and rail-mounted configurations differ
  5. Confirm the operating voltage is 600V phase-to-phase maximum; do not use in applications exceeding 600VAC
  6. Verify that no integrated mechanical interlock is required; if reversing control is needed, order LC1D32F7 (reversing variant) or purchase separate mechanical interlock kit

If any of these checks raises a question before your order is finalized, contact the LeadTime.ca team to confirm the correct model — we can verify coil voltage, current rating, and auxiliary configuration against your application before the order is placed.

Frequently Asked Questions

What is the difference between the LC1D32B7 and the LC1D32BD7, and how do I tell which one I need?

The LC1D32B7 has a 24V AC 50/60Hz coil; the LC1D32BD7 has a 24V DC coil. Both read as approximately 24 volts on a multimeter, but they are not interchangeable — an AC coil will not reliably hold closed on DC supply and may overheat. To confirm which you need, measure the control circuit voltage with a multimeter: an oscillating reading indicates AC, a steady reading with positive and negative polarity indicates DC. If the control panel documentation or OEM nameplate specifies the control voltage standard, that takes precedence over a field measurement.

Can the LC1D32B7 handle a 20 HP motor at 208V, or only at 460V?

At 208V, a 20 HP three-phase motor draws approximately 59A at full load, which exceeds the LC1D32B7's 32A AC-3 rating significantly. At 208V, the LC1D32B7 is appropriate only for motors whose nameplate full-load current is 32A or less — which corresponds to smaller motors at that voltage. The 20 HP at 460V rating in the specification reflects the current draw at 460V (approximately 26A), not at lower voltages. Always use the motor nameplate FLC at the actual supply voltage, not the horsepower figure, to select the correct contactor current rating.

Can I add more auxiliary contacts to the LC1D32B7 without replacing the entire contactor?

Yes. The TeSys Deca series accepts LADN front-mounted auxiliary contact modules that bolt onto the main contactor body and expand the available auxiliary contact count. LADN11 provides 1NO/1NC in addition to the base contacts; LADN20 provides 2NO. These modules must be ordered separately and confirmed compatible with the TeSys Deca generation. For applications requiring more than 2 auxiliary contacts total, specify the required LADN module on the BOM at the time of ordering rather than discovering the shortfall during panel wiring.

Does the LC1D32B7 include built-in overload protection, or do I need a separate overload relay?

The LC1D32B7 provides no integrated overload protection. It is a switching device only — it opens and closes the main contacts on command from the coil circuit but does not monitor motor current or trip on overload. A separate thermal overload relay from the LRD series, or an equivalent motor protection device, must be installed in series with the motor circuit. The contactor's 100kA SCCR also assumes external upstream short-circuit protection in the form of a fused disconnect or motor circuit protector; the contactor alone cannot interrupt fault current.

Is the LC1D32B7 a direct replacement for an older TeSys D series contactor of the same current rating?

The TeSys Deca series is the successor to the TeSys D series and maintains dimensional and electrical compatibility for most standard applications. The 35mm DIN rail mounting, screw clamp terminal configuration, and A1/A2 coil terminal labeling are consistent across generations. However, engineers replacing legacy units should verify the coil voltage, auxiliary contact configuration, and any accessories or interlock kits currently installed, as accessory modules from an earlier generation may not clip directly onto a Deca-series body. Confirm the exact replacement against the installed unit's nameplate before ordering.

What ambient temperature range does the LC1D32B7 support, and does it need to be derated in warm enclosures?

The LC1D32B7 is rated for an ambient operating temperature range of -5°C to +40°C under standard conditions. Applications in enclosures where internal ambient temperature exceeds +40°C — such as enclosures mounted in direct sunlight or near heat-generating equipment without adequate ventilation — require derating of the current rating or supplemental panel cooling. Consult Schneider Electric's TeSys Deca derating tables for specific current reduction factors at elevated temperatures before finalizing the installation design.

Why Order the LC1D32B7 from LeadTime.ca

  • Ships worldwide — the LC1D32B7 and related TeSys Deca family parts are available for international shipment, not limited to any single region
  • Pre-sale technical confirmation — the team can verify coil voltage (AC vs. DC), auxiliary contact configuration, and correct variant against your application before the order is placed, preventing the most common ordering mistakes in this product category
  • Volume pricing available — multi-unit orders for panel builds or spare parts programs can be quoted directly through the contact page
  • Hard-to-find variants — if a specific coil voltage or TeSys Deca accessory module is not immediately visible on the product page, contact the team for sourcing assistance
  • View the LC1D32B7 product page at LeadTime.ca
  • Contact LeadTime.ca for a quote or technical pre-sale question

LC1D32B7 At-a-Glance Summary

  • Three-pole non-reversing IEC contactor; 32A AC-3 duty at 600VAC, 50A AC-1 duty at 600VAC
  • 24V AC 50/60Hz coil — dual frequency; not compatible with 24V DC control systems (DC variant is LC1D32BD7)
  • Rated 20 HP at 460V and 10 HP at 230V for three-phase induction motor applications
  • Integrated auxiliary contacts: 1 normally open + 1 normally closed; LADN modules add additional contacts
  • Mounts on 35mm DIN rail; 45mm wide; screw clamp terminals throughout; IP00 (open, panel-mount only)
  • 100kA SCCR rating requires coordinated upstream fused disconnect or motor circuit protector
  • Conforms to IEC 60947-4-1; meets UL 508 requirements for North American motor starters
  • Coil power dissipation: 5W nominal — low thermal load on control circuit transformer
  • TeSys Deca family upgrades: LC1D40B7 (40A) and LC1D65B7 (65A) for motors above 20 HP
  • Reversing duty requires LC1D32F7 with integrated mechanical interlock — LC1D32B7 is non-reversing only
