Schneider Electric LC1D25P7 — TeSys Deca Contactor Buyer Review

By Abdullah Zahid
14 min read

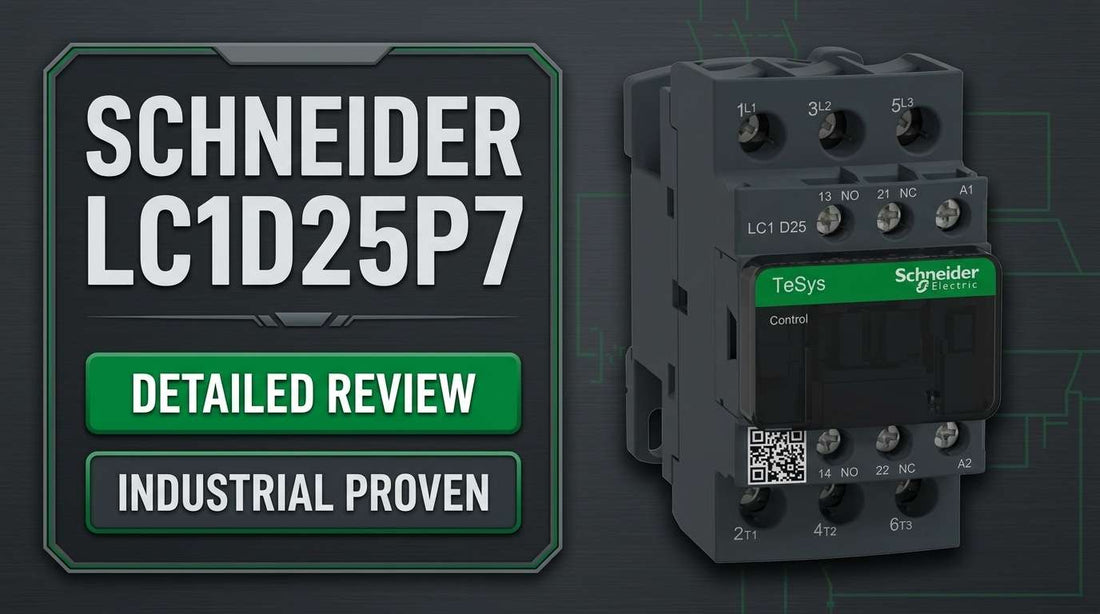

Schneider Electric LC1D25P7 TeSys Deca 3-pole non-reversing IEC contactor 230V AC coil for HVAC motor starter applications

Schneider Electric LC1D25P7 TeSys Deca 3-Pole Non-Reversing IEC Contactor: Specs, Pricing, Applications and Selection Guide

Controls engineers and HVAC technicians searching for the Schneider Electric LC1D25P7 are typically at one of two decision points: replacing a failed contactor in a running system, or specifying a proven motor starter component for a new build. Either way, the key variables are coil voltage, motor horsepower rating, and panel space — and this TeSys Deca 3-Pole Non-Reversing IEC Contactor answers all three with a 230V AC 50/60Hz coil, a 25A AC-3 rating supporting up to 15HP at 480V, and a 45mm compact form factor that fits in even the tightest HVAC enclosures.

If you have already confirmed this is the correct part for your system, check current pricing and availability for the LC1D25P7 at LeadTime.ca — we ship worldwide.

Who Should Buy the LC1D25P7 — and Who Shouldn't

The Schneider Electric LC1D25P7 is the right choice for motor control applications where the following conditions are all true:

  • Your control circuit operates at 230V AC 50/60Hz — the coil voltage is fixed and cannot be changed in the field
  • Your motor does not exceed 15HP at 460V or 7.5HP at 230V AC 3-phase
  • The application is non-reversing — the motor runs in one direction only
  • You need a 35mm DIN rail or direct screw-mount IEC form factor contactor
  • Multi-standard certification is required — IEC, UL, CSA, CCC, and EAC compliance are all included
  • You need built-in auxiliary contacts — this model includes 1NO+1NC mirror-certified contacts with no additional modules required

If your control circuit runs 24V DC, order the LC1D25BD instead. If your motor exceeds 15HP at 480V, the LC1D32P7 is the correct step-up. This model will not work for either of those scenarios.

On this page:

Where the LC1D25P7 Sits in a Motor Control Circuit

The LC1D25P7 is the main switching device in a motor starter circuit — the electromechanical bridge between the control signal and the three-phase power delivered to the motor. It receives a 230V AC energization signal at its coil terminals and mechanically closes three main power contacts to connect line voltage to the motor. The built-in 1NO+1NC auxiliary contacts simultaneously provide status feedback to a PLC or control panel, confirming whether the contactor is energized or open without requiring a separate auxiliary block.

Part of the TeSys Deca (TeSys D) IEC Contactor family from Schneider Electric, the LC1D25P7 holds an AC-3 rating of 25A at 690V AC for motor loads and an AC-1 rating of 40A for resistive loads. The AC-3 rating is the relevant figure for all motor duty applications — never size a motor starter contactor on the AC-1 figure alone.

Typical System Architecture for HVAC and Pump Motor Starters

The LC1D25P7 sits between the upstream protection device and the motor, controlled by a low-energy signal from a thermostat, BAS controller, or PLC output. A typical deployment chain looks like this:

  • Upstream: 3-phase switchboard or MCC with 480VAC 60A circuit breaker or Class J/CC fuse providing 85kA or 100kA SCCR coordination
  • Protection: LRD thermal overload relay (ordered separately, mounts on same base as the LC1D25P7) providing motor overcurrent protection
  • Switching: LC1D25P7 contactor energized by 230V AC control signal from thermostat, building automation system, or control relay
  • Feedback: Built-in 1NO+1NC auxiliary contacts wired back to PLC input card or control panel indicator for motor run/fault status
  • Load: 3-phase motor — compressor, supply fan, booster pump — up to 15HP at 480V AC

Typical Applications for the LC1D25P7 Contactor

The LC1D25P7 is most commonly found in commercial HVAC systems where 15HP at 480V represents the standard compressor or fan motor size. Rooftop unit compressor motor starters, supply and return fan control circuits, and chiller compressor staging are all primary deployment scenarios. The 3600 operating cycles per hour rating and 60°C ambient temperature limit make this contactor a natural fit for HVAC applications with frequent on-off cycling driven by multi-stage thermostat control or VAV box sequencing.

In fluid systems, the LC1D25P7 handles booster pump motor starters in high-rise buildings, cooling tower pump circuits, and pressure tank fill compressor control. These applications share the same demand for reliable high-cycle switching, mission-critical uptime, and compact panel integration.

Light industrial applications — packaging equipment, conveyor drives, and air handling unit fan motors — round out the deployment envelope wherever a non-reversing 25A AC-3 contactor with 230V AC coil is the right specification.

Application Typical Deployment
Rooftop HVAC compressor starter 15HP refrigeration compressor at 480V, multi-stage chiller panel
Supply and return fan motor control Cascaded contactors for multi-stage HVAC fan sequencing
High-rise booster pump circuit Redundant contactor circuit for mission-critical water pressure
Chiller compressor cascade Multiple LC1D25P7 units staged for partial-load compressor control
Conveyor or packaging line motor starter Non-reversing motor control in light industrial enclosure
Retrofit HVAC panel rebuild Direct replacement for failed LC1D25P7 — identical footprint and wiring

LC1D25P7 Electrical Specifications and Horsepower Ratings

Parameter Value
Catalog Number LC1D25P7
Product Family TeSys Deca (TeSys D) IEC Contactor
Poles (Main Power) 3 poles, all normally open
AC-3 Rating 25A at 690V AC (motor load category)
AC-1 Rating 40A (resistive loads only — do not use for motors)
Coil Voltage 230V AC 50/60Hz — fixed, not selectable
Auxiliary Contacts 1NO + 1NC built-in, mirror-certified per IEC 60947-4-1
Terminal Type Screw clamp — power 1–10 mm², control 1–4 mm²
Mounting 35mm DIN rail or screw-fixed — 45mm width
SCCR 85kA at 480VAC with 60A circuit breaker; 100kA at 600VAC with Class J or CC fuse

Full technical specifications are available on the product page at LeadTime.ca.

The horsepower ratings across common North American voltages are critical for correct motor matching:

Voltage (3-Phase) Horsepower Rating Typical Application
200–208V AC 7.5 HP Smaller HVAC units, reduced-voltage circuits
240V AC 7.5 HP Industrial and light commercial motors
460V AC 15 HP HVAC compressor and supply fan motors — primary North American rating
480V AC 15 HP Chiller compressor and centrifugal fan duty
600V AC 20 HP High-voltage industrial applications

LC1D25P7 vs. Coil Voltage Variants and the Next Size Up

The most common ordering errors with the LC1D25P7 come from coil voltage confusion and motor horsepower underestimation. The table below maps the key variants to help you confirm you are ordering the right model.

Model AC-3 Rating Coil Voltage Auxiliary Contacts When to Choose This Model
LC1D25P7 25A 230V AC 50/60Hz 1NO + 1NC built-in Standard HVAC and light industrial motor control with 230V AC control circuit
LC1D25BD 25A 24V DC 1NO + 1NC built-in 24V DC control circuits — PLC-direct output switching; not interchangeable with LC1D25P7
LC1D25FD 25A 110V AC 1NO + 1NC built-in 110V AC control systems — separate model, not a field modification of LC1D25P7
LC1D32P7 32A 230V AC 50/60Hz 1NO + 1NC built-in Motors exceeding 15HP at 480V or requiring 32A AC-3 rating — do not upsize unnecessarily

If your motor nameplate exceeds 15HP at 480V, the LC1D32P7 is the correct next step — check current availability of LC1D25P7 and related variants at LeadTime.ca to confirm you have the right model before ordering.

Expert Verdict: Is the LC1D25P7 Right for Your Project?

The Schneider Electric LC1D25P7 earns its place as a go-to non-reversing motor contactor for commercial HVAC, pump control, and light industrial applications because it solves three real problems simultaneously: panel space, auxiliary contact wiring, and global certification compliance. The 45mm form factor delivers significantly higher panel density compared to older 100mm-class contactors — a measurable advantage in retrofit HVAC projects where the enclosure footprint cannot be changed. The built-in 1NO+1NC mirror-certified auxiliary contacts eliminate the cost and connection risk of plug-on add-on modules. And the combination of IEC 60947-4-1, UL, CSA, CCC, EAC, and marine-duty certifications means the same part number works in a Toronto chiller plant, a Gulf region petrochemical facility, or a shipboard application without re-specification. Rated at 3600 operating cycles per hour and continuous operation to 60°C, the LC1D25P7 handles the thermal and mechanical demands of multi-stage HVAC systems without derating.

There are real limits to be honest about. The 230V AC coil is fixed — if your facility's control circuit runs 24V DC, this contactor will not energize, and the LC1D25BD is the correct model. If your motor exceeds 15HP at 480V or 7.5HP at 230V, the LC1D25P7 contacts will be undersized for the load and the LC1D32P7 is the right step up. The LC1D25P7 is also strictly non-reversing — if your application requires forward-reverse motor control, you need a reversing contactor pair with a mechanical interlock kit ordered as a separate assembly. Organizations already standardized on ABB or Siemens platforms will find equivalent contactor options within those families and should weigh standardization continuity before switching to the Schneider TeSys D platform.

For procurement, the LC1D25P7 is a widely stocked part in North America with typical lead times of one to five business days through authorized distributors in major markets. Emergency replacement scenarios — where a failed contactor has taken down a chiller or HVAC compressor — are exactly the situation where sourcing through a specialist distributor rather than a generic online channel matters. The cost of facility downtime far exceeds the cost of the contactor itself, and the pre-sale engineering check a specialist distributor provides (confirming coil voltage, horsepower match, and SCCR coordination against your specific system) prevents the costly scenario of receiving the wrong SKU. View current pricing and stock status for the LC1D25P7 at LeadTime.ca — we ship worldwide.

For volume pricing, emergency lead-time confirmation, or application engineering support before committing to a build, contact the LeadTime.ca team directly — we ship worldwide and can confirm stock availability across major markets.

What Engineers Need to Know Before Ordering the LC1D25P7

Unlike widely discussed PLCs or VFDs, the LC1D25P7 generates very little public forum traffic — not because it is obscure, but because it is a mature, reliable component that HVAC technicians and controls engineers treat as a commodity once the correct coil voltage and horsepower rating are confirmed. The absence of recurring complaint threads or troubleshooting disasters in the field is itself a meaningful signal: this is a product that, when specified correctly, simply works.

That said, the cases where ordering goes wrong follow a consistent pattern, and they are entirely preventable. The single most common error is ordering the LC1D25P7 for a system whose control circuit runs 24V DC. The 230V AC coil is not adjustable and cannot be rewired — when the wrong coil voltage is applied, the contactor either fails to energize or the coil burns out. The fix requires a complete replacement order, a delay that is entirely avoidable if the control circuit voltage is verified against the contactor nameplate before ordering. When LeadTime.ca's team receives a quote request for the LC1D25P7, this is the first question asked — and it prevents a significant share of incorrect shipments.

A second area where specialist advice adds real value is SCCR coordination. The LC1D25P7 achieves 85kA when protected by a 480VAC 60A circuit breaker, and 100kA when used with 600VAC Class J or CC fuses. These are not interchangeable — the upstream protection device determines which SCCR figure applies, and specifying the wrong combination means the panel may not meet the switchboard's coordination requirements. If you are unsure which upstream device applies in your installation, that is worth a five-minute conversation with a distributor application engineer before the purchase order is placed, not after the panel fails inspection.

LC1D25P7 Wiring and Installation Overview

The following covers the key requirements and configurations for installing the LC1D25P7. For full wiring procedures, refer to the Schneider Electric installation instruction sheet supplied with the unit.

  • Three-phase power input (L1, L2, L3) connects to the main contactor input terminals; motor leads (U, V, W) connect to the output terminals — use 1–10 mm² stranded cable with ferrules matched to the screw clamp terminal pin gap
  • Coil terminals A1 and A2 accept the 230V AC control supply — this must be 230V AC 50/60Hz; applying any other voltage will prevent energization or damage the coil
  • The 1NO+1NC auxiliary contacts connect to a PLC input card or control panel indicator using 1–4 mm² cable; shielded twisted pair is recommended in electrically noisy environments
  • DIN rail mounting requires a standard 35mm rail; screw-fixed mounting uses the integral mounting flanges — both methods are supported without additional hardware
  • Before energizing, verify all terminal connections are secure, the motor nameplate rating does not exceed the LC1D25P7 horsepower limit, and the upstream protection device matches the required SCCR coordination for the panel

Compatible Accessories and Expansion Modules

The LC1D25P7 supports a range of Schneider Electric accessories that expand functionality without requiring a different base contactor. These are ordered separately and mounted directly on or alongside the contactor.

  • LADN front-mounted auxiliary contact modules — add up to 8 additional auxiliary contacts for complex control feedback requirements
  • LADN side-mounted auxiliary modules — alternative orientation for panels where front access is restricted
  • LRD thermal overload relay — mounts on the same contactor base, provides motor overcurrent protection; required for a complete motor starter; ordered separately
  • Mechanical interlock kit — applicable for reversing contactor pair configurations (not applicable to the LC1D25P7 used alone as a non-reversing starter)

Wrong-Part Prevention Checklist Before Ordering the LC1D25P7

Run through every item on this checklist before placing your order. Coil voltage mismatches and motor horsepower overruns are the two most common and most costly ordering errors for this model.

  1. Verify coil voltage = 230V AC 50/60Hz. If control circuit is 24V DC, this is the wrong model.
  2. Verify motor horsepower does not exceed 15HP at 460V or 7.5HP at 230V. Oversized motors require LC1D32 or higher.
  3. Confirm application is non-reversing (motor runs forward only). If forward-reverse required, order reversing contactor pair instead.
  4. Check if auxiliary contacts are needed. This model includes 1NO+1NC built-in — no extra modules required.
  5. Verify mounting method: DIN rail mount or screw-fixed. The standard LC1D25P7 supports both.
  6. Confirm no add-ons are required during ordering. LADN front/side auxiliaries and LRD overloads are optional but ordered separately.
  7. Do not order this for immediate emergency use if stock is limited — lead time may apply; verify distributor availability.
  8. Check SCCR rating requirement. This model achieves 85kA with 480VAC 60A circuit breaker or 100kA with 600VAC fuses — confirm your switchboard compatibility.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — confirming the right model now prevents a costly system outage later.

Frequently Asked Questions

Can I use the LC1D25P7 if my control circuit is 24V DC?

No. The coil voltage on the LC1D25P7 is fixed at 230V AC 50/60Hz and cannot be modified in the field. Applying 24V DC to this coil will result in a contactor that does not energize — or coil damage if the wrong voltage is held across it. For 24V DC control circuits, the correct model is the LC1D25BD. Verify the control circuit voltage on your existing contactor nameplate or control schema before ordering.

What is the difference between the AC-3 and AC-1 ratings, and which applies to my motor?

AC-3 is the motor load category — it accounts for the inrush current at startup and the breaking of current under running load conditions. The LC1D25P7 is rated 25A AC-3, and this is the figure to use when sizing for motor applications. AC-1 (40A on this model) applies to resistive or non-motor loads only. Always size a motor starter contactor on the AC-3 rating; using the AC-1 figure for a motor application will result in a contactor that is undersized for the actual switching duty.

Does the LC1D25P7 include overload protection, or do I need to order a separate relay?

The LC1D25P7 does not include thermal overload protection. It is a switching device only. For a complete motor starter, an LRD thermal overload relay must be ordered separately — it mounts directly on the same contactor base. The built-in 1NO+1NC auxiliary contacts provide status feedback but do not provide overcurrent protection for the motor.

What SCCR rating does the LC1D25P7 achieve, and does it depend on the upstream protection device?

Yes — the SCCR figure is determined by the upstream protective device, not the contactor alone. The LC1D25P7 achieves 85kA when used with a 480VAC 60A circuit breaker, and 100kA when used with 600VAC Class J or CC fuses. Specifying the wrong upstream device means the panel's effective SCCR will not match the switchboard coordination requirement. Confirm which upstream device is installed before citing an SCCR figure in your panel documentation.

Is the LC1D25P7 a direct drop-in replacement for an existing failed unit with the same catalog number?

Yes, provided the catalog number on the failed unit's nameplate is an exact match: LC1D25P7. Verify the coil voltage printed on the failed unit reads 230V AC 50/60Hz, and confirm the motor horsepower has not changed since the original installation. The 45mm form factor and screw clamp terminal arrangement are consistent within the TeSys Deca series, making it a reliable direct replacement without panel rework.

Are the certifications on the LC1D25P7 sufficient for both Canadian and international installations?

The LC1D25P7 holds IEC 60947-4-1, UL, CSA, CCC, EAC, and marine-duty certifications. CSA approval covers Canadian electrical installation requirements, and UL listing covers the United States. IEC 60947-4-1 is the international motor control standard accepted across European and many global markets. CCC applies if the equipment is sold into China, and EAC covers Russia, Belarus, and Kazakhstan. This breadth of certification is rare in the 25A contactor segment and eliminates the need for re-certification when deploying across multiple geographic markets.

Why Order the LC1D25P7 Through LeadTime.ca

  • Stock availability for emergency replacement scenarios — failed HVAC contactors cannot wait for multi-week overseas shipments
  • Pre-sale application engineering check — coil voltage, horsepower match, and SCCR coordination confirmed against your specific system before the order ships
  • Global shipping — LeadTime.ca ships worldwide, not only within Canada
  • Volume pricing available for facility-wide standardization orders — contact for tiered pricing on 10 or more units
  • Authorized Schneider Electric distributor — warranty clarity and local technical support if commissioning questions arise

LC1D25P7 At-a-Glance Summary

  • Catalog number: LC1D25P7 — TeSys Deca 3-Pole Non-Reversing IEC Contactor from Schneider Electric
  • AC-3 rating: 25A at 690V AC — the figure that governs motor starter sizing
  • Coil voltage: 230V AC 50/60Hz — fixed, not field-adjustable; wrong coil voltage is the leading cause of incorrect orders
  • Motor horsepower limits: 7.5HP at 200–240V AC, 15HP at 460–480V AC, 20HP at 600V AC
  • Auxiliary contacts: 1NO + 1NC built-in, mirror-certified per IEC 60947-4-1 — no add-on modules required
  • Form factor: 45mm width — DIN rail or screw-fixed mounting on standard 35mm rail
  • Operating cycle rate: up to 3600 cycles per hour at up to 60°C ambient continuous
  • SCCR: 85kA with 480VAC 60A circuit breaker; 100kA with 600VAC Class J or CC fuse
  • Certifications: IEC 60947-4-1, UL, CSA, CCC, EAC, IEC 60335-1 Clause 30.2 fire resistancy, IEC/EN/UL 60335-2-40 Annex JJ refrigerant compatibility, marine duty
  • Key alternatives: LC1D25BD (24V DC coil), LC1D25FD (110V AC coil), LC1D32P7 (32A AC-3 for larger motors)
  • Pricing: available on the product page at LeadTime.ca
