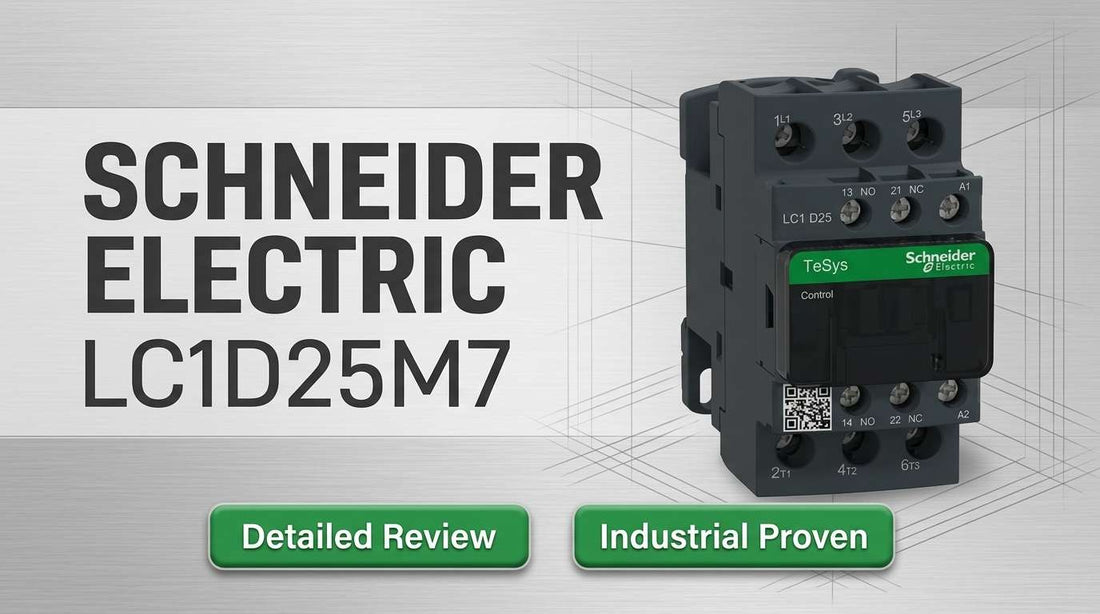

Schneider Electric LC1D25M7 TeSys Deca 25A 3-pole IEC contactor for 3-phase motor control applications

Schneider Electric LC1D25M7 IEC Contactor, TeSys Deca, Nonreversing, 25A, 15HP at 480VAC, 3 Phase 3 NO, 220VAC 50/60Hz Coil — Specs, Pricing, and Buyer Review

When a 25A 3-phase motor contactor fails or a panel design lands on your desk requiring IEC-compliant motor switching at 440V, the Schneider Electric LC1D25M7 is typically the part that comes up first. It is a 3-pole nonreversing electromechanical contactor in the TeSys Deca family, rated for 25A continuous duty at 440V AC-3 and operated by a 220V AC 50/60Hz control coil. With a built-in 1NO+1NC auxiliary contact pair and a 45mm DIN-rail profile, it is a compact and well-specified unit for mid-range industrial motor control. The decision usually comes down to three variables: rated current against motor FLA, coil voltage against your control transformer output, and whether reversing duty is required. This review addresses all three directly.

If you have already confirmed this is the correct part, check current pricing and availability for the LC1D25M7 at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D25M7 — and Who Should Not

The LC1D25M7 is the right choice when all of the following apply to your application:

  • Motor full-load amps (FLA) do not exceed 25A at AC-3 duty — squirrel-cage induction motor starting
  • Motor HP falls within rated points: 15 HP at 460/480V 3-phase, 7.5 HP at 230/240V 3-phase, or 20 HP at 575/600V 3-phase
  • Control circuit operates at 220V AC 50/60Hz and is regulated within 0.85–1.1 Uc (187–242V)
  • Nonreversing operation is sufficient — no bidirectional motor control required
  • Panel uses DIN rail mounting with screw clamp terminals accepting 1–4mm² flexible wire
  • Built-in 1NO+1NC auxiliary contacts satisfy interlock and feedback circuit requirements without additional contact blocks

If motor reversing is required, the LC1D25BL is the correct alternative. If your control supply is fixed at 120V AC or 24V DC, a different coil voltage variant must be specified. If motor FLA exceeds 25A at AC-3 or 40A at AC-1, step up to the LC1D32M7 or a larger model in the same family.

On this page:

What the LC1D25M7 Does in a Motor Control System

The LC1D25M7 functions as the remotely-controlled power switch between the motor branch circuit and the 3-phase AC induction motor load. When the 220V AC coil receives its control signal — from a PLC output, relay, or push-button circuit — the contactor closes its three main poles and completes the power path to the motor. When the coil de-energizes, the poles open and the motor is disconnected. Contact closing time runs 12–22ms; opening time runs 4–19ms, giving the unit fast enough response for virtually all conventional motor-start duty cycles.

The built-in 1NO+1NC auxiliary contacts provide the feedback and interlock signals most motor starter circuits require without adding a separate contact block. The 220V AC coil draws 70 VA inrush at 50 or 60Hz and holds at just 7 VA (50Hz) or 7.5 VA (60Hz), keeping control transformer loading manageable even in panels with multiple contactors. The mechanical life rating of 15 million operating cycles — translating to roughly 5–10 years of typical factory or processing plant duty at 500–1000 cycles per day — supports long-term deployment without planned replacement on a short horizon.

The LC1D25M7 conforms to IEC 60947-4-1 for industrial low-voltage contactors and carries both CSA and UL certification, making it compliant across North American and international markets without design rework. The insulation voltage of 690V per IEC 60947-4-1 allows the unit to be deployed across a range of supply voltages within its rated power circuit envelope.

Typical System Architecture for Motor Starter Applications

The LC1D25M7 sits between the motor branch circuit protection and the motor terminals in a direct-on-line starter assembly. Understanding its position in the signal and power chain helps during panel design and commissioning.

  • PLC digital output or hardwired control relay energizes the 220V AC coil at terminals A1/A2, initiating contactor pull-in
  • Upstream motor branch circuit breaker or fusible disconnect provides short-circuit protection — the LC1D25M7 is rated up to 100 kA SCCR when coordinated with appropriate protective devices
  • Main power terminals (L1/L2/L3 input, T1/T2/T3 output) carry 3-phase supply voltage directly to the motor
  • Built-in auxiliary contacts (13-14 NO, 21-22 NC) feed feedback signals back to the PLC or interlock circuit confirming contactor state
  • Overload relay (typically mounted directly below or beside the contactor on DIN rail) provides thermal protection downstream of the LC1D25M7 main contacts before the motor terminals

Where the LC1D25M7 Gets Installed

Pump motor control accounts for a large share of LC1D25M7 deployments. Irrigation systems, municipal water supply, process cooling loops, and wastewater lift stations commonly use 15 HP or smaller 3-phase pump motors operating at 460/480V — precisely the rated duty point for this contactor. The unit handles medium-duty cycling up to 3600 cycles per hour at 60°C, which covers nearly all pump start-stop profiles.

HVAC applications represent another primary deployment area. Large rooftop packaged units, chiller compressor circuits, and cooling tower fan motors in the 10–15 HP range at 460/480V 3-phase are well within the LC1D25M7 operating envelope. The compact 45mm DIN rail width simplifies layout in HVAC control panels where space is constrained.

Industrial fan and blower control — dust collection systems, ventilation arrays, and cooling towers — uses contactors in this current class extensively. Food and beverage processing facilities, cold storage compressor panels, agricultural pumping stations, and mining equipment primary motor circuits also represent confirmed application categories for this product family.

Maintenance retrofit is a significant use case on its own. The TeSys Deca series is widely deployed across North American industrial facilities, meaning the LC1D25M7 is often the exact replacement needed when a legacy panel contactor fails and production uptime depends on rapid sourcing.

Application Typical Deployment
Municipal water pump control Direct-on-line starter, 15 HP at 480V 3-phase, panel-mounted with overload relay
HVAC chiller compressor switching Large rooftop or chiller panel, 220V AC control circuit, PLC-controlled start-stop
Industrial cooling tower fan Ventilation panel, DIN rail assembly, interlock via built-in NC contact
Cold storage compressor contactor Refrigeration MCC, 3-phase 480V supply, 220V AC control transformer fed coil
Agricultural irrigation pump Outdoor enclosure panel, 15 HP 3-phase motor, manual or automated start control
Legacy TeSys D panel retrofit Direct mechanical and electrical replacement for failed contactor in existing panel

Key Electrical and Physical Specifications

Parameter Specification
Rated Current — AC-3 at 440V 25 A
Rated Current — AC-1 at 440V 40 A
Motor Rating — 460/480V 3-phase 15 HP
Motor Rating — 575/600V 3-phase 20 HP
Coil Voltage 220V AC, 50/60Hz
Operating Voltage Tolerance 0.85–1.1 Uc at -40 to +60°C (60Hz); 1.0–1.1 Uc at +60 to +70°C
Mechanical Life 15 million cycles
Electrical Life (AC-3 at 25A) 1.65 million cycles
Dimensions (H × W × D) 85 mm × 45 mm × 92 mm
Operating Temperature Range -40°C to +70°C

Full technical specifications are available on the product page at LeadTime.ca.

Motor Power Ratings by Voltage and Phase

Voltage (V) Phase Motor Power (HP)
115 VAC 1-phase 2 HP
230/240 VAC 1-phase 3 HP
200/208 VAC 3-phase 7.5 HP
230/240 VAC 3-phase 7.5 HP
460/480 VAC 3-phase 15 HP
575/600 VAC 3-phase 20 HP

LC1D25M7 vs. LC1D18M7, LC1D32M7, and LC1D25BL — Which Model Do You Need?

Model Rated Current (AC-3 at 440V) Motor HP at 480V Coil Voltage Options Reversing Typical Application
LC1D18M7 18 A 10 HP 220V AC and others No Lighter loads, smaller 3-phase motors, space-constrained panels
LC1D25M7 25 A 15 HP 220V AC and others No Mid-range 3-phase motor control, HVAC, pumps, fans
LC1D32M7 32 A 20 HP 220V AC and others No Larger motors, higher inrush loads, step-up from 25A applications
LC1D25BL 25 A 15 HP 220V AC and others Yes Reversing motor duty — pump reversal, conveyor direction change

If your motor FLA exceeds 25A at AC-3 duty, the LC1D32M7 is the next step up without changing your panel DIN rail layout significantly. If the application calls for bidirectional motor control, do not attempt to wire two LC1D25M7 units as a reversing pair without confirmed mechanical and electrical interlocking — the LC1D25BL is configured specifically for reversing duty. Check current availability for the LC1D25M7 and related models at LeadTime.ca.

Expert Verdict: Is the LC1D25M7 the Right Contactor for Your Build?

The LC1D25M7 earns its position as the standard 25A workhorse for mid-range 3-phase motor control because it checks all the practical boxes without over-specifying the job. The IEC 60947-4-1 compliance and dual CSA/UL certification mean it satisfies North American code requirements while remaining interchangeable with IEC-spec systems globally. The compact 45mm DIN rail footprint — allowing roughly three units per 135mm of linear rail space — and the integrated 1NO+1NC auxiliary contacts directly reduce panel component count and wiring complexity. At 15 million mechanical cycles and 1.65 million electrical cycles at rated AC-3 load, the unit is sized for a credible service life in continuous industrial duty. This is the correct contactor for controls engineers specifying IEC-compliant motor starters for new panels, maintenance technicians replacing failed units in existing TeSys Deca systems, panel builders working on HVAC, water treatment, or food processing applications, and integrators building machines that must meet both North American and international compliance simultaneously.

There are real limits worth stating plainly. The LC1D25M7 is a nonreversing contactor — the LC1D25BL is required if the motor must change direction. The 220V AC coil is not universal: facilities with 24V DC or 120V AC control circuits need a different coil variant, and specifying the wrong coil is the most common ordering mistake in this product class. The AC-3 duty rating applies specifically to squirrel-cage induction motor starting; resistive or AC-1 loads are rated separately at 40A, so the application load type must be confirmed before purchase. For loads exceeding 25A at AC-3 or 40A at AC-1, move to the LC1D32M7 or a higher-rated model rather than stretching this unit to its limits.

From a procurement standpoint, the LC1D25M7 is generally available through authorized distributors with stock levels that support both planned builds and emergency replacements. Lead times for standard stock variants are typically measured in days to a few weeks; special coil voltage variants may extend that window. Ordering through a specialist industrial distributor rather than a general online retailer provides pre-sale coil voltage verification, application fit confirmation, and access to expedited fulfillment when downtime is the real cost driver. View current pricing and stock status for the LC1D25M7 at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D25M7

Because public forum discussion specific to the LC1D25M7 is limited — this is characteristic of industrial contactor products generally, where buying decisions happen inside engineering teams rather than on public platforms — the most useful pre-order guidance comes directly from the technical record and from the ordering mistakes that show up consistently when engineers specify this class of component.

The coil voltage issue is the single most frequent source of incorrect orders in this product family. The LC1D25M7 carries a 220V AC 50/60Hz coil. That is not the same as 208V, 230V, or 240V nominal in a loosely regulated control circuit, and it is not interchangeable with the 120V AC or 24V DC variants available in the same series. The operating tolerance is 0.85–1.1 Uc, which translates to a permissible range of 187–242V at the coil terminals. Engineers who do not measure their control transformer output before ordering — or who assume a 208V or 240V circuit is close enough — risk a contactor that either will not pull in reliably or that runs its coil outside rated tolerance and degrades faster than the 15-million-cycle mechanical life rating would suggest. Measure the transformer secondary with a multimeter before the order is placed, not after the part arrives.

The AC-1 versus AC-3 duty distinction is the second area where engineers, particularly those newer to IEC contactor standards, can go wrong. The LC1D25M7 is rated 40A at AC-1 (resistive, non-inductive loads) and 25A at AC-3 (squirrel-cage induction motor starting). If a buyer sees the 40A AC-1 figure and concludes the contactor is adequate for a 30A motor FLA application, the unit will be undersized for motor starting duty. Every induction motor application should be evaluated against the AC-3 rating, not AC-1. When in doubt, default to AC-3 for any induction motor load and confirm the motor nameplate FLA does not exceed 25A. The LeadTime.ca team can assist in confirming application fit before fulfillment — particularly useful when the application specifics are borderline or when replacing a contactor whose original duty class specification has been lost from the panel documentation.

Wiring and Installation Overview

  • Mount the LC1D25M7 vertically on DIN rail using the integrated mounting clips; the unit accepts screw clamp terminals for 1–4mm² flexible wire on both control and power circuits — no cable end ferrule is required
  • Connect the 220V AC control supply to coil terminals A1 and A2; verify the supply is regulated within 187–242V AC before energizing — voltages below 187V prevent pull-in; voltages above 242V accelerate coil wear
  • Connect the 3-phase power supply to main input terminals L1, L2, L3 and the motor load to output terminals T1, T2, T3; confirm wire gauge matches circuit breaker coordination and motor FLA requirements
  • Wire the built-in auxiliary contacts as needed: terminals 13–14 for the NO contact (run feedback or interlock signal) and terminals 21–22 for the NC contact (fault interlock or stop circuit); if additional contact combinations are required beyond 1NO+1NC, add an external auxiliary contact block
  • Apply power only after completing lockout/tagout clearance; test coil pull-in by listening for audible contact closure and verify auxiliary contacts switch state as expected using a multimeter before connecting the motor load

Wrong-Part Prevention Checklist

Run through this checklist before finalizing any LC1D25M7 order. These are the parameters that drive the majority of incorrect part incidents for this contactor class.

  1. Verify motor full-load amps (FLA) does not exceed 25A - check motor nameplate
  2. Confirm control transformer primary/secondary voltage matches 220V AC requirement
  3. Check motor voltage matches one of the rated duty points (480V 3-ph, 240V 3-ph, 240V 1-ph, 575V 3-ph, 200V 3-ph, 115V 1-ph)
  4. Confirm AC-3 duty class is appropriate (AC-3 = squirrel-cage motors starting duty; AC-1 = resistive loads)
  5. Verify DIN rail or screw terminal mounting matches panel design (this model: screw clamp 1-4mm² wire)
  6. Confirm nonreversing operation required (no reversing needed - if reversing needed, use LC1D25BL)
  7. Check mechanical cycle life requirement (15M cycles stated - confirm adequate for application)

If any item on this checklist raises a question before you finalize the order, contact the LeadTime.ca team for pre-sale application verification — or go directly to the LC1D25M7 product page to confirm availability.

Frequently Asked Questions

What is the maximum motor horsepower I can control with the LC1D25M7, and does it change by voltage?

Yes, the HP rating is voltage-specific. At 460/480V 3-phase, the LC1D25M7 is rated for 15 HP. At 575/600V 3-phase, the rating increases to 20 HP. At 230/240V 3-phase or 200/208V 3-phase, the rating is 7.5 HP. For single-phase applications, the rating is 3 HP at 230/240V and 2 HP at 115V. Always cross-reference motor nameplate voltage and FLA against these points — do not rely on HP alone without confirming the supply voltage matches a rated duty point.

My control panel runs at 120V AC, not 220V. Can I use the LC1D25M7 coil as-is?

No. The LC1D25M7 is specifically the 220V AC 50/60Hz coil variant. Operating it on a 120V AC supply will result in insufficient coil pull-in force and the contactor will not close reliably. A different coil voltage variant in the TeSys Deca family is available for 120V AC control circuits — the model suffix changes to reflect the coil voltage. Verify the replacement model number with your distributor before ordering to ensure the coil matches your control transformer secondary exactly.

The built-in auxiliary contacts are 1NO+1NC. What do I do if my interlock circuit needs two NO contacts?

The built-in contacts cannot be reconfigured — they are fixed at 1NO+1NC on the LC1D25M7. If your circuit requires additional contact combinations, such as two NO contacts or a second NC contact, an external auxiliary contact block must be added to the contactor. These snap-on blocks are available as accessories in the TeSys Deca series. Verify your interlock logic during the design phase rather than after the panel is built.

How do I confirm my control transformer output is within the acceptable range for the LC1D25M7 coil?

Measure the transformer secondary output with a true-RMS multimeter under load conditions (not open-circuit, as transformer voltage can rise 5–10% off-load). The acceptable operating range for the 220V AC coil is 0.85–1.1 Uc at -40 to +60°C (60Hz), which corresponds to 187–242V AC. If the measured voltage falls below 187V, the contactor will not pull in reliably. If it exceeds 242V, coil wear accelerates. At temperatures between +60°C and +70°C, the tolerance tightens to 1.0–1.1 Uc, so thermal management of the control circuit becomes relevant in hot enclosures.

Is the LC1D25M7 a direct drop-in replacement for an older TeSys D contactor of the same current rating?

In most cases, yes — the TeSys Deca series maintains physical and electrical compatibility with earlier TeSys D models at equivalent current ratings and coil voltages. The DIN rail mounting, screw clamp terminal type accepting 1–4mm² flexible wire, and auxiliary contact terminal numbering (13-14 NO, 21-22 NC) are consistent across the family. Verify the coil voltage suffix on the outgoing unit before ordering the replacement, and confirm that main terminal wire gauges used in the existing installation fall within the 1–4mm² screw clamp range of the LC1D25M7.

What is the short-circuit current rating (SCCR) of the LC1D25M7, and what upstream protection does it require?

The LC1D25M7 is rated up to 100 kA SCCR when coordinated with appropriate upstream protective devices — typically a motor branch circuit breaker or fusible disconnect selected and coordinated per IEC 60947-4-1 requirements. The contactor itself does not provide short-circuit protection; that function must be performed by the upstream device. Confirm coordination with your protective device manufacturer's tables to validate the 100 kA SCCR claim for your specific installation configuration.

Why Order From LeadTime.ca

  • LeadTime.ca ships worldwide — the LC1D25M7 is available to buyers globally, not limited to any single country or region
  • Specialist industrial focus means pre-sale coil voltage and application verification is available before fulfillment — reducing wrong-part returns
  • Hard-to-source or time-critical parts can be expedited through distributor networks when production downtime is the cost driver
  • Volume pricing is available for panel builders and OEMs ordering multiple units — contact the team directly for current pricing on quantities of 10 or more
  • Current pricing is live on the product page; contact the team for lead time confirmation before committing to a build schedule

LC1D25M7 At-a-Glance Summary

  • 3-pole nonreversing IEC contactor, TeSys Deca family, rated 25A at 440V AC-3 duty
  • Motor ratings: 15 HP at 460/480V 3-phase, 20 HP at 575/600V 3-phase, 7.5 HP at 230/240V and 200/208V 3-phase
  • Coil voltage: 220V AC 50/60Hz — operating tolerance 187–242V AC at -40 to +60°C (60Hz)
  • Built-in auxiliary contacts: 1NO (terminals 13-14) + 1NC (terminals 21-22)
  • Mechanical life: 15 million cycles; electrical life at AC-3 rated load: 1.65 million cycles
  • Maximum operating rate: 3600 cycles per hour at 60°C
  • Contact closing time: 12–22ms; contact opening time: 4–19ms
  • Short-circuit current rating: up to 100 kA SCCR with coordinated upstream protection
  • Dimensions: 85mm H × 45mm W × 92mm D; DIN rail mount; IP20 protection class
  • Operating temperature: -40°C to +70°C; altitude rated to 3000 m
  • Certifications: IEC 60947-4-1, CSA, UL — dual-market compliant
  • Wrong-part risk: coil voltage mismatch (220V vs. 120V or 24V DC) and reversing/nonreversing confusion are the two most common ordering errors
