Schneider LC1D25F7 — 25A IEC Contactor Replacement Guide

By Abdullah Zahid
16 min read

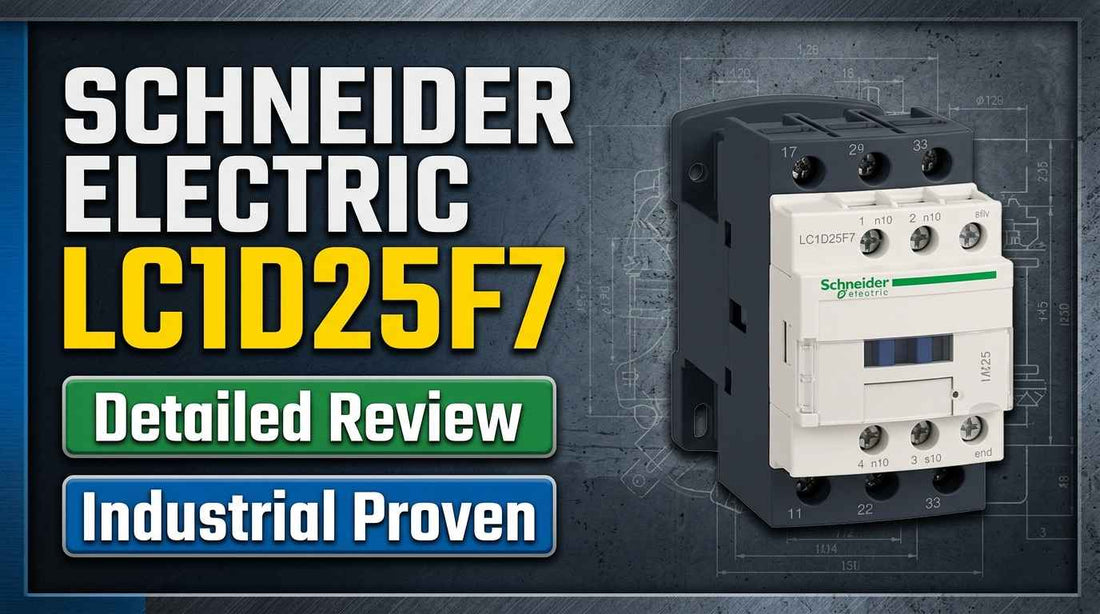

Schneider LC1D25F7 TeSys Deca 25A 3-pole IEC contactor 110VAC coil for industrial motor control panels

Schneider LC1D25F7 IEC Contactor, TeSys Deca, Nonreversing, 25A, 3-Pole, 110VAC 50/60Hz Coil: Specifications, Wiring Overview, and Buyer's Checklist

If you are searching for LC1D25F7 specs, tracking down a replacement contactor after an unexpected failure, or confirming this is the right part before committing to a build, you are in the right place. The Schneider LC1D25F7 is a three-pole, nonreversing IEC contactor from the TeSys Deca family, rated 25A AC-3 duty with a 110VAC 50/60Hz control coil and integrated 1 NO + 1 NC auxiliary contacts. It is one of the most commonly stocked contactors in North American industrial distribution — and also one of the most frequently ordered incorrectly when coil voltage or current rating is misread on the nameplate. This review covers everything you need to confirm the correct part and order with confidence.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the Schneider LC1D25F7 — and Who Shouldn't

This contactor is the right choice when all five of the following conditions are true for your application:

  • Your control circuit operates at 110VAC, 50/60Hz — not 24VDC, 230VAC, or any other control voltage.
  • Your motor's Full Load Amperes (FLA) from the nameplate is at or below 25A under AC-3 duty conditions.
  • Your motor supply voltage does not exceed 440V AC — systems running 600V or 690V require a different model.
  • Your application is nonreversing (single direction only) — forward/reverse bidirectional control is not supported.
  • One NO and one NC auxiliary contact is sufficient for your PLC feedback and interlock logic — this count cannot be expanded on this model.

If your control bus is 24VDC, order the LC1D25U7 instead. If your motor FLA exceeds 25A, step up to the LC1D32F7 (32A) or LC1D40F7 (40A). If you need reversing capability, the LC1D25FB7 reversing pair is the correct selection.

On this page:

What the Schneider LC1D25F7 Actually Does in a Motor Control Circuit

The Schneider LC1D25F7 is a switching device — its job is to receive a low-voltage 110VAC signal from a control device such as a PLC output, push-button circuit, pressure switch, or timer relay, and use that signal to energize an electromagnet coil. That coil mechanically closes three power contacts simultaneously, delivering full-voltage, full-current connection to a three-phase motor or load. When the 110VAC signal is removed, a return spring drives the contacts back to the open position, disconnecting the load. This makes the LC1D25F7 the execution layer between control logic and the physical motor it governs.

The integrated auxiliary contacts — one NO and one NC — operate in lockstep with the power contacts. The NO auxiliary closes when the contactor is energized, giving a PLC or BMS a digital confirmation that the motor circuit is active. The NC auxiliary opens when energized, which is used in hardwired permissive or interlock circuits to prevent downstream actions until the correct contactor state is confirmed. This combination is sufficient for the majority of single-motor control applications without any additional feedback relays.

Two verified performance figures are worth anchoring to before you commit to this part. First, the LC1D25F7 achieves 1.65 million electrical operations at 25A AC-3 duty at or below 440V, which is more than adequate for applications running 20 to 100 motor starts per day — the typical range for compressors, pumps, and HVAC equipment. Second, the contactor carries a Short Circuit Current Rating of up to 100kA per IEC 60947-4-1, with a breaking capacity of 450A at 440V, confirming it can safely interrupt fault-level currents without contact welding or arc damage in industrial motor circuits.

Typical System Architecture for the LC1D25F7

The LC1D25F7 sits between the control logic layer and the motor load in a standard three-phase motor control circuit. Understanding the full component chain helps verify that every upstream and downstream device is correctly specified before installation.

  • Control power source: 110VAC branch circuit or control transformer secondary output feeding coil terminals A1 and A2.
  • Control logic devices: PLC digital output, push-button station, pressure switch, or timer relay — wired in series to coil terminal A1 to gate contactor energization.
  • External branch-circuit protection: upstream circuit breaker or fused disconnect sized per IEC 60947 — the LC1D25F7 has no internal circuit breaker; protection must be provided externally.
  • LC1D25F7 contactor: receives 110VAC coil signal, closes three power contacts to connect three-phase motor supply (L1/L2/L3) to motor terminals (T1/T2/T3).
  • Downstream motor and load: three-phase motor at or below 440V AC with FLA at or below 25A; auxiliary NO contact wired to PLC input for run-state confirmation.

Where the LC1D25F7 Is Deployed: Industries and Application Types

Compressed air compressor on/off control is one of the most common deployments for the LC1D25F7. Compressor systems running load/unload logic via a pressure switch and PLC can cycle the contactor hundreds of times per day. At a maximum operating rate of 3,600 cycles per hour at 60°C ambient, this contactor handles typical compressor duty without thermal concern in normally ventilated enclosures.

HVAC rooftop units and chilled water systems rely heavily on this model. A three-phase fan motor or compressor controlled by a thermostat or building automation system energizes the LC1D25F7 coil via a 110VAC signal from the BMS controller. The NC auxiliary contact is often wired into the damper actuator or solenoid valve permissive circuit so that airflow sequencing is locked out until the motor confirms running state.

Water treatment and pump station applications use the LC1D25F7 for clarifier mixer drives and centrifugal pump motors where the contactor is enabled and disabled by timer logic or a supervisory SCADA system. In these installations the NC auxiliary contact is often placed in a hardwired permissive circuit that prevents accidental motor start during scheduled maintenance windows.

Process heating and facility automation round out the primary use cases — from heating element enable/disable circuits controlled by temperature controllers to three-phase motor control on manufacturing assembly lines feeding run-status feedback to a SCADA or MES system.

Application Typical Deployment
Compressed air compressor On/off control via pressure switch and PLC, 110VAC coil signal, frequent start-stop duty
Chilled water pump motor Contactor energized by BMS 110VAC output; NO auxiliary confirms pump running state
HVAC rooftop fan motor Three-phase motor switched by thermostat; NC auxiliary gates damper actuator permissive
Water treatment clarifier mixer Timer-logic enabled/disabled; NC auxiliary in hardwired maintenance lockout permissive
Process heating element control Temperature controller drives 110VAC coil; NO auxiliary provides safety PLC bypass signal
Manufacturing assembly line motor PLC digital output energizes coil; NO auxiliary feeds SCADA run-status input

Key Specifications That Drive the Purchase Decision

Specification Value
Rated Current (AC-3) 25A at ≤440V AC
Rated Current (AC-1) 40A at ≤440V AC (resistive loads)
Control Coil Voltage 110V AC, 50/60Hz
Power Poles 3 NO (normally open), nonreversing
Auxiliary Contacts 1 NO + 1 NC, integrated
Motor Supply Voltage Maximum ≤440V AC (power circuit); insulation voltage 690V IEC / 600V CSA-UL
SCCR Up to 100kA per IEC 60947
Breaking Capacity 450A at 440V per IEC 60947-4-1
Electrical Durability (AC-3) 1.65 million cycles at 25A
Mechanical Durability 15 million cycles (no-load); maximum operating rate 3,600 cycles/hour at 60°C
Certifications UL, CSA, BVR, INAC, GOST, DNV, LRS, CCGL

Full technical specifications are available on the product page at LeadTime.ca.

LC1D25F7 vs. LC1D32F7, LC1D40F7, and Other Variants: Which One Do You Actually Need?

Model Coil Voltage Rated Current (AC-3) Auxiliary Contacts Reversing SCCR Notes
LC1D25F7 110VAC 50/60Hz 25A at ≤440V 1 NO + 1 NC No 100kA Standard nonreversing; this model
LC1D32F7 110VAC 50/60Hz 32A at ≤440V 1 NO + 1 NC No 100kA Next step up; use when motor FLA 26–32A
LC1D40F7 110VAC 50/60Hz 40A at ≤440V 1 NO + 1 NC No 100kA For motor FLA 33–40A
LC1D25U7 24VDC 25A at ≤440V 1 NO + 1 NC No 100kA Use when control bus is 24VDC; typically lower stock
LC1D25FB7 110VAC 50/60Hz 25A at ≤440V (pair) 2 NO + 2 NC Yes (reversing pair) 100kA Required for bidirectional motor control

If your motor FLA exceeds 25A or your application requires bidirectional control, the LC1D25F7 is not the correct selection. Check current availability and variant options at LeadTime.ca to confirm the right model before ordering.

Expert Verdict: Is the LC1D25F7 the Right Contactor for Your System?

The Schneider LC1D25F7 earns its place as a standard stocking item in industrial panel shops for straightforward reasons. It covers the most common 25A motor control scenario in North American facilities: a three-phase motor at or below 440V where 110VAC control power is already present on the panel. The integrated 1 NO + 1 NC auxiliary contacts handle the vast majority of single-motor PLC interlock and feedback requirements without adding a separate feedback relay, and the 15 million cycle mechanical durability rating means the mechanical assembly will outlast most installations. The TeSys Deca form factor is mature and widely understood — technicians replacing a failed unit can usually complete the swap without consulting documentation. For controls engineers specifying new builds with a 110VAC control standard, the LC1D25F7 is a straightforward, defensible specification choice for pump stations, HVAC equipment, compressor control panels, and process machinery across a wide range of industries.

The honest limits of this model are equally important to state. The LC1D25F7 is a nonreversing contactor only — if your application requires forward/reverse motor control, you need the LC1D25FB7 reversing pair, and ordering this model by mistake costs you commissioning time and a return freight cycle. The 110VAC coil is also a hard constraint: facilities that have standardized on 24VDC control buses must order the LC1D25U7 variant, and there is no field modification available. If your motor FLA is above 25A — even marginally — the LC1D32F7 is the correct next step; undersizing a contactor on AC-3 duty accelerates contact wear and leads to premature failure under starting inrush. Finally, this model ships without a built-in coil suppressor, which is a detail that frequently causes coil burnout failures in the field when the installer overlooks inductive loads in the control circuit. Plan for an external RC or varistor suppressor at the coil terminals if your control circuit switches any inductive devices.

From a procurement standpoint, the LC1D25F7 is one of the easier parts in industrial automation to source quickly. Authorized Schneider Electric distributors stock this model at density, and market-typical lead times run one to two weeks for standard orders with same-day or next-day emergency fulfillment available through specialist stocking distributors. For volume purchasing or OEM panel builds where coil voltage or current rating needs confirmation before committing a bill of materials, ordering through a distributor who can verify the spec before the part ships is worth the five-minute conversation. View current pricing and availability for the LC1D25F7 at LeadTime.ca — we ship to buyers worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D25F7

Community feedback on the LC1D25F7 is sparse compared to more generic commodity contactors, which is itself instructive: this part tends to be specified by controls engineers and field technicians who know exactly what they need, rather than by casual buyers comparing datasheets. When ordering questions do surface in technical forums and distributor channels, they cluster around two recurring themes — coil voltage confusion and current rating ambiguity — both of which lead to costly returns and commissioning delays that could have been avoided with a five-minute pre-order review.

The coil voltage issue is the most common wrong-order scenario. The LC1D25F7 is frequently confused with the LC1D25U7 (24VDC coil) in facilities that have mixed control standards — some panels running legacy 110VAC control transformers and newer panels standardized on 24VDC PLC output cards. Technicians replacing a failed contactor in a mixed-standard facility sometimes read the motor nameplate voltage rather than the coil terminal voltage when specifying the replacement, resulting in an immediate coil burnout on first energization. The fix is simple: always read coil voltage from the original contactor's A1/A2 terminal markings or the panel control drawing, not the motor nameplate.

Current rating ambiguity arises because the LC1D25F7 carries a 25A AC-3 rating and a 40A AC-1 rating, and buyers who are unfamiliar with IEC duty classifications sometimes read only the larger number and assume the contactor is rated for 40A motor control duty. It is not. The 40A rating applies only to resistive loads with no starting inrush transient. For any motor application — which is the primary use case for this part — the governing current rating is 25A AC-3. If your motor FLA is above 25A, the LC1D32F7 is the correct selection. Given the complexity of matching coil voltage, current rating, duty cycle, and auxiliary contact count simultaneously — and the fact that community discussion on this specific model is limited — the most reliable approach when in doubt is to contact a specialist distributor directly before placing the order.

Wiring and Installation Overview

The following points cover the critical requirements for a safe and reliable installation. Engineers needing full step-by-step wiring procedures and terminal torque specifications should refer to the Schneider Electric TeSys Deca installation manual for the LC1D25F7.

  • Control coil connection: terminal A1 receives the 110VAC hot conductor from the control circuit (through any series switches, push-buttons, or interlock contacts); terminal A2 connects to the 110VAC control neutral. The control circuit and power circuit neutrals must not be interchanged.
  • Power circuit terminals: incoming three-phase supply connects to L1, L2, L3; outgoing motor leads connect to T1, T2, T3. Minimum conductor size for 25A continuous service is 10 AWG / 6 mm² copper. Screw clamp terminals require tightening to the torque value specified in the contactor manual — typically in the 3–5 Nm range — using a calibrated torque wrench.
  • Auxiliary contact wiring: the NO auxiliary contact closes when the contactor is energized and is typically wired to a PLC digital input for run-state confirmation; the NC auxiliary opens when energized and is used in hardwired permissive or interlock circuits. Keep auxiliary wiring segregated from power circuit conductors where practical.
  • Coil suppressor: the LC1D25F7 ships without a built-in suppressor module. If your control circuit switches any inductive devices (relays, solenoid valves, indicator coils), install an external RC network or metal-oxide varistor rated for 110VAC across the A1 and A2 coil terminals before commissioning.
  • External protection required: no circuit breaker or thermal overload is included with the LC1D25F7. An upstream branch-circuit protection device sized to IEC 60947 must be installed and verified before energizing the power circuit.

Compatible Accessories and Expansion Options

The LC1D25F7 is part of the TeSys Deca / TeSys D product family, which supports a range of accessories that extend functionality without requiring a different base contactor model.

  • External coil suppressor modules: RC networks and varistor suppressors rated for 110VAC coil protection — required when switching inductive loads in the control circuit.
  • DIN rail mounting base: 35mm DIN rail compatible mounting accessory for panel installation without direct screw mounting.
  • Protective cover option: enclosure cover accessory for installations in environments with elevated dust or contamination exposure — the standard model ships open.
  • Thermal overload relays: TeSys D series thermal overload relays mount directly to the contactor for motor overcurrent protection — these must be specified and ordered separately; they are not included with the LC1D25F7.

Wrong-Part Prevention Checklist Before You Order

Run through all eight points below before placing your order. Each item corresponds to a documented cause of incorrect orders, field failures, or commissioning delays with the LC1D25F7.

  1. Verify control power availability: Is 110VAC, 50/60Hz present in the control circuit? If not, do not proceed with LC1D25F7 — select alternative coil voltage.
  2. Confirm motor load current: Check motor nameplate FLA (Full Load Amperes). If >25A, use LC1D32F7 (30A) or LC1D40F7 (40A). LC1D25F7 is appropriate only if FLA is 20A–25A.
  3. Check duty cycle classification: Verify application is AC-3 (motor control with starting inrush ≤5x rated current). If AC-4 (frequent reversing), confirm mechanical durability is acceptable; if AC-1 (resistive loads), note that this contactor is over-specified.
  4. Validate motor supply voltage: Does the system use ≤440V AC? If 600V or 690V, this model is not rated; consult alternative catalog.
  5. Confirm auxiliary contact needs: Do you need contactor position feedback to PLC? If yes, this model's 1 NO + 1 NC is standard. If you need additional contacts (e.g., 2 NO + 2 NC), select different model.
  6. Check for reversing requirement: Is the motor controlled in one direction only, or does it need forward/reverse? LC1D25F7 is nonreversing. Reversing applications require two contactors (forward/reverse interlock) or a single reversing contactor model.
  7. Verify coil suppressor need: Will the coil circuit switch inductive loads (relays, solenoids)? If yes, plan to install external RC or varistor suppressor to prevent voltage spikes. This model ships without built-in suppressor.
  8. Confirm terminal type suitability: Screw clamp terminals require manual tightening; verify technician has correct torque wrench (typical spec 3–5 Nm; check manual) and conductor gauge matches terminal capacity (typically 10 AWG / 6 mm² minimum for 25A).

If any of the eight points above raises a question you cannot resolve from the motor nameplate and panel drawings alone, contact the LeadTime.ca team before ordering — confirming the correct model takes minutes and prevents days of downtime.

Frequently Asked Questions

Can I use the LC1D25F7 with a 24VDC or 230VAC control circuit instead of 110VAC?

No. The 110VAC coil is specific to this catalog number. Applying 230VAC to the coil terminals will cause instantaneous insulation breakdown and contactor destruction. For 24VDC control circuits, the correct alternative is the LC1D25U7. Never attempt to use a step-down transformer to adapt a mismatched coil voltage unless the transformer is rated for continuous coil energization duty and the output voltage has been confirmed at the coil terminals under load.

What is the difference between AC-3 and AC-1 duty, and does it change the current rating of the LC1D25F7?

Yes, the current rating changes by duty class. AC-3 is motor control duty where the contactor must break starting inrush current up to five times the rated load — this is the harder electrical condition, and the LC1D25F7 is rated 25A in this class. AC-1 is resistive load duty with no inrush transient, and the same contactor handles 40A in that condition. If your application is a resistive heating element rather than a motor, you can use the LC1D25F7 on loads up to 40A. Always verify the duty class with your integrator or a technical datasheet before relying on the higher AC-1 rating.

Is there a built-in coil suppressor or circuit breaker in the LC1D25F7?

Neither. The LC1D25F7 is listed as without a built-in suppressor module. If your control circuit switches any inductive devices — relays, solenoid valves, or similar — install an external RC network or varistor rated for 110VAC across the coil terminals A1 and A2. No circuit breaker is integrated; you must provide upstream branch-circuit protection sized per IEC 60947 for the full installation to be compliant.

The LC1D25F7 has 1 NO and 1 NC auxiliary contacts — can I add more auxiliary contacts if my PLC logic requires additional feedback points?

The auxiliary contact count on the LC1D25F7 itself cannot be upgraded. If your application requires additional auxiliary contacts beyond 1 NO + 1 NC, you would need to select a different contactor model from the TeSys Deca family that supports additional auxiliary contact blocks, or add external feedback relays driven from the existing auxiliary outputs. Confirm your exact auxiliary contact requirements against the PLC I/O map before ordering.

What does the 1.65 million cycle electrical durability rating mean for my maintenance schedule?

At 1.65 million electrical operations at 25A AC-3 duty and ≤440V, the LC1D25F7 has more than adequate durability for most HVAC, pump, and compressor applications. An installation cycling 100 motor starts per day would take approximately 45 years to reach that figure. Applications with much higher cycling rates — for example, a compressor running load/unload logic at several hundred cycles per day — should track operating cycle count and plan for proactive replacement well before the electrical durability ceiling is approached.

What terminal torque is required, and how do I know if I have overtightened the screw clamp terminals?

The typical specification for TeSys Deca screw clamp terminals is in the 3–5 Nm range — confirm the exact value for the LC1D25F7 in the Schneider Electric installation manual before proceeding. Use a calibrated torque wrench set to the specified value. Overtightening damages the internal clamping mechanism and can cause connection failure under vibration. Undertightening causes intermittent contact resistance and voltage drop across the terminal. If you do not have a calibrated torque wrench available, apply firm manual pressure until the conductor is fully secured and resists a gentle pull test — do not force past the point of clear resistance.

Why Order the LC1D25F7 From LeadTime.ca

  • Global shipping: LeadTime.ca ships the LC1D25F7 to buyers worldwide — not limited to any single region or country.
  • Emergency and stocked orders: specialist stocking distributor with same-day and next-day fulfillment options available for urgent field replacements where multi-week lead times are not acceptable.
  • Variant confirmation before you buy: the LeadTime.ca team can confirm coil voltage, current rating, and auxiliary contact configuration against your application requirements before the order is placed — reducing the risk of wrong-part returns.
  • Volume and OEM pricing: panel builders and OEMs ordering in quantity can contact for current volume pricing rather than paying single-unit rates.

At-a-Glance Summary

  • Model: LC1D25F7 — TeSys Deca IEC contactor, Schneider Electric (Square D)
  • Rated current: 25A AC-3 motor control duty; 40A AC-1 resistive load duty — at ≤440V AC power circuit
  • Control coil: 110V AC, 50/60Hz — coil pickup at 85% of rated voltage (93.5V); dropout below 10% (11V)
  • Auxiliary contacts: 1 NO + 1 NC integrated — not field-expandable on this model
  • Electrical durability: 1.65 million cycles at 25A AC-3; mechanical durability 15 million cycles
  • Maximum operating rate: 3,600 cycles/hour at 60°C ambient
  • SCCR: up to 100kA; breaking capacity 450A at 440V per IEC 60947-4-1
  • Coil suppressor: not built in — external RC or varistor required for inductive control circuit loads
  • Certifications: UL, CSA, BVR, INAC, GOST, DNV, LRS, CCGL
  • Fire resistance: IEC 60335-1 Clause 30.2 compliant
  • Terminal type: screw clamp; torque per manufacturer manual (typically 3–5 Nm); minimum 10 AWG / 6 mm² conductor for 25A
  • DIN rail compatible: 35mm mounting base (accessory)
  • Nonreversing only: reversing applications require LC1D25FB7 or equivalent reversing contactor pair
  • Available worldwide from LeadTime.ca — pricing on product page; contact for volume orders
