Schneider LC1D25BD — 25A IEC Contactor Selection Guide

By Abdullah Zahid
15 min read

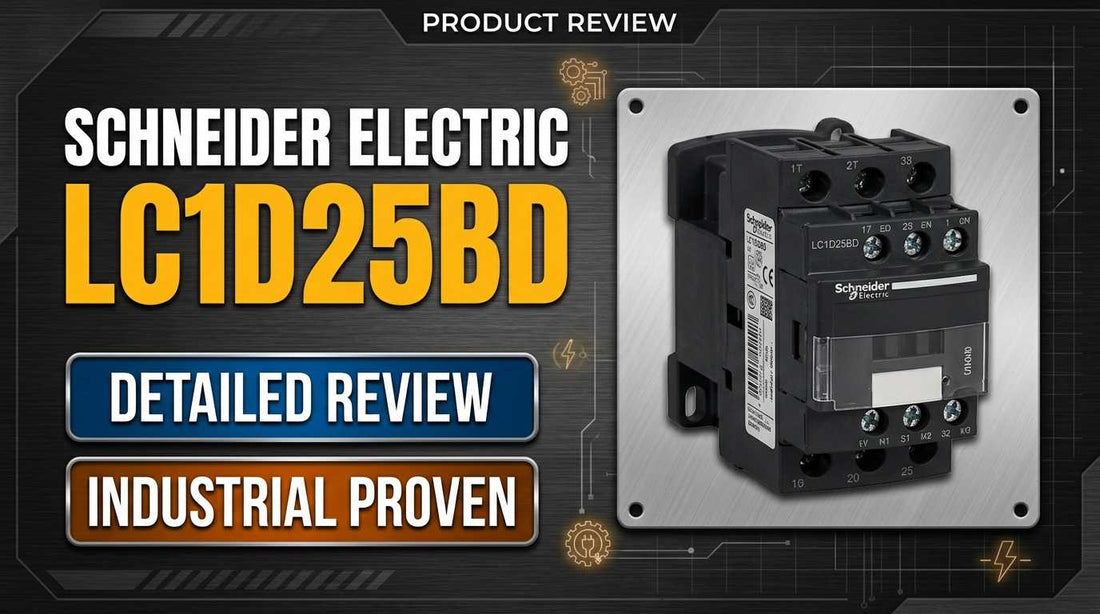

Schneider Electric LC1D25BD TeSys Deca 3-pole 25A IEC motor contactor for DIN rail panel installation

Schneider LC1D25BD TeSys Deca 3-Pole IEC Contactor, Non-Reversing, 25A AC-3, 24V DC Coil — Complete Specs, Selection Guide, and Procurement Advice

Controls engineers and maintenance technicians searching for the Schneider LC1D25BD are typically at the final stage of a purchasing decision: the motor rating is confirmed, the control system outputs 24V DC, and the question is whether this specific contactor is the right 25A IEC device before the purchase order goes out. The LC1D25BD is a 3-pole non-reversing IEC magnetic contactor from Schneider Electric's TeSys Deca family, rated at 25A AC-3 for inductive motor loads, with a 24V DC coil and built-in 1NO + 1NC auxiliary contacts — all in a compact 1.77-inch-wide DIN rail package. This review gives you the technical validation, ordering confidence, and honest variant comparison you need to commit or recalibrate.

If you have already confirmed this is the correct part, check current pricing and availability for the LC1D25BD at LeadTime.ca — we ship worldwide.

Who Should Buy the LC1D25BD — and Who Shouldn't

The Schneider LC1D25BD is the right contactor when all five of these conditions apply to your installation:

  • Your control system — PLC digital output, soft starter control output, or relay — supplies exactly 24V DC as the coil switching signal (measured, not assumed)
  • Your motor's full-load amperage (FLA) from the nameplate does not exceed 25A at inductive AC-3 load
  • Your motor horsepower falls within the voltage-specific ratings: 7.5 HP at 230–240V three-phase, 15 HP at 480V three-phase, or 20 HP at 600V three-phase
  • The application requires non-reversing (single-direction) motor control only
  • Your control panel has 35mm DIN rail space available, or supports #8 screw panel mounting

If your motor FLA exceeds 25A, the LC1D40BD is the correct next step up. If your control system outputs 24V AC rather than 24V DC, select the LC1D25BA. Reversing applications require an LC2D reversing contactor model or a dual-contactor interlocked configuration — the LC1D25BD cannot reverse motor direction.

On this page:

What the LC1D25BD Does in a Motor Control System

The LC1D25BD is a remotely controlled electromagnetic switch. When 24V DC is applied to the coil terminals, a solenoid pulls in the armature, closing all three main power contacts simultaneously — connecting three-phase supply voltage across L1/L2/L3 through to T1/T2/T3 and starting the motor. When the 24V DC coil signal is removed, a spring return mechanism opens all three contacts together, cutting all motor phases at once. This simultaneous three-phase break is the core functional requirement for safe motor stopping, and the LC1D25BD delivers it at up to 25A inductive load with a coil power draw of 5.4W in both inrush and sealed (holding) states.

The integrated 24V DC varistor suppression module is worth noting: it eliminates the need for an external snubber or flyback diode across the coil, which simplifies wiring and reduces parts count on the panel. The built-in 1NO and 1NC auxiliary contacts — where the NC contact is mirror-certified per IEC 60947-5-1 — handle status indication and interlock logic without requiring additional hardware for most standard motor control installations. Mechanical durability is rated at 30 million operating cycles, with electrical durability of 1.4 million cycles at AC-3 motor load category.

Typical System Architecture for the LC1D25BD

The LC1D25BD sits between the motor protection layer and the motor terminals — it is the switching element that automation systems actuate, not a protective device itself. Here is where it fits in a standard motor starter assembly:

  • PLC or control system digital output (24V DC) → LC1D25BD coil terminals A1/A2
  • Upstream circuit breaker (sized to motor FLA × 1.25) → LC1D25BD power input terminals L1, L2, L3
  • LC1D25BD output terminals T1, T2, T3 → LRD series thermal overload relay input
  • Thermal overload relay output → motor terminals (3-phase connection)
  • LC1D25BD 1NO auxiliary contact → PLC digital input for run confirmation or status indication

Where Engineers Deploy the LC1D25BD

Pump motor switching is one of the most common field applications for the LC1D25BD. In water treatment plants, irrigation systems, and industrial process water circuits, PLC-controlled time-delayed sequencing uses the contactor's 24V DC coil as the switching node in multi-pump pressure control strategies. The contactor's 1NC auxiliary contact is typically wired into the interlock circuit so that a fault or emergency stop signal de-energizes the coil and drops the motor.

In HVAC applications, the LC1D25BD handles fan motor control and compressor switching where the 480V three-phase supply and 15 HP motor rating covers the majority of rooftop unit fan arrays and packaged chiller compressors in that power range. The IEC 60335-2-40 fire-resistant and anti-flammable certification makes it eligible for installation in refrigerant-containing HVAC equipment.

Soft starter bypass circuits are a technically important use case: after the soft starter ramps a motor to full speed, the LC1D25BD energizes across the soft starter output to carry full load current directly, reducing energy dissipation in the soft starter's thyristors. The coil signal in this configuration comes directly from the soft starter's control output, which is standardly 24V DC on modern units.

Machine tool applications — CNC lathes, punch presses, mills — rely on the contactor for spindle motor switching where the motor FLA falls within the 25A AC-3 envelope. Emergency shutdown circuits in these applications wire the 1NC contact into the e-stop chain, ensuring that loss of the 24V DC control signal from any fault condition immediately de-energizes the contactor and stops the motor.

Application Typical Deployment
Water / wastewater pump control PLC digital output → LC1D25BD coil; multi-pump time-delay sequencing with pressure feedback
HVAC fan and compressor switching BMS or thermostat 24V DC output switches contactor; up to 15 HP at 480V three-phase
Soft starter bypass Soft starter control output energizes contactor at full speed; reduces thyristor heat loss
CNC and machine tool spindle control Safety PLC controls coil; 1NC contact wired into e-stop interlock chain
Conveyor and material handling Motor contactor energized by conveyor sequencing logic; status fed back via 1NO auxiliary
Remote pump stations (mining, utilities) Field-level 24V DC control circuit triggers contactor; failsafe on control power loss

Key Electrical and Physical Specifications

Parameter Value Notes
Coil Voltage 24V DC Integrated varistor transient suppressor included; no external snubber required
AC-3 Rating (Motor Load) 25A IEC inductive motor load category — use this rating for motor applications
AC-1 Rating (Resistive Load) 40A Heaters and resistive loads only; do not use this figure for motor sizing
Main Circuit Voltage (AC) 600 / 690V AC 3-phase motor supply voltage maximum
HP Ratings (Three-Phase) 7.5 HP @ 240V / 15 HP @ 480V / 20 HP @ 600V Voltage-specific; confirm motor nameplate HP against supply voltage
Built-In Auxiliary Contacts 1NO + 1NC NC contact mirror-certified per IEC 60947-5-1 for interlock circuits
Dimensions (H × W × D) 3.35 in × 1.77 in × 3.98 in 35mm DIN rail or #8 screw panel mounting
Operating Temperature -40 to +140°F Suitable for industrial indoor and protected outdoor enclosures
Mechanical Durability 30,000,000 cycles Electrical durability: 1,400,000 cycles at AC-3
Certifications UL 508 / CSA C22.2 No. 14 / IEC EN 60947-4-1 / RoHS Multi-standard; valid for North American and international installations

Full technical specifications are available on the product page at LeadTime.ca.

LC1D25BD vs. LC1D40BD and Other Variants: Which Do You Actually Need?

Model AC-3 Rating Coil Voltage Max HP @ 480V Choose When
LC1D25BD 25A 24V DC 15 HP Motor FLA ≤ 25A; PLC or automation system outputs 24V DC; non-reversing only
LC1D25BA 25A 24V AC 15 HP Same motor rating but control system supplies 24V AC coil signal
LC1D30BD 30A 24V DC Higher than 25A variant Motor FLA between 25A and 30A; check regional availability before specifying
LC1D40BD 40A 24V DC Higher than 25A variant Motor FLA exceeds 25A; 24V DC coil still required; same form factor family
LC1D60BD 60A 24V DC Higher capacity Large motors requiring 60A inductive switching with 24V DC control
LC2D (Reversing) Varies Varies Varies Forward/reverse motor control required; LC1D25BD cannot reverse direction

If your motor nameplate FLA exceeds 25A at AC-3, the LC1D25BD is undersized for the application — the LC1D40BD is the correct next selection. Check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the LC1D25BD the Right Contactor for Your Project?

The Schneider LC1D25BD earns its place as a go-to 25A motor contactor for engineers building PLC-controlled motor starter assemblies. The 24V DC coil is the dominant control voltage in modern industrial automation — matching PLC digital output cards directly without voltage conversion or isolation transformers. The 1.77-inch panel width means you can fit four or five of these contactors side-by-side on a 35mm rail segment where a 40A or 60A device would not fit. The 30 million mechanical cycle rating is not marketing language — it translates to a device that will outlive the motor it controls in most continuous-duty pump or fan applications. For plant engineers building new motor control panels or maintenance technicians replacing failed contactors in existing starter assemblies, the LC1D25BD hits the standard 25A IEC contactor specification cleanly.

Where it falls short is equally clear. The 25A AC-3 ceiling is a hard limit: installing this contactor on a motor with a 28A or 30A FLA will produce premature contact wear, contact welding, or thermal failure — regardless of how conservative the duty cycle appears to be. The 24V DC coil code is similarly non-negotiable; a 24V AC control signal will not energize this contactor's coil, and forcing the issue with a DC-to-AC converter defeats the purpose of specifying this variant. Non-technical buyers and junior technicians frequently miss these two distinctions. If either condition is in doubt, the LC1D40BD with its 40A AC-3 rating is a safer over-specification, and the LC1D25BA resolves the AC coil scenario without a panel redesign.

From a procurement standpoint, the LC1D25BD is among the more consistently available 25A IEC contactors in North America — stocked at major distributors with typical lead times of one to two weeks for standard orders. Buyers outside North America and those ordering in volume should confirm lead times directly with a specialist distributor before committing a project schedule. For a device this deep in a motor starter BOM, a one-week surprise on availability can hold an entire panel build. View current availability and pricing for the LC1D25BD at LeadTime.ca — we source and ship worldwide, and the product page reflects live stock status.

For volume pricing or to confirm lead time before committing to a panel build schedule, contact the LeadTime.ca team directly — we ship worldwide and can advise on multi-unit orders and project quantities.

What Engineers Need to Know Before Ordering the LC1D25BD

Community discussion specific to the LC1D25BD is sparse compared to broader motor contactor forums — most field experience with this part is carried by experienced technicians who have simply wired enough contactors to know the failure modes by pattern rather than by published review. That institutional knowledge gap is exactly where wrong orders happen. Based on the part number structure, the recurring ordering error with the TeSys Deca family is coil voltage code confusion: the final two letters of the catalog number carry the coil specification, and verbal purchase orders or abbreviated BOM entries frequently drop them. BD is 24V DC. BA is 24V AC. EU and ES are low-consumption DC variants. Ordering the wrong suffix produces a contactor that will not energize with your control system's output — and the failure looks like a defective unit until someone measures the coil voltage.

The second documented ordering mistake is current rating misreading. The datasheet lists both an AC-3 rating of 25A and an AC-1 rating of 40A. Procurement staff and junior engineers who scan the spec sheet quickly see 40A and assume the contactor handles 40A motor loads. It does not. The AC-1 rating applies only to resistive loads — heaters, heating elements. For any motor application, the AC-3 figure of 25A is the binding constraint. A motor drawing 30A FLA connected through an LC1D25BD will eventually weld the main contacts or cause thermal failure of the contact assembly, and the root cause will be traced back to the spec sheet misread.

A third area where specialist input matters: external protection requirements. The LC1D25BD provides no built-in overload relay and no short-circuit protection. Every installation must include a properly sized external motor circuit breaker and an LRD series thermal overload relay mounted to the contactor. Technicians upgrading aging starters sometimes pull the contactor but retain the existing thermal overload relay from a different manufacturer — which may not mount directly to the TeSys Deca body and may not carry the same trip curve. When community guidance is thin and the application is non-standard, calling a specialist distributor before ordering is the practical risk mitigation. The LeadTime.ca team can cross-reference your motor nameplate data, confirm coil voltage, and identify the correct LRD overload relay to pair with the LC1D25BD before any hardware ships.

Wiring and Installation Overview

  • Power circuit terminals L1, L2, L3 (supply input) and T1, T2, T3 (motor output) accept #6 to #14 AWG wire; tighten screw clamp terminals to 20 lb-in (2.5 Nm) — do not exceed this torque or strip the clamp
  • Coil terminals accept #10 to #18 AWG wire for the 24V DC control signal; tighten to 15 lb-in (1.7 Nm); polarity must be observed — incorrect polarity prevents energization but does not damage the coil or the integrated varistor
  • Mount contactor on 35mm DIN rail by aligning the rear slot and pressing down until fully seated with no visible gap; the contactor is not compatible with 20mm rail or rail-less panel mounting without an adapter plate
  • After mounting, apply 24V DC coil signal with main motor power off and listen for an audible solenoid click — absence of click with correct polarity and measured 24V DC supply indicates a wiring or hardware issue to resolve before energizing the motor circuit
  • An external motor circuit breaker (sized to motor FLA × 1.25 per NEC 430.52) and an LRD series thermal overload relay are mandatory — the LC1D25BD itself provides no overcurrent or overload protection; omitting these creates an arc flash and fire hazard

Compatible Protection and Expansion Modules

The LC1D25BD is designed for direct mounting of the following accessories within the TeSys Deca system:

  • LRD series thermal overload relays — mount directly to the output face of the LC1D25BD; provide motor winding overload and phase-loss protection; select the LRD model matching your motor FLA range
  • LADN series auxiliary contact blocks — snap directly onto the contactor body; provide up to 4 additional NO or NC contacts for applications requiring more auxiliary logic than the built-in 1NO + 1NC can supply

Wrong-Part Prevention Checklist Before You Order

Before placing a purchase order for the LC1D25BD, verify every item on this checklist. Each point represents a documented ordering or installation error that causes project delays or equipment damage:

  1. Confirm your control system outputs 24V DC, not 24V AC, 110V AC, 120V AC, or any other voltage; use multimeter to verify actual voltage at control source
  2. Check motor nameplate full-load amperage (FLA); confirm it does not exceed 25A for inductive motor loads (AC-3 rating)
  3. Verify motor horsepower against voltage-specific ratings shown in datasheet; motor must not exceed 15 HP @ 480V (or equivalent at other voltages)
  4. Confirm application requires only forward (non-reversing) operation; reversing applications need dual-contactor setup or LC2D reversing model
  5. Verify your control panel or enclosure supports 35mm DIN rail mounting; this contactor cannot snap onto 20mm rail or rail-less applications
  6. Check coil voltage code on part number label: BD = 24V DC, BA = 24V AC, EU/ES = low-consumption DC variants; confirm BD is correct
  7. Verify you are not confusing this 25A model with higher-capacity variants (40A, 60A); check FLA of your motor against contactor rating
  8. Confirm external motor circuit protection (breaker and thermal overload) will be installed; contactor itself provides no overcurrent protection

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — we can cross-reference your motor nameplate data and confirm the correct part number and accessories.

Frequently Asked Questions

Can I use my 24V AC control system to drive the LC1D25BD coil?

No. The LC1D25BD coil is rated for 24V DC only. Applying 24V AC will not energize the coil and may damage the integrated varistor suppression module. If your control system outputs 24V AC, the correct model is the LC1D25BA. Always measure the actual voltage at your control output with a multimeter before ordering — do not rely on system documentation alone.

What is the difference between the 25A AC-3 rating and the 40A AC-1 rating on this contactor?

AC-3 (25A) is the inductive motor load rating and is the figure you must use for any motor application. AC-1 (40A) applies only to resistive loads such as electric heaters. Using the AC-1 figure to justify connecting a 35A motor to this contactor will cause premature contact wear, welding, or failure. The 25A AC-3 rating is the hard ceiling for motor installations.

Does the LC1D25BD include overload protection, or do I need to add it separately?

The LC1D25BD provides no built-in overload relay or short-circuit protection. Every installation requires an external motor circuit breaker sized to motor FLA × 1.25 and an LRD series thermal overload relay mounted directly to the contactor. Omitting these devices creates an arc flash hazard and is non-compliant with NEC motor circuit protection requirements. The LRD relay selection must match your motor's full-load amperage range.

Can I use two LC1D25BD contactors in a reversing starter configuration?

Yes, two LC1D25BD contactors can be wired in a reversing starter configuration by swapping two motor phases on the second contactor's output — but this requires properly designed mechanical and electrical interlock logic to prevent both contactors from energizing simultaneously. If you need a factory-integrated reversing solution, Schneider Electric's LC2D reversing contactor models provide built-in interlock. The LC1D25BD itself is a non-reversing device and cannot reverse direction on its own.

What do the LED or indicator states tell me if the contactor fails to energize?

The LC1D25BD does not include a built-in LED indicator. If the contactor fails to pull in when 24V DC is applied, verify polarity at coil terminals A1 and A2 using a multimeter, confirm measured voltage is 24V DC (not AC), and check that the supply can deliver sufficient current for the 5.4W coil. If correct voltage and polarity are confirmed and the contactor still does not click, the coil or suppressor module may be damaged and the unit should be replaced.

What is the typical lead time for the LC1D25BD when ordering from outside North America?

Within North America, the LC1D25BD is typically in stock with one to two week lead times from authorized distributors. For orders from European markets, lead time extends to approximately three to four weeks as the TeSys Deca II variant may be the primary stocked option in some regions. Latin American orders typically require six to eight weeks. Lead times and regional stock status change — confirm current availability at the time of order with your distributor.

Why Order From LeadTime.ca

  • Ships worldwide — not limited to North American buyers; international orders accommodated
  • Specialist sourcing for hard-to-find variants, including non-standard coil voltage codes and regional SKUs
  • Technical team can cross-reference motor nameplate data to confirm contactor selection and required accessories before hardware ships
  • Volume pricing available for OEM builds, panel shop orders, and multi-unit project quantities — contact for current pricing on orders of 5 units or more
  • Live stock status and pricing visible on the product page without requiring a quote request for standard orders

At-a-Glance Summary

  • Model: Schneider LC1D25BD — TeSys Deca 3-Pole IEC Non-Reversing Contactor
  • AC-3 inductive motor load rating: 25A; AC-1 resistive load rating: 40A (do not use AC-1 for motor sizing)
  • Coil voltage: 24V DC with integrated varistor transient suppressor; coil power 5.4W
  • Three-phase horsepower ratings: 7.5 HP at 240V, 15 HP at 480V, 20 HP at 600V
  • Built-in auxiliary contacts: 1NO + 1NC; NC contact mirror-certified per IEC 60947-5-1
  • Dimensions: 3.35 in H × 1.77 in W × 3.98 in D; weight 0.82 lbs; 35mm DIN rail or #8 screw mount
  • Operating temperature range: -40 to +140°F
  • Mechanical durability: 30,000,000 cycles; electrical durability at AC-3: 1,400,000 cycles
  • SCCR: 85 kA at 480V AC with 60A circuit breaker; 100 kA at 600V AC with 60A Class J fuse
  • Certifications: UL 508, CSA C22.2 No. 14, IEC EN 60947-4-1, RoHS/REACh compliant
  • External motor circuit breaker and LRD thermal overload relay are mandatory — not included
  • Compatible expansion: LADN auxiliary contact blocks and LRD thermal overload relays mount directly
  • Typical North American lead time: 1–2 weeks from authorized distributors
