Schneider LC1D25B7 — 25A TeSyS D Contactor Buyer Review

By Abdullah Zahid
14 min read

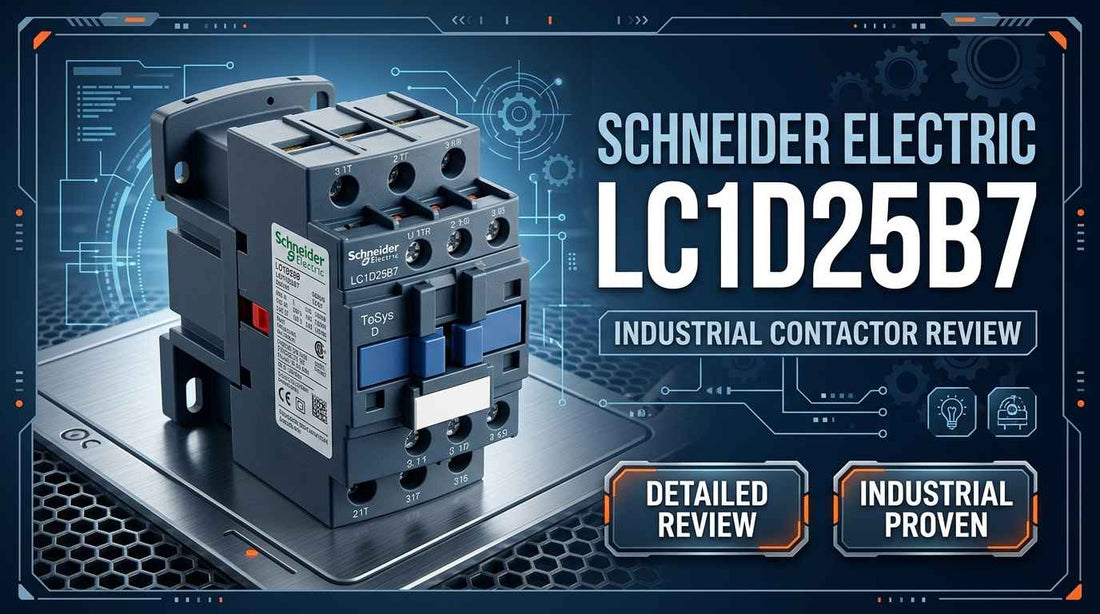

Schneider Electric LC1D25B7 TeSyS D 3-pole 25A AC-3 contactor with 24V AC coil for motor control panel

Schneider LC1D25B7 TeSyS D Contactor, 3-Pole (3NO), AC-3, 25A, 11kW @ 400V, 24V AC Coil — Specifications, Alternatives and Selection Guide

Controls engineers and procurement specialists searching for the Schneider LC1D25B7 are typically at one of two points: specifying a 25A three-phase motor starter for a new panel build, or replacing a failed contactor in an existing TeSyS D installation. Either way, the decision hinges on three hard constraints — coil voltage, current rating, and contact configuration — and getting any one of them wrong means a return order and lost commissioning time. The LC1D25B7 is a 3-pole, 3NO contactor from Schneider Electric's TeSyS D family, rated 25A in AC-3 motor duty with a 24V AC, 50/60Hz coil, and a maximum supply voltage of 690V AC. It covers motors up to 11kW at 400V, placing it squarely in the sweet spot for HVAC compressors, pump motors, and industrial fans.

If you have already confirmed this is the correct part for your application, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D25B7 — and Who Shouldn't

The LC1D25B7 is the right contactor when all of the following are true for your application:

  • Your control circuit runs at exactly 24V AC, 50/60Hz — this coil does not accept DC supply or 120V/240V AC without a different variant
  • Your motor's full-load amperage (FLA) is confirmed at or below 25A in AC-3 duty (motor starting and stopping cycles)
  • You require a 3-pole configuration for a three-phase motor load
  • The base 3NO contact set is sufficient — no auxiliary signaling contacts are needed for PLC or BMS feedback without adding external contact blocks
  • Your supply voltage falls within the 690V AC maximum — North American 480V 3Ø and 600V 3Ø systems are both within range
  • DIN rail or screw terminal mounting is compatible with your existing panel layout

If your motor FLA exceeds 25A, step up to the LC1D40B7. If your control circuit runs at 240V AC, the LC1D25F7 is the correct variant. Both share the same TeSyS D form factor.

On this page:

What the LC1D25B7 Actually Does in a Motor Control Circuit

The LC1D25B7 is a remotely operated electromagnetic switch. When a 24V AC control signal is applied across the coil terminals (labeled A1 and A2 on the housing), the coil energizes, pulls in the armature, and closes all three power contacts simultaneously — connecting three-phase supply to the motor load. When the control signal is removed, the spring-return mechanism opens all contacts and the motor circuit is broken. That is the entire operating principle, and it is exactly what AC-3 duty class is defined for: motor starting and stopping under load, rated per IEC 60947-4-1.

The TeSyS D family has been a Schneider Electric catalog staple across multiple product generations. The platform's mounting footprint, terminal pitch, and coil replacement interface have remained consistent, which is why electrical engineers continue to specify it in new designs and maintenance teams reach for it in legacy installations. The LC1D25B7's 17.5mm wide body mounts on standard 35mm DIN rail and accepts screw terminals for power conductors — the same physical signature that has made TeSyS D a reliable panel-building standard.

Two proof points from Schneider Electric's official documentation anchor the sizing case for this model. First, the LC1D25B7 is rated 11kW at 400V in three-phase AC-3 duty — a motor power reference that maps directly to common HVAC compressor and pump motor sizes. Second, the 24V AC coil supports both 50Hz and 60Hz supply frequencies from a single coil, which simplifies inventory management and eliminates the need for frequency-specific variants across global installations.

Where the LC1D25B7 Sits in Your System Architecture

The LC1D25B7 is the switching element between the motor protection device and the motor terminals — it receives a low-voltage command and handles the high-voltage switching. A typical deployment chain looks like this:

  • Three-phase supply (480V or 600V 3Ø in North America) enters through a main disconnect or motor circuit breaker upstream of the contactor
  • LC1D25B7 line terminals (L1, L2, L3 — labeled 1, 3, 5) receive the switched three-phase feed
  • A 24V AC control transformer secondary connects to coil terminals A1 and A2, with a start/stop pushbutton or PLC output in series
  • LC1D25B7 load terminals (labeled 2, 4, 6) feed the motor leads (U, V, W) — typically through a thermal overload relay installed downstream
  • Motor operates when coil is energized; all three phases open simultaneously when coil drops out

Typical Applications and Deployment Scenarios

The LC1D25B7 fits naturally into any motor control application where a 25A three-phase load needs to be switched on and off under 24V AC command. HVAC compressor starters in commercial air conditioning units are the most common deployment — the 11kW at 400V rating aligns closely with standard chiller compressor motor sizes, and the 24V AC coil integrates directly with building automation system relay outputs.

Water and wastewater pump starters are another high-frequency use case. Municipal treatment facilities and agricultural irrigation systems typically standardize on 24V AC control circuits, and the TeSyS D's long catalog history means replacement procurement is straightforward without panel redesign.

For system integrators building modular production lines, the LC1D25B7 covers small spindle motors, material handling conveyors, and auxiliary feed drives where motor loads fall below the 25A threshold. Its 17.5mm footprint makes dense panel layouts practical without oversizing the enclosure.

Maintenance teams replacing failed contactors in legacy TeSyS D panels benefit from backward compatibility — terminals, mounting rail interface, and coil cartridge replacement remain consistent across generations, reducing retrofit time and eliminating panel wiring changes.

Application Typical Deployment
Commercial HVAC compressor control Direct motor starter in rooftop or chiller unit control panel, 24V AC BAS output to coil
Municipal pump station Pump motor starter circuit, thermal overload relay in series, PLC discrete output to coil
Food and beverage conveyor drive Auxiliary motor starter in modular production line, operator HMI start/stop through relay interface
Legacy panel replacement Drop-in TeSyS D replacement for failed contactor; same DIN rail position, no rewiring required if coil voltage matches
Agricultural irrigation pump Three-phase pump motor control with 24V AC control transformer, manual or timer-based start/stop
Data center cooling fan starter Air handler fan motor control, BMS-integrated start/stop, auxiliary contact block added for status feedback

Key Specifications for Purchase Decisions

Parameter Value
Pole Configuration 3-Pole, 3NO (three normally open)
Rated Current (AC-3 Duty) 25A
Motor Rating 11kW @ 400V / 15kW @ 690V / 9.2kW @ 230V
Maximum Supply Voltage 690V AC
Coil Voltage 24V AC, 50/60Hz
Duty Class AC-3 per IEC 60947-4-1
DIN Rail Mounting 35mm EN 50022 standard rail
Width 17.5mm
Operating Temperature −25°C to +55°C
Enclosure Rating (panel-mounted) IP20

Full technical specifications are available on the product page at LeadTime.ca.

LC1D25B7 vs. LC1D40B7 vs. LC1D25F7: Which Variant Do You Actually Need?

Model Poles Contact Config Current Coil Voltage Max Supply Voltage Duty Class Typical Use
LC1D25B7 3P 3NO 25A 24V AC 690V AC AC-3 HVAC, pumps, fans up to 11kW @ 400V
LC1D40B7 3P 3NO 40A 24V AC 690V AC AC-3 Motors 11–18.5kW; when FLA approaches or exceeds 25A
LC1D25F7 3P 3NO 25A 240V AC 690V AC AC-3 Same motor power; panels with 240V AC control supply
3RT10 24 3P 3NO 25A 24V AC 690V AC AC-3 Siemens-standardized panels; legacy Siemens installations
ABB A9-30-10 3P 3NO 25A 24V AC 690V AC AC-3 European and international installations; ABB ecosystem panels

The rule is straightforward: if your motor FLA is within 25A and your control supply is 24V AC, the LC1D25B7 is correct. If FLA approaches or exceeds 25A, the LC1D40B7 is the appropriate upgrade within the same TeSyS D family and DIN rail footprint. If your control transformer secondary is 240V AC, the LC1D25F7 delivers identical motor switching performance with a different coil — check current availability and variant options at LeadTime.ca.

Expert Verdict: Is the LC1D25B7 Right for Your Project?

The LC1D25B7 is an uncontroversial, mature industrial standard that earns its place in the panel when the application fits. Controls engineers specifying new HVAC systems, electrical technicians replacing failed contactors in existing TeSyS D installations, and system integrators building modular motor control packages will find it a correct and confident specification. The 25A AC-3 rating covers the majority of commercial HVAC compressor and pump motor sizes encountered in practice. The 24V AC coil aligns with the control transformer voltage that is standard across most industrial and building automation panels. The 17.5mm DIN rail body means dense panel layouts stay manageable. For facilities teams managing Schneider-heavy installed bases, the TeSyS D platform's long production history translates directly into spare parts continuity — coil cartridges and contact blocks remain available across a catalog that has been consistent for over a decade.

Where the LC1D25B7 has real limits: it is not the right tool for motors whose full-load amperage approaches or exceeds 25A — upgrade to the LC1D40B7 and gain meaningful current headroom. It is not right for applications where a 240V AC or DC control supply is standard — the LC1D25F7 handles the 240V AC case, and separate model variants exist for DC coil requirements. It carries no built-in thermal overload protection, so it must always be paired with a separate thermal overload relay or integrated motor protection device — specifying it as a standalone motor starter without overload protection is an installation error, not a product limitation. Engineers standardized on competing platforms will find mechanical compatibility on DIN rail, but terminal labeling and coil connector designs differ enough that a direct panel swap without wiring verification is not advisable.

From a procurement standpoint, the LC1D25B7 is a fast-moving stock item at authorized Schneider Electric distributors worldwide. It does not carry the supply chain risk of low-volume specialty hardware, and ordering through an authorized distributor — rather than grey-market channels — ensures product provenance, coil voltage verification at point of sale, and access to technical support if a compatibility question arises before installation. For new builds, bundle the contactor with an auxiliary contact block and thermal overload relay in a single order to avoid rework when the PLC feedback loop is wired up. View current pricing and availability at LeadTime.ca — the team ships worldwide and can confirm stock before you commit to a build schedule.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D25B7

Community forum discussion specific to the LC1D25B7 is limited — this is a mature, standard industrial component that experienced engineers tend to specify quietly and correctly without generating online debate. That absence of forum noise is itself informative: the model is not known for surprising failure modes, difficult installation, or ambiguous specifications. However, the ordering mistakes that do occur are consistent across the TeSyS D family, and they are worth addressing directly because they are entirely preventable.

The most common error is coil voltage confusion. The LC1D25B7 is a 24V AC coil unit. That designation looks superficially similar to 240V AC (LC1D25F7) when a technician is working quickly from a panel schematic or a verbal relay of a part number. Receiving a 240V coil contactor when the control transformer secondary is 24V means the contactor simply will not pull in — and the troubleshooting trail is not immediately obvious if the installer assumes the unit is faulty rather than misspecified. The fix is a single step: measure the control transformer secondary voltage with a multimeter before the purchase order is placed, and confirm the reading matches the coil voltage on the part number. This check takes thirty seconds and eliminates the most common LC1D25B7 ordering return.

The second consistent issue is the assumption that the base contactor includes auxiliary signaling contacts. The LC1D25B7 is a 3-pole motor contactor — three normally open power contacts, nothing more. There are no built-in auxiliary contacts for PLC feedback or BMS status monitoring. Engineers who discover this after installation face a retrofit that requires ordering a separate contact block (such as the Schneider LAD4 or equivalent), adding cost and panel downtime that is avoidable with early planning. If the control logic requires confirmation that the contactor has actually pulled in — which is standard practice in any application where a PLC monitors motor run status — specify the auxiliary contact block at the same time as the contactor and install both together. This is exactly the kind of procurement detail where consulting with a specialist distributor before placing the order saves rework hours on site.

Wiring and Installation Overview

The following covers the key requirements for installing the LC1D25B7 in a three-phase motor control circuit. For complete wiring diagrams and step-by-step procedures, refer to Schneider Electric's official installation documentation for the TeSyS D series.

  • Confirm 24V AC control transformer is installed and secondary voltage is verified with a multimeter before connecting to coil terminals A1 and A2; add start/stop pushbuttons or PLC discrete output in series with the coil circuit
  • Connect three-phase supply (L1, L2, L3) to contactor line terminals labeled 1, 3, and 5; isolate and lockout/tagout the main supply before making any connections
  • Connect motor load terminals labeled 2, 4, and 6 to motor leads U, V, and W using wire gauge appropriate for 25A (4mm² metric typical; verify with local electrical code requirements)
  • Mount on 35mm EN 50022 DIN rail; the 17.5mm wide body allows dense placement alongside adjacent components — verify adequate clearance for terminal access and thermal dissipation
  • If an auxiliary contact block is required, attach the LAD4 or equivalent block to the contactor body before final panel installation; verify contact block orientation and seating before energizing

Compatible Accessories and Expansion Options

The TeSyS D platform supports a range of add-on accessories that mount directly to the LC1D25B7 base unit or install alongside it on the DIN rail. Confirm part numbers with Schneider Electric documentation or your distributor at time of order.

  • LAD4 Auxiliary Contact Block — adds 1NO+1NC signaling contacts for PLC feedback, BMS status monitoring, or interlock circuits; mounts directly to the contactor body
  • 24V AC Replacement Coil Cartridge — direct screw-in replacement coil; field-replaceable without removing the contactor from the panel (coil resistance for diagnostics: approximately 400–600Ω for the 24V AC variant)
  • 240V AC Coil (Alternative) — available as a replacement cartridge for panels where control supply is 240V AC; changes the effective model to LC1D25F7 equivalent without replacing the contactor body
  • RC Filter Surge Suppressor Module — optional transient protection installed across coil terminals; protects upstream PLC or relay inputs from switching voltage spikes generated when the coil de-energizes
  • Thermal Overload Relay — required external device for motor overload protection; the LC1D25B7 is a switch only and provides no built-in thermal protection; the overload relay is installed downstream of the contactor load terminals

Wrong-Part Prevention Checklist

Before placing your order for the LC1D25B7, verify each of the following points. These checks prevent the majority of ordering mistakes and installation rework for this model:

  1. Confirm coil voltage is exactly 24V AC, 50/60Hz (not DC; not 230V AC)
  2. Verify 3-pole configuration is required (not 2-pole or 4-pole)
  3. Check that 3NO contact set (all normally open) matches application need; do not order if auxiliary signaling contacts are required
  4. Confirm 25A current rating is adequate; do not downsize from actual motor FLA
  5. Validate AC-3 duty (motor on/off); do not use for AC-1 (resistive/lighting) or AC-4 (plugging) duty if those are application requirements
  6. Ensure supply voltage range ≤440V or 690V AC matches local grid (North America: 480V 3Ø or 600V 3Ø typical)
  7. Check terminal type (screw vs. push-in) compatibility with panel wiring gauge and existing infrastructure

If any item on this checklist raises a question about your specific application, contact the LeadTime.ca team before ordering — confirming compatibility takes minutes and avoids a return shipment.

Frequently Asked Questions

Can I use the LC1D25B7 for lighting, capacitor bank, or resistive load duty?

No. The LC1D25B7 is rated AC-3 duty per IEC 60947-4-1, which covers motor starting and stopping cycles specifically. Using it for AC-1 (resistive or lighting loads) or AC-4 (plugging or reversing at speed) will compromise contact life and reliability. Select a contactor explicitly rated for your actual duty class.

Does the LC1D25B7 include built-in thermal overload protection?

No. The LC1D25B7 is a contactor — it is a switching device only, with no thermal sensing or trip mechanism. It must always be used with a separate thermal overload relay or an integrated motor protection device installed downstream of the load terminals. Operating a motor circuit without thermal overload protection is both an installation error and a code violation in most jurisdictions.

My motor FLA is 23A — is the 25A rating sufficient, or should I step up to the LC1D40B7?

A measured FLA of 23A leaves approximately 2A of margin against the 25A rated current of the LC1D25B7. In stable applications where motor load is consistent and inrush is handled by the AC-3 duty rating, this is technically within specification. However, if the application involves variable load, compressor cycling, or any condition where actual current could trend above nameplate, specifying the LC1D40B7 provides meaningful headroom with no penalty in footprint or coil voltage — both use the same 24V AC coil and 17.5mm TeSyS D body.

Can I retrofit the LC1D25B7 into a panel originally designed for a different contactor brand?

DIN rail mounting is standard across the industry (35mm EN 50022 rail), so the LC1D25B7 will physically mount in most existing panel positions. However, terminal labeling conventions and coil connector arrangements differ between manufacturers. Verify that your existing control wiring terminations are compatible with Schneider's A1/A2 coil terminal layout and 1/3/5 line terminal designations before completing the swap.

What does contactor chatter or continuous humming indicate during operation?

Chattering or audible humming after the contactor pulls in typically indicates that the control voltage at coil terminals A1 and A2 is below the minimum acceptable level. For the 24V AC coil, measure voltage at the terminals with the contactor energized — the minimum acceptable voltage is 85% of rated (approximately 20.4V AC). If voltage is below this threshold, check the control transformer capacity, wiring run length, and terminal connection tightness. Persistent humming can also indicate mechanical wear on the armature, in which case contactor replacement is appropriate.

Does the LC1D25B7 require an auxiliary contact block if I only need motor on/off control with no PLC feedback?

No. If your application requires only three-phase motor switching with no signaling, status feedback, or interlocking, the base 3NO unit is complete as ordered. The auxiliary contact block (LAD4 or equivalent) is an optional addition for applications where a PLC discrete input, BMS status point, or interlock circuit needs confirmation that the contactor has pulled in.

Why Order Through LeadTime.ca

  • Authorized distributor sourcing — stock is verified for provenance; no grey-market or counterfeit risk for safety-critical motor control hardware
  • Ships worldwide — whether you are sourcing for a single replacement unit or a multi-panel project build, orders are fulfilled globally
  • Technical support available before the order is placed — confirm coil voltage, current rating, and contact block requirements with a team that knows the TeSyS D line
  • Volume pricing available — contact for current pricing on orders of multiple units for project or stocking requirements
  • Hard-to-source variants — if the standard LC1D25B7 is a short-lead item at your local distributor, LeadTime.ca sources across multiple channels to close the gap

At-a-Glance Summary

  • Model: LC1D25B7 — TeSyS D Contactor, 3-Pole (3NO), AC-3, 25A, 11kW @ 400V, 24V AC Coil
  • Rated current: 25A in AC-3 motor duty per IEC 60947-4-1
  • Motor equivalent: 11kW at 400V three-phase / 15kW at 690V
  • Coil voltage: 24V AC, 50/60Hz — single coil supports both frequencies
  • Maximum supply voltage: 690V AC — covers North American 480V and 600V 3Ø systems
  • Contact configuration: 3NO power contacts only — no built-in auxiliary contacts
  • Mounting: 35mm DIN rail (EN 50022), 17.5mm wide body
  • Operating temperature range: −25°C to +55°C
  • Thermal overload protection: not included — external thermal overload relay required
  • Key ordering check: verify 24V AC coil, confirm motor FLA ≤25A, determine whether auxiliary contact block is required before placing order
