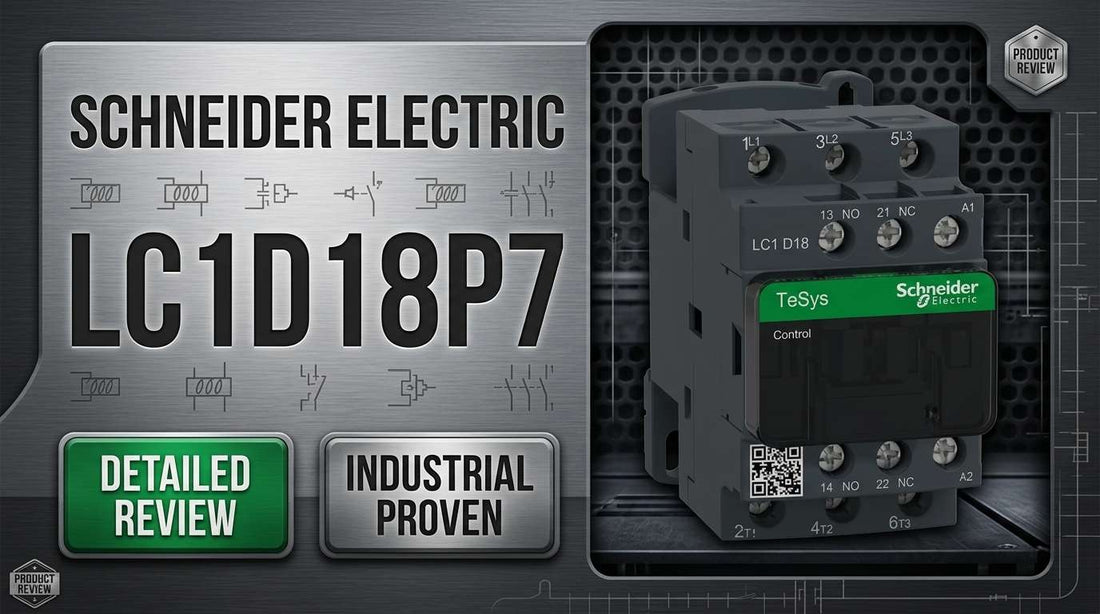

Schneider Electric LC1D18P7 TeSys D three-pole IEC motor contactor 18A AC-3 230V coil for direct-online starter panels

Schneider Electric LC1D18P7 TeSys D IEC Contactor: Specifications, Pricing and Selection Guide

If you are sourcing a replacement or specifying a new direct-online motor starter and have landed on the Schneider Electric LC1D18P7, you are likely working with a three-phase motor load up to 10 HP at 480VAC and need a compact, DIN-rail-mounted contactor with a 230V AC coil. This three-pole TeSys D IEC contactor carries an 18A AC-3 motor rating, ships with 1 NO and 1 NC auxiliary contacts pre-mounted, and delivers a 100 kA short-circuit current rating at 480VAC — making it one of the most widely specified 18-amp contactors in industrial and HVAC motor control panels across North America.

If you have already confirmed this is the right part for your application, check current pricing and availability for the LC1D18P7 at LeadTime.ca — we ship worldwide.

Who Should Buy the LC1D18P7 — and Who Shouldn't

The LC1D18P7 is the correct choice for plant electricians, controls engineers, and panel builders specifying a non-reversing, three-pole motor contactor for standard industrial duty. Choose this model if your application matches all of the following criteria:

  • Motor nameplate horsepower does not exceed 5 HP at 230V AC or 10 HP at 460V/480V AC three-phase
  • Your control circuit operates at 230V AC, 50/60 Hz — this is the coil supply voltage, not the motor voltage
  • You need exactly 1 normally open and 1 normally closed base-mounted auxiliary contact for start/stop or interlock logic (or plan to add LADN expansion auxiliaries)
  • Your panel uses standard 35mm DIN rail mounting per DIN EN 60715
  • Motor operation is non-reversing only — pump, fan, compressor, conveyor in a single direction
  • You are budgeting for a separate LRD overload relay, as this contactor does not include integrated overload protection

If your motor exceeds 10 HP at 460V, step up to the LC1D25 (25A) contactor. If you need forward/reverse capability, specify the LC1D18M7 and LC1D18N7 reversing pair instead.

On this page:

What the LC1D18P7 Actually Does in a Motor Control Circuit

The Schneider Electric LC1D18P7 is a three-pole, normally open power contactor from the TeSys D family — also marketed as TeSys Deca. Its job is straightforward: when the 230V AC coil is energized, the electromagnetic mechanism closes the three main power contacts, completing the circuit between the incoming three-phase supply and the motor terminals. When the coil is de-energized, the contacts open and the motor is disconnected from power. That switching action — at 18A AC-3 rated capacity — is the core function of every direct-online starter this contactor is installed in.

What the LC1D18P7 does not do is equally important to understand. It is a switching device, not a protective device. It will not trip on motor overload, it will not limit inrush current, and it will not reverse motor rotation. For a complete, code-compliant motor starter assembly, it must be paired with an external overload relay such as a compatible LRD-series unit and a manual isolation or control mechanism. The contactor's rated 3,600 operating cycles per hour confirms it is built for the repetitive switching demands of production environments — but that endurance depends entirely on correct sizing and protection pairing.

The base-mounted auxiliary contact block provides 1 NO and 1 NC contact as standard. These auxiliary circuits carry the control logic signals — confirming the contactor state to a PLC input, illuminating a run indicator lamp, or forming an interlock with a second device. Optional LADN front-mounted or side-mounted auxiliary modules can extend the contact count when the application requires additional feedback or logic signals without adding a separate relay to the panel.

Typical System Architecture for a Direct-Online Motor Starter

The LC1D18P7 sits at the power switching layer in a direct-online starter assembly — downstream of fusing or circuit breaker protection and upstream of the motor terminals. Understanding the component chain prevents specification gaps and missing overload protection.

  • Upstream: Three-phase supply enters a fused disconnect or motor branch circuit breaker rated for the motor full-load current
  • Overload relay: An LRD-series overload relay (such as LRD10 or LRD16, selected by motor full-load amperes) clips directly to the output side of the LC1D18P7 and monitors motor current continuously
  • LC1D18P7 contactor: Three main power contacts (L1/L2/L3 in, T1/T2/T3 out) switch the motor circuit on command from the control circuit
  • Control circuit: 230V AC supply energizes the LC1D18P7 coil via start/stop pushbuttons, a PLC output, or a relay contact — the coil voltage and motor voltage are separate circuits
  • Downstream: Motor terminals receive the switched three-phase supply; auxiliary contacts feed back a run confirmation signal to the control system or indicator lamp

Where the LC1D18P7 Gets Installed: Typical Applications

Pump and compressor motor starters represent the single largest application for this contactor. In HVAC systems, the LC1D18P7 controls chiller compressors, circulation pump motors, cooling tower fans, and air handling unit fans where motor ratings fall within the 10 HP at 480VAC ceiling. The 100 kA SCCR rating at 480VAC means the contactor meets short-circuit withstand requirements for most industrial panel designs without additional mitigation components.

In production environments, the LC1D18P7 appears frequently in conveyor drive starters, packaging machine motors, and process line pump controls. Its compact 45mm width on 35mm DIN rail makes it practical for high-density panel layouts where multiple starters occupy a single enclosure. OEM panel builders in food processing, wastewater treatment, and general manufacturing regularly specify this model as the base switching device in standard motor starter assemblies, often pairing it with an LRD overload relay and DIN-rail-mounted control components.

Emergency replacement is a significant use case that shapes how this contactor is stocked by distributors. When an identical or equivalent 18A contactor fails in a running system, the LC1D18P7's wide availability through authorized distributors worldwide means a replacement can typically be sourced and installed the same day or next business day — a critical factor when downtime costs outweigh component cost.

Application Typical Deployment
HVAC chiller compressor control DOL starter in mechanical room MCC, paired with LRD overload relay and manual isolation switch
Circulation pump motor starter DIN rail panel with LC1D18P7 + LRD + pushbutton station; 460V three-phase pump motor
Production conveyor drive Multi-starter panel with 3-6 LC1D18P7 units controlling individual conveyor sections
Wastewater treatment pump Outdoor NEMA enclosure with DIN rail assembly; motor up to 10 HP at 480V
OEM packaged control panel Integrator builds standard DOL starter module using LC1D18P7 as base contactor across multiple customer projects
Emergency field replacement Like-for-like swap of failed 18A contactor in existing HVAC or process system with same coil voltage

Key Electrical Specifications and Motor Ratings

Specification Value
AC-3 Motor Current Rating 18A
AC-1 Resistive Current Rating 32A
Motor HP Rating @ 230V AC 5 HP (maximum)
Motor HP Rating @ 460/480V AC 10 HP (maximum)
Coil Voltage 230V AC, 50/60 Hz
Coil Power Consumption 7.5–7.7 VA
Main Poles 3 poles (3 NO)
Auxiliary Contacts (base-mounted) 1 NO + 1 NC
Short-Circuit Current Rating (SCCR) 100 kA at 480VAC
Mounting 35mm DIN rail (DIN EN 60715); surface mount with optional bracket

Full technical specifications are available on the product page at LeadTime.ca.

LC1D18P7 vs. LC1D25 vs. LC1D18M7: Which Contactor Do You Actually Need?

Model AC-3 Rating Max HP @ 460/480V Coil (230V AC) Reversing SCCR @ 480V Relative Price Tier
LC1D18P7 18A 10 HP Yes No 100 kA Base
LC1D09 (smaller) 9A 5 HP Yes (variant) No 100 kA Lower
LC1D25 25A 15 HP Yes (variant) No 100 kA 15–25% premium
LC1D32 32A 20 HP Yes (variant) No 100 kA Higher
LC1D18M7 + LC1D18N7 18A each 10 HP Yes Yes (pair) 100 kA 30–40% premium for pair

If your motor exceeds 10 HP at 460V or 480V, the LC1D18P7 is not rated for the application — the LC1D25 is the next step up with identical mounting geometry and auxiliary compatibility. Check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the LC1D18P7 the Right Contactor for Your Build?

The LC1D18P7 earns its place in maintenance stockrooms and panel builders' standard BOMs because it delivers exactly what most direct-online motor starter applications require — reliable three-phase switching at 18A AC-3, a 100 kA SCCR at 480VAC that satisfies most industrial panel short-circuit coordination requirements, and a 230V AC coil that fits comfortably into the most common North American control circuit voltage. The base-mounted 1 NO and 1 NC auxiliary contacts eliminate the need for an additional auxiliary module in the majority of installations, keeping panel density tight and cost controlled. Plant maintenance technicians replacing failed contactors in HVAC, pump, or compressor systems, controls engineers specifying standard DOL starters for production lines, and OEM panel builders specifying a proven, widely available component across multiple customer projects — all of these buyers are in the right place with this model.

The limits are clear and non-negotiable. Motors above 10 HP at 460/480V require the LC1D25 or larger — there is no margin to push this contactor beyond its AC-3 ceiling. Applications requiring forward/reverse motor rotation need the LC1D18M7 and LC1D18N7 reversing pair, not this model. The absence of an integrated overload relay is the most frequently overlooked constraint: the LC1D18P7 switches the circuit, but without a paired LRD overload relay, the motor has no thermal protection against overload conditions. Buyers specifying a 24VDC coil or any non-230V AC coil voltage must select a different LC1D variant entirely — the coil voltage on this model is fixed.

From a procurement standpoint, the LC1D18P7 benefits from Schneider Electric's broad authorized distribution network, which means emergency replacement stock is typically available for same-day or next-day dispatch from specialist industrial distributors worldwide. Ordering through a specialist like LeadTime.ca matters precisely because they can confirm coil voltage, verify overload relay compatibility, and flag a wrong-part selection before the order ships — something a generic online retailer cannot do. View current pricing and stock status for the LC1D18P7 at LeadTime.ca.

For volume pricing, project quantities, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D18P7

Community discussion specific to the LC1D18P7 is sparse across the major automation forums and distributor Q&A platforms, which is itself informative: this is a mature, well-understood product in its category, and most experienced technicians who have worked with the TeSys D family know exactly what they are ordering. When questions do arise at the LC1D-series level on forums such as PLCTalk and PLCS.net, they cluster around a consistent set of specification errors — errors that are entirely preventable with the right pre-order checks. LeadTime.ca's sourcing team sees the same patterns recur in purchase inquiries, which is why the following information reflects real-world ordering experience rather than just datasheet content.

The single most common confusion engineers and technicians report involves coil voltage. The LC1D18P7's 230V AC coil is the control circuit supply — not the motor power supply voltage. Buyers accustomed to specifying contactors by motor voltage alone sometimes select this model assuming the "P7" suffix indicates a 230V motor contactor, when in fact the main power contacts will carry whatever three-phase voltage the system supplies (commonly 460V or 480V). The motor voltage and the coil voltage are independent circuits, and confirming both before ordering is not optional. A contactor installed with a mismatched coil voltage will fail to energize; the motor will not start, and the fault is not always immediately obvious without a schematic in hand.

The second recurring issue is the absence of an integrated overload relay. Engineers and technicians who are newer to IEC-style motor starters sometimes assume that a contactor rated for 18A AC-3 includes overload trip functionality because North American combination starters often integrate both functions. It does not. The LC1D18P7 requires an external LRD-series overload relay — sized to the motor's actual full-load current — to constitute a complete and protected starter. Ordering the contactor without simultaneously specifying the overload relay leads to either a delayed installation or a panel that passes initial inspection but leaves the motor unprotected. Budget for the LRD unit on the same purchase order to avoid this gap.

Wiring and Installation: What to Verify Before You Mount It

  • Confirm the control circuit supply is 230V AC at 50/60 Hz before connecting coil terminals — this is separate from the three-phase motor supply voltage on L1/L2/L3
  • Verify the 35mm DIN rail is clean, horizontal, and secured in the enclosure before clipping the contactor — the unit should not rock or slide once seated
  • Strip 5–6mm of insulation from each wire end before inserting into screw clamp terminals; under-stripped conductors cause loose connections and intermittent faults
  • Connect motor supply lines to T1, T2, T3 output terminals through the LRD overload relay before feeding to motor terminals — never bypass the overload relay
  • Test the 1 NO and 1 NC auxiliary contacts with a multimeter before energizing the main coil to confirm correct contact state and catch wiring errors in control logic before the motor starts

For full wiring diagrams, terminal assignment details, and commissioning procedures, refer to the Schneider Electric TeSys D installation documentation provided with the product.

Compatible Accessories and System Expansion

The LC1D18P7 is part of the TeSys D modular ecosystem, meaning additional function blocks attach directly to the contactor body without additional wiring or mounting hardware in most configurations. The following accessories are compatible with this contactor:

  • LRD overload relays (e.g., LRD10, LRD16) — clip directly to the contactor output; sized to motor full-load current for thermal overload protection; required for a complete motor starter assembly
  • LADN front-mount auxiliary contact blocks — add 2 or 4 additional NO/NC auxiliary contacts to the front face of the contactor for expanded control logic, PLC feedback, or interlock signals
  • LADN side-mount auxiliary contact blocks — attach to the side of the contactor body; useful when front-face space is constrained in a dense panel layout
  • Surge suppression modules — available for the TeSys D coil to protect control circuits from voltage spikes when the contactor de-energizes; recommended for panels with PLCs or sensitive control electronics on the same power rail

Wrong-Part Prevention Checklist

Before placing your order for the LC1D18P7, verify each of the following points against your motor nameplate and panel schematic. These are the six checks that prevent the most common ordering and installation errors:

  1. Verify motor nameplate: confirm horsepower rating at YOUR supply voltage (5 HP max @ 230V; 10 HP @ 460V or 480V)
  2. Check coil voltage requirement: LC1D18P7 has 230V AC coil only. Do not order if you need 24VDC, 120VAC, or other voltage. Verify before purchase.
  3. Confirm load type: this contactor uses AC-3 (motor) amp rating of 18A. If your load is resistive (AC-1), the 32A rating applies but wrong-type loads may not trip overload properly.
  4. Verify auxiliary contact requirement: specify exactly what you need (1 NO + 1 NC, or 2 NO, or 2 NC) to avoid rewiring during installation.
  5. Confirm panel has 35mm DIN rail — if surface-mount or other rail type is required, order mounting kit separately.
  6. Plan external overload protection: this contactor does NOT integrate an overload relay. Budget for separate LRD or equivalent relay purchase and installation.

If any of these checks raise a question you cannot resolve from the motor nameplate or panel drawings alone, contact LeadTime.ca before ordering — our team can verify compatibility and confirm the correct overload relay pairing before anything ships.

Frequently Asked Questions

Does the LC1D18P7 include overload protection, or do I need to order that separately?

The LC1D18P7 is a switching contactor only — it does not include overload protection. You must order and install a compatible LRD-series overload relay separately, sized to your motor's full-load current, to complete a protected DOL motor starter. Without the overload relay, the motor has no thermal protection and the assembly does not comply with motor branch circuit protection requirements.

My motor runs at 480V three-phase. Does that mean I need a 480V coil on the contactor?

No. The main power contacts on the LC1D18P7 carry the 480V three-phase motor supply on L1, L2, and L3 — that voltage is determined by your facility supply and is independent of the coil voltage. The coil voltage (230V AC on the LC1D18P7) is the control circuit supply that energizes the electromagnet to close the contacts. Many North American industrial panels use a 230V or 240V AC control transformer to supply the contactor coil, even when the motor runs at 480V. Confirm your control circuit voltage on the panel schematic before ordering.

Can I use the LC1D18P7 on a motor rated at 12 HP at 480V?

No. The LC1D18P7 is rated for a maximum of 10 HP at 460V/480V AC on AC-3 motor loads. A 12 HP motor at 480V exceeds this ceiling and will draw more full-load current than the contactor is rated for under AC-3 conditions, leading to premature contact wear and potential failure. Specify the LC1D25 (25A AC-3) for motors in the 10–15 HP range at 460/480V.

What is the difference between the LC1D18P7 and the LC1D18M7?

Both are 18A AC-3 rated TeSys D contactors with 230V AC coils, but the LC1D18P7 is a non-reversing contactor (motor runs in one direction only), while the LC1D18M7 is one half of a reversing starter pair — used together with the LC1D18N7 to provide forward and reverse motor rotation. If your application requires the motor to run in both directions (hoists, cranes, bridge drives, or any bidirectional load), you need the LC1D18M7 plus LC1D18N7 pair, not the LC1D18P7.

Can I add more auxiliary contacts to the LC1D18P7 without replacing the contactor?

Yes. The TeSys D modular design allows LADN front-mount or side-mount auxiliary contact blocks to be added to the base LC1D18P7 without replacing the contactor or rewiring the main power circuit. These add-on blocks provide 2 or 4 additional NO/NC contacts for expanded PLC feedback, indicator logic, or interlock circuits. The base-mounted 1 NO + 1 NC contacts remain active alongside the added modules.

What lead time should I expect for the LC1D18P7 from a specialist distributor?

When in stock at a specialist industrial distributor, same-day or next-day shipping is typical. Lead time for non-stock or backorder situations has historically ranged from 3 to 10 business days under normal supply chain conditions, though this can vary. For critical system replacements or project builds with firm timelines, confirm live stock status with your distributor before committing to a schedule — LeadTime.ca can confirm current availability and lead time on request.

Why Order From LeadTime.ca

  • Global shipping — orders fulfilled and shipped worldwide, not limited to any single region or country
  • Specialist sourcing — access to in-stock and hard-to-find industrial automation components including TeSys D series contactors and compatible accessories
  • Pre-order compatibility support — the team can verify coil voltage, overload relay pairing, and application suitability before your order ships
  • Volume and project pricing — contact for current pricing on multi-unit orders, project BOMs, and recurring supply agreements
  • Fast response for emergency replacements — critical for unplanned downtime situations where every hour of delay has a cost

At-a-Glance Summary

  • Model: Schneider Electric LC1D18P7 — TeSys D IEC non-reversing motor contactor, open enclosure
  • AC-3 motor current rating: 18A; AC-1 resistive rating: 32A
  • Maximum motor load: 5 HP at 230V AC or 10 HP at 460V/480V AC (absolute ceiling; do not exceed)
  • Coil voltage: 230V AC, 50/60 Hz — this is the control circuit supply, not the motor voltage
  • Coil power consumption: 7.5–7.7 VA
  • Main poles: 3 NO (three-phase switching)
  • Base auxiliary contacts: 1 NO + 1 NC, base-mounted — no additional auxiliary module required for most standard applications
  • SCCR: 100 kA at 480VAC — meets short-circuit withstand requirements for most industrial panel designs
  • Mounting: 35mm DIN rail per DIN EN 60715; surface mount available with optional bracket
  • Panel footprint: 45mm wide — suitable for high-density DIN rail layouts
  • Operating cycles: rated 3,600 cycles per hour under standard industrial duty conditions
  • Compliance: IEC 60946, UL 508, RoHS, REACH, WEEE, RINA
  • Overload protection: NOT included — external LRD-series overload relay required for complete motor starter assembly
  • Reversing capability: NOT included — specify LC1D18M7 + LC1D18N7 pair for forward/reverse applications
  • Compatible accessories: LRD overload relays, LADN front/side auxiliary blocks, TeSys D surge suppression modules
