Schneider LC1D18M7 Contactor — 18A IEC Motor Control Review

By Abdullah Zahid
15 min read

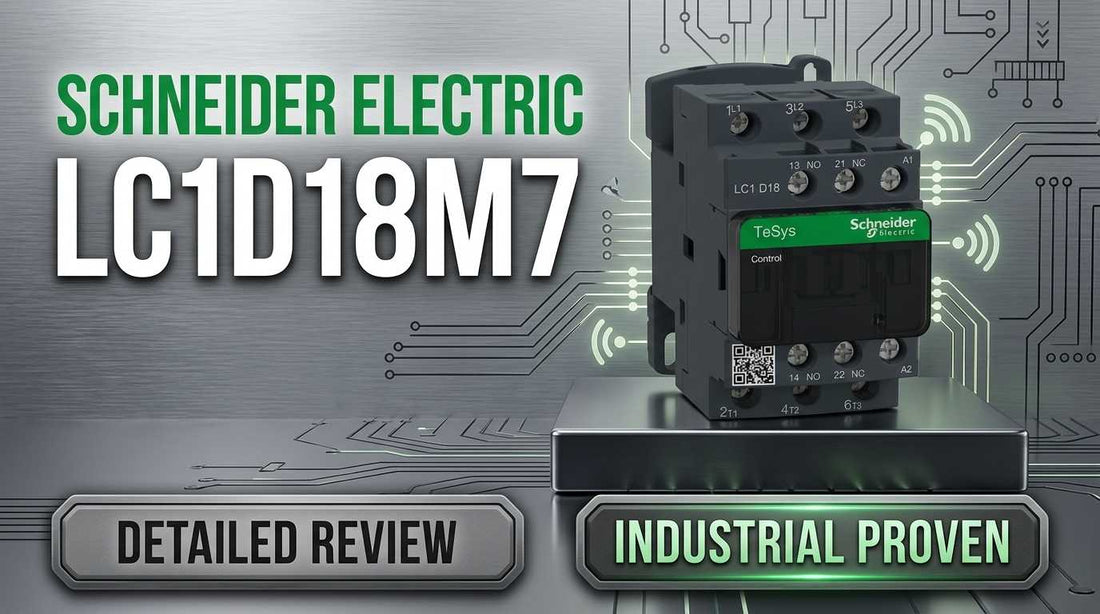

Schneider Electric LC1D18M7 TeSys Deca 18A IEC contactor on DIN rail for three-phase motor control

Schneider LC1D18M7 IEC Contactor, TeSys Deca, Nonreversing, 18A, 10HP at 480VAC — Specifications, Buying Guide & Expert Review

Controls engineers and panel designers searching for the Schneider LC1D18M7 are typically at one stage of the same decision: they have a motor to control, they know IEC is the right standard, and they need to confirm that this specific 18A, 220V AC coil contactor is the right size before they commit to an order. The LC1D18M7 is a three-pole, non-reversing contactor from the TeSys Deca family, rated for 10 HP at 480VAC and designed to switch three-phase AC motor loads in response to a 220V AC 50/60Hz control signal. At 45mm wide and DIN rail mountable, it fits cleanly into modular panel builds where space and interchangeability matter.

If you have already confirmed this is the correct part for your application, check current pricing and availability for the LC1D18M7 at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D18M7 — and Who Shouldn't

The LC1D18M7 is the right contactor when all of the following are true for your application:

  • Your control power supply is 220V AC at 50Hz or 60Hz — this coil voltage is fixed at the factory and cannot be changed
  • Your motor's full-load amperage (FLA) does not exceed 16A continuously, and its nameplate rating falls within 10 HP at 480VAC or 5 HP at 230VAC
  • Your panel uses standard 35mm DIN rail mounting — the LC1D18M7 snaps onto rail with a 45mm module footprint
  • You need 1 NO + 1 NC integrated auxiliary contacts for feedback and interlocking logic
  • Motor operation is non-reversing only — forward direction start/stop switching is the complete duty requirement

If your motor FLA exceeds 16A, or you need horsepower capacity above 10 HP at 480VAC, the LC1D32M7 is the correct upgrade. If your control supply is 110V AC, 380V AC, or 24V DC, you need a different variant in the TeSys D family — the LC1D18K7, LC1D18F7, or LC1D18E7 respectively. If the application requires reversing duty, specify the LC1D18R instead.

On this page:

What the LC1D18M7 Actually Does in a Motor Control System

The LC1D18M7 is a three-pole IEC contactor from Schneider Electric's TeSys Deca family. Its function is straightforward and essential: it switches three-phase electrical power to an AC motor load in response to a low-current control signal, replacing the manual operator and enabling remote or automated motor start and stop. When the 220V AC coil at terminals A1 and A2 is energized — by a PLC output, push-button circuit, or interlock relay — the three main power contacts close and connect the incoming three-phase supply to the motor. De-energize the coil, and the spring-return mechanism opens the contacts and stops the motor.

What distinguishes the LC1D18M7 from a simple relay is its rating for AC-3 motor duty. AC-3 is the IEC duty class for switching squirrel-cage motors — making and breaking under full load current, with the inrush surge that occurs at motor start. The contactor is rated to handle 18A at this duty, with a switching capacity of 7.5kW at rated voltage. The integrated auxiliary contact block provides one normally open (NO) and one normally closed (NC) contact, each rated at 5A at 250V AC, for status feedback, run confirmation signals, and interlocking logic in the control circuit.

The 45mm module width and snap-on 35mm DIN rail mounting make the LC1D18M7 a natural fit for modern modular panel construction. The screw clamp terminals support multi-standard wiring conventions, reducing installation errors in facilities that operate across different regional electrical codes. IEC 60947-4-1 compliance, combined with UL 508 and CSA C22.2 No. 14 listings, means the same part satisfies regulatory requirements in North American and international markets — a meaningful advantage for OEM panel builders and integrators supplying equipment globally.

Typical System Architecture: Where the LC1D18M7 Sits in the Signal Chain

The LC1D18M7 sits at the power switching layer between the control logic and the motor load, acting as the interface that allows low-current logic signals to command high-current motor circuits.

  • PLC digital output or push-button control circuit energizes the 220V AC coil at terminals A1 and A2
  • LC1D18M7 main contacts close, connecting three-phase supply (L1/L2/L3 at IN terminals) to motor terminals (T1/T2/T3 at OUT)
  • Integrated 1 NO auxiliary contact closes to provide run-state feedback to PLC input or panel indicator lamp
  • Integrated 1 NC auxiliary contact opens to support interlock logic in the control circuit
  • A separate thermal overload relay mounted adjacent on DIN rail monitors motor FLA and opens the control circuit if sustained overcurrent is detected — the LC1D18M7 alone does not provide overload protection

Typical Applications and Deployment Scenarios

In food and beverage processing, the LC1D18M7 is a common choice for three-phase pump motor control — conveying liquids, driving mixers, or switching wash-down pumps where the compact DIN rail footprint saves panel space in tight enclosure builds. The dual-frequency 220V coil and IEC standardization mean the same part number works across facilities in different countries without respecification.

In refrigeration and HVAC, the contactor handles compressor and fan motor start/stop with up to 3,600 operating cycles per hour — a specification that matters in demand-controlled HVAC systems where the compressor cycles frequently. The 0.8W power dissipation in AC-3 duty keeps the thermal load on the panel low in multi-contactor installations.

Water treatment plants standardize on contactors like the LC1D18M7 for valve actuator drives and pump controls because the IEC 60947-4-1 and CSA C22.2 No. 14 certifications satisfy regulatory inspection requirements without additional documentation. Manufacturing lines use it for conveyor belt motor switching where the 15 million mechanical durability cycles support long service intervals between planned maintenance.

HVAC contractors building modular compressor control panels favor the 45mm width because multiple contactors can be installed side by side on a single DIN rail section without consuming disproportionate enclosure depth at 84mm.

Application Typical Deployment
Three-phase pump motor control Food and beverage processing, wash-down pump panels, DIN rail multi-contactor builds
Compressor start/stop logic Refrigeration systems, demand-controlled HVAC, high-cycle duty up to 3,600 cycles/hour
Conveyor belt motor switching Manufacturing assembly lines, packaging lines, automated material handling
Valve actuator drive control Water treatment plants, municipal infrastructure, standardized Schneider panel builds
HVAC fan motor remote startup Commercial building automation, BAS-controlled air handling units, remote panel rooms
OEM machine motor control International OEM panels requiring IEC standardization and global spare parts availability

Purchase-Decision Specifications and Coil Voltage Variants

Parameter Value Notes
Contact Current Rating 18A at 600VAC AC-3 duty cycle
Horsepower at 480V AC 10 HP Three-phase motor
Horsepower at 230V AC 5 HP Three-phase motor
Coil Voltage 220V AC 50/60Hz Dual frequency; factory-fixed
Coil Power — Inrush 70VA At initial energization
Coil Power — Hold-in 7.5–7.7VA Nominal running current
Insulation Voltage 690V Power circuit isolation
Auxiliary Contacts 1 NO + 1 NC 5A at 250V AC each; not for motor load switching
Operating Temperature -5 to 60°C Standard industrial environment
Mounting / Module Width 35mm DIN rail / 45mm wide Snap-on installation; 84mm depth

Full technical specifications are available on the product page at LeadTime.ca.

The LC1D18M7 carries a 220V AC coil. If your control supply is a different voltage, the coil variant must be specified at the time of order — it cannot be changed after manufacture. The table below shows the most common LC1D18 series variants by coil voltage:

Model Variant Coil Voltage Availability Notes
LC1D18M7 220V AC 50/60Hz In stock — most common Standard North American and international choice
LC1D18K7 110V AC 50/60Hz Available Lower control voltage panels
LC1D18E7 24V DC Available DC control circuits, PLC direct output drive
LC1D18F7 380–400V AC 50Hz Regional European control voltage installations

If your motor FLA sits between 16A and the 32A threshold, the LC1D32M7 is the correct next step — check current availability and pricing at LeadTime.ca to compare both models before committing.

Expert Verdict: When to Use It, When to Walk Away

The LC1D18M7 earns its place as the default 18A IEC contactor for light-to-medium motor control in standard industrial panels. It delivers a 10 HP rating at 480VAC with a dual-frequency 220V coil, fits a 45mm DIN rail slot, and ships with 1 NO and 1 NC auxiliary contacts already integrated — covering the majority of feedback and interlock requirements without additional hardware. Its 15 million mechanical durability cycles and 3,600 operating cycles per hour rating make it suitable for demanding HVAC and pump duty where frequent cycling is the norm rather than the exception. Automation integrators building standardized IEC panels, plant maintenance teams replacing in-kind, and OEM builders supplying international markets will all find this the low-friction, low-risk choice in its amperage class.

Where the LC1D18M7 has real limits: it is not the right part for motor FLA above 16A continuous — the LC1D32M7 at 32A is the appropriate upgrade. Applications requiring reversing duty need the LC1D18R. Environments with washdown exposure, chemical spray, or submersion exceed the IP2X enclosure rating, and a higher-rated IP67 model from the broader TeSys family should be specified instead. The 220V AC coil is also a hard constraint — if your panel runs 380V, 110V, or 24V DC control supply, the LC1D18F7, LC1D18K7, or LC1D18E7 respectively is the correct selection. No retrofit or adapter exists; the wrong coil voltage means a full replacement order.

From a procurement standpoint, the LC1D18M7 is one of the better-stocked contactors in the TeSys D family. Authorized industrial distributors typically carry it as a shelf item with same-day to three-day shipping, which matters significantly when the part is an emergency replacement in a production-down scenario. Ordering through a specialist distributor rather than a generic electronics channel ensures you receive the correct coil voltage variant — not a European 380V version misrouted from a regional warehouse — and gives you access to technical guidance if your sizing calculation is borderline. View current stock status and pricing for the LC1D18M7 at LeadTime.ca, where the team ships worldwide and can assist with coil voltage confirmation before the order is placed.

For volume pricing, build schedules, or lead time confirmation before committing to a panel design, contact the LeadTime.ca team directly — we ship worldwide and can cross-reference coil voltage variants against your panel schematic before the order is placed.

What Engineers Need to Know Before Ordering the LC1D18M7

Because dedicated community threads on this specific model number are sparse in the forums engineers normally consult, the most reliable pre-order intelligence comes from understanding the failure patterns that specialist distributors see repeatedly across the TeSys D family — and from the wrong-part scenarios that generate the highest volume of return and replacement calls.

The single most common ordering mistake across the LC1D18 series is coil voltage mismatch. Engineers familiar with the product family sometimes assume that all LC1D18 contactors share a common coil — they do not. The model suffix encodes the coil voltage: M7 means 220V AC, K7 means 110V AC, E7 means 24V DC, and F7 means 380–400V AC. Ordering the wrong suffix because the coil voltage was not verified against the panel schematic before the purchase order was submitted is a recurring problem. The fix is straightforward — measure the actual control supply voltage with a multimeter before ordering — but it requires the step to be taken deliberately, not assumed.

The second pattern is contactor undersizing relative to motor nameplate FLA. The LC1D18M7 carries an 18A contact rating, but the practical guidance from the sizing table in this brief is to use it only when motor FLA does not exceed 16A, leaving a 125% headroom margin. Engineers sizing directly to the motor nameplate horsepower rating without calculating the actual FLA at operating voltage can end up with a contactor running near its thermal limit, accelerating contact erosion and reducing service life. If your calculation puts FLA above 16A, the LC1D32M7 is the right part. The contactor is not a motor protection device — it switches power, and the thermal overload relay mounted adjacent on the DIN rail is the component that protects the motor from sustained overcurrent. Installations that omit the thermal overload relay leave the motor unprotected during stall or jam conditions.

A third issue worth flagging before installation: screw terminal torque. The LC1D18M7 uses screw clamp terminals for both the power circuit and the control coil. Terminals tightened by hand without a torque wrench are a documented source of arcing and terminal burnout in service. The brief specifies a torque range of 0.5–1.5 Nm for these terminals. That range should be treated as a mandatory commissioning step, not an optional one. When community data is sparse for a specific model, questions about installation quality and terminal integrity tend to surface through failure calls rather than forum posts — which is exactly why LeadTime.ca's team is worth contacting when installation details are uncertain before the panel goes live.

Wiring and Installation Overview

The following overview covers the key requirements and checkpoints for LC1D18M7 installation. Full wiring procedures and torque specifications are available in the Schneider Electric datasheet — always consult the manufacturer documentation for complete installation instructions.

  • Snap the contactor onto a clean, level 35mm DIN rail — the rail clips engage with an audible click; verify the unit is fully seated before wiring
  • Connect three-phase incoming supply to the IN terminals (L1, L2, L3) and motor load wires to the OUT terminals (T1, T2, T3) — do not reverse these; load on the wrong side causes motor malfunction
  • Connect the 220V AC control supply to coil terminals A1 and A2, with push-button and interlock logic wired in series upstream of A1; the terminal wire range for the power circuit is 12–10 AWG copper
  • Wire the 1 NO auxiliary contact for run-state feedback to PLC input or indicator; wire the 1 NC auxiliary contact into interlock logic as required — auxiliary contacts are rated at 5A at 250V AC and must not be used for motor load switching
  • Torque all screw terminals to the manufacturer-specified range (0.5–1.5 Nm); verify and re-check after the first month of operation in high-vibration environments

Compatible Accessories and System Expansion

The LC1D18M7 is designed to work within the broader TeSys D and TeSys Deca ecosystem. The following accessories and companion devices are relevant to a complete motor control installation:

  • Thermal overload relays (TeSys D LRD series) — Mount adjacent on DIN rail; provide motor overload protection that the contactor alone does not supply; must be sized to match motor FLA
  • Auxiliary contact blocks (LA1D series) — Add additional NO or NC auxiliary contacts to the LC1D18M7 if the integrated 1 NO + 1 NC count is insufficient for complex interlock logic
  • LC1D18R (reversing contactor version) — Mechanically and electrically interlocked reversing duty; specified when bidirectional motor control is required instead of the non-reversing LC1D18M7
  • LC1D32M7 (32A upgrade) — Next model up in the TeSys D family for motor FLA above 16A or horsepower above 10 HP at 480VAC

Wrong-Part Prevention Checklist Before Ordering the LC1D18M7

Before submitting your purchase order, confirm each of the following against your panel schematic and motor nameplate data:

  1. Verify coil voltage matches control power supply exactly (220V AC standard; confirm 50/60Hz compatibility)
  2. Check that 18A contact rating meets motor full-load amperage at operating voltage
  3. Confirm DIN rail mounting available in your panel design (not all installations use rail-mounted contactors)
  4. Check auxiliary contact count: this model includes 1 NO + 1 NC (verify interlocking needs)
  5. Confirm non-reversing operation is acceptable (reversing motors require different model)
  6. Verify temperature operating range acceptable for environment (-5 to 60°C standard)
  7. Check insulation voltage rated at 690V sufficient for panel wiring environment

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — it is faster to resolve a coil voltage question before shipment than after the part arrives on site.

Frequently Asked Questions

Do I need a separate thermal overload relay with the LC1D18M7, or does the contactor provide motor protection on its own?

The LC1D18M7 is a switching device only — it does not sense motor temperature or monitor overcurrent. A separate thermal overload relay, such as a unit from the TeSys D LRD series mounted adjacent on the DIN rail, is required to protect the motor against sustained overcurrent during stall or jam conditions. Operating a motor on a contactor alone without overload protection is a common installation mistake that risks motor damage and potential panel fire.

Can I swap the coil on the LC1D18M7 from 220V to a different voltage if my control supply changes?

No. The coil voltage is fixed at the factory and integral to the contactor assembly. If your control power supply is 110V AC, 380–400V AC, or 24V DC, you need to order the correct coil variant — LC1D18K7, LC1D18F7, or LC1D18E7 respectively. There is no field-retrofit option. Verify your control supply voltage with a multimeter before submitting the order.

What is the practical current limit before I should upgrade to the LC1D32M7?

The LC1D18M7 carries an 18A contact rating, but the sizing guidance in the TeSys D family is to select a contactor rated at least 125% of motor FLA for reliable service life. That puts the practical ceiling at approximately 16A continuous motor FLA. If your motor nameplate FLA exceeds 16A at your operating voltage, the LC1D32M7 at 32A is the correct selection. Refer to the sizing table in this guide for horsepower thresholds at 480V, 230V, and 575V.

Is the LC1D18M7 suitable for reversing duty, such as forward/reverse conveyor control?

No. The LC1D18M7 is a non-reversing contactor only. For bidirectional motor control, specify the LC1D18R, which is the reversing version of this model with mechanical and electrical interlocking designed to prevent both contactors from energizing simultaneously. Using two non-reversing LC1D18M7 units without proper interlocking in a reversing circuit creates a risk of three-phase short circuit.

What standards certifications does the LC1D18M7 carry for North American and international installations?

The LC1D18M7 meets IEC 60947-4-1 for industrial control contactors, is UL 508 listed for North American industrial control equipment, and carries CSA C22.2 No. 14 certification for Canadian electrical safety requirements. It is also CE marked for European market compatibility and is RoHS and WEEE compliant. This combination of certifications makes the same part number usable in panels destined for multiple regulatory environments without respecification.

What do I check first if the LC1D18M7 is chattering or making continuous noise during operation?

Chattering typically indicates that the coil is receiving voltage but not enough to hold the armature fully closed — the contacts are cycling rapidly between open and closed. First, measure the actual voltage at coil terminals A1 and A2 with an AC voltmeter under load; it should read 220V within a 10% tolerance band. Low coil voltage caused by undersized control wiring, a failing upstream component, or voltage drop under inrush can all cause this symptom. If coil voltage is correct and chattering persists, inspect the mechanical contact surfaces and the auxiliary contact block for wear or contamination.

Why Order the LC1D18M7 Through LeadTime.ca

  • Ships worldwide — the LC1D18M7 and its coil voltage variants are sourced and dispatched to facilities globally, not limited to a single region
  • Specialist distributor with motor control expertise — coil voltage cross-referencing and part number validation before the order ships, not after
  • Stock visibility for time-sensitive replacements — production-down situations require same-day or next-day dispatch, which LeadTime.ca is structured to support
  • Volume and OEM pricing available — contact the team directly for quantity 10+ pricing on panel builds and repeat OEM orders
  • Hard-to-find variants — if the standard LC1D18M7 coil voltage is not what you need, the team can source LC1D18K7, LC1D18E7, and LC1D18F7 variants from the same inquiry

LC1D18M7 At-a-Glance Summary

  • Three-pole, non-reversing IEC contactor from Schneider Electric TeSys Deca family
  • 18A contact rating at 600VAC; AC-3 switching capacity of 7.5kW at rated voltage
  • 10 HP at 480VAC and 5 HP at 230VAC three-phase motor rating
  • 220V AC 50/60Hz dual-frequency coil — coil voltage is factory-fixed; verify before ordering
  • Coil inrush 70VA; hold-in 7.5–7.7VA; power dissipation 0.8W in AC-3 duty
  • Integrated 1 NO + 1 NC auxiliary contacts rated 5A at 250V AC
  • 35mm DIN rail mounting; 45mm module width; 84mm depth
  • Operating temperature -5 to 60°C; IP2X enclosure rating
  • 3,600 operating cycles per hour; 15 million mechanical durability cycles
  • Certified to IEC 60947-4-1, UL 508, CSA C22.2 No. 14, CE, RoHS, WEEE
  • Coil voltage variants: LC1D18K7 (110V AC), LC1D18E7 (24V DC), LC1D18F7 (380–400V AC)
  • Upgrade path for FLA above 16A: LC1D32M7 (32A); reversing duty: LC1D18R
