Schneider LC1D18BD — 18A TeSys D Contactor Buying Guide

By Abdullah Zahid
15 min read

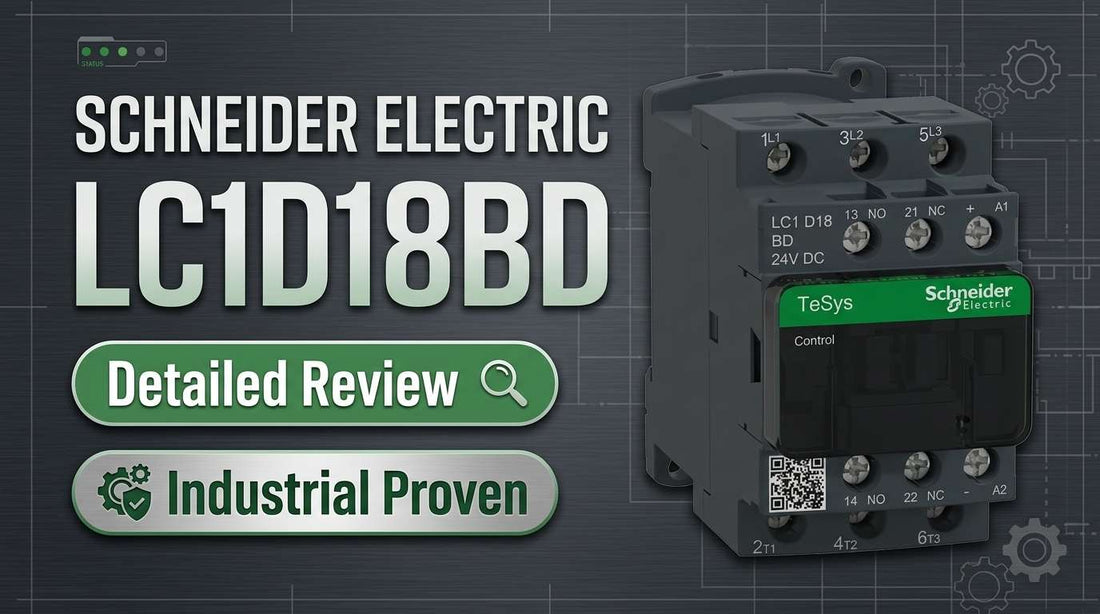

Schneider Electric LC1D18BD TeSys D 3-pole 18A 24VDC IEC contactor for DIN rail motor control panel installation

Schneider LC1D18BD IEC Contactor, TeSys D, 3-Pole Non-Reversing, 18A, 24VDC Coil — Specs, Price and Motor Control Selection Guide

Panel builders and automation technicians searching for the LC1D18BD have usually already done the hard work — they know they need an 18A IEC contactor with a 24VDC coil that connects directly to a PLC output. The question at this stage is confirmation: correct model number, correct coil voltage, correct current class, ready to order. The Schneider Electric LC1D18BD is a 3-pole non-reversing TeSys D contactor rated at 18A AC3 inductive load and 600VAC maximum, with a built-in transient suppression diode that eliminates the need for an external relay or suppression module between the controller output and the coil.

If you have already confirmed this is the correct part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D18BD — and Who Should Choose a Different Model

The LC1D18BD is the right contactor when all five of these conditions are true for your application:

  • Your motor or inductive load draws no more than 18A continuous at AC3 duty (motors up to 10 hp at 480VAC or 7.5 hp at 400VAC)
  • Your control circuit supplies 24VDC and you need direct PLC output connection without an intermediate relay stage
  • Your load requires 3-pole, 3NO switching for three-phase motor control — not a reversing or 4-pole configuration
  • You are mounting to a standard 35mm DIN rail inside an industrial control enclosure with at least 25mm lateral clearance available on each side
  • Your installation requires a contactor rated to 100kA SCCR system fault level

If your motor exceeds 18A at AC3, step up to the LC1D25BD (25A AC3, same 24VDC coil). If your control circuit runs on 110VAC or 230VAC, the LC1D18BD will not energize — select LC1D18E7 or LC1D18M7 respectively. If bi-directional motor control is required, the LC1D18BD cannot reverse motor direction; that application requires a reversing contactor variant.

On this page:

What the LC1D18BD Actually Does in a Motor Control Circuit

The LC1D18BD is an electromechanical contactor — in practical terms, a remote-controlled heavy-duty switch. When a 24VDC signal from a PLC or automation controller energizes the coil, an electromagnetic force closes three separate power contacts simultaneously, routing three-phase AC power to the connected motor, pump, fan, or other inductive load. When the 24VDC signal is removed, the spring return mechanism opens all three contacts and disconnects the load. This fail-safe behavior — de-energized equals open — is a fundamental requirement in motor control safety architecture.

What distinguishes the LC1D18BD within the TeSys D family is the built-in peak-limiting diode on the coil circuit. Every time the contactor de-energizes, the collapsing magnetic field in the coil generates a voltage transient. Without suppression, that transient travels back through the control wiring into the PLC output module. The integrated suppression diode clamps this transient internally, protecting the PLC output directly — no external diode, varistor, or interposing relay required. For panel builders working with tight enclosures and dense component layouts, this is a genuine space and cost saving rather than a marketing claim: it eliminates one component and one wiring run per contactor circuit.

The 45mm DIN rail footprint is the standard TeSys D module width, which means accessory blocks — including auxiliary contact modules — clip onto the contactor body without consuming additional rail space. The IP2X enclosure classification confirms the contactor is suitable for installation inside a standard industrial control enclosure where panels are opened by qualified personnel.

Typical System Architecture: Where This Contactor Sits

The LC1D18BD sits between the PLC's discrete output section and the motor branch circuit, acting as the electrically isolated switching element that the low-voltage control system uses to switch high-voltage load power.

  • PLC or automation controller — discrete 24VDC output card drives the coil signal
  • 24VDC control power supply — dedicated or shared supply feeding coil voltage through control wiring
  • LC1D18BD contactor — receives 24VDC coil signal, closes 3-pole contacts to pass three-phase AC to the load
  • Branch circuit protection (fuses or circuit breaker) — upstream of contactor load terminals, sized for motor branch circuit per electrical code
  • Motor, pump, or fan — connected to load terminals; actual running current must not exceed 18A AC3

Applications and Deployment Scenarios for the LC1D18BD

The LC1D18BD is most commonly specified for direct-on-line (DOL) motor starter circuits controlling three-phase motors up to 10 hp at 480VAC or 7.5 hp at 400VAC in continuous duty industrial applications. Food and beverage processing lines rely on this contactor class for conveyor drives, mixer motors, and pump control where PLC-based automation governs start and stop sequences. The 24VDC coil allows direct integration with virtually any modern PLC platform without requiring an interposing relay stage.

In HVAC and building automation, the LC1D18BD handles fan and pump motor switching in air handling units, cooling towers, and chilled water systems. The 3600 cycles/hour rated duty cycle covers most HVAC control sequences, though very high-frequency cycling applications — such as rapid modulating pump control — warrant review of actual cycle rates against this rating before specifying.

Water and wastewater treatment facilities use this contactor class for booster pump and aeration blower control where PLC-based SCADA systems manage motor sequencing. Compressed air systems — particularly compressor motor switching and air dryer control — are a recurring deployment scenario, given that compressor motors in the 7.5-10 hp range map directly to this current class.

Material handling and packaging machinery integrators specify the LC1D18BD for conveyor drive motors, indexing tables, and feeder mechanisms where precise start/stop control from a PLC is required and the load current falls within the 18A AC3 envelope.

Application Typical Deployment
Direct-on-line motor starter, 10 hp @ 480VAC Three-phase motor fed from MCC; PLC discrete output drives 24VDC coil
Pump control, water/wastewater Booster or process pump motor; SCADA PLC controls start/stop sequence
HVAC fan and air handler motor AHU supply fan motor switched by building automation controller via 24VDC signal
Conveyor and packaging line drive PLC-controlled conveyor motor in food processing or material handling line
Compressed air compressor control 7.5-10 hp compressor motor switching in industrial compressed air system
Resistive heater bank switching Process heater load up to 18A switched by temperature controller 24VDC output

LC1D18BD Electrical Ratings, Physical Specs, and Horsepower Capacity

Parameter Value Notes
Motor Load Rating (AC3 Inductive) 18 A Maximum continuous; inductive/motor loads only
Resistive Load Rating (AC1) 32 A Resistive loads only — do not apply to motors
Maximum Operating Voltage 600 VAC 50/60 Hz dual frequency
Coil Voltage 24 VDC Permissible range: 21.6V to 26.4V (+/- 10%)
Coil Power Consumption 5.4 W Suitable for direct PLC output connection
Contact Configuration 3-Pole, 3NO Three normally open poles; non-reversing
Short-Circuit Current Rating (SCCR) 100 kA System-level fault protection
Rated Duty Cycle 3600 cycles/hour Standard industrial switching rate
Operating Temperature Range -5°C to +60°C Above 60°C increases coil dropout risk
Enclosure Classification IP2X Finger-proof; suitable for control panel installation

Full technical specifications are available on the product page at LeadTime.ca.

Horsepower Ratings by Line Voltage

Line Voltage Frequency 3-Phase Power (hp) Notes
230 VAC 60 Hz 5 hp Derated from higher voltage ratings
400 VAC 50 Hz 7.5 hp European/IEC standard
440 VAC 60 Hz 10 hp Industrial North America
480 VAC 60 Hz 10 hp Most common North American industrial standard
600 VAC 50/60 Hz 15 hp* *Verify against current Schneider datasheet — sources conflict

Always verify that the actual motor nameplate current does not exceed 18A, regardless of horsepower rating at your line voltage.

LC1D18BD vs LC1D25BD vs Reversing and Competitor Models

Model Manufacturer Current Rating (AC3) Coil Voltage Key Difference
LC1D18BD Schneider Electric 18 A 24 VDC Evaluated model; built-in coil suppression; compact 45mm
LC1D25BD Schneider Electric 25 A 24 VDC Higher current; same footprint; select when load approaches 18A
LC1D18E7 Schneider Electric 18 A 110 VAC Same body; different coil — not interchangeable with BD
LC1D18M7 Schneider Electric 18 A 230 VAC Reversing variant also available; different coil — verify suffix
A16-30-10-11 ABB 16 A 24 VDC Slightly lower AC3 rating; similar compact form factor
DILM17-10 Eaton 17 A 24 VDC Direct competitor; very similar performance and pricing tier
3RT1025-1AP00 Siemens 25 A 24 VDC Industrial grade; larger footprint; mid-to-high price tier

If your load current approaches or exceeds 18A AC3 — even occasionally during motor starting — the LC1D25BD is the conservative and correct choice. Check current availability of both variants at LeadTime.ca before finalizing your BOM.

Expert Verdict: Is the LC1D18BD Right for Your Project?

The LC1D18BD earns its place as a go-to motor control component for a specific and well-defined buyer profile: the panel builder or automation technician specifying a standard DOL motor starter circuit for a three-phase motor in the 7.5 to 10 hp class, fed from a 24VDC PLC output, in a control enclosure with standard 35mm DIN rail. In that context, this contactor checks every box — the 18A AC3 rating covers the load, the built-in transient suppression eliminates the external relay stage that older designs required, the 45mm footprint fits cleanly alongside fuses and terminal blocks, and the 100kA SCCR rating satisfies most industrial installation requirements without needing to source a higher-rated alternative. The mechanical life rating of 20 million operations and the 3600 cycles/hour duty cycle are genuinely adequate for continuous duty motor starting in the applications where this product is most commonly deployed.

Where the LC1D18BD has real limits, it is worth naming them directly. If your motor nameplate current approaches 18A — say, a motor drawing 16-17A under load — the LC1D25BD is the more defensible engineering decision, given that the pricing difference between the two models is minimal. If your application involves bi-directional motor control, the LC1D18BD physically cannot reverse the motor; select a reversing contactor variant. If your control system runs on 110VAC or 230VAC rather than 24VDC, the LC1D18E7 or LC1D18M7 are the correct models — and mismatching coil voltage is the single most common ordering error in this product family. For applications with very high switching frequency or unusually high inrush loads, verify actual cycle rates and peak currents against the 3600 cycles/hour duty cycle before committing to this model.

From a procurement standpoint, the LC1D18BD is one of the more straightforward industrial automation components to source. It is widely stocked by major authorized distributors globally, with typical in-stock lead times of 3 to 5 business days and backorder lead times of 2 to 3 weeks from factory when regional inventory is depleted. Buying through an authorized specialist distributor rather than a generic online marketplace matters most for two reasons: coil voltage verification at the point of ordering (preventing the wrong-suffix error before it reaches your installation), and continuity of supply for reorder and warranty support. View current pricing and stock status for the LC1D18BD at LeadTime.ca — available to buyers worldwide.

For volume pricing on 10 or more units, or to confirm lead time before committing to a project build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D18BD

Community discussion on the LC1D18BD is sparse compared to higher-profile PLC hardware — this is a well-established, reliable component that tends to work correctly and generate little forum discussion when specified properly. What does surface consistently in technical channels and distributor support queues is not product failure, but ordering errors and specification misreadings that happen before installation. The three patterns that recur most often are worth understanding before you place the order.

The coil voltage suffix error is the most frequently reported issue in distributor returns and field troubleshooting calls involving TeSys D contactors. The LC1D18 product family uses a consistent body with interchangeable coil assemblies across different voltage ratings. The suffix — BD for 24VDC, E7 for 110VAC, M7 for 230VAC — is the critical differentiator, and it is easy to miss when ordering under time pressure or when a colleague specifies "18A Schneider contactor" verbally without the full model number. The contactor arrives, is installed, and the 24VDC PLC signal produces no response. The second common issue is the AC3 versus AC1 current rating confusion described in detail in the checklist below — engineers who see the 32A AC1 figure in the datasheet and assume it represents usable capacity for their motor load are setting themselves up for premature contact erosion within 6 to 12 months. The third pattern is under-specification at the margin: specifying the LC1D18BD for a motor whose nameplate current is close to 18A without accounting for starting transients or future load growth, then discovering that the LC1D25BD would have been the more appropriate selection for perhaps 5 to 10 percent more cost.

When community data is thin and the margin for error on a motor control specification is real, working with a distributor who asks the right verification questions at the point of ordering is the practical safeguard. The checklist below captures exactly what needs to be confirmed before the order is placed.

LC1D18BD Wiring and Installation Overview

  • Coil terminals accept the 24VDC control signal: positive from the PLC output to L1, return/common to L2. Coil circuit is fully isolated from the load circuit. Built-in suppression diode handles switching transients — no external components required between PLC output and coil.
  • Load terminals are three pole pairs (one per phase) connecting incoming three-phase AC supply to the motor. Screw clamp terminals require proper torque — M4 screws, recommended 0.8 to 1.2 Nm — loose terminals are a leading cause of contactor chatter and premature contact wear.
  • DIN rail mounting: align rear clip with 35mm DIN rail and press firmly until an audible click confirms the clip has locked. Verify the contactor does not rock or shift after seating. Maintain at least 25mm clearance on each side for adjacent components and wire routing.
  • Before initial energization, confirm 24VDC supply measures at least 21.6V at the coil terminals. Supply voltage below this threshold is the primary cause of contactor chatter and non-engagement.
  • External overcurrent protection (fuses or branch-circuit breaker sized per electrical code) is required on the motor/load circuit. The LC1D18BD provides no overcurrent protection independently.

For full wiring diagrams and detailed installation procedures, refer to Schneider Electric's official LC1D18BD installation documentation.

Compatible Auxiliary Contact and Expansion Options

The standard LC1D18BD ships with no auxiliary contacts. If PLC status feedback, interlocking, or auxiliary switching is required, compatible auxiliary contact blocks clip directly onto the TeSys D contactor body without consuming additional DIN rail space. Common additions include:

  • Auxiliary contact blocks (LC1-AUX series) — add NO or NC auxiliary contacts for PLC feedback, interlocking, or indicator lamp circuits; confirm specific part number with your distributor for compatibility with LC1D18BD body
  • Surge suppression modules — while the LC1D18BD includes built-in coil suppression, additional load-side surge protection can be added for sensitive downstream equipment
  • Overload relay (LRD series, TeSys D) — clips onto the bottom of the contactor body to form a complete motor starter assembly; select relay sized for actual motor full-load current

Wrong-Part Prevention Checklist for the LC1D18BD

Before submitting your purchase order for the LC1D18BD, confirm every item on this checklist. These are the six points where ordering errors consistently occur:

  1. Verify coil voltage is 24VDC - do not substitute with 110VAC or 230VAC variants (different model numbers: LC1D18E7, LC1D18M7). Selecting wrong coil voltage is the single most common ordering error.
  2. Confirm horsepower rating for your line voltage: 10 hp @ 480VAC, 7.5 hp @ 400VAC, 5 hp @ 230VAC. Do not assume 15 hp at all voltages - some datasheets list conflicting values.
  3. Verify 3-pole 3NO contact configuration is required. Reversing contactors and auxiliary contact blocks have different terminal layouts - confirm model number.
  4. Check DIN rail compatibility: standard 35mm DIN rail. Ensure at least 25mm clearance on each side of the contactor for adjacent components.
  5. Confirm SCCR (Short-Circuit Current Rating) requirement: LC1D18BD rated to 100kA system fault level. Some installations require lower SCCR (65kA) - verify before ordering if site protection level is unknown.
  6. Do not use AC1 rating (32A resistive) for motor applications. Motor/inductive loads must use AC3 rating (18A). Applying AC1 rating to inductive load causes premature contact erosion and failure within 6-12 months.

If any item on this checklist raises a question, contact LeadTime.ca before ordering — confirming the correct model number at this stage costs nothing and prevents a return, a project delay, and a diagnostic call at installation.

Frequently Asked Questions

Does the LC1D18BD include auxiliary contacts for PLC status feedback, or do I need to order those separately?

The standard LC1D18BD ships with no auxiliary contacts. If your PLC requires a status feedback signal — for example, a contact confirming the motor has energized — you need to order a compatible auxiliary contact block separately from the LC1-AUX series. These blocks clip onto the contactor body without consuming additional DIN rail space. Confirm the specific auxiliary contact part number with your distributor at the time of ordering the contactor.

My motor nameplate reads 17A full-load current — is the LC1D18BD adequate, or should I step up to the LC1D25BD?

At 17A nameplate current, the LC1D18BD is technically within its 18A AC3 rating, but the margin is narrow. Motor inrush current during direct-on-line starting typically reaches six to eight times full-load current as a transient, and the AC3 rating accounts for that duty. However, if the motor operates near full load consistently, or if future load growth is possible, the LC1D25BD at 25A AC3 — with the same 24VDC coil and same DIN rail footprint — is the conservative and professionally defensible choice for a minimal cost difference.

What does contactor chatter sound like, and what causes it on the LC1D18BD?

Chatter presents as rapid, repetitive clicking or a buzzing/humming sound from the contactor body when the coil is energized. The most common cause is 24VDC supply voltage falling below the 21.6V minimum threshold — the coil cannot hold sufficient magnetic force to keep contacts fully closed, so it repeatedly engages and releases. The second most common cause is a loose screw terminal on the coil circuit. Measure actual DC voltage at the coil terminals with a multimeter while the signal is applied; if it reads below 21.6V, the supply or wiring is the problem, not the contactor.

Does the LC1D18BD require external overcurrent protection, or is it self-protecting?

External overcurrent protection is required. The LC1D18BD is a switching device only — it provides no overcurrent, overload, or short-circuit protection for the connected motor or load. A branch-circuit breaker or fuses sized per applicable electrical code (NEC, CEC, or local equivalent) must be installed upstream of the contactor load terminals. If motor overload protection is also required, a TeSys D LRD-series overload relay can be mounted directly onto the contactor body to form a complete motor starter.

Can I mount the LC1D18BD in any orientation, or must the DIN rail be horizontal?

DIN rail orientation does not restrict contactor mounting direction. The LC1D18BD can be mounted on a horizontally or vertically oriented DIN rail, or at an angle, without affecting electrical performance. Ensure adequate ventilation around the contactor body — particularly around the coil — to prevent heat buildup in enclosures operating near the 60°C maximum ambient temperature limit.

What coil resistance should I measure when testing the LC1D18BD coil with an ohmmeter?

At approximately 25°C ambient temperature, the LC1D18BD coil should measure approximately 220 ohms DC resistance. If your ohmmeter reads infinite resistance (open circuit), the coil winding has failed and the contactor must be replaced. If it reads near 0 ohms (short circuit), the coil is shorted and the unit must also be replaced. This diagnostic check is useful when a contactor receives confirmed 24VDC at its terminals but produces no mechanical engagement.

Why Order the LC1D18BD From LeadTime.ca

  • Global shipping — LeadTime.ca ships the LC1D18BD worldwide, not restricted to any single region or country
  • Authorized sourcing — orders are fulfilled from verified supply chains, reducing counterfeit and grey-market risk on a safety-critical motor control component
  • Technical verification at point of order — the team can confirm coil voltage suffix and contact configuration before shipment, catching the wrong-part errors that show up at installation
  • Volume and project pricing — contact for current pricing on orders of 10 or more units; bulk orders are handled with lead time confirmation before commitment
  • Hard-to-source variants — if the standard LC1D18BD is backordered regionally, LeadTime.ca can source from broader inventory or advise on lead time for factory fulfillment

LC1D18BD At-a-Glance Summary

  • 18A AC3 inductive (motor) load rating — do not apply 32A AC1 resistive rating to motor circuits
  • 24VDC coil, permissible range 21.6V to 26.4V — built-in peak-limiting diode for direct PLC output connection
  • 3-pole, 3NO non-reversing configuration — 600VAC maximum operating voltage at 50/60 Hz
  • 10 hp at 480VAC / 7.5 hp at 400VAC / 5 hp at 230VAC (three-phase continuous duty)
  • 100kA SCCR system fault rating — 3600 cycles/hour rated duty cycle
  • 45mm wide, 77mm high, 95mm deep — mounts on standard 35mm DIN rail with 25mm minimum lateral clearance each side
  • Operating temperature -5°C to +60°C ambient — IP2X enclosure, suitable for industrial control panel installation
  • No auxiliary contacts included — order LC1-AUX series separately if PLC status feedback is required
  • Coil resistance approximately 220 ohms at 25°C — use as diagnostic reference when troubleshooting non-engagement faults
  • Mechanical life rated to 20 million operations with proper terminal torque and correct load application
