Schneider LC1D18B7 — 18A IEC Contactor Selection Guide

By Abdullah Zahid
15 min read

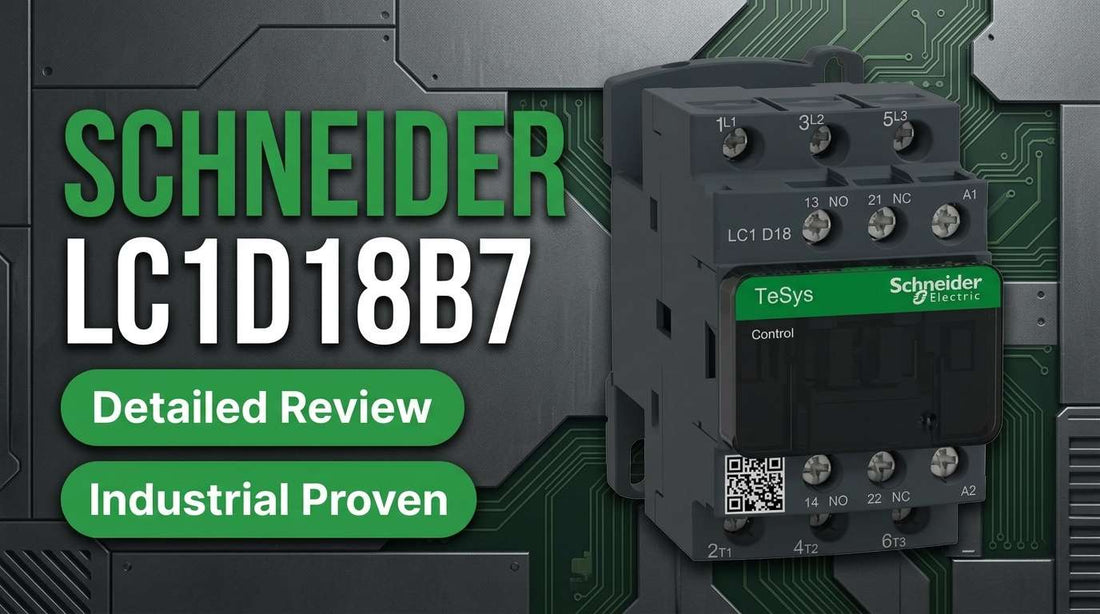

Schneider Electric LC1D18B7 TeSys D 3-pole 18A IEC contactor for industrial motor starter panels

Schneider Electric LC1D18B7 IEC Contactor, TeSys D, Direct On-Line, 3-Pole, 18A — Specifications, Selection Guide and Pricing Review

Controls engineers and procurement specialists searching for a reliable 3-pole IEC contactor for mid-size motor control applications routinely land on the Schneider Electric LC1D18B7 — and for good reason. This direct on-line, nonreversing contactor from the TeSys D family carries an 18A contact rating at 600VAC, a 24VAC 50/60Hz coil, and a 15,000,000-cycle electrical life that makes it one of the most specified components in HVAC, pumping, and general manufacturing motor starter assemblies worldwide. The question most buyers are actually asking is not what it is, but whether it is precisely the right variant for their voltage, load, and application — and that is exactly what this guide settles.

If you have already confirmed this is the correct part for your system, check current pricing and availability at LeadTime.ca — we ship worldwide.

Who Should Buy the LC1D18B7 — and Who Shouldn't

The Schneider Electric LC1D18B7 is the right contactor if all of the following are true for your application:

  • Your control circuit operates at 24VAC 50/60Hz — this is the coil voltage for this specific SKU; other plant standards (110VAC, 220VAC, 380VAC) require a different suffix
  • Your motor full-load current does not exceed 18A at 600VAC; the typical match is a 7.5–10HP motor at 480–600VAC 3-phase supply
  • Your load falls under AC-3 (squirrel-cage motor starting) or AC-1 (non-inductive resistive loads such as space heaters); AC-4 wound-rotor applications are possible but require application confirmation
  • You need a 3-pole configuration for a 3-phase circuit — this model is 3-pole only; single-phase or 2-pole requirements are not covered
  • You are installing a nonreversing switching device — if your application requires direction reversal with mechanical interlock, this model is not correct
  • You will provide external thermal overload relay protection — the LC1D18B7 is a switching component only and has no built-in overload protection

If your motor full-load current exceeds 18A, move to the LC1D25B7 (25A) or LC1D32B7 (32A). If you need a reversing drive, consult the Schneider LP1D reversing contactor series. If your coil voltage is anything other than 24VAC, a different suffix is required within the LC1D family.

On this page:

What the LC1D18B7 Actually Does in a Motor Control Circuit

The Schneider Electric LC1D18B7 is a direct on-line IEC contactor — meaning it connects or disconnects the full supply voltage to a motor load in a single switching action, without any current-limiting or soft-starting function. Its job in a motor starter assembly is simple and critical: when the control coil at terminals A1 and A2 receives 24VAC, all three main poles close simultaneously, connecting the incoming 3-phase supply to the motor. When coil voltage is removed, spring pressure opens all three poles. That is the complete switching event.

What the LC1D18B7 does not do is equally important to understand at specification time. It carries no thermal overload protection, no built-in circuit breaker, and no manual override mechanism. It is a pure switching device. In every installation, an external thermal overload relay — typically a bimetal or electronic type sized to the motor full-load current — must be installed in series. The LC1D18B7 also includes one normally open and one normally closed auxiliary contact, which are used for control logic feedback, interlock circuits, or indicator lamp signaling rather than main power switching.

The TeSys D family designation places this contactor in one of the most widely installed IEC contactor series worldwide. Rated to IEC 60947-4-1, CE marked, CSA certified under C22.2 File No. 14, and UL listed under File No. E164862, the LC1D18B7 meets the regulatory requirements for both North American and European installations. Its 45mm width slots onto a standard 35mm DIN rail without any adapter, and its screw-clamp terminals accept wire gauges from 6 to 10mm².

Typical System Architecture for the LC1D18B7

The LC1D18B7 sits between the upstream branch circuit protection and the downstream motor load, acting as the electrically controlled on/off switch in the power circuit. Here is how a typical DOL motor starter builds around it:

  • Upstream: 3-phase supply bus feeds a branch circuit breaker or fused disconnect switch (upstream short-circuit protection, separately sized)
  • Main power terminals 1, 3, and 5 of the LC1D18B7 receive the 3-phase incoming supply from the disconnect
  • Outgoing terminals 2, 4, and 6 feed through the thermal overload relay (external device, not included) and then to the motor terminals
  • Control circuit: 24VAC supply connects to coil terminals A1 and A2, controlled by a pushbutton station, PLC output, or safety relay
  • Auxiliary contacts (1NO / 1NC) loop back into the control circuit for motor run confirmation, interlock, or HMI status indication

Where the LC1D18B7 Is Deployed: Industries and Use Cases

In HVAC systems, the LC1D18B7 is a standard component in air handling unit motor starter panels, where fan motors in the 7.5–10HP range at 480VAC represent a near-perfect match for the 18A contact rating. Refrigeration compressor motor control is another common deployment, where the non-inductive AC-1 and squirrel-cage AC-3 utilization categories cover the typical load profiles encountered.

Water treatment and pumping stations use this contactor extensively for raw water intake pumps, sewage lift pumps, and pressure booster systems. A 10HP 3-phase pump drawing 13–15A full-load current at 480VAC sits well within the 18A rating, leaving adequate margin when the correct thermal relay is installed in series.

In manufacturing environments, conveyor drive motors, compressed air compressor starters, and resistive load switching for electric heating elements (AC-1 category) are all documented use cases for this contactor class. The 15,000,000 electrical cycle rating supports continuous-duty cycling applications where frequent starts and stops are expected over years of operation.

Maintenance teams specifying a drop-in replacement for a failed contactor in an existing TeSys D panel will find the LC1D18B7 dimensionally and electrically compatible with earlier TeSys D generation installations, provided the coil voltage is confirmed as 24VAC before ordering.

Application Typical Deployment
HVAC air handling unit DOL motor starter for fan motor, 7.5–10HP at 480VAC, AC-3 duty
Water treatment pump station 3-phase pump motor starter, 10HP at 480VAC, external thermal relay in series
Compressed air compressor DOL starter for compressor motor, 24VAC control circuit, panel-mounted
Manufacturing conveyor drive Motor starter in MCC or standalone enclosure, AC-3 squirrel-cage motor
Electric resistance heating load AC-1 utilization, space heater or oven element switching, 18A at 600VAC
Emergency backup motor circuit Redundant motor control in process cooling or industrial refrigeration

Purchase-Decision Specifications at a Glance

Specification Value
Coil Voltage 24VAC 50/60Hz
Coil Power Rating 7.5–7.7 VA
Main Contact Rating 18A at 600VAC (AC-3 category)
Maximum Insulation Voltage 690VAC
Number of Poles 3 (3-phase circuits only)
Auxiliary Contacts 1 NO / 1 NC
Utilization Categories AC-1, AC-3, AC-4
Operating Cycles 15,000,000 electrical cycles (3,600 cycles/hr rated duty)
Dimensions (W x D x H) 45 mm x 84 mm x 77 mm
Certifications IEC 60947-4-1, CE, CSA C22.2, UL 508 (File No. E164862), RoHS

Full technical specifications are available on the product page at LeadTime.ca.

LC1D18B7 vs. the Rest of the TeSys D Family — Which Rating Do You Need?

Model Contact Rating Coil Power (VA) Typical Motor Size Dimensions (W x D x H mm) Main Use Case
LC1D09B7 9A @ 600VAC 6.2–6.3 3–5 HP @ 480V 45 x 84 x 77 Smaller loads, fractional HP
LC1D18B7 18A @ 600VAC 7.5–7.7 7.5–10 HP @ 480V 45 x 84 x 77 Standard industrial motor
LC1D25B7 25A @ 600VAC 9.6–10 10–15 HP @ 480V 45 x 84 x 86 Larger motors, high-duty cycle
LC1D32B7 32A @ 600VAC 11.6 15–20 HP @ 480V 45 x 84 x 86 Heavy-load or continuous duty
LC1D40B7 40A @ 600VAC 14 20–25 HP @ 480V 45 x 84 x 86 Industrial high-power drives

If your motor full-load current is at or above 18A, the LC1D25B7 is the correct next step — check current availability and pricing at LeadTime.ca or contact us to confirm the right variant for your load.

How the LC1D18B7 Compares to Equivalent IEC Contactors

Feature Schneider LC1D18B7 Siemens 3RT1018-1B ABB A16-30-10 Eaton DILM18-10
Contact Rating 18A @ 600VAC 18A @ 400VAC 18A @ 400VAC 20A @ 600VAC
Coil Voltage Standard 24VAC 24VAC 24VAC 24VAC
Coil Power (VA) 7.5–7.7 6.8 8.5 7.2
Mounting Type DIN rail / surface DIN rail / surface DIN rail / surface DIN rail / surface
Approvals IEC 60947-4-1, CE, CSA, UL IEC 60947-4-1, CE, UL IEC 60947-4-1, CE, UL IEC 60947-4-1, CE, CSA, UL
Typical Lead Time (North America) In stock In stock to 2 weeks 1–3 weeks In stock
Relative Cost Baseline ±5% +15–20% ±5%
Key Differentiator TeSys D reliability, CSA-certified, 600VAC contact rating German OEM standard, industrial legacy Compact footprint, high contact life North America-centric supply chain

One specification difference worth noting before treating these as direct substitutes: the Siemens 3RT1018-1B and ABB A16-30-10 are rated to 18A at 400VAC, while the Schneider Electric LC1D18B7 carries its 18A rating at 600VAC per IEC 60947-4-1. For North American installations operating at 480VAC or 600VAC supply, that distinction can be material to your design margin.

Expert Verdict: Is the LC1D18B7 the Right Contactor for Your Project?

The Schneider Electric LC1D18B7 earns its position as a default specification in mid-size industrial motor control because it delivers exactly what that application class demands: a verified 18A contact rating at 600VAC, a compact 45mm DIN rail footprint, and a 15,000,000-cycle operational life that translates to years of reliable service in continuous-duty environments. The 7.5–7.7 VA coil power draw is low enough that a standard 24VAC control power supply handles multiple contactors without a large power budget. CE, CSA, and UL 508 certifications under File No. E164862 cover regulatory acceptance across North America and the EU without secondary qualification work. For controls engineers building HVAC motor starters, pump drive panels, or compressor control circuits in the 7.5–10HP range at 480–600VAC, this contactor fits the specification without modification or compromise.

The LC1D18B7 has real limits that buyers must respect before ordering. If your motor full-load current is at or near 18A, the correct choice is the LC1D25B7 — that 25A rating provides the margin that sound contactor sizing requires, and the physical footprint at 45mm W remains identical to this model. If your application requires motor direction reversal, the LC1D18B7 is nonreversing and cannot be used alone; two contactors with mechanical interlock or a dedicated reversing model from the Schneider LP1D series is the correct path. Coil voltage is the single most common source of ordering errors in this family: the B7 suffix means 24VAC specifically, and plants running 110VAC, 220VAC, or 380VAC control standards need the appropriate suffix variant before any order is placed.

From a procurement standpoint, the LC1D18B7 benefits from being a high-volume stocking item in the North American authorized distribution network, with typical availability described as ready to ship from major distributor hubs. That said, specific coil voltage variants beyond the standard 24VAC B7 designation may carry longer lead times or require special order confirmation. Buying through a specialist industrial automation distributor rather than a generic marketplace channel ensures coil voltage is verified before dispatch, certifications are traceable, and technical support is available when commissioning questions arise. View current pricing and availability for the LC1D18B7 at LeadTime.ca — we source and ship verified Schneider Electric components worldwide.

For volume pricing, lead time confirmation before committing to a build schedule, or help identifying the correct coil voltage variant for your plant standard, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D18B7

Community discussion specific to the LC1D18B7 is sparse in the major industrial automation forums — which is itself a signal. When a component generates minimal troubleshooting threads, it typically means either the product performs reliably in standard applications or the ordering mistakes that do occur are straightforward enough that engineers resolve them quickly without posting. Based on the technical characteristics of this contactor and the documented failure modes of this product class, three knowledge areas consistently separate successful first-time orders from costly rework scenarios.

The most significant source of ordering error for this specific SKU is the AC versus DC coil voltage distinction. The LC1D18B7 coil is rated for 24VAC 50/60Hz. Many modern industrial control panels are built around 24VDC control power supplies because of PLC output compatibility and reduced wiring complexity. These are not interchangeable: a 24VAC coil will not energize on a 24VDC supply. Engineers specifying this contactor for a panel with a 24VDC PLC output must either source the 24VDC coil variant (a different part number within the LC1D family) or include an interposing relay between the PLC output and the contactor coil. Verifying the control power architecture of the panel before finalizing the purchase order is not optional — it is the single step that prevents the most common field rejection scenario.

The second area where specialist guidance adds value is thermal overload relay pairing. The LC1D18B7 provides no motor protection on its own. The overload relay selected must be rated to match the motor's full-load current, and its contact type must be compatible with the motor starter control circuit logic. For engineers who are specifying a complete motor starter assembly rather than a replacement contactor, confirming relay compatibility before procurement — rather than after the contactor arrives on site — avoids the situation where the contactor is in hand but the starter cannot be commissioned because the overload relay requires a different frame size or terminal interface. When the right pairings are uncertain, a specialist distributor with access to the manufacturer's compatibility documentation is the fastest resolution path.

Wiring and Installation Overview

  • Main power supply connects to terminals 1, 3, and 5 (incoming phase); motor load connects to terminals 2, 4, and 6 (outgoing); all three poles close simultaneously on coil energization
  • Control coil connects to terminals A1 and A2 with 24VAC 50/60Hz supply; the coil is polarity-insensitive for AC supply; verify the supply is AC, not DC, before energizing
  • Screw-clamp terminals accept wire gauges from 6 to 10mm²; pre-strip 10mm of insulation from each conductor and apply 2–3 Nm torque; perform a tug test on each connection before closing the panel
  • Mount on 35mm standard DIN rail or surface-mount bracket; the 45mm width and 77mm height require confirmed clearance in the enclosure before installation; depth of 84mm must clear panel interior
  • The auxiliary 1NO/1NC contact is available for control logic feedback, motor run indication, or interlock circuits; do not use auxiliary contacts for main power switching

Engineers requiring full wiring diagrams, terminal torque tables, and commissioning procedures should refer to the official Schneider Electric TeSys D installation manual available from se.com.

Compatible Accessories and System Expansion

The LC1D18B7 is designed within the TeSys D modular ecosystem, which supports a range of accessories that snap or mount directly to the contactor body without additional wiring adapters:

  • Thermal overload relays (LR2D series, Schneider Electric) — bimetal overload protection sized to motor full-load current; mount directly to contactor for compact motor starter assembly
  • Auxiliary contact blocks — add-on blocks for expanding auxiliary contact count beyond the built-in 1NO/1NC; attach to side or front of contactor body
  • Surge suppressor modules — RC or varistor type suppressors for inductive coil suppression; optional, not required per datasheet, but recommended in high-cycle or sensitive control environments
  • Mechanical interlocks — used when two LC1D18B7 contactors are paired for reversing motor control; the interlock prevents both contactors from closing simultaneously
  • Cover and terminal shrouds — IP protection accessories for exposed terminal environments; add IP rating above the standard IP20 open-terminal classification

Wrong-Part Prevention Checklist

Before finalizing your order for the Schneider Electric LC1D18B7, verify each of the following points against your application drawing and motor nameplate:

  1. Confirm motor full-load current does NOT exceed 18A at the operating voltage (600/690VAC); if it does, order LC1D25B7 or higher
  2. Verify control voltage is 24VAC 50/60Hz; do NOT order this part if plant standard is 110VAC, 220VAC, or 380VAC
  3. Check that load type is AC-3 (squirrel-cage motor) or AC-1 (non-inductive); AC-4 (wound-rotor motor) operation possible but confirm with application
  4. Confirm 3-pole configuration is correct (this is 3-pole only); do NOT substitute if single-phase or 2-pole circuit required
  5. Verify screw-clamp terminal compatibility with existing wiring gauge (6–10mm² wire; confirm with electrical drawing)
  6. Confirm DIN rail or surface mounting space available (45mm W x 77–84mm D x 77–96mm H footprint)
  7. Check that external protection devices (thermal overload relay, circuit breaker) will be separately installed per design
  8. Ensure no reversing function needed; this is nonreversing only

If any item on this checklist cannot be confirmed before ordering, contact the LeadTime.ca team — we can verify compatibility and confirm the correct variant before the order is placed, saving retrofit time and cost.

Frequently Asked Questions

Can I connect a 24VDC PLC output directly to the LC1D18B7 coil terminals?

No. The LC1D18B7 coil is rated for 24VAC 50/60Hz specifically. A 24VDC supply will not energize an AC coil. If your control circuit is 24VDC, you need to source the 24VDC coil variant of the LC1D family (a different part number) or install an interposing relay between the PLC output and this contactor's coil terminals. Confirm your control power architecture before ordering.

What happens if my motor full-load current is right at 18A — is that acceptable?

Operating the LC1D18B7 at its maximum 18A contact rating leaves no margin for motor starting inrush variations or load fluctuations. Best practice is to size the contactor so the motor full-load current is below the contact rating with a safety margin — a motor drawing 15–16A FLC is a comfortable fit; a motor at 18A FLC is at the edge of the rating. If full-load current is at or above 18A, the LC1D25B7 at 25A is the correct specification.

Is the LC1D18B7 a direct replacement for an older TeSys D contactor of the same rating in an existing panel?

In most cases, yes. The TeSys D family maintains consistent dimensional and terminal compatibility across generations. The 45mm width, 35mm DIN rail mounting, and screw-clamp terminal layout are consistent within the LC1D18 frame size. Confirm the coil voltage marking on the failed unit matches 24VAC before ordering; if the original contactor carried a different coil voltage suffix, order the matching variant rather than defaulting to B7.

Do I need a surge suppressor on the LC1D18B7 coil circuit?

The LC1D18B7 does not include a built-in suppressor diode, and the datasheet does not require one for standard operation. However, in control circuits with sensitive PLC inputs or long wire runs between the PLC and contactor coil, an external RC or varistor suppressor module mounted across the coil terminals reduces voltage transients on coil de-energization. It is an optional accessory, not a mandatory component for this model.

How does the AC-3 utilization category rating relate to the motor I'm controlling?

AC-3 covers squirrel-cage induction motors started direct on-line and switched off during running — the most common motor type in industrial applications. The LC1D18B7's 18A rating at 600VAC applies within this AC-3 category. AC-1 covers non-inductive or slightly inductive loads such as resistive heaters. AC-4 covers wound-rotor or plugging/inching duty where the contactor interrupts current during motor starting — a more demanding duty cycle that the LC1D18B7 supports but which requires application confirmation for thermal sizing.

What thermal overload relay pairs with the LC1D18B7 for a complete motor starter?

The Schneider LR2D series bimetal thermal overload relays are a standard pairing for the TeSys D contactor family and mount directly to the LC1D18B7 body without additional adapters. The specific relay model must be selected to match the motor's full-load current range. Confirm relay trip class and current range against your motor nameplate before ordering the relay; the contactor itself does not determine relay sizing.

Why Order From LeadTime.ca

At-a-Glance Summary

  • Schneider Electric LC1D18B7: 3-pole, direct on-line, nonreversing IEC contactor from the TeSys D family
  • Main contact rating: 18A at 600VAC, AC-3 category; maximum insulation voltage 690VAC
  • Coil voltage: 24VAC 50/60Hz (B7 suffix); other coil voltages available in the LC1D family under different suffixes
  • Coil power draw: 7.5–7.7 VA — compatible with standard 24VAC control power supplies at low current draw
  • Operational life: 15,000,000 electrical cycles at 3,600 cycles/hr rated duty
  • Typical motor match: approximately 10HP at 480VAC, 7.5HP at 600VAC (verify against motor nameplate FLC)
  • Auxiliary contacts: 1NO / 1NC built in for control logic and status signaling
  • Mounting: 35mm DIN rail standard; 45mm W x 84mm D x 77mm H; screw-clamp terminals 6–10mm²
  • Certifications: IEC 60947-4-1, CE, CSA C22.2, UL 508 File No. E164862, RoHS compliant
  • No built-in overload protection — external thermal overload relay mandatory in all installations
  • For motors above 18A FLC: specify LC1D25B7; for reversing applications: consult LP1D series; for non-24VAC coil requirements: specify correct suffix variant
