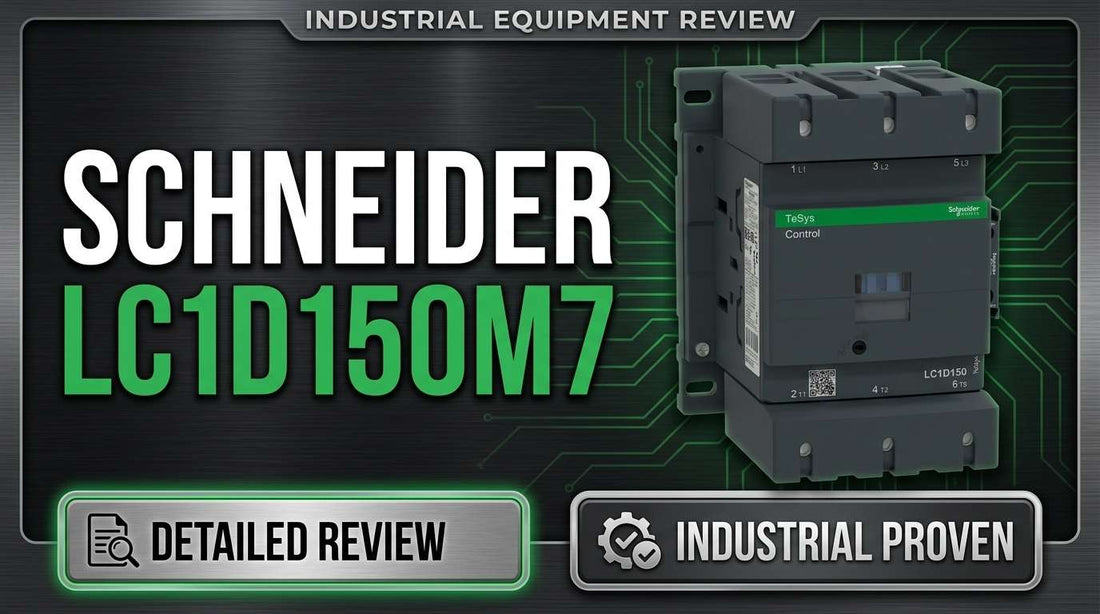

Schneider Electric LC1D150M7 TeSys D 150A 3-pole AC contactor with 220V AC coil for industrial motor control

Schneider Electric LC1D150M7 TeSys D Contactor — 3P(3 NO) — AC-3 — 440 V 150 A — 220 V AC 50/60 Hz Coil: Complete Specifications, Sizing Guide, and Buyer's Review

When a 150-amp motor contactor fails in a production environment, the clock starts immediately. Controls electricians and plant engineers searching for the Schneider Electric LC1D150M7 are almost always at a hard decision point: confirm this is the exact right part, verify the 220V AC coil matches the control cabinet, and get it on order before the shift ends. The LC1D150M7 is a 3-pole electromechanical contactor rated at 150A under AC-3 inductive motor duty, carrying a 220V AC 50/60Hz coil and built-in 1 NO/1 NC auxiliary contacts — a workhorse specification that covers 100 HP motors at 460V across a wide range of industrial applications.

If you have already confirmed this is the right part, check current pricing and availability for the LC1D150M7 at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D150M7 — and Who Shouldn't

The LC1D150M7 is the right contactor if your application meets all of the following criteria:

  • Motor full-load amperage (FLA) does not exceed 150A under AC-3 duty
  • Control cabinet supplies 220V AC at 50Hz or 60Hz for coil excitation
  • Motor operates at or below 440V AC (AC-3 service); 100 HP at 460V is the standard North American benchmark for this contactor
  • Application requires UL, CSA, and IEC 60947-4-1 compliance
  • Panel configuration accommodates a 158mm H x 120mm W x 136mm D footprint with screw-clamp terminals
  • Built-in 1 NO/1 NC auxiliary contacts are sufficient for PLC feedback or interlocking logic

If your motor FLA exceeds 150A, you need the LC1D185 or LC1D225. If your coil supply is 24V DC or 110V AC, the LC1D150M7 will not function in your circuit — you need a different catalog suffix (LC1D150B7 for 24V DC, LC1D150F7 for 110V AC). This part is exactly right for what it is; it is simply not the right part if any of those constraints do not match.

On this page:

What the LC1D150M7 Actually Does in a Motor Control System

The LC1D150M7 is not a safety device and it is not a motor starter — it is a remotely operated power switch for 3-phase motor circuits. When the 220V AC coil is energized, the three main poles close simultaneously, connecting line power (L1, L2, L3) through to the motor terminals (T1, T2, T3). When the coil de-energizes, the poles open and the motor circuit is interrupted. That function sounds simple, but executing it reliably at 150A under AC-3 inductive duty — where motor inrush current and arc energy are at their highest — is what separates a properly rated contactor from one that will fail prematurely.

Rated for 1,000,000 mechanical cycles under AC-3 duty and certified to UL 508, CSA C22.2 No. 14, and IEC 60947-4-1, the LC1D150M7 is verified for use across North American and international installations without regional recertification. The built-in bidirectional peak limiting diode suppressor protects the coil winding from voltage spikes, reducing the need for external suppression modules in most modern PLC-driven control circuits. The base-mounted 1 NO/1 NC auxiliary contacts provide immediate status feedback to the control system without requiring a separate add-on contact block.

One constraint that every buyer must understand: the LC1D150M7 has no internal overload protection. It will switch current reliably up to its rated limit, but if a motor draws sustained overcurrent, the contactor will not protect the motor from damage. An external overload relay, soft-starter, or VFD with built-in protection is mandatory in any compliant motor circuit. This is not a limitation unique to this model — it applies to all contactors in this class.

Typical System Architecture: Where This Contactor Sits in the Chain

The LC1D150M7 occupies the power switching stage between the control logic and the motor load. Understanding its position in the signal and power chain clarifies why the coil voltage and current rating must both be verified independently.

  • PLC or relay logic output supplies 220V AC control signal to the contactor coil terminals (A1 and A2)
  • LC1D150M7 main poles connect incoming 3-phase line power from the upstream disconnect or MCC bus to the load side
  • External overload relay is wired in series with the load terminals (T1, T2, T3) between the contactor and the motor
  • 1 NO/1 NC auxiliary contacts feed status signals back to the PLC input card or interlock relay circuit
  • Motor receives switched 3-phase power; contactor isolates motor immediately on E-stop signal or loss of coil voltage

Typical Applications and Deployment Scenarios

In food and beverage processing facilities, the LC1D150M7 handles mixer drives, conveyor motors, and washer pump circuits where frequent switching at rated current is the norm and compliance certifications are non-negotiable for sanitation-rated installations.

Water and wastewater treatment pump stations rely on this contactor for duty-cycling of large submersible and centrifugal pumps. The maximum operating rate of 1200 cycles per hour at 60°C covers most timed pump rotation schedules without approaching the contactor's mechanical limits.

In mining and aggregate processing, where motor control centers handle high-amperage conveyor, crusher, and fan drives, the LC1D150M7's 100 HP at 460V rating covers the most common drive sizes. The rated insulation voltage of 600V per UL/CSA and 1000V per IEC 60947-4-1 provides adequate margin for industrial power distribution environments.

HVAC applications — particularly compressor and air handling unit motors — benefit from the contactor's rated switching frequency and built-in coil protection, which reduces maintenance overhead in roof-mounted or remote mechanical room installations where service access is infrequent.

System integrators building motor control panels for automotive manufacturing or general industrial automation specify the LC1D150M7 when standardizing on the Schneider Electric TeSys D platform, consolidating spare parts inventory across multiple customer sites into a single 150A catalog number.

Application Typical Deployment
Motor control center (MCC) replacement Drop-in replacement for failed 150A contactor in existing Schneider-based MCC panel
Food and beverage processing Mixer, washer, and conveyor motor switching at 460V; UL/CSA certification required
Water and wastewater pump station Duty-cycling of centrifugal pumps; frequent on/off switching within 1200 cyc/h limit
HVAC compressor and fan control Remote on/off switching of 100 HP compressor motors; E-stop integration
Soft-starter or VFD upstream isolation Contactor isolates motor circuit during power loss or fault condition
OEM machine build or retrofit New panel construction requiring standardized TeSys D frame at 150A with 220V AC coil

Specifications That Drive the Purchase Decision

Parameter Value Notes
Rated Operational Current (AC-3) 150 A At <=440V AC; inductive motor duty
Coil Voltage 220V AC, 50/60 Hz This model only; other suffixes available for different voltages
Coil Operating Range 0.8 to 1.15 Uc Stable operation from -40°C to 55°C
Motor Rating (460V, 3-phase) 100 HP Standard North American industrial reference
Rated Insulation Voltage 600V (UL/CSA) / 1000V (IEC 60947-4-1) Power circuit
Auxiliary Contacts (Base) 1 NO / 1 NC Add-on blocks available if more contacts required
Dimensions (H x W x D) 158 x 120 x 136 mm DIN rail or screw/panel mount; screw-clamp terminals
Maximum Operating Rate 1200 cycles/hour At 60°C ambient; do not exceed
Certifications UL 508, CSA C22.2 No. 14, IEC 60947-4-1 North American and international compliance
Ambient Temperature Range -40°C to +70°C Storage and operation

Full technical specifications are available on the product page at LeadTime.ca.

LC1D150M7 vs. Other TeSys D Frame Sizes: Which One Do You Actually Need?

Model Rated Current (AC-3) Typical Motor Size (460V) Coil Voltage (M7 Suffix) When to Choose
LC1D65M7 65 A ~40 HP @ 460V 220V AC Motor FLA is 50–65A; smaller panel footprint needed
LC1D95M7 95 A ~60 HP @ 460V 220V AC Motor FLA is 65–95A; cost optimization vs. LC1D150M7
LC1D150M7 150 A 100 HP @ 460V 220V AC Motor FLA is 100–150A; this is the correct model
LC1D185M7 185 A ~125 HP @ 460V 220V AC Motor FLA exceeds 150A; do not use LC1D150M7
LC1D225M7 225 A ~150 HP @ 460V 220V AC Large motor loads; future capacity headroom needed

If your motor FLA exceeds 150A, the LC1D150M7 is not the correct part — check the LC1D185 and LC1D225 options on the LeadTime.ca product page or contact the team to confirm the right frame size for your load.

Expert Verdict: Is the LC1D150M7 Worth Specifying?

The LC1D150M7 earns its place in motor control panels because it delivers exactly what a 150A AC-3 contactor needs to deliver — no more, no less — and it does so with verified certifications across UL, CSA, and IEC 60947-4-1. The buyer profile this model is genuinely right for is narrow but well-defined: a maintenance technician replacing a failed 150A contactor in an existing Schneider-based MCC, a plant engineer commissioning 100 HP motors at 460V in a food processing or water treatment facility, or a systems integrator standardizing on the TeSys D line to consolidate spare parts inventory across multiple sites. In these scenarios, the LC1D150M7's combination of 1,000,000-cycle mechanical durability, built-in coil suppression, and broad distributor availability from stock makes it the rational specification choice. The 1 NO/1 NC base auxiliary contacts cover the vast majority of PLC feedback and interlock requirements without an add-on block, which simplifies panel build time.

The LC1D150M7 has real limits that honest buyers should weigh before ordering. It carries no internal overload protection — a separate overload relay is mandatory in every compliant installation. If your control cabinet runs on 24V DC or 110V AC, this specific model will not work; you need LC1D150B7 or LC1D150F7 respectively, and ordering the wrong suffix is the most common and most expensive mistake in this product family. For high-frequency switching applications that exceed 1200 cycles per hour, or for applications requiring more than 1 NO/1 NC auxiliary contacts without add-on blocks, competing modular designs may offer better fit. Buyers who are purely cost-optimizing without a Schneider compatibility requirement will find regional alternatives at lower price points — the trade-off is distributor support depth and warranty handling.

From a procurement standpoint, the LC1D150M7 is well-stocked across major industrial distributors, with typical lead times of 1–3 business days from stock locations. Special-order or non-standard coil variants can extend lead times to 10–20 business days, which is significant in a downtime scenario. Buying through a specialist distributor matters here because technical confirmation of coil voltage, frame size, and auxiliary contact configuration before shipment eliminates the delay cost of a wrong-part return. Check current availability and pricing for the LC1D150M7 at LeadTime.ca — the team ships worldwide and can confirm stock before you commit.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D150M7

Community data specific to the LC1D150M7 is sparse in public forums, but the technical profile of this contactor makes the most critical ordering mistakes highly predictable — and they follow a consistent pattern that experienced controls specialists see repeatedly. When community feedback is not available, the manufacturer's own Wrong-Part data and verified distributor return patterns tell the same story. Three failure modes account for the vast majority of ordering errors on this model, and understanding them before placing the PO is the single most valuable thing a buyer can do.

The first and most consequential mistake is coil voltage mismatch. The LC1D150M7 is built for a 220V AC 50/60Hz coil — and that M7 suffix is the only indication on the catalog number. Facilities that run 24V DC control circuits or 110V AC coil standards will receive a contactor that physically installs correctly but will not energize. The fix requires ordering LC1D150B7 (24V DC) or LC1D150F7 (110V AC) and waiting for another shipment. In a motor-down situation, that delay is measured in production hours, not business days. Before ordering, verify the coil voltage by reading an adjacent contactor's nameplate, checking the control circuit drawing, or asking the plant electrician — five minutes of verification eliminates weeks of delay.

The second recurring issue is current rating misapplication in both directions. Ordering an undersized contactor — choosing LC1D95 for a motor with 140A FLA, for example — leads to contact overheating, welding, and eventual failure to interrupt under load. Ordering an oversized contactor is less dangerous but wastes capital and can indicate a deeper sizing error in the motor specification. The correct approach is to read the motor nameplate FLA directly. If the nameplate is missing or illegible, calculate FLA from the HP and voltage values. If FLA is exactly at 150A, the LC1D150M7 is correct — do not downsize to save cost. If FLA exceeds 150A, order the LC1D185M7 without exception.

The third issue involves auxiliary contact terminal misidentification during installation. The 1 NO/1 NC control signal terminals are physically separate from the main power terminals (T1, T2, T3), but technicians under time pressure occasionally connect them incorrectly — routing motor power through auxiliary contact pins or using main terminals for low-voltage feedback. The result ranges from burned auxiliary contacts to an electrical fault condition. Studying the wiring diagram before touching any terminal, using distinct wire colors for power and control circuits, and having a second person verify connections against the diagram before energizing are the standard prevention steps. The LC1D150M7 wiring diagram is clearly documented in Schneider Electric's TeSys D technical documentation and should be at the workbench before installation begins.

Wiring and Installation: Key Points Before You Connect

  • Lock out and tag out (LOTO) all circuits and verify zero voltage at all terminals with a calibrated meter before any work begins — this is non-negotiable regardless of contactor size or urgency
  • Connect main power terminals (L1/L2/L3 line inputs and T1/T2/T3 load outputs) using wire gauge appropriate for 150A service; apply torque to screw-clamp terminals per manufacturer specification — do not over-tighten and risk stripping the terminal
  • Coil leads A1 and A2 connect to 220V AC control power; the LC1D150M7 includes a built-in bidirectional peak limiting diode suppressor, so external coil suppression modules are not required in most modern PLC-controlled installations — verify against your circuit diagram
  • Auxiliary contact terminals (1 NO/1 NC) carry low-current control signals only — use appropriate wire gauge for the control circuit and verify that these terminals are never connected to motor power
  • After installation and before full load testing, restore power and confirm the contactor energizes and de-energizes correctly on control signal; if coil hums but contacts do not close, de-energize immediately and inspect for mechanical obstruction or voltage drop at coil terminals

Wrong-Part Prevention Checklist: Confirm Before You Submit the PO

Before placing any order for the LC1D150M7, verify every item on this checklist against your motor nameplate, control circuit drawing, and panel layout. One missed item is enough to cause a costly return and lead time delay.

  1. Verify motor full-load amperage (FLA) does not exceed 150A; if it does, order larger frame size
  2. Confirm coil voltage is 220V AC 50/60Hz; do not confuse with 24V DC or 110V AC variants in the same family
  3. Confirm pole count: this is 3P (3-pole); if 4-pole neutral contactor required, order different model
  4. Check that motor voltage does not exceed 440V AC (this contactor rated <=440V for AC-3 duty; higher voltages require CSA/UL certified models at 600V insulation)
  5. Verify mounting preference: DIN rail or screw/panel mount; LC1D150M7 supports both but terminal type is screw-clamp (not plug-in)
  6. Confirm auxiliary contact requirement: 1 NO + 1 NC is provided; if more contacts needed, plan for external add-on block or choose different frame variant
  7. Check interlock compatibility if replacing existing contactor; Schneider TeSys D frames are standard but verify size/terminal alignment with existing wiring
  8. Confirm UL/CSA/IEC compliance acceptable for region (this model certified to all three standards)

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — confirming compatibility takes minutes and prevents weeks of delay.

Frequently Asked Questions

Can the LC1D150M7 handle a 120 HP motor at 460V, or is 100 HP the hard limit?

The 100 HP at 460V rating published in Schneider Electric's documentation is a conservative North American reference point based on standard motor full-load amperage tables. Whether a specific 120 HP motor falls within the 150A AC-3 rating depends on the actual motor FLA from the nameplate — if the FLA does not exceed 150A, the contactor is within its rated capacity. Always confirm FLA from the motor nameplate rather than relying on horsepower alone.

Is 220V AC the only coil option in this frame, or can I swap the coil for 110V AC?

The coil is integral to the contactor assembly and cannot be field-swapped. The M7 suffix designates the 220V AC 50/60Hz coil specifically. If your control circuit operates at 110V AC, you need the LC1D150F7. If your circuit operates at 24V DC, you need the LC1D150B7. Ordering the wrong suffix requires a full unit return and replacement — verify before placing the order.

Does the LC1D150M7 include overload protection, or is a separate relay required?

The LC1D150M7 is a contactor only — it has no thermal or electronic overload sensing of any kind. A separate overload relay, or a soft-starter or VFD with built-in protection, is required in every compliant motor circuit. The contactor will switch current at its rated capacity but will not protect the motor from sustained overcurrent. This is not a product limitation — it is the standard design boundary between contactors and motor starters.

What is the difference between AC-3 and AC-1 duty, and does it change the current rating?

AC-3 duty applies to squirrel-cage induction motor switching — making and breaking under full inductive load with inrush current. AC-1 applies to resistive or slightly inductive loads such as heating elements. The LC1D150M7 is optimized for AC-3 service at 150A; under AC-1 resistive load, the current capacity is higher (200A is the general reference for this frame under AC-1), but the contactor is specified and purchased based on its AC-3 rating for motor applications.

What happens if the maximum switching rate of 1200 cycles per hour is exceeded?

Exceeding the 1200 cycles per hour limit at 60°C accelerates contact erosion and shortens the contactor's operational life below the rated 1,000,000 mechanical cycles. In rapid or continuous switching applications — pulse-width modulated control, for example — a mechanical contactor is not the appropriate switching device. Solid-state switching is required for those duty profiles.

Is the LC1D150M7 a direct plug-and-play replacement for an older TeSys D contactor of the same frame size?

Within the TeSys D product family at the same frame size, the LC1D150M7 is generally considered a drop-in replacement, and terminal and mounting compatibility is a key reason buyers standardize on this platform. However, before installation, verify that the terminal alignment matches the existing wiring, that the coil voltage is identical to the unit being replaced, and that any add-on contact blocks from the previous unit are compatible with the replacement frame. Physical fit does not guarantee electrical compatibility if any of those parameters differ.

Why Order From LeadTime.ca

  • Ships worldwide — no geographic restriction on sourcing the LC1D150M7 or any TeSys D family contactor
  • Technical team available to verify coil voltage, frame size, and auxiliary contact configuration before shipment — preventing the wrong-part delays described throughout this guide
  • Volume pricing available for OEM builders and system integrators ordering 10 or more units
  • Sourcing support for hard-to-locate coil voltage variants and non-standard catalog suffixes in the TeSys D family

At-a-Glance Summary

  • Rated operational current: 150A under AC-3 inductive motor duty at <=440V AC
  • Coil voltage: 220V AC, 50/60Hz — M7 suffix designation; do not substitute other variants
  • Motor rating: 100 HP at 460V 3-phase (North American standard reference)
  • Built-in auxiliary contacts: 1 NO / 1 NC at base; add-on blocks available for additional contacts
  • Dimensions: 158mm H x 120mm W x 136mm D; DIN rail and screw/panel mount both supported; screw-clamp terminals
  • Mechanical durability: rated for 1,000,000 mechanical cycles under AC-3 duty
  • Maximum switching frequency: 1200 cycles per hour at 60°C ambient
  • Certifications: UL 508, CSA C22.2 No. 14, IEC 60947-4-1 — compliant for North American and international installations
  • Rated insulation voltage: 600V per UL/CSA; 1000V per IEC 60947-4-1
  • Built-in coil suppression: bidirectional peak limiting diode suppressor — external suppressor not required in most PLC-controlled circuits
  • No internal overload protection — external overload relay or motor protection device mandatory in all compliant installations
