Schneider Electric LC1D12P7 — 12A Motor Contactor Review

By Abdullah Zahid
14 min read

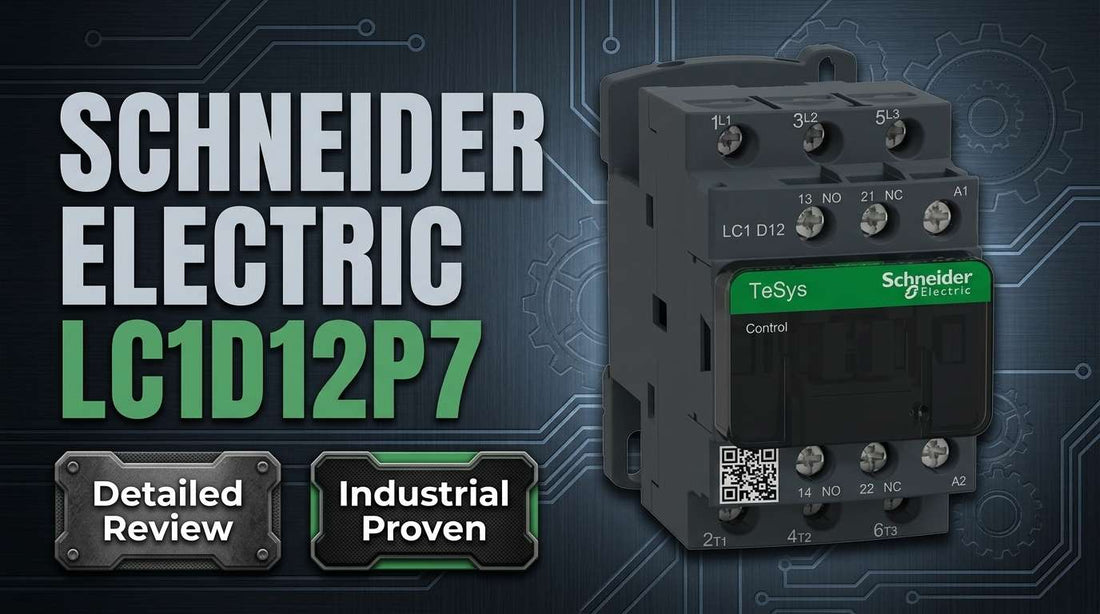

Schneider Electric LC1D12P7 TeSys D 12A AC-3 IEC motor contactor on 35mm DIN rail for three-phase motor control

Schneider Electric LC1D12P7 IEC Contactor, TeSys D/TeSys Deca, Nonreversing, 12A AC-3 Motor Control Contactor — Specifications, Review and Alternatives

If you have the part number in hand and need to confirm the LC1D12P7 is the right fit before placing the order, this review covers what matters: coil voltage, current rating, horsepower limits, auxiliary contact configuration, and the one sizing check that prevents the most common installation failure. The Schneider Electric LC1D12P7 is a three-phase electromagnetic motor contactor rated 12A AC-3 with a 230VAC 50/60Hz coil, designed for direct-on-line motor control in a 45mm DIN-rail package that fits standard automation panel layouts.

If you have already confirmed this is the correct part, check current pricing and availability for the LC1D12P7 at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D12P7 — and Who Should Not

The LC1D12P7 is the right contactor for direct-on-line motor control applications where motor full-load amperage does not exceed 12A AC-3 and control voltage is 230VAC at 50 or 60Hz.

  • Motor full-load amperage (FLA) confirmed at or below 12A AC-3 on the motor nameplate
  • Control supply is 230VAC at 50/60Hz — not 24VDC, 110VDC, or another AC voltage
  • Motor horsepower is within range: 3 HP at 230V, 7.5 HP at 460V, or 10 HP at 575/600V three-phase
  • Application is direct-on-line switching — no soft-start ramp or variable-frequency drive required
  • Base-mounted 1 NO + 1 NC auxiliary contacts are sufficient for interlocking and status signaling needs
  • Panel layout uses 35mm DIN rail with at least 45mm of horizontal clearance for this contactor

If motor FLA exceeds 12A, the LC1D25P7 (25A AC-3) is the correct next step. If coil voltage is 24VDC, specify the LC1D12F7 instead. If soft-start capability is required, a Schneider ATS soft-starter or VFD is the appropriate solution — not this contactor.

On this page:

What the LC1D12P7 Actually Does in a Motor Control Circuit

The LC1D12P7 is an electromagnetic switching device. When 230VAC is applied across coil terminals A1 and A2, the coil generates a magnetic field that pulls in the contact arm, closing three normally-open main contacts across a three-phase motor circuit. When coil voltage is removed, the contacts open and the motor de-energizes. That is the complete function — clean, direct, and deterministic switching of three-phase motor loads in response to a control signal.

What the LC1D12P7 does not do is equally important for system design: it does not provide overload protection, it does not limit inrush current, and it does not vary motor speed. The 12A AC-3 rating accounts for the inrush current characteristic of squirrel-cage induction motors — typically six to ten times full-load amperage for the brief interval during startup — but thermal overload protection must be provided by an external overload relay such as an LRD thermal unit wired in series with the motor circuit. The base-mounted 1 NO + 1 NC auxiliary contacts support standard interlocking and run-signal outputs without requiring additional accessory blocks for straightforward applications.

The TeSys D and TeSys Deca family designation places the LC1D12P7 within Schneider Electric's IEC 60947-4-1 certified contactor range. That certification is not administrative paperwork — it defines how the contact materials are rated for AC-3 duty, how the coil is sized for pull-in and drop-out under voltage tolerance conditions, and how the mechanical frame is validated for 3,600 operating cycles per hour under continuous industrial conditions.

Typical System Architecture for LC1D12P7 Installations

The LC1D12P7 sits between the upstream branch circuit protection and the motor terminals, serving as the controllable switching element in the motor starter circuit. Below is the typical component chain for a direct-on-line motor starter built around this contactor.

  • Upstream: Main disconnect switch or circuit breaker providing branch circuit protection and short-circuit interrupting capacity up to the 100kA SCCR rating at 480VAC
  • Overload relay (LRD thermal or LTD electronic): wired in series with motor circuit or as a trip input; set to 110–125% of motor nameplate FLA
  • LC1D12P7 main contacts (terminals 1/3/5 line side, 2/4/6 load side): switching the three-phase motor load on and off in response to coil energization
  • Control circuit: 230VAC from a PLC digital output, push-button station, or control relay connected to coil terminals A1 and A2
  • Downstream: Three-phase induction motor rated within contactor limits (maximum 7.5 HP at 460V, 3 HP at 230V, 10 HP at 575/600V)

Typical Applications and Industries for the LC1D12P7

In manufacturing environments, the LC1D12P7 handles conveyor drive motors, coolant pump switching, and machine tool spindle control — applications where a small three-phase motor starts and stops repeatedly throughout the production shift. The 3,600 cycles-per-hour rating supports high-frequency switching without premature contact degradation.

HVAC and building systems represent another primary use case. Fan motor control in air handlers, chiller pump switching, and supply/exhaust fan interlocking in commercial building panels all fall within the LC1D12P7's current and horsepower envelope. Panel builders designing HVAC control enclosures frequently specify TeSys D contactors as a default because the 45mm width allows multiple contactor positions on a standard DIN rail section.

In water and wastewater treatment facilities, sump pump, transfer pump, and aeration blower motor control are common assignments. The LC1D12P7's IEC 60947-4-1 certification and multi-national certifications including UL 508 and CSA C22.2 No. 14 satisfy the compliance requirements typical of municipal infrastructure procurement.

OEM equipment suppliers integrating standard motor control into proprietary machines for North American market sale frequently use TeSys D contactors as a standardized BOM component. The widespread distributor availability reduces supply chain risk during production runs and simplifies aftermarket replacement for end customers.

Application Typical Deployment
Conveyor motor control DOL starter in manufacturing line panel; PLC digital output drives coil
HVAC fan motor switching Air handler or rooftop unit control panel; interlocked with thermostat or BAS output
Pump motor starter Water/wastewater pump station; paired with LRD overload relay and HOA selector switch
Machine tool coolant pump Embedded in machine electrical enclosure; controlled by CNC or PLC auxiliary output
Emergency contactor replacement Field swap in existing motor starter; plug-and-play replacement for failed contactor
OEM equipment integration Factory-installed in proprietary control module; standardized across customer fleet for serviceability

LC1D12P7 Key Specifications

Parameter Value
Rated Current (AC-3) 12A
Rated Current (AC-1) 25A
Motor HP Rating @ 230V AC (3-phase) 3 HP
Motor HP Rating @ 460V AC (3-phase) 7.5 HP
Motor HP Rating @ 575/600V AC (3-phase) 10 HP
Coil Voltage / Frequency 230VAC / 50/60Hz
Main Contacts 3 pole (3 NO) — three-phase motor switching
Auxiliary Contacts (base-mounted) 1 NO + 1 NC
Dimensions (W x D x H) 45mm x 84mm x 77mm
Short-Circuit Current Rating (SCCR) Up to 100kA @ 480VAC (requires external short-circuit protection)

Full technical specifications are available on the product page at LeadTime.ca.

LC1D12P7 vs. LC1D25P7 vs. Competitor Equivalents

Contactor Model Manufacturer Rated Current (AC-3) Coil Voltage Motor HP @ 460V Form Factor Best For
LC1D12P7 Schneider Electric 12A 230VAC 7.5 HP DIN-rail, 45mm Standard small-to-medium motors; North American DOL applications
LC1D09P7 Schneider Electric 9A 230VAC 3–5 HP DIN-rail, 40mm Smaller motors; space-constrained panels
LC1D25P7 Schneider Electric 25A 230VAC 15 HP DIN-rail, 45mm Step-up from LC1D12P7 when motor FLA exceeds 12A
LC1D32P7 Schneider Electric 32A 230VAC Medium duty DIN-rail Medium-duty motor control above 25A range
A16-30-10 ABB 16A 230VAC 10 HP DIN-rail, similar Buyers in ABB-standardized environments
3RT2015-1AP02 Siemens 10A 230VAC 7.5 HP DIN-rail, compact Buyers integrated with Siemens automation portfolio

If your motor's full-load amperage exceeds 12A, the LC1D25P7 is the correct choice — check current availability and confirm the right model at LeadTime.ca.

Expert Verdict: Is the LC1D12P7 Worth Ordering?

The LC1D12P7 earns its position as a go-to motor contactor because it solves a specific problem exceptionally well: reliable, compact, IEC-compliant direct-on-line switching for three-phase induction motors up to 7.5 HP at 460V. Maintenance technicians replacing a failed contactor in an existing motor starter panel will find it a plug-and-play swap with no surprises. Panel builders working on space-constrained enclosures benefit from the 45mm DIN-rail footprint and the base-mounted 1 NO + 1 NC auxiliary contacts that handle standard interlocking without additional accessory blocks. Electrical contractors standardizing on TeSys D across multiple job sites gain consistent inventory management and universal replacement availability. The 3,600 cycles-per-hour rating and IEC 60947-4-1 certification mean this is not a price-engineered shortcut — it is a properly rated industrial switching device with multi-national certification including UL 508 and CSA C22.2 No. 14.

The LC1D12P7 has real limits that matter. The 12A AC-3 rating is at the lower end of the TeSys D range — if motor full-load amperage is 12.5A or higher, the LC1D25P7 is the correct part and costs only marginally more. If the application requires a soft-start ramp to limit inrush current, this contactor cannot provide that; a Schneider ATS soft-starter or VFD is the right solution. The LC1D12P7 does not include overload protection of any kind — an external overload relay is mandatory and must be specified separately. And critically, the 230VAC coil is non-negotiable: if the control voltage available is 24VDC or 110VDC, the LC1D12F7 or LC1D12B7 is the correct model, not this one.

From a procurement standpoint, the LC1D12P7 is widely stocked across industrial electrical distributors with typical availability of one to two business days for in-stock purchases. The multi-national certifications including DNV, GL, and Lloyds Register extend its use beyond North American installations to international projects. Buying through a specialist distributor rather than a generic online marketplace matters here — coil voltage mismatches and current rating errors are the two most common and costly ordering mistakes for this product family, and a technical review before shipment eliminates both risks. View current pricing and confirm availability for the LC1D12P7 at LeadTime.ca before committing to your build schedule.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D12P7

Because public forum discussion of the LC1D12P7 by model number is sparse — industrial motor control components are typically discussed in regional contractor networks and internal plant maintenance channels rather than public forums — the most useful pre-order guidance comes from the technical realities of the TeSys D product family and the ordering mistakes that specialist distributors see repeatedly.

The coil voltage suffix in the model number is the single most frequent source of ordering errors across the TeSys D family. The letter before the final digit encodes the coil voltage: P in LC1D12P7 indicates 230VAC. The LC1D12F7 uses a 24VDC coil. The LC1D12B7 uses a 110VDC coil. These units look identical in the box and are physically interchangeable in the panel — but a 24VDC coil connected to a 230VAC control supply will fail immediately, and a 230VAC coil on a 24VDC PLC output will never pull in. Buyers replacing a failed contactor should read the coil voltage label on the failed unit before ordering, not rely on memory or a parts list that may have been updated since the original installation.

The second recurring issue is current rating assumption. A buyer who knows the motor is small sometimes skips checking the nameplate FLA and orders the LC1D12P7 by default. A 10 HP motor at 575V draws approximately 9.2A at full load — within the 12A AC-3 rating, but at an operating point where overload relay setting, ambient temperature, and cable derating all reduce the available safety margin. For motors at or near the 12A boundary, the LC1D25P7 provides meaningful headroom for the incremental cost difference. LeadTime.ca's technical team can cross-reference motor nameplate data against contactor ratings before the order ships, which is a service a generic online marketplace does not provide. This is especially valuable for emergency replacement orders where the technician is working from memory or a blurry photo of the nameplate rather than a clean specification document.

Wiring and Installation Overview

  • Main load connections: three-phase incoming power connects to terminals 1, 3, and 5; motor load connects to terminals 2, 4, and 6. Use 1.5–2.5mm² copper wire on load terminals with screw-clamp torque applied evenly.
  • Control coil: 230VAC control voltage connects to terminals A1 and A2. Verify coil voltage label matches the available control supply before energization. Minimum 0.5mm² wire recommended for the control circuit.
  • Overload relay: must be wired in series with the motor circuit or as a trip input to the contactor auxiliary circuit — the LC1D12P7 does not include internal overload protection. Overload relay setting should be 110–125% of motor nameplate FLA.
  • DIN-rail mounting: snap onto standard 35mm DIN rail with the 45mm contactor width; confirm adjacent devices allow adequate clearance for contact arm travel and terminal access.
  • Auxiliary contacts: base-mounted 1 NO + 1 NC contacts are available for interlocking or run-signal outputs. If additional auxiliary contacts are required, front-mounted or side-mounted LADN auxiliary blocks can be added without replacing the contactor.

Engineers requiring full wiring diagrams, terminal torque specifications, and commissioning procedures should refer to the Schneider Electric TeSys D installation manual available from the manufacturer.

Compatible Accessories and System Expansion

The LC1D12P7 is designed to accept accessory modules that extend auxiliary contact availability and protection capability without replacing the base contactor unit.

  • LADN front-mounted auxiliary contact blocks: add additional NO and NC contacts to the front face of the LC1D12P7 for complex interlocking schemes that exceed the base 1 NO + 1 NC capacity
  • Side-mounted auxiliary contact blocks: attach to the side of the contactor body for additional status signaling outputs in multi-contactor panel layouts
  • LRD thermal overload relay: mounts directly downstream of the LC1D12P7 to provide thermal motor protection; must be selected for motor FLA range — mandatory for motor protection, not optional
  • LTD electronic overload relay: electronic alternative to thermal dial type; provides more precise trip settings and additional diagnostic outputs for advanced motor protection requirements

Wrong-Part Prevention Checklist

Before placing the order, verify every item below. These are the checks that prevent the most common and costly LC1D12P7 ordering errors.

  1. Verify coil voltage matches available control supply (230VAC confirm — not 24VDC or 220VDC)
  2. Confirm AC-3 load category is correct for motor application (AC-3 is standard for squirrel-cage motors; AC-2 for slip-ring motors)
  3. Check that 12A AC-3 rating is sufficient (if motor FLA exceeds 12A, choose LC1D25P7 or larger)
  4. Verify horsepower rating for motor voltage (3 HP @ 230V, 7.5 HP @ 460V, 10 HP @ 575/600V — ensure motor is within range)
  5. Confirm 50/60Hz AC supply matches coil specification (standard in North America; verify in export applications)
  6. Check that base-mounted 1 NO + 1 NC auxiliary contacts meet interlocking requirements (if more auxiliaries needed, plan front or side mount blocks)
  7. Ensure screw-clamp terminals match installation practice (some sites prefer spring terminals; alternatives available)
  8. Verify that direct-on-line switching is acceptable (no soft starter, VFD, or reduced-voltage starter needed)

If any item on this checklist raises a question before you order, contact the LeadTime.ca team for technical confirmation — we verify specifications against your motor nameplate and control voltage before the order ships.

Frequently Asked Questions

Can I use the LC1D12P7 as a bypass contactor in a soft-start or VFD circuit?

Yes. A common application is wiring the LC1D12P7 as a bypass contactor around a soft-starter once the motor reaches full speed, allowing the soft-starter to be bypassed during steady-state operation. In this configuration, the contactor carries full-load current but does not perform the inrush switching — the soft-starter handles that. Confirm that the motor full-load current in bypass mode does not exceed the 12A AC-3 rating.

What happens if I connect the LC1D12P7's 230VAC coil to a 24VDC PLC output by mistake?

The contactor will not pull in. The 230VAC coil requires alternating current at sufficient voltage to generate the magnetic pull-in force. A 24VDC signal will not energize it. The coil will not be damaged by a momentary 24VDC application, but the contactor simply will not operate. The correct model for a 24VDC PLC output is the LC1D12F7.

Does the LC1D12P7 include overload protection, or do I need a separate relay?

The LC1D12P7 is a switching device only and includes no overload protection whatsoever. An external overload relay — either a thermal dial type such as the LRD series or an electronic relay such as the LTD series — must be installed in series with the motor circuit. Omitting the overload relay means the motor has no thermal protection against stall, jam, or prolonged overload conditions, which will cause motor winding failure.

My motor nameplate shows 11.8A FLA at 460V. Is the LC1D12P7 sufficient, or should I step up to the LC1D25P7?

At 11.8A FLA, the LC1D12P7's 12A AC-3 rating leaves less than 200mA of margin. While technically within rating, ambient temperature derating, cable sizing, and starting frequency all affect real-world contact life at this operating point. For a motor running near the contactor's ceiling, specifying the LC1D25P7 provides meaningful headroom and reduces risk of premature contact wear — the cost difference is small relative to the downtime cost of a failed contactor on a production motor.

Can I add more auxiliary contacts to the LC1D12P7 without replacing the contactor body?

Yes. Front-mounted LADN auxiliary contact blocks and side-mounted auxiliary blocks are designed to attach to the LC1D12P7 without replacing the base contactor. The base unit provides 1 NO + 1 NC as standard. If the interlocking scheme requires additional NO or NC contacts, specify the appropriate LADN block separately and snap it onto the contactor in the panel.

Is the LC1D12P7 rated for outdoor or washdown panel installations?

The LC1D12P7 carries an IP00 protection rating, meaning it has no enclosure protection against dust or moisture. It must be installed inside a properly rated enclosure (NEMA or IP-rated cabinet) suited to the installation environment. The contactor itself is not rated for direct outdoor or washdown exposure.

Why Order From LeadTime.ca

  • Ships worldwide — the LC1D12P7 is available for international delivery, not limited to any single country or region
  • Technical pre-sale verification — LeadTime.ca confirms coil voltage, current rating, and auxiliary contact configuration against your application before the order ships, reducing returns and installation errors
  • Hard-to-source and legacy part sourcing — specialist distributor model means access to parts that may be out of stock at general electrical channels
  • Volume pricing available — contact for pricing on orders of 10 units or more
  • Fast response on emergency replacement orders — minimizing production downtime is a core service priority

At-a-Glance Summary

  • Model: Schneider Electric LC1D12P7 — IEC contactor, TeSys D/TeSys Deca, nonreversing, 12A AC-3
  • Coil voltage: 230VAC at 50/60Hz — confirm against available control supply before ordering
  • Rated current: 12A AC-3 (squirrel-cage motor duty); 25A AC-1 (general non-inductive loads)
  • Motor horsepower limits: 3 HP at 230V, 7.5 HP at 460V, 10 HP at 575/600V three-phase
  • Main contacts: 3 pole (3 NO); auxiliary contacts: 1 NO + 1 NC base-mounted
  • Dimensions: 45mm x 84mm x 77mm; mounts on standard 35mm DIN rail
  • Operating cycles: 3,600 per hour — rated for continuous industrial switching duty
  • Short-circuit current rating: up to 100kA at 480VAC with external short-circuit protection
  • Certifications: IEC 60947-4-1, UL 508, CSA C22.2 No. 14, REACH compliant, RoHS compliant
  • If motor FLA exceeds 12A: order LC1D25P7. If coil voltage is 24VDC: order LC1D12F7. External overload relay is mandatory — not included.
