Schneider Electric LC1D12M7 — 12A IEC Contactor Buying Guide

By Abdullah Zahid
15 min read

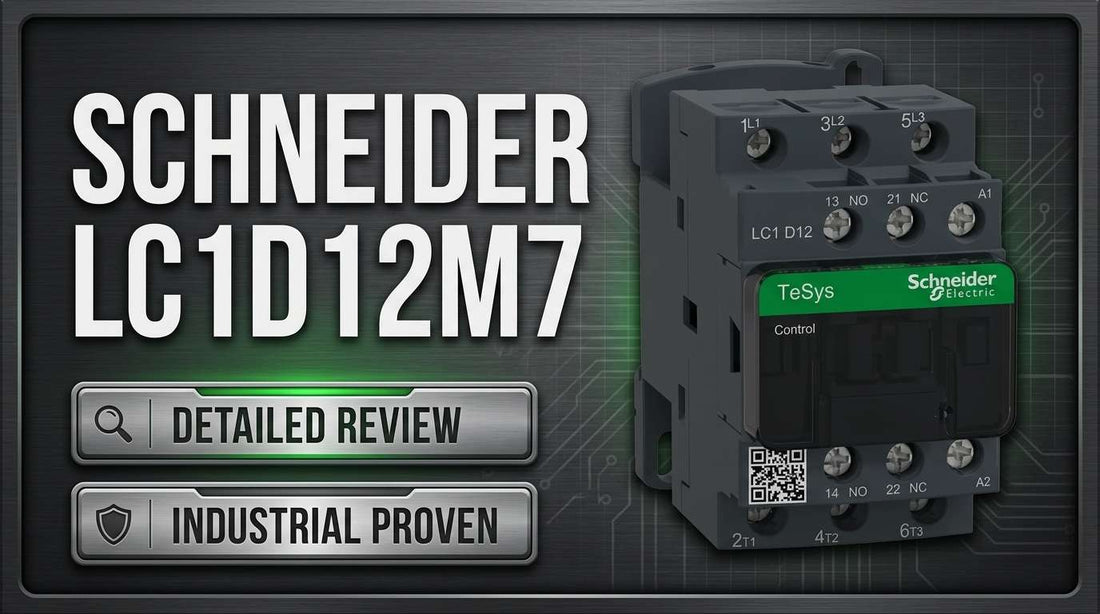

Schneider Electric LC1D12M7 TeSys Deca 3-pole 12A IEC contactor for three-phase motor control on DIN rail

Schneider Electric LC1D12M7 TeSys Deca IEC Contactor, 3-Pole Nonreversing, 12A — Complete Specs, Selection Guide and Procurement Review

Controls engineers and panel builders searching for the Schneider Electric LC1D12M7 are typically at the same decision point: the motor nameplate says 7.5 HP at 460V, the control circuit is running 220V AC, and the question is whether this 12A TeSys Deca contactor closes the loop on all three constraints before the purchase order goes out. It does — provided the coil voltage, current rating, and mounting requirements align with your panel design. This review covers every specification, sizing trap, and variant comparison you need to make that call with confidence.

If you have already confirmed this is the correct part, check current pricing and availability for the LC1D12M7 at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D12M7 — and Who Should Not

The LC1D12M7 is the right contactor when all of the following are true for your application:

  • Your control circuit supplies 220V AC at 50 or 60 Hz — this is a non-negotiable coil voltage match; no other voltage will energize this unit
  • Your motor full-load current does not exceed 12A at your operating voltage — verify against the motor nameplate FLC, not the nameplate HP alone
  • Your motor load is three-phase — this is a 3-pole contactor; confirm three-phase power is available at the installation point
  • Your panel has a 35mm TS profile DIN rail installed — this contactor has no bolt-hole mounting option
  • Your wiring is 0.5–10 mm² gauge — screw clamp terminals will not accept larger pre-terminated or oversized conductors
  • Your application requires IEC 60947-4-1 compliant switching — mandatory for OEM approval and cross-market project replicability

If your control circuit is 24V DC, you need the LC1D12B7. If your motor FLC exceeds 12A, step up to the LC1D18M7 or LC1D25M7. If reversing motor control is required, two contactors with a mechanical interlock kit — or the LC1D12BL7 reversible variant — are the correct path.

On this page:

What the LC1D12M7 Actually Does in a Motor Control Circuit

The Schneider Electric LC1D12M7 is a 3-pole nonreversing electromechanical contactor from the TeSys Deca family — the current iteration of the long-established TeSys D platform. Its core function is straightforward: when 220V AC is applied to the coil, the internal electromagnet closes three normally open main contacts simultaneously, connecting three-phase line power to a motor or load. Remove the coil voltage and the contacts open, cutting power to the load. That switching action is rated at 12A under AC-3 duty, which is the demanding induction motor starting category defined in IEC 60947-4-1.

What separates this from a basic relay is the integrated auxiliary contact block — one normally open and one normally closed contact built into the same housing. The NO auxiliary feeds a run-status signal back to a PLC input or holding relay circuit. The NC auxiliary feeds safety and interlock logic, giving the control system real-time confirmation that the contactor has opened. This eliminates the need for a separate feedback relay module in most standard motor starter designs, reducing panel depth and component count.

The contactor is rated for a maximum system voltage of 690V AC or 300V DC, with a rated switching capacity of 5.5 kW at 400V. Its rated breaking and making capacity is 250A at 440V per IEC 60947, giving it the arc-interruption headroom that motor starting duty demands. Contact closure happens in 12–22 milliseconds from coil energization — well within the 10–50 ms scan window of most industrial PLCs, so no additional delay compensation is required in sequencing logic.

One spec that earns genuine confidence in long-cycle applications: the LC1D12M7 is rated for 15 million mechanical cycles at AC-3 duty and 25 million cycles at AC-1 (non-inductive loads). In a typical HVAC or pump facility running frequent on-off cycles, that translates to a service life measured in years before mechanical wear becomes a maintenance concern.

Typical System Architecture for LC1D12M7 Installations

The LC1D12M7 sits between the motor protection devices and the motor terminals — it is the final switched element in the power path, controlled by the logic layer above it.

  • PLC output or relay logic supplies 220V AC to the contactor coil terminals, triggering contact closure
  • Three-phase line power enters the contactor at input terminals L1, L2, L3 from the upstream disconnect and thermal overload relay
  • Main contacts T1, T2, T3 deliver switched three-phase power directly to the motor leads
  • The integrated NO auxiliary contact routes a run-status signal back to the PLC digital input for interlocking and sequencing logic
  • The integrated NC auxiliary contact feeds the safety or emergency stop circuit to confirm contactor open state

Industries and Applications Where This Contactor Is Specified

HVAC system integrators specify the LC1D12M7 most frequently for rooftop unit and chiller compressor motor control. The 220V AC coil integrates directly with building management system relay outputs, and the 7.5 HP rating at 460–480V covers the majority of rooftop compressor loads without upsizing.

Water and wastewater treatment facilities use this contactor for pump motor starters in both submersible and surface-mount pump configurations. The AC-3 duty rating handles the inrush current of frequent pump cycling, and the integrated auxiliary contact provides the run-status feedback required for SCADA and remote monitoring systems.

Food and beverage production lines use the LC1D12M7 on conveyor and mixer drive circuits. In multi-motor sequencing applications, the PLC controls each LC1D12M7 independently and uses the auxiliary contact chain for interlock logic — ensuring motors start and stop in the correct sequence without collision.

Machine tool and press motor applications benefit from the AC-3 duty rating's tolerance for repeated switching. The contactor is also used as a soft-starter bypass unit: after the soft-starter ramps the motor to full speed, the LC1D12M7 closes to carry the steady-state load, removing the soft-starter from the thermal path and extending its service life.

Application Typical Deployment
HVAC chiller compressor 220V AC coil driven by BMS relay output; 7.5 HP motor at 460V three-phase
Water treatment pump starter Manual start/stop station with holding relay; 12A motor at 230V three-phase
Conveyor line motor sequencing PLC controls multiple LC1D12M7 units; auxiliary contacts provide interlocking run-status chain
Press/machine tool drive Frequent on/off cycles; AC-3 duty rating prevents premature contact erosion
Soft-starter bypass contactor Closes after motor ramp-up; carries full load current at steady state, bypassing soft-starter
Facility automation panel DIN rail mounted; screw terminals accept standard panel wiring; IEC 60947 compliance satisfies OEM approval

Electrical Specifications and Motor Power Ratings

Specification Value
Product Type 3-pole IEC Contactor, TeSys Deca, nonreversing
Main Contact Current Rating 12A at ≤ 440V AC (AC-3 duty)
Coil Voltage 220V AC, 50/60 Hz
Max System Voltage 690V AC or 300V DC
Switching Capacity 5.5 kW at 400V AC
Rated Breaking / Making Capacity 250A at 440V (IEC 60947)
Auxiliary Contacts 1 NO + 1 NC (integrated)
Contact Closing Time 12–22 milliseconds
Mechanical Life (AC-3) 15 million cycles
Standard Compliance IEC 60947-4-1

Full technical specifications are available on the product page at LeadTime.ca.

Motor Power Rating by Voltage

Voltage Single-Phase Three-Phase
115V AC 0.5 HP —
200–208V AC 2 HP 3 HP
230–240V AC 2 HP 3 HP
460–480V AC — 7.5 HP
575–600V AC — 10 HP

LC1D12M7 vs. Alternate Variants: Which One Do You Actually Need?

Model Current Rating Coil Voltage Choose When
LC1D12M7 12A 220V AC, 50/60 Hz Control circuit is 220V AC and motor FLC ≤ 12A
LC1D12B7 12A 24V DC Modern PLC system with 24V DC control output — most common alternative order
LC1D12E7 12A 110V AC Facility or panel standard is 110V AC control voltage
LC1D18M7 18A 220V AC, 50/60 Hz Motor FLC exceeds 12A; same DIN rail form factor, direct step-up
LC1D25M7 25A 220V AC, 50/60 Hz Heavier industrial duty; larger motor loads requiring 25A capacity

If your motor full-load current exceeds 12A at your operating voltage, the LC1D18M7 is the correct next step in the same DIN rail form factor — check current availability and compare models at LeadTime.ca.

Expert Verdict: Is the LC1D12M7 Worth Ordering?

The LC1D12M7 earns its place as a panel-builder standard for a specific and well-defined buyer: the integrator or controls engineer building a three-phase motor starter circuit with a 220V AC control bus and a motor load that sits comfortably within the 12A, 7.5 HP at 460V envelope. The IEC 60947-4-1 compliance is not a marketing claim — it is the difference between a product that clears OEM approval on the first submission and one that triggers a revision cycle. The 15 million mechanical cycle rating at AC-3 duty and the integrated 1 NO / 1 NC auxiliary contact block mean this contactor eliminates a separate feedback relay from the BOM while delivering the arc-interruption performance that inductive motor loads demand. For HVAC, pump, conveyor, and machine tool applications running on 220V AC control circuits, this is a mature, well-stocked, and well-understood component.

Where the LC1D12M7 has real limits: coil voltage is fixed at 220V AC, and there is no flexibility here. Modern automation panels increasingly standardize on 24V DC PLC output circuits, making the LC1D12B7 the more common choice in new builds. If your motor FLC at 230V three-phase is in the 18–22A range — a common scenario when specifying a 7.5 HP motor at lower voltage — the LC1D12M7 is undersized and the LC1D18M7 is the correct call. For reversing duty, two units with a mechanical interlock kit or the LC1D12BL7 reversible variant must be evaluated for your region. The TeSys D family offers cross-vendor IEC equivalents from other manufacturers if regional pricing or availability creates sourcing pressure, but the form factor, accessory compatibility, and spare parts ecosystem of the TeSys platform are genuine advantages that reduce long-term panel standardization cost.

On the procurement side, the LC1D12M7 is a standard off-the-shelf item with same-day to next-business-day availability at major distributors across North America, and the TeSys D platform has global distribution coverage for international project replication. Schneider Electric Canada lists this as a current product, and no backorder or long-lead status has been flagged. For volume orders of 10 or more units, distributor discounts of 15–25% off list are typical — worth confirming before committing to a multi-panel build. View current pricing and stock status for the LC1D12M7 at LeadTime.ca — ordering through a specialist distributor means coil voltage and current rating are confirmed before the unit ships, not after it arrives on site.

For volume pricing, project quantities, or lead time confirmation before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D12M7

Community discussion specific to the LC1D12M7 is sparse across the major automation forums — a pattern that reflects the product's maturity rather than obscurity. When a contactor works reliably across millions of installations for over fifteen years, engineers do not post troubleshooting threads. The TeSys D family generates little forum noise because it generates few field failures. That said, the ordering mistakes that do appear in broader TeSys D community discussions are consistent enough to warrant direct attention before any purchase order is submitted.

The single most repeated ordering error in TeSys D forum threads is coil voltage mismatch. Integrators working across multiple facilities — some standardized on 220V AC control buses, others on 24V DC PLC output modules — have reported receiving LC1D12M7 units that will not energize because the facility runs 24V DC. The contactor itself is not defective; the wrong catalog suffix was ordered. The M7 suffix means 220V AC coil. The B7 suffix means 24V DC. That one character difference has caused return freight, project delays, and emergency re-orders on more than one documented occasion. A second pattern involves motor current rating confusion: buyers reference motor nameplate horsepower rather than full-load current at the actual operating voltage. A 7.5 HP motor at 230V three-phase draws 18–22A FLC — well above the 12A rating — while the same motor at 460V draws 9–11A and fits comfortably within spec. The voltage matters as much as the horsepower. A third recurring issue is the DIN rail discovery problem: field technicians arriving at an older panel to replace a failed contactor find no DIN rail installed. The LC1D12M7 has no bolt-hole mounting provision. If the panel has lug-only or bolted terminal blocks, either a DIN rail retrofit must be planned in advance or a different contactor type is required.

When community data is limited, specialist distributor knowledge fills the gap. The team at LeadTime.ca handles LC1D12M7 and TeSys D family orders across a range of industries and can confirm coil voltage, current sizing, and mounting compatibility before the unit ships. If there is any ambiguity in your panel schematic or motor nameplate data, that is the conversation to have before the purchase order is submitted — not after installation day. Reach out to LeadTime.ca with your motor nameplate data and control circuit voltage and the correct variant will be confirmed before anything is ordered.

Wiring and Installation Overview

  • Confirm all power is isolated and locked out before mounting; snap the contactor vertically onto 35mm TS DIN rail until the retaining clip engages fully with no lateral movement
  • Connect three-phase input to terminals L1, L2, L3 and motor leads to output terminals T1, T2, T3; maintain phase sequence matching motor nameplate rotation direction
  • Connect 220V AC coil supply through the start/stop button and holding relay circuit to the coil terminals; verify 220V AC is present at coil terminals before energizing
  • Wire the integrated NO auxiliary contact to the PLC digital input for motor-run status feedback; wire the NC auxiliary to the emergency stop or safety interlock chain
  • After initial commissioning, retighten all screw terminal connections after 24 hours of operation — particularly in high-vibration environments such as compressor rooms or pump stations

For full wiring diagrams and step-by-step commissioning procedures, refer to the official Schneider Electric TeSys Deca installation documentation.

Compatible Accessories and System Expansion

The TeSys D platform supports a range of add-on accessories that mount directly to the LC1D12M7 without additional wiring hardware:

  • Thermal overload relays (LRD series) — mount directly to contactor output side; mandatory for motor overcurrent protection; select rating to match motor FLC
  • Mechanical interlock kit — links two LC1D12M7 units for reversing motor control applications; prevents simultaneous energization of forward and reverse contactors
  • Auxiliary contact blocks (LA1D series) — snap-on additions that expand the integrated 1 NO + 1 NC auxiliary contact block for applications requiring additional feedback or interlock signals
  • Surge suppression modules — coil-side RC or varistor suppressors that reduce voltage transients on the 220V AC coil circuit; recommended in long cable or capacitive wiring environments
  • Replacement coil and contact assemblies — available as spare parts for field repair without full contactor replacement

Wrong-Part Prevention Checklist

Before submitting your purchase order for the LC1D12M7, verify all six items below. This checklist is drawn directly from the most common ordering errors associated with this contactor family:

  1. Coil voltage: Confirm your panel schematic shows 220V AC (50 or 60Hz). If DC or other AC voltage, this is the wrong model. Stop and select correct variant.
  2. Motor current: Check motor nameplate FLC. If it exceeds 12A at your operating voltage, order LC1D18M7 or larger.
  3. DIN rail mounting: Verify your panel has 35mm TS profile DIN rail installed. Bolted or lug-only panels require retrofit or alternative contactor.
  4. Screw terminal wire gauge: Your wire must be 0.5–10 mm². Pre-terminated connectors or larger-gauge wire may not fit.
  5. Three-phase requirement: Confirm you need three-phase (3-pole) control. Single-phase motors require different contactor type.
  6. Application duty cycle: Verify AC-3 duty rating applies (motor starting/frequent switching). High-frequency or DC switching may require AC-3e or alternative technology.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — we confirm specifications before units ship, worldwide.

Frequently Asked Questions

What happens if I wire a 24V DC control circuit to the LC1D12M7 coil?

The contactor will not energize. The LC1D12M7 coil is designed for 220V AC at 50 or 60 Hz; a 24V DC supply cannot generate sufficient magnetic force to close the main contacts. If DC control voltage is applied continuously, the coil may overheat and burn out. If your PLC output module supplies 24V DC — which is standard in most modern automation systems — you need the LC1D12B7 variant, not this model.

Does the LC1D12M7 include motor overload protection, or do I need a separate relay?

The LC1D12M7 is a switching device only — it contains no overcurrent or thermal protection. If the motor jams or draws excessive current, the contactor will not trip. A separate thermal overload relay, such as a device from the LRD series, must be installed in series with the motor power circuit on the output side of the contactor. This is a mandatory requirement under most electrical codes and IEC 60947 motor starter configurations; do not energize a motor circuit without it.

Is the LC1D12M7 a direct replacement for a failed TeSys D contactor of the same rating?

Yes, provided the failed unit carries the same catalog number or is from the TeSys D family with identical ratings — 12A, 220V AC coil, 3-pole, DIN rail mounting. The TeSys Deca is the current platform generation and maintains dimensional and terminal compatibility with TeSys D units of the same frame size. Verify the coil voltage suffix on the failed unit's nameplate before ordering; M7 means 220V AC, and a substitution from a different coil voltage variant will require control circuit rewiring.

Can the LC1D12M7 switch DC loads such as solenoids or DC motors?

The LC1D12M7 is rated and optimized for AC-3 (induction motor starting) duty. Its published breaking capacity figures apply to AC loads at 440V. DC load switching produces a sustained arc that AC current zero-crossings naturally extinguish; the DC breaking capacity for this contactor is not published in the standard datasheet. For DC load applications, consult LeadTime.ca or the Schneider Electric technical team to confirm suitability for your specific current, voltage, and duty cycle before installation.

What does the contact closure time of 12–22 milliseconds mean for my PLC logic?

It means that after the PLC output energizes the coil, the main contacts close and full power reaches the motor within 12–22 milliseconds. Typical industrial PLC scan cycles run 10–50 milliseconds, so this delay falls within the normal sequencing window and does not require additional timer compensation in standard motor start logic. If your application requires switching faster than 10 milliseconds, consult your distributor about solid-state switching alternatives.

How do I confirm the contactor is faulty versus a control wiring issue during troubleshooting?

Start by verifying 220V AC is present at the coil terminals with an AC multimeter while the start command is active. If voltage is present but the contactor does not click and close, power down the panel, disconnect one coil lead, and measure coil resistance on the ohm scale. A reading in the range expected for the coil indicates the coil is intact; an open-circuit reading (OL) confirms coil failure and the unit requires replacement. If coil resistance is normal and 220V AC is confirmed at the terminals but the contactor still does not close, suspect a mechanical jam and contact your distributor for a replacement unit.

Why Order From LeadTime.ca

  • Global shipping — LeadTime.ca ships the LC1D12M7 and the full TeSys D variant family worldwide; no regional restrictions
  • Specialist confirmation — coil voltage, current rating, and mounting compatibility verified before the unit ships; not after it arrives on site
  • Volume pricing available — contact for firm quotes on 10 or more units; typical distributor discount structures apply
  • Hard-to-find variants sourced — if your project requires a specific coil voltage or current rating not in standard stock, the LeadTime.ca team sources across the TeSys D catalog
  • Fast response on lead time questions — stock status confirmed before you commit to a build schedule

At-a-Glance Summary

  • 3-pole nonreversing IEC contactor, 12A main contact rating at ≤ 440V AC under AC-3 duty
  • Coil voltage: 220V AC, 50/60 Hz — fixed; no other voltage available under this catalog number
  • Motor ratings: 7.5 HP at 460–480V three-phase; 3 HP at 230V three-phase; 10 HP at 575–600V three-phase
  • Max system voltage: 690V AC or 300V DC; rated breaking and making capacity 250A at 440V
  • Integrated auxiliary contacts: 1 NO + 1 NC — eliminates separate feedback relay in standard motor starter designs
  • Contact closure time: 12–22 milliseconds — within standard PLC scan window; no timer compensation required
  • Mechanical life: 15 million cycles at AC-3; 25 million cycles at AC-1
  • Mounting: 35mm TS DIN rail only; screw clamp terminals accept 0.5–10 mm² wire
  • Dimensions: 45 mm wide, 77 mm high, 86 mm deep
  • Operating temperature: -25°C to +55°C
  • Standard compliance: IEC 60947-4-1
  • Availability: Standard off-the-shelf item; same-day to next-business-day shipping at major distributors; current product on Schneider Electric Canada
