Schneider Electric LC1D12BD — 24VDC Contactor Buying Guide

By Abdullah Zahid
14 min read

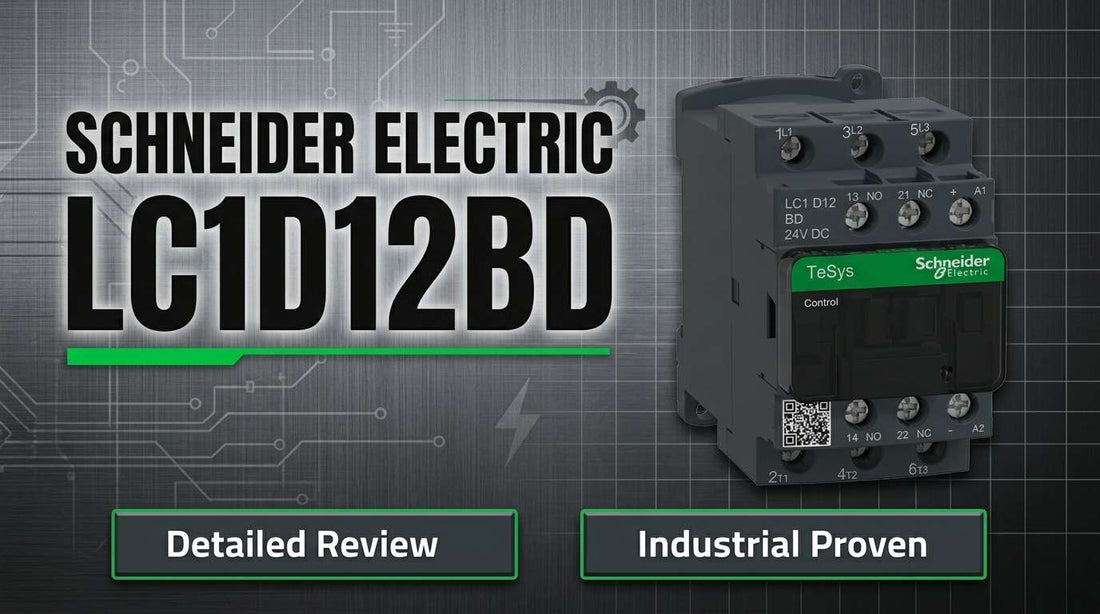

Schneider Electric LC1D12BD TeSys D 12A 24VDC IEC contactor for three-phase DOL motor starter DIN rail

Schneider Electric LC1D12BD IEC Contactor — TeSys D 12A, 24VDC Coil: Complete Specs, Pricing and Buying Guide

If you are a controls engineer or maintenance technician sourcing a compact three-pole IEC contactor for a direct-on-line motor starter circuit running on 24VDC control power, the Schneider Electric LC1D12BD is the part most often specified for that job. Rated at 12A AC-3 and 25A AC-1, with an integrated 1NO + 1NC auxiliary contact block and a 5.4W coil, it handles three-phase induction motors up to 7.5HP at 460VAC from a 45mm-wide DIN rail footprint. The single most important verification before ordering: your control circuit must supply stable 24VDC — the BD suffix is non-negotiable on that point.

If you have already confirmed this is the correct part, check current pricing and availability for the LC1D12BD at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D12BD — and Who Shouldn't

The Schneider Electric LC1D12BD is the right contactor when all of the following are true for your application:

  • Your control circuit supplies stable 24VDC — the BD coil will not energize on AC voltages or any other DC level
  • Your motor's full-load current falls within the 12A AC-3 rating for frequently started induction motors, or within the 25A AC-1 rating for resistive or non-frequent start loads
  • Your enclosure has a 35mm DIN rail with at least 45mm of horizontal clearance and adequate ventilation for thermal management
  • You are providing external motor overload protection and upstream circuit breaker — the LC1D12BD has no built-in overload protection
  • The connected three-phase motor is rated up to 7.5HP at 460VAC, 3HP at 230VAC, or 10HP at 600VAC under AC-3 duty

If your control circuit operates at 110VAC or 230VAC, do not order the LC1D12BD. You need the LC1D12 with the appropriate coil voltage suffix. If your motor exceeds 7.5HP at 460V, step up to the LC1D18 or LC1D25 instead.

On this page:

What the LC1D12BD Actually Does in a Motor Starter Circuit

The Schneider Electric LC1D12BD is a nonreversing three-pole IEC power contactor from the TeSys D series — also marketed as TeSys Deca in some regions, referring to the same product family. Its function is straightforward but critical: when 24VDC is applied across the A1 and A2 coil terminals, the three main contacts close simultaneously, completing the AC power path between the supply (L1, L2, L3) and the motor (T1, T2, T3). When 24VDC is removed, spring return opens the contacts and the motor stops. This is the core switching action in every direct-on-line starter circuit.

What makes the LC1D12BD more than a simple switch is the integrated 1NO + 1NC auxiliary contact block. The normally open auxiliary is typically wired in parallel with the start pushbutton to create a seal-in or hold-in circuit, keeping the contactor energized after the button is released. The normally closed auxiliary provides a feedback signal — confirming to the control system or PLC that the contactor is open (motor not running). These two contacts reduce external relay count and simplify starter ladder logic without requiring add-on modules for standard applications.

The coil itself draws only 5.4W at 24VDC. That low power demand means it can be driven directly from a modest 24VDC supply without concern for supply rail loading, and it generates minimal heat within the control cabinet even in high-density installations.

Typical System Architecture for DOL Motor Control

The LC1D12BD sits at the switching layer of a direct-on-line starter assembly, positioned between upstream protection and the motor terminals. Here is where it fits in a complete circuit:

  • Three-phase AC supply feeds into an upstream circuit breaker or fused disconnect, providing short-circuit protection for the branch circuit
  • Output of the circuit breaker feeds the input of a thermal or electronic overload relay — the overload relay's output feeds directly into the LC1D12BD main power terminals (L1, L2, L3)
  • The LC1D12BD main output terminals (T1, T2, T3) connect directly to the motor leads
  • A 24VDC control power supply feeds the coil circuit through a stop button (normally closed), a start button (normally open), and the 1NO auxiliary contact wired in parallel with the start button for seal-in
  • The 1NC auxiliary contact feeds back to the PLC or control panel to confirm contactor state and enable interlock logic

Industries and Applications Where the LC1D12BD Is the Standard Choice

Food and beverage processing facilities rely on the LC1D12BD for conveyor belt drives and mixing equipment motor control, where frequent start-stop cycles demand AC-3 rated contactors that can sustain 3600 operating cycles per hour without contact degradation. The compact 45mm width allows dense starter assemblies in the panel space typically allocated in these environments.

In HVAC and refrigeration systems, compressor motor control is a primary application. Compressors running on AC-1 duty — non-frequent starts with predominantly resistive or stable loads — benefit from the 25A AC-1 rating, which provides meaningful headroom above the motor's running current for a motor rated within the contactor's capability.

Machine tool builders and panel integrators use the LC1D12BD as a spindle motor starter for lathes, mills, and similar equipment where the motor cycles on and off repeatedly throughout the workday. The 3600 cycles-per-hour rating and the proven TeSys D contact geometry give integrators confidence in long-term reliability without requiring frequent contact inspection.

Water treatment and pumping station applications, along with agricultural irrigation motor control and material handling hoists, round out the most common deployment scenarios, particularly where 24VDC control infrastructure is already established.

Application Typical Deployment
Conveyor belt drive motor DOL starter, AC-3 duty, frequent start-stop, 24VDC PLC output drives coil
Pump motor control DOL starter in water circulation or irrigation panel, AC-3 or AC-1 depending on start frequency
Refrigeration compressor AC-1 duty, non-frequent starts, 25A AC-1 rating provides load headroom
Machine tool spindle starter High-cycle AC-3 duty; 3600 cycles/hr rating supports production environment
Material handling hoist or lift DOL starter; auxiliary 1NC used for interlock with adjacent motion control
Small commercial HVAC fan motor Three-phase fan motor up to 7.5HP at 460V; DIN rail assembly in AHU control panel

Purchase-Decision Specs and Motor Ratings by Voltage

Parameter Value
Coil Voltage 24VDC (BD suffix)
Amperage Rating — AC-3 (induction motors) 12A
Amperage Rating — AC-1 (resistive/non-frequent) 25A
Coil Power Consumption 5.4W
Motor Rating @ 460VAC 7.5HP / 5.5kW
Motor Rating @ 230VAC 3HP / 2.2kW
Motor Rating @ 600VAC 10HP / 7.5kW
Integrated Auxiliary Contacts 1NO + 1NC
Insulation Voltage 690V
Width / Height 45mm W x 96mm H, 35mm DIN rail mount

Full technical specifications are available on the product page at LeadTime.ca.

LC1D12BD vs. LC1D09, LC1D18, and LC1D25 — Which One Do You Actually Need?

Model Amperage (AC-3) HP @ 460V Typical Application When to Use When NOT to Use
LC1D09 9A 3HP Smaller three-phase motors Space-constrained panel, lower power motor Motor exceeds 3HP at 460V
LC1D12BD 12A 7.5HP Mid-range motors — most commonly specified Standard 24VDC DOL application; good balance of size and rating Motor exceeds 7.5HP at 460V, or control circuit is not 24VDC
LC1D18 18A 15HP Larger three-phase motors Upgrading to higher power or replacing a failed larger contactor Over-specified for small motors; unnecessary cost
LC1D25 25A 20+ HP Heavy-duty industrial process equipment Large compressors, process pumps, heavy machinery Small-motor applications where size and cost are penalties

If your motor nameplate locked rotor amperage pushes past the 12A AC-3 threshold, the LC1D18 is the correct step up — confirm current availability and pricing at LeadTime.ca before finalizing your BOM.

Expert Verdict: When This Contactor Earns Its Place and When It Doesn't

The Schneider Electric LC1D12BD earns its place as the default specification for mid-range three-phase DOL motor control because it delivers exactly what the application demands without unnecessary complexity. The 12A AC-3 and 25A AC-1 dual rating handles the majority of motors in the 3HP to 7.5HP range across North American supply voltages. The 5.4W coil power consumption makes it an easy fit on any 24VDC control rail without supply sizing concerns. The integrated 1NO + 1NC auxiliary block covers standard seal-in and feedback requirements without an add-on module. For controls engineers and panel builders building starter assemblies around a 24VDC PLC output and standard DIN rail architecture, this is the part that ships the next day and installs without surprises. It is particularly well-suited to OEMs and integrators who standardize on TeSys D infrastructure and need a reliable, consistent replacement or expansion component across multiple machine builds.

The LC1D12BD has real limits that are worth stating plainly. It provides no overload protection — a thermal or electronic overload relay and an upstream circuit breaker are not optional accessories; they are code requirements and safety fundamentals. Omitting them creates a fire and equipment damage risk. The contactor is also a three-phase device only; it will not function correctly in single-phase motor circuits. If your facility's control voltage standard is 110VAC or 230VAC, the LC1D12BD is simply the wrong part number — you need the LC1D12 family with the BF or other appropriate coil suffix. And if your motor exceeds 7.5HP at 460V, the LC1D18 at 18A AC-3 or the LC1D25 at 25A AC-3 is the correct choice. Choosing a contactor rated below your motor's locked rotor current leads to contact chattering, arcing, and premature failure within weeks of commissioning.

From a procurement standpoint, the LC1D12BD is one of the most readily available IEC contactors in the North American market, with major distributors carrying stock and typical lead times running one to two business days. That availability matters on a deadline. Ordering through a specialist industrial distributor like LeadTime.ca adds a layer of verification that generic online channels do not provide — confirming coil voltage, checking that the ordered part number matches your control architecture, and advising on compatible overload relay pairing before the part ships. For a component where one wrong suffix digit causes a non-functional installation, that pre-shipment expert check is worth more than the few minutes it takes. View current pricing and stock status for the LC1D12BD at LeadTime.ca — available to buyers worldwide.

For volume pricing, project quantities, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D12BD

Because community forum data specific to the LC1D12BD is limited — the TeSys D family is so thoroughly standardized that engineers rarely post about it, they simply specify and order it — the most useful guidance comes from documented ordering patterns and the wrong-part scenarios that show up at the distributor level. What follows is a synthesis of the ordering intelligence that matters most when specifying this part.

The single most consistent pre-order error across the LC1D family is coil voltage mismatch. The LC1D12 platform is available in more than ten coil voltage configurations, and the part numbers differ only in the suffix letters. A technician copying a part number from a panel drawing that used a different coil standard, or a procurement specialist matching an old PO without cross-referencing the control voltage, will receive a contactor that physically fits the DIN rail perfectly and does absolutely nothing when the control circuit is energized. The cost is not just the part — it is the expedited replacement, the installation labor, and the production downtime while the correct unit is sourced. Confirming 24VDC before placing the order eliminates this risk entirely.

The second pattern worth noting is the assumption that the LC1D12BD is a complete motor starter. It is not. It is the switching element of a starter assembly. Engineers who understand motor control know this immediately, but panel builders or technicians replacing a component in an unfamiliar installation sometimes see a contactor listed on a parts list and assume it includes integrated overload protection. The LC1D12BD requires an external thermal overload relay sized to the motor's full-load current and an upstream circuit breaker. These are not optional — they are the difference between a code-compliant, safe installation and a liability. If a combination starter (contactor plus overload in one package) is what the application needs, a different product family is the correct answer. Specialist distributor support is particularly valuable here: LeadTime.ca can confirm complete starter assembly compatibility — contactor, overload relay, and circuit breaker — before anything ships.

Wiring and Installation Overview

  • Connect three-phase AC supply to the top main power terminals (L1, L2, L3) and three-phase motor leads to the bottom output terminals (T1, T2, T3); wire gauge must be appropriate for a 12A AC-3 circuit — verify against local electrical code requirements
  • Connect the 24VDC positive rail to coil terminal A1 and the 0V reference to terminal A2; the control circuit must include a normally closed stop button in series with the supply and a normally open start button in series before A1
  • Wire the 1NO auxiliary contact in parallel with the start button for a seal-in circuit so the contactor holds itself energized after the button is released; wire the 1NC auxiliary to the PLC or control panel feedback input
  • Mount on a 35mm DIN rail with the contactor snapped firmly in place; maintain at least 10mm of clearance above and below the contactor body for ventilation, particularly in enclosures with high ambient temperature or high cycling frequency
  • Before energizing, verify all terminal screws are torqued correctly, confirm the incoming part number suffix matches BD for 24VDC, and test coil energization with the load circuit isolated to confirm mechanical operation (audible click) before connecting the motor

Wrong-Part Prevention Checklist

Before finalizing your order for the Schneider Electric LC1D12BD, verify each of the following points. This checklist reflects the most common ordering errors for this model:

  1. COIL VOLTAGE: LC1D12BD has 24VDC coil. If your control circuit uses 110V AC or 230V AC, order LC1D12 with appropriate coil voltage suffix.
  2. AMPERAGE RATING: Verify motor full-load current (FLC) and inrush (locked rotor amperage, LRA). 12A AC-3 rating is for frequently started motors; 25A AC-1 rating is for resistive loads. Undersizing causes chattering; oversizing wastes money.
  3. CIRCUIT PROTECTION: This contactor does NOT include built-in motor overload protection or circuit breaker. You must add external protection (thermal overload relay, circuit breaker, or combination starter).
  4. POWER SUPPLY: Confirm 24VDC control power is available and properly fused. Contactor will not energize without proper coil supply voltage.
  5. MOUNTING: Confirm enclosure has 35mm standard DIN rail space and adequate ventilation (contactors generate heat with frequent cycling).
  6. AUXILIARY CONTACT CONFIGURATION: This model has 1NO + 1NC auxiliary; if you need 2NO+2NC or other configurations, order with LADN side auxiliaries or use separate contactors.

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — we can verify coil voltage, confirm stock, and advise on compatible protection components before your order is placed.

Frequently Asked Questions

Is the LC1D12BD a direct replacement for an older TeSys D contactor with the same amperage rating?

Within the TeSys D family, contactors sharing the same frame size and coil voltage suffix are generally dimensionally compatible for DIN rail replacement. However, always verify that the coil voltage suffix on the original installed unit matches BD (24VDC) and that the auxiliary contact configuration (1NO + 1NC integrated) matches your existing wiring before swapping. If the installed unit has additional side-mounted LADN auxiliary modules, those transfer to the replacement unit.

The LC1D12BD coil is not energizing — what should I check first?

Confirm that 24VDC is present across terminals A1 and A2 with the control circuit energized and the stop button held in. If voltage is present but the contactor does not pull in, the coil may be damaged or the part received has a different coil voltage suffix than expected. If voltage is absent, trace the control circuit back through the stop button, fuse, and 24VDC supply. Coil power consumption is only 5.4W, so a supply with adequate capacity should have no difficulty energizing it.

Can I add more auxiliary contacts to the LC1D12BD if I need 2NO + 2NC?

Yes. The TeSys D platform supports side-mounted LADN auxiliary contact modules that attach to the contactor body. If your application requires more than the integrated 1NO + 1NC, specify the appropriate LADN module for the additional contact configuration required. The LADN modules are ordered separately and snap onto the LC1D12BD without tools.

Does the LC1D12BD include motor overload protection?

No. The LC1D12BD is a contactor only — a switching device. It has no built-in thermal or electronic overload protection. A separate overload relay sized to the motor's full-load current, combined with an upstream circuit breaker, is required for a code-compliant and safe motor starter installation. Omitting overload protection is a safety violation and voids equipment warranty coverage in the event of motor damage from sustained overcurrent.

What is the operating temperature range and does high ambient temperature derate the LC1D12BD?

The LC1D12BD is rated for operation from -25°C to 55°C ambient temperature. In installations where ambient temperatures approach the upper limit, or where the contactor operates at high cycling frequency (approaching 3600 cycles per hour), the combination of self-heating and ambient heat reduces available thermal headroom. Ensure adequate enclosure ventilation and spacing between adjacent contactors — minimum 10mm clearance — to manage thermal accumulation in dense starter assemblies.

How does the LC1D12BD's 12A AC-3 rating relate to locked rotor current for motor sizing?

AC-3 duty rating accounts for the making and breaking of induction motor currents, including the brief inrush during starting. As a general reference, locked rotor amperage (LRA) for induction motors is typically four to six times the full-load current (FLC). A motor with 8A FLC may draw 40A or more at locked rotor. The contactor's AC-3 rating is defined by IEC 60947-4-1 to handle this transient inrush — but if your motor's LRA significantly exceeds what the 12A AC-3 rating is designed to manage, contactor chattering and contact damage result. When in doubt, step up to the LC1D18 at 18A AC-3.

Why Order from LeadTime.ca

  • Ships worldwide — no geographic restrictions on ordering, with global freight options for industrial buyers outside North America
  • Specialist industrial distributor: pre-order technical verification on coil voltage, amperage sizing, and compatible overload relay pairing — not available through generic online retail channels
  • Volume pricing available for OEMs, panel builders, and integrators ordering multiple units across a project BOM
  • Real-time stock status and lead time confirmation before you commit — critical for project timeline management
  • Access to the broader TeSys D ecosystem: LADN auxiliary modules, overload relays, and compatible circuit protection components available from the same source

At-a-Glance Summary

  • Schneider Electric LC1D12BD: IEC nonreversing three-pole contactor, TeSys D series, 24VDC coil (BD suffix)
  • 12A AC-3 rating for frequently started induction motors; 25A AC-1 rating for resistive or non-frequent start loads
  • Motor ratings: 3HP at 230VAC, 7.5HP at 460VAC, 10HP at 600VAC under AC-3 duty
  • Coil power consumption: 5.4W at 24VDC — low draw, suitable for modest-capacity 24V control supplies
  • Integrated 1NO + 1NC auxiliary contacts for seal-in and feedback without additional relay modules
  • Physical footprint: 45mm wide, 96mm tall, 35mm standard DIN rail mount, IP2X enclosure protection
  • Maximum operating cycles: 3600 per hour, supporting high-frequency AC-3 industrial duty applications
  • Operating temperature: -25°C to +55°C ambient
  • No built-in overload protection — external thermal overload relay and circuit breaker are mandatory
  • Typical distributor stock lead time: 1–2 business days; available through authorized distributors globally
