Schneider Electric LC1D09BL — 9A TeSys Deca Contactor Buyer Guide

By Abdullah Zahid
14 min read

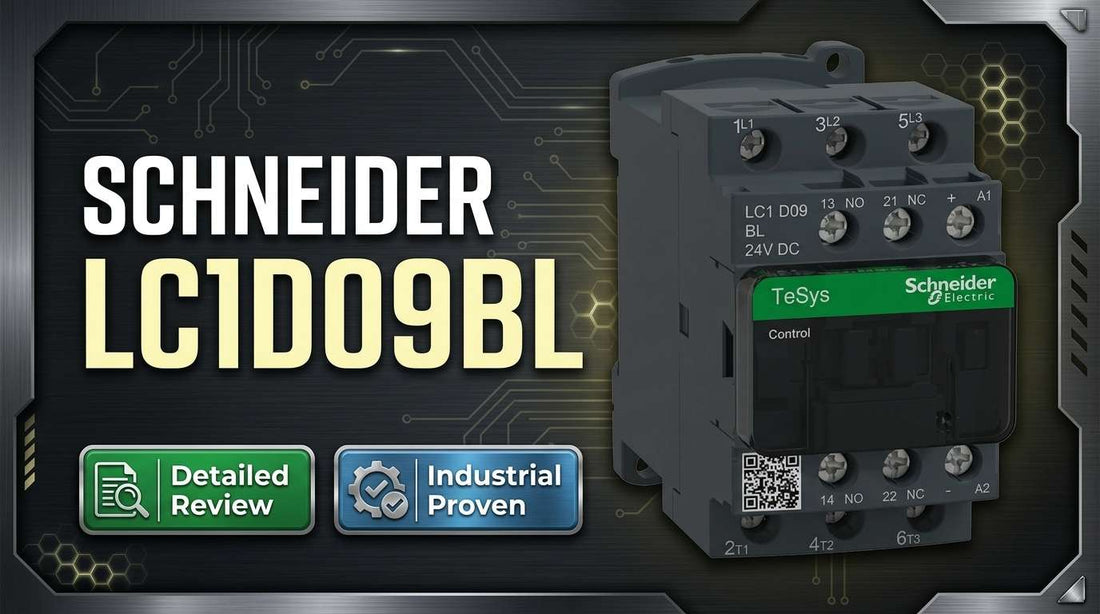

Schneider Electric LC1D09BL TeSys Deca 9A 24VDC IEC nonreversing 3-pole contactor for motor control panels

Schneider Electric LC1D09BL TeSys Deca IEC Contactor, Nonreversing, 3 Pole — Complete Specs, Wiring, and Buying Guide

Controls engineers and panel builders searching for a 9A three-phase motor contactor with a 24VDC low-consumption coil land on the Schneider Electric LC1D09BL for good reason. This TeSys Deca IEC Contactor, Nonreversing, 3 Pole handles inductive motor loads up to 9A AC-3 and resistive loads up to 25A AC-1 at up to 600VAC — making it the default choice for direct-on-line starters controlling motors up to 4kW at 400–440VAC. The coil draws just 0.2W at AC-3 duty, a specification that pays dividends when dozens of contactors share a single 24VDC control power supply.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D09BL — and Who Shouldn't

The LC1D09BL is the right contactor when all of the following are true for your application:

  • Motor inductive load current does not exceed 9A AC-3 (motors up to 4kW at 400–440VAC, or 5hp at 480VAC)
  • Control voltage available in the panel is exactly 24VDC — not 24VAC, not 120VAC
  • Motor supply voltage is 600VAC or less (rated operating voltage of the power circuit)
  • Application requires a nonreversing, 3-pole switching configuration with 1NO-1NC auxiliary contacts
  • Panel design uses 35mm DIN rail mounting with screw clamp terminals
  • UL, CSA, and CE certification compliance is required without additional certification work

If your motor load exceeds 9A AC-3, look at the LC1D18 at 18A or the LC1D32 at 32A within the same TeSys Deca family. If your control voltage is 120VAC or 480VAC, a different coil variant or a step-down transformer is required before this model will function.

On this page:

What the LC1D09BL Actually Does in a Motor Control System

The Schneider Electric LC1D09BL is an electromechanical switching device. When its 24VDC coil is energized, three normally-open main contacts close simultaneously, connecting a three-phase power supply to the motor load. When the coil de-energizes, those contacts open and the motor is disconnected. That fundamental action — controlled, repeatable power switching — is what makes the contactor the central element in any direct-on-line motor starter, compressor unloading circuit, or process control panel.

What separates the LC1D09BL from older contactor designs is the low-consumption coil architecture of the TeSys Deca series. The coil draws only 0.2W at AC-3 motor duty and 1.56W at AC-1 resistive duty. In a panel with 20 or 30 contactors sharing a 24VDC supply, that difference between a 0.2W coil and a 2W+ coil from an older design translates directly into control power supply sizing — and cost. The coil also integrates a bidirectional peak-limiting suppression diode, eliminating the need for an external freewheeling diode in most 24VDC control circuits.

One constraint is non-negotiable: the LC1D09BL provides no thermal overload protection. It is a switching device only. An external overload relay — thermal bimetal, electronic, or VFD-integrated — must be installed in series with the motor circuit for code-compliant and safe motor starter assemblies. This is not a limitation unique to this model; it applies to the entire contactor product category. The contactor handles switching; the overload relay handles protection.

The auxiliary contact block provides 1NO-1NC contacts alongside the three main poles. These auxiliary contacts carry control circuit logic — sealing the start pushbutton in a maintained circuit, feeding back contactor state to a PLC digital input, or interlocking with other devices in the panel. The 3PST-NO main contact configuration and compact 45mm width make this one of the denser 3-pole contactors available for 35mm DIN rail installation.

Typical System Architecture: Where the LC1D09BL Fits

The LC1D09BL sits between the control circuit logic and the motor load — it is the final power-switching element before the motor terminals. Here is the typical component chain in a direct-on-line starter:

  • Main disconnect or circuit breaker feeds incoming 3-phase supply (up to 600VAC) to the contactor line terminals L1, L2, L3
  • The LC1D09BL closes its three main contacts when the 24VDC coil at terminals A1 and A2 is energized by the control circuit
  • Load terminals T1, T2, T3 feed outgoing power through an external overload relay before reaching the motor terminals
  • The 1NO-1NC auxiliary contacts connect to the PLC digital input or control circuit for state feedback and sealing logic
  • The control circuit — pushbuttons, safety relay, PLC output, or timer — governs when the coil energizes and de-energizes

Typical Applications for the LC1D09BL

Small 3-phase pump motors in the 2–4kW range represent the most common deployment scenario for the LC1D09BL. Irrigation pump stations, process water circulation systems, and HVAC chilled water pumps all fall within the 9A AC-3 envelope. In these applications, the contactor operates in continuous duty — energized for hours or days at a time — where the 0.2W coil consumption becomes a meaningful operating economy.

HVAC ventilation fan motors and compressor unloading valve circuits are a second common application family. Fan motors in the 1.5–4kW range are often cycled multiple times per hour as building management systems respond to temperature setpoints. At 3,600 rated operating cycles per hour, the LC1D09BL handles this switching frequency without mechanical durability concerns under normal cycling loads.

Conveyor drive contactors and direct-on-line starters for material handling equipment represent a third deployment scenario. Short-haul conveyor drives in the 2–3kW range, packaging machine indexing motors, and textile machinery drives all operate within the contactor's 9A AC-3 rating at standard 400–480VAC supply voltages.

Panel builders and OEM integrators also use the LC1D09BL in backup generator load transfer circuits and UPS bypass switching, where the on-off switching role — rather than motor control specifically — calls for a reliable, low-consumption 3-pole switch with certified safety ratings and a compact DIN rail footprint.

Application Typical Deployment
Small 3-phase pump motor starter 2–4kW continuous duty pump, DIN rail starter panel with external overload relay
HVAC ventilation fan control 1.5–4kW fan motor, BMS-controlled on-off cycling, 24VDC control from building controller
Compressor unloading valve switching On-off load control in compressor circuit, frequent cycling duty, DIN rail panel
Conveyor drive DOL starter 2–3kW indexing conveyor, pushbutton start-stop with sealing auxiliary contact
Generator or UPS load transfer 3-pole load switching in backup power circuit, non-motor resistive or mixed load
Water treatment process control Dosing pump or agitator motor, cyclic on-off controlled by PLC digital output

LC1D09BL Specifications Engineers Use to Size and Select

Parameter Value
Coil Voltage (Control) 24VDC
Rated Load Current — AC-3 (Inductive Motor) 9A at 440VAC
Rated Load Current — AC-1 (Resistive) 25A at 440VAC
Rated Operating Voltage (Power Circuit) 600VAC / 300VDC
Motor Switching Power — AC-3 5hp (3.7kW) at 480VAC
Coil Power Consumption — AC-3 0.2W nominal
Contact Configuration 3 Poles (3PST-NO) + 1NO-1NC Auxiliary
Mechanical Durability 3,600 cycles/hr
Mounting / Terminal Type 35mm DIN Rail / Screw Clamp (#10 to #18 AWG)
Operating Temperature -5 to 60°C ambient

Full technical specifications are available on the product page at LeadTime.ca.

LC1D09BL vs. LC1D18 vs. LC1D32 — Which Frame Size Do You Need?

Model Load Rating (AC-3) Coil Voltage Mounting Best For
LC1D09BL 9A 24VDC 35mm DIN Rail Motors up to 4kW at 400–440VAC; compact panel layouts with low-consumption coil requirement
LC1D18 18A 24VDC 35mm DIN Rail Motors in the 5–8kW range; direct upgrade path within TeSys Deca family
LC1D32 32A 24VDC 35mm DIN Rail Motors in the 10–15kW range; larger industrial motor starters
3RT2025-1AB00 9A 24VDC DIN Rail / Screw Direct competitor; similar specifications; often used as cross-reference substitute
A16-30-10-81 16A 24VDC Plug-In Modular plug-in mounting; higher breaking capacity; different mounting system

If your motor's full-load current exceeds 9A AC-3, the LC1D18 is the correct next step within the same TeSys Deca product family — check current availability and pricing at LeadTime.ca and contact the team to confirm which frame size ships fastest for your region.

Expert Verdict: Is the LC1D09BL the Right Contactor for Your Build?

The LC1D09BL earns its place as the default 9A three-phase contactor for a very specific buyer profile: OEMs and integrators building standard motor-control enclosures for pumps, fans, and compressors in the 2–4kW range; maintenance teams replacing failed contactors in existing Schneider-based installations where form and coil voltage already match; and panel designers working with 24VDC control power on 35mm DIN rail layouts who need UL, CSA, and CE compliance without any additional certification work. The 0.2W coil consumption at AC-3 duty is a genuine differentiator in dense panel designs — when a control power supply is feeding 20 or more contactors simultaneously, that spec directly reduces hardware cost. At 3,600 rated cycles per hour, the mechanical durability supports frequent switching applications without compromise.

The LC1D09BL has real limits, and two of them are hard stops. First, this is a nonreversing contactor only — if your application requires forward-reverse motor control, you need a reversing contactor pair or a dedicated reversing contactor assembly; this model cannot be modified for that duty. Second, the 9A AC-3 ceiling is firm — if your motor's full-load current exceeds 9A, move to the LC1D18 at 18A or the LC1D32 at 32A. Do not use the 25A AC-1 resistive rating to justify the LC1D09BL on a motor application above 9A; the AC-3 inductive rating is the governing number for motor duty, and contact welding under motor starting current is the failure mode when this rule is ignored. For installations where control voltage is 120VAC or 480VAC, this model is the wrong coil variant — specify accordingly or add a step-down transformer.

From a procurement standpoint, the LC1D09BL is a well-stocked part with authorized distributors carrying it in depth. Same-day to three-business-day lead times are typical through specialist industrial distributors, compared to five to fifteen business days through general electronics channels. For OEM production builds and maintenance inventory replenishment, buying through an authorized specialist distributor also preserves warranty coverage and gives you application engineering support if a coil variant or frame size question comes up at the last minute. View current pricing and stock status at LeadTime.ca — the team ships worldwide and can confirm lead time before you commit to a build schedule.

For volume pricing or to confirm availability before committing to a production run, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D09BL

Community discussion specific to the LC1D09BL is sparse in public automation forums — this is a workhorse part that tends to get installed, perform reliably, and generate little online debate. That absence of complaint threads is, in itself, a signal. But it also means the most valuable pre-order guidance comes from the documented ordering mistakes and specification traps that specialist distributors and application engineers encounter regularly. The following points cover the errors that cause the most field failures and re-procurement delays on this model.

The single most common ordering error is coil voltage mismatch. The "BL" suffix in LC1D09BL designates the 24VDC low-consumption coil. A 24VAC variant exists and carries a different part number suffix. These are not interchangeable — a 24VDC coil fed with 24VAC will chatter, fail to hold in, or burn out. Confirm that the control voltage source in your panel is DC, not AC, before placing the order. If your panel runs 120VAC or 480VAC control power, either specify the correct coil variant for that voltage or add a step-down transformer to derive 24VDC. Calling out the coil voltage explicitly on your bill of materials and purchase order — not just the base catalog number — prevents this error at the sourcing stage.

The second recurring issue involves application category confusion between AC-1 and AC-3 ratings. The LC1D09BL carries a 25A AC-1 resistive rating and a 9A AC-3 inductive motor rating. These are not alternative ratings for the same load — they describe fundamentally different load types. Motor loads are AC-3. If a motor's full-load current is 12A and someone sizes the contactor off the 25A AC-1 column, the result is a contactor operating significantly beyond its inductive switching capacity, with contact welding or premature failure as the likely outcome. Always cross-reference the motor's full-load ampere rating on the motor nameplate against the AC-3 column only.

The third area where specialist advice matters is the absence of built-in overload protection. The LC1D09BL is a switching device. It has no thermal overload relay, no current monitoring, and no trip mechanism. An external overload relay matched to the motor's full-load current must be specified and installed in series with the motor circuit. Omitting this component is a safety and code compliance failure — not just an application engineering preference. If you are unsure which overload relay matches the LC1D09BL for your specific motor rating, the LeadTime.ca team can advise on compatible accessories before the order is placed.

Wiring and Installation Overview

The following points cover the key requirements for installing the LC1D09BL. For complete wiring diagrams and installation procedures, consult the Schneider Electric TeSys Deca installation manual.

  • Power circuit: Connect 3-phase supply to line terminals L1, L2, L3; connect load (through external overload relay) from output terminals T1, T2, T3; screw clamp terminals accept wire sizes #10 to #18 AWG
  • Control circuit: Connect 24VDC positive to coil terminal A1 and return to A2; the low-consumption coil is polarity-sensitive — observe correct polarity to avoid coil failure
  • Auxiliary contacts: The 1NO-1NC auxiliary contact block connects in the control circuit for seal-in logic, PLC feedback, or interlock functions; verify auxiliary contact logic matches the control schematic before energizing
  • Mounting: Snap onto 35mm DIN rail; the contactor carries an IP2x front-face protection rating (IEC 60529) — mount inside a rated enclosure or panel for full system protection compliance
  • External protection: An external overload relay must be installed in series with the motor load circuit; the LC1D09BL provides no thermal protection — omitting the overload relay creates an unprotected motor circuit

Wrong-Part Prevention Checklist

Before confirming your order for the LC1D09BL, verify each of the following against your application and panel schematic:

  1. Confirm control voltage is exactly 24VDC; 24VAC variants exist and are not interchangeable
  2. Verify inductive load does not exceed 9A at AC-3; if above 9A, move to higher frame size
  3. Check that motor supply voltage is 690VAC or less (standard rating is 690VAC)
  4. Confirm no requirement for reversing (this model is nonreversing only)
  5. Verify DIN rail mounting is acceptable; base plate mounting requires different model
  6. Check that auxiliary contact configuration (1NO-1NC) matches control circuit logic
  7. Confirm coil suppression diode is required (built-in on this model; document mentions bi-directional peak limiting)
  8. Ensure external overload relay is planned; this contactor provides no thermal overload protection

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — or review the full product details at LeadTime.ca before confirming your selection.

Frequently Asked Questions

Is the LC1D09BL suitable for continuous duty on a 3kW pump motor?

Yes. A 3kW motor at 400–440VAC typically draws 5–6A full-load current, which is well within the 9A AC-3 inductive motor rating of the LC1D09BL. The contactor is rated for continuous industrial duty at this load level. Ensure an external overload relay is installed and set to the motor's full-load ampere rating — the contactor itself provides no thermal protection.

What is the difference between the AC-1 and AC-3 ratings, and which one applies to my motor?

AC-1 (25A) applies to resistive or slightly inductive loads — heating elements, lighting, resistive banks. AC-3 (9A) applies to squirrel-cage induction motors under normal starting and running conditions. If your load is a motor, use the AC-3 rating exclusively for sizing. Selecting this contactor based on the AC-1 column for a motor application will result in contact damage under inductive switching conditions.

Does the LC1D09BL have built-in overload protection?

No. The LC1D09BL is a switching contactor only. It contains no thermal bimetal element, no electronic overload monitoring, and no trip mechanism. An external overload relay must be specified and wired in series with the motor load circuit. This requirement applies regardless of application type — it is a code compliance and equipment protection requirement, not an optional add-on.

Can I use a 120VAC coil variant in place of the LC1D09BL if my panel has no 24VDC supply?

Not with this specific model. The LC1D09BL is the 24VDC coil variant. If your panel control voltage is 120VAC, you must either specify the TeSys Deca variant with a 120VAC coil (different part number suffix) or add a step-down transformer to derive 24VDC from the panel supply. Feeding 120VAC to a 24VDC coil will destroy the coil on first energization.

How many electrical cycles per hour is the LC1D09BL rated for, and does it handle high-frequency switching?

The LC1D09BL is rated for 3,600 operating cycles per hour mechanical durability per IEC 60947. For most motor and process control applications — including multi-cycle HVAC or pump sequencing — this rating is more than adequate. Very high-frequency switching above this threshold, or applications requiring solid-state switching speeds, fall outside the mechanical contactor category entirely and require a different switching technology.

Is the coil suppression diode built into the LC1D09BL, or do I need to add one externally?

The LC1D09BL includes an integrated coil suppression diode with bidirectional peak-limiting function. In most 24VDC control circuits, no external freewheeling diode is required. Verify this against your specific control circuit design, particularly if the coil is driven through a relay output with its own snubber network — check that the integrated suppression does not conflict with external circuit protection elements.

Why Order the LC1D09BL Through LeadTime.ca

  • LeadTime.ca sources and ships industrial automation components worldwide — no regional restrictions on order fulfillment
  • Specialist distributor support means application questions about coil variants, frame sizing, and compatible overload relays get answered before the order ships, not after it arrives
  • Volume pricing is available for OEM production builds and maintenance replenishment orders — contact the team directly for quantity-based quotes
  • Hard-to-find or out-of-stock parts are a sourcing specialty — if standard channels show extended lead times, LeadTime.ca works through authorized distribution networks to locate stock

LC1D09BL At-a-Glance Summary

  • TeSys Deca IEC Contactor, Nonreversing, 3 Pole from Schneider Electric — catalog number LC1D09BL
  • 9A AC-3 inductive motor rating; 25A AC-1 resistive rating; 600VAC rated operating voltage
  • 24VDC low-consumption coil drawing 0.2W at AC-3 duty and 1.56W at AC-1 duty
  • Switches motors up to 5hp (3.7kW) at 480VAC in direct-on-line AC-3 duty
  • 3 main poles (3PST-NO) plus 1NO-1NC integrated auxiliary contacts
  • Rated 3,600 operating cycles per hour; operating temperature -5 to 60°C ambient
  • 35mm DIN rail mounting; screw clamp terminals accepting #10 to #18 AWG wire
  • Dimensions: 45mm W x 95mm D x 77mm H
  • Integrated bidirectional coil suppression diode; no external freewheeling diode required in most circuits
  • UL 508 Listed, CSA certified, CE marked; UL94V-1 flammability rating on coil insulation
  • No built-in thermal overload protection — external overload relay is mandatory for motor starter assemblies
  • Nonreversing only — reversing applications require a different contactor configuration
