Schneider Electric LC1D09F7 — 9A IEC Contactor Selection Guide

By Abdullah Zahid
14 min read

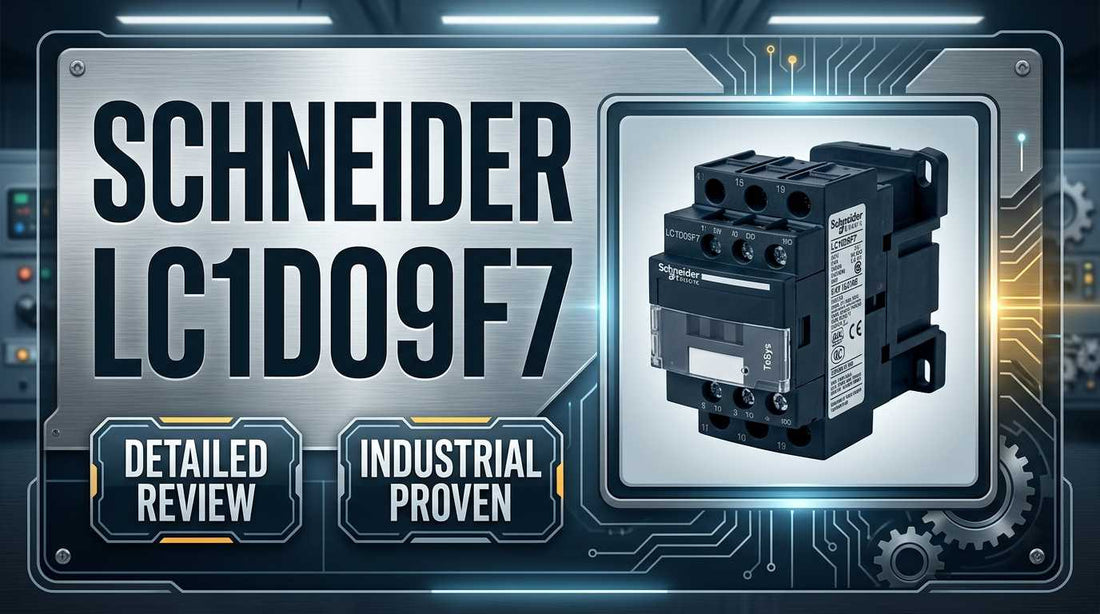

Schneider Electric LC1D09F7 TeSys Deca 9A 3-pole IEC contactor for DIN rail motor control panel installation

Schneider Electric LC1D09F7 IEC Contactor, TeSys Deca, Nonreversing, 9A, 3-Pole (3 NO) — Specifications, Price & Selection Guide

If you have a motor control panel requiring a compact, DIN rail-mounted contactor for three-phase motors up to 5 HP at 480V or 4 kW at 400V, the Schneider Electric LC1D09F7 is likely already on your shortlist. This 3-pole, nonreversing IEC contactor carries a 9A AC-3 duty rating with a 110V AC 50/60Hz control coil, integrated 1NO+1NC auxiliary contacts, and a mechanical life rated at 15 million cycles. The decision usually comes down to one thing: does your control supply match the 110V AC coil? Everything else is straightforward.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D09F7 — and Who Shouldn't

The LC1D09F7 is the right contactor for panel builders, maintenance technicians, and control integrators working with small three-phase motors on a 110V AC control supply. It fits when all of the following are true:

  • Your control supply is confirmed 110V AC 50/60Hz — not 24V DC, not 230V AC
  • The motor full-load amperage (FLA) from the nameplate is at or below 9A for AC-3 duty
  • Your motor load does not exceed 5 HP at 480V AC or 4 kW at 400V AC
  • Your control logic needs no more than 1 normally open and 1 normally closed auxiliary contact at the base
  • You are mounting on a standard 35mm DIN rail (EN 60715) with at least 45mm of panel width available
  • Your system operating voltage does not exceed 600V AC

If your control supply is 24V DC, order the LC1D09BD instead. If your motor FLA exceeds 9A, step up to the LC1D12F7 (12A) or LC1D18F7 (18A). If you need reversing duty, this nonreversing variant is not the correct choice.

On this page:

What the LC1D09F7 Does in a Motor Control System

The LC1D09F7 is a 3-pole electromagnetic contactor — the primary switching device between your panel's motor supply and the motor terminals. When the 110V AC coil receives power through the control circuit, the contactor closes its three main contacts, connecting the three-phase supply to the motor. When the coil is de-energized, the contacts open and the motor stops. This on/off switching action happens through a low-voltage control signal, keeping operators and control circuits safely isolated from the high-voltage motor supply of up to 600V AC.

The integrated base-mounted auxiliary contacts — 1 normally open and 1 normally closed — allow the contactor's own state to feed back into the control circuit. The NO contact is commonly wired into a holding or seal-in circuit so the motor keeps running after a momentary start button is released. The NC contact is available for stop interlock or status feedback. For simple single-motor applications, these two contacts are sufficient without any add-on modules.

The LC1D09F7 carries ratings for both AC-3 duty (9A, for squirrel-cage motor starting and stopping) and AC-1 duty (20A, for resistive or low-inductive loads). The AC-3 rating is the governing figure for motor control applications. With a mechanical life of 15 million cycles, this contactor is suited for high-frequency switching applications such as compressor cycling and conveyor sequencing without premature contact wear.

Typical System Architecture for the LC1D09F7

The LC1D09F7 sits between the motor branch circuit protection and the motor terminals, energized by the low-voltage control circuit. A typical deployment chain looks like this:

  • Three-phase supply (up to 600V AC) → branch circuit fuse or circuit breaker → main contactor input terminals (L1, L2, L3 on terminals 1, 3, 5)
  • Contactor output terminals (T1, T2, T3 on terminals 2, 4, 6) → optional thermal overload relay → three-phase motor
  • Control transformer or dedicated 110V AC power supply → control circuit with START/STOP pushbuttons → LC1D09F7 coil terminals
  • LC1D09F7 auxiliary NO contact → seal-in holding circuit wired in parallel with START button
  • LC1D09F7 auxiliary NC contact → interlock or status indication wired into PLC digital input or pilot lamp circuit

Typical Applications and Deployment Scenarios

The LC1D09F7 is a standard motor control component across a wide range of industries. In manufacturing automation, it handles the start/stop control of machine tool spindles, conveyor belts, and feeder mechanisms where motor FLA stays within the 9A AC-3 envelope. Panel builders designing machine control enclosures for OEMs frequently specify this contactor for its compact 45mm footprint, which allows dense contactor arrays on a standard DIN rail.

In HVAC systems, this contactor controls small air handler fan motors, exhaust fans, and chiller auxiliary motors. Building automation controllers output a 110V AC control signal directly to the coil, switching the motor in response to temperature or pressure demand. The 15 million mechanical cycle life supports the high-frequency switching that HVAC duty imposes.

Pump and compressor control is another common deployment. Lead-lag pump sequencing — where two pumps alternate to equalize wear — uses two LC1D09F7 units wired through a programmable timer or PLC output. Compressed air systems with reciprocating compressors also commonly use this contactor for motor on/off control, with the NC auxiliary contact providing a running-status feedback to the control system.

In water treatment and agricultural automation, the LC1D09F7 is found on booster pump stations, irrigation pump controls, and chemical dosing system motors where the motor loads fall within the 9A rating and panel voltage is 110V AC.

Application Typical Deployment
Machine tool motor control Start/stop of spindle or feed motor up to 5 HP at 480V; contactor mounted in machine control enclosure on DIN rail
HVAC fan motor control Building automation controller output energizes 110V AC coil to switch air handler fan motor on demand
Lead-lag pump sequencing Two LC1D09F7 units controlled by PLC or timer for alternating pump motor operation in water systems
Compressed air system Contactor switches compressor motor; NC auxiliary contact feeds running-status signal to control panel
Conveyor belt activation Motor contactor in material handling line; integrated 1NO auxiliary contact wired into holding circuit for sustained run
Soft-start bypass circuit Contactor closes across soft-starter output after ramp-up period to connect motor directly to supply voltage

Purchase-Decision Specifications and Variant Comparison

Parameter Specification
Contact Configuration 3 NO (3-pole, normally open main contacts)
Rated Load Current — AC-3 Duty 9A
Rated Load Current — AC-1 Duty 20A
Coil Voltage 110V AC, 50/60Hz
Maximum Motor Rating 5 HP at 480V AC / 4 kW at 400V AC
Operating Voltage Class (Load) 600V AC maximum
Auxiliary Contacts (Base-Mounted) 1 NO + 1 NC
Dimensions (W × D × H) 45mm × 86mm × 77mm
Mounting 35mm DIN rail (EN 60715) or surface mount
Mechanical Life 15 million cycles

Full technical specifications are available on the product page at LeadTime.ca.

LC1D Series Variant Comparison — Same 110V AC Coil, Increasing Current Rating

Model Rated Current (AC-3) Motor Rating at 480V Motor Rating at 400V Use Case
LC1D09F7 9A 5 HP 4 kW Small motors, baseline application
LC1D12F7 12A 7.5 HP 5.5 kW Medium motors, upgrade path
LC1D18F7 18A 10 HP 7.5 kW Larger motors, industrial duty
LC1D25F7 25A 15 HP 11 kW Heavy-duty industrial

Coil Voltage Variants — 9A Frame

Model Coil Voltage Application
LC1D09F7 110V AC 50/60Hz Standard industrial control panels with 110V AC supply
LC1D09BD 24V DC Modern PLC-based systems with 24V DC I/O
LC1D09ED 230V AC European and commercial system panels

If your motor FLA exceeds 9A, the LC1D12F7 is the direct step-up with the same coil voltage — check current availability of the LC1D09F7 and related variants at LeadTime.ca.

Expert Verdict: Is the LC1D09F7 Worth Ordering?

The LC1D09F7 has earned its reputation as a reliable, predictable component in industrial motor control. Its 45mm DIN rail footprint, 15 million mechanical cycle life, and compliance with IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No. 14 simultaneously make it a sensible default choice for panel builders standardizing on the Schneider TeSys Deca platform. The integrated 1NO+1NC auxiliary contacts cover the vast majority of simple motor control circuits without requiring add-on modules, and the 9A AC-3 rating fits the most common small three-phase motor range — up to 5 HP at 480V or 4 kW at 400V. For maintenance teams replacing a failed unit, it is a direct footprint-and-terminal match. For integrators designing a new panel, the 100 kA SCCR rating confirms it belongs in high-fault-current industrial environments.

Where the LC1D09F7 has genuine limits: the 9A AC-3 rating leaves no headroom for motors running above that figure, and there is no derating grace here — exceed it and contact welding becomes a real risk. If your motor FLA is above 9A, the LC1D12F7 or LC1D18F7 are the straightforward alternatives. For any application requiring a 24V DC coil — which includes most PLC-driven systems built in the last fifteen years — the LC1D09BD is the correct variant; the LC1D09F7 will simply not energize on a 24V DC supply. Reversing duty requires a different contactor configuration entirely; this nonreversing unit is not suitable.

From a procurement standpoint, the LC1D09F7 is a widely stocked item across industrial automation distributors worldwide, with typical availability of in-stock or 1–5 day delivery from authorized sources. Ordering through a specialist industrial distributor matters here: pre-sale confirmation of coil voltage, motor rating verification, and auxiliary contact requirements takes two minutes with a knowledgeable team and prevents the most common and costly ordering mistake in this product category. View current pricing and stock status for the LC1D09F7 at LeadTime.ca — with worldwide shipping and technical support available before you commit to the order.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D09F7

The LC1D09F7 is one of the most consistently deployed contactors in industrial automation, but sparse online community discussion for this specific SKU reflects a broader truth about proven industrial components: when something works reliably for decades, technicians install it and move on rather than posting about it. The result is that when a first-time specifier encounters this part, there is little community forum history to draw on — and that gap is exactly where ordering mistakes are made.

The single most recurring issue among engineers specifying this contactor for the first time is coil voltage mismatch. The LC1D09F7 is a 110V AC 50/60Hz coil unit. In modern PLC-based panels, the default control voltage is frequently 24V DC. An engineer referencing an older panel design or an OEM BOM without cross-checking the coil voltage designation will receive a contactor that physically installs correctly, passes visual inspection, and then fails to energize when the control circuit is tested. The fix requires return shipping, a replacement order, and schedule delay — all preventable with a two-minute voltage check. The LC1D09BD is the 24V DC coil equivalent for anyone in this situation.

A second point that comes up repeatedly when specialists advise on this part: buyers often assess motor load in horsepower rather than reading the actual full-load amperage from the motor nameplate. A 3 HP motor at 480V may draw well under 9A — acceptable. But a 3 HP motor at a lower voltage, or operating under a heavy-load profile, may draw closer to or above the 9A AC-3 rating. The nameplate FLA is the governing number, not the HP designation. When the FLA is borderline, stepping up to the LC1D12F7 at 12A provides margin without a significant cost or footprint penalty. This is the advice a specialist distributor will give you before the order ships rather than after the contactor fails in service.

Wiring and Installation Overview

  • Mount on a standard 35mm DIN rail (EN 60715); the unit snaps into place with the integrated mounting clip and requires at least 45mm of panel width — verify available space before installation
  • Connect three-phase motor supply leads to main input terminals (L1/L2/L3) and motor leads to output terminals (T1/T2/T3); terminal wire gauge range is 14–10 AWG (2.5–6 mm²) with screw clamp connection at a recommended torque of 0.8–1.2 Nm
  • Connect the 110V AC 50/60Hz control supply to the coil terminals — confirm this is the actual panel control voltage before making this connection; this is the highest-risk step in the installation
  • Wire the NO auxiliary contact into the holding or seal-in circuit to maintain motor run after a momentary start command; wire the NC auxiliary contact for stop interlock, status feedback, or PLC digital input as required by your control logic
  • Before energizing: verify all main and control connections are tight, confirm no exposed wire strands are near main contact terminals, test coil energization with control circuit before applying motor load voltage

Full wiring procedures and schematic examples are available in Schneider Electric's official TeSys Deca product documentation. Engineers should refer to manufacturer installation guides for detailed connection diagrams specific to their control circuit topology.

Compatible Accessories and System Expansion

The LC1D09F7 supports a range of Schneider Electric accessory modules for applications where the base-mounted 1NO+1NC auxiliary contacts are insufficient. Before ordering add-on modules, sketch your full control logic to confirm the total auxiliary contact count required.

  • LADN front-mount auxiliary contact blocks — add supplementary NO and NC contacts to the front face of the contactor for expanded interlock and status feedback circuits
  • LADD side-mount auxiliary contact modules — side-mounted option for auxiliary contact expansion when front-mount space is limited by adjacent devices
  • Surge suppressor modules — fitted to the coil terminals to suppress voltage transients generated by coil de-energization, extending coil life and reducing interference in sensitive control circuits
  • Mechanical interlock accessories — available for paired contactor configurations where reversing duty or interlocked motor switching is required (note: the LC1D09F7 itself is nonreversing; interlock accessories are used in multi-contactor assemblies)

Consult the Schneider Electric LC1D accessory catalog to confirm module compatibility with the LC1D09 frame before ordering accessories.

Wrong-Part Prevention Checklist

Before placing your order for the LC1D09F7, verify every item on this checklist. These are the exact conditions that cause returns, installation failures, and project delays:

  1. Confirm your control supply voltage is 110V AC 50/60Hz. Check panel documentation or multi-meter measurement. Coil voltage mismatch is the #1 cause of failed installations and returns.
  2. Calculate motor full-load amperage (FLA) from motor nameplate. Verify FLA ≤ 9A for AC-3 duty. For continuous-duty motors above 9A, order a larger contactor frame (LC1D12F7 or higher).
  3. Count control circuit requirements. This unit provides 1 normally open + 1 normally closed base contact. If you need more (e.g., two independent motor circuits, interlock logic), confirm auxiliary modules are available or order an additional control relay.
  4. Measure DIN rail space. Unit occupies 45mm width. Confirm available space on your 35mm DIN rail after accounting for other devices (PLCs, power supplies, other contactors).
  5. Verify system operating voltage is ≤600V AC. Confirm three-phase supply voltage (typically 480V, 460V, or 440V in North America) does not exceed 600V rating.
  6. Check motor horsepower rating: 5 HP maximum at 480V, 4 kW maximum at 400V. If motor exceeds these ratings, order a larger contactor.
  7. Confirm screw terminal connection method is acceptable (alternative: spring terminals on some variants). Verify electrician has appropriate crimpers for screw-clamp wire preparation.

If you have worked through this checklist and the LC1D09F7 fits every item, confirm availability and get current pricing at LeadTime.ca. If any item raises a question, contact the LeadTime.ca team — coil voltage and load current verification take two minutes with a specialist.

Frequently Asked Questions

What is the difference between the LC1D09F7 and the LC1D12F7 — can I substitute one for the other?

The LC1D12F7 carries a 12A AC-3 duty rating compared to the LC1D09F7's 9A rating, and its maximum motor rating steps up to 7.5 HP at 480V or 5.5 kW at 400V versus 5 HP and 4 kW respectively. Both share the same 110V AC 50/60Hz coil voltage and similar DIN rail footprint within the TeSys Deca family. You can use the LC1D12F7 in place of the LC1D09F7 when your motor FLA is between 9A and 12A, or when you want current margin. Using the LC1D09F7 in place of the LC1D12F7 is not acceptable if the motor FLA exceeds 9A.

My control panel runs on 24V DC from a PLC output — will the LC1D09F7 work?

No. The LC1D09F7 coil is rated for 110V AC 50/60Hz only. Applying 24V DC to this coil will not energize the contactor; the circuit will not function. For 24V DC control systems, the correct variant is the LC1D09BD, which is the same 9A TeSys Deca frame with a 24V DC coil. Confirm your control voltage before ordering — this is the most common ordering mistake for this product line.

Can I use this contactor on a 5 HP motor at 208V or 230V rather than 480V?

The maximum motor rating stated for the LC1D09F7 is 5 HP at 480V AC and 4 kW at 400V AC. Running a 5 HP motor at 208V or 230V increases the motor's full-load amperage significantly above what it would draw at 480V for the same horsepower — it is the FLA on the motor nameplate at your specific supply voltage that determines whether the 9A AC-3 rating is adequate. Read the motor nameplate FLA at your actual supply voltage and compare it to the 9A rating before proceeding. If FLA exceeds 9A, select the LC1D12F7 or LC1D18F7.

The LC1D09F7 includes 1NO+1NC auxiliary contacts — can I add more if my control logic requires additional contacts?

Yes. The TeSys Deca LC1D09 frame supports Schneider Electric LADN front-mount and LADD side-mount auxiliary contact blocks that expand the available NO and NC contact count. Confirm specific module compatibility with the LC1D09 frame in the Schneider Electric accessory catalog before ordering. Budget these modules into your project at the design stage — retrofitting after the panel is wired adds both cost and schedule time.

What does the IP20 front-face rating mean for panel placement — is the LC1D09F7 finger-safe?

The IP20 (IP2X) enclosure rating on the front face means the LC1D09F7 is finger-safe under IEC standards — fingers cannot contact live internal parts through the front of the unit. However, IP20 is not dust-tight or moisture-resistant. This contactor is designed for installation inside a sealed control enclosure, not for direct exposure to industrial environments. The enclosure housing the contactor must provide the environmental protection rating required by your application.

What is the expected service life of the LC1D09F7 and how do I know when it needs replacement?

The LC1D09F7 is rated for 15 million mechanical operating cycles. At high switching frequencies — up to 3,600 cycles per hour maximum — this life can be reached faster than calendar time suggests. Indicators that a contactor is approaching end of service life include audible chattering during energization, delayed or sluggish contact closure, visible contact pitting or discoloration when inspected, and increased coil current draw. In critical applications, replacement on a preventive maintenance schedule is preferable to waiting for failure.

Why Order From LeadTime.ca

  • LeadTime.ca ships the LC1D09F7 and related TeSys Deca accessories worldwide — no geographic restriction on orders
  • Pre-sale technical support available to verify coil voltage, motor FLA compatibility, and auxiliary contact configuration before your order ships
  • Volume pricing available for panel builders and integrators ordering multiple units — contact for current pricing on quantity orders
  • Authorized distributor sourcing with standard industrial warranty support — not grey-market or refurbished inventory
  • Fast response on availability inquiries for urgent equipment replacement scenarios

LC1D09F7 At-a-Glance Summary

  • 3-pole, nonreversing IEC contactor — 9A AC-3 duty rating, 20A AC-1 duty rating
  • Coil: 110V AC 50/60Hz — must match panel control supply exactly before ordering
  • Motor ratings: 5 HP maximum at 480V AC / 4 kW maximum at 400V AC
  • Operating voltage class: 600V AC maximum on main contacts
  • Auxiliary contacts: 1NO + 1NC base-mounted, no additional modules required for simple motor control
  • Mounting: 35mm DIN rail (EN 60715); footprint 45mm × 86mm × 77mm (W × D × H)
  • Mechanical life: 15 million cycles; maximum switching frequency 3,600 cycles per hour
  • Certifications: IEC 60947-4-1, EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14, CE, RoHS, CCC
  • Short circuit capacity: up to 100 kA SCCR
  • Operating temperature range: -5 to +60°C; storage -40 to +70°C
  • Direct coil voltage alternatives: LC1D09BD (24V DC), LC1D09ED (230V AC)
  • Current step-up alternatives with same coil: LC1D12F7 (12A), LC1D18F7 (18A), LC1D25F7 (25A)
