Schneider LC1D09BD IEC Contactor — 9A 24VDC Selection Guide

By Abdullah Zahid
15 min read

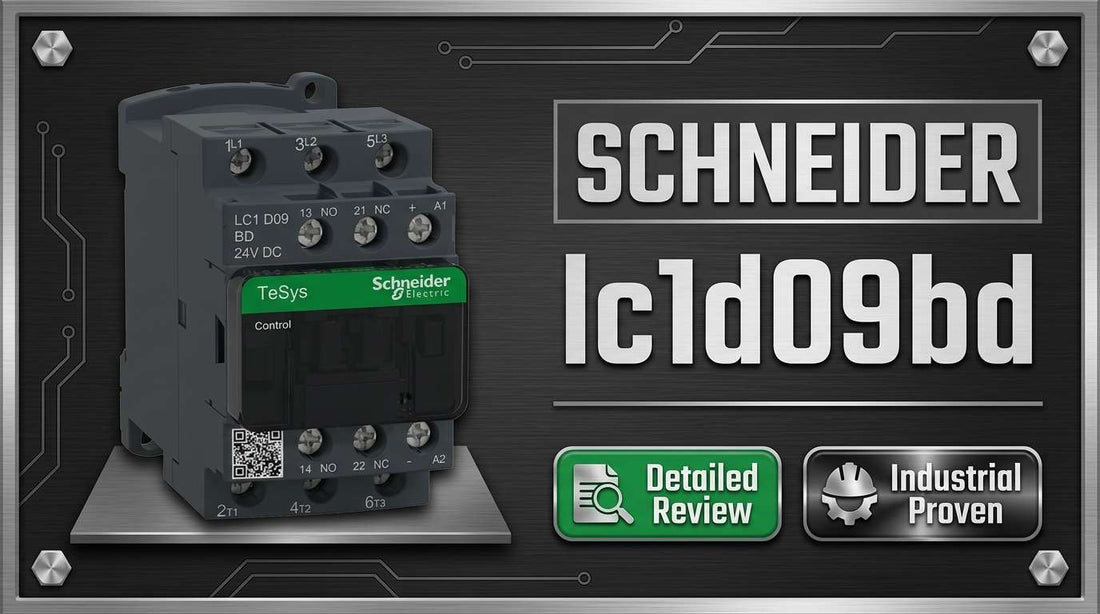

Schneider Electric LC1D09BD TeSys Deca 9A 3-pole 24VDC IEC contactor for DIN-rail motor control panels

Schneider LC1D09BD IEC Contactor, TeSys Deca, Nonreversing, 9A, 24VDC Coil — Complete Specifications and Selection Guide

When a controls engineer or panel builder searches for the Schneider LC1D09BD contactor, the decision is usually already close to made. The part number came from a system design, a BOM, or a failed unit that needs immediate replacement. What remains is confirming the specifications hold up against the application, verifying coil voltage, and locking in availability before the build schedule slips. This article covers all three — the LC1D09BD is a 3-pole, 9-amp IEC contactor from the TeSys Deca family, rated for a 24VDC coil, with a compact 45mm DIN-rail footprint and built-in 1NO-1NC auxiliary contact block. It is the entry-level position in the TeSys D lineup and covers motor control up to 5 HP at standard North American voltages.

If you have already confirmed this is the correct part, check current pricing and availability for the LC1D09BD at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D09BD — and Who Should Not

The LC1D09BD is the right choice for engineers and panel builders who meet all of the following criteria:

  • Control circuit operates on 24VDC — not 24VAC, not 120VAC
  • Motor nameplate full-load amps (FLA) does not exceed 9A
  • Application requires a 3-pole non-reversing configuration for 3-phase motor switching
  • Cabinet has a 35mm DIN rail with at least 45mm horizontal space and 95mm depth clearance behind the terminals
  • Main circuit supply voltage is within the 690VAC or 300VDC rated maximum
  • A single built-in 1NO-1NC auxiliary contact block satisfies the control logic requirements

If your motor FLA exceeds 9 amps, step up to the LC1D25BD (25A) or LC1D65BD (65A). If the application requires reversing motor control, the LC2D series is the correct choice. If your facility runs 24VAC control power, you need a different coil voltage variant of this contactor — the LC1D09BD will not energize on AC.

On this page:

What the LC1D09BD Actually Does in a Motor Control Circuit

The LC1D09BD is a remotely operated power switch. When a 24VDC signal is applied to its coil terminals, the electromagnetic coil pulls in the moving contact bridge, simultaneously closing three main power contacts that connect the incoming line voltage (L1-L2-L3) through to the motor load (T1-T2-T3). When the coil is de-energized, spring return opens those contacts and the motor stops. The entire switching action is controlled by a low-power DC signal — from a PLC digital output, a control relay, a timer, or a manual pushbutton station — while the main contacts carry full line voltage and motor current up to 9 amps.

What distinguishes the LC1D09BD from a generic contactor at this rating is the TeSys Deca platform engineering behind it. The 24VDC coil includes a built-in bi-directional peak-limiting diode suppressor that limits the transient voltage spike when the coil de-energizes. This matters because an unsuppressed inductive spike on a 24VDC bus can cause interference with adjacent PLC I/O modules or trigger false signals on the control circuit. The suppression is integrated — no external snubber or flyback diode is required. Additionally, the 1NO-1NC auxiliary contact block is built into the unit, providing a feedback contact for run indication or an interlock contact for safety logic without requiring a separately mounted auxiliary contact module.

The coil power draw is 5.4W during the energized hold state. This is a relevant figure for panel designers sizing their 24VDC control power supply — in installations with multiple contactors energized simultaneously, the cumulative coil load must be within the power supply's rated output current.

Typical System Architecture for the LC1D09BD

The LC1D09BD sits at the switching layer of a motor control circuit, sitting between the control logic and the motor load. Here is where it fits in a typical deployment chain:

  • PLC or control relay provides 24VDC digital output signal to the contactor coil terminals (A1-A2)
  • LC1D09BD coil energizes, closing three main contacts that connect 3-phase line voltage through to the motor
  • An upstream motor circuit protector or branch circuit breaker provides short-circuit protection for the main circuit conductors
  • A downstream overload relay (typically a TeSys LRD series unit) monitors motor current and opens the control circuit if the motor runs overloaded
  • The built-in 1NC auxiliary contact feeds back to the PLC input or alarm circuit; the 1NO contact provides a run-confirmation signal or a permissive interlock for downstream equipment

Where the LC1D09BD Gets Installed: Industries and Use Cases

In manufacturing environments, the LC1D09BD is a common component in machine tool spindle motor circuits where a PLC output controls start and stop commands interlocked with safety guard logic. The motor never exceeds 9A FLA, the control voltage is 24VDC from the machine's power supply, and the compact 45mm footprint fits comfortably alongside other DIN-rail components in the machine control cabinet.

Conveyor systems in packaging and food and beverage lines use the LC1D09BD to provide remote start and stop control for small belt drive motors. The PLC controls conveyor sequencing; the contactor handles the actual power switching. The built-in 1NO-1NC auxiliary block provides both a run-confirmation feedback to the PLC and a normally-closed interlock that can be used in an emergency stop chain.

In HVAC applications, building automation systems or thermostats generate a 24VDC control signal that energizes the LC1D09BD coil to start a fan or blower motor. The 9-amp rating covers small fan motors, and the compact form factor suits the space-constrained electrical panels common in commercial HVAC equipment enclosures.

Water and wastewater treatment facilities use small IEC contactors like the LC1D09BD for centrifugal pump motor control — cooling water circulation pumps, chemical dosing pump drives, and sump pump motors that fall within the 9-amp rating at 480VAC. Compressor control panels use the LC1D09BD for unload valve solenoid switching or auxiliary circuit control alongside the main compressor contactor.

Application Typical Deployment
Machine tool spindle motor PLC-controlled start/stop interlocked with guard safety relay; 480VAC 3-phase motor under 9A FLA
Conveyor belt drive Sequenced conveyor start in packaging line; PLC digital output drives 24VDC coil; 1NO auxiliary used for run confirmation
HVAC fan motor control BMS or thermostat 24VDC output energizes coil to start supply or exhaust fan motor; compact footprint in AHU panel
Circulation pump motor Cooling water or process fluid pump; contactor in MCC bucket or standalone panel alongside overload relay
Compressor auxiliary circuit Unload valve or auxiliary solenoid switching in compressor control panel; 24VDC control bus from dedicated power supply

Key Specifications for the LC1D09BD

Specification Value Notes
Poles 3 Main circuit switching contacts; non-reversing configuration
Rated Current — Motor Load 9A IEC inductive motor load classification; must not exceed motor nameplate FLA
Rated Current — Resistive Load 20A Non-inductive loads such as heating elements or lamp circuits
Main Circuit Voltage (Max) 690VAC / 300VDC Covers all common North American supply voltages including 480VAC and 600VAC
Coil Voltage 24VDC Verify control power supply is DC — 24VAC versions exist and are not interchangeable
Coil Power Rating 5.4W Energized hold state; relevant for sizing 24VDC control power supply in multi-contactor panels
Auxiliary Contact Configuration 1NO + 1NC (built-in) Integrated auxiliary block; additional contacts require external auxiliary contact module
Short-Circuit Current Rating Up to 100kA Per UL 489; IEC Icu rating varies by main circuit voltage
Physical Footprint (W x D x H) 45mm x 95mm x 77mm DIN-rail width 45mm; 95mm depth clearance required behind terminals
Operating Temperature -5 to +60°C Standard industrial range; some configurations rated to -40°C minimum

Full technical specifications are available on the product page at LeadTime.ca.

LC1D09BD vs. LC1D25BD vs. LC1D65BD: Which Contactor Do You Actually Need?

Model Rated Amperage Typical Motor Range Physical Size Footprint vs. LC1D09BD When to Choose
LC1D09BD 9A Up to 5 HP at 480VAC 45mm x 95mm x 77mm Baseline Motor FLA under 9A; tight cabinet space; 24VDC control circuit
LC1D25BD 25A 7–20 HP range Slightly larger Approximately +25% depth Motor FLA 10–25A; medium industrial machinery
LC1D65BD 65A 30–50 HP range Larger profile Approximately +40% depth Motor FLA over 25A; larger industrial equipment
LC1D115BD 115A 50–100 HP range Large cabinet unit Significant increase Utility-scale equipment; mining; large compressors

The TeSys D contactor family spans 13 standardized ratings from 9A up to 150A, covering the full range of industrial motor control applications. If your motor nameplate FLA is at or below 9A, the LC1D09BD is the correct choice and its 45mm footprint is the most compact option in the family. If FLA exceeds 9A even by a fraction, move to the LC1D25BD — do not derate the contactor by running it at its rated limit on a continuous duty cycle. Check current availability and pricing for the LC1D09BD at LeadTime.ca, or contact the team to confirm the right model for your motor rating.

Expert Verdict: Is the LC1D09BD the Right Contactor for Your Application?

The LC1D09BD earns its place in motor control panels through a combination of compact physical size, a clean feature set for basic motor switching, and the reliability record of the TeSys D platform across more than two decades of OEM and systems integrator adoption. It is the right part for a specific buyer: an engineer designing a motor control circuit for a 5 HP or smaller 3-phase motor, a panel builder integrating a motor starter into a dense DIN-rail cabinet, or a maintenance technician replacing a failed 9-amp contactor in an existing installation. The built-in 1NO-1NC auxiliary contact block handles the majority of standard control logic requirements without adding a separate contact module, and the integrated 24VDC coil suppression removes the need for an external snubber. For facilities with established 24VDC control power infrastructure and motors running below 9A FLA, this contactor delivers straightforward, uncomplicated performance at the entry level of the TeSys D family.

Where the LC1D09BD has real limits is equally important to understand. It is a passive device — there is no integrated diagnostics, no coil feedback monitoring, and no electronic overload protection. External protection is mandatory: an upstream branch circuit protector for short-circuit protection and a downstream overload relay to protect the motor from sustained overcurrent. The 9-amp main contact rating is an absolute ceiling, not a guideline — running this contactor on a motor whose FLA exceeds 9A will result in contact overheating and eventual contact welding. For motors above 5 HP at 480VAC, step to the LC1D25BD. For reversing motor applications, the LC1D09BD is the wrong series entirely — the LC2D reversing contactor series is required. If your facility's control power runs on 24VAC rather than 24VDC, this model will not energize regardless of the coil voltage reading on the nameplate label — you need the AC coil variant.

From a procurement standpoint, the LC1D09BD is an established, widely stocked industrial component. Standard configurations with the 24VDC coil are typically available for same-day or next-day shipment through specialist automation distributors in North America, with global shipping available for international installations. Ordering through a specialist distributor — rather than a generic electrical supply channel — matters for one specific reason: coil voltage verification at the order stage. A distributor with technical expertise can confirm from your part number that the coil voltage suffix matches your control power supply before the unit ships, eliminating the most common and costly ordering mistake for this product. View current stock and pricing for the LC1D09BD at LeadTime.ca — the team ships worldwide and can confirm coil voltage configuration before your order is released.

For volume pricing, urgent replacement orders, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship the LC1D09BD worldwide.

What Engineers and Integrators Need to Know Before Ordering the LC1D09BD

The LC1D09BD generates virtually no public forum discussion — no Reddit threads, no PLCTalk debates, no distributor Q&A chains. This is not a gap in its reputation. It is a characteristic of how this class of component gets specified. Controls engineers and panel builders select the LC1D09BD from a BOM or a system design document, confirm the specifications against the motor nameplate and control power supply, and release the purchase order. It does not get discussed online for the same reason a correctly sized wire does not get discussed — when it is right, it disappears into the system and does the job without comment.

What does generate discussion — internally, within engineering teams, and in technical support channels — is the ordering mistakes that happen when the specification process skips a step. Schneider Electric's TeSys D family includes models with both 24VDC and 24VAC coils, and the catalog number suffix is the only distinction. An order entered as "24V contactor" rather than "24VDC contactor" can result in an AC-coil unit arriving on site. Installed in a 24VDC control circuit, the coil will not energize. The motor will not start. The commissioning window is lost. This is the scenario that specialist distributors with technical expertise prevent by confirming the coil voltage at the quoting stage — before the unit ships.

The other area where specialist advice provides real value is auxiliary contact configuration. The LC1D09BD includes a built-in 1NO-1NC block, which handles the majority of standard control logic. But applications requiring more than one auxiliary contact pair — multiple run-indication signals, redundant safety interlocks, or complex permissive logic — need external auxiliary contact modules mounted directly to the contactor. Identifying this requirement before the panel is wired is significantly less costly than discovering it during commissioning. When community feedback is sparse and manufacturer documentation requires interpretation for a specific application, the most efficient resource is a distributor technical team that handles these queries for this exact product family daily. LeadTime.ca is that resource for the LC1D09BD — available before you order, not after the wrong part arrives.

Wiring and Installation Overview

The following points summarize the key requirements for installing the LC1D09BD. Engineers requiring complete wiring diagrams, torque specifications, and detailed step-by-step procedures should refer to the official Schneider Electric installation manual for the TeSys D series.

  • Main circuit terminals are labeled L1-L2-L3 (incoming line) and T1-T2-T3 (outgoing load to motor); coil terminals are labeled A1 and A2 — verify polarity if using a polarized 24VDC supply
  • Conductor sizing for the 9A main circuit should be selected per local electrical code requirements; confirm upstream branch circuit protection is coordinated with the contactor's short-circuit current rating of up to 100kA
  • The contactor mounts on a standard 35mm DIN rail; minimum 45mm horizontal space and 95mm depth behind the terminal face are required — verify these clearances in the cabinet before installation
  • The 24VDC coil circuit must be protected by an appropriate control circuit fuse; interlocks from overload relay normally-closed contacts and any safety relay outputs should be wired in series with the coil circuit before the A1 terminal
  • Allow minimum thermal clearance between adjacent DIN-rail components; back-to-back mounting of contactors without clearance is not recommended — verify cabinet layout accommodates the 77mm height and adequate air circulation around the unit

Wrong-Part Prevention Checklist

Before releasing a purchase order for the LC1D09BD, verify each of the following items against your specific application. This checklist addresses the most common and costly ordering mistakes for this contactor family:

  1. Verify coil voltage: 24VDC is standard but 24VAC versions exist — check your control power supply label
  2. Confirm main circuit voltage: 690VAC or 300VDC — does not work directly on 480VAC without isolation
  3. Check motor nameplate FLA: 9A is for small motors only — verify contactor is not undersized
  4. Measure DIN-rail space in cabinet: contactor is 95mm deep — ensure clearance behind terminals
  5. Confirm non-reversing logic required: reversing models switch motor direction — confirm this model matches wiring need
  6. Verify auxiliary contact polarity: 1NO (closing) and 1NC (opening) by default — some applications need different configuration
  7. Check certification requirement: IEC/CSA/UL certified for North America — acceptable for your facility

If any item on this checklist cannot be confirmed before ordering, contact the LeadTime.ca team to verify the correct configuration for your application — we can confirm coil voltage, auxiliary contact configuration, and certification requirements before your order ships.

Frequently Asked Questions

Can the LC1D09BD be used for reversing motor control — forward and reverse switching?

No. The LC1D09BD is a non-reversing contactor. It switches the motor in one direction only. Reversing motor control requires two contactors with a mechanical and electrical interlock — this is handled by the LC2D series reversing contactors. Attempting to use two LC1D09BD units for reversing logic without proper interlock hardware creates a phase-to-phase short-circuit risk.

What happens if the motor FLA is 10 amps and the LC1D09BD is installed anyway?

The contactor will operate initially, but the main contacts will run above their rated current continuously. This causes accelerated contact wear, elevated contact temperature, and eventual contact welding — the contactor can lock closed, keeping the motor energized even after the control signal is removed. The correct contactor for a 10A motor load is the LC1D25BD, rated at 25A, which provides appropriate headroom above the motor FLA.

Does the LC1D09BD require an external snubber or flyback diode for the 24VDC coil?

No. The LC1D09BD includes a built-in bi-directional peak-limiting diode suppressor on the 24VDC coil. This integrated transient suppression eliminates the inductive voltage spike when the coil de-energizes, protecting adjacent PLC I/O modules and control circuit components without requiring an external suppression component.

Is one LC1D09BD a direct physical replacement for an older TeSys D unit of the same rating?

The TeSys D series has maintained a consistent DIN-rail footprint across generations, and the 45mm width and terminal layout are designed for continuity within the product family. However, verify the coil voltage suffix and auxiliary contact configuration on the replacement unit match the existing installation exactly before ordering — suffix characters in the catalog number indicate coil voltage and contact configuration, and these must match the control circuit wiring already in place.

Can I add more auxiliary contacts to the LC1D09BD if my control logic needs more than 1NO and 1NC?

Yes. External auxiliary contact modules are available for the TeSys D series and mount directly onto the contactor body. The built-in 1NO-1NC block handles basic control and indication requirements; additional contact pairs for more complex permissive or interlock logic are provided by these external modules. Confirm compatibility with the specific auxiliary contact module part number with your distributor before ordering.

What certifications does the LC1D09BD carry, and is it acceptable for Canadian installations?

The LC1D09BD is certified to IEC 60947-4-1, UL 508/UL 1077 (North America), and CSA (Canada, File LR43364). It also carries CCC certification for Chinese market export and EAC certification for the Eurasian Economic Commission region. The CSA certification makes it acceptable for Canadian industrial installations without additional approval steps. It is also RoHS and REACH compliant for environmental regulations.

Why Order the LC1D09BD Through LeadTime.ca

  • Global shipping — LeadTime.ca fulfills orders worldwide, not limited to any single country or region
  • Technical confirmation before shipment — the team verifies coil voltage and configuration against your application to prevent the most common ordering mistakes on this product family
  • Specialist stock access — standard TeSys D configurations including the LC1D09BD are stocked for fast fulfillment; typical lead time for in-stock configurations is 1–3 business days
  • Volume pricing available — contact for quantity pricing on panel builds, OEM programs, or MRO stocking agreements
  • Hard-to-find variants — non-standard coil voltages, auxiliary contact configurations, or regional certification variants sourced through authorized channels

At-a-Glance Summary

  • Model: LC1D09BD — 3-pole IEC contactor, TeSys Deca, nonreversing, 9A motor load rating, 24VDC coil
  • Main circuit rating: 690VAC maximum / 300VDC maximum; covers 480VAC and 600VAC North American supply voltages
  • Resistive load rating: 20A — suitable for heating element and lamp circuit switching within that rating
  • Motor horsepower coverage: up to 5 HP at 480VAC (3-phase); verify against motor nameplate FLA before specifying
  • Coil power consumption: 5.4W energized hold state — relevant when sizing 24VDC control power supply for multi-contactor panels
  • Physical footprint: 45mm wide x 95mm deep x 77mm tall — mounts on standard 35mm DIN rail
  • Integrated features: built-in 1NO-1NC auxiliary contact block; built-in 24VDC coil transient suppression — no external snubber required
  • Short-circuit current rating: up to 100kA per UL 489
  • Certifications: IEC 60947-4-1, UL 508/1077, CSA (File LR43364), CCC, EAC, RoHS/REACH compliant
  • Operating temperature: -5 to +60°C standard range
  • Critical ordering check: confirm 24VDC (not 24VAC) coil voltage matches your control power supply before releasing the purchase order
