Schneider LC1D09B7 — 9A IEC Contactor Buying Guide

By Abdullah Zahid
12 min read

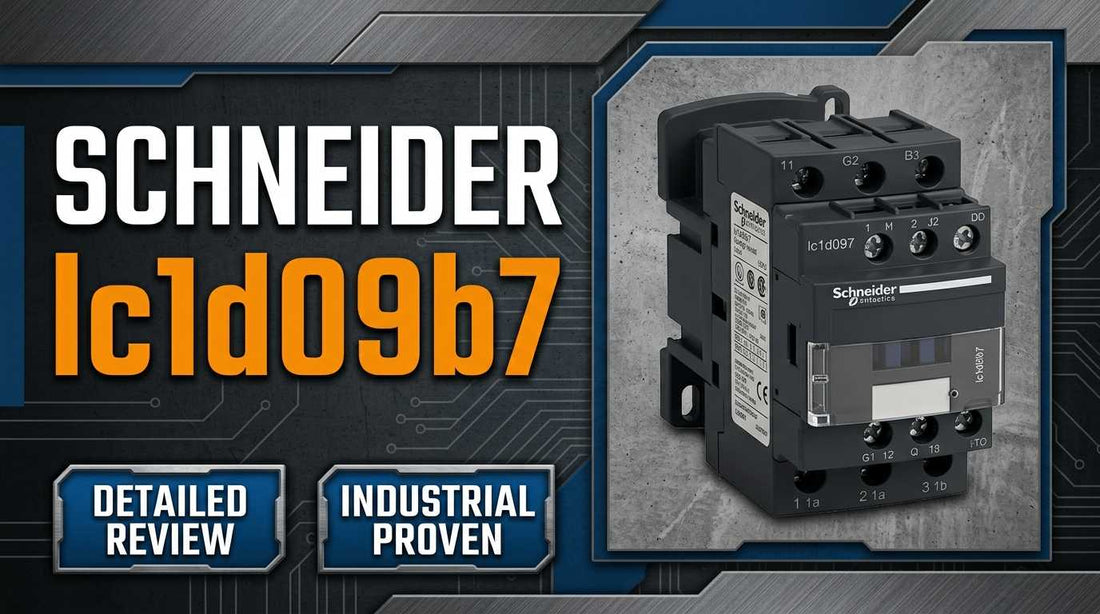

Schneider Electric LC1D09B7 TeSys Deca 9A IEC contactor 24V AC coil for DOL motor control panels

Schneider LC1D09B7 IEC Contactor, TeSys Deca, Nonreversing, 9A Motor Control — Specs, Pricing and Selection Guide

If you have a 9A motor control requirement and you are comparing IEC contactors before committing panel budget, the Schneider LC1D09B7 is a bottom-of-funnel decision: you know the load class, you know the coil voltage, and you need to confirm the part is correct before the order goes out. The LC1D09B7 is a 3-pole, nonreversing electromechanical contactor in the TeSys Deca series, rated for 9A inductive duty at up to 690V AC with a 24V AC 50/60Hz coil — a direct-on-line motor starter built to IEC 60947-4-1, UL 508, and CSA C22.2 No. 14. It carries an integrated 1NO/1NC auxiliary contact pair and a 15-million mechanical cycle durability rating that makes it a standard OEM and retrofit choice in North American and international motor control panels.

If you have already confirmed this is the right part, check current pricing and availability for the LC1D09B7 at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D09B7 — and Who Should Not

The LC1D09B7 is the right contactor if all of the following are true for your application:

  • Your site control supply is 24V AC 50/60Hz — this model's coil is AC-only and will not operate on 24V DC or any other DC voltage
  • Your motor nameplate full load current is 9A or below at AC-3 inductive duty rating
  • Your application voltage does not exceed 690V AC on the main circuit
  • You need a nonreversing, 3NO main contact configuration for direct-on-line starting
  • Your panel has a 45mm DIN rail slot or surface mounting provision with 77–84mm depth clearance
  • UL 508 and CSA C22.2 No. 14 certification is required for code approval on your panel build

If your motor requires forward-reverse control, the correct part is the LC1D09M7 reversing variant. If your motor draws more than 9A, step up to the LC1D25B7 (25A) or LC1D38B7 (38A). If your site runs a DC control supply, you need a DC-coil variant — not this model.

On this page:

What the LC1D09B7 Does in a Motor Control System

The LC1D09B7 is an electromechanical switch. Its job is straightforward: when a low-voltage command arrives at its 24V AC coil terminals, it closes three main contacts simultaneously, completing the three-phase supply path to a motor. When the coil de-energizes, those contacts open and the motor circuit breaks. That switching action happens with no manual intervention, enabling remote control from a PLC output, a relay logic rung, or a pushbutton station connected to the coil circuit.

What separates this from a basic relay is the duty class. The LC1D09B7 is rated AC-3 — the IEC classification for motor breaking loads, where contacts must interrupt inductive current under full load conditions without welding or excessive arc erosion. Silver alloy contacts and an internal arc chamber manage the inductive transient each time the contactor opens under load. At AC-3 full load, Schneider Electric rates the LC1D09B7 for 2 million electrical cycles before contact replacement is needed, and 15 million mechanical cycles at no load. On an application cycling ten times per day, that electrical durability equates to over 500 years of service — which is why panel builders specify this class of device rather than a general-purpose relay for motor circuits.

The integrated 1NO/1NC auxiliary contact block is not a minor feature. In PLC-controlled panels, those auxiliary contacts carry motor run-status feedback back to the controller input card, close the electrical interlock between the contactor and upstream overcurrent device, and trigger alarm outputs when the contactor drops out unexpectedly. Having that logic built into the main contactor body eliminates a separate relay component from the panel BOM and reduces wiring complexity by two to four terminals per starter assembly.

Typical System Architecture

The LC1D09B7 sits between the overcurrent protective device and the motor terminals in the motor branch circuit, with its coil circuit driven from the low-voltage control supply. Here is how a typical DOL motor starter assembly looks with this contactor at its core:

  • Three-phase supply enters a motor circuit breaker or fused disconnect upstream of the contactor main terminals (L1, L2, L3)
  • The LC1D09B7 main contacts (T1, T2, T3) feed a thermal overload relay sized to the motor nameplate current
  • Overload relay output feeds the motor terminal box; overload trip contact wired in series with the contactor coil circuit to ensure safe drop-out
  • Coil terminals A1 and A2 connect to the 24V AC control supply through the PLC output, pushbutton, or relay contact that commands motor start and stop
  • Auxiliary contacts (1NO/1NC) return motor run-status feedback to the PLC input card and close interlock logic as required by the panel design

Where the LC1D09B7 Gets Installed

Food and beverage plants are among the highest-volume users of 9A IEC contactors. Pump motors on CIP (clean-in-place) systems, refrigeration compressor motor starters, and conveyor drive starters in the 1–4 kW range commonly fall in the 9A inductive current band at 400–480V supply. The LC1D09B7's AC-3 rating handles the frequent start-stop cycles inherent in food process automation, and the IP20 enclosure rating is appropriate for use inside sealed motor control center compartments or NEMA-rated enclosures.

HVAC system integrators specify the LC1D09B7 for fan motor starters in air handling units and rooftop package equipment. Fan motors in the fractional-to-3-kW range at 480V typically draw well under 9A full load, making this contactor an appropriate and cost-efficient choice for that application without upsizing to the 25A frame.

Water and wastewater treatment facilities use this model extensively in pump motor control panels. The 15-million mechanical cycle rating is valued in applications where contactors cycle dozens of times daily on level-controlled pump duty. The integrated auxiliary contact enables feedback to SCADA systems confirming pump run status without additional hardware.

OEM machine builders standardize on the LC1D09B7 for modular motor starter assemblies sold across multiple end-user installations. Standardization on a single 9A IEC contactor simplifies spare parts inventory, technician training, and replacement logistics across a fleet of machines at customer sites worldwide.

Application Typical Deployment
Food and beverage pump motor DOL starter in control panel; 24V AC PLC output drives coil; overload relay downstream
HVAC fan motor starter Contactor in air handler MCC; pushbutton or BAS controller energizes coil
Water/wastewater pump control Level-switch or PLC output cycles contactor; auxiliary contact confirms pump run to SCADA
OEM packaged motor starter Integrated into modular starter assembly; standardized across multi-site machine fleet
Retrofit panel upgrade Drop-in replacement for failed or obsolete 9A contactor; TeSys Deca footprint reduces rewiring
PLC-controlled resistive heater panel AC-1 duty; switches up to 20A resistive heating circuits in food or industrial process panels

Key Specifications and Electrical Ratings for the LC1D09B7

Specification Value
Full Load Current — AC-3 (Inductive/Motor) 9 A
Full Load Current — AC-1 (Resistive) 20 A
Maximum Application Voltage 690 V AC
Coil Supply Voltage 24 V AC, 50/60 Hz only
Coil Power Consumption 7.5 / 7.7 VA
Main Contact Configuration 3 NO (Nonreversing)
Auxiliary Contact Configuration 1 NO / 1 NC
Mechanical Cycle Durability 15,000,000 cycles (no load)
Dimensions (W x D x H) 45 x 84 x 77 mm
Certifications UL 508 (E164862), CSA C22.2 No. 14, IEC 60947-4-1, CE, RoHS

Full technical specifications are available on the product page at LeadTime.ca.

LC1D09B7 vs. Other TeSys Deca Variants: Which One Do You Actually Need?

The TeSys Deca series covers a wide current range and coil voltage matrix. The table below covers the variants most commonly compared against the LC1D09B7 at the point of specification.

Model Current Rating (AC-3) Coil Voltage Contact Form Best For
LC1D09B7 9 A 24 V AC 50/60Hz 3 NO + 1NO/1NC Aux Standard DOL nonreversing motor control
LC1D09M7 9 A 220 V AC 50/60Hz Reversing configuration Forward-reverse motor control duty
LC1D25B7 25 A 24 V AC 50/60Hz 3 NO + 1NO/1NC Aux Larger motors drawing above 9A up to 25A
LC1D38B7 38 A 24 V AC 50/60Hz 3 NO + 1NO/1NC Aux Heavy-duty motor applications above 25A

If your motor nameplate current exceeds 9A, the LC1D09B7 is undersized — contact chatter and premature contact wear will result. The LC1D25B7 is the correct next step. Check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the LC1D09B7 the Right Contactor for Your Panel?

The LC1D09B7 earns its place as a panel builder's default 9A contactor for three concrete reasons. First, the 15-million mechanical cycle rating and 2-million AC-3 electrical cycle rating are not marketing figures — they translate directly to a device that will outlast the motor it controls in most industrial applications. Second, the 45mm DIN rail footprint and integrated 1NO/1NC auxiliary block mean fewer components on the rail and fewer wire runs inside the enclosure, which matters when you are building modular starter assemblies to a cost target. Third, triple certification — UL 508 file E164862, CSA C22.2 No. 14, and IEC 60947-4-1 — covers panel code approval across North America and international markets without sourcing a separate regional variant. The buyer profile this model fits is specific: a control panel builder or plant engineer working with a 24V AC control supply, a motor at or under 9A, and a nonreversing DOL topology. If all three of those conditions are true, this contactor is a straightforward procurement decision.

Where the LC1D09B7 has real limits is equally specific. It has no manual override — the contactor cannot be forced closed without energizing the coil, which matters during commissioning when you want to verify downstream wiring before the control circuit is live. There is no integrated surge suppressor; on sites with switching transients on the 24V AC control supply, an external varistor on the coil terminals is a required addition, not an option. And the AC coil makes this model completely wrong for DC control supply architectures. Engineers who discover mid-build that their site standard is 24V DC need to source a DC-coil variant — the LC1D09B7 will not function and cannot be field-modified. For reversing applications, the LC1D09M7 is the correct selection.

From a procurement standpoint, the LC1D09B7 is a standard-stock IEC contactor with typical 5–7 day delivery through major distributors, including LeadTime.ca. Volume orders of 10 or more units may qualify for pricing adjustments — confirm with the team before committing your BOM. Because this is a high-frequency SKU, availability is generally reliable, but unusual coil voltages or reversing variants can extend lead times to 10–14 days. Ordering through a specialist distributor who can confirm certification marks, check stock across multiple warehouses, and flag coil voltage mismatches before the order ships is worth the conversation. View current pricing and stock status for the LC1D09B7 at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D09B7

Community discussion specific to the LC1D09B7 is limited — this is a mature, straightforward IEC contactor that rarely generates forum controversy. What does appear consistently in technical support inquiries and distributor pre-sales conversations are ordering mistakes that could have been caught with a 60-second spec sheet review. Because community feedback is sparse for this model, the most useful content here is a direct summary of the pre-order intelligence that specialist distributors see repeatedly.

The single most common ordering mistake is coil voltage confusion. The LC1D09B7 suffix "B7" designates 24V AC 50/60Hz. Engineers working from system drawings that simply note "24V control supply" without specifying AC or DC have ordered this model into DC-supply panels and received a non-functional contactor. The fix requires a return, a reorder of the correct DC-coil variant, and a lost week of panel build schedule. Confirm AC versus DC from the site power supply label before finalizing the order — not from the drawing title block.

The second recurring issue is duty cycle misreading. The LC1D09B7 is AC-3 rated at 9A inductive duty. Some buyers read the 20A AC-1 resistive rating on the spec sheet and assume the contactor can handle 20A motor loads. It cannot. AC-3 is the governing rating for motor circuits. Applying this contactor to an inductive motor load drawing more than 9A will cause accelerated contact erosion, contact welding, and eventual failure. If the motor nameplate reads above 9A, the LC1D25B7 is the required upgrade — not a workaround on the existing model. LeadTime.ca's team can confirm the correct sizing if you share your motor nameplate data before ordering.

Wiring and Installation Overview

The following is an installation overview for qualified electricians and panel builders. For full wiring diagrams and commissioning procedures, refer to Schneider Electric's official LC1D09B7 instruction sheet and IEC 60947-4-1 installation guidelines.

  • Main circuit terminals L1, L2, L3 accept the three-phase supply input; T1, T2, T3 feed the motor or downstream overload relay — wire with ferrule-crimped conductors sized for 9A inductive duty at the application voltage
  • Coil terminals A1 and A2 connect to the 24V AC 50/60Hz control supply through the switching element (PLC output, relay contact, or pushbutton); verify polarity conventions on AC coil are observed per the wiring diagram
  • Auxiliary contact terminals carry the 1NO and 1NC logic signals to PLC input cards, interlock circuits, or pilot lamp indicators — confirm terminal torque of 0.5–0.7 Nm is achieved using a calibrated torque screwdriver; do not exceed this range
  • DIN rail mounting requires a standard 35mm rail; surface mounting hardware must be specified and pre-installed before the contactor body is fitted to the panel backplate
  • Before energizing, confirm upstream overcurrent protection is correctly sized, external surge suppression is installed on the coil circuit if the control supply is susceptible to switching transients, and all terminations are torqued and visually inspected

Certifications and Safety Compliance for the LC1D09B7

The LC1D09B7 carries multi-standard certification covering North American panel approval and international deployment. IEC 60947-4-1 compliance confirms the contactor meets the international standard governing electromechanical contactors for motor duty. UL 508 listing under file number E164862 is the required certification for panel-mounted motor controllers in the United States. CSA C22.2 No. 14 certification covers Canadian electrical code approval. CE marking confirms EU conformity for international shipments, and RoHS compliance confirms the unit contains no restricted hazardous substances under EU Directive 2011/65/EU.

Two safety points require specific attention at installation. First, the LC1D09B7 does not include integrated surge suppression. On control supplies subject to switching transients — common when contactors share a 24V AC bus with other inductive devices — an external varistor or transient suppressor on the coil terminals A1/A2 is required to protect coil winding integrity over the product's service life. Second, the contactor provides no overcurrent protection. An upstream fuse or motor circuit breaker sized to the 9A motor load rating must be installed in series with the main circuit — the LC1D09B7 is a switching device only. A PROP65 warning applies to this product: it may expose users to Antimony oxide/trioxide.

Wrong-Part Prevention Checklist Before You Order

Run through every item below before finalizing your purchase order. These are the verification points that catch specification mismatches before they become returns, schedule delays, or field failures.

  1. Confirm equipment nameplate control voltage is 24V AC 50/60Hz: coil must match site supply exactly
  2. Verify load is 9A or below at rated inductive duty: oversizing current will cause contact chatter and premature wear
  3. Check that 690V AC application voltage is not exceeded: equipment line voltage must be <=690V
  4. Confirm 3NO contact form required: if forward-reverse or latching logic needed, wrong configuration will be ordered
  5. Verify screw-clamp termination compatible: ferrule-rated wire and torque wrench required; solder/crimp terminals not permitted
  6. Confirm DIN rail mounting available: this unit supports rail and surface mounting but hardware pre-specification required
  7. Check lead time and stock: standard 5–7 day delivery in North America; special order variants (DC, reversing) may extend to 10–14 days

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — we can cross-check your motor nameplate data, confirm coil voltage compatibility, and verify current stock status for the LC1D09B7 and any alternative variants
