Schneider LC1D09B7 Contactor — 9A AC-3 Specs & Selection Guide

By Abdullah Zahid
16 min read

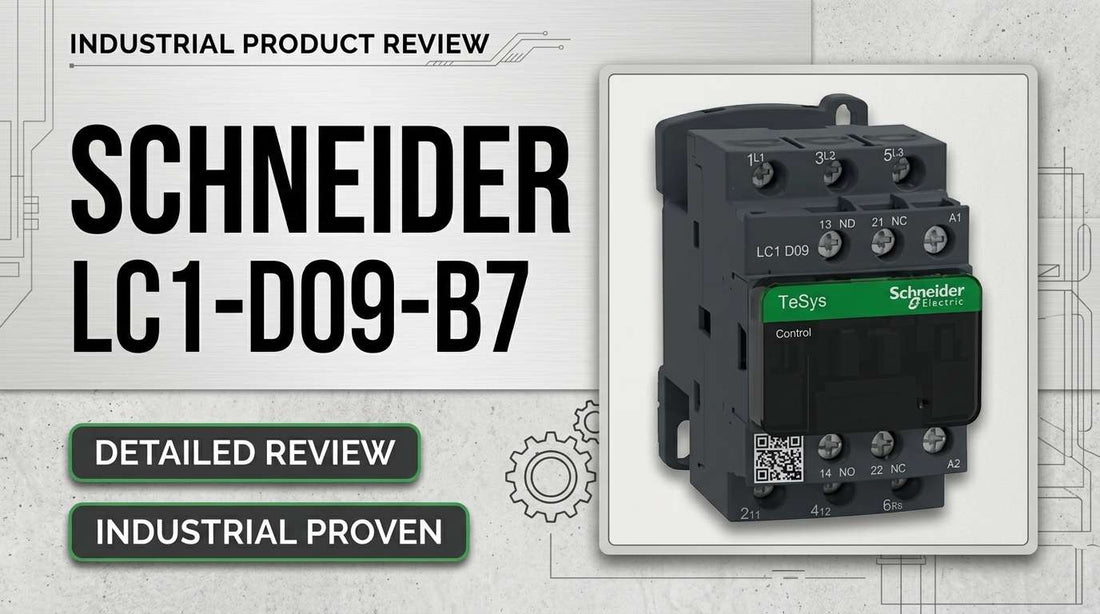

Schneider LC1D09B7 TeSys D 3-pole 9A AC-3 contactor with 24V AC coil for HVAC and motor control panels

Schneider LC1D09B7 — TeSys D Contactor, 3-Pole, Non-Reversing, 9A AC-3, 24V AC Coil: Complete Specifications and Selection Guide

If you are specifying or replacing a compact three-phase motor starter for an HVAC unit, pump station, or small industrial panel, the Schneider LC1D09B7 is one of the most commonly ordered IEC contactors in North America — and one of the most commonly mis-ordered. This TeSys D series, 3-pole, non-reversing contactor carries a 9A AC-3 rating, a 24V AC 50/60 Hz coil, and fits a 77 mm × 45 mm × 86 mm footprint on standard DIN rail. Knowing those four numbers before you commit to a purchase order is what separates a smooth installation from a costly return.

If you have already confirmed this is the correct part, check current pricing and availability for the LC1D09B7 at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D09B7 — and Who Shouldn't

The LC1D09B7 is the right choice for engineers and technicians who need a compact, non-reversing three-phase contactor for light to mid-range motor loads where 24V AC control power is already available. It is an equally strong fit for panel builders standardizing on TeSys D across a multi-motor system and for facilities teams doing like-for-like replacements on failed units.

  • Motor full-load ampere (FLA) is at or below 9A at ≤440V AC (AC-3 duty) — this is the hard ceiling
  • Control system supplies 24V AC 50/60 Hz — the coil will not operate on 120V, 240V, or DC supply voltages
  • Supply voltage is ≤690V AC — the power circuit insulation rating supports this; beyond it, this model is not rated
  • Panel has at least 77 mm height × 45 mm width × 86 mm depth available on DIN rail or screw-mount surface
  • Auxiliary contact requirement is 1 NO + 1 NC or less — this model includes exactly that configuration, mechanically linked per IEC 60947-5-1
  • Application is non-reversing (forward-only switching) — reversing duty requires a reversing contactor pair or dedicated reversing model

If your motor FLA is 10A or above, move directly to the LC1D12B7 (12A AC-3). If your control power is 120V AC or DC-only, a different coil suffix variant is required. Ordering this model when either condition applies is the most common source of wrong-part returns.

On this page:

What the LC1D09B7 Does in a Motor Control System

The LC1D09B7 is an electromagnetically operated power switch. When 24V AC is applied across the coil terminals A1 and A2, a magnetic field pulls the contactor plunger in, closing the three main power contacts and completing the circuit between the incoming line supply and the motor terminals. Remove that coil voltage and a return spring pushes the plunger out, opening the main contacts and de-energizing the motor. The entire closing action takes 12–22 ms; opening takes 4–19 ms. That response speed and the 15 million cycle mechanical durability rating are what make the TeSys D series the default choice in HVAC panels and pump control stations where the contactor may operate thousands of times per year.

Beyond the three main poles, the LC1D09B7 includes one normally open (NO) and one normally closed (NC) auxiliary contact, mechanically linked and rated for signaling circuits with a minimum switching current of 5 mA at 17V. These contacts are used for motor running status feedback to a PLC or building management system, or for interlocking logic that prevents conflicting equipment from energizing simultaneously. They are low-current contacts — not suitable for switching power loads — and the 5 mA minimum is a real constraint that must be verified at the design stage.

The coil itself draws 2–3W at rated voltage and operates reliably across a supply range of 0.8–1.1 Uc (roughly 19–26V AC at nominal 24V). The drop-out voltage is 0.3–0.6 Uc, meaning a severe voltage dip to below approximately 7–14V AC will cause the contactor to release. This characteristic is relevant in facilities with variable control power quality or long cable runs from a control transformer.

Typical System Architecture for the LC1D09B7

The LC1D09B7 sits between the motor branch circuit protection device and the motor terminals, acting as the controlled switching element in the power circuit while responding to a low-voltage control signal from a PLC, relay, or building automation controller.

  • Three-phase supply → Branch circuit fuses or MCB → LC1D09B7 main terminals (1, 3, 5 incoming)
  • LC1D09B7 main terminals (2, 4, 6 outgoing) → Thermal overload relay (if used) → Motor terminal box
  • 24V AC control transformer or BAS output → Coil terminals A1/A2 → PLC or relay contact in series
  • Auxiliary NO contact (terminals 13–14) → PLC digital input or indicator lamp for run status feedback
  • Auxiliary NC contact (terminals 21–22) → Interlock circuit or safety relay input for inhibit logic

Where the LC1D09B7 Gets Specified Most Often

In HVAC systems, the LC1D09B7 is one of the most commonly installed contactors in rooftop units and air handling equipment. Fan motors in the 1–5 HP range running on 480V three-phase are the classic application, and building automation systems that output 24V AC control signals align directly with this contactor's coil. Compressor switching in chiller systems follows the same pattern — the 24V AC coil interfaces cleanly with the BAS control layer without requiring an intermediate relay or voltage translator.

Pump stations — municipal water supply, sewage lift stations, and pneumatic compressor circuits — represent the second major category. Small three-phase pumps operating in semi-continuous or on-demand duty cycles are well within the 9A AC-3 rating, and the contactor's operating temperature range of -40°C to +60°C supports both outdoor enclosures and unheated mechanical rooms.

Panel builders assembling multi-motor control panels for conveyor systems, assembly lines, and production machines frequently specify identical LC1D09B7 contactors across all motor positions in the 1–5 HP range. Standardizing on one model simplifies spare parts inventory, allows faster field replacement, and reduces the risk of substitution errors during maintenance. The compact 45 mm width also allows multiple contactors to be mounted side by side in a standard 19-inch or 24-inch panel enclosure without the spacing constraints that larger frame contactors impose.

Legacy panel retrofits are a fourth significant use case. When a contactor fails in an existing HVAC or pump panel that was originally built around TeSys D components, the LC1D09B7 is often the exact replacement — same footprint, same screw terminal positions, same auxiliary contact arrangement — that goes in without rewiring or mounting modifications.

Application Typical Deployment
HVAC rooftop unit fan control 3-phase fan motor ≤5 HP; 24V AC from BAS; LC1D09B7 as primary switching element
Chiller compressor switching Small compressor duty; 24V AC BAS control; auxiliary NO for run status to BMS
Municipal water pump station Single or multiple pump motors ≤9A FLA; outdoor enclosure; -40°C rated coil
Multi-motor conveyor panel 3–5 identical LC1D09B7 contactors; standardized spare parts inventory
Legacy panel contactor replacement Like-for-like swap; 77 × 45 × 86 mm footprint preserved; no rewiring required
Interlocked industrial equipment Auxiliary NC contact (21–22) used for safety interlock between conflicting loads

Electrical and Mechanical Specifications That Drive Purchase Decisions

Parameter Value Notes
Rated Operational Current (AC-3) 9A At ≤440V AC, ≤60°C — use this rating for motor loads
Rated Operational Current (AC-1) 25A Resistive/slightly inductive loads only — not for motors
Rated Operational Voltage ≤690V AC 25–400 Hz power circuit
Coil Voltage 24V AC, 50/60 Hz Operational range 0.8–1.1 Uc; drop-out at 0.3–0.6 Uc
Auxiliary Contacts 1 NO + 1 NC Mechanically linked; min. 5 mA at 17V; terminals 13–14 (NO), 21–22 (NC)
Rated Making / Breaking Capacity 250A at 440V IEC 60947 conforming
Mechanical Durability 15 million cycles B10d 1,369,863 cycles at nominal load per EN/ISO 13849-1 Category 3
Operating Temperature -40°C to +60°C Derating applies 60–70°C; 3000 m altitude without derating
Physical Dimensions (H × W × D) 77 × 45 × 86 mm Weight 0.32 kg; DIN rail or screw mount
Terminal Type / Wire Size Screw clamp, 1–4 mm² AWG 14–12 equivalent for power circuit

Full technical specifications are available on the product page at LeadTime.ca.

LC1D09B7 vs. LC1D12B7 vs. LC1D18B7: Which TeSys D Variant Do You Need?

Model Poles AC-3 Rating AC-1 Rating Coil Voltage Typical Motor Size (480V) Notes
LC1D09B7 3P 9A 25A 24V AC 1–5 HP Entry-level; most compact frame
LC1D12B7 3P 12A 32A 24V AC 7.5–10 HP Correct choice when motor FLA is 10–12A
LC1D18B7 3P 18A 40A 24V AC 10–15 HP Mid-range industrial motors
LC1D25B7 3P 25A 60A 24V AC 15–20 HP Larger loads; same coil voltage
LC1D09M7 3P 9A 25A 24V AC 1–5 HP Reversing auxiliary — pair with LC1D09B7 for forward-reverse duty

If your motor FLA is at or above 10A, the LC1D09B7 is not the correct selection — the LC1D12B7 is. Operating a 9A-rated contactor above its AC-3 limit accelerates contact erosion and risks contact welding under sustained load. Check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the LC1D09B7 Worth Specifying?

The LC1D09B7 is the correct tool for a specific, well-defined job: non-reversing control of a three-phase motor with a full-load ampere rating at or below 9A, in a panel where 24V AC control power is already present. For HVAC technicians replacing a failed contactor in a rooftop unit, panel builders specifying multiple identical motor starters in a conveyor or pump system, and OEM engineers standardizing 24V AC control architecture across a product line, this contactor hits all the marks — compact frame at 77 × 45 × 86 mm, 15 million cycle mechanical durability, and worldwide certifications covering UL 508, CSA, IEC 60947-4-1, and a full range of marine approvals including LROS, DNV, and Bureau Veritas. The B10d rating of 1,369,863 cycles at nominal load per EN/ISO 13849-1 Category 3 gives safety-conscious specifiers a verified reliability number for functional safety calculations.

Where this contactor has real limits: the 9A AC-3 rating is a hard ceiling, not a guideline. A motor with 10A or 12A FLA will erode the main contacts rapidly under inductive switching duty, and contact welding is a genuine safety risk in that scenario — the correct answer is the LC1D12B7, not a larger wire gauge or a different overload relay. Applications requiring reversing duty (forward-reverse motor control) cannot use the LC1D09B7 alone; they require either the LC1D09B7 paired with the LC1D09M7 in a reversing configuration, or a dedicated reversing contactor assembly. Control systems with 120V AC or DC-only supply power require a different coil voltage suffix — the B7 designation identifies the screw terminal style, not the coil voltage, and the 24V AC coil is specific to this model code.

From a procurement standpoint, the LC1D09B7 is a high-availability item in North America with typical stock lead times of 1–5 business days through authorized distributors. Factory order lead times extend to 4–6 weeks if regional stock is depleted — a scenario that does happen during peak HVAC season or after a facility-wide panel failure. Ordering through a specialist distributor rather than a generalist channel means your coil voltage and current rating are verified before the order ships, not after a technician opens the box on-site. View current pricing and stock status for the LC1D09B7 at LeadTime.ca — available to buyers worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D09B7

Community discussion specific to the LC1D09B7 model code is sparse in public forums, which itself tells you something useful: this is a mature, well-understood product that rarely generates controversy when it is specified correctly. The problems that do surface — and the ordering mistakes that specialists at distributors like LeadTime.ca see repeatedly — almost always trace back to one of three misunderstandings at the point of purchase.

The first is coil voltage confusion. The model number LC1D09B7 does not encode the coil voltage in an obvious alphanumeric position. The "09" identifies the 9A frame, the "B" denotes the 3-pole non-reversing configuration, and the "7" indicates screw-clamp terminals — but the 24V AC coil specification is a separate configuration parameter that must be explicitly confirmed on the product page or datasheet. Engineers who order from a catalog line item without filtering by coil voltage frequently receive a different coil variant (120V AC is particularly common) and discover the mismatch only when the contactor sits inert in the panel with the control PLC outputting 24V AC. The fix is simple: always confirm the coil voltage in writing on the purchase order, and cross-reference the product page coil voltage field before adding to cart.

The second recurring issue is current rating misapplication. The LC1D09B7 carries both a 9A AC-3 rating and a 25A AC-1 rating, and technicians who see "25A" on the datasheet sometimes assume the contactor can handle a 15A motor. AC-3 is the correct duty class for induction motor starting and running — the 9A figure is the operative limit for motor applications. The AC-1 rating applies only to resistive or slightly inductive loads like heating elements, and using it as a motor sizing reference is an engineering error that produces premature contact failure within hundreds of cycles rather than the rated millions. The third concern involves the auxiliary contacts: the 5 mA minimum switching current at 17V is a genuine lower boundary, not a conservative buffer. PLC input cards that draw less than 5 mA at the auxiliary contact terminals can produce unreliable status signals or go undetected entirely, and 120V AC indicator lamps wired directly to the auxiliary terminals overload contacts rated for logic-level signaling. When community feedback on TeSys D contactors does appear in engineering forums, these three points — coil voltage, AC-3 vs. AC-1 confusion, and auxiliary contact load limits — account for the majority of reported problems. Having a specialist distributor verify the application before the order ships eliminates all three.

Wiring and Installation Overview

  • Power circuit connections: Incoming three-phase supply connects to terminals 1, 3, and 5; motor output connects to terminals 2, 4, and 6; wire size 1–4 mm² (AWG 14–12) using screw-clamp termination
  • Control coil connections: 24V AC supply to terminal A1, return to A2; coil is non-polarized for AC; recommended wire size 0.5–1.5 mm² for control circuit
  • Auxiliary contact wiring: NO contact at terminals 13–14, NC contact at terminals 21–22; minimum 5 mA at 17V required for reliable switching; use shielded cable in EMI-prone environments and route separately from power wiring
  • Mounting: Compatible with standard DIN rail or direct screw mount; verify 77 mm height × 45 mm width × 86 mm depth clearance before installation; maximum operating rate 3600 cycles/hour at ≤60°C ambient
  • Pre-energization checks: Confirm 0V across all terminals before connecting; apply lockout/tagout per facility procedure; verify control transformer or BAS output is confirmed at 24V AC (within 0.8–1.1 Uc range) before first power-on

For complete wiring diagrams and installation procedures, refer to the official Schneider Electric LC1D09B7 datasheet available through se.com or iportal.se.com.

Compatible Accessories and System Expansion

The TeSys D family supports a range of accessories that extend the LC1D09B7's functionality without replacing the contactor itself. The following components are compatible with this model:

  • LC1D09M7 — Reversing auxiliary contactor for the LC1D09B7 (9A AC-3, 24V AC coil); pair the two units to create a forward-reverse motor starter with mechanical interlock
  • LC1D12B7 — Next-frame-up contactor (12A AC-3, 24V AC coil) when motor FLA exceeds the LC1D09B7's 9A AC-3 limit; same coil voltage, higher current capacity
  • Thermal overload relays (TeSys D series) — Coordinate with the LC1D09B7 for motor overload protection; select overload relay class (Class 10 or Class 20) based on motor FLA; recommended for any motor FLA between 6A and 9A at the upper operating range
  • Additional auxiliary contact blocks (TeSys D accessory range) — Snap-on auxiliary contact blocks available for applications requiring more than the standard 1 NO + 1 NC configuration built into the LC1D09B7
  • Surge suppression modules (TeSys D accessory range) — Recommended for DC coil variants; the LC1D09B7 AC coil does not require a suppressor module, but suppression on the control circuit is advisable in inverter-drive-heavy panels

Wrong-Part Prevention Checklist

Before placing your order for the LC1D09B7, verify each of the following points. This checklist is drawn directly from the most common sources of wrong-part returns and field failures:

  1. Verify coil voltage: Is it 24V AC 50/60 Hz? If control power is 120V, 240V, or DC, this is wrong.
  2. Confirm motor current: Does the motor FLA fall below 9A at ≤440V AC? If FLA is 10A or higher, upsizing required.
  3. Check power supply voltage: Is supply ≤440V AC (AC-3 rating) or ≤690V AC (higher rating)? Beyond this, not rated.
  4. Verify auxiliary contact requirement: Does control logic need status feedback? This model has 1 NO + 1 NC; confirm it's enough.
  5. Confirm screw terminal compatibility: Are incoming wires 1-4 mm² (AWG 14-12)? Terminals use screw clamp.
  6. Reversing duty: Is the application forward-only or forward-reverse? This is non-reversing; reversing requires reversing contactor pair.
  7. Panel space: Is there 77 mm height × 45 mm width × 86 mm depth available on DIN rail?
  8. Duty cycle: Operating rate maximum 3600 cycles/hour at ≤60°C; confirm process cycle rate is within this.

If any item on this list raises a question before you order, contact the LeadTime.ca team for application verification — or review the full product specifications on the LC1D09B7 product page before committing to a purchase order.

Frequently Asked Questions

Can I use the LC1D09B7 for a motor with 10A full-load amperes if I derate for duty cycle?

No. The 9A AC-3 rating is the operative limit for inductive motor loads, and it already accounts for the inductive switching duty that characterizes motor starting. Using the contactor above its AC-3 rating accelerates contact erosion significantly — within hundreds of operating cycles rather than millions — and creates risk of contact welding under sustained overcurrent conditions. The correct selection for a 10A motor is the LC1D12B7, which carries a 12A AC-3 rating with the same 24V AC coil and the same TeSys D footprint.

My control system is 120V AC. Can I use this contactor with a step-down transformer to get 24V AC to the coil?

Yes, a dedicated 120V-to-24V AC control transformer will supply the LC1D09B7 coil correctly, provided the transformer secondary can deliver stable voltage within the 0.8–1.1 Uc operating range (approximately 19–26V AC). However, if the majority of contactors in your panel use 120V AC coils, it is more practical to order the LC1D09 with the appropriate 120V AC coil variant rather than adding a transformer for a single contactor. Specify the coil voltage suffix on the order to match what is readily available in your control circuit.

What does the "B7" suffix in LC1D09B7 actually mean, and does it encode the coil voltage?

The "B7" suffix identifies the terminal style and frame configuration within the TeSys D product family — specifically screw-clamp terminals — but it does not encode the coil voltage. The coil voltage is a separate specification determined by an additional suffix in the full configuration string. This is the most common source of wrong-part orders: buyers assume the full model number they see on a failed contactor's nameplate includes coil voltage when it may not. Always confirm coil voltage explicitly on the product page or datasheet before ordering, and specify it in writing on the purchase order.

How do I confirm the LC1D09B7's auxiliary contacts are working correctly during commissioning?

With the contactor de-energized, use a multimeter in continuity mode across terminals 21–22 (NC contact) — you should read continuity. Across terminals 13–14 (NO contact) you should read open circuit. Energize the 24V AC coil; the NC contact (21–22) should open and the NO contact (13–14) should close. The non-overlap time between these transitions is 1.5 ms per the datasheet. If a PLC input is connected, confirm the digital input status matches the contactor state in all four conditions. A minimum load of 5 mA at 17V must be present in the signaling circuit for reliable contact switching — circuits drawing less than this may produce erratic results.

Is the LC1D09B7 a direct mechanical replacement for an older TeSys D contactor of the same frame size?

In most cases, yes. The TeSys D family has maintained a consistent physical footprint and terminal layout over successive generations, making the LC1D09B7 a like-for-like mechanical replacement in panels originally built with earlier TeSys D 9A contactors. Before installing, verify that the coil voltage matches (24V AC), the auxiliary contact arrangement (1 NO + 1 NC) matches your existing wiring, and the screw terminal positions align with your existing cable routing. If the original contactor was from an older series with different terminal labeling or a different screw pitch, confirm compatibility with the datasheet before completing the swap.

What certifications does the LC1D09B7 carry for international and marine applications?

The LC1D09B7 holds UL 508 (USA industrial control equipment), CSA (Canada), and IEC 60947-4-1 and IEC 60947-5-1 conformance for international markets. For marine and offshore applications it carries certifications from LROS (Lloyds Register of Shipping), DNV, GL, RINA, BV (Bureau Veritas), and CCC. It is also GOST certified and RoHS compliant (date code 0627 or later). This breadth of approvals makes it suitable for OEM panels destined for multiple markets without redesigning the electrical architecture.

Why Order from LeadTime.ca

  • Ships worldwide — no geographic restriction on orders; single units or volume orders accepted
  • Application verification available before order confirmation — coil voltage, current rating, and footprint checks on request
  • Authorized distributor access to TeSys D family including LC1D09B7 and adjacent variants (LC1D12B7, LC1D18B7, LC1D25B7)
  • Volume pricing available for 5+, 10+, and 25+ unit orders — contact for current pricing on larger quantities
  • Fast response on lead time queries before you commit to a build or maintenance schedule

At-a-Glance Summary

  • Model: Schneider LC1D09B7 — TeSys D series, 3-pole, non-reversing IEC contactor
  • Rated operational current: 9A AC-3 at ≤440V AC (25A AC-1 for resistive loads); 250A rated making and breaking capacity at 440V
  • Coil voltage: 24V AC, 50/60 Hz; operational range 0.8–1.1 Uc; drop-out at 0.3–0.6 Uc
  • Auxiliary contacts: 1 NO + 1 NC, mechanically linked; minimum 5 mA at 17V; terminals 13–14 (NO), 21–22 (NC)
  • Mechanical durability: 15 million cycles; B10d 1,369,863 cycles at nominal load per EN/ISO 13849-1 Category 3
  • Operating temperature: -40°C to +60°C; 3000 m altitude without derating
  • Dimensions: 77 mm × 45 mm × 86 mm; weight 0.32 kg; screw-clamp terminals, 1–4 mm² wire
  • Certifications: UL 508, CSA, IEC 60947-4-1, IEC 60947-5-1, LROS, DNV, BV, GL, RINA, GOST, CCC, RoHS
  • Typical applications: HVAC fan and compressor switching, pump stations, multi-motor conveyor panels, legacy panel retrofit
  • Hard constraint: Motor FLA must be ≤9A at ≤440V AC; for 10A+ motors, specify LC1D12B7 instead
