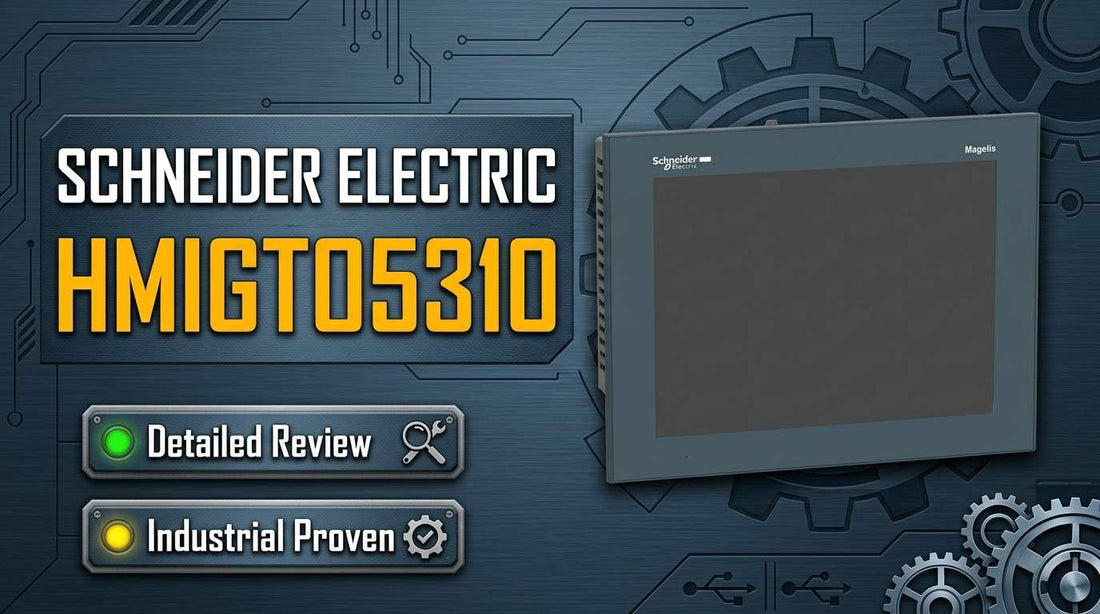

Schneider Electric HMIGTO5310 Harmony GTO 10.4-inch resistive touchscreen HMI panel for industrial machine control cabinet mounting

Schneider HMIGTO5310 Harmony GTO Advanced Touchscreen Panel: Complete Specifications, Pricing, and Selection Guide

Controls engineers sourcing a 10.4-inch industrial HMI for a packaging retrofit or new machine build arrive at the HMIGTO5310 after narrowing down on display size, IP65 washdown protection, and legacy PLC compatibility — and the final decision usually comes down to confirming the cabinet cutout dimensions, the 24 VDC power supply inrush rating, and whether 640x480 VGA resolution is sufficient for the operator's workflow. The Schneider HMIGTO5310, part of the Harmony GTO advanced touchscreen panel family, is a proven resistive-touch operator interface with a 50,000-hour backlight, Class I Division 2 hazardous location suitability, and support for Ethernet, USB, and dual serial COM ports — a feature combination that still makes it a credible choice for retrofit projects and Schneider compact PLC environments.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the HMIGTO5310 — and Who Should Not

The HMIGTO5310 is the right choice for controls engineers and machine builders who can confirm all of the following:

  • Cabinet front opening is exactly 259 x 201 mm (+1/−0 mm tolerance) or can be machined to that dimension
  • 24 VDC power supply is available and the distribution breaker is sized for 30A inrush current at power-on
  • At least one communication port — Ethernet, USB 2.0, COM1, or COM2 — matches the PLC or controller output
  • IP65 front-panel protection is sufficient for the washdown or contamination level on the installation floor
  • Existing software environment supports HMIGTO5310 programming (EcoStruxure Machine Expert or equivalent)
  • 640x480 VGA resolution at 10.4 inches is adequate for the operator graphics and data display planned

If you need a 12.1-inch display with 800x600 SVGA resolution, the HMIGTO5315 is the correct model. For newer greenfield projects with no existing Schneider ecosystem investment, evaluate the Harmony CP6 or HMIKPC families before committing to the HMIGTO5310.

On this page:

What the HMIGTO5310 Actually Does in a Control System

The HMIGTO5310 is a standalone operator interface — it does not execute PLC logic. Its role is to translate live controller data into a readable display and to pass operator inputs (touchscreen commands, recipe selections, alarm acknowledgements) back to the PLC or controller it is connected to. The 10.4-inch TFT LCD backlit color display runs at 640x480 pixels and renders 65,536 colors, giving it enough visual fidelity for process graphics, trend charts, and alarm lists without requiring the enclosure real estate of a 12-inch panel.

The resistive touch panel is rated for 1 million operating cycles — a figure that matters in food production or packaging environments where operators interact with the screen dozens of times per shift. Unlike capacitive touch panels, resistive panels respond to firm pressure from gloved hands or a stylus, which is a deliberate design trade-off: slower swipe response in exchange for industrial durability and contamination tolerance. The IP65 front-panel rating per IEC 60529 backs this up, confirming protection against low-pressure water spray suitable for light washdown between production runs.

Power comes from a single 24 VDC supply (acceptable range 19.2 to 28.8 VDC). Continuous draw runs up to 17W with the backlight at full brightness, dropping to 7W with the backlight off. The inrush current at power-on peaks at 30A — a figure that trips undersized breakers on first commissioning if the distribution circuit was sized only for continuous load. The internal lithium battery provides 100-day RAM retention without external power, with a 10-year design life.

Typical System Architecture

The HMIGTO5310 sits at the operator-facing edge of the control chain — between the PLC and the human who monitors and commands the process. Here is how a typical deployment looks from controller to operator:

  • Schneider M241 or M251 compact PLC processes field sensor inputs and executes machine logic
  • Ethernet or serial COM link carries real-time process data and command responses between PLC and HMIGTO5310
  • HMIGTO5310 displays live process data (temperatures, counters, alarm states) on the 10.4-inch TFT screen
  • Operator interacts via resistive touch panel — acknowledging alarms, selecting recipes, initiating sequences
  • USB 2.0 port used during commissioning for EcoStruxure Machine Expert programming and firmware updates

Where This Panel Gets Deployed

In food and beverage production, the HMIGTO5310 is used for real-time line monitoring, operator recipe selection, and fault and alarm indication to floor personnel. The IP65 front rating means it can be mounted in filling and packaging areas where periodic spray cleaning is part of the daily routine, without requiring an additional protective enclosure over the display.

Packaging and material handling installations use it to display package counters, conveyor status, and emergency stop or mode selector access. The 10.4-inch form factor fits standard machine cabinet cutouts without the structural modifications a larger panel would require, which matters when retrofitting existing enclosures on a production schedule.

Machine tool and metal fabrication environments use it for program selection, spindle speed adjustment, and production statistics display. Integration with Schneider M241 and M251 compact PLCs via Ethernet or serial COM makes it a natural fit for controls engineers already standardized on Schneider's compact automation line.

The Class I Division 2 Groups A, B, C, D hazardous location suitability opens the HMIGTO5310 to petroleum, chemical, and grain processing monitoring applications where displaying sensor data, pressure trends, and shutdown commands without a fully explosion-proof enclosure is a cost-saving factor.

Application Typical Deployment
Food and Beverage Production Flush-mounted in filling line cabinet; operator recipe selection and alarm acknowledgement; IP65 rated for spray cleaning
Packaging Machinery Machine cabinet front panel; package counter display, mode selection, emergency stop access
Retrofit of Legacy PLC Cabinet Direct replacement of older Magelis or hardwired pushbutton panel; 259 x 201 mm cutout reuse
Hazardous Area Monitoring Class I Division 2 indoor installation; temperature, pressure, flow display without explosion-proof housing
OEM Machine Control Panel Integrated into machine front door; connected to Schneider M241/M251 via Ethernet for end-customer operator interface
Multi-Station Production Cell Daisy-chained via Ethernet to coordinate display between machines in a production cell

Key Specifications for Purchase Decisions

Parameter Value
Display Size 10.4 inches diagonal, TFT LCD backlit color
Resolution 640 x 480 pixels (VGA), 65,536 colors
Touch Panel Type Resistive film, 1,024 x 1,024 grid, 1 million cycle rating
Backlight Life 50,000 hours at 25°C ambient
Power Supply 24 VDC nominal (range 19.2–28.8 VDC)
Inrush Current Up to 30A peak at power-on
Continuous Power Draw Up to 17W (backlight on); 7W (backlight off)
Panel Cutout Dimensions 259 x 201 mm (+1/−0 mm), 1.6–5 mm mounting margin
Overall Depth 57 mm from mounting face to rear connector
IP Rating (Front / Rear) IP65 front (IEC 60529) / IP20 rear

Full technical specifications are available on the product page at LeadTime.ca.

HMIGTO5310 vs. HMIGTO5315 and Alternatives: Which One Do You Actually Need?

Model Display Size Resolution Key Difference Best For
HMIGTO5310 10.4 inches 640x480 VGA Compact footprint; resistive touch; dual COM ports Retrofit cabinets, tight spaces, legacy PLC integration
HMIGTO5315 12.1 inches 800x600 SVGA Larger screen; higher pixel density; improved readability High-volume data display, improved operator visibility
Siemens KTP700 7 inches 800x480 Smaller form factor; different software ecosystem (TIA Portal) OEMs committed to TIA Portal environment
AB PanelView Plus 7 / 10 / 15 inches VGA/XGA Proprietary software; different power architecture ControlLogix integrated environments
Mitsubishi GOT 10.4 inches 640x480 Melsec PLC integration focus Mitsubishi automation ecosystems

If your operator interface requirements point to the 12.1-inch HMIGTO5315 — larger process graphics, more on-screen data, or better readability at distance — that model should be confirmed before the purchase order is issued. Check current availability and confirm the right model at LeadTime.ca.

Expert Verdict: Is the HMIGTO5310 Worth Buying in Today's Market?

The HMIGTO5310 earns its place in the Harmony GTO family by doing exactly what a mid-tier machine HMI needs to do — reliably, in harsh environments, with a touch panel rated for 1 million cycles and an IP65 front rating that holds up in food and beverage washdown conditions. It is the right choice for controls engineers retrofitting legacy Magelis or hardwired pushbutton cabinets into modern touchscreen interfaces, for machine builders standardized on Schneider M241 or M251 compact PLCs, and for OEMs designing equipment panels that need to pass Class I Division 2 Groups A, B, C, D hazardous location requirements without a fully explosion-proof enclosure. The 50,000-hour backlight lifespan at 25°C translates to years of continuous operation before maintenance is required — a practical advantage in 24/7 production environments.

The honest limits of this panel are real and worth naming. The 640x480 VGA resolution, while functional, shows its age when compared to the 800x600 SVGA of the HMIGTO5315 or newer Harmony CP6 terminals. Text and complex process graphics can feel cramped on a 10.4-inch display at that pixel density, particularly for operators viewing from more than arm's length. The resistive touch response requires deliberate firm pressure — not the light tap that capacitive screens accept — which creates a training curve for operators transitioning from consumer-style interfaces. Engineers evaluating the HMIGTO5310 for a new greenfield facility with no existing Schneider tooling investment should seriously evaluate the Harmony CP6 or HMIKPC families before committing; the newer terminals offer faster processors, more modern UI frameworks, and better long-term software support trajectories.

From a procurement standpoint, the critical action before issuing any purchase order is confirming lead time in writing with your authorized distributor. Under normal North American stocking conditions, lead times run one to two weeks — but this can extend to four to eight weeks or more depending on distributor inventory levels. Cabinet cutout dimensions (259 x 201 mm, +1/−0 tolerance) and the 30A inrush breaker requirement must be verified before the panel arrives on site, not during commissioning. Buying through an authorized specialist distributor rather than a generic marketplace also protects warranty coverage and gives you access to technical support during installation. View current pricing and availability for the HMIGTO5310 at LeadTime.ca — we ship worldwide and can confirm lead times before you commit your project timeline.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the HMIGTO5310

Community forum activity around the HMIGTO5310 and the broader Harmony GTO family is sparse — this is a mature panel with a stable, established user base that tends to validate specifications through direct distributor contact and manufacturer documentation rather than public forum discussion. That makes specialist distributor advice more important, not less. The following guidance reflects the ordering mistakes and technical constraints that come up consistently when engineers specify this model without a full pre-purchase checklist.

The most common sourcing error is ordering the HMIGTO5310 when the application actually requires the HMIGTO5315. The 10.4-inch versus 12.1-inch distinction sounds minor until a technician realizes the cabinet cutout was designed for the larger model, or that the operator data layout requires the additional screen real estate that 800x600 SVGA provides. Printing spec sheets at 1:1 scale and overlaying them on the cabinet opening before ordering is a practical step that prevents a costly return and reorder cycle.

The 30A inrush current requirement at power-on catches engineers who size the distribution breaker for the 17W continuous draw instead. A breaker sized for continuous load will trip on every power-on event and prevent the panel from starting — an embarrassing and disruptive failure mode during commissioning. Additionally, the resistive touch response requires operator training: the panel is not defective when it does not respond to a light finger tap. It requires firm, deliberate pressure, which is a design choice for industrial glove compatibility and contamination resistance, not a performance shortcoming. Setting operator expectations before commissioning prevents unnecessary service calls. Buyers who need real-time guidance on these specifications before placing an order are better served by a specialist distributor who validates requirements at point of sale.

Wiring and Installation Overview

The following covers the key requirements for mounting and connecting the HMIGTO5310. Full installation procedures are detailed in the Schneider Electric official product documentation.

  • Panel cutout must be exactly 259 x 201 mm (+1/−0 mm) with 1.6 to 5 mm margin on all sides for the mounting gasket; verify before cutting
  • Four screw clamps secure the panel flush from the front into enclosure types Type 1, 4X, or Type 13; tighten evenly to maintain IP65 gasket compression
  • 24 VDC supply must be wired through a breaker or contactor rated for 30A inrush current — do not size for the 17W continuous draw only
  • Communication cables (Ethernet, USB, or serial COM) route from the rear panel (IP20); conduit or cable management is required in contaminated or wet environments
  • After first power-on, confirm backlight activates, boot sequence completes within approximately 10 seconds, and resistive touch responds at center and all four corners of the display

Wrong-Part Prevention Checklist

Before issuing the purchase order for the HMIGTO5310, verify each of the following against your project documentation:

  1. Confirm cabinet front cutout dimensions match HMIGTO5310 mounting requirements (259 x 201 mm panel opening)
  2. Verify 24 VDC power supply rated for at least 30A inrush current draw
  3. Confirm at least one COM interface (Ethernet / USB / serial) matches your PLC output port type
  4. Check software (EcoStruxure Machine Expert or equivalent) license for HMIGTO5310 support
  5. Verify IP65 front-panel rating sufficient for washdown / moisture environment (if required)
  6. Confirm not confusing HMIGTO5310 (10.4-inch VGA) with HMIGTO5315 (12.1-inch) or older Magelis models
  7. Verify NEMA 4X indoor-use rating acceptable (not outdoor or non-classified hazardous areas)
  8. Check whether Class I Division 2 hazardous location suitability is required (HMIGTO5310 suitable for Groups A, B, C, D)

If any item on this checklist cannot be confirmed from your current project documentation, contact the LeadTime.ca team before ordering — our specialists can validate specifications against your system before the purchase order is issued.

Frequently Asked Questions

What lead time should I plan for when ordering the HMIGTO5310 from a North American distributor?

Under normal stocking conditions, authorized North American distributors typically carry the HMIGTO5310 with one to two week lead times. However, inventory levels fluctuate, and specialty or low-stock distributors may quote four to eight weeks. Always confirm lead time in writing before committing your project schedule — do not assume in-stock status from a website listing alone.

Can operators wearing heavy gloves use the HMIGTO5310 resistive touch panel reliably?

Yes, but with caveats. The resistive panel responds to firm physical pressure rather than electrical capacitance, which means it can be operated with gloved hands or a stylus — an advantage in food production and manufacturing environments. Operators accustomed to capacitive touchscreens will need to adjust to applying deliberate, firm pressure rather than light taps. A stylus or hard-tip glove improves accuracy for operators with thick or insulated gloves.

Does the HMIGTO5310 require a Schneider PLC, or can it communicate with other controllers via Ethernet?

The HMIGTO5310 supports communication via Ethernet, USB 2.0, and dual serial COM ports (COM1 and COM2, configurable for RS-232 or RS-485). The industrial protocol stack on the Ethernet port and the legacy protocol support on the serial COM ports allow communication with non-Schneider controllers, subject to software configuration and protocol compatibility. Verify your specific PLC protocol against HMIGTO5310 supported driver list in EcoStruxure Machine Expert before ordering if a non-Schneider controller is involved.

Is the HMIGTO5310 still worth specifying for a new machine build, or should I move to a newer Harmony terminal?

For retrofit projects replacing existing Magelis or hardwired pushbutton cabinets with a matching 259 x 201 mm cutout, or for machine builders already standardized on Schneider M241/M251 PLC tooling, the HMIGTO5310 remains a cost-effective, proven choice. For new greenfield builds with no existing Schneider ecosystem investment, it is worth evaluating the Harmony CP6 or HMIKPC terminals, which offer more modern processors and UI frameworks. The decision should be driven by whether the 640x480 VGA resolution meets operator display requirements and whether the existing software environment supports the HMIGTO5310 without additional licensing cost.

What is the difference in cabinet footprint and screen size between the HMIGTO5310 and the HMIGTO5315?

The HMIGTO5310 has an overall panel size of 272.5 mm W x 214.5 mm H and requires a 259 x 201 mm cutout. The HMIGTO5315 uses a 12.1-inch display at 800x600 SVGA resolution and requires a different, larger cutout — confirm HMIGTO5315 dimensional data from the manufacturer datasheet before choosing. If your existing cabinet was built for a 10.4-inch panel, the HMIGTO5310 cutout dimensions are the governing constraint for direct replacement.

Why Order from LeadTime.ca

  • Authorized distributor network access — correct model, confirmed lead time, full warranty coverage
  • Ships worldwide — not restricted to any single region or country
  • Technical validation at point of sale — specialists confirm power, cutout, and interface requirements before shipment
  • Volume pricing available — contact for project quantities or multi-unit orders
  • Hard-to-find and short lead time parts — distributor sourcing for urgent production requirements

At-a-Glance Summary

  • 10.4-inch TFT LCD display, 640x480 VGA resolution, 65,536 colors
  • Resistive touch panel rated for 1 million operating cycles
  • IP65 front panel per IEC 60529; IP20 rear; NEMA 4X indoor-rated front
  • 24 VDC power supply (19.2–28.8 VDC range); up to 30A inrush current at power-on
  • Continuous power draw up to 17W (backlight on); 7W (backlight off)
  • 50,000-hour backlight lifespan at 25°C ambient
  • Panel cutout: 259 x 201 mm (+1/−0 mm); overall depth 57 mm; weight 2 kg
  • Interfaces: Ethernet, USB 2.0, COM1 (RS-232/RS-485), COM2 (RS-232/RS-485)
  • Internal lithium battery: 100-day RAM retention, 10-year design life
  • Class I Division 2 Groups A, B, C, D hazardous location suitability
  • Programmed via EcoStruxure Machine Expert; multilingual font support including ASCII, Simplified and Traditional Chinese, Korean, and Japanese
  • Step-up alternative: HMIGTO5315 (12.1 inches, 800x600 SVGA)
