Schneider Electric HMIG3U — Harmony GTU Base Unit Buying Guide

By Abdullah Zahid
16 min read

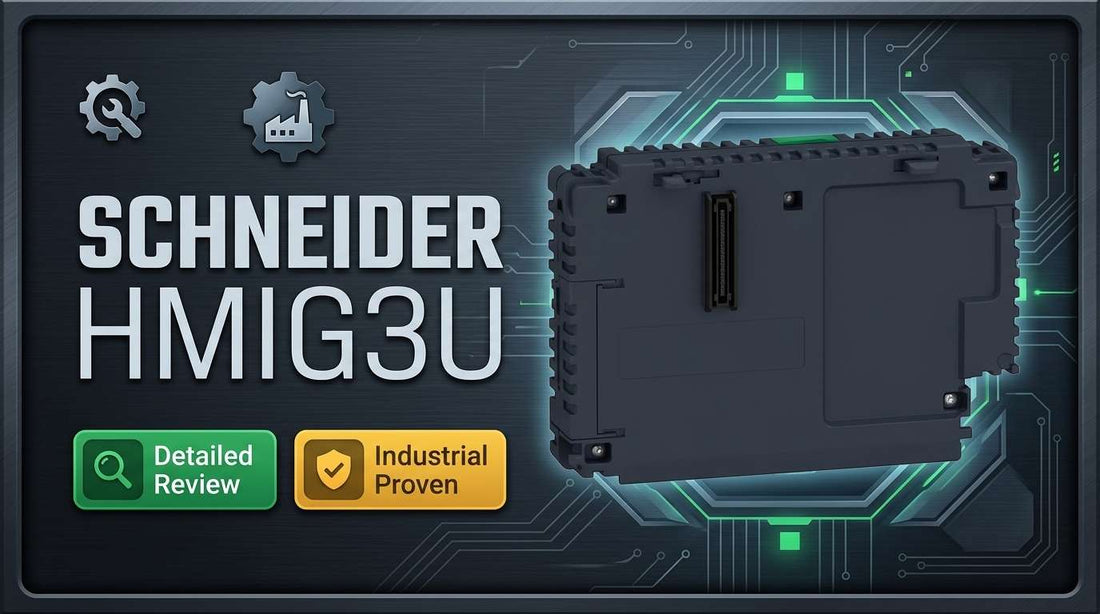

Schneider Electric HMIG3U Harmony GTU premium box base unit for modular industrial HMI control systems

Schneider Electric HMIG3U Base Unit, Harmony GTU, Premium Box, 1GB SD Card: Specifications, Alternatives, and Buying Guide

Controls engineers and systems integrators searching for the Schneider Electric HMIG3U are typically at the final stage of a build decision — they have identified the Harmony GTU modular architecture as the right fit and need to validate that this specific base unit matches their panel, power supply, and environment before committing to a purchase order. The HMIG3U is the compute and connectivity core of the Harmony GTU HMI system: a RISC-based CPU module with 256 MB RAM, a 1 GB SD card, natural convection fanless cooling, Ethernet and RS485 connectivity, and a 12–24 VDC power input — sold separately from the touchscreen panel it drives.

If you have already confirmed this is the correct part for your system, check current pricing and availability for the Schneider Electric HMIG3U at LeadTime.ca — ships worldwide.

Who Should Buy the HMIG3U — and Who Shouldn't

The HMIG3U is the right choice for integrators and OEMs building or upgrading operator interface systems on the Harmony GTU modular architecture. It is the right part if all of the following apply to your project:

  • Your Harmony GTU touchscreen panel is explicitly listed as modular and compatible with a separate base unit — not a monolithic all-in-one terminal
  • Your facility power infrastructure can deliver a regulated 12–24 VDC supply with sufficient current margin for simultaneous panel and CPU boot
  • Your HMI application code and historical logging requirements fit within 256 MB RAM and 1 GB SD card capacity
  • Your connectivity requirements are met by Ethernet (RJ45), RS485 serial, 2 USB host ports, and 1 mini-B USB
  • Your installation environment operates within 32°F to 140°F (0°C to 60°C) with natural convection airflow — no direct chemical spray, condensation, or outdoor exposure

If your environment involves chemical wash-down, high humidity, or condensation risk, the HMIG3UFC conformal-coated variant is required. For outdoor or sub-zero installations, the HMIG3X extreme outdoor variant is the correct specification. For buyers who want a complete all-in-one operator terminal without separate panel selection, the HMIDT series standalone terminals are the appropriate alternative.

On this page:

What the HMIG3U Actually Does in a Control System

The HMIG3U is not a complete HMI terminal — it is the processing and communication engine that makes a Harmony GTU touchscreen panel functional. It runs the HMI application, manages all display refresh and touchscreen interaction logic, handles Ethernet communications to upstream PLCs or MES systems, and maintains the RS485 serial link to legacy field devices. Without the HMIG3U, a Harmony GTU panel is an inert display module. Without the panel, the HMIG3U is a compute module with no operator interface.

This separation is the design's core commercial advantage. An integrator building out a twelve-station production floor can standardize on the HMIG3U as the compute layer and independently select 7-inch or 10-inch GTU panels for each station based on operator space constraints — without re-engineering the base compute architecture. When a panel needs replacement or upgrade, the HMIG3U stays in place. The RISC CPU is specifically optimized for low-latency display and automation response, which translates directly to touchscreen interactions that feel immediate to operators during high-demand moments like fault acknowledgment or setpoint modification.

The fanless natural convection cooling design is a reliability point worth emphasizing to procurement reviewers. Industrial cooling fans are among the most common causes of embedded computer failure in factory environments due to bearing wear and dust accumulation. The HMIG3U eliminates this failure mode entirely — the thermal design relies on passive heat dissipation within the operating temperature window of 32°F to 140°F (0°C to 60°C). The 256 MB internal RAM combined with the 1 GB SD card (with a second SD slot available for expansion) provides adequate capacity for typical HMI application code in the 50–150 MB range, with the SD card supporting multi-week historical logging at standard data acquisition frequencies.

Typical System Architecture for the HMIG3U

The HMIG3U sits between the supervisory control layer and the operator-facing touchscreen, acting as both the display driver and the network endpoint for the HMI node. Here is how a typical deployment chain looks:

  • PLC or DCS controller (Ethernet network) — communicates process data to the HMIG3U via TCP/IP over RJ45 Ethernet connection
  • HMIG3U base unit — runs the HMI application, processes all screen logic, manages the SD card logging buffer, and serves as the Ethernet and RS485 network endpoint
  • Harmony GTU touchscreen panel — physically locked to the HMIG3U via the integrated locking mechanism; receives display data and returns operator touch inputs
  • RS485 serial chain — legacy sensors, variable frequency drives, or Modbus RTU devices connect to the HMIG3U RS485 port in a daisy-chain topology with termination resistors at network ends
  • Engineering workstation or MES server — accesses the HMIG3U via Ethernet for remote diagnostics, application updates deployed over USB or network, and historical data export from SD card

Where the HMIG3U Gets Deployed: Industries and Use Cases

Food and beverage processing facilities represent one of the most common deployment environments for the HMIG3U — particularly where operators need responsive touchscreen control at filling lines, pasteurization stages, or CIP cycle monitoring. The modular design allows facilities to standardize a single CPU module across multiple lines while selecting panel sizes appropriate to each station's enclosure space.

Pharmaceutical and chemical production environments use the HMIG3U for local HMI nodes on batch process equipment, with the RS485 port providing Modbus connectivity to field instrumentation and the Ethernet port linking to historian or SCADA systems. Applications requiring wash-down resistance in these environments must specify the HMIG3UFC conformal-coated variant rather than the standard HMIG3U.

Automotive manufacturing and packaging machinery OEMs embed the HMIG3U as a standardized operator interface across multiple machine platforms. The modular separation of compute and display means OEMs can update or replace the panel component without touching the application code or wiring on the base unit — a meaningful lifecycle advantage in multi-site deployments.

Water treatment and HVAC automation applications use the HMIG3U's Ethernet connectivity to integrate local operator panels into facility-wide supervisory networks, with the SD card providing a local buffer for trend data that survives brief network outages.

Application Typical Deployment
Modular HMI retrofit on existing panel mount HMIG3U replaces legacy operator panel compute module; drives new 7-inch or 10-inch GTU touchscreen on existing enclosure cutout
Multi-line production supervisor Single HMIG3U connected via Ethernet to multiple floor-level PLCs; GTU panel provides centralized monitoring for parallel production lines
Remote diagnostic access node HMIG3U Ethernet port linked through VPN router or cellular gateway; engineering team troubleshoots and adjusts parameters from office or mobile device
Legacy Modbus serial retrofit HMIG3U RS485 port connects via shielded twisted-pair to Modbus sensors and VFDs; translates serial data to Ethernet historian
Distributed historical data archival HMIG3U SD card captures trend data 24/7 at standard logging frequency; data exported periodically to workstation via USB
Pharmaceutical batch process HMI HMIG3UFC conformal-coated variant installed at reactor vessel; RS485 to field instruments, Ethernet to batch historian

HMIG3U Specifications and Variant Comparison

Parameter Value
CPU Architecture RISC-based processor, optimized for low-latency HMI display and automation response
RAM 256 MB internal — no user upgrade path
Storage 1 GB SD card; 2 SD card slots (one pre-installed); industrial-grade SD cards recommended
Operating Voltage 12–24 VDC (DC only; no AC input option)
Connectivity Ports Ethernet RJ45, RS485 serial, 2 USB host ports, 1 mini-B USB service port
Cooling Method Natural convection (fanless) — no moving parts; requires unobstructed airflow
Operating Temperature 32°F to 140°F (0°C to 60°C)
Storage Temperature -4°F to 158°F (-20°C to 70°C)
Humidity Non-condensing — standard variant not suitable for direct steam or chemical spray
Carbon Footprint 1,293 kg CO2 eq total life cycle (Schneider Electric official environmental data)

Full technical specifications are available on the product page at LeadTime.ca.

Variant HMIG3U HMIG3UFC HMIG3X
CPU and RAM RISC, 256 MB Identical Identical or enhanced
Conformal Coating No Yes — factory applied Yes
Operating Temperature 32°F to 140°F 32°F to 140°F Extended range — to -40°F
Target Environment Standard indoor, dry Chemical spray, washdown, high humidity Outdoor, freezing climates, extreme conditions
Relative Cost Base Estimated +20–30% above base Estimated +40–50% above base
Typical Lead Time 1–2 weeks 4+ weeks (special order) 6+ weeks (special order)
Stock Availability In stock at major distributors Made-to-order Made-to-order

If your installation environment involves any chemical exposure, condensation, or outdoor operation, the standard HMIG3U is not the correct variant — review variant availability and confirm the right specification at LeadTime.ca before placing your order.

Expert Verdict: Is the HMIG3U the Right Base Unit for Your Project?

The HMIG3U is a mature, well-proven modular HMI CPU module that earns its place in manufacturing and processing environments through reliable fanless operation and genuine architectural flexibility. Its RISC CPU delivers low-latency touchscreen response without the overhead of a full integrated terminal, and the separation of compute and display gives OEMs and integrators the freedom to scale panel sizes across multiple stations without revisiting the base compute design. The 256 MB RAM and 1 GB SD card are not industry-maximum figures, but they are adequately sized for the realistic scope of a standard industrial HMI deployment — application code in the 50–150 MB range and multi-week historical logging at normal data acquisition frequencies. The fanless design removes the most common mechanical failure point in embedded industrial computers, and the carbon footprint documentation (1,293 kg CO2 eq total life cycle) supports sustainability reporting requirements that are increasingly standard in pharmaceutical, food, and automotive supply chains.

The limits of the HMIG3U are real and worth stating plainly. It is ecosystem-locked: the base unit functions exclusively with Harmony GTU modular panels and is not compatible with touchscreen panels from other manufacturers. Buyers who have not yet committed to the Harmony GTU architecture should validate that panel commitment before ordering. The 140°F upper operating limit is adequate for most climate-controlled production floors but leaves little margin in environments with significant radiant heat sources — if ambient temperatures approach that ceiling, the HMIG3X or supplemental enclosure cooling should be evaluated. Application code exceeding 150 MB, real-time video rendering, or high-frequency historian logging above 1,000 points per second will exceed the HMIG3U's onboard capacity; those applications require integration with an external historian or edge gateway rather than reliance on the SD card buffer. For buyers who want a factory-tested, pre-integrated all-in-one solution without the separate panel selection step, the HMIDT series standalone terminals eliminate that complexity at the cost of display-size flexibility.

From a procurement standpoint, the standard HMIG3U carries a 1–2 week lead time through authorized distributors and is confirmed in stock across multiple industrial channels. Harsh-environment variants require 4–6 weeks and are made to order — if your project timeline is tight, confirm the variant you actually need before the purchase order is placed, not after. Ordering through a specialist industrial distributor rather than a commodity channel matters here because technical staff can validate your panel model number against the modular compatibility list, confirm which variant your environment requires, and flag lead-time risk on HMIG3UFC or HMIG3X orders before they delay your commissioning schedule. Check current availability for the Schneider Electric HMIG3U at LeadTime.ca — we ship worldwide and can confirm variant stock before you commit.

For volume pricing, project-specific lead time confirmation, or help validating which HMIG3U variant your environment requires, contact the LeadTime.ca team directly — we ship worldwide and respond quickly to project-critical sourcing requests.

What Engineers Need to Know Before Ordering the HMIG3U

The HMIG3U is a specialized B2B module — it sits inside control cabinets and behind operator panels rather than in the hands of end users, which means public forum discussion of this specific catalog number is sparse. What does exist in the broader Harmony GTU community and in distributor support queues points consistently to the same category of ordering error: buyers who correctly identify the HMIG3U as the right product family but do not confirm the panel-to-base-unit compatibility step before ordering. The consequence is arriving on-site with a compute module that cannot interface with the existing or newly ordered touchscreen panel because the panel is a monolithic integrated unit, not a modular GTU panel that accepts a separate base unit. That error adds 30–50 days to the project schedule while the hardware is returned and the correct configuration is sourced.

A secondary pattern that appears in distributor support discussions involves power supply sizing. The HMIG3U and GTU panel draw current simultaneously during boot, and integrators who specify a power supply sized only for the base unit — without accounting for panel startup current — encounter brownout-triggered CPU halts or SD card file system corruption during the first power-on test. The correct approach is to calculate the combined current demand of the HMIG3U plus the GTU panel, then apply a 20% margin above that figure when specifying the 12–24 VDC regulated supply. Industrial DC supplies rated 5–8A at the specified voltage are appropriate for most single-station deployments.

RS485 termination errors are the third most common commissioning issue reported for this type of serial HMI deployment. Technicians unfamiliar with RS485 network topology either install termination resistors at every device node or omit them entirely. Both configurations produce sporadic Modbus read timeouts and intermittent device drop-off that are difficult to diagnose without an oscilloscope or network analyzer. The correct configuration places a single 120-ohm termination resistor only at the physical ends of the RS485 chain — the HMIG3U port end and the last device in the serial loop. When community data is thin for a specific catalog number, the right move is to consult a specialist distributor whose technical team has handled these integration scenarios directly. That conversation before ordering is worth more than troubleshooting documentation after a failed commissioning attempt.

Wiring and Installation: What to Verify Before You Commission

  • Confirm your DC power supply is regulated 12–24 VDC with sufficient current capacity for simultaneous HMIG3U and GTU panel startup; verify polarity at supply terminals with a multimeter before connecting
  • Ethernet connection uses a standard CAT5e or higher shielded RJ45 cable from the HMIG3U to your PLC, industrial switch, or SCADA gateway; verify IP address configuration matches your network topology before powering on
  • RS485 wiring requires shielded twisted-pair cable in a daisy-chain topology; install a 120-ohm termination resistor only at the two physical ends of the network chain (HMIG3U port and last downstream device) — not at intermediate nodes
  • USB host ports connect external storage or programming devices; mini-B USB port is reserved for service and debug access; confirm cable types are available before on-site installation
  • The premium box locking mechanism must fully engage with the Harmony GTU touchscreen panel before applying power; verify mechanical alignment and confirm no gaps between mating surfaces; natural convection cooling requires unobstructed airflow around the enclosure — avoid tight cable bundling directly against the housing

Compatible Modules and System Expansion

The HMIG3U is designed as the compute foundation within the Harmony GTU modular ecosystem. The following components are part of the compatible system architecture for a complete and expandable deployment:

  • Harmony GTU touchscreen panels (modular variants, 7-inch and 10-inch form factors) — pair directly with the HMIG3U via the integrated locking mechanism; confirm panel model is listed as modular and base-unit compatible in Schneider documentation
  • Second SD card slot (expansion) — the HMIG3U includes a second SD card slot beyond the pre-installed 1 GB card; industrial-grade SD cards required for reliable 24/7 operation
  • HMIG3UFC — conformal-coated variant of the same base unit for chemical, high-humidity, and washdown environments; CPU and memory specifications are identical to the HMIG3U
  • HMIG3X (Harmony GTUX) — extreme outdoor and extended-temperature variant for installations outside the 32°F to 140°F operating window; sealed connectors and rugged enclosure
  • External VPN appliance or cellular gateway — pairs with the HMIG3U Ethernet port to enable remote diagnostics and parameter access from engineering office or mobile device; not a Schneider Electric component but a standard integration accessory
  • Industrial unmanaged Ethernet switch (5–8 port) — required for multi-panel supervisory architectures where a single HMIG3U aggregates data from multiple distributed GTU panels on the same Ethernet segment

Wrong-Part Prevention: Order Verification Checklist

Before submitting your purchase order for the HMIG3U, verify each of the following points. These are the confirmed sources of ordering errors for this catalog number:

  1. Confirm that your Harmony GTU touchscreen panel is compatible with modular base unit design (not a monolithic integrated terminal)
  2. Verify DC power supply capability: unit requires 12-24 VDC input; confirm your power infrastructure matches
  3. Check that your HMI application code size fits within 256 MB RAM + 1 GB SD card; if larger, this model is undersized
  4. Confirm you need a separate base unit (you have a panel) rather than an all-in-one terminal unit
  5. If environment is harsh (chemical spray, high humidity, outdoor) check if HMIG3UFC or HMIG3X variant required instead
  6. Verify USB cable and connectivity port availability on your host PLC/controller for RS485 or Ethernet link
  7. Confirm operating temperature range 32°F to 140°F matches your facility conditions; if outside range, escalate to engineering
  8. Ensure thermal environment supports fanless operation; if ambient heat near 140°F or airflow blocked, cooling may be inadequate

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — our technical staff can validate your panel model number against the Harmony GTU modular compatibility list and confirm which variant your environment requires.

Frequently Asked Questions

Can the HMIG3U be used with a touchscreen panel from a different manufacturer?

No. The HMIG3U is designed exclusively for use with Harmony GTU modular touchscreen panels within the Schneider Electric product family. The locking mechanism, communication interface, and application software are specific to the GTU architecture. Mixing with non-Schneider panels is not supported and would require custom integration outside the documented system design.

What is the practical difference between the HMIG3U and the HMIG3UFC — and when does the lead time difference matter?

The HMIG3UFC is identical to the HMIG3U in CPU architecture, RAM, and SD card configuration. The only difference is a factory-applied conformal coating that protects the internal electronics from chemical spray, high humidity, and condensation. The standard HMIG3U carries a 1–2 week lead time and is in stock at major distributors; the HMIG3UFC is made to order with a 4+ week lead time. For projects with tight commissioning schedules, specify the correct variant at the time of project planning — not as a corrective action after installation.

Can the 256 MB RAM or 1 GB SD card be upgraded after installation?

No. Memory and SD card capacity are fixed at the factory. There is no user-serviceable upgrade path for internal RAM. The second SD card slot can accept an additional industrial-grade card to expand onboard storage, but the 256 MB internal RAM cannot be increased. Applications requiring more than the available memory must integrate an external historian or edge gateway device.

What does the LED power indicator on the HMIG3U communicate — and what does a red or absent LED mean at startup?

A green LED confirms normal operation after the CPU completes its boot cycle, which typically takes 10–15 seconds after power is applied. A red LED or no LED at startup indicates a power fault or internal component failure. The first diagnostic step is to measure DC voltage at the supply terminals with a multimeter to confirm the regulated 12–24 VDC input is present and at the correct polarity. If voltage is confirmed correct but the LED remains red or absent, disconnect power and contact Schneider Electric technical support or your authorized distributor.

Does the HMIG3U support MQTT or OPC-UA natively for IIoT integration?

No. The HMIG3U's standard Ethernet connectivity supports TCP/IP and HTTP protocols. MQTT and OPC-UA protocol conversion requires either an external gateway device or integration through the upstream PLC or SCADA system. For IIoT historian architectures, the recommended approach is to handle protocol translation at the PLC or edge gateway layer rather than relying on the HMIG3U Ethernet port for direct cloud publishing.

What is the expected service life of the HMIG3U in continuous 24/7 factory operation?

The HMIG3U is designed for industrial deployment targeting 7–10 years of service life. The fanless natural convection cooling architecture eliminates the primary mechanical failure point common in industrial computing hardware — fan bearing wear and dust accumulation. The absence of moving parts is a meaningful reliability advantage in environments where annual fan maintenance or unplanned fan-failure replacements are a documented cost in similar embedded compute hardware.

Why Order Through LeadTime.ca

  • Global shipping on industrial automation hardware including the HMIG3U and Harmony GTU product family — no geographic restriction on sourcing
  • Technical staff available to validate Harmony GTU panel compatibility and variant selection before your purchase order is submitted
  • Specialist sourcing for made-to-order variants including HMIG3UFC and HMIG3X — with lead time confirmation before you commit
  • Volume pricing available for OEM and multi-site project orders — contact for current pricing on quantity requirements
  • Fast response on availability inquiries — useful for project-critical sourcing where standard 1–2 week lead time needs confirmation against your commissioning schedule

At-a-Glance Summary

  • The HMIG3U is the compute and connectivity base unit for the Harmony GTU modular HMI system — it is not a standalone terminal and requires a compatible Harmony GTU modular touchscreen panel to form a complete operator interface
  • RISC CPU architecture delivers low-latency HMI display response; 256 MB internal RAM and 1 GB pre-installed SD card (second slot available) support typical application code and multi-week historical logging
  • Power input: 12–24 VDC regulated supply only — no AC input option; calculate combined current demand for HMIG3U plus GTU panel with 20% margin when sizing the supply
  • Connectivity: Ethernet RJ45, RS485 serial, 2 USB host ports, 1 mini-B USB service port
  • Fanless natural convection cooling; operating temperature 32°F to 140°F (0°C to 60°C); storage temperature -4°F to 158°F (-20°C to 70°C)
  • Standard HMIG3U: 1–2 week lead time, in stock at major distributors worldwide
  • HMIG3UFC (conformal coating for chemical/moisture environments): 4+ week lead time, made to order
  • HMIG3X (extreme outdoor, extended temperature to -40°F): 6+ week lead time, made to order
  • Carbon footprint: 1,293 kg CO2 eq total life cycle (Schneider Electric official environmental data)
  • Critical pre-order check: confirm your GTU touchscreen panel is listed as modular and compatible with a separate base unit — not a monolithic integrated terminal
