Schneider Electric HMIGTO6310 — 12.1" HMI Panel Buying Guide

By Abdullah Zahid
14 min read

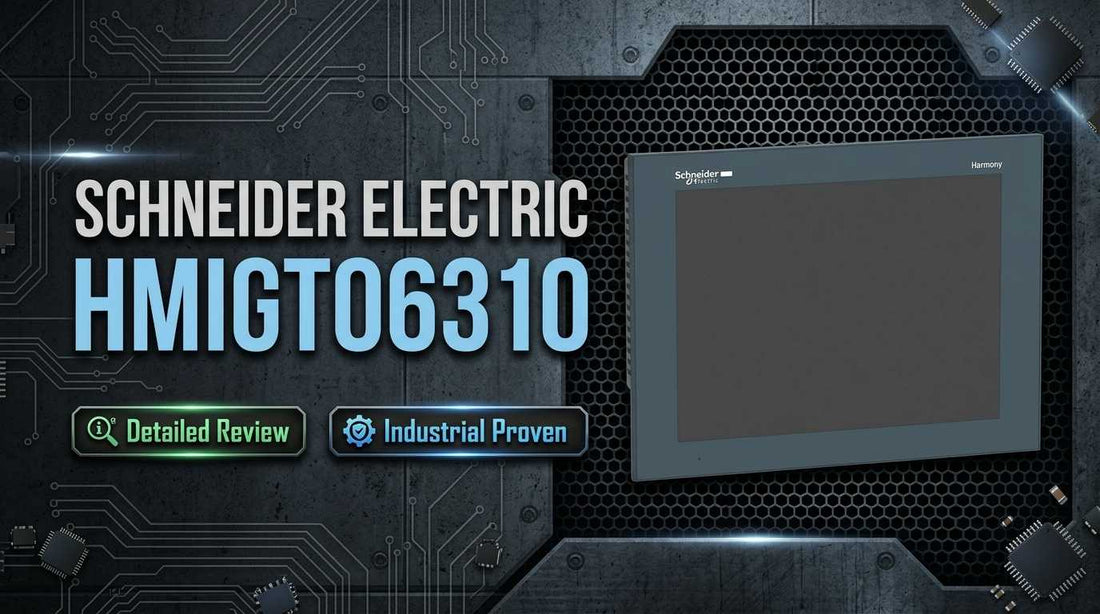

Schneider Electric HMIGTO6310 Harmony GTO 12.1-inch SVGA touchscreen HMI panel for industrial cabinet automation

Schneider Electric HMIGTO6310 Harmony GTO Advanced Touchscreen Panel: Specifications, Pricing, and Alternatives

Controls engineers and machine builders searching for HMIGTO6310 specifications are typically at the final stage of vendor selection — confirming that a 12.1-inch SVGA touchscreen operating on 24 VDC at 17W maximum consumption fits their cabinet design, their compliance requirements, and their Schneider automation ecosystem. The Schneider Electric HMIGTO6310 is a mid-range industrial operator terminal carrying UL 508 and NEMA 4X certifications, built for flush-mount integration into sealed industrial cabinets on material handling lines, packaging machinery, and textile equipment. If the specs align with your project, the next step is straightforward.

If you have already confirmed this is the right part, check current pricing and availability for the HMIGTO6310 at LeadTime.ca — ships worldwide.

Who Should Buy the HMIGTO6310 — and Who Should Not

The HMIGTO6310 is the right operator terminal for engineers and machine builders already working within the Schneider Harmony automation ecosystem who need a sealed, flush-mount 12.1-inch display with low power draw and proven North American compliance certifications. It fits this profile precisely:

  • Your cabinet operates on a stable 24 VDC supply with at least 0.71A available capacity at the panel location (17W maximum consumption must fit the cabinet power budget)
  • Your mounting space accommodates a standard 12.1-inch flush-mount panel depth and cutout
  • Your application requires UL 508 Listed and NEMA 4X certified panel mounting for sealed industrial enclosures
  • Your team holds or can acquire a Vijeo Designer software license — this panel cannot be configured without it, and it is sold separately
  • Your operating environment stays within 0 to 60 degrees Celsius; this panel is not suitable for cold storage, freezers, or heated enclosures
  • Your application uses 800 x 600 pixel resolution adequately — operator workflows with more than five to six complex multi-page screens should be validated at this resolution before committing

If your environment requires wash-down capability or corrosion resistance, the HMIGTO6315 stainless steel variant is the correct choice — not this standard aluminum version. If your installed base runs on a competing automation ecosystem, the software retraining and licensing investment required makes this a harder case to justify.

On this page:

What the HMIGTO6310 Actually Does in a Running System

The HMIGTO6310 is the operator's window into an automated machine. It does not process control logic — that stays in the PLC or controller. What it does is display real-time process data on a 12.1-inch color SVGA TFT touchscreen at 800 x 600 pixel resolution, accept single-touch operator commands, and relay those inputs to the connected control system through configurable industrial communication protocols. In material handling, that means conveyor speed adjustments, divert commands, and fault acknowledgments. On a packaging line, it surfaces line speed, component counts, and changeover procedures. On a textile machine, it manages production parameter display and operator alert management.

The panel draws 17W maximum at 24 VDC, operates from 0 to 60 degrees Celsius, and holds 96 MB of memory. It is flush-mounted into a sealed industrial cabinet and rated NEMA 4X, making it a clean fit for controlled manufacturing environments without additional enclosure hardware. Configuration is done entirely through Vijeo Designer software — this is not a plug-and-play device. The software must be licensed, installed, and configured by a trained engineer before the panel is useful on the floor.

Manufactured in France by Schneider Electric and marketed under both the Harmony GTO and legacy Magelis GTO designations, this panel has an established track record in mid-range industrial automation. The UL 508 listing satisfies North American machine builder safety certification requirements without additional panel modifications.

Where the HMIGTO6310 Sits in a Typical Automation Architecture

The HMIGTO6310 occupies the operator interface layer — between the control system and the human — reading data up from the PLC and sending operator commands back down. Here is how a typical deployment chain looks:

  • PLC or motion controller (Schneider Modicon, or compatible controller configured in Vijeo Designer) sends process data over Modbus RTU, Modbus TCP, or Ethernet to the HMIGTO6310
  • The HMIGTO6310 renders that data on its 12.1-inch SVGA TFT display as synoptic views, status indicators, alarms, and parameter readouts configured by the application engineer
  • The operator interacts via single-touch resistive input — speed setpoint changes, recipe selections, fault resets, and mode switches
  • Touch commands are translated back to the PLC as register writes or coil commands through the active communication protocol
  • The entire assembly mounts flush into the sealed industrial cabinet, with 24 VDC power routed to the terminal block and communication cables routed through grommets to maintain NEMA 4X rating

Industries and Applications Where This Panel Is Deployed

Material handling is the primary deployment environment for the HMIGTO6310. On conveyor and sortation systems, the panel serves as the manual intervention point — operators redirect items, adjust belt speeds, and acknowledge faults without needing direct PLC access. The NEMA 4X sealed mounting and 17W power draw make it a practical fit for cabinet-integrated operator stations on sortation networks.

Packaging machinery builders have standardized on panels like the HMIGTO6310 for line speed control, component counting displays, and changeover procedure guidance. The 12.1-inch screen at 800 x 600 pixels provides adequate real estate for multi-parameter views without requiring a premium-tier panel investment.

Textile manufacturing equipment frequently uses this panel tier for production parameter monitoring and alert management, where operators need clear status displays but do not require high-resolution graphics or advanced data visualization. Automotive sub-assembly lines and light industrial kiosk applications also fit this profile, particularly where Schneider Harmony controls are already standardized across the facility.

Application Typical Deployment
Conveyor and sortation systems Flush-mounted in cabinet at manual intervention station; displays item routing status and fault alerts
Packaging machinery Operator station for line speed, component count, and changeover procedure display
Textile manufacturing equipment Production parameter monitoring panel; alert management and operator command input
CNC machine tool interface Job setup and parameter selection panel integrated into machine cabinet
Automated storage and retrieval Central operator terminal for exception handling and manual item redirects
Light assembly and industrial kiosks Sealed cabinet operator interface for assembly instruction display and process confirmation

Key Specifications for Purchase Decisions

Specification HMIGTO6310 Value
Screen Size 12.1 inches
Display Type Color SVGA TFT touchscreen
Resolution 800 x 600 pixels
Input Power 24 VDC
Nominal Current 0.71 amperes
Maximum Power Consumption 17 watts
Memory Capacity 96 MB
Operating Temperature 0 to 60 degrees Celsius
Certifications UL 508 Listed, NEMA 4X
Configuration Software Vijeo Designer (sold separately)

Full technical specifications are available on the product page at LeadTime.ca.

HMIGTO6310 vs. HMIGTO6315 and Primary Alternatives

The most frequent selection error within this product family is ordering the HMIGTO6310 when the application requires the HMIGTO6315. The difference is the enclosure material: the HMIGTO6315 is the stainless steel variant, carrying the same 12.1-inch SVGA display, 24 VDC, 17W power profile, UL 508, and NEMA 4X certifications — but built for food processing, wash-down, and corrosive environments where the standard aluminum construction of the HMIGTO6310 will corrode and fail. If your application involves any wash-down cycle or food-contact proximity, the HMIGTO6315 is the correct part, not this one.

For buyers evaluating cross-ecosystem alternatives, the picture is more complex. Competing panels from other major automation manufacturers offer comparable display tiers but require entirely different software ecosystems — meaning a switch away from Vijeo Designer involves retraining engineers, re-licensing software, and rebuilding application configurations from scratch. That investment is justified only when the installed PLC base is already committed to a different ecosystem and Schneider integration would introduce more complexity than it solves.

Product Display Power Certifications Ecosystem Primary Use
HMIGTO6310 12.1" SVGA TFT touch 24 VDC, 17W UL 508, NEMA 4X Vijeo Designer / Harmony Material handling, packaging
HMIGTO6315 12.1" SVGA TFT touch (stainless) 24 VDC, 17W UL 508, NEMA 4X, stainless construction Vijeo Designer / Harmony Food, wash-down, corrosive environments
Siemens KTP400 Mobile 4" TFT touch 24 VDC CE marked, IP65 TIA Portal / SIMATIC Mobile and portable operator stations
Allen-Bradley PanelView 7" or 10" touch 24 VDC UL 508, IP65/67 Studio 5000 / ControlLogix North American OEM standard
Generic Linux HMI 10"–15" touch 12–24 VDC Variable Open-source (Qt, custom) Cost-sensitive or custom builds

If your environment requires stainless steel construction for wash-down or food processing, the HMIGTO6315 is the correct part — check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the HMIGTO6310 Right for Your Application?

The HMIGTO6310 earns its place in mid-range industrial automation by doing the fundamentals well and consistently. The 12.1-inch SVGA TFT display at 800 x 600 pixels covers the majority of operator task sets at this tier — conveyor fault acknowledgment, packaging line parameter adjustment, textile machine alert management — without overengineering the interface layer. The NEMA 4X sealed flush-mount design and 17W maximum power draw simplify cabinet integration: the power supply sizing math is straightforward, the enclosure modification requirements are standard, and the UL 508 listing satisfies North American machine builder certification requirements without additional work. Manufactured in France with an established supply chain, this is not a speculative product — it is a mature, documented platform with a known integration path. The buyer who benefits most is the machine builder or systems integrator already standardized on Schneider Harmony controls, designing new material handling or packaging equipment where sealed cabinet integration is a requirement and operator interface complexity stays within the bounds of what 800 x 600 pixels handles comfortably.

The honest limits are worth naming. If your display requirement exceeds 12.1 inches or your operator workflow genuinely needs more than 800 x 600 resolution to display complex multi-page interfaces without cramped fonts and overcrowded touch targets, you are looking at the wrong panel tier — step up to a larger Schneider GTO panel rather than forcing a compromised interface onto this screen. If your environment involves wash-down cycles, food contact proximity, or corrosive atmospheres, the HMIGTO6310 aluminum construction will fail; the HMIGTO6315 stainless variant exists precisely for that situation. And if your installed control base runs on a different ecosystem entirely, the retraining and Vijeo Designer licensing costs that accompany this panel can exceed the hardware cost on a first project — that is a real project budget consideration, not a hypothetical one.

On the procurement side, the variable that most commonly disrupts project timelines is not panel availability — it is Vijeo Designer software licensing arriving after the hardware, with a trained configuration engineer not yet identified. Treat the software license and configuration resource as critical path items, not afterthoughts. Typical in-stock lead times run one to three weeks; special order or backorder situations extend to four to eight weeks. Ordering through a specialist distributor who can confirm panel availability, validate variant selection before shipment, and advise on Vijeo Designer licensing alongside the hardware order is the difference between a smooth commissioning and an avoidable delay. Check current pricing and stock status for the HMIGTO6310 at LeadTime.ca — the team ships worldwide and can advise on Vijeo Designer procurement alongside the panel.

For volume pricing or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide and can advise on both hardware and software licensing timelines.

What Engineers Need to Know Before Ordering the HMIGTO6310

The HMIGTO6310 is deployed almost exclusively through professional system integrator channels and Schneider partner networks — not consumer electronics retailers or open developer communities. That means the body of public troubleshooting discussion, forum threads, and peer ordering advice that surrounds more broadly distributed industrial products simply does not exist for this model. Engineers searching for HMIGTO6310 community reviews or comparison threads will come up empty. What exists instead is a set of well-documented procurement and integration traps that specialist distributors encounter repeatedly, and that are worth surfacing here as authoritative guidance rather than leaving buyers to discover them mid-project.

The most consequential trap is the Vijeo Designer licensing gap. The HMIGTO6310 hardware ships and arrives on schedule. The software license — required before the panel can be configured for any specific application — is treated as a separate procurement line item by most buyers, and it frequently lags the hardware order. On projects where the commissioning engineer is identified late, or where software licensing is handled by a different procurement team than the hardware order, the result is a panel sitting in the cabinet fully wired but entirely non-functional while the software and training resources catch up. This is not a theoretical risk; it is the most predictable single point of failure in HMIGTO6310 project timelines, and it is entirely preventable by treating software as critical path from day one.

A second recurring issue is the power supply sizing gap. At 17W maximum consumption and 0.71A nominal current draw, the HMIGTO6310 appears modest in cabinet power budget calculations. The mistake is omitting the maximum figure from the total load calculation and applying no safety margin — leaving the 24 VDC supply undersized under full cabinet load. Voltage droop at the panel location produces symptoms that look like hardware defects: flickering display, intermittent touchscreen response, and communication drops with the PLC. Adding the full 17W to the cabinet power budget with a 20-percent safety margin at the design stage eliminates this failure mode entirely. Specialist distributor advice at the point of order — confirming power supply capacity alongside panel selection — is the practical check that general-purpose electronics distributors rarely provide.

Installation and Wiring Overview

The HMIGTO6310 requires a standard flush-mount cabinet cutout and a flat, structurally sound mounting surface. Physical installation and wiring should be performed by a qualified industrial electrician or controls engineer following the manufacturer's full technical documentation. Key points to verify before and during installation:

  • Confirm the cabinet cutout dimensions match the HMIGTO6310 flush-mount specifications before cutting; consult the manufacturer datasheet for exact tolerances
  • Install the mounting bracket and gasket seal per manual specifications to maintain NEMA 4X rating; uniform gasket compression around the full panel perimeter is required for sealed operation
  • Route 24 VDC power to the terminal block per the wiring diagram; verify supply voltage stability at the panel location under full cabinet load before energizing
  • Connect communication cables (Modbus serial or Ethernet, depending on the configured protocol) through approved grommets or pass-throughs to maintain the enclosure IP rating
  • After physical installation, verify the Class 2 electrical rating requirements are met by the 24 VDC supply source before commissioning

Wrong-Part Prevention Checklist

Before submitting a purchase order for the HMIGTO6310, verify each of the following points. These are the most common sources of ordering errors and project delays on this panel:

  1. Confirm 24 VDC power supply is stable at panel location with minimum 0.71A (1A recommended) available capacity in cabinet power budget
  2. Verify Vijeo Designer software license is in stock; this panel requires separate software purchase and application engineer or training
  3. Check that target communication protocol (Modbus, Ethernet, serial) matches available PLC or controller outputs; not all protocols are auto-detected
  4. Confirm mounting space allows 12.1" display and standard flush-mount depth (typical industrial cabinet clearance is available)
  5. Verify application operating environment falls within 0-60°C range; this panel is not suitable for coolers, freezers, or heated enclosures
  6. Confirm this is HMIGTO6310 (standard), not HMIGTO6315 (stainless); stainless variant is required for wash-down or corrosive environments only

If any item on this checklist raises a question before your order is placed, contact the LeadTime.ca team — our application specialists can validate compatibility and confirm the correct part before shipment.

Frequently Asked Questions

Do I need to purchase Vijeo Designer separately, and what happens if I do not have a license before the panel arrives?

Yes — Vijeo Designer is sold separately and is not bundled with the HMIGTO6310 hardware. The panel cannot be configured or operated without it. If the software license has not been secured before the hardware arrives, the panel cannot be commissioned regardless of how complete the physical installation is. Treat the Vijeo Designer license as a critical path procurement item with its own lead time, and confirm a trained configuration engineer is available before submitting the hardware order.

Can the HMIGTO6310 communicate with non-Schneider PLCs and controllers?

Communication protocols including Modbus RTU, Modbus TCP, and Ethernet are configurable through Vijeo Designer, which means the HMIGTO6310 can interface with non-Schneider controllers that support those protocols. However, the specific protocol compatibility matrix and configuration complexity for each controller pairing should be verified against the full Vijeo Designer documentation and the target PLC's communication specifications before committing to an integration project. Cross-ecosystem integration is technically possible but adds configuration complexity and engineer time.

What is the realistic lead time for the HMIGTO6310, and how do I avoid a project delay?

In-stock lead times at authorized distributors typically run one to three weeks. Special orders or backorder situations can extend to four to eight weeks depending on regional availability. The safest approach is to confirm stock status with a specialist distributor before finalizing your project timeline — not after the purchase order is placed. LeadTime.ca can confirm current availability and provide a lead time commitment before you commit your commissioning schedule.

Is the HMIGTO6310 suitable for food processing or wash-down environments?

No. The HMIGTO6310 uses standard aluminum construction and is not rated for wash-down, food-contact proximity, or corrosive environments. For those applications, the HMIGTO6315 stainless steel variant is the correct product. Using the standard HMIGTO6310 in a wash-down environment will result in corrosion and premature failure — this is not a marginal risk but a definite outcome.

Is 800 x 600 pixel resolution adequate for complex multi-page operator interfaces?

For the majority of material handling, packaging, and light assembly operator workflows — fault acknowledgment, speed adjustment, recipe selection, production monitoring — 800 x 600 pixels on a 12.1-inch screen is adequate. Where it becomes limiting is in interfaces requiring detailed data visualization, small font sizes across many simultaneous parameters, or more than five to six distinct screen pages with dense touch target layouts. If your design phase produces screen layouts that feel cramped at 800 x 600, that is a signal to evaluate the next screen tier before committing to this panel, not after.

What does the HMIGTO6310's NEMA 4X rating mean for my cabinet installation?

NEMA 4X certifies that the panel, when properly installed with its mounting gasket and securing hardware, provides sealed protection against dust, splashing water, and corrosion from the front face of the panel into the cabinet interior. Maintaining this rating requires correct gasket installation with uniform compression around the full panel perimeter. If the gasket is improperly seated or the mounting screws are not correctly torqued, the NEMA 4X rating is not achieved regardless of the panel's certification.

Why Order From LeadTime.ca

  • Ships worldwide — the HMIGTO6310 is available to machine builders and systems integrators globally, not limited to any single region
  • Specialist industrial distributor with application knowledge to validate variant selection (HMIGTO6310 vs. HMIGTO6315) before shipment, not after
  • Can advise on Vijeo Designer software licensing alongside hardware procurement to keep the critical path on schedule
  • Volume pricing available for OEM and repeat orders — contact the team directly for project quantities
  • Hard-to-source industrial panels in stock or sourced through authorized channels with confirmed lead times before order commitment

At-a-Glance Summary

  • 12.1-inch color SVGA TFT touchscreen at 800 x 600 pixel resolution — established mid-range display tier for material handling and packaging operator interfaces
  • 24 VDC input, 0.71A nominal current, 17W maximum power consumption — requires stable cabinet power supply with minimum 0.71A capacity at panel location
  • 96 MB memory, 0 to 60 degrees Celsius operating range — not suitable for cold storage or heated enclosures
  • UL 508 Listed and NEMA 4X certified — meets North American machine builder compliance requirements for sealed cabinet flush-mount installation
  • Vijeo Designer software required and sold separately — software license and trained engineer are critical path items, not optional add-ons
  • Manufactured in France by Schneider Electric under the Harmony GTO (Magelis GTO legacy) product family
  • HMIGTO6315 stainless steel variant required for wash-down, food processing, or corrosive environments — HMIGTO6310 is standard aluminum only
  • Typical in-stock lead time one to three weeks; four to eight weeks for special order or backorder situations
