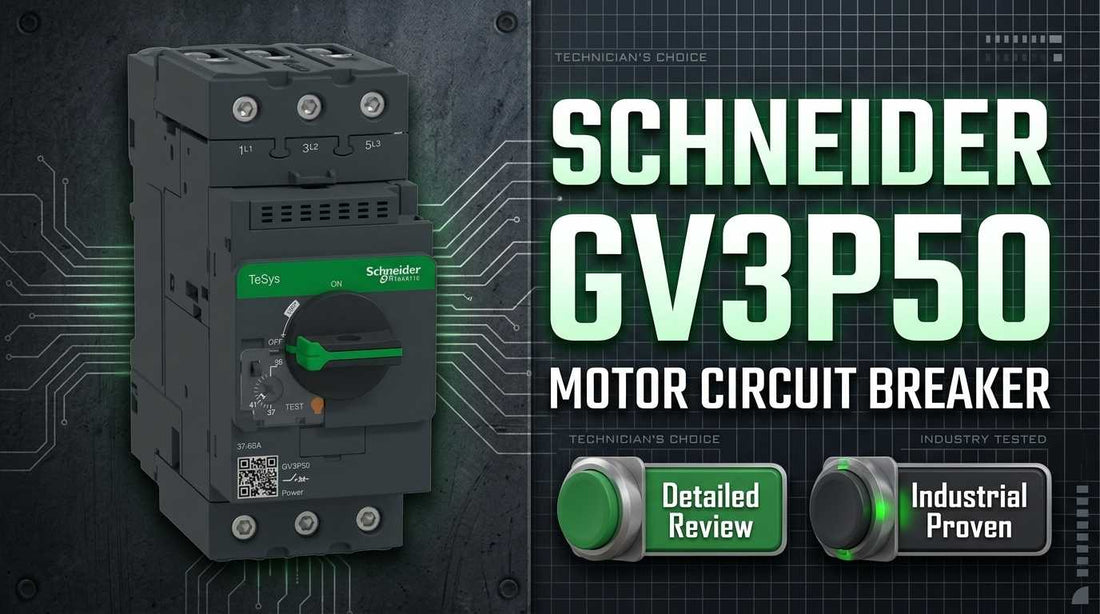

Schneider Electric GV3P50 TeSys Deca manual motor starter on DIN rail in industrial control panel

Schneider Electric GV3P50 TeSys Deca Manual Starter and Protector — Specs, Buying Guide, and Honest Assessment

If you have already identified the Schneider Electric GV3P50 as your motor starter candidate and need to confirm it fits before committing to an order, you are in the right place. The GV3P50 is a three-phase manual motor starter with integrated thermal-magnetic protection, covering a rated current range of 37–50A at 600V or 690V AC — designed for standard induction motor circuits from 3 hp to 40 hp where manual on/off control and automatic fault protection are the primary requirements. This article covers every spec engineers verify before ordering, an honest comparison against alternative models, and the ordering realities you need to know before your build schedule depends on it.

If you have already confirmed this is the right part, check current pricing and availability for the GV3P50 at LeadTime.ca — ships worldwide.

Who Should Buy the GV3P50 — and Who Shouldn't

The Schneider Electric GV3P50 is the right choice for three-phase motor circuits where manual rotary control and automatic fault protection are sufficient. It fits your application if all of the following are true:

  • Your motor's full-load current falls within the 37–50A range — this is a hard constraint, not a suggestion
  • Your three-phase supply is 600V AC or 690V AC at 50 or 60 Hz
  • The motor is a standard three-phase induction type requiring 3-pole protection
  • Manual rotary knob control at the panel is acceptable — no PLC on/off signaling required
  • Manual reset after an overload trip is operationally acceptable in your facility
  • Your panel has at least 55mm of DIN rail width available with clear rotary knob access

If your motor FLC falls below 37A, look at the GV3P32. If it exceeds 50A, the GV3P63 is the correct choice. If the application requires reversing capability or remote start/stop signaling, the GV3P50 is not the right product — a contactor-plus-overload-relay configuration or the GV3R reversing variant will be needed instead.

On this page:

What the GV3P50 Actually Does in a Motor Circuit

The Schneider Electric GV3P50 serves as the gate device for a three-phase motor circuit — the single component that provides both operator control and automatic fault protection in one 55mm DIN rail package. Turning the front-mounted rotary knob to ON energizes the motor; turning it to OFF de-energizes it. That simplicity is deliberate. This is a manual starter, not a smart relay or contactor block. There is no coil voltage to wire, no auxiliary power supply to manage, and no PLC output card required to operate it.

What makes the GV3P50 more than an isolating switch is its integrated thermal-magnetic protection. The ambient-compensated bimetal overload relay monitors motor current continuously and trips automatically when sustained overload conditions develop — protecting motor windings from heat damage before irreversible burnout occurs. The magnetic trip element handles the other failure mode: short-circuit faults that deliver sudden high-current spikes. At a fixed 700A magnetic trip threshold, the GV3P50 responds to fault conditions in milliseconds, clearing the fault before upstream protection needs to operate.

After a thermal trip, the bimetal element must cool before the knob can be reset. This is by design — it prevents the kind of rapid restart cycling that masks a real motor problem. The manual reset requirement means that every trip event requires a physical operator response, which is both a safety feature and an operational constraint depending on your facility's workflow.

The EverLink BTR connectors deserve specific mention because they address a chronic problem in industrial panel environments: connection creep. Screw terminals in panels subject to thermal cycling and vibration gradually loosen over time, creating intermittent faults that are difficult to trace. EverLink BTR connectors maintain consistent tightening pressure through temperature swings and mechanical vibration, reducing the re-tightening maintenance burden that standard screw terminals impose in pump houses, compressor rooms, and vibrating machine bases.

Where the GV3P50 Sits in a Typical Motor Control Architecture

The GV3P50 sits between the panel's branch circuit protection and the motor terminal box — combining the function of manual disconnect, overload relay, and magnetic trip in a single device mounted on a 35mm DIN rail.

  • Three-phase supply enters the panel from the main distribution block or upstream branch circuit breaker
  • GV3P50 receives incoming power at terminals L1, L2, L3 — it becomes the operator control point and the first line of motor fault protection
  • Load-side terminals T1, T2, T3 feed motor power leads directly to the motor terminal box
  • Optional auxiliary contact modules (where fitted) provide status signal outputs to an indicator light or supervisory system without adding remote control capability to the starter itself
  • The rotary knob with padlock hasp on the front face provides lockout capability for maintenance isolation, satisfying LOTO requirements at the panel without a separate lockable disconnect

Typical Applications and Deployment Scenarios

The GV3P50 is most at home in manufacturing plants and process facilities where motors run predictably, operators are present, and motor circuits do not require remote automation. Pump stations, air handling units, cooling tower fans, conveyor drives, and compressor motors in the 3–40 hp range are textbook deployments. In each case, a qualified operator is available to start, stop, and reset the motor as needed — the manual control model fits the workflow without requiring the additional cost and complexity of a contactor-based system.

Panel builders and OEMs sourcing motor protection for packaged equipment — water treatment skids, HVAC rooftop units, chiller auxiliaries, industrial wash systems — benefit from the compact 55mm footprint, which allows tighter panel layouts without upsizing the enclosure. For facilities already standardized on Schneider Electric motor control, the GV3P50 integrates into the existing maintenance and spare-parts ecosystem without introducing new training requirements or unfamiliar connector systems.

In MRO replacement scenarios, the GV3P50 is frequently specified when a failed manual starter needs to be swapped out during a maintenance window. The standardized DIN rail mounting, screw clamp terminals, and familiar Schneider form factor allow experienced maintenance technicians to complete replacements quickly, minimizing downtime in production environments where every hour of motor downtime has a measurable cost.

Application Typical Deployment
Manufacturing plant motor circuit New panel build or MRO replacement for conveyor, press, or pump motor in 37–50A range
HVAC and building systems Air handling unit fan motor protection in mechanical room panel, manual on/off control
Water and wastewater treatment Pump motor starter in outdoor facility panel (secondary enclosure required for IP20 unit)
OEM packaged equipment Motor protection bundled into skid panel for wash systems, cooling towers, or industrial machines
Food and beverage processing Mixer, conveyor, or fan drive protection where manual control and compact footprint are both required
Spare parts stocking program Facilities maintaining Schneider Electric motor control inventory for predictable maintenance cycles

Key Specifications: What Engineers Verify Before Ordering

Specification Value
Rated Current Range 37–50 A (adjustable within band)
Voltage Rating 600 V AC or 690 V AC, three-phase, 50/60 Hz
Number of Poles 3 (three-phase motors only)
Motor Power Range 3 hp to 40 hp (varies by voltage)
Magnetic Trip Threshold 700 A (fixed, short-circuit protection)
Mechanical Durability 50,000 operating cycles
Electrical Durability 50,000 cycles AC-3 at 440 V
Operating Temperature -20°C to +60°C
Protection Rating IP20 / IK09 (indoor use; not liquid-sealed)
Physical Dimensions 55 mm W x 136 mm D x 132 mm H

Full technical specifications are available on the product page at LeadTime.ca.

GV3P50 vs. Competing Models: Which One Do You Actually Need?

Feature Schneider Electric GV3P50 ABB MS116 Eaton M200D (equivalent)
Current Rating 37–50 A 25–60 A (family) 25–63 A (family)
Primary Voltage 600 V / 690 V AC 690 V AC standard 380–415 V, 600 V options
Reversing Capability No — non-reversing only Yes, reversing variants available Yes, reversing variants available
DIN Rail Width 55 mm 45 mm (more compact) 55 mm
Connector Style EverLink BTR (creep-resistant) Compression ring block terminal Screw terminal
Thermal Trip Type Bimetal, ambient-compensated Bimetal with manual dial Electronic or bimetal
Magnetic Trip Fixed 700 A Adjustable range Adjustable 3–5x rated current
Mechanical Durability 50,000 cycles 50,000 cycles 50,000–100,000 cycles
Power Dissipation 8 W per pole (24 W total) Not specified here Not specified here
Key Differentiator TeSys Deca reliability; EverLink connectors; established North American channel Smaller 45mm footprint; competitive availability Eaton ecosystem integration; strong North American parts support

If your panel layout requires a 45mm footprint and reversing variants matter, the ABB MS116 family deserves a look. If your motor FLC exceeds 50A and you want to stay within the TeSys Deca family, the GV3P63 is the next step up — confirm current availability for all GV3 variants at LeadTime.ca.

Expert Verdict: Honest Assessment for Engineers and Buyers

The Schneider Electric GV3P50 earns its place in motor control panels by doing exactly what it promises without complications. The 55mm DIN rail footprint keeps panel layouts tight, the ambient-compensated bimetal relay handles the thermal protection correctly across temperature swings without constant recalibration, and EverLink BTR connectors genuinely reduce the re-tightening maintenance that plagues conventional screw terminals in vibration-prone environments. With 50,000 mechanical and 50,000 electrical cycles at AC-3 rating, a typical plant maintenance application running one to five manual starts per day can expect a decade or more of service before approaching rated cycle count. This is a well-proven component for facilities standardized on Schneider Electric motor control — maintenance technicians know how it behaves, spare parts are understood, and the commissioning procedure is straightforward.

The real limits are not hidden. The GV3P50 is non-reversing and has no provision for remote or PLC-based start/stop signaling without auxiliary contact additions. If any part of your application requires automated restart, bidirectional motor operation, or VFD integration, this product is not the right starting point. In those cases, a TeSys D contactor paired with an overload relay gives you the control flexibility needed, and the GV3R50 reversing variant addresses the bidirectional use case — at a significantly longer typical lead time of 6–12 weeks where stock is not held. The IP20 rating also means the GV3P50 requires a secondary NEMA 4X or IP66-rated enclosure for any wet, outdoor, or washdown environment. Specifying it into those conditions without that enclosure is a wiring error that creates both safety and maintenance risk.

On the procurement side, the 600V variant of the GV3P50 is generally the stock-friendly choice, with typical availability at 3–5 business days through specialist distributors. The 690V variant moves less volume and can sit on backorder for 4–8 weeks — confirm availability before your build schedule depends on it. Ordering through a specialist industrial distributor rather than a generic channel provides more than just a part number: technical support for motor sizing, current-range verification, and panel integration questions that prevent the most common and costly ordering mistake — specifying the wrong current band. For confirmed availability, current pricing, and lead time on the GV3P50, visit the product page at LeadTime.ca — we ship worldwide.

For volume pricing, project quantities, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we source and ship worldwide.

What Engineers Need to Know Before Ordering the GV3P50

Because the GV3P50 is a mature, standard industrial component with a long product lifecycle, it does not generate significant public discussion in engineering forums. What does exist in the field are predictable, recurring specification errors that experienced technicians and panel builders encounter when motor starters are ordered without a formal verification step. The absence of online troubleshooting threads is not an indication that nothing goes wrong — it reflects that GV3P50 deployment happens inside enterprise environments where internal documentation replaces public discussion.

The most consequential error is current band mismatch. The GV3P50 covers 37–50A. Ordering it for a motor whose nameplate full-load current is 32A means the thermal protection is set too high to trip in time during a winding-temperature event, creating real burnout and fire risk. Ordering it for a motor whose FLC is 55A means the bimetal element will nuisance-trip under normal load. Neither scenario is recoverable by adjusting the thermal dial alone — the wrong model was ordered. A second common error is voltage misidentification: engineers familiar with 480V or 208V North American distribution systems sometimes conflate voltage ratings, and the GV3P50 is specifically rated for 600V or 690V three-phase — not 480V, not single-phase, not DC. Confirming the site supply voltage with a meter before specifying eliminates this error entirely.

The manual reset behavior also creates operational surprises in facilities accustomed to modern thermal overload relays with automatic restart capability. After a thermal trip, the GV3P50 requires a physical operator to rotate the knob — it will not restart automatically after the bimetal cools. In unattended or semi-automated processes, this becomes a production halt until someone physically responds. Documenting this behavior during commissioning and briefing operations staff is a commissioning step that gets skipped more often than it should. When community data is sparse and the spec sheet does not surface these behavioral realities prominently, specialist distributor support is the practical alternative — which is exactly the role LeadTime.ca fills for buyers who need both the part and the application context.

Wiring and Installation Overview

The GV3P50 follows standard three-phase manual starter wiring practice. Engineers requiring full wiring diagrams and step-by-step commissioning procedures should reference the official Schneider Electric GV3P50 installation manual available from se.com. The following overview covers the key verification points before and during installation:

  • Incoming three-phase supply connects to terminals L1, L2, L3; motor power leads connect to outgoing terminals T1, T2, T3 — verify phase sequence matches motor nameplate rotation requirement before energizing
  • Confirm at least 55mm DIN rail width is clear, with sufficient rotary knob clearance and unobstructed terminal access for both the EverLink BTR connectors and any adjacent devices in the panel
  • Thermal overload dial on the front faceplate must be set to the motor's measured or nameplate full-load current — factory default is not guaranteed to match your specific motor; set it before first energization
  • If auxiliary contact modules are fitted for status indication, verify signal wiring is routed separately from power conductors to avoid noise coupling into control circuits
  • After installation and before full load operation, manually cycle the rotary knob through OFF and ON positions at least twice to confirm smooth detent action and verify the reset function operates correctly — a stiff or inconsistent knob movement before load is applied indicates a mounting or alignment issue worth resolving before commissioning

Compatible Accessories and System Expansion

The GV3P50 is designed within the TeSys Deca family to accept compatible accessories for status monitoring and application expansion. Where your application requires indication or supervisory signaling without replacing the manual starter, the following accessories integrate directly:

  • Auxiliary contact modules — add status signal outputs (motor running/stopped indication) for panel indicator lights or supervisory system monitoring without adding remote control capability
  • GV3R50 reversing variant — if the application evolves to require bidirectional motor control, the reversing model in the GV3 series is the upgrade path; note typical lead times of 6–12 weeks where stock is not held
  • GV3P32 (25–32A range) and GV3P63 (52–63A range) — adjacent current band models within the GV3 family for motors whose FLC falls outside the 37–50A window of the GV3P50
  • Secondary NEMA 4X or IP66-rated enclosure — required for any installation in wet, outdoor, or washdown environments given the GV3P50's IP20 rating; not a GV3P50 accessory per se, but a mandatory system component in those applications

Wrong-Part Prevention Checklist

Before placing your GV3P50 order, work through each item below. This checklist reflects the most common specification errors encountered with manual motor starters in this current and voltage class:

  1. CONFIRM AMPERAGE: Check motor nameplate full-load current; verify it falls within 37–50A for GV3P50. Below 37A or above 50A requires different model.
  2. VERIFY VOLTAGE: Confirm local three-phase supply is 600V or 690V AC (not 208V, not 480V single-phase, not DC).
  3. CHECK PHASE CONFIGURATION: This is three-phase (3-pole) only. Single-phase motors or two-pole requirements need different product.
  4. CONFIRM CONTROL LOGIC: Manual rotary knob control meets application needs. If PLC on/off signaling needed, explore magnetic contactor + overload relay alternative.
  5. VALIDATE MOTOR TYPE: Standard induction motor application confirmed. If motor has soft-start, VFD, or special protection already, GV3P50 may be redundant.
  6. CHECK DIN RAIL SPACE: 55mm width available in panel. Verify clearance for neighboring devices and maintenance access.
  7. ENSURE RESET TYPE: Manual reset on overload trip acceptable to operations (vs. automatic reset types).

If any item on this checklist creates doubt about your application, contact the LeadTime.ca team before ordering — we can help confirm the right model and check live availability worldwide.

Frequently Asked Questions

Can I install the GV3P50 on a 480V three-phase system?

No. The GV3P50 is rated for 600V AC or 690V AC three-phase. A 480V system falls below the minimum voltage rating this model is designed and tested for. Using it on a 480V supply is outside the manufacturer's specification. Review the GV3 series lineup for the correct voltage-rated variant or contact your distributor to confirm the appropriate model for your supply voltage.

What happens if my motor's full-load current is 36A — can I still use the GV3P50?

The GV3P50's rated current range starts at 37A. At 36A, the motor FLC falls just outside the lower end of the thermal protection band, meaning the bimetal element will not be correctly calibrated for that load. The GV3P32 (covering 25–32A) or another model covering the 32–40A range within the GV3 family is the correct selection. Ordering the wrong current band creates either under-protection or nuisance tripping — the thermal dial adjustment cannot compensate for a fundamentally mismatched current rating.

How do I reset the GV3P50 after a thermal overload trip?

After a thermal trip, the bimetal element requires a cool-down period before reset is possible. Once cooled, rotate the rotary knob fully to the OFF position, pause for 2–3 seconds, then rotate to ON. Do not force the knob to ON before the bimetal has reset — this will not succeed and repeated forcing can damage the knob mechanism. The manual reset design requires a physical operator response and is intentional; it prevents rapid restart cycling that would mask a persistent overload condition on the motor.

Is the GV3P50 a direct replacement for the older GV3L50?

The GV3L designation refers to an older series generation. The current GV3P series (TeSys Deca) is the modern equivalent, with updated EverLink BTR connectors compared to earlier generations. Functionally, the protection principles are the same. Before swapping, verify the terminal dimensions and connector type match your existing panel wiring to avoid rewiring the enclosure. If panel wiring was sized for the GV3L50's current range, confirm the GV3P50's 37–50A band still matches the installed motor's nameplate FLC.

Can the GV3P50 be used downstream of a VFD or soft-starter?

The GV3P50 can provide upstream isolation and gate protection in a circuit that includes a VFD or soft-starter, but the interaction between the GV3P50's thermal-magnetic protection and the drive's own output characteristics requires careful review. VFDs modify the current waveform in ways that can affect bimetal element behavior. In many VFD applications, the drive's internal motor protection functions replace the need for a downstream thermal-magnetic starter. Consult the specific VFD and soft-starter compatibility documentation before specifying the GV3P50 in that topology.

What does the IP20 / IK09 rating mean for installation environment decisions?

IP20 means the GV3P50 is protected against solid objects larger than 12mm but has no rated liquid ingress protection — it is not splash-proof, drip-proof, or suitable for washdown environments without a secondary enclosure. IK09 is an impact protection rating (protected against 10 joule mechanical impacts). For any installation in a wet, outdoor, or washdown area, the GV3P50 must be mounted inside a separately rated enclosure — NEMA 4X or IP66 minimum — to maintain safe and reliable operation.

Why Order from LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships industrial automation components worldwide, not limited to any single region
  • Specialist stock depth — maintains inventory of GV3 series variants to support MRO replacement and project builds without generic channel delays
  • Application support — technical team available to confirm current band, voltage variant, and accessory compatibility before you commit to an order
  • Volume pricing — quantity breaks available for panel builders, OEMs, and facilities running stocking programs
  • Hard-to-find variants — less common models including higher-current and reversing variants sourced through authorized channels when standard distribution is on backorder

GV3P50 At-a-Glance Summary

  • Rated current: 37–50A adjustable — motor nameplate FLC must fall within this band
  • Voltage: 600V AC or 690V AC, three-phase, 50/60 Hz only
  • Poles: 3 — three-phase induction motors only
  • Motor power range: 3 hp to 40 hp depending on voltage
  • Magnetic trip threshold: 700A fixed — short-circuit protection
  • Mechanical durability: 50,000 cycles; electrical durability: 50,000 cycles AC-3 at 440V
  • Operating temperature: -20°C to +60°C
  • Dimensions: 55mm W x 136mm D x 132mm H — standard 35mm DIN rail mount
  • Connectors: EverLink BTR — creep-resistant under vibration and thermal cycling
  • Protection: IP20 / IK09 — indoor use; secondary enclosure required for wet or outdoor environments
  • Reset type: Manual — operator must physically reset after any overload or fault trip
  • Control: Front-mounted rotary knob with padlock hasp — no remote or PLC control capability
  • RoHS compliant as of 15-Jan-2018; no SVHC substances of concern identified
  • Typical availability: 600V variant usually in stock at 3–5 business days; 690V variant may require 4–8 weeks — confirm before committing to build schedule
