Schneider Electric GV3P40 — Manual Starter Specs & Buyer Guide

By Abdullah Zahid
16 min read

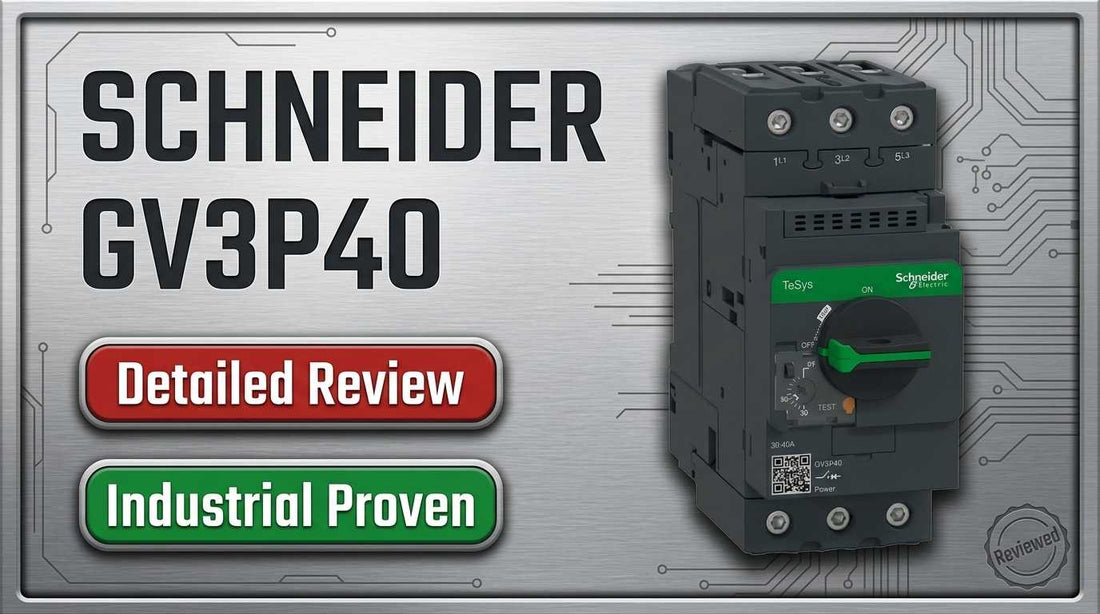

Schneider Electric GV3P40 TeSys Deca 40A 600V manual motor starter and protector for three-phase industrial motor circuits

Schneider Electric GV3P40 TeSys Deca Manual Starter and Protector, Thermal-Magnetic Circuit Protector — Specifications, Selection Guide & Procurement Review

If you are a controls engineer, plant electrician, or procurement specialist trying to confirm whether the Schneider Electric GV3P40 is the right manual motor starter for your three-phase motor circuit, you are in the right place. The GV3P40 is a compact, three-pole thermal-magnetic manual starter and protector from the TeSys Deca family, rated for motor full load currents from 30 to 40 amps at 600 VAC or 690 VAC. It combines manual isolation, motor control, and Class 10 bimetallic overload protection into a single enclosure — eliminating the need for a separate contactor and overload relay in straightforward, non-reversing motor applications.

If you have already confirmed this is the correct part for your application, check current pricing and availability for the GV3P40 at LeadTime.ca — we ship worldwide.

Who Should Buy the GV3P40 — and Who Shouldn't

The Schneider Electric GV3P40 is the right choice for engineers and buyers whose motor circuit meets all of the following conditions:

  • Motor full load current (FLA) falls within the 30–40A adjustable range — verify the motor nameplate, not just the horsepower rating
  • Supply voltage is 600 VAC three-phase (standard North America) or 690 VAC three-phase if the IEC variant is explicitly specified on the order
  • Supply frequency is 50 Hz or 60 Hz (dual-rated)
  • Panel or DIN rail mounting space of at least 55 mm W x 136 mm D x 132 mm H is available
  • Site fault level at the point of installation does not exceed the 50 kA Icu breaking capacity
  • Manual rotary knob control and manual reset after thermal trip are operationally acceptable — no remote or automatic start/stop is required

If your motor FLA exceeds 40A, the GV3P40 cannot be set to protect it — order the GV3P63, GV3P80, or GV3P100 as appropriate. If remote or automatic control is required, the GV3P series is not the right family; look at GV3R models paired with a magnetic contactor instead.

On this page:

What the GV3P40 Actually Does in a Motor Circuit

The Schneider Electric GV3P40 is a three-pole manual motor starter and protector — a category of device that often gets under-specified because buyers focus on horsepower rather than the three protection functions packed into one enclosure. In a single unit, the GV3P40 delivers manual motor isolation (the rotary knob physically disconnects the circuit), motor starting and stopping control, and both thermal and magnetic protection against overload and short-circuit faults.

The thermal protection comes from a Class 10 ambient-compensated bimetallic overload relay, adjustable across the 30–40A range. Class 10 means the relay trips within 5 to 20 seconds at 1,200 percent of its set current — fast enough to protect standard squirrel-cage induction motors through their starting inrush without nuisance tripping. Ambient compensation ensures the trip point stays consistent across the full operating temperature range of -20 to 60°C, so a hot machine room in summer or a cold outdoor cabinet in winter does not shift the relay behavior. After a thermal trip, manual reset is required — there is no auto-restart, which is either a safety feature or an operational constraint depending on your facility's requirements.

The magnetic protection operates instantaneously at 14 times the nominal current setting (14 x In), clearing short-circuit faults up to the rated 50 kA breaking capacity (Icu) at rated voltage. This means the GV3P40 does not need an upstream fused disconnect to provide short-circuit protection in most standard industrial installations — as long as the site fault level stays below 50 kA. At sites where the available fault current exceeds this threshold, upstream protection is required.

The unit is rated for 50,000 operating cycles AC-3, which in a typical industrial motor application running three starts per day translates to decades of service life before mechanical wear becomes a factor. Screw clamp terminals using the Everlink BTR design accept AWG 14–4 copper wire, and the IP20/IK09 finger-safe terminal covers mean the unit can be installed in open panel environments without additional terminal shrouding.

Where the GV3P40 Sits in Your System

The GV3P40 sits directly between the branch circuit supply and the motor terminals, serving as the sole switching, isolation, and protection device for that motor branch — no contactor, no separate overload relay, no fused disconnect required in most applications.

  • Main distribution panel or MCC feeds 600 VAC three-phase power to the branch circuit
  • GV3P40 receives supply at L1, L2, L3 upper terminals — manual rotary knob isolates the circuit
  • Thermal-magnetic protection monitors all three phases simultaneously for overload and short-circuit conditions
  • Motor leads T1, T2, T3 exit the lower terminals and connect directly to the motor terminal box
  • Optional auxiliary contacts on the GV3P40 (if fitted) feed status signals to a control panel, PLC input, or indication lamp

Typical Applications and Deployment Scenarios for the GV3P40

The GV3P40 is most frequently specified for steady-state motor circuits where manual control is intentional — either because the process does not require remote operation, or because simplicity and cost are the dominant design constraints. Water treatment facilities use this starter extensively for pump and blower motor circuits where operators visit the equipment room to start and stop motors during routine shifts. The all-in-one format means a replacement unit is quick to source and straightforward to swap, which is critical in operations where downtime is measured in hours of lost production.

In food and beverage processing, the GV3P40 appears in fan and pump control applications where hygiene concerns make a compact, sealed-terminal format desirable and where motor circuits run continuously once started. Mining and aggregate operations use it for conveyor and compressor starter replacement — often as a direct substitute for aging manual starters where the GV3P40's 50 kA breaking capacity provides a meaningful upgrade over older, lower-rated units.

HVAC system builders favor the GV3P40 for fan and pump motor circuits in mechanical rooms, where the device's operating temperature range of -20 to 60°C covers the full range of plant conditions without derating. Panel builders doing cabinet retrofits use it to consolidate what were previously two-component installations (separate overload relay plus contactor) into a single footprint of 55 mm W x 136 mm D x 132 mm H, recovering panel real estate for other devices.

Emergency replacement is one of the most common buying scenarios for this model. A maintenance team with a failed starter on a critical pump orders the GV3P40 overnight, matching the voltage and current rating on the failed unit's nameplate. In this scenario, having a specialist distributor confirm the motor FLA and voltage variant before shipping is the difference between a successful next-day swap and a second trip to the supply house.

Application Typical Deployment
Water treatment pump motor Panel-mounted GV3P40 on 35–38A pump motor, operator-started each shift
HVAC fan motor control DIN rail-mounted with adapter in mechanical room panel, continuous-duty fan circuit
Food processing conveyor Machine-mounted enclosure, compact footprint replacing contactor plus OLR combination
Mining conveyor starter replacement Direct swap for aged manual starter, 50 kA breaking capacity upgrade at same footprint
Agricultural irrigation pump Panel-mounted at field junction box, seasonal start/stop duty, low cycle count application
Emergency replacement scenario Overnight order to replace failed unit on critical pump; matched to failed unit's nameplate ratings

GV3P40 Key Specifications for Purchase Decisions

Specification Value
Current Rating (Adjustable Range) 30–40A
Voltage Rating 600 VAC (standard) / 690 VAC (variant — specify on order)
Poles 3-Pole, three-phase only
Frequency 50/60 Hz dual-rated
Overload Relay Type Class 10 ambient-compensated bimetallic, manual reset
Magnetic Trip Threshold 14 x In (instantaneous short-circuit protection)
Breaking Capacity (Icu) 50 kA at rated voltage
Motor Power (460V / 575V, 3-phase) 25 hp / 30 hp
Enclosure / Terminal Protection IP20 / IK09, finger-safe screw clamp (Everlink BTR), AWG 14–4
Dimensions (W x D x H) / Weight 55 mm x 136 mm x 132 mm / 3.12 lb (1.41 kg)

Full technical specifications are available on the product page at LeadTime.ca.

GV3P40 vs. the Rest of the GV3P Family: Which Size Do You Actually Need?

The GV3P series covers a wide range of motor sizes within a consistent physical footprint. Every model in the table below shares the same 55 mm x 136 mm x 132 mm housing, the same screw clamp terminal system, and the same 600 VAC or 690 VAC voltage options. The only variable is the current rating range — and that single variable determines whether your motor is protected or not.

Model Current Rating Motor Power @ 460V (3-ph) Motor Power @ 575V (3-ph) Typical Use Case
GV3P25 25A 15 hp 20 hp Smaller motors, fans, light-duty conveyors
GV3P40 30–40A 25 hp 30 hp Standard general-duty pumps, fans, compressors
GV3P63 63A 40 hp 50 hp Larger motors, industrial compressors
GV3P80 80A 50 hp 60 hp Heavy-duty applications, conveyor drives
GV3P100 100A 75 hp 100 hp Large industrial motors

The sizing rule is straightforward: your motor's nameplate full load amperage must fall within the adjustable range of the model you order. If your motor FLA is 42A, the GV3P40 cannot protect it — the thermal relay tops out at 40A. In that case, the GV3P63 is the correct model. If your motor FLA is under 25A, the GV3P40's lower limit of 30A means the relay cannot be set low enough to provide proper protection — order the GV3P25 instead. Note that there is no GV3P50 in the current TeSys Deca line; the available sizes jump from 40A directly to 63A. Check current availability for the GV3P40 and its family variants at LeadTime.ca.

Expert Verdict: Is the GV3P40 the Right Starter for Your Project?

The Schneider Electric GV3P40 earns its place in motor control panels by doing one thing exceptionally well: delivering reliable, all-in-one three-phase motor protection at 40 amps or less without requiring any additional components. The Class 10 bimetallic relay trips dependably across the full -20 to 60°C operating range, the 50 kA breaking capacity handles the fault levels present at the vast majority of industrial installations, and the 50,000 operating cycle life rating means that in typical motor applications, this unit will outlast the mechanical equipment it protects. For industrial electricians replacing aging starters, panel builders designing cost-efficient motor control cabinets, system integrators specifying general-duty motor circuits for pumps and fans, and maintenance teams who value simplicity in field-replaceable components — this is a specification that holds up over time.

That said, the GV3P40 has clear boundaries that should not be overlooked. It is strictly a non-reversing, manual-only device — if your application requires remote start/stop, PLC integration, or automatic restart after a trip, the GV3P40 will not deliver and you will need a GV3R variant paired with a magnetic contactor, or a purpose-specified magnetic starter. Motors with FLA above 40A require the GV3P63, GV3P80, or GV3P100, and motors drawing under 25A belong with the GV3P25. At sites where available fault current exceeds 50 kA, upstream protection must be added regardless of which GV3P model is installed. And for any application where manual thermal reset creates an unacceptable operational burden — critical pumps that must auto-restart, for example — a magnetic starter or soft starter with automatic reset is the correct solution.

From a procurement standpoint, the GV3P40 is a mature, stable product with a well-established supply chain through authorized Schneider Electric distributors globally. Lead times are typically in the one-to-two week range for standard stock, though confirming regional availability before committing to a build schedule is always advisable — particularly for international projects where the 690 VAC variant may be required. Buying through a specialist industrial distributor rather than a generic channel matters here: applications engineers at distributors like LeadTime.ca verify your motor FLA and voltage before the order ships, catching the sizing and voltage variant mistakes that generate costly field callbacks. View current pricing and availability for the Schneider Electric GV3P40 at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the GV3P40

The GV3P40 occupies a mature, stable segment of the motor control market — the kind of product that experienced electricians and integrators have specified for years without needing to crowdsource opinions online. Unlike VFDs or PLCs, manual motor starters do not generate forum debates or trending Reddit threads, because when they are specified correctly, they simply work and keep working through 50,000 operating cycles without demanding attention. The absence of community chatter around this model is not a data gap — it reflects that the product's failure modes are well understood and almost entirely traceable to specification errors at the time of ordering, not to product defects.

The specification errors that create real-world problems with the GV3P40 fall into three predictable patterns. First: ordering by horsepower instead of nameplate FLA. A 25 hp motor at 460V does not always draw exactly 25A — motor efficiency, power factor, and mechanical loading all affect actual current draw. Reading the nameplate FLA is the only reliable way to confirm the GV3P40's 30–40A range covers the application. Second: voltage variant confusion. The GV3P40 is available in both 600 VAC and 690 VAC configurations, and the physical units look identical on the shelf. Buyers ordering for standard North American 600 VAC sites who receive a 690 VAC variant — or vice versa — face either immediate failure or unsafe operation. Explicitly stating the voltage on the purchase order, and verifying the product label on receipt, prevents this entirely. Third: thermal overload setting left at default or set to the wrong value. The adjustable dial on the front of the GV3P40 must be set to the motor's nameplate FLA during commissioning — not estimated, not left at maximum, and not adjusted based on whether the motor is tripping. An improperly set relay either fails to protect the motor winding from overload damage or generates nuisance trips that maintenance teams then chase as an equipment fault.

When community guidance is sparse and the stakes are a failed motor or a delayed commissioning schedule, the right move is to buy from a distributor whose applications team asks the right questions before the order is placed — not after. LeadTime.ca stocks GV3P family variants and fields technical questions from engineers and buyers at the point of purchase, which is exactly when those questions have value.

Wiring and Installation Overview for the GV3P40

  • Supply voltage (L1, L2, L3) connects to the upper three terminals; motor leads (T1, T2, T3) connect to the lower three terminals — phase sequence L1 to T1, L2 to T2, L3 to T3 for non-reversing operation
  • Screw clamp terminals (Everlink BTR design) accept AWG 14–4 stranded or solid copper conductors — verify wire gauge against the installation manual before terminating; oversized conductors cannot seat properly in the terminal
  • Tighten terminal screws by hand with a screwdriver to the torque value specified in the Schneider Electric installation manual — do not use a power driver; over-torque damages the terminal contact surface
  • After completing all terminations, verify conductor seating by applying a firm tug on each wire — no movement should be detectable; re-seat any conductor that shifts
  • If the application requires auxiliary contact signals (motor running status, trip indication), consult the GV3P40 wiring diagram in the manufacturer's installation manual for auxiliary contact terminal locations and ratings — this overview does not substitute for the full wiring documentation

Wrong-Part Prevention Checklist — Verify Before You Order the GV3P40

Use this checklist before finalizing your order. Every item maps to a real-world ordering mistake that generates field callbacks, return freight costs, and motor protection gaps.

  1. Verify motor full load current does not exceed 40A; if above, order next size (GV3P63, GV3P80, etc.)
  2. Confirm site voltage is 600 VAC 3-phase; if 690 VAC variant required, specify on order
  3. Check motor nameplate and confirm 50/60 Hz frequency matches utility supply
  4. Measure cabinet space for panel-mount footprint (136 mm D x 132 mm H minimum)
  5. Verify supply voltage fault level is less than 50 kA breaking capacity; higher levels require upstream protection
  6. Confirm manual (hand-operated) control is acceptable; if remote start/stop needed, specify GV3R with magnetic contactor
  7. Check if thermal overload setting range (30–40A) covers your motor's actual FLA; standard GV3P40 is fixed at 40A range
  8. Verify screw clamp terminal type compatible with wire gauge; consult manual for acceptable conductor sizes (typically AWG 14–4)

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — our applications team can confirm the correct model before the order is placed, not after it arrives on site.

Frequently Asked Questions

Can the GV3P40 be upgraded to automatic or remote start without replacing the unit?

No. The GV3P40 is a manual-only device — the rotary knob is the sole control mechanism. There is no coil, no control circuit input, and no upgrade path to remote or automatic operation within the GV3P40 unit itself. If your application requires remote start/stop or PLC-controlled operation, you will need a GV3R model paired with a magnetic contactor, or a full magnetic motor starter configuration. Planning for this at the design stage avoids a full cabinet retrofit later.

Is it safe to use the GV3P40 on a 35A motor even though the model designation says 40A?

Yes — the 30–40A adjustment range means the thermal overload relay dial can be set to 35A to match the motor nameplate FLA. This is the correct procedure. Set the dial to the motor's actual FLA, not to the maximum of the range. A relay set at 40A on a 35A motor provides less protection margin than necessary and may allow the motor to run hotter than its insulation class permits before tripping.

What is the difference between the GV3P40 and the GV3P50?

There is no GV3P50 in the current TeSys Deca product line. The GV3P family steps from 40A directly to 63A — the available models are GV3P25, GV3P40, GV3P63, GV3P80, and GV3P100. If you have a motor with FLA between 41A and 62A, the GV3P63 is the correct model. Do not attempt to use the GV3P40 for a motor whose FLA exceeds the 40A upper limit of its adjustment range.

Can the GV3P40 be installed on a 480V supply without modification?

The GV3P40 is rated for 600 VAC (standard) and 690 VAC (IEC variant). It is not rated for 480V. If your supply is 480V three-phase, confirm with Schneider Electric technical support whether the 600V-rated unit is acceptable for use at 480V — operating a device below its rated voltage is generally permissible in many cases, but this must be confirmed against the manufacturer's documentation and local electrical code requirements before installation. Do not assume downward voltage compatibility without written manufacturer confirmation.

What does the test trip button do, and when should I use it?

The test trip mechanism on the GV3P40 allows a technician to manually verify that the overload relay mechanism moves freely and resets correctly without applying live fault current to the circuit. It should be used during commissioning — before the circuit is energized — to confirm the relay is functional. If the test trip button fails to operate or the relay does not return to normal position after testing, the unit should be replaced rather than installed. A non-responsive test trip mechanism is a warning sign that the relay may not protect the motor under real overload conditions.

How do I confirm the site fault level is below the 50 kA breaking capacity before installing?

The available fault current at the point of installation is typically documented on the main switchboard nameplate, in the facility's electrical drawings, or can be obtained from the utility or the electrical engineer of record. If the switchboard prospective short-circuit current (PSCC) exceeds 50 kA, an upstream fused disconnect or higher-rated protective device must be installed ahead of the GV3P40. Installing the GV3P40 at a fault level above its Icu rating creates a personnel safety risk — this verification is not optional.

Why Order the GV3P40 Through LeadTime.ca

  • Global shipping: LeadTime.ca fulfills orders worldwide — North America, Europe, Asia-Pacific, and beyond — with competitive freight options and no geographic restrictions on who we serve
  • Specialist sourcing: We stock TeSys Deca GV3P family variants including multiple current ratings and voltage options, reducing the risk of receiving the wrong variant that a generic channel might substitute without flagging
  • Technical support at point of order: Our team fields motor FLA and voltage variant questions before the order ships — the same questions that prevent the most common and costly GV3P40 ordering mistakes
  • Volume pricing available: Contact us for pricing on multi-unit orders; pricing is available on the product page for single-unit reference
  • Hard-to-find and expedited sourcing: If the standard variant is constrained, we have sourcing channels to locate stock across our global supplier network

GV3P40 At-a-Glance Summary

  • Model: Schneider Electric GV3P40 — TeSys Deca Manual Starter and Protector, Thermal-Magnetic Circuit Protector
  • Current rating: 30–40A adjustable range; thermal relay must be set to motor nameplate FLA during commissioning
  • Voltage: 600 VAC three-phase standard (North America); 690 VAC IEC variant available — specify on order
  • Overload protection: Class 10 ambient-compensated bimetallic relay, manual reset required after trip
  • Short-circuit protection: Instantaneous magnetic trip at 14 x In; 50 kA Icu breaking capacity at rated voltage
  • Enclosure and terminals: IP20/IK09 finger-safe; Everlink BTR screw clamp, AWG 14–4 copper conductors
  • Dimensions: 55 mm W x 136 mm D x 132 mm H; weight 3.12 lb (1.41 kg)
  • Operating temperature: -20 to 60°C (-4 to 140°F)
  • Service life: 50,000 operating cycles AC-3
  • Control type: Manual rotary knob only — no remote, automatic, or reversing control in this model
  • Mount: Panel mount or DIN rail with adapter; padlock provision in Off position
  • Next sizes up: GV3P63 (63A), GV3P80 (80A), GV3P100 (100A) — order up if motor FLA exceeds 40A
  • Reversing control alternative: GV3R series — required if motor reversal is needed
