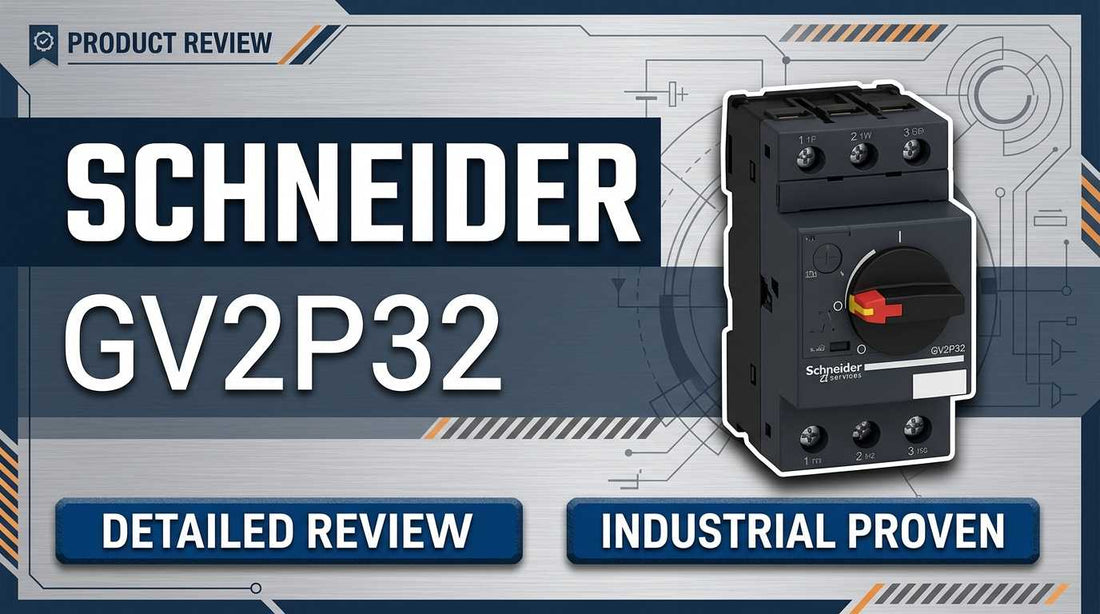

Schneider Electric GV2P32 TeSys GV2P 3-phase 32A thermal-magnetic motor circuit breaker with rotary handle on DIN rail

Schneider Electric GV2P32 Motor Circuit Breaker — TeSys GV2P, 3P, 24-32A, Thermal-Magnetic, Rotary Handle: Specifications, Selection Guide, and Modern Alternatives

If you have a motor full-load current in the 24-32A range, a 3-phase 400V supply, and a control panel that needs a straightforward manual on-off motor protector, the Schneider Electric GV2P32 is likely already on your shortlist. This 3-phase thermal-magnetic motor circuit breaker from the TeSys GV family handles motors up to 15 kW at 400/415V, combines a rotary handle with integrated overload and short-circuit protection, and mounts directly on standard 35 mm DIN rail — all in a 44.5 mm wide package. The question most buyers arrive with is not whether it works, but whether it is the right size, the right terminal type, and the right protection philosophy for their specific application. This guide answers all three.

If you have already confirmed the GV2P32 is the correct part for your system, check current pricing and availability at LeadTime.ca — we ship worldwide.

Who Should Buy the GV2P32 — and Who Should Choose Something Else

The GV2P32 is the right choice when all of the following are true for your application:

  • Your motor is 3-phase (3P) and the full-load current falls within the 24-32A adjustable thermal range
  • Motor rated power does not exceed 15 kW at 400/415V, 50/60 Hz
  • Your supply voltage is within the 230-690V AC operating range
  • Manual rotary handle on-off control is acceptable — no soft-start ramp, no variable speed, no remote networked switching
  • Screw clamp terminal connections are compatible with your cable gauges and existing panel layout
  • Your facility's prospective short-circuit current does not exceed the device Icu rating of 35 kA at 400V (some sources cite 50 kA — verify with your distributor)

If your motor full-load current is below 24A, step down to the GV2P16 (10-16A range). If it exceeds 32A, the GV2P50 (40-50A, 22 kW at 400V) is the correct next frame. If your application requires inrush current limitation or variable speed control, a soft-starter or VFD is the appropriate technology — not this device.

On this page:

What the GV2P32 Actually Does in a Motor Control System

The GV2P32 is a thermal-magnetic motor circuit breaker — a device that serves two distinct protective functions in a single compact enclosure. The thermal element responds to sustained overcurrent caused by motor overload, tripping on a time-delay curve proportional to the magnitude of excess current. The magnetic element responds instantaneously to short-circuit faults, tripping at 12 times the nominal current (12 × 32A = 384A) regardless of thermal state. Together, these two mechanisms replace what would otherwise require a separate overload relay and a separate short-circuit protective device.

The rotary handle on the front face performs manual switching — the operator turns it to ON to energize the motor, OFF to de-energize, and RESET to clear a thermal trip after the bimetal compensator has cooled. There is no contactless switching, no programmable ramp, and no remote actuator on the base GV2P32. This mechanical simplicity is both the device's primary advantage and its principal limitation: commissioning is fast, troubleshooting is immediate, and maintenance requires no software — but the device cannot adapt to application demands that change over time.

The GV2P32 fits into panels running 230-690V AC three-phase supplies and is rated for up to 15 kW at 400/415V. It dissipates only 2.5 W nominal, which matters when you are fitting multiple devices into a thermally constrained enclosure. At 44.5 mm wide and 97 mm deep on a standard 35 mm DIN rail, it occupies the same footprint as its predecessor models in the TeSys GV family — a deliberate design choice that makes it a direct mechanical replacement in legacy cabinets.

Typical System Architecture for the GV2P32

The GV2P32 sits immediately downstream of the facility distribution board or feeder breaker, directly ahead of the motor terminals. It acts as the sole protective and switching device for a single motor circuit — no separate overload relay or contactor is required for basic on-off applications.

  • Upstream: facility distribution panel or motor control center (MCC) feeder breaker providing 3-phase 230-690V AC supply
  • GV2P32 mounted on 35 mm DIN rail in the motor control panel — L1, L2, L3 supply connected to input screw clamp terminals
  • Output terminals T1, T2, T3 routed via conduit or cable tray to motor terminal box
  • Optional: normally open auxiliary contact wired to PLC digital input or alarm annunciator for remote trip indication
  • Downstream motor: 3-phase AC induction motor, up to 15 kW at 400/415V, fan, pump, conveyor, or compressor drive

Where the GV2P32 Gets Specified: Industries and Applications

The most common scenario for the GV2P32 is a maintenance replacement in an established industrial facility. Control panels built 10 to 20 years ago were frequently specified with TeSys GV thermal-magnetic motor starters, and when one fails, the maintenance supervisor needs an exact drop-in replacement — same DIN rail footprint, same screw terminal type, same front-face thermal dial. The GV2P32 fills that role directly.

In new panel builds, it appears most often in cost-sensitive applications where the motor load is predictable, the duty cycle is continuous or low-reversal, and there is no engineering justification for the additional cost and commissioning complexity of a soft-starter or VFD. Food processing facilities, for example, frequently run agitators and mixers on fixed-speed motors where variable speed control adds cost without operational benefit.

Mining and minerals operations use it on ventilation fans and hoist motor backup circuits where the motor runs at a fixed speed and the primary requirement is reliable protection, not control sophistication. Water treatment facilities similarly specify it on circulation pumps and submersible pump panels where simple run-stop logic is sufficient and panel space is constrained.

HVAC applications such as fan motor protection in air handling units represent another strong use case, particularly in buildings where individual motor panels are spread across mechanical rooms and are serviced by facilities maintenance teams rather than dedicated automation engineers.

Application Typical Deployment
Legacy control cabinet replacement Direct swap for failed TeSys GV motor starter; same DIN rail footprint and terminal layout
Manufacturing conveyor and pump panels New panel build for fixed-speed motors in budget-conscious facilities
Food and beverage agitators and mixers Simple on-off control, no soft-start required, regular manual inspection accessible
Mining ventilation fans Reliable overload and short-circuit protection with manual reset capability on-site
Water treatment circulation pumps Compact single-device protection in space-constrained pump panel enclosures
HVAC fan motor protection Distributed mechanical room panels serviced by facilities maintenance, not automation engineers

GV2P32 Specifications That Drive the Purchase Decision

Specification Value
Voltage Rating 230-690V AC
Motor Rated Power 15 kW at 400/415V, 50/60 Hz
Nominal Current 32A
Thermal Adjustment Range 24-32A (rotary dial)
Magnetic Trip Threshold 12 × In (384A nominal)
Short-Circuit Capacity (Icu) 35 kA at 400V AC (some sources cite 50 kA — verify with distributor)
Poles 3P (three-phase)
Terminal Type Screw clamp
Width / Depth 44.5 mm / 97 mm, 35 mm DIN rail mount
Compliance Standards IEC, UL, CSA, CCC, EAC, Marine; RoHS/REACH compliant

Full technical specifications are available on the product page at LeadTime.ca.

GV2P32 vs. Other TeSys GV Models: Which Current Range Do You Need?

Model Poles Current Range Motor Power @ 400V Notes
GV1P07 1P 4-7A 1.1 kW Single-phase only — not suitable for 3-phase motors
GV1P20 1P 13-20A 3 kW Single-phase only — not suitable for 3-phase motors
GV2P07 3P 4-7A 1.5 kW Small 3-phase motors; significantly lower current range than GV2P32
GV2P16 3P 10-16A 5.5 kW Mid-range 3-phase; choose if motor FLC is below 24A
GV2P32 3P 24-32A 15 kW This product — most common size in mid-power industrial panels
GV2P50 3P 40-50A 22 kW Choose if motor FLC exceeds 32A
GV2P65 3P 52-65A 30 kW Largest standard size in the GV2P family

If your motor full-load current exceeds 32A or rated power exceeds 15 kW at 400V, the GV2P50 is the correct next step — check current availability and confirm your motor rating at LeadTime.ca.

GV2P32 vs. Soft-Starters and VFDs: An Honest Comparison

Feature GV2P32 (Manual MCB) Soft-Starter (e.g., Altistart) VFD (e.g., Altivar)
Control Type Manual rotary on-off Automatic soft-start with ramp Full variable frequency control
Inrush Current Limitation No — full inrush at start Yes — limited ramp current Yes — limited ramp, closed-loop
Motor Speed Control No — fixed speed only No — fixed speed, soft start only Yes — 0-100% variable
Initial Cost (Relative) Low Medium High
Commissioning Complexity Low — mechanical dial only Medium — parameter programming High — full VFD tuning required
Panel Footprint Compact — 44.5 mm wide, one DIN module Medium Medium to large
Best For Legacy replacement, simple on-off Inrush current reduction Energy savings, variable load

Expert Verdict: When to Buy the GV2P32 and When to Walk Away

The GV2P32 earns its place in industrial panels by doing a specific job with complete reliability and zero commissioning overhead. For maintenance teams managing older facilities with existing TeSys GV infrastructure, it is the most straightforward replacement available — same 44.5 mm DIN rail footprint, same screw clamp terminal type, same front-face thermal dial interface that technicians already know. For OEM panel builders targeting cost-sensitive markets such as food processing, small manufacturing, and facilities management, it delivers IEC, UL, and CSA certified motor protection without the programming, parameterization, or spare-parts complexity of more sophisticated devices. The 100,000-cycle AC3 mechanical rating translates to roughly 10-15 years of typical industrial service life, which makes replacement planning predictable. The 2.5 W power dissipation and compact footprint allow multiple units to coexist in space-constrained enclosures without requiring thermal management upgrades.

The limits are equally explicit and should not be overlooked when specifying. The GV2P32 provides no inrush current management — at startup, the motor draws full locked-rotor current, which can cause voltage sag on weak supplies or accelerate mechanical wear on couplings and gearboxes. If that is your problem, an Altistart soft-starter is the correct solution, not this device. If your application demands variable speed, energy optimization, or closed-loop load monitoring, the Altivar VFD family is the appropriate technology. If remote networked control or digital diagnostics are required for a smart factory initiative, a networked soft-starter or VFD with Ethernet connectivity is what you need. The GV2P32 is deliberately analog and mechanical — a direct replacement product, not a modern alternative.

From a procurement standpoint, the GV2P32 is an active product line — not obsolete, not discontinued — and is stocked by multiple authorized distributors including Sonepar, Farnell, Mouser, TME, and Automation24 globally. The EAN 3389110376104 can be used for inventory lookup across distributor systems. For emergency maintenance replacement scenarios, typical in-stock lead times are in the two-to-five day range at major distributors, though this is market-typical and subject to global supply conditions. Sourcing through a specialist industrial distributor rather than a generic channel matters here: the most common ordering failure mode is specifying the wrong current range, and an expert distributor — not an algorithm — will catch a mismatch between motor full-load current and thermal dial range before the part ships. Confirm your motor's full-load current and check current availability at LeadTime.ca before committing to your order.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the GV2P32

Because the GV2P32 is a well-established mechanical device rather than a networked or programmable component, it generates little online community discussion — there are no active Reddit threads or forum debates to draw from, and that silence is itself informative. Engineers who have worked with the TeSys GV family for years tend not to post troubleshooting questions publicly because the device's failure modes are mechanical and immediately visible: a tripped handle, a red indicator flag, a loose terminal connection. The troubleshooting logic is on the device face, not in a software log.

What that also means is that when something does go wrong, buyers typically turn directly to their distributor or Schneider Electric technical support rather than to a forum. And the most common reason things go wrong is not a device defect — it is a specification mismatch at the ordering stage. The GV2P32's thermal adjustment range of 24-32A is fixed; if your motor's full-load current is 22A, this device will not protect it properly at any dial setting. If your motor's FLC is 35A, this device will nuisance-trip under normal load no matter how the dial is set. These mistakes are entirely avoidable with a single check of the motor nameplate before placing the order — but they account for a significant proportion of returns and field complaints across the thermal-magnetic motor breaker category.

The second recurring issue that specialist distributors field is terminal wiring. The GV2P32 uses screw clamp terminals, which are correct and appropriate for this application — but they require compression lugs on stranded cable. Inserting bare stranded wire directly into a screw terminal is a wiring practice that passes initial inspection and fails over time as thermal cycling causes individual strands to migrate, increasing contact resistance and eventually creating arcing damage inside the panel. This is not unique to the GV2P32; it is a systemic issue with screw terminal devices in general. The prevention is straightforward — use the correct crimp lug for your cable AWG — but it requires knowing the requirement exists before you wire the device, not after. If your team has any doubt about terminal compatibility or cable sizing, this is exactly the conversation to have with a specialist distributor before installation begins, not after the first nuisance trip.

Wiring and Installation Overview

The following points cover the key requirements for a correct GV2P32 installation. For full wiring diagrams, torque specifications, and step-by-step commissioning procedures, refer to Schneider Electric's official installation documentation for the TeSys GV2P series.

  • Verify motor nameplate: confirm 3-phase supply, full-load current within 24-32A, and rated power not exceeding 15 kW at 400/415V before mounting the device
  • Terminal wiring: always use compression lugs on stranded cable before inserting into screw clamp terminals; tighten to 2.5-3 Nm and verify with a resistance test on all six connections
  • Phase connections: L1, L2, L3 to input terminals (supply side); T1, T2, T3 to motor terminals (load side); observe correct phase sequence for intended motor rotation direction
  • Thermal dial setting: rotate the front-face dial to the setting closest to — but not below — the motor's nameplate full-load current; document the setting on the panel label immediately after commissioning
  • Post-installation check: cycle the rotary handle through OFF, ON, and RESET positions to verify smooth mechanical operation before energizing the motor circuit; confirm indicator flag is green (normal state)

Wrong-Part Prevention: Eight Checks Before You Order

Run through this checklist against your motor nameplate and application requirements before placing your order. Every item represents a real ordering mistake that results in either a return or a field failure.

  1. Confirm motor nameplate voltage matches 230-690V range; verify primary phase is 3-phase (3P)
  2. Confirm motor rated power does not exceed 15 kW at 400/415V; oversized motors require larger frame size
  3. Verify thermal setting dial range 24-32A matches your motor's full-load current; undersizing causes nuisance trips
  4. Check that your application tolerates mechanical on-off control only (no soft-start, no current ramp)
  5. Confirm screw clamp terminals are compatible with your cable gauges and existing installation
  6. Verify short-circuit current at your facility does not exceed device Icu rating (35-50 kA at 400V)
  7. Check that AC3 duty cycle (motor starting reversals) aligns with your application frequency
  8. Ensure rotary handle (not pushbutton) matches your control panel layout and operator expectations

If any of these checks raises a question you cannot resolve from the motor nameplate alone, contact the LeadTime.ca team before ordering — our technical team can help confirm the correct current range and terminal compatibility for your specific motor.

Frequently Asked Questions

Can the GV2P32 replace my existing TeSys GV motor starter without rewiring the panel?

In most cases, yes — the GV2P32 is designed with the same 44.5 mm DIN rail footprint and screw clamp terminal layout as earlier TeSys GV devices, which is specifically why it remains popular as a legacy replacement. However, you should verify that the previous device's current range matched the GV2P32's 24-32A thermal adjustment range and that screw clamp terminal positions align with your existing cable routing. If the prior device was a different model in the GV2P family with a different current range, the terminal layout may differ.

What does a thermal trip look like, and how do I reset it?

When the GV2P32 trips on thermal overload, the rotary handle moves to an intermediate OFF-RESET position and a red trip indicator flag appears on the front face. To reset, allow the bimetal thermal compensator to cool — typically two to five minutes after removing the overload — then rotate the handle from RESET to ON. If the device trips again immediately after reset, do not attempt repeated resets; investigate the motor load, wiring, and thermal dial setting before restarting.

My motor's full-load current is 23A — will the GV2P32 work, or should I choose the GV2P16?

At 23A motor FLC, the GV2P32's lowest thermal dial setting of 24A leaves the motor with only 1A of margin below the trip threshold. In practice, this is likely to cause nuisance trips during normal operation and does not provide accurate overload protection. The GV2P16, with a 10-16A range, is also too small. You should evaluate whether a model with a thermal range that centers more closely on 23A is available in the GV2P family, or discuss the specific motor FLC with your distributor to confirm the correct selection.

Does the GV2P32 limit motor inrush current on startup?

No. The GV2P32 is a thermal-magnetic motor circuit breaker — it provides protection against overload and short-circuit conditions, but it does not limit or reduce inrush current at startup. The motor will draw full locked-rotor current every time the rotary handle is switched to ON. If inrush current is causing voltage sag, light flicker, or mechanical stress on couplings, the correct solution is a soft-starter such as an Altistart, not this device.

What certifications does the GV2P32 carry, and is it suitable for both North American and international projects?

The GV2P32 carries IEC, UL, CSA, CCC, EAC, and Marine certifications, and is RoHS and REACH compliant. This multi-certification profile means it can be deployed across North American, European, and international markets without country-specific re-certification, which simplifies procurement for multinational operations or facilities with mixed-region equipment standards.

How many operating cycles can I expect before the GV2P32 requires replacement?

The GV2P32 is rated for 100,000 mechanical operating cycles at AC3 duty, which corresponds to approximately 10-15 years of typical industrial service life depending on application frequency. The thermal compensator can weaken after 15 or more years; if nuisance trips increase without a change in motor load or thermal dial setting, thermal compensator degradation is a likely cause and replacement of the device is recommended.

Why Order from LeadTime.ca

  • Ships worldwide — not limited to any single region or market
  • Specialist industrial automation distributor with technical knowledge of the TeSys GV family — not a generalist channel
  • Can confirm current range suitability, terminal compatibility, and lead time before your order ships
  • Volume pricing available for panel builders and OEMs — contact for current pricing on multi-unit orders
  • Hard-to-find and legacy industrial parts sourced through established supply channels with verified authenticity

GV2P32 At-a-Glance Summary

  • 3-phase (3P) thermal-magnetic motor circuit breaker; nominal 32A with 24-32A adjustable thermal setting
  • Rated for motors up to 15 kW at 400/415V, 50/60 Hz; voltage operating range 230-690V AC
  • Magnetic trip threshold: 12 × In = 384A instantaneous short-circuit protection
  • Short-circuit capacity (Icu): 35 kA at 400V (some sources cite 50 kA — verify before specifying)
  • Rotary handle control — manual on-off only; no soft-start, no variable speed, no remote actuation
  • Screw clamp terminals — requires compression lugs on stranded cable; torque 2.5-3 Nm
  • 44.5 mm wide, 97 mm deep; 35 mm DIN rail mount; 2.5 W power dissipation; IP20
  • 100,000 mechanical cycles at AC3 — approximately 10-15 years typical industrial service life
  • Certifications: IEC, UL, CSA, CCC, EAC, Marine; RoHS/REACH compliant; 9 kg CO2 eq. Green Premium ecolabel
  • Active product line — not obsolete; EAN 3389110376104 for distributor inventory lookup
  • If motor FLC is below 24A, specify GV2P16; if above 32A, specify GV2P50
