Schneider Electric GV3P65 — Motor Starter Specs & Buyer's Guide

By Abdullah Zahid
14 min read

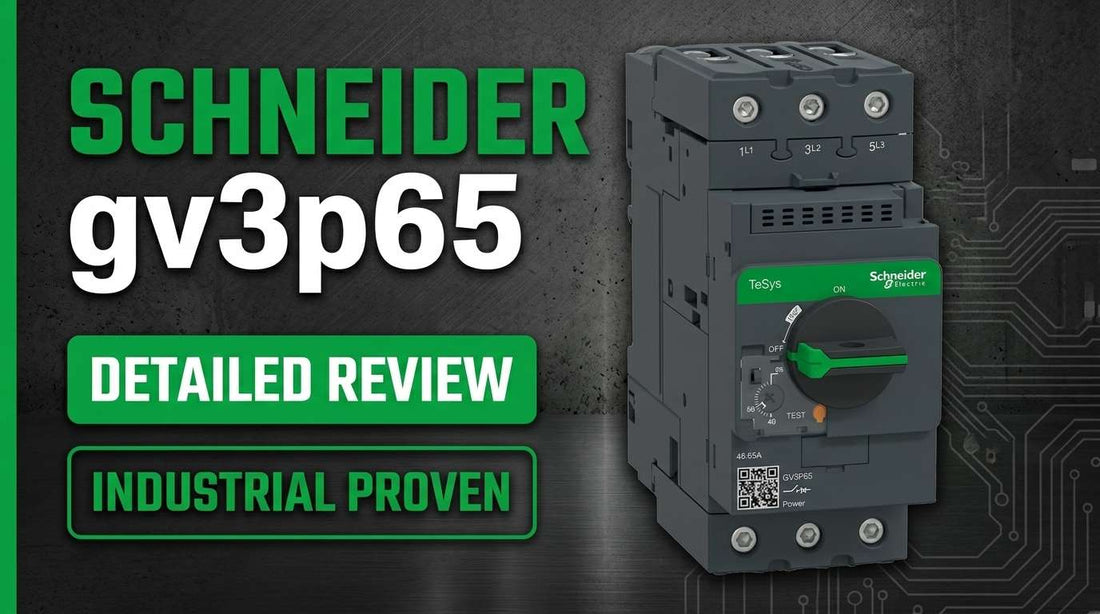

Schneider Electric GV3P65 TeSys Deca 3-pole thermal-magnetic manual motor starter mounted on DIN rail in industrial control panel

Schneider Electric GV3P65 TeSys Deca Manual Starter and Protector — Complete Specifications and Buyer's Guide

Controls engineers and plant electricians searching for Schneider Electric GV3P65 specifications are typically at the same decision point: they have a 3-phase motor in the 48–65A full-load current range, a 600VAC or higher supply, limited panel space, and a requirement for manual isolation with integrated overload protection — all in one device. The GV3P65 is a 3-pole thermal-magnetic manual motor starter and protector from the TeSys Deca family, rated 48 to 65A at 600 to 690VAC, with a compact 55mm DIN-rail footprint that replaces separate contactors, overload relays, and disconnect switches in a single unit.

If you have already confirmed this is the correct part for your motor circuit, check current pricing and availability for the GV3P65 at LeadTime.ca — ships worldwide.

Who Should Buy the GV3P65 — and Who Shouldn't

The GV3P65 is the right choice for engineers and electricians specifying compact, integrated 3-phase motor protection where manual isolation is required and panel space is constrained. It is a strong fit when all of the following apply:

  • Motor full-load current at your supply voltage falls between 48A and 65A
  • Supply voltage is 600VAC to 690VAC (standard North American 600V systems are compatible)
  • A 3-phase, non-reversing motor circuit is being protected
  • Manual rotary knob control meets your isolation and switching requirements — no PLC-based automatic starting is needed
  • Available panel width can accommodate a 55mm DIN-rail device
  • EverLink BTR or screw clamp terminations are acceptable for your cable sizes

If your motor FLC falls below 48A, a smaller GV3 variant is correct. If reversing motor control is required, the GV3R series is the appropriate choice. If automatic PLC-based motor switching is needed, a magnetic contactor type with coil is required instead.

On this page:

What the GV3P65 Actually Does in Your Motor Circuit

The Schneider Electric GV3P65 is a Type GV3P Non-Reversing Thermal-Magnetic Circuit Protector — a single device that consolidates three functions that would otherwise require three separate components. The rotary knob on the front face provides manual switching and isolation. The Class 10 ambient-compensated bimetal thermal relay responds to gradual motor overload conditions. The instantaneous 910A magnetic tripping element handles short-circuit protection. All three are factory-integrated into a 55mm wide, IP20-rated enclosure with finger-safe terminals and a front-face padlock provision for lockout/tagout compliance.

For facilities without PLC-based automation — pump stations, standalone compressors, conveyor drives — the GV3P65 eliminates the auxiliary circuit breaker, separate overload relay, and disconnect switch that a conventional starter combination would require. The result is reduced panel wiring complexity, fewer terminal points that can loosen over time, and a device rated for 50,000 mechanical cycles that supports extended service intervals compared to contactor-only solutions. The manual reset-after-trip feature ensures an operator physically interacts with the device before restarting a motor that has faulted, which is a deliberate safety behavior, not a limitation.

The ambient temperature compensation adjustment on the thermal relay is a critical commissioning step that is sometimes overlooked. The GV3P65 is rated for operating temperatures from -20 to +60 degrees Celsius, and the bimetal relay responds to both motor current and local ambient temperature. Setting the compensator to match your enclosure's operating temperature prevents the nuisance tripping that accounts for the majority of field complaints across the TeSys GV3 family.

Typical System Architecture for the GV3P65

The GV3P65 sits at the motor branch circuit level, immediately downstream of the main panel disconnect and upstream of the motor terminals. It serves as both the branch circuit protective device and the manual control point for the motor.

  • Main panel disconnect or fused distribution block — upstream of GV3P65
  • GV3P65 mounted on 35mm DIN rail — provides manual switching, isolation, thermal overload, and short-circuit protection for the branch circuit
  • 3-phase conductors from T1, T2, T3 output terminals run to the motor terminal box
  • 3-phase motor (10–50hp depending on supply voltage) — end load being protected
  • Optional: auxiliary contact blocks or signaling modules attached to GV3P65 to indicate trip or run status to a monitoring panel

Typical Applications and Deployment Scenarios

The GV3P65 is most commonly specified for single motor circuits where the motor is started and stopped manually by an operator, where space in an existing control panel is limited, or where simplifying the bill of materials is a project priority. In pump stations — municipal water treatment, irrigation, process cooling — it provides the isolation and overload protection required by electrical codes without the cost and complexity of a full magnetic starter assembly.

Compressor motor circuits in industrial compressed air systems benefit from the thermal-magnetic dual protection, since compressor motors are subject to both sustained overload during high-demand cycles and occasional short-circuit faults from winding degradation. The 910A instantaneous magnetic trip handles the fault scenario while the Class 10 thermal relay manages sustained overload.

Food and beverage processing plants frequently specify the GV3P65 for conveyor drive motors where thermal cycling is a factor and where the physical lockout provision on the rotary knob supports safety procedures during machine cleaning and maintenance. HVAC fan motor applications — where a manual isolation point is required and automation is minimal — are another consistent use case.

For OEM machine builders and retrofit projects, the 55mm DIN-rail footprint is a measurable advantage. Replacing a separate contactor and overload relay combination — which typically occupies 70–105mm of combined panel width — with a single 55mm device frees meaningful horizontal space in a crowded enclosure.

Application Typical Deployment
Municipal pump station Single 10–40 hp pump motor, manual start/stop, thermal-magnetic protection, lockout provision required
Industrial compressed air compressor Standalone compressor motor circuit, manual isolation, overload and short-circuit protection in one unit
Food processing conveyor drive Manual control panel, thermal cycling environment, padlock provision for LOTO during cleaning
HVAC fan motor Manual isolation required, no PLC integration, space-constrained existing panel
OEM machine tool control Retrofit of contactor and overload relay combination, DIN-rail space reduction priority
Standalone industrial equipment Single motor circuit, simplified wiring, reduced component count on bill of materials

Key Electrical and Physical Specifications

Specification GV3P65 Value
Current Rating 48 to 65 A
Voltage Rating (AC) 600 VAC to 690 VAC
Number of Poles 3 Pole
Short Circuit Release 910 A instantaneous magnetic trip
Overload Relay Class Class 10 Ambient Compensated Bimetal
Control Type Rotary Knob (Manual), Non-Reversing
Dimensions (W x D x H) 55 mm x 136 mm x 132 mm
Mounting 35mm DIN-Rail
Enclosure Rating IP20, IK09 compliant
Operating Temperature -20 to +60 degrees Celsius

Full technical specifications are available on the product page at LeadTime.ca.

GV3P65 vs. GV7P, GV3R, and Alternatives — Which One Do You Need?

The GV3P65 covers the 48–65A range within the TeSys Deca non-reversing manual starter family. Understanding where it sits relative to adjacent models prevents the most common ordering mistakes in this product family.

Model Current Rating Voltage Reversing Control Type DIN Width Best For
GV3P65 (Schneider Electric) 48–65A 600–690VAC No Manual Rotary 55mm Compact non-reversing 3-phase motors, 48–65A FLC
GV7P (Schneider Electric) 65–100A 600–690VAC No Manual Rotary 70mm Larger motors where motor FLC exceeds 65A
GV3R (Schneider Electric) 48–65A 600–690VAC Yes Manual Rotary 55mm Reversing motor applications in the same current range
GV3P40 (Schneider Electric) 32–40A 600–690VAC No Manual Rotary 55mm Smaller motors with FLC below 48A
3RV2 (Siemens) 16–63A 690VAC No Manual / Electric 45mm OEMs requiring narrower 45mm DIN width

If your motor FLC exceeds 65A, the GV7P at 65–100A and 70mm DIN width is the correct next step — check current availability and request a quote at LeadTime.ca to confirm the right variant for your motor nameplate data.

Expert Verdict: Is the GV3P65 Right for Your Application?

The GV3P65 earns its specification in industrial motor control because it solves a real panel-design problem — combining isolation, manual switching, thermal overload protection, and short-circuit protection into a 55mm device that would otherwise require 70–105mm of combined DIN space and multiple wiring points. For plant electricians and systems designers working on pump stations, compressor circuits, conveyor drives, and HVAC fan motors in the 10–50hp range at 600–690VAC, this is a mature, proven device with 50,000 mechanical cycles of rated endurance. The Class 10 ambient-compensated thermal relay and 910A instantaneous magnetic trip address the two overload failure modes a motor circuit faces, and the padlock provision on the rotary knob satisfies lockout/tagout requirements without adding a separate disconnect block. If your motor FLC is 48–65A, your supply is 600VAC or higher, and manual non-reversing control meets your requirements, this is a straightforward specification.

Where the GV3P65 is not the answer: if you need to reverse motor direction, specify the GV3R instead — it shares the same 48–65A current range and 55mm footprint but adds reversing contactor functionality. If your motor FLC exceeds 65A, move to the GV7P, which handles 65–100A but requires a wider 70mm panel section. If your facility supply is 480VAC or below, or if you are protecting a single-phase motor, the GV3P65 is outside its rated voltage range and wrong-pole configuration — a different device class entirely is needed. And if a PLC or timer needs to switch the motor automatically, a magnetic contactor with coil is required; the manual rotary knob interface has no provision for remote coil actuation.

From a procurement standpoint, the GV3P65 is an in-production device from an established product family with strong distributor stock at major North American distribution points and typical lead times of 2–5 business days for in-stock orders. Buying through an authorized specialist distributor matters here because the P/R suffix distinction, the current rating selection, and the supply voltage compatibility check are exactly the errors that specialist sales teams catch before shipment — and they are exactly the errors that generate costly reorders when they slip through a generic purchasing channel. View current pricing and stock status for the GV3P65 at LeadTime.ca, where the team can confirm correct model selection before your order ships worldwide.

For volume pricing, lead time confirmation ahead of a scheduled build, or technical pre-order support, contact the LeadTime.ca team directly — we ship worldwide and can confirm availability before you commit to a project timeline.

What Engineers Need to Know Before Ordering the GV3P65

Because public forum discussions specific to the GV3P65 are sparse — industrial control components at this specification level tend to be selected by technical teams rather than discussed in open communities — the most valuable pre-order intelligence comes from recurring patterns in the broader TeSys GV3 product family and from distributor-side ordering data. The consistent message across those sources is that the GV3P65 itself is a reliable device; the problems that generate returns and reorders are almost exclusively specification mismatches, not hardware failures.

The most frequently reported issue across the TeSys GV3 family is nuisance thermal tripping in enclosures where the ambient temperature compensation knob was not adjusted during commissioning. The GV3P65 operates across -20 to +60 degrees Celsius, but the bimetal thermal relay responds to both motor current and local enclosure temperature. If the compensator is left at its default position rather than set to the actual enclosure ambient, the relay will trip at a lower current than intended — which looks like a product fault but is actually a commissioning gap. Setting the compensator correctly at installation is the single highest-value commissioning step for this device.

A second recurring issue is EverLink BTR connector seating. These connectors provide measurably better vibration resistance than standard screw clamps, which is why they are specified for harsh industrial environments. However, they require a specific seating procedure outlined in the installation manual that is not always covered in quick-start documentation. Connectors that are partially seated can degrade connection quality over time under thermal cycling, producing intermittent faults that are difficult to trace. Before installation, confirm your cable diameter is within the specified terminal range, seat EverLink connectors fully per the manufacturer installation manual, and apply the specified torque to screw clamp terminals using a calibrated torque wrench. LeadTime.ca can provide access to technical documentation and connect you with application support when installation questions arise at the specification or commissioning stage.

Wiring and Installation Overview

The following points summarize the key requirements for wiring and mounting the GV3P65. Engineers requiring full wiring diagrams, torque specifications, and detailed commissioning procedures should refer to the Schneider Electric GV3P65 installation manual available from the manufacturer and authorized distributors.

  • Verify main power is isolated and confirmed de-energized before connecting any terminals; the GV3P65 is a 3-pole device with input terminals L1, L2, L3 and output terminals T1, T2, T3
  • Prepare 3-phase supply cables with 5–10mm of insulation stripped from each conductor; verify cable diameter is compatible with screw clamp or EverLink BTR terminal specifications before insertion
  • Mount on 35mm standard DIN rail with the unit fully seated and the locking tab secured; verify the unit does not shift under gentle lateral pressure before applying power
  • Set the ambient temperature compensator knob to match the expected operating temperature inside your enclosure — this step directly determines thermal trip accuracy and is mandatory before commissioning
  • After power-up, perform the built-in test trip by rotating the rotary knob to the TEST position and verify manual RESET is required before the unit returns to ON; monitor for 24 hours for any nuisance tripping and document the installation date and serial number

Compatible Accessories and System Expansion

The GV3P65 supports a range of accessories from the TeSys GV3 family that extend its functionality for signaling, remote indication, and additional protection. The following accessories are compatible based on manufacturer documentation:

  • Auxiliary contact blocks — snap-on additions to the GV3P65 providing normally open or normally closed contacts for run/trip status signaling to monitoring panels or PLCs
  • EverLink BTR connector sets — optional upgrade from standard screw clamps for improved vibration resistance in harsh environments; specified for applications with significant mechanical vibration or thermal cycling
  • Padlock accessory provisions — the front-face padlock provision is built into the rotary knob; compatible with standard padlocks to support lockout/tagout procedures without additional hardware

Wrong-Part Prevention Checklist

Before finalizing your GV3P65 purchase order, verify each of the following points against your motor nameplate and panel design. This checklist reflects the most common ordering errors for this product family:

  1. Verify this is NON-REVERSING (GV3P prefix). Do not order GV3R reversing model by mistake.
  2. Check motor full-load current: GV3P65 is rated 48-65A. If FLC is outside this range, select appropriate GV3 variant.
  3. Confirm supply voltage: 600VAC minimum to 690VAC. Do not use on single-phase or low-voltage circuits.
  4. Verify 3-phase motor compatibility: GV3P is 3-pole only. Not suitable for 1-phase motors.
  5. Check DIN-rail space availability: 55mm width is standard but must fit your panel layout.
  6. Confirm manual control requirement: This is manual (rotary knob) only. If automatic starter switching is needed, contact type (magnetic contactor) models are required.
  7. Verify terminal connection type: Screw clamp or EverLink BTR connectors. Ensure cable lugs and sizes are compatible.

If any item on this checklist raises a question about your specific application, contact the LeadTime.ca team before ordering — confirming the correct variant takes minutes and avoids a reorder cycle that can delay your project by weeks.

Frequently Asked Questions

How do I confirm the GV3P65 is the correct current rating for my motor?

Locate your motor nameplate and record the full-load current (FLC) at the supply voltage you will be using. The GV3P65 adjustment range is 48 to 65A — your motor FLC must fall within this range for the thermal relay to provide accurate overload protection. If your FLC is below 48A or above 65A, a different GV3 variant with the appropriate current range is required.

Can the GV3P65 be used on a 480VAC system?

No. The GV3P65 is rated 600VAC to 690VAC. It is not rated for 480VAC, 240VAC, or single-phase systems. If your facility supply is 480VAC, a different motor starter product class rated for that voltage is required. Applying a 600V-rated device to a 480V system may appear to function but will not guarantee correct protection behavior and may void listings.

Why is my GV3P65 tripping during normal motor operation, not on faults?

The most common cause of nuisance thermal tripping is an incorrectly set ambient temperature compensator. The Class 10 bimetal thermal relay responds to both motor current and the local enclosure temperature; if the compensator was not set to match your enclosure's operating temperature during commissioning, the effective trip threshold will be lower than intended. Verify the compensator setting against your actual enclosure ambient and re-test using the built-in trip test mechanism.

What is the difference between the GV3P65 and using a separate contactor with overload relay?

The GV3P65 integrates manual switching, isolation, thermal overload protection (Class 10 bimetal), and short-circuit protection (910A instantaneous magnetic trip) in a single 55mm wide device. A separate contactor and overload relay combination typically occupies 70–105mm of combined DIN-rail space and requires additional wiring between components. The GV3P65 is the more compact, simpler solution for manual, non-reversing motor control; a separate contactor is required if automatic PLC-based switching is needed.

How often should I test the built-in trip mechanism on the GV3P65?

Schneider Electric's maintenance guidance for the TeSys GV3 family recommends testing the trip mechanism annually as part of a preventive maintenance schedule. The test is performed by rotating the rotary knob to the TEST position; the relay should trip and require a manual RESET before returning to ON. Annual visual inspection of terminal connections and screw torque verification is also recommended, particularly in high-vibration environments.

Is the GV3P65 rated for both 50Hz and 60Hz supply frequencies?

Yes. The GV3P65 is rated for both 50Hz and 60Hz, making it suitable for use in facilities worldwide without frequency-specific derating or variant selection.

Why Order from LeadTime.ca

  • Ships worldwide — not limited to any single country or region; international orders are handled routinely
  • Specialist industrial automation distributor with direct access to TeSys GV3 product family inventory and technical documentation
  • Pre-order model verification available — the team can confirm GV3P65 is the correct variant (current range, P vs. R, supply voltage) before your order ships
  • Volume and project pricing available on request for multi-unit purchases or scheduled builds
  • Fast response for lead time confirmation — reducing procurement risk for projects with defined installation windows

GV3P65 At-a-Glance Summary

  • Model: Schneider Electric GV3P65 — Type GV3P Non-Reversing Thermal-Magnetic Circuit Protector, TeSys Deca family
  • Current rating: 48 to 65A (thermal relay adjustable within this range to match motor FLC)
  • Voltage rating: 600VAC to 690VAC, 50/60Hz, 3-pole only
  • Short-circuit protection: 910A instantaneous magnetic trip
  • Overload protection: Class 10 ambient-compensated bimetal thermal relay
  • DIN-rail footprint: 55mm wide x 136mm deep x 132mm high, 35mm rail mounting
  • Motor power range: 3hp at 115VAC to 50hp at 575VAC (voltage-dependent — verify at your supply voltage)
  • Enclosure rating: IP20, IK09 compliant, finger-safe terminals
  • Mechanical durability: 50,000 mechanical cycles; 50,000 AC-3 electrical cycles at 440V
  • Operating temperature: -20 to +60 degrees Celsius with adjustable ambient compensation
  • Control type: Manual rotary knob — not compatible with automatic PLC or coil-based switching
  • Padlock provision: Yes — front-face padlocking for lockout/tagout compliance
  • Terminal options: Screw clamp (standard) or EverLink BTR connectors (vibration-resistant)
  • Country of origin: France
