Schneider Electric HMIST6500 — 10-inch HMI Panel Buyer's Guide

By Abdullah Zahid
15 min read

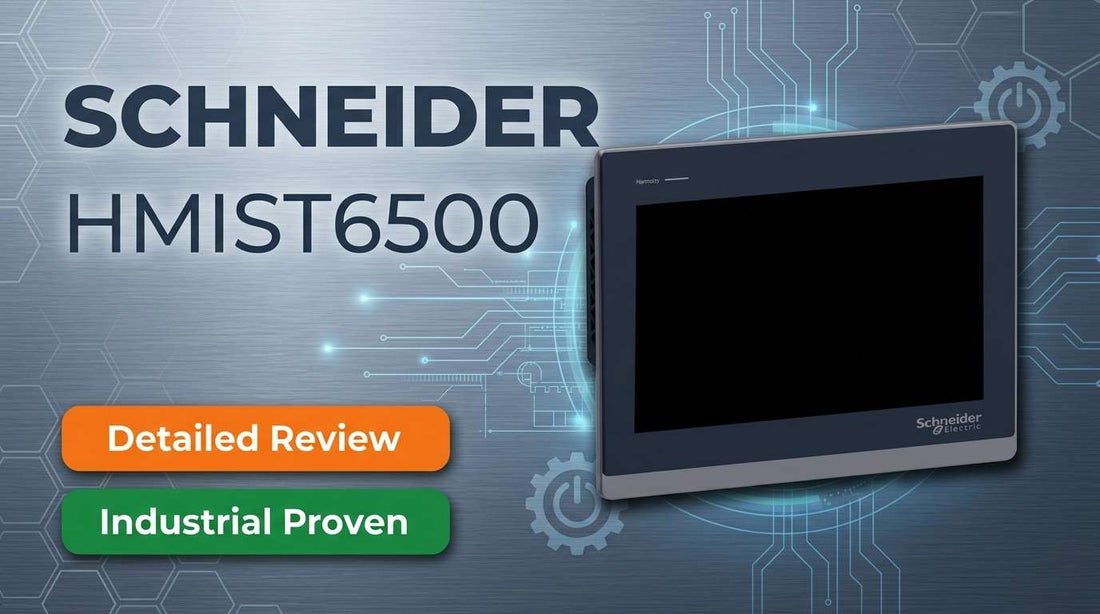

Schneider Electric HMIST6500 Harmony ST6 10-inch resistive touch HMI panel for industrial machine control

Schneider Electric HMIST6500 Touch Panel Screen, Harmony ST6, 10-inch Wide Display, 2COM, 2Ethernet, USB Host and Device, 24V DC — Complete Specifications, Pricing and Buying Guide

Controls engineers and procurement specialists searching for the Schneider Electric HMIST6500 HMI panel are typically at one of two points: confirming this is the right part before releasing a purchase order, or validating whether the HMIST6500 is the correct fit versus a smaller Harmony variant or a competing platform entirely. This article answers both questions directly. The HMIST6500 is a 10-inch WSVGA resistive touch panel running on an 800 MHz ARM Cortex-A8 processor with dual Ethernet ports, RS-232C and RS-485 serial communication, and 24VDC power input — a configuration that covers most mixed-protocol industrial deployments without requiring external gateway hardware.

If you have already confirmed this is the right part, check current pricing and availability for the HMIST6500 at LeadTime.ca — ships worldwide.

Who Should Buy the HMIST6500 — and Who Shouldn't

The HMIST6500 is the right choice for facilities that have already committed to the Schneider Electric automation ecosystem and need a proven, mid-range operator interface terminal for production line or batch process visualization. Specify this panel when all of the following apply:

  • Your control cabinet has a 24VDC supply available (not 120VAC or 12VDC)
  • At least one of Ethernet, RS-232C, or RS-485 is wired to your PLC or gateway device
  • A 10-inch display at 1024 x 600 WSVGA resolution is sufficient for your operator interface screens
  • Your engineering team is licensed for or can obtain EcoStruxure Operator Terminal Expert software
  • NEMA 4 front-panel protection or NEMA 13 in-enclosure rating satisfies your installation environment (operating temperature 0 to 50°C)
  • Single-touch resistive technology is acceptable — gloved-hand operation is supported, but multi-touch gestures are not available on this model

If your panel space requires a smaller footprint, the 7-inch Harmony variant is the correct alternative. If your facility is standardized on a non-Schneider PLC platform or your application demands capacitive multi-touch with higher resolution, competing panels will serve you better — see the variant comparison section below for specifics.

On this page:

What the HMIST6500 Actually Does in a Running System

The HMIST6500 is an operator interface terminal from the Harmony ST6 series — Schneider Electric's Magelis product line for panel-mount HMI applications. Its function in a live system is straightforward: it presents real-time process data to the operator, accepts touch input to trigger commands or recipe selections, and communicates those events back to the PLC or controller running the machine logic. It does not run machine control logic itself. The 800 MHz ARM Cortex-A8 processor and 1GB flash application memory are sized for small-to-medium visualization workloads — production counters, alarm acknowledgment, batch parameter entry, and diagnostics dashboards — not for compute-intensive data logging or complex multi-screen animation.

The 10-inch TFT LCD panel delivers 16M colors at 1024 x 600 pixels with a 16-level adjustable LED backlight. The resistive single-touch panel registers input from a gloved hand, a stylus, or bare finger with appropriate actuation force. What distinguishes this panel from simpler HMI terminals in the same price bracket is its communication flexibility: two RJ45 Ethernet ports running 10/100 Mbps auto-negotiation, a DB9 RS-232C port on COM1 for legacy serial devices, an RS-485 port on COM2 for multidrop sensor and actuator networks, one USB Type-A host port, and one USB Micro-B device port for direct PC programming connection. That combination covers the majority of mixed-protocol industrial environments without adding gateway modules to the panel.

EcoStruxure Operator Terminal Expert is the native configuration software for this terminal. Engineers design HMI screens, define communication drivers, configure alarms, and upload the compiled application to the panel's 1GB flash via USB or Ethernet. The 512KB backup memory and 128MB user data memory are sized for typical production-line applications. The aluminum front panel, IP65 front-face rating, NEMA 4 front protection, and NEMA 13 in-enclosure rating confirm this terminal is built for shop-floor mounting — not for an office environment or a server room.

Typical System Architecture for the HMIST6500

The HMIST6500 sits at the operator interface layer — between the controller layer below it and the human operator in front of it. It neither replaces the PLC nor routes data to SCADA independently; it visualizes the controller's data and sends operator commands back down the chain.

  • Engineering workstation running EcoStruxure Operator Terminal Expert connects to the HMIST6500 via USB Micro-B or Ethernet for application upload and maintenance
  • HMIST6500 connects to the plant Ethernet network via RJ45 Port 1, communicating with the PLC or controller over Modbus TCP/IP or EtherNet/IP
  • Second RJ45 port available for network redundancy or connection to a secondary controller or gateway device without additional switching hardware
  • RS-232C (COM1) connects to legacy serial devices — barcode readers, weighing terminals, or older PLCs not equipped with Ethernet
  • RS-485 (COM2) supports a multidrop network of up to 32 devices for sensor and actuator communication over Modbus RTU

Typical Applications and Deployment Scenarios

In food and beverage processing, the HMIST6500 is commonly deployed as the operator interface for filling, mixing, or pasteurization lines — displaying batch parameters, runtime counters, and alarm states. Operators select product recipes and acknowledge faults through the resistive touch panel, which remains responsive when operators are wearing the gloves standard in food-safe production environments.

Packaging machinery OEMs specify the HMIST6500 as the front-panel HMI for wrapping, labeling, and case-packing machines where the 10-inch display provides sufficient screen real estate for format selection, speed control, and reject counter visualization. The NEMA 4 front-panel rating handles the water spray exposure common in packaging washdown areas without requiring an additional protective enclosure for the display face.

In pharmaceutical and life sciences manufacturing, the panel serves as the operator interface for batch process control — recipe selection, process step progression monitoring, and batch completion logging. Engineers in these environments frequently note that the 1024 x 600 WSVGA resolution is workable for standard process screens, though facilities requiring dense data visualization across many simultaneous process variables may find higher-resolution competitive panels more legible at this screen size.

Legacy system upgrade projects represent a consistent application for the HMIST6500. Facilities retiring aging Harmony ST2 panels or older competitive HMI terminals use it as the replacement terminal, retaining existing Schneider Electric PLC infrastructure while refreshing the operator interface hardware and gaining updated EcoStruxure software compatibility.

Application Typical Deployment
Food and beverage production line Batch recipe selection, production counter display, alarm acknowledgment — gloved-hand operation via resistive touch
Packaging machine HMI Format selection, speed control, reject counter — flush panel-mount in machine cabinet, NEMA 4 front protection for washdown
Pharmaceutical batch process Process step monitoring, batch logging, operator prompts — EcoStruxure OTE application connected to Schneider M241/M251 controllers
Water and wastewater treatment Pump status, flow rate visualization, alarm state display — Ethernet to PLC plus RS-485 to field instrument network
Legacy HMI upgrade Drop-in replacement for aging Harmony ST2 or competitive panels in existing Schneider-equipped machinery
Material handling and conveyor systems Zone status, fault codes, line speed control — RS-485 multidrop to sensor network, Ethernet to central controller

Purchase-Decision Specifications for the HMIST6500

Specification Value
Display Size 10 inches, TFT LCD, 16M colors, LED backlight
Resolution 1024 x 600 pixels (WSVGA)
Touch Technology Single-touch analog resistive
Processor 800 MHz ARM Cortex-A8
Memory 1GB Flash (application), 512KB backup, 128MB user data
Power Input 24VDC nominal, typical consumption 12.6W
Communication Ports 2x Ethernet RJ45 (10/100 Mbps), RS-232C (COM1), RS-485 (COM2), USB Type-A host, USB Micro-B device
Environmental Rating IP65 front panel, NEMA 4 (front), NEMA 13 (in enclosure)
Operating Temperature 0 to +50°C
Physical Dimensions / Weight 273mm W x 203mm H x 47mm D, panel cut-out 255mm x 185mm, net weight 1.3 kg, aluminum front panel

Full technical specifications are available on the product page at LeadTime.ca.

HMIST6500 vs. Competing 10-inch HMI Panels: Which One Do You Actually Need?

The table below compares the HMIST6500 against two common alternatives engineers evaluate at the same screen size. Each panel targets a different buyer profile, and the right choice depends almost entirely on your existing software infrastructure and your requirement for touch technology.

Feature Schneider Electric HMIST6500 Siemens KTP1000 Mobile Mitsubishi GOT2000-10
Display Size 10 inches 10 inches 10 inches
Resolution 1024 x 600 (WSVGA) 1024 x 768 (XGA) 1024 x 768 (XGA)
Touch Type Resistive single-touch Capacitive multi-touch Capacitive multi-touch
Ethernet Ports 2 ports 1 port 2 ports
Serial COM RS-232C + RS-485 RS-232 only (optional) RS-232 + Profibus
Power Supply 24VDC 24VDC 24VDC
Primary Software EcoStruxure Operator Terminal Expert TIA Portal WinCC RT GOT Works 3
Estimated Price Range Mid-range Premium Mid-to-premium
Typical Lead Time 1–2 weeks in stock 2–4 weeks 1–3 weeks

The HMIST6500's dual Ethernet plus dual serial configuration gives it a genuine connectivity advantage over the KTP1000 Mobile in mixed-protocol facilities — you eliminate a gateway module and simplify your panel wiring. However, both competing panels deliver 1024 x 768 XGA resolution and capacitive multi-touch, which produces sharper font rendering and more natural touch interaction. If your facility is already standardized on TIA Portal, the KTP1000 is the more natural choice regardless of price. If your application requires multi-touch gesture control or higher display resolution, those panels are the right specification. For Schneider-centric facilities accepting resistive touch in exchange for the dual-serial connectivity advantage, check current HMIST6500 availability at LeadTime.ca.

Expert Verdict: Is the HMIST6500 Worth Specifying?

The HMIST6500 earns its place on the approved vendor list for facilities running Schneider Electric infrastructure — specifically those with Schneider M241 or M251 controllers, existing EcoStruxure Operator Terminal Expert licenses, and mixed-communication panel architectures that include both Ethernet PLCs and legacy RS-485 or RS-232 serial devices. The dual Ethernet plus dual serial communication configuration is the concrete differentiator here: it removes the gateway module from the BOM, simplifies panel wiring, and reduces commissioning time in facilities where mixed-protocol device networks are the norm rather than the exception. The 1024 x 600 resistive touch display is a practical choice for production lines where operators wear gloves and screen readability at arm's length is the primary visibility requirement — it is not a premium display experience, but it performs reliably in the conditions it was specified for. Integrators supporting Harmony ST2 legacy installations will find the HMIST6500 a familiar and low-risk upgrade path.

The HMIST6500 has genuine limits that should inform the specification decision rather than being minimized. The 1024 x 600 WSVGA resolution renders smaller fonts less sharply on a 10-inch display compared to competitors delivering 1024 x 768 XGA at the same screen size — a real consideration when your operator interface screens carry dense process data or small alarm text. The resistive single-touch panel, while durable and glove-compatible, does not support multi-touch gestures, and facilities where capacitive touch is a usability expectation will find the interaction feel dated. Engineers specifying for high-end pharmaceutical or food-grade washdown environments where capacitive waterproof panels are standard should look at the Mitsubishi GOT2000 or Siemens KTP1000 alternatives listed in the comparison table above. Facilities standardized on non-Schneider PLC platforms gain little from the EcoStruxure software ecosystem advantage and would be better served by a panel native to their existing software toolchain.

From a procurement standpoint, the HMIST6500 is a low-risk order at its lead time profile. Stocking distributors typically carry Harmony ST6 inventory with 1–2 week availability, which compares favorably to the 2–4 week lead times common on premium competing panels. Pricing is mid-range — below the premium capacitive platforms — which makes it the defensible choice on project budgets where the specification criteria it meets are the right ones. Confirming 24VDC power supply availability in your control cabinet before releasing the purchase order is the single most critical pre-order step: it is the most common source of post-delivery installation delays on this product. View current pricing and stock status for the HMIST6500 at LeadTime.ca — we ship worldwide and can confirm lead time before you commit to a project timeline.

For volume pricing or to verify availability before finalizing your build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the HMIST6500

Because community forum data specific to the HMIST6500 and Harmony ST6 product family is limited in publicly indexed sources, the most reliable intelligence for prospective buyers comes from the documented integration experience of specialist distributors and the wrong-part prevention patterns that repeat across similar HMI panel procurement cycles. The observations below reflect the common pre-order mistakes that derail HMIST6500 installations — and how to prevent them.

The single most frequently reported post-delivery problem on panel HMI procurements of this type is power supply mismatch. The HMIST6500 requires 24VDC. Facilities that assume 24VDC is available in the target control cabinet without confirming it with the electrical team before ordering discover the gap on installation day — and the consequence is a stalled commissioning while an external 24VDC power supply is sourced and wired. The second common issue is Ethernet connectivity: engineering labs use modern auto-negotiating switches, but older factory floor networks frequently use manual port speed configurations. Engineers who test the HMIST6500 Ethernet link in the lab and assume it will behave identically on the plant floor network often spend hours troubleshooting a switch port configuration issue that a five-minute network check would have prevented.

A third pattern worth flagging — and one that trips up procurement-led orders specifically — is the EcoStruxure Operator Terminal Expert software license gap. When purchasing agents order the HMIST6500 hardware independently of the automation software stack, the panel arrives on site and the HMI application cannot be loaded because the engineering workstation either lacks a licensed copy of EcoStruxure OTE or holds an older software version incompatible with the Harmony ST6 model. Confirming software license availability at the procurement stage — not after the hardware arrives — eliminates this delay entirely. LeadTime.ca's pre-sale technical consultation exists precisely to catch these gaps before the purchase order is released, which is why working with a specialist distributor rather than a general-purpose electronics channel pays dividends on complex automation procurement.

Wiring and Installation Overview

The HMIST6500 mounts flush in a panel cut-out of 255mm x 185mm, with 47mm depth required behind the mounting surface for the body and cable connections. Installation is straightforward for experienced panel builders; engineers needing full step-by-step wiring procedures should consult the official Schneider Electric installation guide for the Harmony ST6 series.

  • Power connection: 24VDC nominal connected to the rear terminal block — confirm polarity before applying power; input voltage must be within the 24VDC nominal range and not 120VAC or 12VDC
  • Ethernet connection: Cat5e minimum (shielded recommended in high-electrical-noise environments) from RJ45 Port 1 to PLC or network switch; second RJ45 port available for redundancy or secondary device connection
  • Serial communication: COM1 DB9 connector for RS-232C to legacy serial devices; COM2 RS-485 for multidrop sensor/actuator networks — verify baud rate and termination requirements for your specific field devices
  • USB connections: USB Type-A host port for external keyboard, mouse, or data storage; USB Micro-B device port for direct PC programming connection during initial application upload and troubleshooting
  • Mounting and sealing: Secure with provided mounting clips from the rear side; verify front bezel sits flush for IP65 front-panel rating to be maintained — gaps in bezel seating compromise NEMA 4 and IP65 protection

Wrong-Part Prevention: Confirm These Six Points Before You Order

Before releasing the purchase order for the HMIST6500, verify each of the following. This checklist is drawn directly from the most common specification errors on Harmony ST6 panel deployments.

  1. Verify power supply is 24VDC available in your control cabinet or power distribution system (not 120VAC, not 12VDC)
  2. Confirm NEMA rating requirement: NEMA 4 (front panel protects against water spray) vs. NEMA 13 (when installed inside enclosed panel) — choose mounting configuration accordingly
  3. Check communication port compatibility: Confirm at least one communication protocol (Ethernet, RS-232C, or RS-485) is wired to your PLC or gateway device before ordering
  4. Validate software license: Verify EcoStruxure Operator Terminal Expert is licensed or included in your automation platform (not an older HMI software package)
  5. Confirm display resolution requirement: WSVGA 1024 x 600 pixels — verify this resolution is sufficient for your visualization requirements (smaller font at this resolution compared to higher-resolution competitors)
  6. Single-touch resistive panel only: Confirm resistive touch technology meets your application (multi-touch or capacitive touch not available; glove operation supported on resistive but with higher actuation force needed)

If any of these points require confirmation before you can commit, contact the LeadTime.ca team — we can review your application requirements and confirm the HMIST6500 is the correct specification before your order ships.

Frequently Asked Questions

Does the HMIST6500 communicate directly with Schneider Electric M241 and M251 controllers without a gateway?

Yes. The HMIST6500 connects to Schneider M241 and M251 controllers via Ethernet using Modbus TCP/IP or EtherNet/IP communication drivers configured in EcoStruxure Operator Terminal Expert. No gateway hardware is required for direct Ethernet communication with these controllers. RS-485 COM2 also supports Modbus RTU for serial-connected Schneider devices.

What happens if the 24VDC supply drops briefly — does the HMIST6500 shut down immediately?

The HMIST6500 is rated for 10ms microbreak immunity, meaning brief power supply interruptions within that window do not cause a panel shutdown or application restart. Interruptions longer than 10ms will trigger a shutdown. For installations where power supply quality is a concern, using a power supply with hold-up time greater than 10ms is the recommended approach.

Can I use the HMIST6500 in a facility running both Ethernet PLCs and legacy RS-485 Modbus RTU field devices simultaneously?

Yes — this is one of the HMIST6500's practical strengths. The two Ethernet RJ45 ports handle Ethernet PLC communication while COM2 RS-485 simultaneously supports a Modbus RTU multidrop network. RS-485 supports up to 32 devices per IEC 61158-2. This eliminates the need for a separate serial-to-Ethernet gateway in mixed-protocol environments.

Is the resistive touch panel replaceable in the field if it is damaged?

Resistive touch panel replacement on the HMIST6500 requires contacting Schneider Electric technical support or an authorized service center. Field replacement procedures are not covered in the standard installation documentation available through distributors. For installations where panel damage risk is high, requesting information about spare parts and service options from Schneider Electric before installation is advisable.

What standards certifications does the HMIST6500 carry?

The HMIST6500 is certified to EN 61131-2 for industrial automation, UL 61010-2-201, and CSA C22.2 No 61010-2-201 for electrical safety. EMC compliance covers EN 61000-6-4 industrial emissions and EN 61000-6-2 immunity. These certifications cover the majority of North American and international industrial installation requirements.

Does the HMIST6500 support USB barcode scanners or USB keyboards connected to the Type-A host port?

The USB Type-A host port supports external USB devices including keyboard, mouse, and USB storage devices. Compatibility with specific USB barcode scanners or other HID devices should be confirmed with Schneider Electric technical support or your EcoStruxure OTE software documentation, as driver support for specific USB peripheral devices varies by device type and software version.

Price, Lead Time, and How to Order From Anywhere in the World

  • The HMIST6500 is a mid-range HMI panel — pricing is available on the product page at LeadTime.ca; contact for current pricing on volume orders
  • Typical in-stock lead time is 1–2 weeks through stocking distributors; confirm availability at project start rather than assuming stock
  • Lead times may extend during supply chain disruptions or peak demand periods — verify with LeadTime.ca before committing to a project delivery schedule
  • LeadTime.ca ships worldwide — buyers outside North America can confirm shipping options and lead times by contacting the team directly

Why Order the HMIST6500 Through LeadTime.ca

  • Global shipping — LeadTime.ca fulfills orders worldwide, not limited to any single country or region
  • Pre-sale technical consultation to confirm the HMIST6500 is the correct specification before the order ships — prevents wrong-part returns
  • Access to Harmony ST6 inventory with confirmed lead times, not estimated availability from general-purpose electronics channels
  • Volume pricing available — contact for multi-unit orders or project bill-of-materials pricing
  • Post-sale support access for integration questions that arise during commissioning

At-a-Glance Summary

  • 10-inch TFT LCD display, 1024 x 600 WSVGA resolution, 16M colors, 16-level adjustable LED backlight
  • Single-touch analog resistive panel — glove-compatible, no multi-touch support
  • 800 MHz ARM Cortex-A8 processor, 1GB flash application memory, 512KB backup memory, 128MB user data memory
  • 24VDC nominal input, typical power consumption 12.6W
  • 2x Ethernet RJ45 (10/100 Mbps), RS-232C COM1, RS-485 COM2, USB Type-A host, USB Micro-B device
  • IP65 front panel, NEMA 4 front-panel protection, NEMA 13 in-enclosure rating
  • Operating temperature 0 to +50°C, storage -20 to +60°C
  • Panel cut-out 255mm x 185mm, body dimensions 273mm W x 203mm H x 47mm D, net weight 1.3 kg, aluminum front panel
  • Certified to EN 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201, EN 61000-6-4 EMC
  • Shock resistance 147 m/s² for 11ms; vibration resistance +/- 3.5mm at 5–9 Hz and 9.8 m/s² at 9–150 Hz per EN/IEC 61131-2
  • Native software: EcoStruxure Operator Terminal Expert — confirm license availability before ordering
  • Best fit: Schneider Electric infrastructure facilities, mixed-protocol environments, legacy Harmony ST2 upgrade projects
