Schneider HMISTU855 — 5.7" HMI Touch Panel Buying Guide

By Abdullah Zahid
13 min read

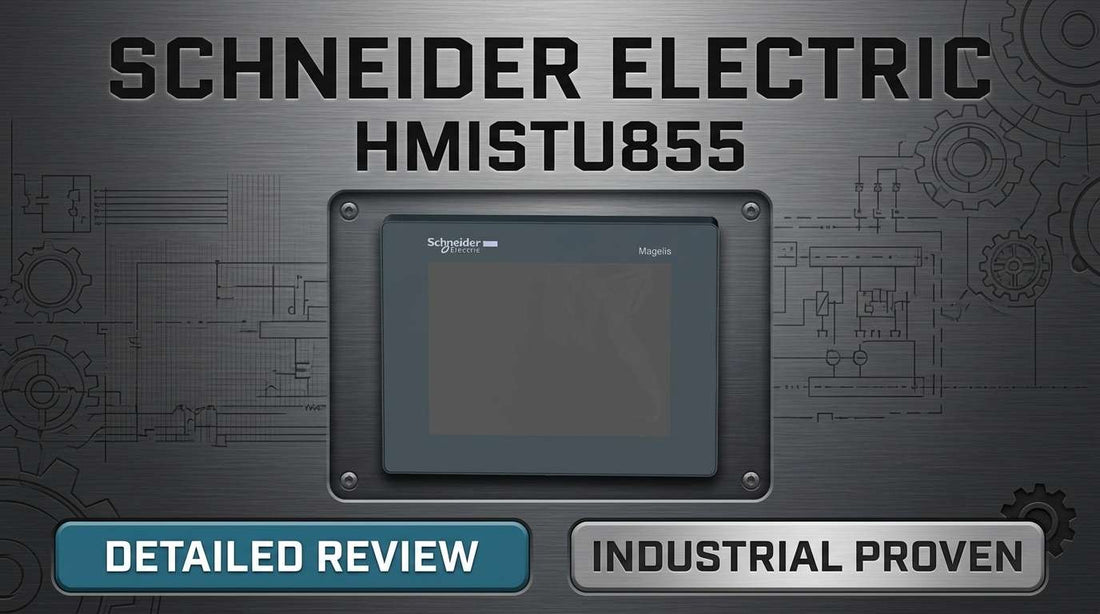

Schneider Electric HMISTU855 5.7-inch colour touchscreen HMI panel mounted in industrial control enclosure

Schneider Electric HMISTU855 Colour Touch Panel Screen, Harmony STO & STU, 5.7 Inch Wide — Specifications, Pricing, and Selection Guide

Controls engineers and panel builders evaluating a compact operator interface for material handling, packaging, or textile equipment are converging on a common question: does the Schneider Electric HMISTU855 deliver the display size, connectivity, and software ecosystem their system actually requires? This 5.7-inch TFT color QVGA touchscreen operates on 24V DC at 6.8W continuous draw, communicates via Ethernet, RS232/RS485, and dual USB ports, and mounts into a standard Ø 22mm panel cutout at just 55.3mm depth. The answer depends almost entirely on one hardware detail most buyers overlook until commissioning day — and this guide covers it in full.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the HMISTU855 — and Who Shouldn't

The HMISTU855 is the right choice for engineers and panel builders who meet the following criteria:

  • Your application workflow fits within a 320x240 QVGA display and you have validated screen layouts at that resolution before committing to production
  • Your control system communicates over Ethernet, RS232, RS485, or USB — no wireless requirement exists
  • Your 24V DC supply is stable within the 20.4 to 28.8V operating range and can handle up to 30A inrush current at startup without tripping upstream protection
  • Your Vijeo Designer software version is confirmed compatible with the unit's manufacture date (pre-2012 units require VJD 6.2 SP10 or earlier; post-2012 units support VJD 6.2 SP11 and newer)
  • Your mounting panel accommodates a 163mm wide x 129.15mm high face cutout with 55.3mm rear clearance for connector access
  • Your application requires IP65 or NEMA 4X environmental protection, or IP20 is acceptable for your enclosure location

If your application demands 800x480 or higher resolution for complex synoptic views or data tables, the HMISTU955 7-inch variant is the correct choice. If your shop runs a Siemens or Allen-Bradley PLC ecosystem as its primary platform, adding a Schneider HMI introduces software overhead and training cost that may outweigh the hardware benefits.

On this page:

What the HMISTU855 Actually Does in a Control System

The HMISTU855 is a colour touch panel screen in the Harmony STO and STU series — Schneider Electric's compact operator panel family previously marketed under the Magelis STU designation. Its job is straightforward: it sits between the operator and the PLC, displaying real-time system status on a 5.7-inch TFT color screen at 320x240 QVGA resolution, and accepting operator input through resistive touch. It is not a controller. It does not execute ladder logic. It translates PLC register values into visual feedback and translates operator button presses into PLC commands.

The processor is an ARM9 running at 333 MHz with 16MB of application memory — sufficient for screen navigation, animation, and data display on the kind of operator panels this form factor is designed for. A real-time clock with battery backup maintains timekeeping during power loss, which matters for production logging and event timestamping on shift handovers. Programming and application development are handled exclusively through Vijeo Designer software, and the version compatibility requirement tied to the unit's manufacture date is the single most important technical fact any buyer of this product needs to understand before placing an order.

The unit draws 6.8W continuously from a 24V DC supply — a modest load — but the 30A maximum inrush current at startup is what catches engineers who size their protection circuits on continuous draw alone. That detail is covered in full in the specifications and checklist sections below.

Typical System Architecture for the HMISTU855

The HMISTU855 sits at the operator layer of the control architecture, connecting upward to the PLC or control network and facing the operator through the panel door.

  • Industrial PLC or distributed control system (Ethernet or RS485 connection upstream)
  • Managed industrial Ethernet switch or direct PLC Ethernet port (for Modbus TCP or equivalent)
  • HMISTU855 panel-mounted in the control enclosure door, powered by 24V DC supply with inline overcurrent protection
  • USB mini-B port connected to development PC running Vijeo Designer (during commissioning and maintenance)
  • USB Type-A host port available for optional peripheral devices (USB storage, barcode readers) as supported by the application

Industries and Applications Where the HMISTU855 Performs

Material handling operations are the most natural home for the HMISTU855. Conveyor sorting systems, pick-and-place stations, and sortation equipment benefit from a compact, panel-mounted interface that lets operators check throughput status and acknowledge faults without navigating a complex screen hierarchy. The 5.7-inch display is sufficient for status dashboards and basic command inputs that experienced operators execute dozens of times per shift.

On packaging lines — labeling machines, case packers, film wrappers — the HMISTU855 serves as the recipe selection and parameter entry terminal. Operators switching between product formats need a touchscreen that responds consistently and does not require constant support calls. The Vijeo Designer ecosystem, while not the newest platform available, is familiar to most North American Schneider integrators, which reduces commissioning time and post-deployment support costs.

Textile processing environments including loom control and spinning frame interfaces frequently use the compact panel format because floor space and enclosure depth are constrained. The HMISTU855's 55.3mm depth and standard Ø 22mm mounting hole make it compatible with panel templates already in use across the industry without requiring a mechanical redesign of the enclosure door.

Retrofit and modernization projects are a fourth strong fit. When an aging machine's proprietary operator panel fails and replacement parts are no longer available, the HMISTU855 offers a well-supported, UL-listed alternative that can be integrated into the existing enclosure cutout in many cases with minimal modification. Its 2-year manufacturer warranty provides the protection buyers need when qualifying a new component for a legacy machine upgrade.

Application Typical Deployment
Conveyor sorting and material handling Panel-door mounted operator station displaying throughput status and fault acknowledgment
Multi-SKU packaging lines Recipe selection and parameter entry terminal integrated with PLC via Ethernet
Textile loom and spinning frame control Compact enclosure-mounted HMI for space-constrained machine cabinets
Legacy equipment HMI retrofit Drop-in replacement for failed proprietary panels in existing panel cutouts
OEM machine integration Standard operator panel on new machinery built for North American distribution
Maintenance diagnostic console Technician access to PLC diagnostics without stopping production line

Key Specifications: What Engineers Need to Confirm Before Ordering

Specification Value
Display 5.7-inch TFT color QVGA, 320x240 pixel resolution
Processor / Memory ARM9 at 333 MHz, 16MB application memory
Power Supply 24V DC, 20.4 to 28.8V operating range, 6.8W continuous
Inrush Current Up to 30A at startup — external overcurrent protection required
Connectivity 1 Ethernet port, 1 RS232/RS485 combo, 1 USB Type-A host, 1 USB mini-B device
Software Vijeo Designer — VJD 6.2 SP10 or earlier (pre-2012 units); VJD 6.2 SP11+ (post-2012 units)
Environmental Rating IP20 / IP65 / NEMA 4X depending on enclosure option
Operating Temperature 0 to 122°F (0 to 50°C)
Mounting / Dimensions Panel mount via Ø 22mm hole — 163mm W x 129.15mm H x 55.3mm D, 0.9kg
Compliance CE, UL Listed (UL 508/1604), IEC, EC 61000-6-2, EN 61131-2 — 2-year warranty

Full technical specifications are available on the product page at LeadTime.ca.

HMISTU855 vs. HMISTU655 vs. HMISTU955 — Which Model Do You Actually Need?

Model Screen Size Resolution Processor Connectivity Notes
HMISTU655 5.5 inch 320x240 QVGA ARM9 333MHz Eth / RS485 / USB Smaller footprint, same core performance; older software support only; tighter panel space applications
HMISTU855 5.7 inch 320x240 QVGA ARM9 333MHz Eth / RS485 / USB Compact form factor, proven ecosystem, UL listed; Vijeo Designer version tied to manufacture date
HMISTU955 7 inch 800x480 SVGA ARM9 400MHz+ Eth / RS485 / USB Larger display, higher resolution, more memory; choose this when QVGA limits operator workflow

If your application requires 800x480 resolution for complex synoptic views or data tables that cannot fit on a 320x240 screen without excessive navigation, the HMISTU955 is the correct choice — check current availability and compare options at LeadTime.ca.

Expert Verdict on the Schneider HMISTU855

The HMISTU855 earns its place on approved parts lists for panel builders and OEMs in material handling and packaging environments where the operator workflow fits within 320x240 resolution and the Schneider ecosystem is already established. The compact 55.3mm depth and standard Ø 22mm mounting mean it drops into existing enclosure templates without mechanical redesign — a genuine cost advantage on retrofit projects. The ARM9 at 333 MHz with 16MB application memory is not a powerhouse, but it is consistent and well-characterized across 13-plus years of installed base. UL 508/1604 listing, CE marking, compliance with EC 61000-6-2 and EN 61131-2, and a 2-year manufacturer warranty give procurement teams the documentation they need for regulated environments. This is a workhorse panel built for simplicity and predictability, and it delivers both.

Where the HMISTU855 has real limits: the 320x240 QVGA display is a hard ceiling. Applications that require complex data tables, multi-layer synoptic views, or detailed process graphics will force operators into menu navigation that slows workflows and increases error rates. The HMISTU955 at 7 inches and 800x480 is the honest upgrade path for those scenarios. Organizations whose PLC estate runs primarily on Siemens or Allen-Bradley platforms will also encounter friction — adding a Schneider HMI means adding Vijeo Designer licensing, training, and a separate software maintenance track. The Allen-Bradley PanelView Plus 6 series offers a 7-inch-and-up range with deeper native integration for those ecosystems, at a significantly higher hardware cost. Choose the HMISTU855 when panel space, budget, and Schneider ecosystem alignment all converge; choose a different platform when they do not.

From a procurement standpoint, the critical success factor is confirming the manufacture date and HMIS5T label status before the purchase order is raised. Units manufactured before March 12, 2012 without the HMIS5T label are restricted to Vijeo Designer 6.2 SP10 or earlier — a fact that has caught experienced integrators off-guard and turned commissioning days into multi-day software version hunts. A specialist distributor who maintains both pre-2012 and post-2012 inventory and confirms compatibility in writing eliminates that risk entirely. View current pricing and confirm stock at LeadTime.ca — the product page carries live availability and the team can confirm manufacture date details before your order ships anywhere in the world.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the HMISTU855

Community forum data for the HMISTU855 specifically is sparse — this product occupies a corner of the market where experienced Schneider integrators tend to commission quietly and move on rather than document their experience publicly. That absence of noise is partly reassuring (the panel does not generate the volume of distress calls that plagued earlier Magelis hardware generations) and partly a sourcing hazard: engineers ordering this unit without specialist guidance can walk into well-documented technical traps that simply never made it onto the forums because the integrators who hit them called their distributor instead of posting online.

The single highest-impact detail is the Vijeo Designer version split. Schneider Electric's official documentation confirms that HMISTU855 units manufactured before March 12, 2012 — identifiable by the absence of the HMIS5T label on the rear module — are not supported in Vijeo Designer 6.2 SP11 or any later version. The device will not appear in the software device list. Engineers who discover this at commissioning, not at procurement, face a choice between sourcing a legacy copy of VJD 6.2 SP10 on short notice or initiating a replacement order — neither is fast or cheap when a production line is waiting. The correct time to resolve this is when requesting the quotation: specify in writing whether you require a post-2012 unit with HMIS5T label, and request written confirmation from the distributor before the order ships.

The second trap is power supply sizing. The 6.8W continuous draw at 24V DC translates to approximately 0.28A steady-state — a number that leads undersized installations to select light-duty overcurrent protection. The 30A maximum inrush current at startup is what actually determines the protection device rating. Breakers sized for continuous current only will nuisance-trip on every power-up cycle, and fuses selected on the same logic will blow on first energization. The prevention is straightforward: confirm the upstream protection device is rated for the startup surge, not just the run current. When in doubt, contact a specialist distributor who can provide application-specific guidance before the panel is wired — that conversation is worth more than any amount of post-commissioning troubleshooting.

Wiring and Installation Overview

  • Verify panel cutout dimensions are 163mm wide x 129.15mm high with 55.3mm rear clearance before mounting; do not over-tighten screw terminal fixings into the PC/PBT and PAA plastic frame
  • Connect 24V DC ground first, then positive supply, to screw terminal removable connectors; confirm supply voltage is stable within the 20.4 to 28.8V range using a multimeter before applying power
  • Install external fuse or circuit breaker rated for both 6.8W continuous draw and 30A startup inrush; do not rely on upstream panel protection alone for a multi-unit installation
  • For RS485 networks, verify 120-ohm end termination resistors are in place at the first and last device on the line and confirm A/B signal polarity before energizing the communication circuit
  • Connect USB mini-B to development PC running the correct Vijeo Designer version for the unit's manufacture date; confirm device appears in software device list before beginning application upload

Wrong-Part Prevention Checklist

Before raising a purchase order for the HMISTU855, verify every item on this checklist. Each point corresponds to a documented commissioning failure mode for this product family.

  1. Confirm whether unit will be manufactured date before or after March 12, 2012 and verify Vijeo Designer version compatibility (pre-2012 units restricted to VJD 6.2 SP10 or earlier)
  2. Verify 24V DC supply voltage stability within 20.4 to 28.8V range and confirm power supply can handle inrush current up to 30A without tripping
  3. Check that required communication protocols (Ethernet, RS232, RS485) match your PLC connection method; test with actual control system before ordering
  4. Ensure mounting hole design is Ø 22mm; verify existing panel cutout dimensions are 163mm width x 129.15mm height minimum with 55.3mm panel wall thickness clearance
  5. Confirm 320x240 QVGA resolution is sufficient for intended operator interface; test sample screen layouts before committing to production order
  6. If IP65 or NEMA 4X protection required, verify enclosure material (PC/PBT and PAA) is compatible with local operating environment (temperature, humidity, chemical exposure)
  7. Verify weight capacity if mounting in overhead or vertical orientation; unit weighs 0.9kg and relies on screw terminal fixings

If any item on this checklist is unresolved, contact the LeadTime.ca team before ordering — confirming these details upfront eliminates the most common commissioning delays for this product.

Frequently Asked Questions

Does the manufacture date actually matter, or is this an edge case?

It matters for every order. Schneider Electric's official documentation confirms that HMISTU855 units manufactured before March 12, 2012 (no HMIS5T label on rear module) are not compatible with Vijeo Designer 6.2 SP11 or any later release. If your development environment runs a current Vijeo Designer version, a pre-2012 unit will not appear in the device list and cannot be programmed without downgrading or sourcing legacy software. Always specify manufacture date requirement in writing when requesting a quotation.

Can the HMISTU855 connect wirelessly to a PLC or SCADA system?

No. The HMISTU855 supports only hardwired connectivity: one Ethernet port, one RS232/RS485 combination port, one USB Type-A host port, and one USB mini-B device port. There is no Wi-Fi or Bluetooth capability. Applications requiring wireless HMI connectivity need a different hardware platform.

What happens if my 24V DC supply voltage drifts below 20.4V or above 28.8V?

Operating outside the 20.4 to 28.8V supply range is outside the unit's specified operating conditions. Voltage instability in this band can cause display glitches, communication dropouts, or unexpected resets. A stable, regulated 24V DC supply with appropriate filtering is required. Confirm supply quality with a multimeter before commissioning.

Is the ARM9 processor or 16MB application memory field-upgradeable?

No. The processor and application memory are fixed hardware parameters and are not field-upgradeable. If your application's memory footprint or animation frame rate requirements exceed what the ARM9 at 333 MHz with 16MB supports, the HMISTU955 with its higher-specification processor and memory is the correct variant to evaluate.

Does the HMISTU855 include a battery for the real-time clock, and can it be replaced?

Yes, the HMISTU855 includes a real-time clock with battery backup for timekeeping during power loss. Battery replacement procedures are documented in the Schneider Electric user manual for this product. Refer to the manual for battery type specification and replacement interval recommendations.

What certifications does the HMISTU855 carry for North American and European markets?

The HMISTU855 carries UL Listed certification to UL 508/1604 industrial control panel standards, IEC certification, CE marking for European regulatory alignment, and compliance with EC 61000-6-2 (electromagnetic compatibility) and EN 61131-2 (programmable controllers). This multi-standard compliance supports OEM export to both North American and European markets without additional regulatory re-testing in most cases.

Why Order the HMISTU855 from LeadTime.ca

  • Global shipping — LeadTime.ca fulfills orders worldwide, not just within a single region
  • Manufacture date confirmation — specialist distributors can confirm HMIS5T label status and Vijeo Designer compatibility before your order ships, eliminating the most common commissioning failure for this product
  • Hard-to-source variants — access to both current and legacy inventory configurations that generic electrical suppliers do not maintain
  • Volume pricing available — contact for current pricing on multi-unit orders or project-based procurement
  • Technical support from automation specialists — not commodity stock handlers; the team understands the Harmony STO and Magelis product line genealogy

At-a-Glance Summary

  • 5.7-inch TFT color display at 320x240 QVGA resolution — verify screen real estate meets your operator workflow before ordering
  • ARM9 processor at 333 MHz with 16MB application memory — fixed, non-upgradeable hardware
  • 24V DC power supply required, stable within 20.4 to 28.8V; 6.8W continuous draw but up to 30A inrush at startup
  • Ethernet, RS232/RS485 combo, USB Type-A host, and USB mini-B device ports — no wireless connectivity
  • Vijeo Designer software version compatibility is manufacture-date dependent: pre-March 12, 2012 units require VJD 6.2 SP10 or earlier; post-2012 units (HMIS5T label) support VJD 6.2 SP11 and newer
  • Panel mount via Ø 22mm hole — 163mm W x 129.15mm H face, 55.3mm depth, 0.9kg
  • Environmental options: IP20, IP65, or NEMA 4X — enclosure material is PC/PBT and PAA
  • Operating temperature: 0 to 122°F (0 to 50°C)
  • Certifications: CE, UL Listed (UL 508/1604), IEC, EC 61000-6-2, EN 61131-2
  • 2-year manufacturer warranty from Schneider Electric
  • Primary use cases: material handling conveyors, packaging machinery, textile processing, legacy HMI retrofits, OEM machine integration
