Schneider Electric HMIST6400 — Harmony ST6 7-Inch HMI Review

By Abdullah Zahid
16 min read

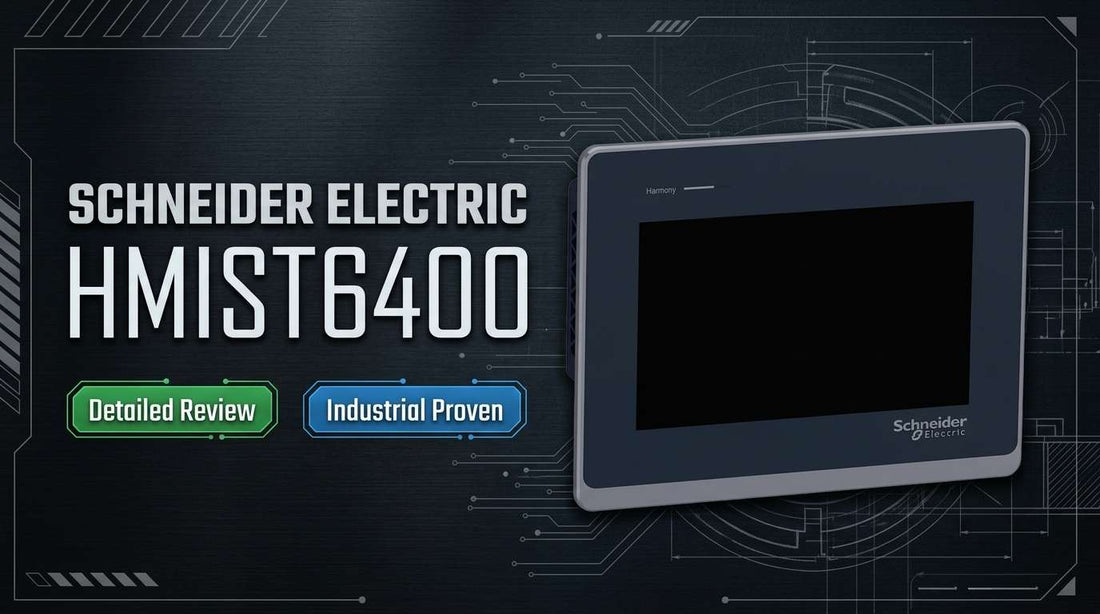

Schneider Electric HMIST6400 Harmony ST6 7-inch touch panel HMI display mounted in industrial control panel

Schneider Electric HMIST6400 Harmony ST6 Touch Panel Screen, 7-inch Wide Display: Complete Specifications, Pricing and Buyer's Guide

Controls engineers and systems integrators specifying an operator terminal for a Schneider Harmony or EcoStruxure environment eventually arrive at the same evaluation point: does the HMIST6400 deliver the display size, processor performance, and network flexibility the application demands, and is it available fast enough to keep the project on schedule? The Schneider Electric HMIST6400 is a 7-inch WVGA resistive touch panel running on an ARM Cortex-A8 800 MHz processor with 1 GB device memory, dual Ethernet ports, and full EcoStruxure Operator Terminal Expert compatibility. This guide covers every specification, ordering constraint, and deployment decision you need to make a confident purchase.

If you have already confirmed this is the correct part, check current pricing and availability for the HMIST6400 at LeadTime.ca — ships worldwide.

Who Should Buy the HMIST6400 — and Who Shouldn't

The HMIST6400 is the right choice for engineers and integrators who need a mid-format operator terminal within the Harmony ST6 software family. Buy it when all of the following are true:

  • Your application requires a 7-inch WVGA display at 800 x 480 pixels with 16 million colors and 16 adjustable brightness levels
  • Your control environment runs EcoStruxure Operator Terminal Expert and requires verified software compatibility with the Harmony project library
  • Your network topology requires two independent Ethernet ports for redundancy, daisy-chain architecture, or failover configuration
  • Your panel enclosure accepts a 190 x 135 mm rectangular cutout with panel thickness between 1.6 and 5 mm
  • Your 24 VDC power infrastructure can deliver 9 W nominal consumption and sustain 30 A inrush current on startup without voltage collapse
  • Your operating environment stays within 0–50°C (32–122°F) and does not require extended industrial temperature ratings

If your facility runs Siemens S7 or Mitsubishi FX/Q-series PLCs natively, or if you need a display larger than 7 inches, the HMIST6400 is not the correct choice. The HMIST5000 covers cost-constrained or space-limited 5-inch applications, while the HMIST7000 handles larger display requirements. Confirm your exact requirement against that list before placing an order.

On this page:

What the HMIST6400 Actually Does in a Control System

The HMIST6400 is the real-time interface layer between machine operators and the programmable logic controllers or distributed control systems driving an industrial process. It displays synoptic views, live process values, alarm states, and production KPIs, and it accepts operator commands via its resistive touch screen. Unlike a general-purpose tablet, it is engineered for continuous industrial duty: the ARM Cortex-A8 processor at 800 MHz with 1 GB device memory handles multi-screen navigation and real-time data refresh without the latency issues that affect underpowered HMI platforms.

The 7-inch 800 x 480 WVGA LCD color TFT display offers 16 million colors and 16 adjustable brightness levels, making it readable in factory floor ambient light conditions. The resistive touch technology responds to gloved hands or stylus inputs, which is a practical requirement in food processing, chemical batch, and packaging environments where capacitive screens fail. The polycarbonate front bezel and 4-screw panel mounting system support installation into enclosures with panel thickness between 1.6 and 5 mm through a 190 x 135 mm rectangular cutout — a standard industrial dimension that aligns with IEC 60917 mounting practices and simplifies retrofit projects.

Communication flexibility is a defining specification of this model. Two RJ45 Ethernet ports enable either daisy-chain or redundant network topologies without requiring an external switch. COM1 provides RS232 via SUB-D 9-pin female connector at speeds from 2400 to 115200 bps, and COM2 provides RS485 via female RJ45 at 2400 to 187500 bps. A USB 2.0 Type-A host port and USB 2.0 Micro-B device port complete the connection set, enabling project file transfers and peripheral connections without additional hardware.

Typical System Architecture for the HMIST6400

The HMIST6400 sits at the operator interface layer of the control architecture — above the PLC and field devices, and below the SCADA or MES layer. Here is how a typical deployment chain looks:

  • Engineering workstation running EcoStruxure Operator Terminal Expert pushes project files to the HMIST6400 via Ethernet or USB
  • HMIST6400 connects to a Modicon M241 or M251 PLC via Ethernet Port 1 for primary communication
  • Ethernet Port 2 connects to a managed switch or secondary network segment for redundancy or IT network integration
  • COM2 RS485 provides a serial fallback link to legacy field devices or older PLC models that lack Ethernet capability
  • Operator interacts with the HMIST6400 touch screen to send commands, acknowledge alarms, and monitor process state in real time

Industries and Applications Where the HMIST6400 Is Deployed

Food and beverage processing facilities use the HMIST6400 as the primary operator station on filling, sealing, and pasteurization lines. The resistive touch interface handles gloved-hand operation reliably, and the 7-inch form factor fits the compact operator stations common in these environments. Dual Ethernet ports allow integration into both the plant operations network and a dedicated machine safety network without additional hardware.

Discrete manufacturing and automotive assembly lines deploy the HMIST6400 as line supervisor displays showing real-time production counts, fault codes, and equipment status. The 800 x 480 resolution is sufficient for multi-zone dashboards, and the ARM Cortex-A8 processor handles screen transitions and data refresh at rates that keep up with fast-moving production lines.

Packaging machinery integrators standardize on the HMIST6400 for retrofit projects replacing legacy Harmony ST or ST2 panels. EcoStruxure Operator Terminal Expert provides a documented migration path from older Harmony projects, reducing re-engineering cost. The 190 x 135 mm cutout dimension matches many legacy panel openings, allowing direct swap with minimal enclosure modification.

Chemical batch control and water treatment installations use the HMIST6400 inside NEMA 4X or explosion-proof enclosures where the HMI itself does not require ATEX classification but the surrounding environment does. The unit is not rated for hazardous areas on its own, but when mounted inside a compliant enclosure, it serves as the primary operator interface for process setpoint entry, batch recipe selection, and alarm acknowledgment.

Application Typical Deployment
Food and beverage processing line Operator station on filling or sealing equipment, gloved-hand resistive touch, dual Ethernet to plant network
Discrete manufacturing supervisor display Line KPI and fault display on assembly cell, Modicon M241 via Ethernet Port 1, IT integration via Port 2
Packaging machinery retrofit Direct replacement of legacy Harmony ST2 panel in existing 190 x 135 mm cutout, EcoStruxure project migration
Chemical batch control HMI inside NEMA 4X enclosure, RS485 COM2 to legacy batch controller, Ethernet to SCADA server
Water treatment remote monitoring Distributed station displaying PLC output data, daisy-chained Ethernet across multiple Modicon devices
Automation education lab Student control systems platform using ARM processor, color display, and EcoStruxure software environment

Key Specifications Engineers Rely On at Purchase Time

Specification Value
Display Size and Type 7-inch LCD Color TFT, Resistive Single-Touch, 16:9 aspect ratio
Resolution 800 x 480 pixels (WVGA), 16 million colors, 16 brightness levels
Processor and Memory ARM Cortex-A8 @ 800 MHz, 1 GB device memory, 128 MB user data memory, 512 KB backup memory
Ethernet Ports 2 x RJ45 (Ethernet communication)
Serial Communication COM1: RS232 SUB-D 9-pin female (2400–115200 bps); COM2: RS485 female RJ45 (2400–187500 bps)
USB 1 x USB 2.0 Type-A Host; 1 x USB 2.0 Micro-B Device
Power Supply and Consumption 24 VDC, 9 W nominal, 30 A inrush on startup
Operating Temperature 0–50°C (32–122°F)
Panel Cutout and Mounting 190 x 135 mm cutout, panel thickness 1.6–5 mm, 4-screw rear mount; overall 208 x 153 x 45 mm
Standards and Compliance CE, UL 61010-2-201, CSA C22.2, RoHS, REACH; ESD 6 kV contact / 8 kV air; shock 147 m/s² for 11 ms

Full technical specifications are available on the product page at LeadTime.ca.

HMIST6400 vs HMIST5000 vs HMIST7000 — Which Harmony ST6 Model Do You Need?

Feature HMIST6400 HMIST5000 HMIST7000 (Inferred)
Display Size 7-inch 5-inch 10-inch (approx)
Resolution 800 x 480 800 x 480 1024 x 600 (approx)
Processor ARM Cortex-A8 ARM Cortex-A8 ARM Cortex-A9 (approx)
Ethernet Ports 2 2 (assumed) 2 (assumed)
Device Memory 1 GB 512 MB 2 GB (approx)
Cost Relative to HMIST6400 Baseline 20–30% lower 30–50% higher
Best For Retrofit, mid-size panels, dual-port networking Budget or space-constrained applications Large displays, advanced graphics applications

If your panel space only allows a 5-inch footprint or your project budget is the primary constraint, the HMIST5000 is the correct choice — contact LeadTime.ca to confirm current availability across the Harmony ST6 range.

HMIST6400 vs Siemens KTP 400 vs Mitsubishi GOT2107G

Feature HMIST6400 KTP 400 Mobile GOT2107G
Display Size 7-inch 7-inch 7-inch
Processor ARM Cortex-A8 800 MHz Intel Atom (est) ARM-based (est)
Ethernet Ports 2 1–2 2
Software Ecosystem EcoStruxure Operator Terminal Expert WinCC Flexible GOT2000 Series Software
Native PLC Integration Modicon M241/M251 Siemens S7 Mitsubishi FX/Q-series
Best For Schneider/Modicon systems Siemens S7 environments Mitsubishi FX/Q-series environments
Relative Cost Mid-range High High

The comparison above underscores a critical point: cross-platform HMI selection is a software decision as much as a hardware one. If your control platform is Modicon M241 or M251, the HMIST6400 connects natively through EcoStruxure without gateway devices. Connecting the HMIST6400 to Siemens S7 or Mitsubishi FX-series controllers requires Ethernet gateway hardware and additional driver configuration — an integration cost that often shifts the total project cost in favour of the native-ecosystem option for that PLC brand.

Expert Verdict: Is the HMIST6400 Right for Your Project?

The HMIST6400 lands squarely in the mid-range of the Harmony ST6 lineup and delivers exactly what a retrofit or mid-format new-build application needs: a 7-inch 800 x 480 resistive touch display backed by an ARM Cortex-A8 800 MHz processor that handles real-time multi-screen HMI without the performance ceiling concerns that affect lower-spec panels. The dual Ethernet ports are a genuine functional differentiator for applications where network redundancy or daisy-chain topology is required, and the 190 x 135 mm cutout standard means most retrofit projects can drop this unit into an existing panel opening without enclosure fabrication. For controls engineers who are already standardized on EcoStruxure Operator Terminal Expert and have existing Harmony projects to migrate, the HMIST6400 offers a documented conversion path from legacy Harmony ST and ST2 environments — reducing re-engineering cost and project risk on upgrade work.

That said, the HMIST6400 has clear boundaries. It is not the right choice for facilities running Siemens S7 or Mitsubishi FX/Q-series PLCs as their primary control platform — the integration cost via gateway hardware often justifies choosing the native-ecosystem HMI instead. The operating temperature limit of 0–50°C (32–122°F) excludes applications with ambient conditions outside that range. The resistive single-touch screen, while practical for gloved industrial environments, is not suited for applications requiring multi-touch gesture input. Engineers needing a 5-inch lower-cost option should evaluate the HMIST5000, and those requiring a larger display area or higher resolution should look at the HMIST7000 series. If multi-touch or capacitive screen performance is a firm requirement, this model family does not address it.

From a procurement standpoint, the HMIST6400 is a mid-market component with variable stock across general distribution channels. Sourcing through an authorized Schneider distributor is not optional — it directly affects your warranty coverage, EcoStruxure software license compliance, and access to commissioning support if a unit arrives with a configuration issue. The 30 A inrush current specification is the most frequently underestimated procurement constraint: verify your 24 VDC supply's inrush capability in writing before the purchase order is placed, not after installation day. If those conditions are confirmed, the HMIST6400 is a reliable, well-supported choice with widely available integrator expertise. Review current pricing and stock status for the HMIST6400 at LeadTime.ca — available to ship worldwide.

For volume pricing, lead time confirmation before committing to a build schedule, or technical pre-purchase consultation, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the HMIST6400

Community forum data specific to the HMIST6400 is sparse in publicly available sources, which itself tells you something about this product's buyer profile: the engineers deploying it are typically operating within a closed Harmony or EcoStruxure ecosystem, consulting Schneider technical documentation directly rather than open forums. What does emerge from the specification record and known installation patterns is a consistent set of ordering and installation errors that surface at commissioning — not at the design stage. Understanding these before you place the order prevents the delays and additional freight charges that come from receiving the wrong part or discovering infrastructure incompatibilities on installation day.

The most common specification-stage error is model number confusion between the HMIST6400 and HMIST5000. The model numbers look similar in a product list, the price difference is not always obvious on a quick quote, and procurement specialists working from engineering specs sometimes transcribe the wrong four-digit suffix onto the purchase order. The result is a 5-inch unit arriving on a project that requires a 7-inch display — a 2-week correction cycle that delays the entire commissioning schedule. The fix is straightforward: cross-check the model number on the purchase order against the Schneider datasheet before payment is processed, and request written confirmation from the distributor that the unit being shipped matches the exact catalog number on the specification document.

The second area where specialist advice matters is power supply sizing. The HMIST6400's 9 W nominal consumption figure is accurate for steady-state operation, but the 30 A inrush current on startup is the number that trips up engineers who size the 24 VDC supply to the running load. A 3 A or 5 A supply will allow the unit to initialize momentarily and then shut down repeatedly — a symptom that is easy to misdiagnose as a display fault. Schneider's own documentation is explicit on this point, and a specialist distributor who has seen this failure mode before will flag it before the order ships. For projects where the LeadTime.ca team is the sourcing point, this kind of pre-order technical verification is part of the transaction — not an upsell.

Wiring and Installation Overview

  • Cut a 190 x 135 mm rectangular opening in the panel enclosure and verify panel thickness is between 1.6 and 5 mm before inserting the HMIST6400 bezel; panels outside this tolerance require a mounting bracket or enclosure modification
  • Connect 24 VDC power at the bottom connector using wire rated for at least 1.5 mm² cross-section; the supply must sustain 30 A inrush on startup — do not rely on a supply rated only to the 9 W nominal figure
  • Connect Ethernet RJ45 cables to Port 1 and Port 2 at the rear; route signal cables away from high-voltage power lines and motor noise sources; use shielded cable for RS485 COM2 runs
  • If RS485 daisy-chain topology is used on COM2, terminate end devices in the chain with 120 Ohm resistors between A and B lines to prevent signal reflection and communication failure
  • After physical installation, transfer the EcoStruxure Operator Terminal Expert project file via USB (FAT32 drive, USB Type-A host port) or Ethernet; power-cycle the unit after download and verify all touch inputs and PLC communication before signing off on commissioning

Full installation procedures, connector pinouts, and cable specifications are available in the Schneider Electric HMIST6400 installation manual from the manufacturer's documentation portal.

Compatible Software Platform and Communication Modules

The HMIST6400 operates exclusively within the EcoStruxure Operator Terminal Expert environment. The following components and configurations are confirmed in official Schneider documentation as part of the compatible deployment architecture:

  • EcoStruxure Operator Terminal Expert — native HMI project development, deployment, and monitoring software; license is per-device or project-based; verify license version before ordering
  • Modicon M241 and M251 PLCs — native Ethernet integration without gateway hardware; primary PLC targets for direct HMIST6400 deployment
  • Legacy Harmony ST and ST2 project files — migration path available through EcoStruxure import tools; migration is not automatic and requires testing before production deployment
  • Third-party PLC platforms (Siemens S7, Mitsubishi FX/Q, Allen-Bradley ControlLogix) — accessible via Ethernet gateway devices supporting Modbus, PROFINET, or proprietary protocols configured in EcoStruxure; additional hardware and configuration effort required
  • USB 2.0 peripherals — the Type-A host port supports USB flash drives for project file transfer and firmware updates; FAT32 format required

Wrong-Part Prevention Checklist

Before submitting your purchase order for the HMIST6400, verify every point on this checklist. These are the eight checks that prevent the most common ordering and installation errors:

  1. Confirm HMIST6400 is exactly 7-inch display (do not confuse with HMIST5000 at 5-inch or HMIST7000 at larger sizes)
  2. Verify ARM Cortex-A8 processor is compatible with your CPU architecture requirements (not compatible with legacy MIPS or older Intel-based Harmony models)
  3. Check that EcoStruxure Operator Terminal Expert software is installed and licensed in your control environment (verify license version)
  4. Confirm dual Ethernet ports and RS485 backend connection support your network topology (do not assume single-port sufficiency)
  5. Validate 24 VDC power supply availability and current capacity (device draws 9W nominal, 30A inrush on startup)
  6. Measure cutout opening to confirm 190 x 135 mm rectangle and verify panel thickness is between 1.6-5 mm (mounting uses 4 screws)
  7. Check operating temperature range 32-122°F (0-50°C) against your facility ambient conditions and does not require extended industrial temperature range
  8. Confirm polycarbonate front bezel material is acceptable (not required to be stainless steel or alternative corrosion-resistant material)

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — we can verify compatibility and confirm current stock before the purchase order is placed.

Frequently Asked Questions

Can the HMIST6400 connect to non-Schneider PLCs without a gateway device?

No — native direct integration is limited to Schneider Modicon M241 and M251 platforms via Ethernet. Connecting to Siemens S7, Mitsubishi FX/Q-series, or Allen-Bradley ControlLogix controllers requires Ethernet gateway hardware configured with the appropriate protocol drivers (Modbus, PROFINET, or proprietary) inside EcoStruxure Operator Terminal Expert. This adds hardware cost and configuration time to the project scope.

Will my existing EcoStruxure Harmony ST2 project run on the HMIST6400 without modification?

Schneider documentation confirms a migration path exists from legacy Harmony ST and ST2 environments to EcoStruxure Operator Terminal Expert, but migration is not automatic or guaranteed. Project files require import and testing before production deployment. The ARM Cortex-A8 processor is not compatible with legacy MIPS or older Intel-based Harmony hardware, which can affect driver and communication configurations in older projects. Always validate the migrated project on development hardware before commissioning on a live line.

Why does the HMIST6400 fail to start when connected to my existing 24 VDC supply?

The most likely cause is an undersized power supply that cannot sustain the 30 A inrush current drawn on startup. A supply rated only for the 9 W nominal consumption will allow brief initialization before collapsing — the unit powers on momentarily and then shuts down in a cycle. Select a 24 VDC supply rated for continuous current of 10 A or higher and verify its inrush current specification covers 30 A for the startup period. Check that actual voltage under load remains above 23 VDC during peak demand.

Is the HMIST6400 approved for use in hazardous or ATEX-classified areas?

No. The HMIST6400 does not carry ATEX or IEC Ex classification for hazardous area installation on its own. It may be used as a non-classified peripheral mounted inside an external ATEX-compliant or explosion-proof enclosure where the enclosure itself provides the required area classification. Consult your safety engineer and the enclosure manufacturer for compliant installation guidance.

Does each HMIST6400 unit require its own EcoStruxure software license?

Licensing for EcoStruxure Operator Terminal Expert is typically structured on a per-device or per-project basis rather than enterprise-wide. The exact licensing model applicable to your deployment should be confirmed with your software reseller or Schneider Electric sales contact before ordering multiple units, as license structure can affect total project cost on multi-terminal deployments.

What shock and vibration ratings does the HMIST6400 carry for mobile or high-vibration installations?

The HMIST6400 is rated for 147 m/s² shock resistance for 11 ms in X, Y, and Z directions, and vibration resistance of +/- 3.5 mm at 5–9 Hz and 9.8 m/s² at 9–150 Hz. EMC burst immunity is rated at 2 kV on power ports and 1 kV on signal ports, with ESD immunity of 6 kV contact and 8 kV air discharge. These ratings suit most fixed industrial panel mounting applications; consult the manufacturer datasheet for applications with continuous high-frequency vibration exceeding these limits.

Why Order From LeadTime.ca

  • Authorized distributor sourcing: genuine hardware with manufacturer warranty and EcoStruxure software license compliance verified
  • Global shipping: LeadTime.ca ships the HMIST6400 and Harmony ST6 accessories worldwide — not limited to any single region
  • Pre-order technical consultation: the team can verify model compatibility and inrush current requirements before the purchase order is submitted
  • Single-unit orders accepted: no minimum order quantity constraint for qualified project purchases
  • Volume pricing available: contact for current pricing on multi-unit or multi-site deployments

At-a-Glance Summary

  • 7-inch WVGA LCD color TFT display, 800 x 480 pixels, 16 million colors, 16 adjustable brightness levels, single-touch resistive
  • ARM Cortex-A8 processor at 800 MHz with 1 GB device memory, 128 MB user data memory, and 512 KB backup memory
  • Two RJ45 Ethernet ports enabling redundancy or daisy-chain topologies without external switches
  • COM1 RS232 (2400–115200 bps) and COM2 RS485 (2400–187500 bps) for serial legacy device integration
  • 24 VDC power input, 9 W nominal consumption, 30 A inrush on startup — supply must be rated accordingly
  • Panel cutout 190 x 135 mm, panel thickness 1.6–5 mm, 4-screw rear mount, overall dimensions 208 x 153 x 45 mm
  • Operating temperature 0–50°C (32–122°F); shock resistance 147 m/s² for 11 ms; vibration to 9.8 m/s² at 9–150 Hz
  • CE, UL 61010-2-201, CSA C22.2, RoHS, and REACH compliant; California PROP65 warning applies
  • Native software platform: EcoStruxure Operator Terminal Expert with legacy Harmony ST/ST2 migration path
  • Polycarbonate front bezel; not rated for ATEX hazardous areas; not suited for extended temperature applications below 0°C or above 50°C
