Schneider Electric HMIS5T — Harmony STU Rear Module Buyer Review

By Abdullah Zahid
14 min read

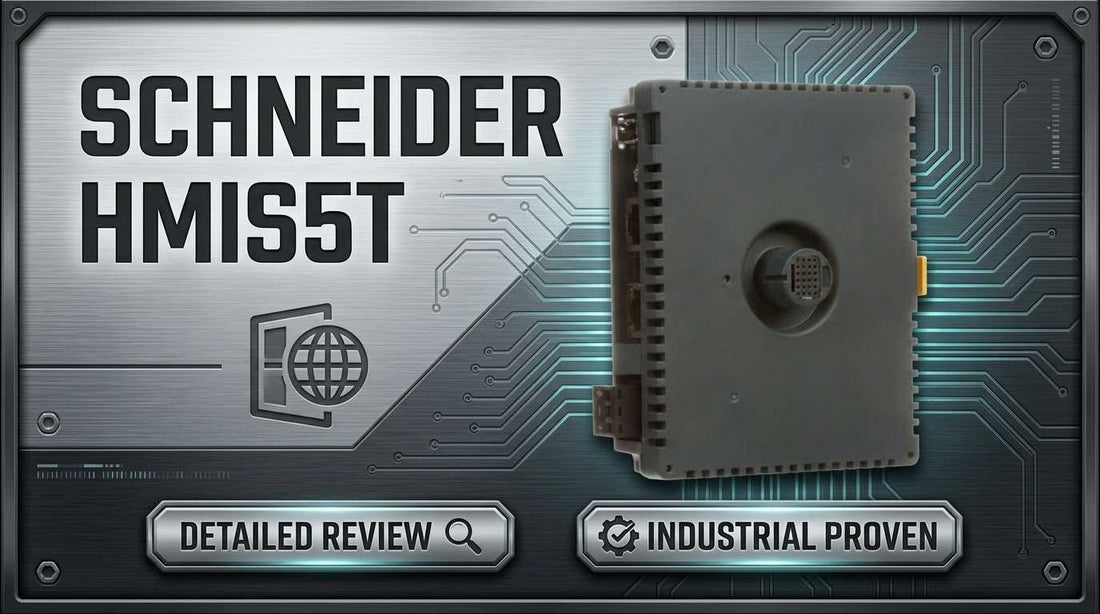

Schneider Electric HMIS5T rear panel processor module for Harmony STU series HMI panel automation systems

Schneider Electric HMIS5T Rear Panel/Processor Module for Harmony STO & STU Series HMIs: Specifications, Compatibility, and Ordering Guide

Controls engineers specifying or replacing components in a Harmony STU installation face a specific decision with the HMIS5T: this is the rear panel/processor module only — the CPU, memory, and communication core of the Harmony STU series — and it ships without a display screen. The HMIS5T carries 64MB of DRAM and 32MB of application flash, exactly double the onboard memory of first-generation HMISTU655 and HMISTU855 units, and it pairs exclusively with the HMIS65 (3.5-inch) or HMIS85 (5.7-inch) display modules. If you are sourcing this part as a replacement, an upgrade, or as the processor backbone for a new modular build, the compatibility check comes first — every time.

If you have already confirmed this is the right part, check current pricing and availability for the Schneider Electric HMIS5T at LeadTime.ca — ships worldwide.

Who Should Order the HMIS5T — and Who Should Choose a Different Part

The HMIS5T is the right choice for buyers who meet all of the following criteria:

  • You are working within the Harmony STU series architecture and your display module is either the HMIS65 (3.5-inch TFT) or HMIS85 (5.7-inch TFT) — not a first-generation integrated unit
  • Your panel infrastructure provides a regulated 24V DC supply
  • Your enclosure has a minimum of 118mm width and 40mm depth clearance for the rear module footprint
  • Your application fits within 64MB DRAM and 32MB application flash — or you are upgrading specifically to gain that headroom over a first-generation module
  • You are comfortable sourcing the display screen separately, or you already have one on hand
  • IP67 front-face protection meets your environmental requirements (washdown, dust, or similar industrial conditions)

If you need a complete, pre-assembled unit without the complexity of pairing separate modules, the HMISTU655 (3.5-inch integrated) or HMISTU855 (5.7-inch integrated) are the correct alternatives. If your project requires built-in industrial Ethernet rather than serial TTY communication, the HMIS5T is not the right platform — it has zero onboard Ethernet interfaces and requires an external gateway for network connectivity.

On this page:

What the HMIS5T Actually Does in a Harmony STU System

The HMIS5T is the processor and memory core of the Harmony STU series HMI — not the display, not the complete terminal. It houses the CPU, 64MB of DRAM, and 32MB of application flash in a modular rear-mount form factor that physically separates the compute layer from the visual interface. The display screen — either the HMIS65 at 3.5 inches or the HMIS85 at 5.7 inches — connects to the HMIS5T as a paired front module, and the two together form the complete HMI assembly.

This architecture matters commercially. An integrator standardizing on the HMIS5T as a single rear module SKU can offer two different display sizes to end customers without changing the processor component. A maintenance team replacing a failed unit in an existing Harmony STU installation can swap the rear module without touching the display, or vice versa, depending on which component failed. The 64MB DRAM figure is not incidental — it represents a direct doubling of the memory capacity found in first-generation HMISTU655 and HMISTU855 integrated units, removing application size constraints that engineers working on earlier deployments encountered.

Communication on the HMIS5T is handled through a serial TTY port, used for programming and commissioning via SoMachine or EcoStruxure software toolchain. There is no onboard industrial Ethernet. This is a deliberate architectural constraint, not an oversight. Applications that require network-connected HMIs will need an external Ethernet gateway — this is not something that can be resolved with firmware or configuration.

Typical System Architecture for the HMIS5T

The HMIS5T sits at the human-machine interface layer of the control system, sitting between the operator touchpoint and the downstream automation controller. Here is how a typical deployment chain looks:

  • Regulated 24V DC power supply in the panel cabinet feeds the HMIS5T rear module directly via terminal connections
  • HMIS5T rear module provides CPU processing, 64MB DRAM application runtime, and 32MB flash storage for the loaded operator application
  • HMIS65 or HMIS85 display module connects to the HMIS5T via the dedicated screen connector, providing the TFT color touchscreen interface to the operator
  • Serial TTY port on the HMIS5T connects to a programming workstation (running SoMachine or EcoStruxure) for application download and commissioning
  • If network communication is required, an external Ethernet gateway device connects downstream between the HMIS5T serial output and the plant network or PLC

Where the HMIS5T Gets Deployed: Industries and Applications

Food and beverage processing plants are a natural fit for the HMIS5T. The IP67 front-face protection rating meets washdown requirements in processing and packaging areas, and the modular architecture allows maintenance teams to replace failed modules quickly without sourcing a complete terminal assembly.

Pharmaceutical manufacturing environments benefit from the same IP67 protection and from the controlled, repeatable application environment. The 32MB of application flash stores the operator application on-module, meaning a replacement HMIS5T can be loaded with the correct application and installed with minimal downtime.

Packaging machinery OEMs frequently standardize on the Harmony STU rear module approach. By committing to HMIS5T as their processor SKU, OEMs can configure machines with either the HMIS65 or HMIS85 display based on customer preference or enclosure size — without redesigning the back-end processor or software toolchain.

Water treatment and HVAC control installations benefit from the HMIS5T where panel space is constrained and the modular form factor — 128mm height, 53mm width, 183mm depth — allows tighter cabinet layouts than some integrated terminal alternatives.

Retrofit projects replacing first-generation HMISTU655 or HMISTU855 assemblies represent a common procurement scenario. Engineers upgrading these systems to gain the 64MB DRAM headroom for more complex applications source the HMIS5T as the replacement processor module, pairing it with either the HMIS65 or HMIS85 display.

Application Typical Deployment
Food and beverage processing Panel-mounted HMI in washdown zones; HMIS5T + HMIS85 for larger operator display
Pharmaceutical manufacturing Modular rear module replacement pool; controlled application reload on flash
Packaging machinery OEM Standardized HMIS5T rear module with display size selected per machine variant
Water treatment HMIS5T + HMIS65 in space-constrained enclosures; serial commissioning on-site
Retrofit / upgrade projects Replacing HMISTU655 or HMISTU855 with HMIS5T to gain 64MB DRAM capacity
Spares / contingency stock HMIS5T held as replacement module for critical production line HMI

HMIS5T Specifications and Variant Comparison

Specification Value
Supply Voltage 24V DC
Memory — DRAM 64 MB
Memory — Application Flash 32 MB
Compatible Display Modules HMIS65 (3.5-inch TFT), HMIS85 (5.7-inch TFT)
Industrial Ethernet Interfaces None (0 built-in)
Serial Communication TTY serial port (programming and commissioning)
IP Rating (Front Face) IP67
Physical Dimensions (H x W x D) 128 x 53 x 183 mm
Weight 0.363 kg
Housing Material PC/PBT, Dark Grey

Full technical specifications are available on the product page at LeadTime.ca.

Model Type Memory (DRAM) Display Size Form Factor Best For
HMIS5T Rear module only 64 MB Separate — HMIS65 (3.5") or HMIS85 (5.7") Modular Integrators, replacements, upgrades
HMISTU655 Integrated unit 32 MB 3.5" TFT (fixed) Pre-assembled Pre-built systems, small footprint
HMISTU855 Integrated unit 32 MB 5.7" TFT (fixed) Pre-assembled Pre-built systems, larger display
HMISTU655W Integrated wide unit 32 MB 3.5" TFT wide (fixed) Pre-assembled Widescreen enclosure preference
HMISTU855W Integrated wide unit 32 MB 5.7" TFT wide (fixed) Pre-assembled Widescreen enclosure preference

If your project requires a pre-assembled terminal with a fixed display rather than a separate rear module, the HMISTU655 or HMISTU855 are the correct paths — check current stock and availability at LeadTime.ca and contact the team to confirm which variant suits your build.

Expert Verdict: Is the HMIS5T the Right Module for Your Project?

The HMIS5T delivers exactly what experienced Harmony STU integrators need: a memory-upgraded processor module that removes the application capacity ceiling that limited first-generation HMISTU655 and HMISTU855 deployments. With 64MB of DRAM — double what those earlier units carried — and 32MB of application flash stored on-module, the HMIS5T handles more complex operator applications without external storage dependencies. The modular architecture is a genuine operational advantage for OEMs and maintenance teams alike: standardize on one rear module SKU, offer the HMIS65 or HMIS85 display based on what the application or customer requires, and reduce the number of unique part numbers you need to carry in stock. IP67 front-face protection makes this a credible choice for food processing, pharmaceutical, and other washdown environments where panel-mounted HMIs take abuse.

The limits are real and should not be glossed over. The HMIS5T has zero built-in industrial Ethernet. For applications requiring network-connected HMIs — SCADA integration, remote monitoring, or plant-floor communication via Ethernet protocols — an external gateway is mandatory, and that adds cost, panel space, and configuration effort. Buyers who are new to modular HMI architecture and uncomfortable pairing separate components should strongly consider the pre-assembled HMISTU655 or HMISTU855 instead; the integration risk is real and the most common field mistake with the HMIS5T is a compatibility mismatch with first-generation display modules. If your display module part number contains "STU" — it does not work with the HMIS5T, full stop. And serial-only communication (TTY) is a firm constraint that rules out the HMIS5T for motion control networks or deterministic Ethernet systems.

From a procurement standpoint, the HMIS5T is an active product with typical lead times of 5 to 10 business days from authorized distributors. Availability varies by region and fluctuates with demand, which makes sourcing through a specialist industrial distributor — rather than a general electronics channel — the lower-risk path. A specialist can confirm stock, verify compatibility against your existing display module before the order ships, and source the HMIS65 or HMIS85 in the same transaction if needed. For integrators placing recurring orders or building spares pools, volume pricing discussions are worth having before committing. View current HMIS5T pricing and stock status at LeadTime.ca — we ship worldwide and stock compatible display modules alongside the rear module.

For volume pricing, lead time confirmation before committing to a build schedule, or to verify compatibility with your existing display assembly, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the HMIS5T

Community forum discussion specific to the HMIS5T as a standalone purchasing topic is sparse — this is typical for component-level HMI parts that are specified as part of a larger Harmony STU system design rather than evaluated in isolation. What that means practically is that when engineers run into sourcing or compatibility questions on this part, they are not finding answers in public automation forums. They are calling distributors or digging through Schneider's official documentation. That context makes pre-order verification more important, not less.

The most consequential thing to understand before placing an order is the distinction between the HMIS5T rear module and the integrated HMISTU-series units. The HMIS5T is a processor module. It does not include a display screen. The display — HMIS65 or HMIS85 — is a separate line item. Engineers who have worked with first-generation Harmony STU integrated units (HMISTU655 or HMISTU855) sometimes assume the display is bundled; it is not with the HMIS5T, and that assumption causes project delays when the shipment arrives and only the rear module is in the box.

The second issue that generates field confusion is display screen generation mismatch. The HMIS5T does not physically connect to first-generation display modules labeled HMISTU655 or HMISTU855. Those are integrated assemblies from an earlier platform iteration — the connectors, interfaces, and module pairing logic are not compatible. The correct display modules for use with the HMIS5T are the HMIS65 and HMIS85 — note the absence of "STU" in the part number. If your existing installation uses HMISTU-series components, confirm which generation you are working with before assuming the HMIS5T is a drop-in replacement for the processor portion. When community data is limited and documentation requires careful cross-referencing, consulting a specialist distributor before ordering is the fastest way to avoid a two-week delay caused by a wrong-part shipment.

Wiring and Installation Overview

Engineers installing the HMIS5T should refer to the full Schneider Electric technical manual for complete wiring diagrams and torque specifications. The following overview covers the key requirements to verify before and during installation:

  • A regulated 24V DC power supply must be available in the enclosure before installation; minimum recommended capacity is 2A continuous to support both the HMIS5T rear module and paired display screen under load
  • The display screen connector (HMIS65 or HMIS85) must be fully seated on the HMIS5T rear module — the connector should click into position; a partially seated connection is a common cause of display failure at power-up
  • 24V and GND wiring connects at the HMIS5T power terminals; confirm polarity and verify that the supply is switched off before connecting or disconnecting terminal wires
  • The serial TTY port on the HMIS5T connects to a programming workstation for application download via SoMachine or EcoStruxure; route serial cable away from high-voltage wiring in the enclosure to avoid interference
  • Minimum enclosure clearances of 118mm width and 40mm depth must be confirmed before mounting; the full module dimensions are 128mm height, 53mm width, and 183mm depth

Compatible Display Modules and System Expansion

The HMIS5T rear module supports the following display screens and system components within the Harmony STU series architecture:

  • HMIS65 — 3.5-inch TFT color display module; plug-and-play pairing with HMIS5T; suitable for compact enclosures
  • HMIS85 — 5.7-inch TFT color display module; plug-and-play pairing with HMIS5T; larger operator interface for applications requiring more screen real estate
  • Standard regulated 24V DC industrial power supply — any industrial-grade regulated 24V DC source is compatible; minimum 2A continuous capacity recommended for rear module plus display
  • SoMachine / EcoStruxure software toolchain — HMIS5T is programmed and configured using Schneider Electric's Harmony STU software environment via serial TTY connection
  • External Ethernet gateway (optional) — HMIS5T has no built-in Ethernet; applications requiring network connectivity require a separately sourced external Ethernet gateway device

Wrong-Part Prevention Checklist Before You Order

Before placing your order for the HMIS5T, work through this checklist item by item. Each point represents a real ordering mistake that causes project delays:

  1. Confirm you are ordering ONLY the rear module (HMIS5T) — not a complete unit. Verify what ships in the box.
  2. Verify existing display screen model: HMIS5T works with HMIS65 or HMIS85 only. NOT compatible with HMISTU655 or HMISTU855 display modules.
  3. Confirm 24V DC power supply is available in your panel cabinet before ordering.
  4. Check panel space: rear module requires 118mm width and 40mm depth clearance. Measure existing enclosure depth from back panel to internal wall.
  5. Do not confuse first-gen back modules (labeled HMISTU655 or HMISTU855) with HMIS5T — they are not interchangeable with later display screens.
  6. Verify lead time and stock status with distributor — stock levels vary by region. Typical lead time is 5-10 days from authorized distributors.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — compatibility verification before shipment prevents the most common and costly ordering mistakes on this part.

Frequently Asked Questions

Can the HMIS5T be paired with both the HMIS65 and HMIS85 on the same installation, or is it locked to one display size?

The HMIS5T can pair with either the HMIS65 (3.5-inch) or the HMIS85 (5.7-inch) display module — they are interchangeable on the same rear module. This is one of the practical advantages of the modular architecture: a single HMIS5T can support two different display sizes without any hardware or firmware change on the processor side.

Does the HMIS5T retain the loaded application if the 24V power is lost or the module is removed from the panel?

Yes. The operator application is stored in the 32MB of application flash on the HMIS5T rear module. Flash memory is non-volatile, meaning the application survives power loss. When replacing a failed module with a new HMIS5T, the replacement module will need the application loaded from the programming workstation or a backed-up binary file — the application does not transfer automatically from the old module.

Is the HMIS5T a direct replacement for the processor portion of a failed HMISTU655 or HMISTU855 integrated unit?

No. The HMISTU655 and HMISTU855 are first-generation integrated assemblies, and their display modules are not compatible with the HMIS5T. If you are replacing a failed HMISTU655 or HMISTU855, you must decide whether to replace with an equivalent integrated unit (HMISTU655 or HMISTU855) or upgrade to the modular approach using HMIS5T plus either HMIS65 or HMIS85 as a new display. The upgrade path requires verifying panel dimensions and reloading the application.

Does the HMIS5T support industrial Ethernet communication natively, or does it require additional hardware?

The HMIS5T has zero built-in industrial Ethernet interfaces. Its onboard communication is limited to a serial TTY port used for programming and commissioning. Applications requiring Ethernet-based communication to a PLC, SCADA system, or plant network must use an external Ethernet gateway device. This is a hard architectural constraint — it cannot be resolved with firmware updates or software configuration.

What is the typical lead time for the HMIS5T and how does availability vary by region?

Typical lead time from authorized distributors in North America is 5 to 10 business days. Stock levels vary by region and by distributor, and general electronics channels may show significantly longer lead times than specialist industrial distributors. Confirming stock status with your distributor before committing to a project timeline is advisable, particularly for spares orders where timing is critical.

Is 64MB of DRAM sufficient for complex Harmony STU applications, and what happens if the application exceeds available memory?

The 64MB DRAM in the HMIS5T is double the memory in first-generation HMISTU655 and HMISTU855 modules, and it was introduced specifically to address application size constraints encountered in earlier deployments. Whether it is sufficient depends on the complexity and graphic density of your specific application. Engineers migrating complex applications from first-generation hardware should verify their project file size against HMIS5T memory specifications in the Schneider Electric documentation before committing to the upgrade.

Why Order the HMIS5T from LeadTime.ca

  • Worldwide shipping — LeadTime.ca fulfills orders globally, not just within a single region
  • Specialist sourcing — we stock industrial automation components including compatible display modules (HMIS65, HMIS85) alongside the HMIS5T rear module, reducing the number of suppliers in your procurement chain
  • Compatibility verification — our team can confirm display module compatibility against your existing installation before the order ships, preventing wrong-part returns
  • Volume and repeat order pricing — contact us for pricing on spares pools or recurring OEM orders
  • Fast response on lead time queries — stock status confirmed before you commit to a project schedule

HMIS5T At-a-Glance Summary

  • Product type: Rear panel/processor module — display screen NOT included; order HMIS65 or HMIS85 separately
  • Memory: 64MB DRAM, 32MB application flash — double the capacity of first-generation HMISTU655 and HMISTU855 integrated units
  • Compatible displays: HMIS65 (3.5-inch TFT) and HMIS85 (5.7-inch TFT) only — NOT compatible with HMISTU655 or HMISTU855 display modules
  • Power: 24V DC supply required; minimum 2A continuous capacity recommended for rear module plus display
  • Communication: Serial TTY port only; zero built-in Ethernet — external gateway required for network-connected applications
  • IP rating: IP67 on front face — suitable for washdown and dusty industrial environments
  • Dimensions: 128mm H x 53mm W x 183mm D; requires 118mm width and 40mm depth clearance in enclosure
  • Weight: 0.363 kg; housing material PC/PBT dark grey
  • Typical lead time: 5 to 10 business days from authorized distributors
  • Configured via: SoMachine or EcoStruxure software toolchain over serial TTY connection
