Schneider Electric BMXCPS3500 — Modicon X80 Power Supply Review

By Abdullah Zahid
14 min read

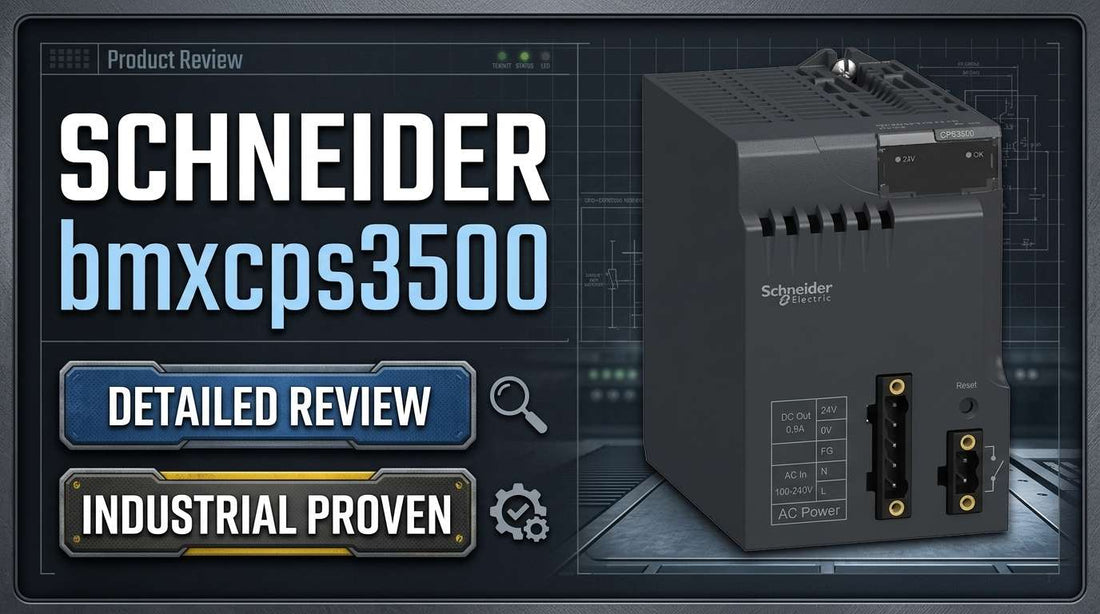

Schneider Electric BMXCPS3500 DIN-rail power supply module for Modicon M340 and X80 automation systems

Schneider Electric BMXCPS3500 Power Supply Module, Modicon X80, 100 to 240V AC, 36W — Specifications, Selection Guide, and Procurement Review

Controls engineers specifying or replacing a power supply for a Modicon M340 or X80 automation system typically arrive at the BMXCPS3500 having already confirmed the platform. The decision that remains is whether this specific module fits the load budget, the environment, and the project timeline. The Schneider Electric BMXCPS3500 converts 100–240V AC line voltage into three regulated DC outputs — 31.2W at 24V DC for processor and I/O power, 21.6W at 24V DC for sensor power, and 15W at 3.3V DC for I/O logic — all within a single 35mm DIN-rail module. If you are building or maintaining a Modicon-based cabinet and your total I/O load stays within those rails, this is the module.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the BMXCPS3500 — and Who Shouldn't

The BMXCPS3500 is the correct power supply for Modicon M340 and X80 systems where native platform integration is required and the operating environment stays within controlled indoor conditions. It is the right module if all of the following apply to your project:

  • Your base unit is confirmed Modicon M340 or X80 family — not CompactLogix, ControlLogix, or any S7 series PLC
  • Your total I/O and processor load does not exceed 31.2W at 24V DC continuous draw
  • Your facility line voltage falls within 100–240V AC (or 85–264V extended tolerance) at 50/60 Hz
  • DIN-rail mounting space provides at least 35mm width and 15mm depth for module engagement
  • Operating ambient temperature remains within 0–60°C at the installed location
  • IP20 protection is acceptable for your enclosure type (indoor industrial installation)

If your installation temperature ever drops below 0°C or exceeds 60°C, the BMXCPS3500H is the correct variant. If your 24V I/O load exceeds 31.2W, you need external distribution or a second supply module. If your platform is not Modicon, this module does not apply.

On this page:

What the BMXCPS3500 Actually Does in a Modicon System

The BMXCPS3500 is not a general-purpose DIN-rail power supply. It is a platform-native power distribution module that slots directly into a Modicon M340 or X80 rack and takes ownership of all internal voltage rails that the system depends on. It accepts 100–240V AC from the facility supply and simultaneously delivers three independent regulated DC outputs to the processor, I/O modules, and sensor input circuits without requiring any external bridging hardware or adapters.

The 31.2W at 24V DC rail powers the processor and connected I/O modules. The 21.6W at 24V DC rail is a dedicated sensor supply, isolated from the logic rail to prevent sensor transients from disrupting the controller. The 15W at 3.3V DC rail handles the internal logic power for I/O modules. This three-rail architecture means that a single module consolidates what would otherwise require multiple separate external supplies, while keeping the sensor circuit electrically separated from the I/O bus. The module is rated for a total secondary power output of 36W, and its own internal power dissipation is 8.5W — a figure that matters when calculating enclosure thermal loading.

Compliance with EN 61131-2 confirms that the module meets the international safety standard for programmable controller power modules, recognized across European, North American, and Asia-Pacific regulatory frameworks. The wide 85–264V extended input tolerance — beyond the nominal 100–240V AC range — means a single SKU covers North American 120V, European 230V, and other regional voltages without requiring line transformers or separate regional part numbers. That single-SKU global deployability is one of the primary reasons OEMs and multi-site facilities managers specify this module for new builds.

Typical System Architecture and Power Chain

The BMXCPS3500 sits at the base of the power chain for any Modicon M340 or X80 rack, receiving facility line voltage and distributing regulated DC power to all downstream modules. Here is how a typical installation is structured:

  • Facility panel provides 100–240V AC line power through a circuit breaker or fused disconnect to the enclosure
  • BMXCPS3500 receives AC input via the 5-pin supply connector (Line, Neutral, Ground, 24V DC output, Sensor 24V DC)
  • The module distributes 24V DC at 31.2W to the Modicon processor and I/O modules mounted on the same rack
  • The dedicated 24V DC sensor rail at 21.6W powers field sensor inputs, keeping sensor transients isolated from the I/O logic bus
  • The 2-pin alarm relay connector routes a fault notification signal to a PLC input or panel-mounted alarm circuit for fault annunciation

Where the BMXCPS3500 Gets Deployed

Discrete manufacturing lines running Modicon M340 controllers are among the most common installations for the BMXCPS3500. Cabinet retrofits — where an aging power supply is replaced during a scheduled maintenance window — account for a significant share of orders, particularly in automotive assembly and food and beverage packaging facilities where Modicon-based control panels have been in service for years.

New machine builds by OEMs specifying Modicon X80 as the platform represent the other primary demand driver. The 100–240V AC input range means that OEMs building machines for global export can ship a single hardware configuration to North American, European, and Asian customers without modifying the cabinet power supply.

Pharmaceutical production facilities running climate-controlled environments represent a strong fit for the standard BMXCPS3500, given that their enclosures typically maintain stable 20–25°C ambient temperatures well within the 0–60°C operating range. Water treatment and material handling automation sites with indoor, environmentally controlled panels also deploy this module routinely as both initial installations and maintenance replacements.

Application Typical Deployment
Automotive assembly line retrofit Replacement of aging BMXCPS3500 in existing Modicon M340 cabinet during scheduled maintenance
Food and beverage packaging OEM New machine build using Modicon X80 rack; single SKU supports 120V NA and 230V EU export variants
Pharmaceutical production Climate-controlled indoor panel; standard BMXCPS3500 within 0–60°C ambient specification
Water treatment automation Indoor pump control panel with Modicon M340 processor and up to 4 I/O modules within 31.2W load budget
Material handling system Multi-site North American deployment; single power supply part number across all facilities on 120V supply
Machine-building integrator New Modicon X80 system build with mixed analog and digital I/O; BMXCPS3500 as the single power distribution point

Key Specifications and Electrical Data

Parameter Value Notes
Input Voltage (Nominal) 100–240V AC Extended range: 85–264V AC
Input Frequency 50/60 Hz Tolerance: 47–63 Hz
Apparent Power Input 0.07 kVA At 115V input: 1.04A draw
Output: 24V DC (I/O + Processor) 31.2W Primary processor and I/O module power rail
Output: 24V DC (Sensor) 21.6W Dedicated sensor input power, isolated from I/O bus
Output: 3.3V DC (Logic) 15W / 4.5A I/O module internal logic supply
Total Secondary Power Budget 36W Sum of all outputs at simultaneous full load
Module Power Dissipation 8.5W Internal heat output; factor into enclosure thermal design
Operating Temperature 0–60°C Standard model only; use BMXCPS3500H for extended range
Protection Rating IP20 Indoor industrial enclosures; no water ingress protection

Full technical specifications are available on the product page at LeadTime.ca.

BMXCPS3500 vs. BMXCPS3500H: Which Variant Do You Actually Need?

The most common specification error with this product family is ordering the standard BMXCPS3500 for an installation that actually requires the BMXCPS3500H. The power outputs are identical across both variants — 31.2W at 24V DC for I/O and processor, 21.6W at 24V DC for sensors, and 15W at 3.3V DC for logic. The standards compliance is equivalent. The difference that matters is operating temperature and storage range, along with the sourcing implications that come with a less-common variant.

Specification BMXCPS3500 (Standard) BMXCPS3500H (Severe Environment)
Operating Temperature 0–60°C Extended range for outdoor / uncontrolled environments
Storage Temperature -40–85°C Extended range
Typical Application Indoor, climate-controlled enclosures Temperature extremes, uncontrolled or outdoor exposure
Output: 24V DC (I/O + Processor) 31.2W 31.2W
Output: 24V DC (Sensor) 21.6W 21.6W
Output: 3.3V DC (Logic) 15W 15W
Standards Compliance EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201 Same standards, enhanced validation for temperature extremes
Connector Type 5-pin supply + 2-pin alarm relay 5-pin supply + 2-pin alarm relay
Typical Lead Time Market-typical 2–4 weeks — verify with distributor Market-typical 3–6 weeks — verify with distributor
Pricing Baseline — see product page for current pricing Market-typical estimate 10–15% higher — verify with distributor

If your installation ambient temperature ever drops below 0°C or exceeds 60°C — whether seasonally, during startup, or due to enclosure placement — the BMXCPS3500H is the correct order. A module operating outside its rated temperature range may fail prematurely, and a warranty claim on a standard module installed in a severe-environment application may be denied. Check current availability for both variants at LeadTime.ca.

Expert Verdict: Is the BMXCPS3500 the Right Call for Your Project?

The Schneider Electric BMXCPS3500 is the definitive power supply specification for Modicon M340 and X80 automation systems where platform integration is non-negotiable and the installation environment is indoor and temperature-controlled. The native fit into Modicon racks, three independent regulated DC outputs, and the 85–264V extended input tolerance make it the obvious and well-justified choice for systems integrators deploying new Modicon-based cabinets, maintenance engineers replacing failed supplies in running production lines, and OEMs building machines for global export. The wide voltage acceptance across 100–240V AC nominal eliminates the need for separate regional SKUs — a genuine operational advantage for multi-site facilities with mixed line voltages. For this specific buyer profile and application type, there is no integration risk, no compatibility ambiguity, and no reason to look elsewhere.

Where the BMXCPS3500 has real, non-negotiable limits: the 0–60°C operating range means it is the wrong specification for outdoor installations, unheated enclosures in cold climates, or any site where the ambient temperature regularly approaches or exceeds those boundaries. For those environments, the BMXCPS3500H is the correct order — not a workaround or an upgrade preference, but a hard requirement. Similarly, if your I/O configuration pushes beyond 31.2W at 24V DC, the BMXCPS3500 will not deliver stable operation under load; an external distribution panel with a dedicated supply is the appropriate solution, not attempting to run the stack at the edge of the rated capacity. And if your platform is anything other than Modicon M340 or X80 — CompactLogix, ControlLogix, any Siemens S7 series — this module's Modicon-specific connectors and power distribution logic make it physically and architecturally incompatible. There is no workaround for platform mismatch.

From a procurement standpoint, the BMXCPS3500 is a standard stock item at authorized Schneider Electric distributors, with market-typical lead times of 2–4 weeks for the standard variant. Ordering through a specialist industrial automation distributor rather than a commodity electronics channel matters here for two reasons: first, authorized distributors can confirm whether you need the standard BMXCPS3500 or the BMXCPS3500H before the order ships, preventing a costly wrong-part scenario; second, specialist distributors with regional warehousing can significantly reduce replacement lead times for maintenance-critical situations. Buying from unverified online marketplaces introduces the risk of counterfeit or obsolete stock — a risk that carries real consequences when a production line is waiting on a power supply. View current stock and pricing for the BMXCPS3500 at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the BMXCPS3500

Because the BMXCPS3500 is a specialized platform-native module rather than a broadly discussed commodity component, the most actionable guidance for buyers does not come from public forums — it comes from the engineering constraints the module imposes at the point of specification. Automation professionals who work with Modicon-based systems report that the three questions that consistently define whether this module is the right order are: Is the platform confirmed Modicon M340 or X80? Has the total 24V DC load been calculated against the 31.2W rated output? And is the installation environment definitively within 0–60°C? When all three answers are affirmative, the BMXCPS3500 is a straightforward, low-risk procurement decision with a strong track record in production environments.

The load calculation question deserves particular attention. Engineers specifying the module for the first time often underestimate peak concurrent current draw across mixed I/O configurations. A small system with four I/O modules might draw only 15W on the 24V I/O + processor rail and 8W on the sensor rail — well within budget. A medium system with eight I/O modules can push the combined load to 56W across all rails simultaneously, exceeding the BMXCPS3500's 36W total secondary budget and requiring external distribution. Building in a 20% thermal headroom margin — targeting no more than 25W in practice on the 31.2W-rated rail — is the practical engineering standard for stable long-term operation. If your load calculation sits close to the limit, the right conversation to have before ordering is with an applications engineer who knows the Modicon platform, not after the system is installed and experiencing random I/O resets.

Replacement orders represent a different risk profile. Maintenance engineers ordering a direct swap for a failed BMXCPS3500 in a running Modicon cabinet need to confirm one additional detail: whether the original installation was a standard BMXCPS3500 or the BMXCPS3500H severe-environment variant. The two modules look similar in distributor listings. If the original BOM or cabinet documentation does not clearly specify which variant was installed, confirm the operating environment temperature range before placing the replacement order. A wrong-variant replacement in a temperature-extreme installation will fail on the same timeline as the original unit.

Wiring and Installation Overview

  • The BMXCPS3500 mounts on a standard 35mm DIN-rail with a 242.4mm × 35mm × 110mm footprint; verify vertical clearance and air circulation space in the enclosure before installation
  • AC input connects via the 5-pin supply connector: Pin 1 (Line), Pin 2 (Neutral), Pin 3 (Ground/PE), Pin 4 (24V DC I/O output), Pin 5 (Sensor 24V DC); recommended wire gauge is 16–14 AWG for all supply connections
  • The 2-pin alarm relay connector (18–16 AWG) provides a normally open contact closure on fault — wire this to a PLC input or panel alarm circuit if fault notification is required by your safety or shutdown logic
  • Cage terminal or spring terminal block options are available; if using cage terminals, confirm the locking screw is fully tightened on each pin before applying power
  • External circuit protection (fuse or circuit breaker) is required on the primary AC input side per local electrical code — the BMXCPS3500 does not include an internal circuit breaker; consult your electrical engineer or site safety officer for the appropriate protection device rating

Full wiring diagrams, connector pinouts, and step-by-step commissioning procedures are available in the official Schneider Electric BMXCPS3500 installation manual and datasheet.

Wrong-Part Prevention Checklist

Before placing your order, verify each of the following. These are the six confirmation points that prevent the most common specification errors with this module:

  1. Verify the base unit is Modicon M340 or X80 family — NOT CompactLogix, ControlLogix, or S7 series
  2. Check that your I/O configuration does not exceed 31.2W @ 24V DC continuous load
  3. Confirm your facility voltage is 100–240V AC standard (or 85–264V extended if available)
  4. Verify DIN-rail mounting space is at least 35mm wide with 15mm depth for module engagement
  5. Check that alarm relay output (2-pin connector) is wired if fault notification is required by your safety or shutdown logic
  6. Confirm operating ambient temperature range 0–60°C; if below 0°C or above 60°C, order BMXCPS3500H instead

If any item on this checklist is unresolved before ordering, contact the LeadTime.ca team for pre-purchase verification — we can confirm platform compatibility and help you select the correct variant before the order ships.

Frequently Asked Questions

Can the BMXCPS3500 be used with any DIN-rail PLC, or is it strictly Modicon-specific?

The BMXCPS3500 is strictly Modicon M340 and X80 platform-specific. It uses Modicon-native connectors and internal power distribution logic that are not compatible with CompactLogix, ControlLogix, Siemens S7, or any other PLC family. Attempting to use this module outside the Modicon platform will result in a physical connector mismatch and a non-functional installation.

What happens when the total I/O load approaches or exceeds the 31.2W rated output at 24V?

When load approaches the 31.2W limit on the 24V I/O and processor rail, the supply enters current-limiting mode and output voltage sags. I/O modules may reset, communications may drop, and faults can appear unpredictably. The RESET button on the module face can recover the supply after a transient overload, but recurring resets indicate the root cause is an overloaded rail, not a module fault. Reduce the I/O module count or add external 24V distribution to resolve the condition.

Is the BMXCPS3500 battery-backed or does it provide any hold-up time on a mains power loss?

No. The BMXCPS3500 is a static power supply with no battery, capacitor hold-up, or UPS functionality. All three DC output rails drop immediately upon loss of AC input. If hold-up time or ride-through capability is required for your application, an external UPS or battery-backed power supply must be added upstream of this module.

Is external circuit protection required, or does the BMXCPS3500 include an internal breaker?

The BMXCPS3500 does not include an internal circuit breaker on the primary AC input. External protection — a fuse or circuit breaker rated appropriately for the line voltage and installation — is required per local electrical code. Consult your electrical engineer or site safety officer for the correct protection device specification for your facility.

How do I confirm whether I need the BMXCPS3500 or the BMXCPS3500H for my installation?

The determining factor is operating ambient temperature at the installed location. If the enclosure ambient temperature stays within 0–60°C at all times — including seasonal extremes, startup conditions, and worst-case summer temperatures — the standard BMXCPS3500 is correct. If the temperature at any point drops below 0°C or exceeds 60°C, order the BMXCPS3500H. When in doubt, document the installation environment and confirm with your distributor before ordering.

What do the green LED indicators on the module face mean, and how do I interpret a fault condition?

The BMXCPS3500 uses green LED indicators to confirm that the rack voltage and sensor voltage outputs are within specification. If one or both LEDs fail to illuminate after power-up, or if they drop out during operation, verify the AC input voltage, check for overload conditions on the DC outputs, and press the RESET button to attempt recovery. If LEDs remain off after RESET and AC input is confirmed present and correct, the module may require replacement — it is not user-serviceable at the component level.

Why Order From LeadTime.ca

  • LeadTime.ca ships industrial automation components worldwide — no geographic restriction on orders
  • Specialist distributor focus means pre-order platform compatibility checks are available — particularly relevant for BMXCPS3500 vs. BMXCPS3500H variant selection
  • Access to both standard and severe-environment variants with transparent stock and lead time information
  • Volume and project pricing available — contact the team before placing large quantity or multi-site orders
  • Hard-to-source or long-lead industrial automation parts are a core sourcing competency — not an afterthought

At-a-Glance Summary

  • Model: Schneider Electric BMXCPS3500 — Power Supply Module for Modicon M340 and X80 platforms
  • Input: 100–240V AC nominal, 85–264V extended range, 50/60 Hz (47–63 Hz tolerance)
  • Output Rail 1: 31.2W at 24V DC — processor and I/O module power
  • Output Rail 2: 21.6W at 24V DC — dedicated sensor input power
  • Output Rail 3: 15W at 3.3V DC (4.5A) — I/O module logic supply
  • Total secondary power budget: 36W across all rails simultaneously
  • Module power dissipation: 8.5W — factor into enclosure thermal design
  • Dimensions: 242.4mm × 35mm × 110mm, DIN-rail mounted
  • Operating temperature: 0–60°C (standard model); order BMXCPS3500H for extended range
  • Storage temperature: -40–85°C
  • Protection rating: IP20 — indoor industrial enclosures only
  • Inrush current: 30A at 120V input, 60A at 240V input (soft-start protection)
  • Compliance: EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201
  • Alarm relay: 2-pin normally open contact — wire to PLC input or panel alarm circuit
  • Not compatible with CompactLogix, ControlLogix, Siemens S7, or any non-Modicon platform
  • Severe environment variant: BMXCPS3500H — identical power outputs, extended temperature rating
