Schneider Electric BMXDDI3202K — Modicon X80 Input Module Review

By Abdullah Zahid
13 min read

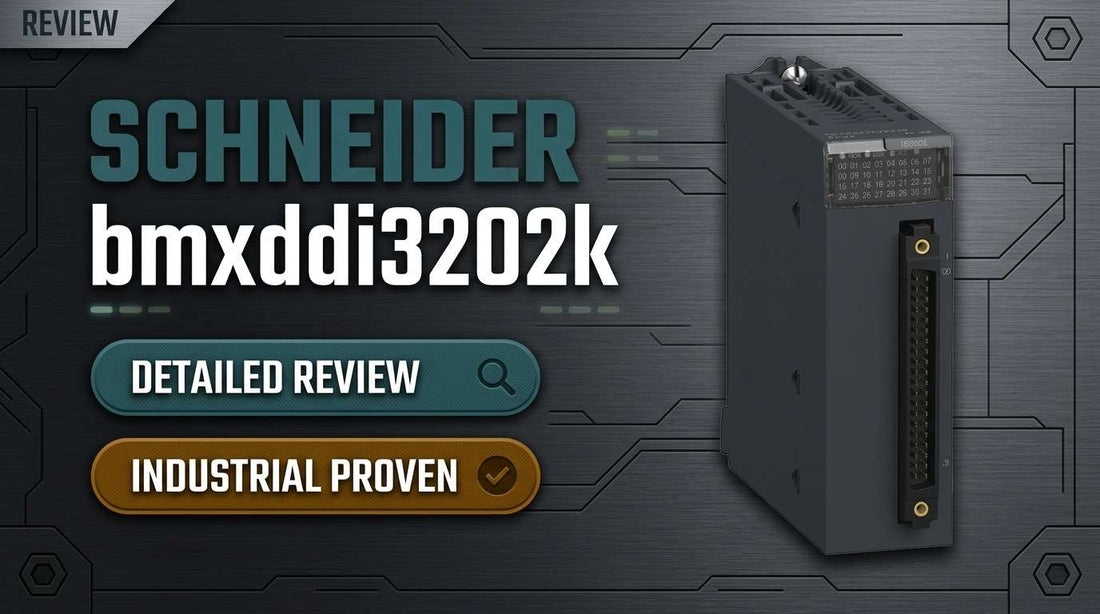

Schneider Electric BMXDDI3202K 32-channel 24V DC discrete input module for Modicon X80 PLC systems

Schneider Electric BMXDDI3202K — Discrete Input Module, Modicon X80, 32 Inputs, 24V DC Positive: Specs, Wiring Overview, and Buyer's Guide

Controls engineers specifying or expanding a Modicon X80 system who need exactly 32 isolated 24V DC discrete input channels in a single compact module land on the BMXDDI3202K as the natural fit — but the decision hinges on two hard constraints: platform lock-in and channel count. The Schneider Electric BMXDDI3202K accepts 24V DC positive logic signals from standard industrial sensors, delivers a 4ms typical filtering time with 7ms maximum response, and carries an MTBF of 696,320 hours — a figure that reflects the Modicon X80 platform's decades-long track record in continuous manufacturing environments. If you are adding I/O to an existing X80 rack or replacing a failed module on a live production line, this is almost certainly the right part. If you are starting from a blank sheet, read the Expert Verdict section before committing.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the BMXDDI3202K — and Who Shouldn't

The BMXDDI3202K is the correct module when all of the following are true for your application:

  • Your PLC controller is confirmed Modicon X80 series — not M241, M251, or any other platform
  • You need exactly 32 input channels, not 16 and not more — counted from your actual P&ID or schematic, not estimated
  • Field sensors operate at 24V DC positive logic — not 24V AC, not 120V AC, not 0–10V analog
  • Isolated inputs are required — noisy factory environments with contactors, VFDs, or solenoids nearby make isolation a genuine technical need, not a preference
  • A 4–7ms input response window is acceptable for your application logic — not suitable for high-speed counting or sub-2ms detection

If you need 16 channels instead of 32, the BMXDDI1602K is the cost-appropriate alternative. If your field supply is 120V AC or a different voltage class, a different X80 I/O variant is required. For greenfield projects with no existing X80 infrastructure, see the Expert Verdict section for an honest assessment of whether this platform is the right starting point.

On this page:

Where the BMXDDI3202K Sits in a Modicon X80 System

The BMXDDI3202K is a discrete input module that sits on the Modicon X80 backplane and acts as the direct interface between 32 field-level sensors and the PLC controller. Its job is straightforward: receive 24V DC positive logic signals from proximity switches, pushbuttons, limit switches, and photoelectric sensors, condition those signals through 9600-ohm input impedance filtering, and present clean logic states to the controller scan cycle. With isolated channels and reverse polarity protection, it absorbs the electrical noise that is routine in industrial environments — motor contactor switching, VFD harmonics, solenoid transients — without passing fault conditions upstream to the controller.

The module is entirely backplane-powered, consuming 140 mA at 3.3V DC. Field sensor power comes from an external 19–30V DC supply sized independently from the module's own consumption. With power dissipation of 3.5W maximum, the thermal contribution to the control cabinet is modest even in fully loaded configurations.

The 696,320-hour MTBF figure — approximately 79 years of continuous operation at rated conditions — reflects the Modicon X80 platform's engineering conservatism. In automotive and food and beverage environments where production stops cost thousands of dollars per minute, that reliability track record is not a marketing claim; it is the reason the platform still sees active deployment in new expansion projects at established facilities.

Typical System Architecture

The BMXDDI3202K occupies one I/O slot in the Modicon X80 rack and receives data requests from the CPU module via the backplane bus. Here is the typical component chain in a standard deployment:

  • Modicon X80 CPU module (e.g., BMX P34 series) — controls the scan cycle and reads input states from each I/O slot
  • Modicon X80 backplane rack — houses the CPU and I/O modules including the BMXDDI3202K, with integrated power bus
  • BMXDDI3202K module — receives 32 field signal wires, each connected to an individual isolated input channel
  • External 24V DC sensor power supply (19–30V DC range) — powers the connected field sensors independently from the module's backplane supply
  • Field sensors (2-wire and 3-wire proximity switches, pushbuttons, limit switches, photoelectric sensors per IEC 60947-5-2) — generate the discrete 24V DC signals the module reads

Applications and Deployment Scenarios for the BMXDDI3202K

Automotive assembly lines rely on the BMXDDI3202K for part presence detection, tooling position confirmation, and safety interlock input buffering across stamping and assembly stations. A single module can accommodate 24 inductive proximity sensors monitoring fixture clamps plus 8 pushbutton and limit switch inputs from operator stations — all on one backplane slot rather than spread across two smaller modules.

Packaging and conveyor systems use it for jam detection, box count verification, and diverter position sensing across multi-station lines. The 4ms response time is well within the timing requirements of most conveyor indexing applications, and the isolated architecture prevents false triggers from the high-frequency switching noise that servo-driven conveyor systems generate.

Food and beverage production lines deploy it for bottle-level detection, cap presence confirmation, and reject station signal collection. The IP20 rating suits enclosed control cabinet installation, while the -40 to +85°C storage range accommodates facilities where cabinets may be exposed to wide temperature swings during washdown cycles or seasonal shutdowns.

Pharmaceutical batch processing and material handling applications use it for tank level indication, door-open/closed status, and pump run/stop feedback across distributed equipment — up to 32 status signals per module in a single rack slot.

Application Typical Deployment
Automotive assembly Fixture clamp position, part presence, safety interlock inputs across stamping or welding stations
Packaging machinery Box detection, jam sensing, diverter position confirmation on multi-station conveyor lines
Food & beverage Bottle level, cap presence, reject station signals on bottling and filling lines
Pharmaceutical Tank level, door status, pump run/stop feedback on batch processing systems
Machine tool Axis home position, guard door interlock, tool presence detection on CNC platforms
Water treatment Valve open/closed, pump status, float switch inputs on distributed pump stations

BMXDDI3202K Key Specifications and Variant Comparison

Specification Value
Number of Input Channels 32 isolated channels
Input Voltage 24V DC positive logic
Discrete Input Current per Channel 2.5 mA
Input Impedance 9600 Ohms
DC Filtering — Typical / Maximum 4 ms / 7 ms
Sensor Supply Voltage Range 19–30V DC (external)
Typical Current Consumption 140 mA @ 3.3V DC
Power Dissipation ≤3.9W
MTBF 696,320 hours
Dimensions (W x H x D) 32 x 100 x 86 mm, 0.110 kg

Full technical specifications are available on the product page at LeadTime.ca.

Model Channels Input Type Best For
BMXDDI1602K 16 24V DC isolated Smaller applications, cost optimization where full 32 channels not required
BMXDDI3202K 32 24V DC isolated High-density sensor input, standard manufacturing with 24V DC field devices
Other X80 I/O variants Various Digital / Analog Different voltage classes or analog signal types — verify model before ordering

If your application requires only 16 inputs today with a clear expansion path, the BMXDDI1602K is the cost-appropriate starting point — check current availability and pricing for both variants at LeadTime.ca.

Expert Verdict: Is the BMXDDI3202K the Right Module for Your Project?

The BMXDDI3202K earns its place in any Modicon X80 expansion or replacement project where 32-channel isolated 24V DC input density is a genuine system requirement. The 696,320-hour MTBF, IEC 60947-5-2 sensor compatibility, and isolated channel architecture make it a technically credible, low-risk choice for automation engineers maintaining or scaling existing X80 installations in automotive, packaging, food and beverage, and pharmaceutical manufacturing. For a maintenance technician replacing a failed module on a live line, or a system integrator quoting a retrofit where the X80 CPU and backplane are already in place, this module requires no justification — it is the correct same-for-same replacement and the lowest-risk path to restoring production.

Where the BMXDDI3202K falls short is equally important to state plainly. It is not the right starting point for greenfield projects. The Modicon X80 is a mature platform, and engineers beginning a new facility or new machine design should evaluate whether compact PLC systems offer better value, smaller physical footprint, and easier integration with modern manufacturing IT infrastructure before committing to this backplane architecture. The module also does not support input paralleling — each of the 32 channels must have a dedicated sensor connection, which matters for applications that historically used shared-input wiring schemes. And with a 4–7ms response floor, applications requiring sub-2ms detection or high-speed pulse counting need a different I/O approach entirely. When channel count, voltage, or response requirements point away from this module, the BMXDDI1602K covers the 16-channel case, and other X80 I/O variants address different voltage and signal classes.

On the procurement side, Modicon X80 modules carry lead times that deserve serious attention — 4 to 8 weeks is a realistic planning figure given the platform's production volume relative to newer product lines. Generic online sources frequently quote from stale inventory or carry multi-week backlogs that are not visible at time of order. For urgent replacement scenarios where a production line is down, working through a specialist industrial distributor with confirmed live stock is the practical difference between a one-day recovery and a two-week shutdown. Check current stock status and lead time for the BMXDDI3202K at LeadTime.ca before committing to a customer delivery date — pricing is available live on the product page.

For volume pricing on multi-module orders or to confirm lead time before locking in a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the BMXDDI3202K

Because community forum data for this specific module is limited compared to higher-volume consumer-facing products, the most valuable pre-order intelligence comes from the same place experienced controls engineers go when they are not sure: a specialist distributor who handles Modicon X80 regularly and can verify compatibility before the purchase order is placed. The ordering mistakes that surface most often with this module are not subtle — they are platform mismatches and channel count miscounts that result in an unusable part and a return-freight problem.

The single most consequential mistake is ordering the BMXDDI3202K for a non-X80 platform. The module's backplane connector is physically specific to Modicon X80. It will not seat in an M241, M251, or any other controller rack. Engineers working across multiple PLC platforms in a facility — a common scenario in mixed-fleet maintenance environments — need to pull the actual base unit part number from the panel documentation before ordering, not rely on memory or assumption. The Modicon X80 and the M241 look similar in a cabinet; the modules are not interchangeable.

The second category of mistakes involves power budgeting. With 32 sensors each drawing 2.5 mA plus 140 mA for the module itself, the external sensor supply must be sized with adequate headroom. An undersized supply that drops below 19V DC under load will produce intermittent input faults that are difficult to diagnose without a meter at the supply terminals. Sizing the external 24V DC supply for the full calculated load plus a minimum 50% margin, and keeping it dedicated to sensor power rather than shared with other loads, prevents this class of fault entirely. LeadTime.ca's technical team can assist with compatibility and power budget verification for any BMXDDI3202K application — reach out before placing your order if the application has any unusual sensor loading or mixed-module configurations.

Wiring and Installation Overview for the BMXDDI3202K

  • The BMXDDI3202K mounts directly to the Modicon X80 backplane — verify slot availability and confirm module dimensions (32 x 100 x 86 mm) against your rack configuration before installation
  • Module is backplane-powered at 3.3V DC; field sensor power requires a separate external 19–30V DC supply — these are two independent power sources and must be sized independently
  • Field wiring follows current sink configuration — sensor signal output connects to the module input terminal; sensor and module share a common GND reference back to the external supply return
  • Do not parallel multiple sensors to a single input channel — the module explicitly does not support input paralleling; each channel requires a dedicated sensor connection
  • Verify logic level thresholds at each channel before production commissioning: logic 1 requires ≥2 mA current at ≥11V; logic 0 is confirmed at ≤1.5 mA at ≤5V — channels that do not meet these thresholds indicate a wiring or supply fault, not a module fault

Full wiring diagrams and terminal assignment details are available in the official Schneider Electric installation guide for the BMXDDI3202K. Engineers requiring complete step-by-step configuration procedures should refer to manufacturer documentation.

Compatible Modules and Modicon X80 System Expansion

The BMXDDI3202K occupies one slot in the Modicon X80 backplane and operates alongside other X80 I/O modules in a mixed-signal rack. The following module types are used in conjunction with it in typical Modicon X80 system builds:

  • BMXDDI1602K — 16-channel 24V DC isolated discrete input module for lower-density input applications in the same X80 rack
  • Modicon X80 discrete output modules — paired with input modules for complete digital control loops in the same backplane
  • Modicon X80 analog I/O modules — added to the same rack for mixed discrete/analog signal architectures in process applications
  • Modicon X80 CPU modules (BMX P34 series) — the controller that reads the BMXDDI3202K input states over the backplane bus
  • External 24V DC sensor power supplies (19–30V DC range) — required separately for powering connected field sensors; not provided by the module or backplane

Wrong-Part Prevention Checklist for the BMXDDI3202K

Run through every item below before placing your purchase order. Skipping any one of these has resulted in non-usable parts and costly returns:

  1. Confirm PLC controller is Modicon X80 series (not Modicon M241, M251, or non-Schneider platform)
  2. Verify field sensors operate 24V DC positive logic (not 24V AC or 0-10V analog)
  3. Confirm all 32 channels needed — do not assume; count actual sensor connections
  4. Check incoming power supply can deliver 140 mA @ 3.3V DC to module + sensor power supply 19–30V capacity
  5. Ensure application logic does not require input paralleling — module explicitly does not support it
  6. Verify mounting compatibility — module slot/DIN rail matches X80 hardware configuration

If any item on this list raises a question, contact LeadTime.ca before ordering — confirming compatibility upfront is faster and less expensive than processing a return on a wrong-platform module.

Frequently Asked Questions

Is the BMXDDI3202K a direct swap for a failed module in an existing X80 rack, or does it require software reconfiguration?

For a same-for-same replacement in an existing X80 system running the same firmware version, the BMXDDI3202K is a direct physical swap — the backplane connector and module dimensions are consistent across the product generation. However, confirm that the replacement module's firmware revision is compatible with your Unity Pro or EcoStruxure project before powering up. Channel addressing does not change with a direct replacement, so existing ladder logic and I/O maps remain valid provided the slot position is identical.

What happens if the sensor supply drops below 19V DC — does the module flag a fault or produce silent false readings?

If the external sensor supply drops below the 19V DC minimum, sensors may fail to drive sufficient current to meet the logic 1 threshold of ≥2 mA at ≥11V. This produces false logic 0 readings at affected channels — the channel appears de-asserted even when the sensor is active. The module itself does not generate a dedicated supply-undervoltage fault in this scenario; diagnosis requires measuring supply voltage at the sensor terminals, not at the module. Always size the external supply with adequate headroom and monitor it as a separate maintenance item.

Can the BMXDDI3202K accept 3-wire NPN (current sinking) sensors, or only PNP (current sourcing) types?

The BMXDDI3202K is configured as a current sink input (positive logic, 24V DC). This means it is compatible with PNP-output (current sourcing) 3-wire proximity sensors — the sensor sources current into the module input terminal. NPN-output (current sinking) sensors are not directly compatible with positive-logic current sink inputs without external signal conditioning. Verify your sensor output type before wiring. IEC 60947-5-2 2-wire proximity switches are compatible when wired correctly with the module's current sink configuration.

How does the 4–7ms response time affect machine cycle timing, and is there any way to reduce it?

The 4ms typical and 7ms maximum DC filtering time is fixed by the module's onboard input filter — it is not user-adjustable in hardware. For most conveyor, packaging, and assembly applications running at speeds where sensor dwell times exceed 10ms, this response window has no practical impact on machine cycle performance. Applications requiring faster discrete input response — servo registration marks, high-speed counting, or sub-5ms interlock timing — require a different module type. Factor the 7ms worst-case figure into your PLC scan cycle and I/O update time budget when designing safety or time-critical logic.

Does the IP20 rating mean the module can be installed outside a control cabinet?

No. IP20 provides protection against solid objects greater than 12mm but offers no protection against liquids, dust ingress, or environmental contamination. The BMXDDI3202K must be installed inside a sealed control cabinet rated for the ambient environment. In food and beverage or washdown applications, the cabinet enclosure — not the module — is responsible for environmental protection. The module's -40 to +85°C storage temperature range relates to non-operating conditions, not the operating ambient limit inside the cabinet.

Why Order the BMXDDI3202K From LeadTime.ca

  • LeadTime.ca ships Modicon X80 modules worldwide — no geographic restriction on sourcing
  • Live pricing and current stock status are displayed directly on the product page — no need to call for a basic quote
  • Specialist industrial focus means Modicon X80 platform expertise is available for pre-order compatibility verification
  • Volume pricing and urgent replacement support available through direct contact — relevant for maintenance scenarios where production is down
  • Hard-to-source and long-lead industrial automation parts are a core competency — not an afterthought

BMXDDI3202K At-a-Glance Summary

  • 32 isolated discrete input channels in a 32 x 100 x 86 mm, 0.110 kg module
  • 24V DC positive logic input, 2.5 mA per channel, 9600-ohm input impedance
  • 4ms typical / 7ms maximum DC filtering response time
  • 140 mA @ 3.3V DC module current consumption; external sensor supply 19–30V DC required separately
  • 696,320-hour MTBF — approximately 79 years continuous operation at rated conditions
  • Compatible with IEC 60947-5-2 2-wire and 3-wire PNP proximity sensors, pushbuttons, limit switches, and photoelectric sensors
  • Reverse polarity protection and isolated channel architecture for noise-immune operation in industrial environments
  • IP20 protection rating — control cabinet installation required
  • Input paralleling not supported — each channel requires a dedicated sensor connection
  • Modicon X80 platform exclusive — not compatible with M241, M251, or non-Schneider backplane hardware
  • Compliance: EU 2014/35/EU (Low Voltage Directive), 2014/30/EU (EMC Directive)
