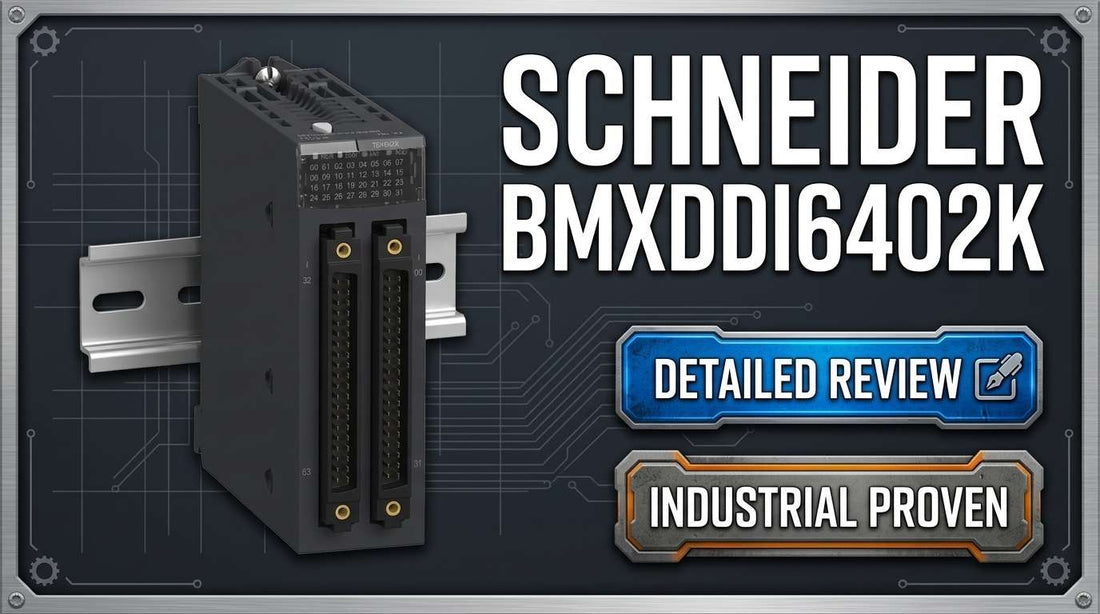

Schneider Electric BMXDDI6402K Modicon X80 64-channel discrete input module for industrial PLC automation

Schneider Electric BMXDDI6402K Discrete Input Module, Modicon X80, 64 Inputs, 24V DC Positive — Full Specs, Pricing and Selection Guide

Controls engineers specifying or replacing discrete input hardware on a Modicon X80 or M340 platform arrive at the Schneider Electric BMXDDI6402K with a clear requirement: 64 isolated 24V DC positive inputs in a single backplane slot, with galvanic separation between field devices and the PLC CPU. This module delivers exactly that — 64 current sink channels, a 7 ms maximum response time, and an MTBF of 510,000 hours — making it the standard density option for process automation, batch sequencing, and condition monitoring applications where input count is high and isolation is non-negotiable.

If you have already confirmed this is the correct part for your Modicon X80 build, check current pricing and availability for the BMXDDI6402K at LeadTime.ca — ships worldwide.

Who Should Order the BMXDDI6402K — and Who Should Not

The BMXDDI6402K is the right module if all of the following apply to your project:

  • Your PLC is a Modicon X80 or M340 — this module seats in the X80 backplane only and is not compatible with any other platform
  • You need exactly 64 discrete inputs; fewer than 40 inputs typically makes the 32-channel BMXDDI3202K the more economical choice
  • All field sensors output 24V DC positive with current sink (PNP) logic — this module does not accept current source, negative logic, AC, or analog signals
  • At least one free slot is physically available in your M340 rack before the module ships
  • You can source or have in stock two BMXFCW303 40-point FCN connector cables — standard M12 or DT04 connectors will not mate with this module
  • Your operating environment falls within 0–60°C; applications outside that range require a hardened variant

If your input count is 32 or fewer, the BMXDDI3202K is the correct selection and will reduce both cost and power draw. If your sensors are 24V DC negative or current source (NPN), a different module SKU is required before any wiring begins.

On this page:

What the BMXDDI6402K Actually Does in a Modicon X80 System

The BMXDDI6402K is a discrete input I/O module that seats directly into the Modicon X80 backplane and presents 64 isolated input channels to the M340 CPU. Each channel accepts a 24V DC positive signal from a field device — proximity sensor, limit switch, pushbutton, relay contact, or interlock — and converts it to a logic state the PLC can read and act on. The module uses current sink (positive logic) architecture, meaning sensors must be PNP-type to register correctly.

The defining characteristic of this module relative to non-isolated alternatives is galvanic separation between the field wiring side and the PLC backplane. Insulation resistance exceeds 10 MOhm at 500V DC, which means electrical noise, ground loops, and transients common in manufacturing, wastewater, and mining environments cannot propagate into the controller. This is not a secondary feature — in installations with long cable runs to field sensors, or where variable-speed drives and other inductive loads share the same electrical environment, isolation is what keeps the M340 CPU running cleanly over a 20-year service life.

Response time runs from 4 ms typical to 7 ms maximum. This is appropriate for standard process control and batch sequencing but is not suitable for safety-critical relay logic applications requiring sub-millisecond response — those require dedicated safety modules outside this product family. Power dissipation is 4.3W maximum, and current consumption is 160–200 mA at 3.3V DC, both of which factor into backplane power budget calculations on larger racks.

Typical System Architecture for the BMXDDI6402K

The BMXDDI6402K sits between field-level sensor wiring and the Modicon M340 CPU on the X80 backplane, acting as the conditioned signal interface in the discrete input chain.

  • Modicon M340 CPU module — processes all I/O logic and executes the control program via the X80 backplane
  • X80 I/O backplane — the physical rack into which the BMXDDI6402K seats; must have at least one free slot available
  • BMXDDI6402K module — accepts up to 64 discrete 24V DC positive signals and presents isolated logic states to the CPU
  • BMXFCW303 40-point FCN connector cables (two required) — carry field wiring from terminal blocks to the module's two connectors
  • Field devices — PNP proximity sensors, limit switches, pushbuttons, and relay contacts wired at 19–30V DC sensor supply range

Industries and Applications Where This Module Is Specified

The BMXDDI6402K appears most frequently in installations where a large number of discrete signals must be collected in a single cabinet zone. Batch process facilities — food and beverage blending, pharmaceutical manufacturing, chemical mixing — routinely deploy this module to gather tank level status, valve position feedback, pump run confirmation, and sequential interlock signals across 40 or more field points. A single BMXDDI6402K handles what would otherwise require four 16-channel modules across four backplane slots.

In wastewater treatment and water utilities, the module consolidates discrete fault and alarm inputs from pump stations, UV treatment systems, and flow control equipment. Mining operations and petroleum facilities use the high-density input count to monitor conveyor belt limits, equipment run/stop status, and safety interlock chains across distributed equipment zones fed back to a central M340 cabinet.

The module is also the standard choice for Modicon X80 expansion when an existing M340 installation is being modernized. Field wiring to 24V DC sensors already installed in the plant remains in place; the BMXDDI6402K drops into a free backplane slot and the existing wire harnesses terminate on the BMXFCW303 connectors, avoiding full rewiring of the cabinet.

Application Typical Deployment
Food and beverage batch processing Tank level, valve feedback, interlock inputs across 40–64 field points in single zone
Wastewater treatment plant Pump run/stop status, alarm relay aggregation, flow switch inputs consolidated in M340 cabinet
Mining and mineral processing Conveyor belt limits, equipment safety interlocks, run status signals from distributed equipment
Modicon X80 system expansion Adding input capacity to existing M340 installation without replacing CPU or rewiring sensors
Automated conveyor or warehouse system Proximity sensor network — 40+ PNP sensors from a single production line terminating in one input module
Condition monitoring and alarm aggregation Collecting discrete fault and status signals from multiple sub-systems — safety relays, motor contactors, position switches

BMXDDI6402K Specifications Engineers Use to Make a Purchase Decision

Parameter Value
Number of Discrete Inputs 64 (isolated, individual channels)
Input Type Current Sink, Positive Logic (24V DC)
Sensor Supply Voltage Range 19–30V DC
State 1 Voltage Threshold ≥15V DC
State 0 Voltage Threshold ≤5V DC
Response Time 4 ms typical / 7 ms maximum
Power Dissipation 4.3W maximum
Operating Temperature 0–60°C
MTBF 510,000 hours
Connectors Two 40-point FCN (BMXFCW303 type) — not standard M12 or DT04

Full technical specifications are available on the product page at LeadTime.ca.

BMXDDI6402K vs. BMXDDI3202K: Which Modicon X80 Input Module Do You Need?

The two most common discrete input module choices in the Modicon X80 family are the 64-channel BMXDDI6402K and the 32-channel BMXDDI3202K. Both operate on 24V DC positive current sink logic and seat in the same X80 backplane slot format. The decision between them is almost entirely about input count and the downstream effect on power consumption and cost.

Feature BMXDDI6402K BMXDDI3202K
Discrete Input Channels 64 32
Input Voltage 24V DC positive 24V DC positive
Input Logic Current Sink (PNP) Current Sink (PNP)
Connectors Required Two BMXFCW303 (40-point FCN) One BMXFCW303 (40-point FCN)
Backplane Slots Used 1 1
Best For High-density sensor networks, batch process, condition monitoring Smaller panels, machinery with 20–32 field devices

If your application requires 128 inputs, two BMXDDI6402K modules across two backplane slots is the standard approach. For systems where input count falls between 33 and 64, the BMXDDI6402K provides room to grow without adding a second module. If your sensor count is 32 or fewer, the BMXDDI3202K is the right specification — check current availability for both variants at LeadTime.ca.

Expert Verdict: Is the BMXDDI6402K the Right Long-Term Choice?

The BMXDDI6402K earns its position as the default high-density input module for Modicon X80 systems through a combination of channel count, isolation quality, and documented reliability. For systems integrators building large batch process installations, plant automation engineers expanding existing M340 cabinets, and OEMs designing sequential control systems in food processing, pharmaceutical, or water treatment facilities, this module handles the job without compromise. Its 64 isolated channels consolidate what would otherwise require multiple lower-density modules, and galvanic isolation with insulation resistance exceeding 10 MOhm at 500V DC ensures the M340 CPU stays clean in environments where inductive loads, VFDs, and long cable runs introduce electrical noise. An MTBF of 510,000 hours — translating to over 58 years of theoretical continuous operation — aligns with the 20-year or longer design life typical of process plant infrastructure.

The limits of this module are inseparable from its specificity. It operates exclusively within the Modicon X80 ecosystem — teams working on Allen-Bradley or Siemens platforms cannot use it, and switching platforms to accommodate it would require a full controller redesign. It accepts only 24V DC positive current sink logic; applications with 24V DC negative sensors or any analog input requirement need a different module entirely. For safety-critical relay logic where response times below 100 microseconds are required, this module's 7 ms maximum response is not appropriate — dedicated safety I/O modules are the correct specification. If your project has a tight timeline and BMXFCW303 connector cables are not already in stock, factor in a potential 1–2 week sourcing delay for those cables before committing the installation date.

From a procurement standpoint, the BMXDDI6402K is a well-established part within the Schneider Electric catalog, and stock availability through specialist automation distributors is generally reliable. The detail that catches buyers off guard most often is not the module itself but the BMXFCW303 connector cables — a Schneider-proprietary 40-point FCN format that generic electronics channels rarely carry. Ordering both the module and its cables through a single specialist source eliminates the risk of arriving on-site with the module installed and no way to terminate field wiring. Review current pricing and stock status for the BMXDDI6402K at LeadTime.ca and confirm connector cable availability at the same time.

For volume pricing on multiple modules or to confirm lead time before locking in a project schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the BMXDDI6402K

Public forum discussions on the BMXDDI6402K are sparse — this module moves through direct B2B engineering and systems integration channels rather than consumer forums, and the engineers who specify it typically resolve compatibility questions before they reach online communities. That absence of public discussion does not mean the ordering decisions are simple. Based on the technical profile of this module and the structure of its compatibility requirements, several categories of specification error appear consistently in industrial I/O procurement — and they are worth addressing directly before an order is placed.

The single most consequential pre-order decision is logic type confirmation. The BMXDDI6402K accepts current sink (PNP) signals only. An installer who terminates NPN current source sensors to this module will see zero channel activity in the engineering software and will face the cost and delay of either rewiring sensors or sourcing a replacement module. This is not a configuration fix — it is a hardware constraint. The same level of care applies to voltage polarity: 24V DC positive is the only accepted input. If any portion of the field sensor wiring is 24V DC negative, a different module is required for those channels.

The second category of ordering error involves the BMXFCW303 connector cables. Unlike many industrial I/O modules that accept standard M12 or DT04 connectors, the BMXDDI6402K uses a 40-point FCN connector format specific to the Schneider X80 family. Two of these cables are required per module. Engineers who do not explicitly specify these cables when placing the module order frequently discover the gap mid-installation. Sourcing them separately adds 1–2 weeks to project timelines in cases where they are not held in local distributor stock. A specialist distributor familiar with the X80 product family will flag this automatically; a generalist channel may not. When uncertainty exists on any of these compatibility points, the most time-efficient resolution is a direct conversation with a knowledgeable automation distributor before the purchase order is issued — not after the module arrives on-site.

Wiring and Installation Overview

The following covers the key requirements for physically installing the BMXDDI6402K and connecting field sensors. Full step-by-step procedures are available in Schneider Electric's official installation and configuration documentation for the Modicon X80 I/O family.

  • De-energize the M340 cabinet and follow facility lockout/tagout procedures before inserting or removing the module from the X80 backplane
  • Confirm at least one free slot is available in the backplane before installation; seat the module with firm, steady pressure until it engages flush with the backplane face
  • Attach both BMXFCW303 40-point FCN cables to the two connectors on the module face — each connector carries 32 of the 64 input channels; standard M12 or DT04 connectors will not mate
  • Wire field sensors observing 24V DC positive polarity and current sink logic; sensor supply voltage must fall within the 19–30V DC range; confirm common ground reference between field power supply and module ground via the backplane
  • After restoring power, verify the green RUN LED is active and the red ERROR LED is off; use Modicon EcoStruxure or SoMachine Basic to monitor per-channel input states and confirm each sensor activates its corresponding channel LED

Compatible Modules and System Expansion

The BMXDDI6402K is one component within the broader Modicon X80 I/O family. The following related Schneider Electric products are directly compatible and commonly specified alongside this module:

  • BMXDDI3202K — 32-channel discrete input module, 24V DC positive current sink; the correct choice when input count is 32 or fewer
  • BMXDDO6401K — 64-channel discrete output module, 24V DC sink; the complementary output module for high-density output requirements in the same X80 backplane
  • BMXFCW303 — 40-point FCN connector cable required for field wiring termination on the BMXDDI6402K; two cables required per module; must be sourced explicitly alongside the module
  • Modicon M340 CPU modules — the controller platform to which this I/O module connects via the X80 backplane; module is not compatible with any CPU outside this platform

Wrong-Part Prevention Checklist

Before placing an order for the BMXDDI6402K, verify each of the following — these are the eight items that account for the most common wrong-part orders and installation rework on Modicon X80 discrete input projects:

  1. Confirm PLC platform is Modicon X80 or M340, not ControlLogix, CompactLogix, or other brand
  2. Confirm 24V DC positive logic is required (not negative, not AC, not analog 0-10V)
  3. Confirm 64 inputs is the correct count (not 32, not 128 which requires multiple modules)
  4. Confirm current sink (this module) not current source logic is needed
  5. Confirm BMXFCW303 40-point connectors are in stock or available (non-standard; not generic M12 or DT04)
  6. Confirm operating temperature range 0–60°C matches application environment
  7. Verify backplane slot availability in the M340 rack (this is a full-size X80 module)
  8. Confirm no hardened temperature version is required (this unit is non-hardened; hardened variant may be slower to obtain)

If any item on this checklist cannot be confirmed before the order is placed, contact the LeadTime.ca team — our automation specialists can verify compatibility and source the correct module and cables together.

Frequently Asked Questions

Can the BMXDDI6402K be used with NPN current source sensors, or is current sink the only option?

The BMXDDI6402K is current sink (PNP) only. It does not accept NPN current source sensor signals. If your field sensors are NPN type, a different module SKU is required — installing this module with NPN sensors will result in no channels registering active states in the PLC. Verify sensor type on the sensor manufacturer datasheet before specifying the module.

Do I need to source the BMXFCW303 cables separately, or are they included with the module?

The BMXFCW303 40-point FCN connector cables are not included with the BMXDDI6402K and must be ordered separately. Two cables are required per module. These are Schneider-specific connector cables and are not interchangeable with standard M12 or DT04 connectors. Always confirm BMXFCW303 availability when placing the module order to avoid installation delays.

What happens if a field sensor goes open circuit — does the BMXDDI6402K report a channel fault or silently read as State 0?

An open circuit sensor will cause the affected channel to fall below the State 1 voltage threshold of 15V DC and register as a logic 0 (inactive) state. The module's per-channel green LED will extinguish for that channel. The module itself will not generate a specific open-wire fault code for individual channel open circuits — sensor disconnection appears identical to an inactive sensor state. Diagnostic monitoring at the software level in EcoStruxure or SoMachine Basic is required to distinguish expected inactive states from wiring faults.

Is the BMXDDI6402K backward compatible with older Modicon M340 backplanes, or only with current X80 racks?

The BMXDDI6402K is designed for the Modicon X80 I/O backplane, which is the current generation used with M340 CPU modules. Compatibility with specific older backplane hardware configurations should be confirmed with Schneider Electric technical documentation or support before installation, particularly in legacy modernization projects where the rack hardware predates the X80 generation.

What is the maximum sensor cable length from field device to the BMXDDI6402K, and does it affect response time?

The brief does not specify a maximum cable length figure — consult the Schneider Electric BMXDDI6402K datasheet and Modicon X80 installation guide for cable distance recommendations specific to your wire gauge and installation environment. The module's 4–7 ms response time includes the input filtering characteristic; very long cable runs with high capacitance can affect signal integrity and are addressed in Schneider's wiring guidelines for the X80 family.

Is external fusing per channel group mandatory, or does the module provide internal protection?

The BMXDDI6402K specification identifies one external 0.5A fast-blow fuse per channel group as the protection requirement. The module provides galvanic isolation between field and backplane but does not substitute for external overcurrent protection on the field wiring side. External fusing is a mandatory installation requirement, not an optional addition. Verify fuse sizing and placement with your facility electrical standards and Schneider installation documentation.

Why Order the BMXDDI6402K Through LeadTime.ca

  • LeadTime.ca stocks Modicon X80 I/O modules and can confirm BMXFCW303 connector cable availability alongside the module — eliminating the risk of a split order causing installation delays
  • Ships worldwide — no restriction to any single country or region; international orders handled with standard industrial packaging
  • Specialist automation distributor with technical knowledge of the X80 product family; can flag compatibility issues before an order is placed rather than after delivery
  • Volume pricing available for multi-module orders — contact for current pricing on orders of two or more modules
  • Hard-to-find or back-ordered parts sourced through distributor network when standard stock channels are delayed

At-a-Glance Summary

  • 64 isolated discrete input channels in a single Modicon X80 backplane slot
  • Input voltage: 24V DC positive, current sink (PNP) logic only — sensor supply range 19–30V DC
  • Response time: 4 ms typical, 7 ms maximum — suitable for process control and batch sequencing, not safety-critical sub-millisecond relay logic
  • Galvanic isolation with insulation resistance exceeding 10 MOhm at 500V DC protects M340 CPU from field-side electrical noise
  • MTBF: 510,000 hours — supports 20+ year operational lifespan in continuous industrial duty
  • Power dissipation: 4.3W maximum; current consumption 160–200 mA at 3.3V DC
  • Operating temperature: 0–60°C; storage: -40–85°C; IP20 rated
  • Requires two BMXFCW303 40-point FCN connector cables — not included, must be sourced separately
  • Weight: 0.145 kg; LED diagnostics: one green LED per channel, module RUN (green), module ERROR (red)
  • Compatible platforms: Modicon X80 and M340 only — not interchangeable with any other PLC platform
