Schneider BMXDDO1602 — Modicon X80 Discrete Output Buyer Guide

By Abdullah Zahid
14 min read

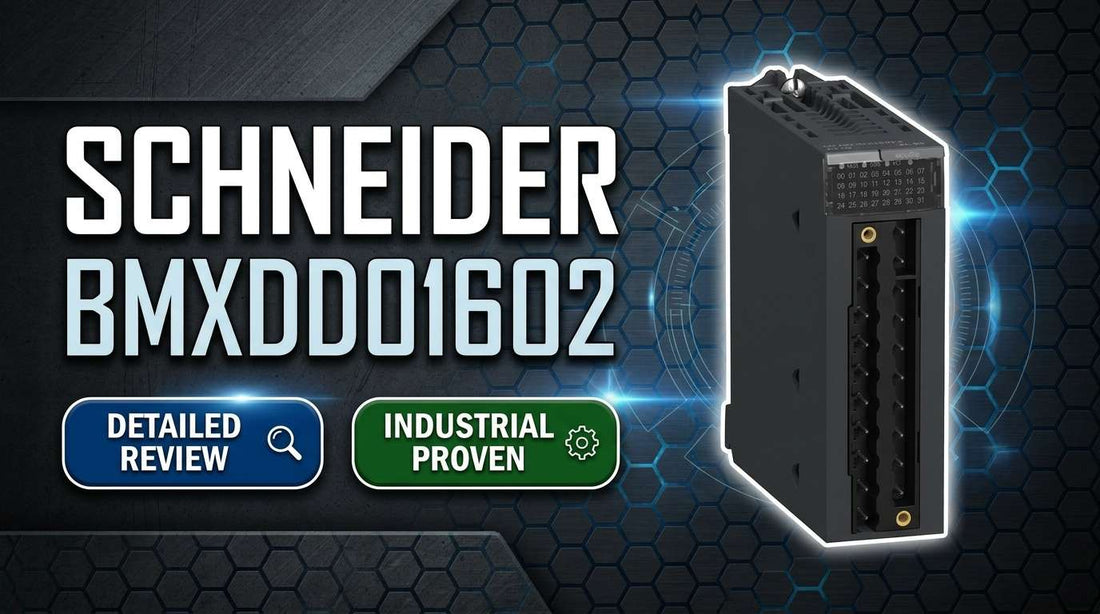

Schneider Electric BMXDDO1602 Modicon X80 16-channel 24V DC discrete output module for industrial automation control

Schneider BMXDDO1602 Discrete Output Module, Modicon X80, 16 Transistor Outputs, 24V DC Positive — Specs, Wiring, and Buying Guide

If you are expanding or maintaining a Modicon X80 system and need to control solenoid valves, motor starters, or indicator lights through 24V DC positive logic outputs, the Schneider BMXDDO1602 is almost certainly already on your bill of materials. The decision at this stage comes down to confirming the exact part number, validating output current capacity, and making sure your chassis and power supply are matched. This module delivers 16 solid-state transistor outputs at 0.5 A per channel, with a 1.2 ms response time and built-in electronic overload protection — all in a single Modicon X80 I/O slot.

If you have already confirmed this is the right part, check current pricing and availability for the BMXDDO1602 at LeadTime.ca — ships worldwide.

Who Should Buy the BMXDDO1602 — and Who Should Not

The BMXDDO1602 is the right fit for engineers and technicians working within an established Modicon X80 architecture who need a standard 24V DC positive logic discrete output module. It is the correct choice if all of the following apply to your project:

  • Your PAC platform is confirmed Modicon X80 series — not M340, M241, or any other Schneider family
  • Your application requires exactly 16 discrete ON/OFF output channels per module slot
  • Your facility standard output logic is 24V DC positive (sourcing), not negative sinking
  • Your per-channel load does not exceed 0.5 A and total simultaneous load stays within 10 A
  • Your external power supply is rated between 19V and 30V DC
  • You need solid-state construction with no mechanical relay wear — and built-in electronic protection

If your system uses 24V DC negative (sinking) logic, the correct part is the BMXDDO1610. If your application requires more than 16 outputs in a single module, the BMXDDO1632 provides 32 channels in two slots on the same X80 platform. Neither of those is a substitute for the BMXDDO1602 in a positive-logic application.

On this page:

What the BMXDDO1602 Actually Does in a Live System

The BMXDDO1602 is a discrete output module within the Modicon X80 I/O family. Its function is precise and non-negotiable in scope: it receives digital switching commands from the Modicon X80 PAC backplane and translates them into switched 24V DC positive signals on 16 independent output channels. Each channel is independently programmable through the controller logic, meaning any combination of outputs can be active simultaneously — up to the 10 A total module current ceiling.

The module uses solid-state transistor outputs rather than mechanical relay contacts, which eliminates contact wear as a failure mode. Built-in electronic circuit breaker and current limiter protection (operating between 1.5 In and 2 In) automatically disconnects a faulted channel without requiring an external fuse to protect the module itself, though external fusing on the 24V supply line remains recommended practice. Isolation resistance exceeds 10 MΩ at 500V DC between output circuits and internal logic, meaning field wiring faults cannot propagate back to the PAC backplane — a critical protection in environments where output wiring is exposed to inductive loads, long cable runs, or surge events.

The 1.2 ms typical response time is sufficient for the overwhelming majority of discrete control tasks — valve sequencing, motor contactor actuation, and indicator light control all operate well above this switching threshold. The module consumes 79 mA at 3.3V DC from the backplane for control logic, keeping its demand on the chassis power budget minimal.

Typical System Architecture for Modicon X80 Discrete Output

The BMXDDO1602 sits at the output layer of the Modicon X80 control chain, between the PAC processor and the physical field devices it switches. Understanding where it fits helps confirm whether this module is what your system actually needs at this stage of design or maintenance.

  • Modicon X80 PAC CPU (such as BMXP0410 or BMXP0420) executes ladder or function block logic and issues output commands over the backplane
  • BMXDDO1602 occupies one I/O slot on the X80 chassis, receives backplane signals, and switches 16 independent 24V DC positive output channels
  • External 24V DC power supply (rated 19–30V DC) connects directly to the module's power input terminals and sources current to field devices through the module outputs
  • Field devices — solenoid valve coils, motor starter control inputs, indicator light assemblies, pneumatic ejector valves — connect between each output channel and the common 24V supply negative return
  • Module status LEDs (one green RUN, one red ERR, one green per channel) provide local diagnostics without requiring a laptop or software connection for basic fault identification

Typical Applications and Deployment Scenarios

In food and beverage packaging lines, the BMXDDO1602 most often handles solenoid valve control — triggering pneumatic cylinders for reject gates, fill valves, and diverter flaps at the speeds that 1.2 ms response time comfortably supports. Each channel independently switches one valve, and 16 channels covers most single-station pneumatic circuits without requiring a second module slot.

Automotive sub-assembly operations use the BMXDDO1602 to control motor starter and contactor coil inputs. Here the 0.5 A per channel limit is the critical check — most modern motor starter coil inputs draw well within this range, but verifying the coil current specification of your specific contactor model before wiring is non-negotiable.

Water treatment and utility facilities running Modicon X80 systems use this module for pump enable/disable signals, valve position commands, and alarm horn outputs across treatment stages. The IP20 rating and 0–60°C operating range cover indoor utility control room environments where this equipment typically lives.

In pharmaceutical manufacturing, where documentation and compliance traceability are part of every equipment qualification, the BMXDDO1602's full certification stack — UL, CSA, CE, RoHS, and EN/IEC 61131-2 compliance — simplifies the validation paperwork compared to sourcing non-certified alternatives.

Application Typical Deployment
Solenoid valve control in packaging lines 16 outputs mapped to individual pneumatic valve coils; reject gate and diverter actuation
Motor starter contactor control Output channels drive contactor coil inputs; conveyor drive enable and brake release sequencing
Indicator lights and operator alarms Pilot light and horn outputs for production status, fault annunciation, and cycle-complete signals
Water treatment valve sequencing Pump enable, valve open/close commands across multiple treatment stages
Pharmaceutical batch processing Binary actuator control in documented, validated processes requiring full IEC 61131-2 certification
Material handling conveyor systems Motor enable/disable, divert gate, and accumulation zone control for sorting systems

Key Specifications and Variant Comparison

Parameter BMXDDO1602 Value
Output Channels 16 solid-state transistor outputs
Output Voltage 24V DC positive logic (input range 19–30V DC)
Output Current per Channel 0.5 A maximum
Total Module Current 10 A maximum
Response Time 1.2 ms typical
Isolation Resistance >10 MΩ at 500V DC (output to internal logic)
Dielectric Strength 1500V AC at 50/60 Hz, 1 minute
Operating Temperature 0–60°C (32–140°F)
Certifications UL, CSA, CE, RoHS, GOST, BV, GL, RMRS, ABS
Power Consumption (backplane) 79 mA at 3.3V DC typical

Full technical specifications are available on the product page at LeadTime.ca.

Feature BMXDDO1602 (This Module) BMXDDO1610 (16-ch Negative) BMXDDO1632 (32-ch Positive)
Output Channels 16 16 32
Logic Type Positive (24V sourcing) Negative (24V sinking) Positive (24V sourcing)
Output Current per Channel 0.5 A 0.5 A 0.5 A
Total Module Current 10 A 10 A 20 A
Module Slots Required 1 slot 1 slot 2 slots
When to Use Standard 24V sourcing; most common new build and expansion Existing negative-logic wiring; rare in new builds High-density applications; large system expansion
Ordering Mistake Risk Often confused with BMXDDO1610 if logic type not confirmed Ordered instead of BMXDDO1602 when logic type assumed Over-specified for small systems; consumes two chassis slots

If your channel count exceeds 16 or your total simultaneous load approaches 10 A, the BMXDDO1632 is the correct next step — check current availability and confirm which variant fits your chassis at LeadTime.ca.

Expert Verdict: Is the BMXDDO1602 Right for Your Project?

For plant maintenance teams adding output capacity to a running Modicon X80 system, and for OEM builders designing new equipment around the X80 platform with a 24V DC facility standard, the BMXDDO1602 is a dependable, correctly-specified choice. It delivers 16 independent transistor outputs with 1.2 ms response, built-in electronic circuit breaker protection rated between 1.5 In and 2 In, and full EN/IEC 61131-2 compliance in a single chassis slot drawing only 79 mA from the backplane. The module's isolation resistance exceeding 10 MΩ at 500V DC between output circuits and internal logic means field wiring faults stay in the field — they do not reach the processor. That combination of protection depth and compact footprint is exactly what a controls engineer running a tight chassis slot budget needs.

Where the BMXDDO1602 has real limits: it is the wrong part if your facility uses 24V DC negative (sinking) logic — order the BMXDDO1610 for that application. It is also the wrong choice if you need more than 16 outputs per module without consuming multiple chassis slots — the BMXDDO1632 covers that requirement with 32 channels across two slots and a 20 A total module current ceiling. And if your project is a greenfield build where the platform has not yet been committed, be aware that the Modicon X80 ecosystem carries a higher entry cost than some alternatives; the BMXDDO1602 is the right module for an X80 system, but an X80 system may not be the right platform for every application.

From a procurement standpoint, the BMXDDO1602 is normally stocked through authorized industrial distributors, with in-stock lead times in the range of 1–3 business days and special-order lead times of 2–4 weeks from factory when distribution stock is exhausted. For emergency replacements or planned expansion where lead time is part of the project schedule, confirming stock status before finalizing your design timeline matters. Ordering through a specialist distributor rather than a generic channel gives you the compatibility confirmation step that prevents the wrong-part scenario — particularly the BMXDDO1602 versus BMXDDO1610 confusion — before the module ships. Check current stock status and pricing for the BMXDDO1602 at LeadTime.ca, with worldwide shipping available.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the BMXDDO1602

Public forum discussion of the BMXDDO1602 is essentially absent — searches across automation communities including r/PLC, PLCTalk, PLCS.net, and MrPLC returned no threads specific to this model. That absence reflects how this module is actually specified and purchased: OEM builders embed it in equipment designs during internal design reviews, and plant maintenance teams order it directly from their integrator or established distributor relationship without posting publicly about the decision. It is not the kind of part that generates community debate — it is a component people order when the system design is already settled.

What that means practically is that when something goes wrong with an order — wrong logic type received, module physically incompatible with the chassis on-site — there is no community thread to search for troubleshooting guidance. The errors that occur with this module are well-documented in the brief patterns of experienced distributors and Schneider technical support, even if they are not visible in public forums. The most consequential mistakes are: ordering BMXDDO1610 (negative logic) when positive logic is required, specifying the module for a non-X80 chassis, and connecting loads that exceed the 0.5 A per-channel limit without an interposing relay. These are exactly the situations where speaking with a specialist distributor before submitting a purchase order catches the problem at zero cost rather than after delivery.

LeadTime.ca's technical team handles BMXDDO1602 enquiries with Modicon X80 architecture context — including platform differentiation from M340 and M241 families, power supply sizing for the module, and confirmation of logic type against your existing system documentation. If you are specifying this module without an integrator on the project, that conversation is worth having before the order is placed. Reach the LeadTime.ca team here for pre-order compatibility confirmation.

Wiring and Installation Overview

The following points cover the key requirements for installing and connecting the BMXDDO1602. Engineers requiring full step-by-step wiring procedures should reference Schneider Electric's official installation and wiring documentation for the Modicon X80 family.

  • Power down the Modicon X80 PAC completely before inserting or removing the module; align the BMXDDO1602 with the X80 I/O slot connector and press firmly until the backplane connector seats fully
  • Connect an external 24V DC supply (rated 19–30V DC) to the module's power input terminals; the positive leg connects to the 24V+ terminal and the negative leg to the GND terminal, with a common ground shared across all field devices
  • Each of the 16 output channels connects to the positive control input of the field device (solenoid coil, contactor coil, indicator light); the device's return path connects back to the 24V supply negative — verify that no single device load exceeds 0.5 A and that total simultaneous load across all 16 channels does not exceed 10 A
  • Include external fuse protection on the 24V DC supply line feeding the module; loads exceeding 0.5 A per channel require an interposing relay — the BMXDDO1602 output drives the relay coil, and the relay contact switches the higher-current load
  • After power-up, verify the green RUN LED illuminates within a few seconds of PAC boot; each channel's green diagnostic LED should toggle as program logic activates that output — a red ERR LED indicates a module or backplane fault requiring investigation

Wrong-Part Prevention Checklist

Before submitting a purchase order for the BMXDDO1602, verify each item on this checklist. These are the exact confirmation points that prevent the most common and costly ordering errors with this module:

  1. CONFIRM chassis is Modicon X80 series PAC — this module DOES NOT fit Modicon M340, M241, or other Schneider families
  2. VERIFY output voltage required is 24V DC positive — negative logic outputs require BMXDDO1610 model instead
  3. CHECK total module current budget (this module draws max 10 A total; verify PAC power supply capacity)
  4. CONFIRM connected field devices accept 24V DC (not 12V, 48V, or AC supply)
  5. VERIFY external power supply rated for min 19V, max 30V DC per Schneider spec
  6. ENSURE 16 output channels match application count (not 8, 32, or other configurations)

If any item on this checklist cannot be confirmed before ordering, contact the LeadTime.ca team for compatibility verification — or review the full product documentation on the BMXDDO1602 product page before proceeding.

Frequently Asked Questions

Can the BMXDDO1602 be swapped into a running Modicon X80 chassis without stopping the PAC?

The BMXDDO1602 supports hot-swap insertion in the Modicon X80 architecture, but module-specific output data will be lost during the swap interval. This means any outputs that were active at the moment of removal will de-energize until the module reinitializes and program logic reasserts their states. For applications where momentary output de-energization is acceptable (indicator lights, non-critical valve states), hot-swap is operationally feasible. For safety-critical or process-critical outputs, plan the swap during a controlled production pause and confirm with your X80 chassis documentation before proceeding.

What is the maximum number of BMXDDO1602 modules that can be installed in a single Modicon X80 chassis?

The Modicon X80 chassis supports up to 8 I/O modules in the standard configuration, though the exact slot count depends on the specific X80 chassis model in your system. Each BMXDDO1602 occupies one slot, so a fully populated chassis could theoretically hold 8 units — providing 128 discrete positive outputs. In practice, slot allocation is shared with input modules and other I/O types, so consult your specific Modicon X80 chassis documentation for slot count and power budget calculations across your full module stack.

What happens if a field device load exceeds the 0.5 A per-channel limit — does the module shut down or continue operating?

The BMXDDO1602 includes a built-in electronic circuit breaker and current limiter set between 1.5 In and 2 In of rated current. When a channel's current exceeds this threshold — for example, due to a short circuit or an oversized load — the circuit breaker trips that channel automatically and the corresponding channel diagnostic LED will indicate a fault state. The remaining channels continue operating normally. Reducing the overload condition and power-cycling the affected channel (or the module) typically clears the fault. Persistent tripping indicates the load must be reduced or an interposing relay must be added for that channel.

Is the BMXDDO1602 a direct drop-in replacement for a discrete output module from a Modicon M340 system?

No — the BMXDDO1602 is physically and electrically specific to the Modicon X80 chassis architecture and will not fit or function in a Modicon M340 system. The M340 uses a different I/O connector form factor and backplane communication protocol. If you are migrating from M340 to X80, module replacement requires selecting the correct X80-family equivalent rather than direct substitution. Confirm your chassis platform model number before ordering — this is the most common source of incompatibility errors with this module.

What certifications does the BMXDDO1602 carry, and does it meet IEC 61131-2 compliance for international projects?

The BMXDDO1602 carries UL, CSA, CE, RoHS, GOST, BV, GL, RMRS, and ABS certifications, and conforms to EN/IEC 61131-2 (the international standard defining programmable controller discrete I/O signal requirements). It also meets EN/IEC 61010-2-201 and UL 61010-2-201. This certification stack covers North American, European, and international marine and industrial approvals, making it suitable for export equipment builds and internationally deployed systems without requiring additional compliance documentation for the module itself.

What do the status LEDs on the BMXDDO1602 indicate, and how do I read a fault condition in the field?

The module has one green RUN LED indicating normal operational status, one red ERR LED indicating a module-level or backplane fault, one red I/O error LED, and one green diagnostic LED per output channel. Under normal operation, the RUN LED is solid green and each channel's green LED illuminates when that output is commanded on by program logic. A red ERR LED signals a module fault — first step is to reseat the module firmly in the chassis slot and verify the backplane connector is clean. A channel diagnostic LED that does not illuminate when the corresponding program output is active indicates that channel has faulted, most likely from an overload or short-circuit condition on the connected field device.

Why Order the BMXDDO1602 Through LeadTime.ca

  • LeadTime.ca stocks Modicon X80 family modules and can confirm BMXDDO1602 availability and lead time before you commit to a project schedule
  • Pre-order compatibility verification is available — the team can confirm chassis platform match, logic type, and power supply sizing against your system details
  • Worldwide shipping with attention to urgent replacement scenarios where production downtime makes lead time the primary purchasing factor
  • Volume pricing available for OEM builders and panel shops placing multi-unit orders — contact directly for current pricing structures
  • No pricing ambiguity at the order stage — current pricing is displayed live on the BMXDDO1602 product page or request a formal quote from the LeadTime.ca team

At-a-Glance Summary

  • 16 independent solid-state transistor output channels, 24V DC positive logic, Modicon X80 chassis only
  • 0.5 A maximum per channel; 10 A total module current ceiling — loads exceeding 0.5 A require interposing relay
  • 1.2 ms typical response time — sufficient for solenoid valve, motor contactor, and indicator light control
  • Built-in electronic circuit breaker rated 1.5 In to 2 In protects individual channels without requiring external fusing on every output
  • Isolation resistance >10 MΩ at 500V DC; dielectric strength 1500V AC at 50/60 Hz for 1 minute — field wiring faults are isolated from the PAC backplane
  • External power supply must be rated 19–30V DC; backplane logic draw is 79 mA at 3.3V DC
  • Operating temperature 0–60°C; IP20 rating; 3 gn vibration and 30 gn shock resistance
  • Certified: UL, CSA, CE, RoHS, GOST, BV, GL, RMRS, ABS; compliant with EN/IEC 61131-2
  • Will NOT fit Modicon M340, M241, or any non-X80 Schneider chassis — confirm platform before ordering
  • Negative logic variant is BMXDDO1610; 32-channel positive variant is BMXDDO1632 — part number must be exact
  • Standard warranty: 2 years from purchase under Schneider Electric coverage
  • View current pricing and stock status at LeadTime.ca — ships worldwide
