Schneider Electric BMXCPS3020 — Modicon X80 Power Supply Review

By Abdullah Zahid
15 min read

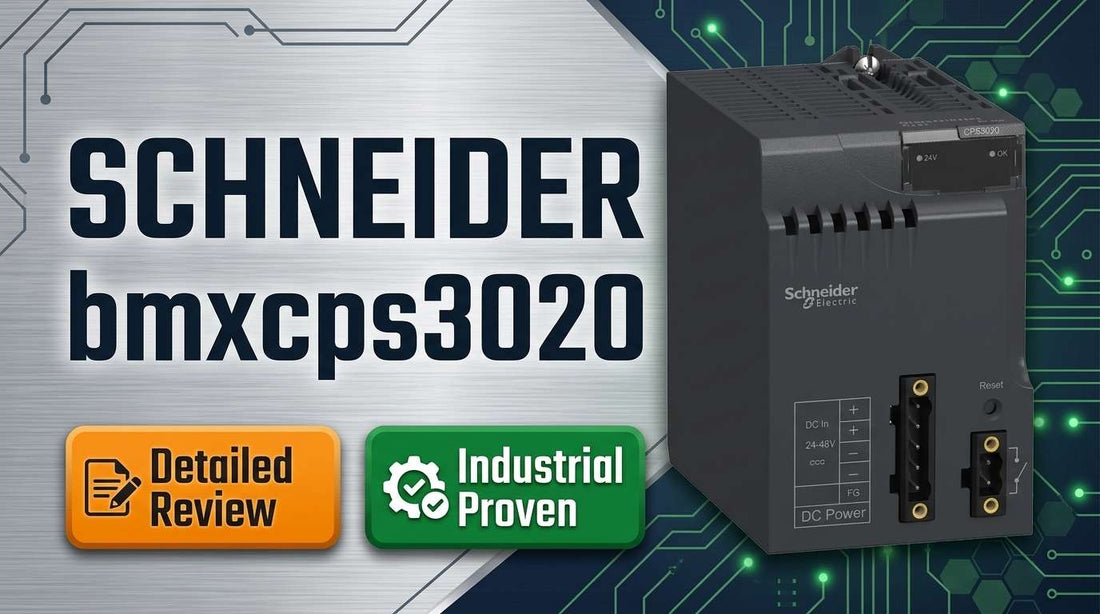

Schneider Electric BMXCPS3020 isolated 24 to 48V DC power supply module mounted in Modicon X80 PLC backplane

Schneider Electric BMXCPS3020 Power Supply Module, Modicon X80, 24 to 48V DC, 31.2W — Specs, Selection Guide & Alternatives

If you are specifying or replacing an auxiliary power supply for a Modicon X80 compact PLC cabinet, the Schneider Electric BMXCPS3020 is likely already on your shortlist. This module delivers a 24V DC isolated secondary output from a 24–48V DC primary input, with 1.3A nominal and 4.5A peak output capacity, mounting directly into the X80 backplane without any external enclosure work. The question most engineers are asking at this stage is not what it is — it is whether this exact model fits their backplane revision, their available primary voltage, and their current budget. This guide answers all three.

If you have already confirmed this is the right part, check current pricing and availability for the BMXCPS3020 at LeadTime.ca — ships worldwide.

Who Should Buy the BMXCPS3020 — and Who Shouldn't

The Schneider Electric BMXCPS3020 is the right choice for controls engineers and integrators working within an established Modicon X80 system who need a module-level isolated 24V DC auxiliary supply for I/O modules and field devices. Specify this part if all of the following apply:

  • Your PLC chassis is a Modicon X80 — not an M340, not a competing platform — and the backplane revision is confirmed as NOT BMEXBP..02
  • Your available primary supply is 24–48V DC isolated; no AC input, no 12V DC, no supply above 48V DC
  • Your combined field I/O current draw stays within 1.3A nominal or 4.5A absolute peak at 24V DC secondary
  • Galvanic isolation between the primary supply and the 24V sensor rail is a requirement — either by application safety standard or site noise environment
  • You need certifications current across CE, CSA, UL, RCM, and EAC for global deployment or compliance sign-off

If your secondary load exceeds 4.5A peak, the BMXCPS3020 will trigger its internal protection circuit. In that case, evaluate the BMXCPS3030 or a higher-capacity X80 supply variant. If you are designing a new system from scratch rather than maintaining an existing X80 installation, a current-generation platform may serve your project better long-term — the BMXCPS3020 is a mature component in a gradually transitioning product family.

On this page:

What the BMXCPS3020 Actually Does Inside an X80 Cabinet

A common source of confusion when specifying this module is its exact role in the X80 power hierarchy. The BMXCPS3020 is not a processor power supply. It does not power the CPU or the X80 backplane logic. Its job is to convert the primary 24–48V DC site supply into a galvanically isolated 24V DC rail that feeds field I/O devices — proximity sensors, solenoid valve coils, pilot lights, and the I/O module circuitry that connects to them.

This distinction matters because an integrator who orders this module expecting it to bring an unpowered X80 CPU online will encounter a non-functional system even with the BMXCPS3020 correctly installed. The processor draws from a separate supply path. The BMXCPS3020 sits in a dedicated backplane slot and handles module-level auxiliary power only.

The galvanic isolation is the core engineering reason this module exists. With 1500V dielectric strength between the primary and secondary circuits — exceeding the 1000V typically required under IEC 61131-2 — the BMXCPS3020 keeps motor drive-induced noise, ground loops, and transients on the primary side from corrupting the 24V sensor rail. In food processing lines and water treatment facilities where variable frequency drives and pump motors share the same cabinet or distribution bus, this isolation is often what separates reliable sensor readings from intermittent faults.

Power dissipation is held to no more than 8.5W, which means the module generates minimal heat inside the enclosure — a real advantage in compact cabinets where thermal headroom is limited. Total power consumption from the primary supply is 31.2W at full load, so upstream protection sizing is straightforward.

Where the BMXCPS3020 Sits in Your Control System

The BMXCPS3020 occupies the auxiliary power supply slot in the Modicon X80 backplane, sitting between the primary DC distribution bus and the 24V field device rail. Here is the typical component chain:

  • Site primary DC supply (24–48V DC isolated) feeds the cabinet distribution bus
  • Upstream overcurrent protection device (sized to handle 30A inrush at 24V input, or 60A at 48V input) connects to the BMXCPS3020 via the 5-pin supply connector
  • The BMXCPS3020 mounts in the designated X80 backplane slot and converts the primary to an isolated 24V DC secondary output via the backplane traces
  • X80 I/O modules receive 24V DC power from the backplane; field sensors and solenoids receive power from the 24V sensor rail
  • The 2-pin alarm relay output connects to a safety input or monitoring circuit, providing fault feedback on overload, overvoltage, or short-circuit conditions on the secondary side

Typical Applications for the Modicon X80 Power Supply Module

The BMXCPS3020 is most commonly found in retrofit and maintenance scenarios rather than greenfield builds, reflecting the X80 platform's position as a mature, deployed technology. Water treatment plants retrofitting legacy control panels represent one of the most frequent use cases — the module's CE, CSA, UL, RCM, and EAC certifications make it deployable across multiple regulatory environments without additional compliance work.

Food and beverage processing lines are another natural home for this module. In these environments, the galvanic isolation between the primary supply bus and the 24V sensor rail is not just a nice-to-have — it is often mandated by the machine safety standard applied to the line. The 1500V dielectric strength provides the separation needed to satisfy those requirements without adding external isolation transformers.

For integrators maintaining an installed base of X80 compact PLC systems in packaging or light assembly equipment, the BMXCPS3020 is the standard replacement module when a power supply fails. Its 0.34kg net weight and direct backplane mounting mean a trained technician can swap the module and restore the secondary supply without rewiring the cabinet or modifying enclosure hardware.

HVAC and building automation applications with X80 controllers also use this module to provide an isolated 24V rail for actuator and sensor loops, particularly where the primary supply source may vary between 24V and 48V DC depending on the building's power architecture.

Application Typical Deployment
Water treatment plant retrofit Auxiliary I/O power supply in a new or refurbished X80 compact PLC cabinet controlling pumps and valve actuators
Food and beverage processing line Replacement module in an X80 cabinet powering proximity sensors and solenoid valve coils on a filling or packaging machine
HVAC and building automation Isolated 24V DC rail for actuator and sensor loops in an X80-controlled air handling or chiller system
Remote I/O station Isolated power source for a fieldbus-connected remote I/O drop supplied from a 48V DC site bus
Legacy factory retrofit Drop-in replacement for a failed auxiliary supply in an existing X80 installation; spare stocked for mission-critical lines

Key Electrical and Mechanical Specifications

Specification Value Notes
Input Voltage (Primary) 24–48V DC isolated Wide range accepted without external regulation; verify site supply falls within this band
Input Current 1.65A at 24V; 0.83A at 48V Size upstream protection device accordingly
Inrush Current (Cold Start) 30A at 24V; 60A at 48V Account for this transient when selecting upstream fusing or circuit breakers
Output Voltage (Secondary) 24V DC Fixed output; no adjustment
Output Current (Nominal / Peak) 1.3A nominal; 4.5A peak Sustained loads should remain at or below the nominal rating; peak triggers protection if sustained
Power Consumption / Dissipation 31.2W total; ≤8.5W heat Low dissipation minimizes thermal load in compact enclosures
Dielectric Strength 1500V (primary/ground and primary/secondary) Exceeds IEC 61131-2 minimum; strong EMI rejection in noisy environments
Operating Temperature 0–60°C Storage rated –40 to 85°C; verify site ambient before installing in outdoor or unheated enclosures
IP Rating IP20 Suitable for controlled environments; not sealed against dust — site-level air filtration recommended
Net Weight 0.34kg Direct backplane mounting; no external enclosure or DIN rail hardware required

Full technical specifications are available on the product page at LeadTime.ca.

BMXCPS3020 vs. Related Module Variants — Which One Do You Actually Need?

Feature BMXCPS3020 BMXCPS3030 Non-Isolated Alternative Legacy X80 Supply
Input Voltage 24–48V DC 24–48V DC 24–48V DC 24–48V DC
Output Voltage 24V DC 24V DC 24V DC 24V DC
Output Current (Peak) 4.5A Higher (model-dependent) 4.5A 2–3A typical
Galvanic Isolation Yes — 1500V Yes — 1500V No Yes (legacy revision)
Power Consumption 31.2W Higher (model-dependent) Lower Similar
Certifications CE, CSA, UL, RCM, EAC Current Current Current (older revision)
EMI Immunity Excellent Excellent Good Good
Typical Use I/O module power, sensor rail — standard X80 builds High-power I/O expansion Budget retrofit where isolation is not required Existing X80 installed base

If your secondary load calculation comes out above 4.5A peak, the BMXCPS3020 will not hold it reliably — the alarm relay will trip under real operating conditions. The BMXCPS3030 is the natural step up. Check current availability and confirm the right variant at LeadTime.ca before committing to a project build.

Expert Verdict: Is the BMXCPS3020 the Right Call?

The Schneider Electric BMXCPS3020 earns its place as the standard auxiliary power supply for any engineer maintaining or expanding a Modicon X80 compact PLC installation. Its combination of a wide 24–48V DC input range, 1500V galvanic isolation, and an output capacity of up to 4.5A peak covers the majority of field I/O power requirements in small to mid-size X80 applications — without requiring external conditioning hardware or additional cabinet space. For controls engineers managing food processing, water treatment, HVAC, or light manufacturing systems where an X80 chassis is already on the DIN rail, this is the module to order. The 0.34kg form factor, direct backplane mounting, and built-in overload and short-circuit protection on the secondary 24V rail all reduce integration work to a minimum. Procurement teams stocking spares for mission-critical X80 lines should keep at least one unit on the shelf — lead times of 2–6 weeks through standard distribution channels are manageable when planned, but painful when a line is down.

That said, honesty is warranted about where the BMXCPS3020 is not the right answer. If your secondary load exceeds 4.5A peak — even momentarily under full actuation — step up to the BMXCPS3030. If galvanic isolation is genuinely not required by your application or safety standard, a non-isolated supply will cost less and draw less power. And if you are designing a new system from the ground up rather than maintaining an existing X80 installation, the BMXCPS3020's platform is mature and gradually transitioning — a current-generation PLC platform will offer better long-term support, a wider ecosystem of accessories, and more active community knowledge. The BMXCPS3020 is the right part for the right job; it is not a universal recommendation for all 24V DC PLC power applications.

On the procurement side, the most important step before issuing a purchase order is backplane compatibility verification. The BMXCPS3020 is not compatible with BMEXBP..02 backplanes, and confusing the X80 platform with an M340 chassis is a documented ordering mistake that results in a non-fitting module, potential restocking fees, and three to four weeks of lost project time. A specialist industrial distributor with authorized Schneider Electric stock can verify compatibility against your chassis documentation before the order ships — a 30-minute call that routinely saves a week of delay. View current pricing and stock status for the BMXCPS3020 at LeadTime.ca — we ship worldwide and can confirm compatibility before you commit.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the BMXCPS3020

The Schneider Electric BMXCPS3020 does not attract a high volume of public forum discussion, and that is actually meaningful information for a buyer. Unlike newer PLC platforms where integrators actively troubleshoot firmware issues and configuration quirks in open communities, the BMXCPS3020 operates as a stable, passive power conversion component inside a mature product family. Engineers who have deployed it tend to work directly through Schneider technical support or in-house expertise rather than posting questions publicly. The absence of noise in the forums reflects the module's mechanical and electrical simplicity — there is limited to go wrong when the part is correctly specified and installed.

However, that stability also means the community cannot catch ordering mistakes before they happen. The errors that cause delays with this module are almost entirely specification and compatibility errors made before the order is placed — not field failures after installation. The most consequential of these is ordering the BMXCPS3020 for a Modicon M340 chassis, which shares visual similarities with the X80 platform but uses a different backplane entirely. A second recurring issue in distributor channels is confusion over the backplane revision: the BMEXBP..02 revision is not compatible with this module, and that restriction is not always visible in generic distributor catalog listings. Cross-referencing the SKU (2156455) or UPC (00785901477006) with an authorized Schneider distributor eliminates both risks.

The inrush current characteristic is another pre-order consideration that often surfaces only after installation. At 24V primary input, the cold-start inrush reaches 30A; at 48V input, it reaches 60A. These are not sustained values — they are transient spikes that occur in the first millisecond of power-up — but they must be reflected in the upstream protection device selection. An upstream fuse or circuit breaker sized only for the nominal input current of 1.65A at 24V (or 0.83A at 48V) will nuisance-trip on every power cycle. Specialist distributors familiar with X80 system design can advise on appropriate upstream protection sizing, which is the kind of pre-order technical support that distinguishes an authorized industrial channel from a generic online retailer.

Wiring and Installation Overview

  • The primary 24–48V DC supply connects via the 5-pin supply connector; polarity must be correct — reversing primary polarity can damage the module. Protective earth must be bonded through this connector; do not operate the module without the ground connection in place.
  • The optional 2-pin alarm relay connector carries a dry contact fault output; wire this to a safety-rated input or monitoring circuit if the application requires fault feedback. Leaving it unconnected is only acceptable when the application explicitly does not require power supply fault monitoring.
  • Cable runs to the 5-pin connector are limited to 10m using 1.5mm² copper conductor, or 15m using 2.5mm² copper conductor — route shielded cables away from motor drive lines and high-voltage conductors.
  • Upstream overcurrent protection must be sized to tolerate the cold-start inrush current — 30A at 24V primary, 60A at 48V primary — without nuisance tripping; standard nominal current ratings for the fuse or breaker are insufficient if the inrush transient is not accounted for.
  • After physical installation in the designated X80 backplane slot, restore primary power and confirm the green front-panel LED illuminates within 1–2 seconds, indicating the secondary 24V rail is within tolerance; if the LED does not light, de-energize and recheck wiring and primary voltage before investigating further.

Full wiring diagrams and installation procedures are documented in the Schneider Electric Modicon X80 integration manual. Engineers requiring step-by-step configuration guidance should reference official Schneider Electric documentation for their specific chassis and backplane revision.

Compatible Modules and System Expansion

The BMXCPS3020 is one component in the broader Modicon X80 module ecosystem. When specifying or expanding an X80 cabinet, the following module types are typically deployed alongside this power supply:

  • Modicon X80 digital I/O modules — the primary consumers of the 24V DC secondary output from the BMXCPS3020; confirm combined current draw stays within the 4.5A peak limit
  • Modicon X80 analog I/O modules — also powered from the secondary 24V rail; factor signal conditioning current into the total load calculation
  • Modicon X80 communication modules — fieldbus adapters and Ethernet modules that may draw additional current from the backplane power distribution
  • Modicon X80 processor module — powered separately from the BMXCPS3020; requires its own power supply path confirmed against the X80 processor documentation
  • BMXCPS3030 (higher-current variant) — the appropriate step-up module when the secondary load from field devices and I/O modules exceeds what the BMXCPS3020 can sustain

Wrong-Part Prevention Checklist

Before submitting a purchase order for the BMXCPS3020, work through every item on this checklist. Each point corresponds to a documented ordering mistake that results in an incompatible part, a project delay, or a non-returnable module:

  1. Confirm target PLC is a Modicon X80 (not M340, not Compact Logix, not other platform).
  2. Verify backplane compatibility: not compatible with BMEXBP..02 revision.
  3. Check input voltage available on site: must be 24–48V DC isolated; if primary is AC or >48V, wrong module.
  4. Confirm output current requirement: module delivers 1.3A nominal, 4.5A peak. If application needs >4.5A sustained, need larger module.
  5. Verify isolation requirement: if non-isolated supply is acceptable, a cheaper alternative may exist.
  6. Check connector pin configuration: 5-pin supply connector and 2-pin alarm relay connector must be available on the X80 backplane slot intended for this module.
  7. Confirm operating temperature range fits site conditions: 0–60°C ambient; if colder storage expected, verify -40 to 85°C storage rating is acceptable.
  8. Cross-reference the SKU (2156455) or UPC (00785901477006) with distributor to ensure no part number confusion with competing suppliers' nomenclature.

If any item on this checklist cannot be confirmed with certainty before ordering, contact the LeadTime.ca team for pre-order compatibility verification — the call takes less time than processing a return.

Frequently Asked Questions

Does the BMXCPS3020 power the Modicon X80 processor, or only the I/O modules and field devices?

The BMXCPS3020 is an auxiliary I/O power supply module — it delivers 24V DC to the field I/O devices and I/O modules via the X80 backplane secondary rail. It does not power the CPU or processor module. The processor requires a separate, dedicated supply path. Ordering this module as a processor power supply replacement will not restore a system where the processor supply has failed.

What happens if the secondary load exceeds 4.5A — does the module shut down or just derate?

When the secondary load exceeds the 4.5A peak output, the internal protection circuit activates the alarm relay and shuts down the 24V DC secondary output. The module does not derate to a lower current — it cuts out. To restore output, the overload condition must be resolved and primary power cycled. Sustained loads above the 1.3A nominal rating accelerate the need for protection intervention, so accurate load calculation before commissioning is critical.

Can I use a 12V DC or AC primary supply with the BMXCPS3020?

No. The minimum primary input voltage is 24V DC, and the supply must be DC — not AC. Applying a 12V DC supply will not activate the secondary output because the input falls below the module's operating threshold. Applying AC to the primary input can damage the module. If your site supply is outside the 24–48V DC range, a different module or external voltage conditioning is required.

Is external fusing required on the 24V secondary output rail?

The BMXCPS3020 includes overload and short-circuit protection on the 24V secondary circuit as a built-in feature, so no external fuse is strictly mandatory for the secondary rail. However, many integrators add external fusing on individual branch circuits downstream — particularly for solenoid loads or long cable runs — as an additional safety measure for fault isolation. The primary side includes an internal fuse that is not user-accessible; if the primary fuse has blown, the module requires replacement.

How do I confirm the module is functioning correctly after installation?

The front panel carries a green LED indicator that illuminates when the secondary 24V DC rail is within tolerance and the module is operating normally. If the LED does not light within 1–2 seconds of applying primary power, de-energize the system and check primary input voltage, connector polarity, and load conditions before drawing conclusions. A permanently dark LED with correct primary voltage and no load connected indicates a module fault requiring replacement.

Is the BMXCPS3020 suitable for installation in high-vibration environments?

The module is rated to withstand 3gn vibration and 30gn shock, covering typical industrial machine environments. In applications with sustained high vibration — such as press or stamping equipment — mechanical damping at the cabinet mounting points is recommended to ensure the backplane connector remains fully seated over time. The module is not designed for installation directly on moving machinery without isolation from vibration sources.

Why Order From LeadTime.ca

  • Ships worldwide — no regional restriction on orders; international buyers receive the same service as domestic accounts
  • Pre-order compatibility verification available — confirm backplane revision, input voltage, and current requirements before the purchase order is issued
  • Specialist access to authorized Schneider Electric stock — important for X80 platform components where generic channel availability can be inconsistent
  • Volume pricing for multi-unit orders and spare parts stocking programs for mission-critical installed base
  • Fast response on lead time confirmation — critical when a production line is down and a 2–6 week standard lead time is not acceptable

BMXCPS3020 At-a-Glance Summary

  • Primary input: 24–48V DC isolated — accepts wide site supply range without external conditioning
  • Secondary output: 24V DC fixed, 1.3A nominal, 4.5A peak — triggers internal protection if sustained above peak
  • Cold-start inrush: 30A at 24V input, 60A at 48V input — upstream protection must be sized for this transient
  • Power consumption: 31.2W total; heat dissipation ≤8.5W — low thermal load in compact enclosures
  • Galvanic isolation: 1500V dielectric strength, primary to secondary and primary to ground
  • Operating temperature: 0–60°C; storage –40 to 85°C
  • Certifications: CE, CSA, UL, RCM, EAC, Merchant Navy; compliant with EN/IEC 61131-2 and EN/IEC 61010-2-201
  • Form factor: 0.34kg, direct X80 backplane mounting — no external enclosure required
  • Not compatible with BMEXBP..02 backplane revision — verify before ordering
  • Not a processor power supply — auxiliary I/O and field device supply only
  • Typical lead time through distribution: 2–6 weeks — plan spares stocking for mission-critical X80 installations
