Schneider BMXAMO0410 — Modicon X80 Analog Output Buyer's Guide

By Abdullah Zahid
13 min read

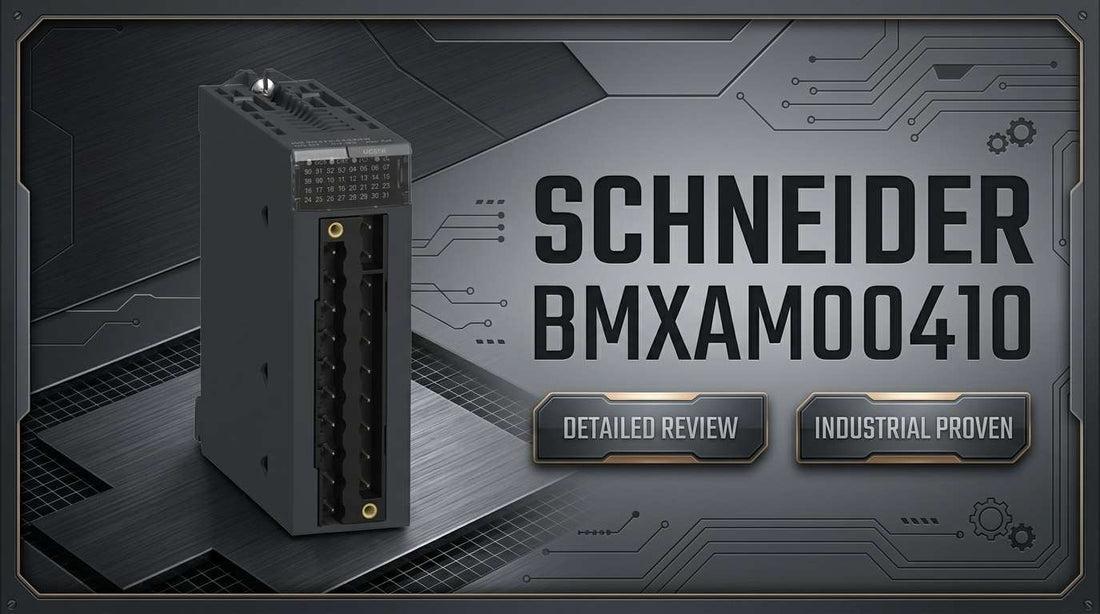

Schneider Electric BMXAMO0410 4-channel isolated analog output module for Modicon X80 PAC in industrial process control cabinet

Schneider BMXAMO0410 Analog Isolated High Level Output Module, Modicon X80 — Specifications, Wiring Overview, and Buyer's Guide

If you are a controls engineer or procurement specialist working with an existing Modicon X80 system and need to add precision analog output capability, the Schneider BMXAMO0410 is almost certainly already on your shortlist. This 4-channel isolated analog output module converts digital commands from the X80 PAC into field-ready current or voltage signals — supporting 0-20mA, 4-20mA, and ±10V output modes, all with 15-bit plus sign resolution and 0.1% accuracy at 25°C. The decision usually comes down to one question: is this definitively the right module for your platform and load requirements?

If you have already confirmed platform compatibility and are ready to check stock, view current pricing and availability for the BMXAMO0410 at LeadTime.ca — we ship worldwide.

Who Should Buy the BMXAMO0410 — and Who Shouldn't

The BMXAMO0410 is the correct module for engineers who can confirm all of the following:

  • Your PLC is Modicon X80 platform — not M340, M580, or any other Schneider or non-Schneider range
  • You require 4 independently isolated analog output channels (0-20mA, 4-20mA, or ±10V, selectable per channel)
  • Your connected field devices meet load impedance requirements: 1000 Ohm or greater for voltage outputs, 500 Ohm or less for current outputs
  • Your application operates within the 0 to 60°C temperature range and the X80 rack has 24V DC supply available
  • Your project requires the 1400V DC channel-to-ground isolation to eliminate ground loop issues in a noisy cabinet environment

If you need more than 4 analog output channels from a single module, require digital outputs instead, or are working on a non-X80 Schneider platform, this module is not the correct choice. The BMXAMO0200 (2-channel isolated analog output) and platform-appropriate modules for M340 or M580 are the alternatives to evaluate first.

On this page:

What the BMXAMO0410 Does in a Modicon X80 System

The BMXAMO0410 sits at the output boundary of the Modicon X80 control architecture — receiving digital values from the PAC processor and translating them into proportional analog signals that field devices can act on. This is not a general-purpose module that can be adapted to other platforms: it is designed specifically for the X80 backplane, mates via a 20-way connector, and draws its 24V DC supply directly from the rack. No external power connection is required.

Each of the four channels is fully electrically isolated — from ground at 1400V DC, from the channel bus at 1400V DC, and between individual channels at 750V DC. In practical terms, this means a ground fault or voltage spike on one channel cannot propagate to adjacent channels or back into the controller bus. For facilities with variable frequency drives, motor starters, or welding equipment sharing the same cabinet or ground bus, this level of isolation is the difference between stable process control and persistent interference problems.

The module's 15-bit plus sign resolution and conversion time of 1ms or less per channel make it suitable for process control loops, proportional valve modulation, and VFD speed reference signals — applications where analog fidelity directly affects product quality or process stability. The 1,000,000-hour MTBF rating confirms this is industrial-grade hardware, not a component that will need frequent replacement in a long-running production environment.

Typical System Architecture for the BMXAMO0410

The BMXAMO0410 occupies the analog output layer in an X80 I/O rack, sitting between the PAC processor and the field instrumentation it drives. Here is where it fits in a typical deployment:

  • Modicon X80 PAC processor (BMXP series CPU) executes the control program and writes output values to the module's channel registers over the backplane
  • BMXAMO0410 receives those register values, converts them to the configured analog signal type (0-20mA, 4-20mA, or ±10V), and drives the field terminal
  • Twisted-pair shielded cable carries the analog signal from the module's 20-way terminal to the field device
  • Field devices — VFDs receiving a 4-20mA speed reference, proportional valves accepting a ±10V command, or process instruments requiring a 0-20mA signal — respond to the analog output in real time
  • Module diagnostics (green RUN LED, per-channel green status LEDs, red ERR and I/O fault indicators) provide immediate health indication visible from the cabinet front

Typical Applications and Deployment Scenarios

The BMXAMO0410 appears most often in continuous process control environments where a PAC must modulate field devices proportionally rather than simply switching them on or off. The 4-20mA mode is the industrial standard for VFD speed references, making this module a natural fit for any X80 system driving AC motor drives in pump, fan, or conveyor applications. The ±10V mode serves servo drives and proportional hydraulic valves where bipolar commands are required.

In water and wastewater treatment, the module handles pump speed control and proportional valve modulation — applications where the 0.2% accuracy across the full 0 to 60°C operating range ensures that flow and pressure control loops stay within specification even as cabinet temperatures fluctuate through the day. Food and beverage facilities use it for filling line pressure control and mixing proportional dosing, where signal drift from a less accurate module would translate directly into product inconsistency.

Pharmaceutical and laboratory environments benefit from the complete channel isolation and the 100dB common mode rejection rating — both of which matter when analog signal cables run near high-current equipment and signal integrity cannot be compromised. OEM machine builders standardizing on Modicon X80 specify the BMXAMO0410 as the analog output module of record because its CE, UL, CSA, RCM, and EAC certifications cover the compliance requirements for equipment sold into North American, European, Australian, and CIS markets simultaneously.

Application Typical Deployment
AC motor speed control via VFD 4-20mA speed reference from BMXAMO0410 channel to VFD analog input; X80 PAC closes the speed loop
Proportional hydraulic valve control ±10V command signal to valve amplifier; each of 4 channels drives an independent valve axis
Water treatment pump modulation 4-20mA output matched to pump VFD; open-circuit detection on current channel flags cable break automatically
Pharmaceutical dosing system Multiple independent isolated channels drive separate dosing pump drives; isolation prevents cross-channel interference
Precision test and measurement output 0-20mA or ±10V reference output to calibrated instrument; 0.1% accuracy at 25°C meets metrology-grade requirements

Key Specifications and Variant Comparison

Specification BMXAMO0410 Value
Output signal types 0-20mA (0 to 21mA max), 4-20mA (4 to 21mA max), ±10V (±10.5V max) — selectable per channel
Number of channels 4, all fully isolated
Resolution 15 bits + sign
Accuracy 0.1% of full scale at 25°C; 0.2% across 0 to 60°C
Conversion time ≤1ms per channel
Isolation voltage (channel to ground / channel to bus) 1400V DC
Load impedance ≥1000 Ohm for ±10V outputs; ≤500 Ohm for current outputs
Power consumption 3W typical, 3.6W max at 24V DC (internal rack supply)
Operating temperature 0 to 60°C
Certifications CE, UL, CSA, RCM, EAC, Merchant Navy

Full technical specifications are available on the product page at LeadTime.ca.

Model Channels Output Type Isolation Best For
BMXAMO0410 4 0-20mA, 4-20mA, ±10V 1400V DC channel to ground Process control, OEM, multi-loop applications with ground loop risk
BMXAMO0200 2 Analog output (isolated) Isolated Lower channel count applications, cost-sensitive projects needing fewer outputs
BMXDMO0410 4 Digital output only Not applicable Discrete switching applications — not suitable where proportional analog signal is required

If your application requires only 2 analog output channels and the 1400V DC isolation is not mandatory for your grounding architecture, the BMXAMO0200 may reduce module cost. For applications requiring more than 4 channels, multiple BMXAMO0410 modules can be installed in separate X80 rack slots — check current availability for single and multi-unit orders at LeadTime.ca.

Expert Verdict: Is the BMXAMO0410 Right for Your Project?

The BMXAMO0410 is the correct specification for controls engineers maintaining or expanding established Modicon X80 automation systems where analog output accuracy and channel isolation are genuine requirements — not optional features. The 0.1% full-scale accuracy at 25°C and 0.2% across the 0 to 60°C operating range position this module squarely in process control territory: pharmaceutical dosing, food and beverage filling, water treatment valve modulation, and precision manufacturing lines where analog signal drift translates directly into product quality deviation. The 1,000,000-hour MTBF rating and multi-jurisdiction certification package (CE, UL, CSA, RCM, EAC) further justify the specification for OEM builders who ship equipment into multiple markets and cannot afford compliance gaps.

Where this module has real limits: it is a 4-channel output-only device. Engineers who need analog input capability should be looking at BMX-AMI series modules, not this one. If your load impedance figures do not meet the stated minimums and maximums (≥1000 Ohm for voltage, ≤500 Ohm for current), the outputs will behave nonlinearly regardless of how well the module is configured — this is a field wiring issue the module cannot compensate for. And if you are working on M340 or M580 hardware, the BMXAMO0410 simply will not fit: the backplane connector and architecture are X80-specific. Buyers who need an analog output module for those platforms must select from the architecture-appropriate range for each.

From a procurement standpoint, the BMXAMO0410 is available through major distributors globally with typical lead times of one to two weeks for in-stock configurations, though stock status varies and confirming availability before committing to a build schedule is always the prudent step. Ordering through a specialist distributor rather than a generic channel matters here: a specialist can confirm X80 platform compatibility against your existing module part numbers before the order ships, flag potential power budget concerns for your rack configuration, and provide support if commissioning questions arise. View current stock status and pricing for the BMXAMO0410 at LeadTime.ca — available to buyers worldwide.

For volume pricing on multi-unit orders or to confirm lead time before locking in a project build schedule, contact the LeadTime.ca team directly — we ship worldwide and can provide sourcing support for both single-unit replacements and OEM production quantities.

What Engineers Need to Know Before Ordering the BMXAMO0410

The BMXAMO0410 occupies a specialized position in the Modicon X80 ecosystem — it is a mature, B2B-focused industrial component that you will not find discussed extensively in public automation forums. This is not a signal of limited adoption; it reflects the reality that system integrators, OEM builders, and plant engineering teams who work with Modicon X80 hardware handle their technical questions internally or through Schneider Electric's support channels rather than public communities. When sourcing a module at this specification level, the absence of hobbyist forum chatter is irrelevant — what matters is verified compatibility and correct application of the technical data.

The most consequential pre-order verification is platform confirmation. The BMXAMO0410 uses a 20-way backplane connector specific to the Modicon X80 architecture. Engineers who have previously worked with M340 or M580 systems and are now specifying for an X80 installation occasionally order from institutional memory of Schneider part number conventions — and discover the mismatch only when the module arrives. The safest check is to locate the existing Modicon unit, read the part number from the product label, and cross-reference it against the X80 product family (look for BMXP-series CPU designations). If there is any doubt, a specialist distributor with Modicon expertise can verify compatibility from your existing module part numbers before the order is placed.

The second area where engineers need clarity before ordering is load impedance matching. The BMXAMO0410's voltage outputs require a field device input impedance of 1000 Ohm or greater; the current outputs require 500 Ohm or less. These are not suggestions — an impedance mismatch will cause signal nonlinearity and reduced accuracy that manifests as control loop instability, not as an obvious module fault. Verifying the input impedance specification of every device that will connect to this module before wiring is the single most effective step to avoid a difficult post-installation troubleshooting exercise. The 80dB crosstalk attenuation and 100dB common mode rejection the module delivers are only realized when the downstream wiring and load conditions are correctly matched.

Wiring and Installation Overview

The following points summarize the key requirements for installing and wiring the BMXAMO0410. For complete wiring diagrams and step-by-step installation procedures, refer to the official Schneider Electric documentation for the Modicon X80 platform.

  • The module inserts into an available X80 rack slot via the 20-way backplane connector; no external power wiring is required — the rack supplies 24V DC internally, and the module draws 3W typical (3.6W maximum)
  • Current outputs (0-20mA, 4-20mA): use twisted-pair shielded cable, verify field device load is 500 Ohm or less, and connect cable shield to ground at the instrument end only
  • Voltage outputs (±10V): use twisted-pair cable, verify field device input impedance is 1000 Ohm or greater, and route signal cables away from VFD output leads and motor cables to prevent EMI coupling
  • Confirm X80 rack 24V DC supply capacity before installation — calculate the combined power draw of the CPU, all existing modules, and the BMXAMO0410 against the rack supply rating
  • After installation and power-up, verify the green RUN LED is illuminated; if the red ERR or I/O LEDs are active, check module seating, verify backplane power, and review the hardware configuration in EcoStruxure Machine Expert or the native X80 IDE

Wrong-Part Prevention Checklist

Before placing your order for the BMXAMO0410, work through every item on this checklist. Each point addresses a confirmed failure mode that results in the wrong module being ordered, installed incorrectly, or underperforming in the application.

  1. Verify the existing PLC is Modicon X80 platform - not compatible with M340, M580, or other Schneider ranges
  2. Confirm output signal requirement (current mA vs voltage V) before ordering - module supports both but wiring differs
  3. Check that load impedance of connected field devices meets specifications (>= 1000 Ohm for voltage, <= 500 Ohm for current)
  4. Verify 24V DC supply is available at the X80 rack - module requires internal rack power (do not use standalone)
  5. Confirm available slot in X80 rack - module is 35mm wide and requires clear slot adjacency (check existing module layout)
  6. Check whether isolation voltage requirement is met - if system already has common ground bus, 1400V isolation may be overkill
  7. Verify connector type is 20-way (standard) - some custom configurations use alternative connectors
  8. Ensure temperature range 0-60°C operating fits application (not suitable for extreme cold or hot environments beyond this range)

If any item on this checklist raises a question you cannot definitively answer from your system documentation, contact the LeadTime.ca team before ordering — we can cross-reference your existing module part numbers and confirm compatibility, or help identify the correct alternative if the BMXAMO0410 is not the right fit for your configuration.

Frequently Asked Questions

Is the BMXAMO0410 compatible with Modicon M340 or M580 racks, or only X80?

The BMXAMO0410 is designed exclusively for the Modicon X80 platform and uses a 20-way backplane connector specific to X80 rack architecture. It is not compatible with M340, M580, or any other Schneider Electric or third-party PLC platform. If your system uses M340 or M580 hardware, you must select an analog output module from the corresponding architecture-specific range. Verify your existing PLC part number before ordering.

What happens to the outputs if the controller loses communication with the module?

The BMXAMO0410 supports configurable fallback behavior on each channel — outputs can be set to hold their last value, default to 0mA or 0V, or go to a predefined fallback value when communication is lost. For safety-critical processes, verifying and explicitly configuring the fallback state for each channel in EcoStruxure Machine Expert or the X80 IDE before commissioning is essential. An unconfigured fallback that drives a valve fully open or a pump to maximum speed on communication loss is a process safety issue, not just a nuisance.

Can I use 4-20mA and ±10V outputs simultaneously on the same BMXAMO0410 module?

Yes. Each of the four channels is independently configurable for output signal type — you can mix 4-20mA on one channel, ±10V on another, and 0-20mA on a third, all within the same module. Configuration is done per channel in software, and all four channels operate concurrently with a conversion time of 1ms or less per channel. This flexibility makes the module suitable for systems where multiple field device types share a single rack slot.

How do I distinguish between a wiring fault and a module fault when outputs are not responding correctly?

Start with the module's LED indicators: a green RUN LED with no red fault LEDs indicates the module is powered and communicating normally, which points the investigation toward wiring or load impedance rather than the module itself. Check that load impedance on voltage outputs is 1000 Ohm or greater and on current outputs is 500 Ohm or less — impedance mismatch is the most common cause of nonlinear or reduced-amplitude output signals. If the red I/O LED is active, verify backplane 24V DC supply voltage and check the hardware configuration in your programming environment for channel faults or fallback mode activation.

Does the module require calibration after installation, or is it factory-calibrated?

The BMXAMO0410 is factory-calibrated and requires no additional calibration at installation. The 0.1% accuracy at 25°C and 0.2% accuracy across the 0 to 60°C operating range are maintained from the factory through the module's operating life under normal conditions. No user-accessible calibration adjustment is provided; if accuracy is found to be outside specification, the module should be returned for evaluation.

What warranty coverage applies to the BMXAMO0410?

The manufacturer warranty is 18 months from shipment. Many specialist distributors offer an optional extended warranty of 2 to 3 years at point of sale. Schneider Electric's technical support and authorized integrators provide ongoing application support, and the full datasheet and module manuals are available through official Schneider Electric documentation channels.

Why Order from LeadTime.ca

  • Ships worldwide — single-unit replacements and OEM production quantities, no regional restrictions
  • Specialist distributor focus on industrial automation — staff can cross-reference existing X80 module part numbers to confirm compatibility before your order ships
  • Volume pricing available for 10-unit and larger orders — contact for current quote
  • Real-time stock visibility and lead time confirmation before you commit to a build schedule
  • Hard-to-find and end-of-life industrial automation parts sourced on request

BMXAMO0410 At-a-Glance Summary

  • 4 independently isolated analog output channels; platform: Modicon X80 only
  • Output signal modes: 0-20mA (0 to 21mA max), 4-20mA (4 to 21mA max), ±10V (±10.5V max) — selectable per channel
  • Resolution: 15 bits plus sign; conversion time: ≤1ms per channel
  • Accuracy: 0.1% of full scale at 25°C; 0.2% across 0 to 60°C operating range
  • Channel-to-ground and channel-to-bus isolation: 1400V DC; between individual channels: 750V DC
  • Load impedance requirements: ≥1000 Ohm for ±10V voltage outputs; ≤500 Ohm for current outputs
  • Power: 3W typical, 3.6W maximum from internal 24V DC X80 rack supply — no external power connection required
  • Operating temperature: 0 to 60°C; storage: -40 to 85°C; IP20 protection rating
  • MTBF: 1,000,000 hours; certifications: CE, UL, CSA, RCM, EAC, Merchant Navy
  • Module width: 35mm; weight: 0.15kg; connects via 20-way X80 backplane connector
  • Manufacturer warranty: 18 months from shipment
