Schneider Electric 31110 — 400A 690V Switch Disconnector Review

By Abdullah Zahid
13 min read

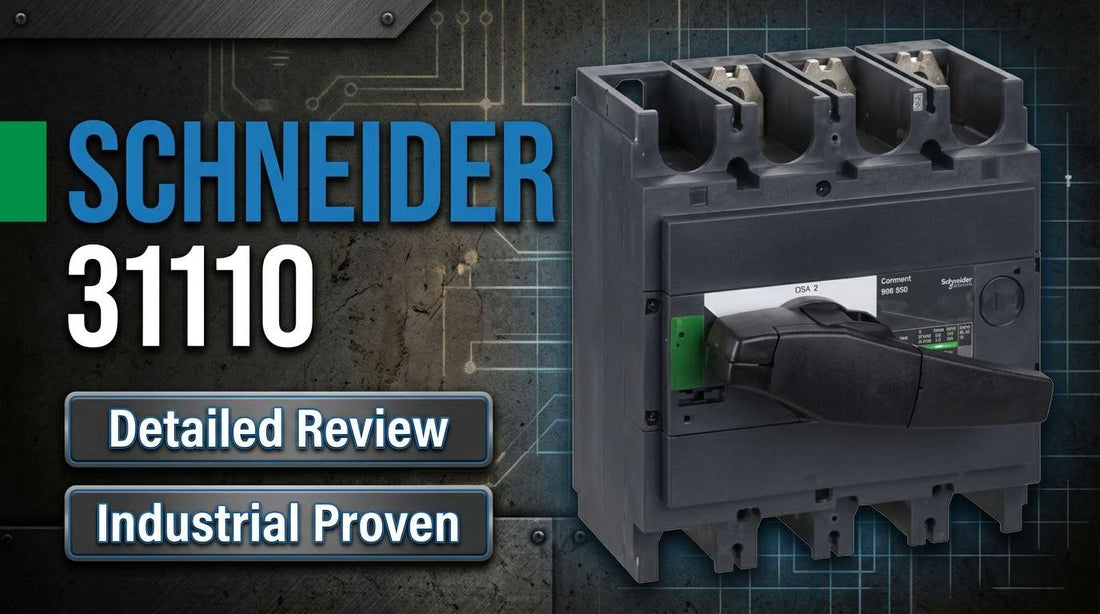

Schneider Electric 31110 Compact INS400 400A 690V 3-pole manual switch disconnector with black rotary handle for industrial panel installation

Schneider Electric 31110 Switch Disconnector, Compact INS400, 400A, Standard Version with Black Rotary Handle, 3 Poles — Specifications, Selection Guide, and Ordering

If you are specifying a manual isolation switch for a 400A three-phase distribution circuit rated up to 690 VAC, the Schneider Electric 31110 is likely already on your shortlist. This is a non-automatic, three-pole switch disconnector from the Compact INS400 series, equipped with positive contact indication for lockout/tagout compliance — a hard requirement in many industrial facilities. The decision comes down to confirming your circuit load, voltage, and pole count before placing the order.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the Schneider Electric 31110 — and Who Shouldn't

The Schneider Electric 31110 is the right choice for engineers and panel builders specifying a manual load isolation switch on a three-phase circuit where the continuous load is 400A or lower and the system voltage does not exceed 690 VAC. It is particularly well suited to facilities already standardized on Schneider Electric switchgear, where consistent parts inventory and technician familiarity reduce commissioning overhead.

  • Your circuit is three-phase and requires a 3-pole disconnector
  • System voltage is 690 VAC or lower at 50 or 60 Hz
  • Peak continuous load is 400A or lower — not 401A, not 450A
  • Positive contact indication is required for LOTO compliance verification
  • You need physical load isolation only — not automatic overcurrent protection
  • Your site uses panel or switchgear mounting in a Compact form factor enclosure

If your load exceeds 400A, your system uses DC voltage, or you need automatic protection, this is not the right model. The Schneider 31115 at 630A covers higher-load circuits, and a circuit breaker or contactor must be added upstream when automatic protection is required.

On this page:

What the Schneider Electric 31110 Does in a Real System

The Schneider Electric 31110 is a manual, non-automatic switch disconnector. Its sole function is to provide a positive, verifiable isolation point in a three-phase power circuit — a physical break between the upstream supply and the downstream load. It does not detect faults, does not trip on overcurrent, and does not provide any form of automatic protection. That distinction matters enormously at the specification stage.

What it does provide is positive contact indication: a visual and tactile mechanism that confirms, per IEC 60947-3 requirements, that the contacts are in the correct open or closed position. In maintenance scenarios, this is not a convenience feature — it is a safety requirement in many jurisdictions. When a technician operates the black rotary handle to open the circuit, the positive contact indicator gives unambiguous confirmation that isolation has occurred, supporting LOTO compliance procedures. The Compact INS400 designation refers to the rated current class within the INS series, covering circuits up to 400A at up to 690 VAC on three poles.

This is a mature, standardized product with a proven track record across industrial manufacturing, power distribution, and renewable energy applications. Its value is in its simplicity and its compliance with widely adopted international standards. It does one job and it does it verifiably.

Typical System Architecture for the 31110

The Schneider Electric 31110 sits at the isolation point in a power distribution chain — downstream of an automatic protective device and upstream of the load or sub-circuit being served. It is not the first device in the circuit and should never be the only protective device.

  • Upstream supply (utility feed or transformer secondary) feeds an automatic circuit breaker or fused disconnect providing overcurrent protection
  • The Schneider Electric 31110 is installed at the load-side of that protective device, providing a manual isolation point for maintenance access
  • The black rotary handle and positive contact indicator provide the technician with a clear visual confirmation of isolation status before any downstream work begins
  • Downstream of the 31110 sits the load — a motor control center, a sub-distribution panel, a capacitor bank, or similar equipment requiring periodic maintenance access
  • In motor circuit applications, a contactor or soft starter may exist between the 31110 and the motor, with the 31110 providing the upstream isolation point for that entire control chain

Typical Applications and Deployment Scenarios

The Schneider Electric 31110 appears consistently in power distribution and industrial manufacturing environments where a reliable, standards-compliant isolation point is required at the 400A three-phase level. In motor circuit applications, it is installed as the isolation device for main motor branch circuits in manufacturing plants, allowing maintenance teams to safely de-energize a motor starter or VFD without shutting down the entire distribution system.

In substation and switchroom environments, the 31110 is used for feeder circuit disconnection before cable termination or busbar maintenance work. The positive contact indication is particularly valued in these settings, where visibility into deep enclosures may be limited and where regulations often require positive confirmation of isolation status.

Renewable energy installations — including wind and solar distribution systems — use the Compact INS400 series as isolation points within inverter panels and combiner boxes, where 690 VAC ratings accommodate higher AC distribution voltages common in large-scale generation systems. Data centers and critical infrastructure facilities use the 31110 in sub-distribution applications where planned maintenance isolation must be documented and auditable.

Application Typical Deployment
Industrial motor circuit isolation Installed upstream of motor starter or VFD in manufacturing plant MCC
Substation feeder disconnection Feeder circuit isolation point for cable and busbar maintenance access
Capacitor bank or filter installation Load isolation for reactive power compensation equipment in power distribution networks
Renewable energy switchgear Sub-circuit isolation in solar or wind inverter distribution panels at 690 VAC
Critical infrastructure sub-distribution Planned maintenance isolation point in data center or hospital power panels
Process automation panel Isolation switch in control panel upstream of high-current automation loads

Key Electrical Specifications

Parameter Rating / Value
Manufacturer Schneider Electric (Square D)
Model / Part Number 31110
Product Family Compact INS400
Rated Current (Continuous) 400 amperes
Voltage Rating (AC) 690 VAC, 50/60 Hz
Pole Configuration 3 poles (three-phase)
Operation Type Non-automatic (manual)
Handle Type Black rotary
Contact Indication Positive contact indication
Installation Standard IEC 60947-3, EN standards; UL/CSA compatible

Full technical specifications are available on the product page at LeadTime.ca.

Schneider Compact INS Series: Which Model Is Right for Your Load?

The Compact INS series spans multiple current ratings within the same form factor family. If your circuit load calculation comes out below 400A continuous, ordering the 31110 means paying for capacity you do not need. If your load exceeds 400A, ordering the 31110 creates a specification error that will show up during commissioning or, worse, in service. Match the model to the verified peak continuous load.

Model Rated Current Voltage Rating Poles Handle Type Primary Use Case
Schneider 31105 250 A 690 VAC 3 Black rotary Medium-load isolation
Schneider 31110 400 A 690 VAC 3 Black rotary Standard industrial isolation
Schneider 31115 630 A 690 VAC 3 Black rotary Heavy-load isolation

If your verified peak load is above 400A continuous, the Schneider 31115 at 630A is the correct choice — check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the Schneider Electric 31110 the Right Isolation Switch for Your Project?

The Schneider Electric 31110 earns its place as the standard 400A isolation switch in Schneider-equipped facilities for straightforward reasons: it is correctly rated for a wide range of three-phase industrial circuits, it meets IEC 60947-3 requirements for positive contact indication, and it fits within the Compact INS family that electrical contractors and maintenance teams on Schneider sites already know and stock. For engineering teams specifying new motor control circuits, sub-distribution upgrades, or replacement isolation switches in existing Schneider switchgear, this model eliminates ambiguity. The positive contact indication feature is not optional in many industrial environments — it is a regulatory requirement for LOTO compliance, and the 31110 satisfies it by design.

Where the 31110 is the wrong answer: single-phase or two-phase circuits need 1-pole or 2-pole variants; DC applications require a DC-rated device entirely; system voltages above 690 VAC require a different product family; and any application requiring automatic overcurrent protection must have a circuit breaker installed upstream — the 31110 will not trip on a fault. If your facility is not standardized on Schneider Electric and budget pressure is high, it is worth comparing the equivalent ABB OS400/690 or Siemens 3LD series models, both of which serve the same 400A 690V three-phase isolation function and may offer pricing advantages in non-Schneider environments. Be aware that positive contact indication availability varies by specific model in those competitive families and should be confirmed before substituting.

From a procurement standpoint, the 31110 is a widely stocked part through Schneider Electric's authorized distribution network in Canada and globally. Lead times for in-stock units are typically short; non-stocked orders run two to eight weeks depending on the distributor and regional inventory position. Buying through a specialist industrial distributor rather than a generic marketplace matters here — factory-sealed units, warranty clarity, technical documentation in English, and the ability to cross-reference your existing Schneider installation are all part of the value. View current pricing and stock status for the Schneider Electric 31110 at LeadTime.ca — orders ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the Schneider Electric 31110

The Schneider Electric 31110 is a mature, standardized industrial component purchased almost exclusively through direct engineering specification and authorized distribution channels. It does not generate the kind of open forum discussion seen with programmable controllers or variable frequency drives — buyers at this level already know what a switch disconnector is and are validating SKU-level details, not asking basic questions. That procurement pattern means the usual community feedback loop is absent, and the most valuable pre-order intelligence comes from the engineering mistakes that specialist distributors and Schneider technical support see repeatedly.

The most common specification error is ordering the 31110 for a circuit whose peak continuous load actually exceeds 400A. This typically happens when a buyer works from an outdated one-line diagram or calculates average rather than peak load. The result is a switch that appears to function correctly at commissioning but degrades under sustained load conditions. The correct action before ordering is to pull the current one-line diagram, calculate peak load including inrush, and verify against the 400A continuous rating. If there is any doubt, the Schneider 31115 at 630A is the safer specification.

The second mistake experienced distributors see is treating the 31110 as a complete protection solution. It is not. It is isolation only. An upstream automatic protective device — a circuit breaker or fused disconnect — is mandatory in any compliant installation. The 31110 provides the maintenance isolation point after that protection exists; it does not replace it. A third recurring issue involves the positive contact indication: some buyers receive the unit, install it without testing the indicator under de-energized conditions, and only discover a stiff or non-functioning mechanism after the circuit is live. Testing the indicator through five to ten full handle cycles before energization is a commissioning step that should be non-negotiable. When in doubt about any of these specifics, a conversation with a specialist distributor who stocks this part and supports Schneider installations is faster and more reliable than forum research for this product class.

Installation and Wiring Overview

  • De-energize the circuit at the source breaker and apply full LOTO procedure before touching any terminals; verify de-energization with a calibrated multimeter on the 31110 input terminals
  • Mount the unit in the enclosure or switchgear slot in the Compact panel layout; confirm the black rotary handle operates freely through full travel without mechanical obstruction before connecting any wiring
  • Apply correct terminal torque per the Schneider Electric technical manual to all power terminals; under-torqued connections cause contact arcing and heat buildup, while over-torqued connections risk damage to terminal hardware
  • After wiring, perform a no-load continuity test across the switch contacts with the handle in the connected position to confirm low resistance before energization
  • Re-check terminal torque after approximately 30 minutes following first energization to account for thermal settling, and document all torque values and installation date in the commissioning log

Compatible System Components and System Expansion

The Schneider Electric 31110 is part of the Compact INS400 series and is designed for integration within Schneider Electric Compact switchgear environments. The following companion components are relevant to a complete 400A isolation and protection installation:

  • Upstream automatic circuit breaker (Schneider Compact NSX or NSXm series for coordinated protection) — required for overcurrent protection upstream of the 31110 isolation point
  • Schneider 31105 (250A, 3-pole, 690 VAC) — lower amperage variant for sub-circuits within the same installation that carry lighter loads
  • Schneider 31115 (630A, 3-pole, 690 VAC) — higher amperage variant for feeder circuits exceeding the 400A continuous rating of the 31110
  • Padlock accessories for LOTO compliance — the 31110 handle supports padlock attachment for physical lockout confirmation; confirm specific accessory compatibility with Schneider documentation
  • Downstream motor starter or contactor (Schneider TeSys series) — for motor circuit applications where the 31110 provides isolation upstream of the switching and control function

Wrong-Part Prevention Checklist

Before placing your order for the Schneider Electric 31110, verify each item on this checklist against your circuit documentation. These are the exact checks that prevent specification errors and return orders:

  1. Confirm your system voltage is 690 VAC or lower; this model cannot be used in higher voltage systems
  2. Verify three-phase (3-pole) requirement; single-phase systems need 1-pole or 2-pole variants
  3. Check that 400A is sufficient for peak load; undersizing causes nuisance disconnection
  4. Confirm black rotary handle type matches your site standard (may have lever or other options)
  5. Verify this is isolation only — if automatic protection is required, add an upstream circuit breaker
  6. Check mounting type (panel mount vs. rail mount) against your enclosure specifications
  7. Confirm positive contact indication is a regulatory requirement in your facility (some standards mandate it)

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — we can cross-reference your application and confirm the correct model.

Frequently Asked Questions

Does the Schneider Electric 31110 provide overcurrent protection, or does it require a separate circuit breaker upstream?

The 31110 is a non-automatic switch disconnector — it provides manual load isolation only and has no overcurrent detection mechanism. It will not trip on a fault. A circuit breaker or fused disconnect must be installed upstream of the 31110 to provide automatic overcurrent protection. The 31110 then serves as the maintenance isolation point downstream of that protection device.

What does positive contact indication mean on the Schneider 31110, and why does it matter for LOTO compliance?

Positive contact indication is a mechanical feature that provides visual and tactile confirmation that the switch contacts have physically reached the open or closed position, as required by IEC 60947-3. In LOTO procedures, it allows a maintenance technician to verify that isolation has actually occurred — not just that the handle has been moved. This feature is a regulatory requirement in many jurisdictions for maintenance isolation switches in industrial facilities.

Can the Schneider Electric 31110 be used in a DC power system?

No. The 31110 carries a 690 VAC rating at 50/60 Hz and is not rated for DC applications. DC switching imposes different contact arc-extinction requirements that this model does not satisfy. If your application involves DC voltage, a DC-rated disconnect or switch disconnector from the appropriate product family is required.

Is the Schneider 31110 a direct drop-in replacement if the existing isolation switch is a different brand at the same amperage and voltage rating?

Not necessarily. While the electrical ratings may match, physical mounting dimensions, terminal configurations, and enclosure cutout requirements can differ between manufacturers and product families. Verify the physical form factor and mounting footprint of the 31110 against your existing enclosure before ordering as a cross-brand replacement. If you are replacing an existing Schneider Compact INS400 series unit, the 31110 is the standard replacement within that family.

What is the typical lead time for the Schneider Electric 31110 in Canada?

For in-stock units through major Canadian distributors, the 31110 is typically available with short lead times. For non-stocked orders, lead time generally runs two to eight weeks depending on the distributor and regional inventory position. Rush options are available through select distributors at a premium. Confirm current stock status and lead time directly with your distributor before committing to a build schedule.

What happens if the peak load on my circuit is slightly above 400A — can I still use the Schneider Electric 31110?

No. The 31110 is rated for 400A continuous. Operating it above this rating risks contact overheating, degraded isolation performance, and potential failure. If your verified peak continuous load exceeds 400A, the Schneider 31115 at 630A is the correct next step in the Compact INS series. Pull your one-line diagram and confirm peak load including motor inrush before specifying either model.

Why Order From LeadTime.ca

  • Ships worldwide — not limited to any single country or region; orders fulfilled internationally
  • Specialist industrial focus means access to factory-sealed units with warranty clarity and proper technical documentation
  • Ability to cross-reference your existing Schneider installation and confirm correct variant before you order
  • Volume pricing available — contact directly for multi-unit orders or recurring procurement programs
  • Responsive team for lead time confirmation before you commit to a project schedule

At-a-Glance Summary

  • Schneider Electric 31110 is a manual, non-automatic three-pole switch disconnector in the Compact INS400 series
  • Rated 400A continuous at 690 VAC, 50/60 Hz — correct for standard industrial three-phase distribution circuits at or below that load
  • Positive contact indication meets IEC 60947-3 requirements and supports LOTO compliance verification
  • Black rotary handle; panel or switchgear mount in Compact form factor
  • Does not provide automatic overcurrent protection — an upstream circuit breaker is mandatory
  • Not rated for DC applications or system voltages above 690 VAC
  • Compact INS series alternatives: Schneider 31105 at 250A for lighter circuits; Schneider 31115 at 630A for heavy-load isolation
  • EAN code: 3303430311102 — verify against your purchase order before confirming the shipment
  • Available through Schneider Electric authorized distribution globally; typical non-stock lead time two to eight weeks
