Schneider Electric 31337 — 1600A 4-Pole Load Break Switch Guide

By Abdullah Zahid
14 min read

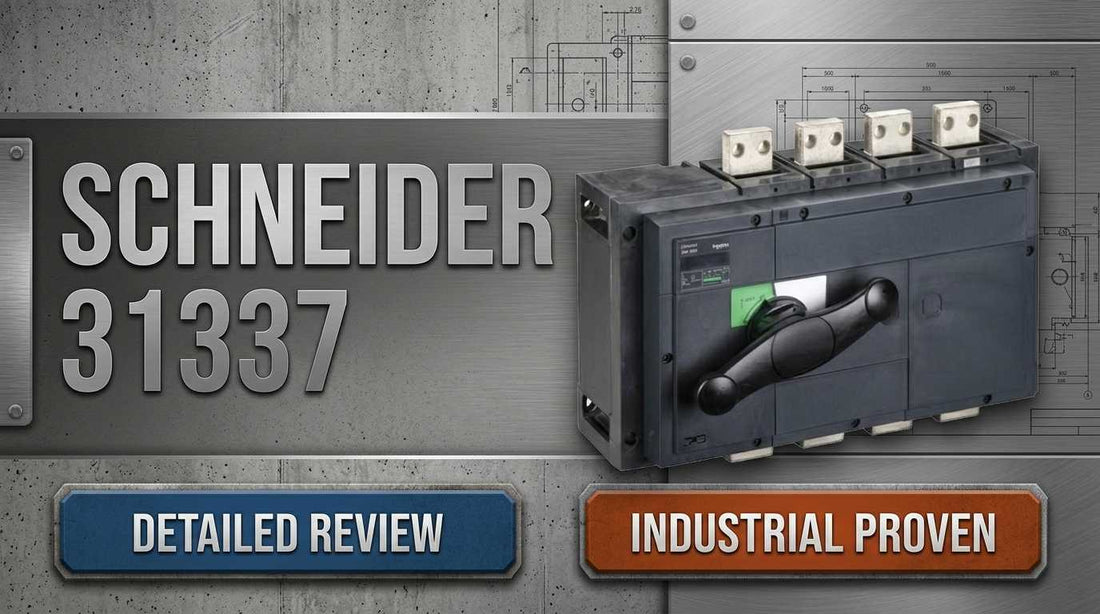

Schneider Electric 31337 Compact INS1600 1600A 4-pole fixed mount black rotary drive switch-disconnector for industrial distribution panels

Schneider Electric 31337 Compact INS1600 Switch-Disconnector, 4 Poles, 1600A, Fixed Mount, Black Rotary Drive — Specifications, Selection Guide and Alternatives

When a facility is replacing or specifying a main isolation switch for a 1600A three-phase distribution circuit, the decision carries serious consequences — wrong amperage rating, wrong pole count, or a mismatch with the panel cavity and the project stalls for weeks. The Schneider Electric 31337 is a non-automatic 4-pole load-break switch rated for 1600A continuous AC duty, fixed-mount installation, and equipped with a black rotary manual drive and positive contact indication. If you are at the point of confirming part fit before raising a purchase order, the specifications and selection guidance below will close that decision.

If you have already confirmed this is the right part, check current pricing and availability for the Schneider Electric 31337 at LeadTime.ca — ships worldwide.

Who Should Order the Schneider Electric 31337 — and Who Should Not

The Schneider Electric 31337 is right for your application if all of the following are true:

  • Your circuit requires continuous AC isolation at 1600A — not 800A, not 1000A, exactly this amperage tier
  • You require 4-pole isolation — three-phase plus neutral or ground switching
  • Your panel cavity supports a fixed front-mount configuration and can accommodate an 18.5 kg unit
  • Your application requires load-break switching — the circuit will be interrupted under current, not only when already de-energized
  • Manual (non-automatic) operation with a black rotary drive meets your facility's actuation and lockout/tagout standards
  • Positive contact indication is required to confirm the switch is fully isolated before personnel access the downstream circuit

If your peak load is under 800A, or if you need only 3-pole isolation, or if your duty is no-load only, this is not the correct model. The Compact INS800 (model 31236) covers the 800A 3-pole segment at a lower cost and with better typical availability. See the variant comparison table below for a full breakdown.

On this page:

What the Schneider Electric 31337 Actually Does in a Distribution System

The Schneider Electric 31337 is a non-automatic switch-disconnector — it does not trip on overcurrent and it does not provide automatic protection. Its role is deliberate manual isolation of a 1600A AC circuit with the confidence that all four poles, including the neutral or ground conductor, are fully and visibly open. The positive contact indication built into this unit allows the operator to confirm the switch is in the open position before any downstream work begins, which is the feature that separates a proper switch-disconnector from a simple isolator in lockout/tagout-critical environments.

The load-break rating means this switch can be opened while the circuit is carrying current up to its rated 1600A — it is not limited to no-load operation. This matters for large manufacturing and process facilities where the switch is the first point of isolation for a live distribution section. At 18.5 kg and with a fixed front-mount design, the 31337 integrates into industrial switchgear cabinets without requiring custom fabrication for standard 1600A cavities. The black rotary drive provides tactile and visual confirmation of position, and the overall package is recognized under the Schneider Electric Square D brand as an industry-standard device for this amperage class.

Typical System Architecture for a 1600A Load Break Switch

The Schneider Electric 31337 sits immediately downstream of the main upstream protection device and immediately upstream of the load-side distribution busbars or motor feeder. It is the manual isolation point between the protected incoming supply and the controlled load.

  • Upstream: Main circuit breaker or fuse assembly rated for the switch's breaking capacity — provides overcurrent protection the switch itself does not supply
  • Isolation point: Schneider Electric 31337 — 4-pole manual load-break switch providing deliberate, confirmed disconnection of all conductors including neutral
  • Downstream bus: 1600A-rated busbars distributing three-phase power to sub-distribution boards, motor control centers, or large drive panels
  • Load-side devices: Variable frequency drives, motor starters, large transformer feeders, or sub-distribution panels dependent on isolation at this point
  • Operator interface: Black rotary handle accessible from the front panel face; positive contact indication visible through the switch body for lock-out verification

Industries and Applications Where the Schneider Electric 31337 Is Deployed

Heavy manufacturing facilities use the Schneider Electric 31337 as the main isolation switch in large industrial control centers where aging non-automatic switches are being replaced with modern positive-indication devices. The 1600A continuous rating covers the full load of most large motor control centers without requiring a secondary isolation stage.

Automotive production lines — particularly paint shop and body shop power distribution systems — rely on 1600A bus isolation points that can be safely locked out during changeover and maintenance cycles. The four-pole configuration ensures that the neutral conductor is also broken, which matters in grounded systems where a neutral path remaining live creates a personnel hazard.

Food and beverage processing plants with large refrigeration compressor arrays or processing line motor loads in the 1000 hp range use this class of switch as the emergency disconnect point. The load-break capability means the switch can be opened during an emergency without first requiring a separate de-energization step.

Data center electrical infrastructure and utility-class facility substations rated at 1600A feeder level use fixed-mount switch-disconnectors of this type to provide manual tie-breaking capability between incoming service sections and critical load buses.

Application Typical Deployment
Heavy manufacturing switchgear replacement Main isolation switch replacing legacy 20+ year units in 1600A MCC lineups
Automotive paint line power distribution Bus bar isolation point for three-phase 1600A feeder with neutral isolation required
Large three-phase motor emergency disconnect 1000+ hp motor feeder isolation with load-break capability for emergency shutdown
Industrial facility substation feeder 1600A continuous feeder circuit isolation in utility-class switchgear cabinet
Food and beverage processing line isolation Fixed-mount disconnect for refrigeration or processing motor loads requiring 4-pole break
Panel retrofit with constrained cavity space Compact footprint enables 1600A isolation without custom panel fabrication

Key Specifications and What They Mean at Purchase Decision

Parameter Value Purchase-Decision Note
Rated Current 1600A Continuous AC rating — do not exceed for sustained operations
Number of Poles 4 Three-phase plus neutral/ground isolation; verify this is required before ordering
Voltage Class AC low voltage AC-rated only — do not use for DC circuits without manufacturer consultation
Switching Duty Load-break Can switch under load up to rated current; not limited to no-load isolation
Contact Configuration Positive contact indication Operator can visually confirm isolation — critical for lockout/tagout compliance
Handle Type Black rotary manual drive Manual operation only; no electronic actuation — verify this meets facility standards
Mounting Style Fixed front mount Panel cavity installation only — measure cavity before ordering
Weight 18.5 kg Approximately 41 lbs — verify panel cavity structural support before installation
EAN Code 3303430313373 Cross-reference against distributor invoice to confirm exact SKU match
Carbon Footprint (lifecycle) 2251 kg CO2 equivalent Manufacturer environmental data — supports ISO 50001 reporting requirements

Full technical specifications are available on the product page at LeadTime.ca.

Compact INS Series Variant Comparison — Which Model Do You Actually Need?

Model Rated Current Poles Handle Color Mounting Notes
31337 (INS1600) 1600A 4 Black rotary Fixed front High amperage; confirm 4-pole requirement; extended lead time typical
31236 (INS800) 800A 3 Black rotary Fixed front Mid-range amperage; better typical availability; lower cost tier
INS1600 3-pole equivalent 1600A 3 Black rotary Fixed front Neutral isolation not included; order only if 3-pole isolation confirmed sufficient
Motorized INS variant 1600A 4 N/A (motorized) Fixed front Select if automatic or remotely actuated switching is required; manual 31337 is not suitable for automated operation

If your peak load sits comfortably under 800A, the INS800 family reduces cost and typically ships faster than the 31337. If your load is confirmed at 1600A and you require 4-pole isolation with load-break duty, the Schneider Electric 31337 is the correctly specified device — check current availability at LeadTime.ca.

Expert Verdict: Is the Schneider Electric 31337 the Right Call?

The Schneider Electric 31337 performs exactly one job and does it well: it provides reliable, manually operated 1600A four-pole load-break isolation with positive contact indication in a fixed-mount switchgear format. For large manufacturing facilities, automotive production plants, and system integrators designing new 1600A industrial control centers, this is a well-established device in the Compact INS series with a form factor that fits standard switchgear cavities without custom fabrication. The EAN code 3303430313373 and the 12-month warranty from authorized distributors on new factory-sealed stock confirm this is a current, supported product — not an end-of-life part requiring creative sourcing. The 18.5 kg fixed-mount package and black rotary drive meet the functional and compliance needs of the buyer profile it was built for: facilities replacing aging switches in high-amperage main distribution positions where positive isolation confirmation is non-negotiable.

Where the 31337 falls short is equally important to state. If your circuit peak load is consistently under 800A, the INS800 (model 31236) is the financially sensible choice and typically easier to source on shorter lead times. If your system requires only 3-pole isolation — no neutral switching — you are paying for a fourth pole you will not use. Buyers needing automatic or remotely actuated switching should not select this model; the 31337 is manual-only, and a motorized INS variant is required for those applications. DC circuits or non-standard voltage configurations are also outside this switch's rated scope — it is an AC-rated device.

From a procurement standpoint, the Schneider Electric 31337 carries typical lead times of 4 to 8 weeks through standard distribution channels, and those timelines extend during supply chain disruptions — a material risk for a 1600A switch that sits on the critical path of a switchgear installation. Ordering through a specialist industrial automation distributor with established Schneider Electric relationships and North American warehouse inventory reduces the risk of extended delays, counterfeit units from unverified marketplace sellers, and lost warranty coverage. View current pricing and stock status for the Schneider Electric 31337 at LeadTime.ca before your project timeline locks.

For volume pricing or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the Schneider Electric 31337

Because the Schneider Electric 31337 is a specialized high-amperage isolation device rather than a commodity automation component, there is almost no publicly indexed community discussion for this specific SKU. Buyers of 1600A switch-disconnectors are typically large facility engineering teams, electrical contractors, and system integrators who conduct their evaluation through datasheets, distributor consultations, and internal one-line diagram reviews — not public forums. That absence of forum chatter does not reflect a lack of real-world deployment; it reflects the narrow and technically sophisticated buyer base for this class of equipment.

What it does mean is that when something goes wrong at the ordering stage — a pole count mismatch, a cavity dimension error, or a load-break versus no-load duty confusion — there is no community thread to catch the mistake after the fact. The errors that experienced distributors see most frequently with high-amperage switches in this class are: ordering a 4-pole switch when only 3-pole isolation was documented on the one-line diagram, assuming any 1600A switch will drop into an existing panel cavity without measuring, and specifying a load-break switch for a no-load application because the product description did not clearly distinguish the two duty types. Each of these mistakes results in a return, a delay of weeks, and in some cases a fabricated panel that now needs to be redesigned.

This is precisely why buyers in this segment rely on specialist distributors who know the product family, ask the right qualifying questions before the order ships, and can cross-reference your specification against the correct SKU. If you are not fully certain on any of the criteria in the checklist below, confirm with the LeadTime.ca team before placing the order — it is faster than a return and a re-order cycle on a part with a 4-to-8-week lead time.

Installation and Wiring Overview

The following is an overview of key installation requirements. Full wiring diagrams, torque specifications, and step-by-step procedures are available in the official Schneider Electric installation documentation for the Compact INS1600 series.

  • Upstream circuit protection (circuit breaker or fuse) must be sized for the switch's breaking capacity — the 31337 does not provide overcurrent protection independently and must be protected upstream before energizing
  • The fixed-mount installation requires the panel cavity to be sized for the 18.5 kg unit; obtain the official Schneider mounting diagram and physically verify cavity depth, width, and height before scheduling the installation
  • Bus bar connections at the switch terminals must be torqued to Schneider's specified values for 1600A conductors — under-torque creates resistance heating; over-torque can damage alignment-sensitive internal contacts
  • After mechanical installation, cycle the black rotary handle through its full arc a minimum of ten times to confirm smooth operation without binding; positive contact indication must move definitively to open and closed positions at each extreme
  • Verify with the facility safety team that the black rotary handle color meets lockout/tagout color-coding requirements before commissioning — some facilities require additional handle labeling or colored wrap for emergency isolation points

Wrong-Part Prevention Checklist

Before raising a purchase order for the Schneider Electric 31337, work through each item below. This checklist is drawn from the most common ordering errors for this class of switch.

  1. Confirm the load current in the circuit does not exceed 1600A; if it does, do not order this model.
  2. Verify that 4-pole operation is required (three-phase plus neutral/ground); if only 3-pole isolation is needed, order a 3P variant instead.
  3. Check that the fixed front-mount orientation matches the available panel space; rotating or surface-mount variants may be needed for non-standard cavities.
  4. Confirm that load-break operation (under current) is acceptable; if the switch will only be used for no-load isolation, a cheaper alternative may be suitable.
  5. Verify that the black rotary handle color meets facility labeling standards; some installations require different handle colors or lockout provisions.
  6. Cross-reference the EAN (3303430313373) against the distributor invoice to ensure exact SKU match before installation.
  7. Confirm that AC rating is appropriate; this unit is AC-rated only — do not use for DC systems without manufacturer approval.
  8. Check that protection upstream (circuit breaker or fuse) is rated for the switch's maximum breaking capacity; switch must be protected but not unnecessarily downrated.

If any item on this list cannot be confirmed before the order is placed, contact the LeadTime.ca team to verify the correct model for your application before committing to an order with a multi-week lead time.

Frequently Asked Questions

Can the Schneider Electric 31337 be used as a no-load isolator only, or does it require load-break duty?

The 31337 is rated for load-break operation — meaning it can open the circuit while carrying current up to 1600A. It can also be used for no-load isolation, but specifying a load-break switch for a no-load-only application means paying for a capability you do not need. If your facility procedures require the circuit to be de-energized before the switch is operated, a lower-cost non-switching isolator may be the more appropriate selection. Confirm your duty requirements with the facility electrical engineer before ordering.

What is the difference between the 31337 (INS1600) 4-pole and the 3-pole variant — when does the fourth pole actually matter?

The fourth pole in the Schneider Electric 31337 breaks the neutral conductor in addition to the three phase conductors. This is required in grounded systems where a live neutral path would remain after switching only the three phases, creating a personnel hazard for downstream maintenance work. If your facility's one-line diagram shows a separately derived system or solidly grounded neutral that must be physically isolated before personnel access, the 4-pole 31337 is the correct choice. If the neutral is not required to be switched — confirmed in writing by the facility's electrical engineer — the 3-pole variant avoids the cost of the unused fourth pole.

What is the typical lead time for the Schneider Electric 31337, and what should I plan for in project scheduling?

Market-typical lead time from authorized distribution channels is 4 to 8 weeks for new stock. During periods of supply chain disruption or high demand, lead times for high-amperage switches in this class can extend beyond that range. This makes the Schneider Electric 31337 a part that needs to be ordered well ahead of the installation milestone — it is not a same-week or next-day ship item from most channels. Contact LeadTime.ca directly for current lead time before locking your project schedule.

Is the Schneider Electric 31337 a direct mechanical replacement for older 1600A switch-disconnectors in the same panel cavity?

Not automatically. The 31337 has a fixed-mount footprint and weighs 18.5 kg. While it is designed to fit standard 1600A switchgear cavities, the mounting bracket geometry and cavity depth requirements must be verified against the existing panel before ordering as a replacement. Do not assume that a legacy 1600A switch from the same or a different manufacturer occupies the same physical envelope. Obtain the official Schneider mounting diagram and physically measure the panel cavity before placing the order.

Does the Schneider Electric 31337 provide overcurrent protection, or does it require a separate upstream circuit breaker?

The 31337 is a switch-disconnector, not a circuit breaker. It does not provide overcurrent protection and will not trip on fault current. An upstream circuit breaker or fuse assembly rated for the switch's breaking capacity must be installed to protect it. The switch breaks load deliberately under operator control — it does not respond automatically to overcurrent events. Verify that your upstream protection device is correctly sized before commissioning.

How do I confirm the Schneider Electric 31337 is factory-sealed and covered under warranty when ordering from a distributor?

Factory-sealed units from authorized distributors carry a 12-month warranty. Cross-reference the EAN code 3303430313373 on the distributor invoice against the packaging label to confirm the exact SKU match. Avoid purchasing from unverified marketplace sellers — counterfeit or grey-market units in this amperage class are a documented risk and will not carry manufacturer warranty support. Ordering through an authorized Schneider Electric distributor is the only reliable way to ensure warranty coverage and confirmed product authenticity.

Why Order the Schneider Electric 31337 From LeadTime.ca

  • LeadTime.ca is a specialist industrial automation distributor — we stock and source the Compact INS series and can confirm current availability before you commit to a build schedule
  • We ship worldwide — Canadian facilities, US operations, and international projects all served from the same source
  • Volume pricing is available for multi-unit orders or project bill-of-materials requirements — contact us for current pricing before quoting your customer
  • All units supplied are factory-sealed from authorized channels with full warranty — no grey-market or marketplace risk
  • Our team can cross-reference your circuit specification against the correct Compact INS variant to prevent a wrong-part order before it happens

At-a-Glance Summary

  • Rated current: 1600A continuous AC — the defining specification; do not substitute a lower-rated switch on this circuit
  • Pole count: 4 poles — three-phase plus neutral/ground isolation; confirm 4-pole requirement before ordering
  • Switching duty: Load-break — can open circuit under current up to 1600A; not limited to no-load operation
  • Mounting: Fixed front mount — panel cavity installation; verify cavity dimensions against 18.5 kg unit before ordering
  • Handle: Black rotary manual drive — no electronic actuation; manual operation only
  • Contact indication: Positive contact indication — visible confirmation of isolation status; critical for lockout/tagout compliance
  • EAN code: 3303430313373 — cross-reference against invoice to confirm exact SKU match
  • Weight: 18.5 kg (approximately 41 lbs) — structural panel support verification required
  • Carbon footprint: 2251 kg CO2 equivalent per unit lifecycle — supports ISO 50001 environmental reporting
  • Lead time: Typically 4 to 8 weeks from authorized distribution — order ahead of installation milestone; contact LeadTime.ca for current status
  • Warranty: 12 months from authorized distributors on factory-sealed new stock
