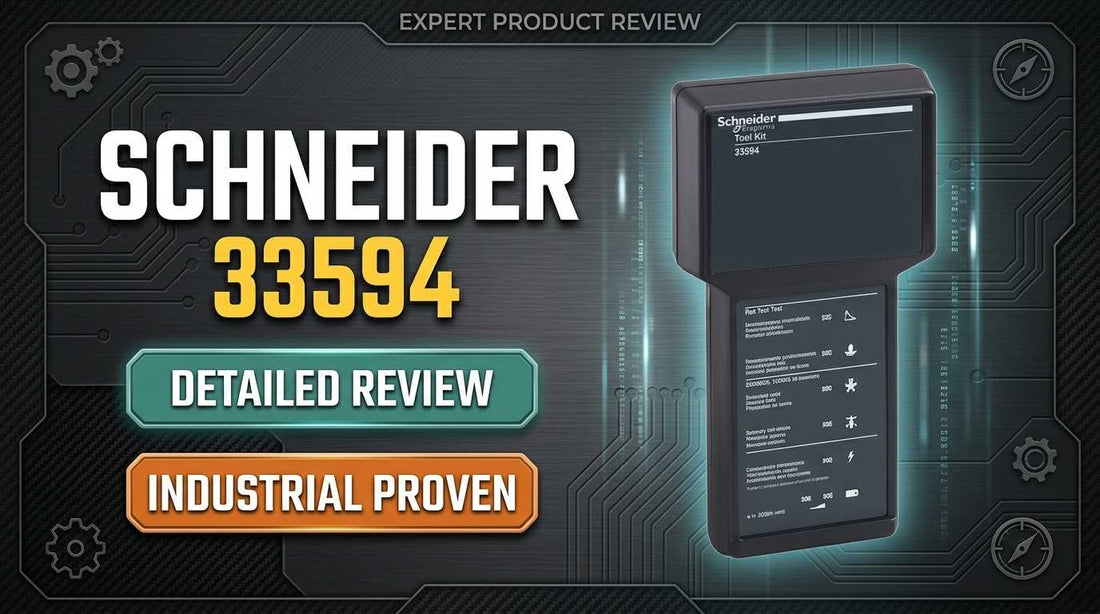

Schneider Electric 33594 Hand Held Test Kit HHTK for PowerPacT MasterPacT CompacT NS circuit breaker trip unit field testing

Schneider Electric 33594 Hand Held Test Kit (HHTK) for Circuit Breaker — Compatibility, Specifications, and Discontinued Replacement Guide

Maintenance technicians and commissioning engineers searching for the Schneider Electric 33594 are typically facing one of three situations: replacing a lost or damaged kit on a site with an active PowerPacT or MasterPacT breaker inventory, verifying trip unit operation before a panel installation, or trying to confirm whether this tool is still available after hearing it was discontinued. The Schneider Electric 33594 is a self-contained, portable Hand Held Test Kit (HHTK) for circuit breakers, compatible with PowerPacT P and R, MasterPacT NT and NW, and CompacT NS630b and NS3200 frames with Micrologic A, P, or H trip units — and it was officially discontinued on April 25, 2023. If you are sourcing one today, availability is declining and compatibility verification is non-negotiable before you commit to purchase.

If you have already confirmed this is the right part for your breaker family and Micrologic type, check current stock and availability of the Schneider Electric 33594 at LeadTime.ca — we ship worldwide.

Who Should Buy the Schneider Electric 33594 — and Who Shouldn't

This kit is the right tool for maintenance and commissioning teams who already have PowerPacT, MasterPacT, or CompacT NS circuit breakers in service and need standalone trip unit verification in the field without panel access. Confirm all of the following before ordering:

  • Your installed breaker frame is PowerPacT P or R, MasterPacT NT or NW, or CompacT NS630b or NS3200 — no other Schneider Electric breaker families are supported
  • Your Micrologic trip unit is type A, P, or H — other Micrologic versions are not compatible with this kit
  • You require at least one of: trip unit operation verification, mechanical trip testing, trip coil continuity confirmation, ground fault inhibition (Micrologic P or H only), or ZSI self-restraint testing
  • You have a realistic sourcing plan for a discontinued product — new stock is legacy inventory only, and used units require condition verification before purchase
  • You have reviewed the 12-month warranty terms and understand that used or refurbished units carry no manufacturer warranty coverage

If you are starting a new installation, specifying testing equipment for a mixed breaker fleet, or need a tool with ongoing manufacturer support and spare parts availability, the Schneider Electric Service Interface Kit is the correct starting point — discuss your specific breaker family and Micrologic version with a specialist before ordering.

On this page:

What the Schneider Electric 33594 Actually Does in the Field

The Schneider Electric 33594 is a Hand Held Test Kit (HHTK) designed to power and test a circuit breaker trip unit independently — without the breaker being installed in a panel and without an external AC or DC power source. The kit includes its own self-contained power supply unit, a test lead set, a test probe, and a carrying case. That self-contained power supply is the defining feature for field use: a technician can pick up a circuit breaker fresh from receiving, connect the test leads, and verify that the Micrologic trip unit is functioning correctly before the breaker ever enters the enclosure.

Beyond basic trip unit verification, the 33594 tests mechanical breaker operation, confirms trip coil continuity, and — depending on the Micrologic type installed — can inhibit ground fault detection during primary injection testing and self-restrain Zone-Selective Interlocking logic for coordination scheme validation. Ground fault inhibition requires Micrologic P or H. ZSI self-restraint is supported across Micrologic A, P, and H, but ZSI must be configured in the trip unit for the test to be meaningful. These are not interchangeable features, and the distinction matters significantly when planning a commissioning or maintenance test sequence.

The kit weighs 834.6 grams in standard single-unit packaging, with dimensions of 25 cm long by 13 cm wide by 5.6 cm high — portable enough to carry in a tool bag for site work. A bulk packaging option ships 8 units per carton at a total weight of 7.518 kg, which was historically relevant for distributors or facilities managing multiple sites. The standard manufacturer warranty is 12 months from the date of new manufacture. Given the April 25, 2023 discontinuation date, new old stock (NOS) units are the only new-condition option available today.

Where the 33594 Fits in Your Testing Workflow

The Schneider Electric 33594 sits between the circuit breaker and the technician — it is the instrument that bridges the gap between receiving a breaker and confirming it is safe to install. It does not connect to a panel, SCADA system, or any upstream device during basic testing.

  • Circuit breaker (PowerPacT P/R, MasterPacT NT/NW, or CompacT NS630b/NS3200) with Micrologic A, P, or H trip unit installed
  • Test leads from the 33594 connect directly to the breaker trip coil and terminal connection points
  • Self-contained power supply in the 33594 energizes the Micrologic trip unit for functional verification
  • Test probe and indicator display confirm continuity, trip response, and — where applicable — ground fault inhibition or ZSI self-restraint status
  • For primary injection testing with ground fault inhibition, an external current injection source connects to the breaker mains terminals while the 33594 manages inhibition signaling to the Micrologic unit

Typical Applications and Industries for the Schneider Electric 33594

Manufacturing plants with large installed bases of PowerPacT and MasterPacT breakers rely on this kit for scheduled maintenance validation — confirming that breakers which have sat idle through a seasonal shutdown still respond correctly to a simulated trip event. A breaker that passes visual inspection may still have a degraded trip coil or a Micrologic unit with a communication fault; the 33594 catches those conditions before the equipment goes back online.

Commissioning engineers in data centers and pharmaceutical production facilities use the kit during pre-installation testing protocols, where customer acceptance requires documented evidence that each protection device has been individually verified before energization. The ability to test without panel installation shortens commissioning timelines by allowing breaker verification to proceed in parallel with enclosure construction.

In mining and metals operations, where circuit breakers in MCC lineups may not be accessible for in-situ testing without extended outages, the 33594 enables bench testing of replacement or spare breakers before they reach the floor — reducing changeover time and the risk of installing a faulty unit into a critical circuit.

ZSI coordination verification is a specific use case in facilities with layered protection schemes, such as large commercial HVAC systems or water treatment plants, where upstream and downstream breakers must coordinate their trip response to limit the extent of a fault. The 33594's ZSI self-restraint function allows technicians to test this logic in isolation for each breaker in the scheme.

Application Typical Deployment
Pre-installation commissioning Bench testing of PowerPacT or MasterPacT breakers before panel installation in data centers or pharmaceutical facilities
Scheduled maintenance validation Annual or post-shutdown trip unit verification in manufacturing plants with large MasterPacT installed base
Ground fault protection testing Primary injection test support with ground fault inhibition active on Micrologic P or H trip units in food and beverage processing
ZSI coordination verification Isolation testing of Zone-Selective Interlocking logic in layered protection schemes at water treatment and commercial HVAC facilities
Replacement breaker validation Bench verification of spare MCC breakers before installation in mining and metals operations
Customer acceptance testing Documented trip unit verification before facility handover in utilities and renewable energy installations

Key Specifications, Compatibility, and Variant Tables

Specification Value
Product Type Hand Held Test Kit (HHTK) for Circuit Breaker
Compatible Breaker Frames PowerPacT P, PowerPacT R, MasterPacT NT, MasterPacT NW, CompacT NS630b, CompacT NS3200
Compatible Trip Unit Types Micrologic A, P, and H only
Ground Fault Inhibition Micrologic P and H only
ZSI Self-Restraint Micrologic A, P, and H
Power Supply Self-contained — no external AC or DC power required
Package Contents Power supply unit, test lead set, test probe, carrying case
Weight (single unit packaging) 834.6 grams
Packaging Dimensions 25 cm L x 13 cm W x 5.6 cm H
Warranty 12 months (new manufacture only — used or refurbished units require seller verification)

Full technical specifications are available on the product page at LeadTime.ca.

Circuit Breaker Frame Micrologic Compatibility Trip Unit Test Mechanical Test Coil Continuity Ground Fault Inhibition ZSI Self-Restraint
PowerPacT P A, P, H Yes Yes Yes P and H only A, P, H
PowerPacT R A, P, H Yes Yes Yes P and H only A, P, H
MasterPacT NT A, P, H Yes Yes Yes P and H only A, P, H
MasterPacT NW A, P, H Yes Yes Yes P and H only A, P, H
CompacT NS630b A, P, H Yes Yes Yes P and H only A, P, H
CompacT NS3200 A, P, H Yes Yes Yes P and H only A, P, H

If your breaker frame is not in this table or your Micrologic type is not A, P, or H, the Schneider Electric 33594 is not the correct tool — check current availability and discuss alternatives at LeadTime.ca before ordering.

Expert Verdict: Is the Schneider Electric 33594 Still Worth Sourcing?

For maintenance technicians and commissioning engineers who have PowerPacT P or R, MasterPacT NT or NW, or CompacT NS630b or NS3200 breakers in their installed base, the Schneider Electric 33594 remains the most direct path to standalone trip unit verification in the field. Its self-contained power supply eliminates the dependency on panel access, and its support for ground fault inhibition and ZSI self-restraint covers the two most operationally significant testing scenarios beyond basic continuity. The 12-month warranty on new stock provides a baseline level of purchase confidence for NOS units, and the carrying case with dedicated test lead set keeps the kit intact for repeat site visits. If you are replacing a damaged or lost kit on a site that already runs this breaker family, sourcing a 33594 is a defensible decision — provided you verify compatibility upfront and confirm the condition of any used unit before payment.

Where the 33594 fails as the right answer is equally clear. Its April 25, 2023 discontinuation means no new units are being manufactured, no direct replacement has been announced by Schneider Electric, and the available inventory is a finite pool that will only shrink. If you are specifying testing equipment for a new facility, managing a mixed breaker fleet that includes frames outside the PowerPacT, MasterPacT, and CompacT NS families, or working under procurement policies that require ongoing spare parts and manufacturer support, this kit is the wrong investment. In those situations, the Schneider Electric Service Interface Kit is the starting point for discussion — but that migration requires a direct conversation with a Schneider application engineer or a specialist distributor to confirm feature parity against your specific Micrologic version and testing requirements.

From a procurement standpoint, the discontinued status of the Schneider Electric 33594 makes distributor selection more consequential than it would be for an active catalog product. A specialist industrial distributor can verify whether listed stock is genuine NOS with traceable warranty documentation, advise on the condition and test history of used units, and help you assess whether the Service Interface Kit addresses your specific test functions before you commit to a migration. For a tool at this price point sourced from a declining legacy pool, that expertise has real dollar value. Check current stock status and availability of the Schneider Electric 33594 at LeadTime.ca — our team ships worldwide and can advise on both sourcing and replacement options.

For volume requirements or to confirm lead time before committing to a maintenance schedule, contact the LeadTime.ca team directly — we ship worldwide and can provide current sourcing guidance on discontinued Schneider Electric products.

What Engineers Need to Know Before Ordering the Schneider Electric 33594

Because there is limited public community discussion of the Schneider Electric 33594 in engineering forums and online technical communities, the most reliable source of pre-purchase guidance is the manufacturer's official compatibility documentation and the technical teams at specialist distributors. The absence of widespread forum discussion for this product is itself informative: the 33594 is a specialized diagnostic tool used by a narrow audience of circuit breaker maintenance professionals, not a general-purpose automation component that generates broad community debate. That means the ordering mistakes that do occur tend to be quiet, costly, and uncorrected — no forum post warns the next buyer.

The most consequential ordering mistake for this product is purchasing without confirming the installed breaker frame and Micrologic type. The test leads included with the 33594 are frame-specific and not interchangeable with other Schneider Electric breaker families. A technician who receives a 33594 and discovers the on-site breakers are not PowerPacT P, PowerPacT R, MasterPacT NT, MasterPacT NW, CompacT NS630b, or CompacT NS3200 has no recourse — the kit will not work and, as a discontinued product, returning or exchanging it may not be straightforward. Similarly, assuming that ground fault inhibition is available on all compatible breakers without checking the Micrologic type is a planning error that surfaces during commissioning rather than at the order desk.

The secondary risk category involves used unit quality. As authorized new stock of the 33594 depletes, secondary market and surplus channel listings become the primary sourcing avenue. Unlike a passive hardware component, a test kit has mechanical and electrical wear characteristics — test leads oxidize, connectors loosen, and power supply units degrade. A used 33594 that does not power on or produces unreliable continuity readings is not a cost-saving purchase; it is a project delay. Requesting operational verification from the seller, inspecting test lead condition, and confirming the power supply activates correctly before purchase are minimum due diligence steps. When community guidance is sparse, the LeadTime.ca technical team is a direct resource for pre-purchase compatibility checks and used unit assessment guidance — reaching out before ordering is the equivalent of asking the most experienced person in the room.

Connection and Setup Overview for the Schneider Electric 33594

  • Identify the correct trip coil connection points on your specific breaker frame (PowerPacT, MasterPacT, or CompacT NS) by referencing the breaker's nameplate and technical documentation — connection points are frame-specific
  • Attach the test lead set from the 33594 to the breaker terminal points, ensuring clean mechanical contact; inspect for and remove any oxidation from terminals before connecting to ensure valid continuity readings
  • Activate the self-contained power supply unit and verify the status indicator responds — a non-responsive indicator at power-on suggests a power supply or lead connection issue before any test sequence begins
  • For ground fault inhibition testing (Micrologic P or H only), confirm that any external current injection source used for primary injection testing is connected per the facility test protocol and that all personnel are clear of the breaker before injection begins
  • For ZSI self-restraint testing, confirm that ZSI is configured in the trip unit and that any upstream ZSI-enabled breakers in the coordination scheme are isolated or placed in test mode before activating the self-restraint function on the 33594

Wrong-Part Prevention: Confirm All of These Before You Order

The Schneider Electric 33594 is a compatibility-specific tool where an incorrect purchase cannot be remedied in the field. Verify every item on this checklist before placing an order:

  1. Confirm installed circuit breaker frame family (PowerPacT P or R, MasterPacT NT or NW, or CompacT NS only) — incompatible with other Schneider breaker families
  2. Verify Micrologic control unit type (A, P, or H) — other Micrologic versions not supported
  3. Check if you need ZSI (Zone-Selective Interlocking) self-restraint capability — required for certain coordination schemes
  4. Confirm you need ground fault inhibition feature — must match trip unit type for this to function
  5. Verify you do not confuse this with older hand-held testers from different manufacturers — Schneider-specific test leads required
  6. Confirm product discontinuation status — ensure you have realistic sourcing plan (used market, distributor closeout, or consider Service Interface Kit)
  7. Check test lead condition on any used unit — oxidation or corrosion can compromise electrical contact quality
  8. Verify warranty claim — 12-month warranty applies to new stock only; used units may have no manufacturer warranty

If you have worked through this checklist and are confident in your compatibility, check current availability of the Schneider Electric 33594 at LeadTime.ca — or contact our team to discuss sourcing options for this discontinued product.

Frequently Asked Questions

Is the Schneider Electric 33594 still available to purchase anywhere?

The Schneider Electric 33594 was officially discontinued on April 25, 2023, with no new units manufactured since that date. Legacy inventory remains in some authorized distribution channels, but stock is declining and availability varies by region. Used and surplus market units are a secondary option, but they carry no manufacturer warranty — condition and operational status must be verified with the seller before purchase. Contact your distributor to confirm actual stock before committing to a project schedule.

What is the recommended replacement for the Schneider Electric 33594 after discontinuation?

Schneider Electric has identified the Service Interface Kit as a potential alternative, but no direct replacement with confirmed feature parity has been officially announced. The Service Interface Kit may support newer Micrologic control unit generations, but compatibility with your specific breaker frame and Micrologic type requires verification with a Schneider Electric application engineer or specialist distributor before making any migration decision.

Can the Schneider Electric 33594 test ground fault protection on all compatible Micrologic types?

No. Ground fault inhibition — the function that disables ground fault detection during primary injection testing — is only available for Micrologic P and H trip units. Micrologic A does not support this function with the 33594. ZSI self-restraint testing is supported for Micrologic A, P, and H, but ZSI must be actively configured in the trip unit for the test to produce valid results.

Does the Schneider Electric 33594 work with CompacT NS breakers other than the NS630b and NS3200?

Compatibility is specifically documented for CompacT NS630b and NS3200 frames. Other CompacT NS variants with different catalog numbers are not confirmed as compatible. Do not assume all CompacT NS breakers are supported — verify the exact frame model against the official Schneider Electric compatibility documentation before ordering.

What should I inspect on a used Schneider Electric 33594 before purchase?

At minimum, request evidence that the power supply unit activates and displays a status indicator, that the test leads show no visible oxidation or corrosion at connector ends, and that the test probe responds correctly to a known continuity reference. Because the 33594 is discontinued, replacement test leads or probe components may be difficult or impossible to source — a kit with degraded leads is not a partial purchase, it is an inoperative one. Request written confirmation of any warranty terms the seller is prepared to offer.

Is a used Schneider Electric 33594 covered by the 12-month manufacturer warranty?

The 12-month manufacturer warranty applies to new stock from the date of manufacture. Used, surplus, or refurbished units are outside this warranty unless the seller provides written documentation to the contrary. Given the April 25, 2023 discontinuation date, any unit represented as new should be treated as new old stock (NOS), and the original purchase documentation should be requested to establish the warranty start date.

Why Order From LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships discontinued and legacy Schneider Electric products to customers worldwide, not limited to any single region
  • Discontinued product expertise — our team can advise on current stock status, NOS warranty documentation, and Service Interface Kit migration paths before you commit to a purchase
  • Compatibility verification — we cross-reference your breaker frame and Micrologic type against confirmed compatibility data before an order ships
  • Volume and project pricing — contact for current pricing on multiple units or long-term maintenance program requirements
  • Responsive technical support — direct access to knowledgeable staff who understand circuit breaker testing requirements, not a generic order desk

At-a-Glance Summary

  • The Schneider Electric 33594 is a Hand Held Test Kit (HHTK) for circuit breakers with a self-contained power supply — no external AC or DC power required for field testing
  • Compatible breaker frames: PowerPacT P and R, MasterPacT NT and NW, CompacT NS630b and NS3200 only
  • Compatible Micrologic trip unit types: A, P, and H only — other Micrologic versions are not supported
  • Ground fault inhibition requires Micrologic P or H; ZSI self-restraint is supported for Micrologic A, P, and H
  • Test functions include: trip unit operation verification, mechanical operation test, trip coil continuity, ground fault inhibition (P/H only), and ZSI self-restraint
  • Single unit weight: 834.6 grams; packaging dimensions: 25 cm L x 13 cm W x 5.6 cm H; bulk carton: 8 units at 7.518 kg total
  • Standard manufacturer warranty: 12 months from new manufacture — used or NOS units require seller verification
  • Officially discontinued April 25, 2023 — no direct replacement announced; Service Interface Kit identified as potential alternative
  • Used market units require pre-purchase inspection of test leads, power supply, and test probe before committing to purchase
