Schneider Electric 31052 — ComPact Rotary Handle Compatibility Guide

By Abdullah Zahid
14 min read

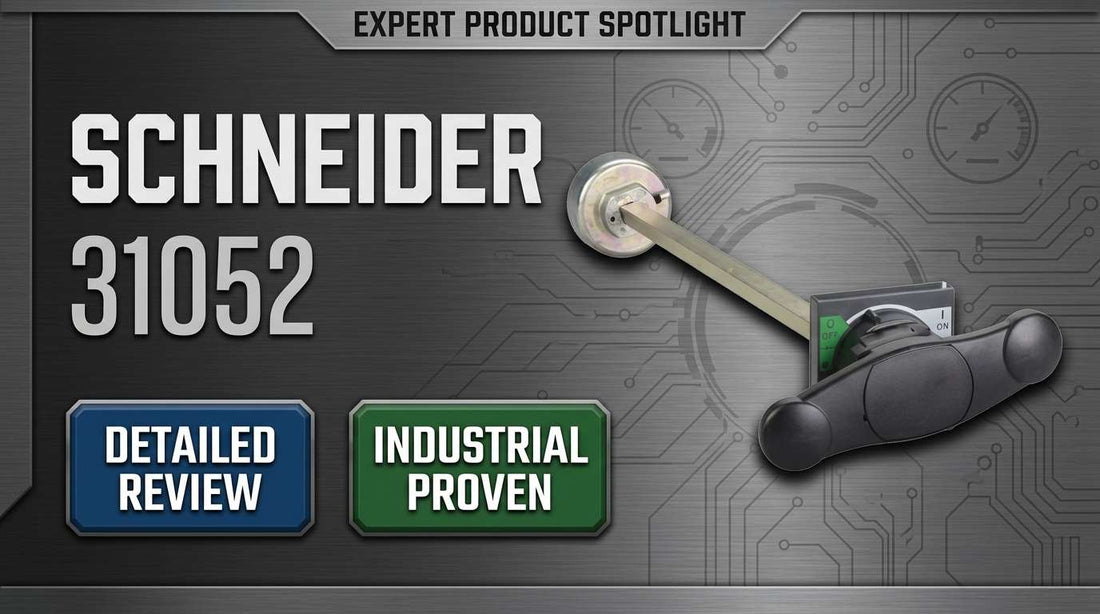

Schneider Electric 31052 extended black rotary handle front-mounted on ComPact INS INV switchgear panel

Schneider Electric 31052 Extended Rotary Handle for ComPact INS/INV 320-630 and INSJ400: Complete Compatibility Guide and Specifications

When a rotary handle fails on a ComPact load break switch, production stops. Maintenance technicians and field service engineers searching for the Schneider Electric 31052 are typically working against the clock — they have a confirmed failed component on a named ComPact INS, INV, or INSJ switchgear and need to verify compatibility fast before placing the order. The 31052 is the extended rotary handle, front-mounted and black, designed for ComPact INS/INV 320 through 630 and the INSJ400 — certified per IEC 60947-1 and IEC 60947-3, weighing 1.29 kg, and carrying an 18-month manufacturer warranty.

If you have already confirmed this is the correct part for your switchgear, check current pricing and availability for the Schneider Electric 31052 at LeadTime.ca — ships worldwide.

Who Should Buy the Schneider Electric 31052 — and Who Shouldn't

This handle is the right choice for buyers who can confirm all of the following:

  • Your switchgear is a ComPact INS320, INS400, INS630, INV320, INV400, INV630, or INSJ400 — not a ComPact NG, Masterpact, or any other Schneider family
  • You require the extended variant — the 31052 measures 490 mm in length; standard (shorter) handles are a separate SKU and are not interchangeable
  • Your installation uses a front-door-coupled control configuration, not a side-mounted or remote arrangement
  • You need padlock-in-OFF capability for lockout-tagout compliance, or are replacing a like-for-like OEM handle
  • You have verified your door coupler interface is mechanically intact — a damaged coupler will not be resolved by a new handle alone

If you need a shorter handle for a space-constrained panel, a different color specification, or you are unsure whether your switchgear is genuinely ComPact INS/INV, do not order the 31052 until compatibility is confirmed. Contact a specialist distributor with the switchgear nameplate details before proceeding.

On this page:

What the Schneider Electric 31052 Does in a ComPact Switchgear System

The 31052 is the manual control interface — the physical point where an operator switches a ComPact load break unit between ON and OFF. It is not a decorative cover or a simple door accessory; it is a mechanical drive component that directly couples to the internal switch mechanism through the front panel door. When an operator rotates the handle, that motion is transmitted through a mechanical linkage to the main switch inside the ComPact unit.

One of the most important design characteristics verified in Schneider Electric's official documentation is that the drive position always reflects the true position of the main internal switch. This is a deliberate fail-safe: the handle cannot display an OFF indication if the switch is actually open. False isolation indication is physically prevented by the mechanical design. This matters enormously in facilities where LOTO procedures depend on visual confirmation of the switch state.

The 31052 also incorporates a padlock engagement point in the OFF position, enabling integration into lockout-tagout procedures per IEC 60947-1 and IEC 60947-3. However, locking is only possible when the switch mechanism is fully closed — an intentional safety feature that prevents an operator from creating a false sense of isolation on an open switch. The handle supports use categories AC21A (separation under no-load), AC22A (separation under light load), and AC23A (separation under full load), making it applicable across a wide range of load break switching duties.

Where the 31052 Fits in a Typical Switchgear Architecture

The 31052 sits at the operator interface layer of the switchgear assembly — the physical control point between the human operator and the internal disconnect mechanism. It does not carry current or perform any electrical function; it is the mechanical bridge between operator intent and switch actuation.

  • Upstream: Incoming power circuit terminating at the ComPact INS/INV load break switch bus connections
  • Switchgear unit: ComPact INS320, INS400, INS630, INV320, INV400, INV630, or INSJ400 mounted inside the enclosure
  • Door coupler assembly: Mechanical interface on the front door that connects the handle shaft to the internal switch drive
  • 31052 handle: Mounted to the front door, provides the rotary actuation point and padlock engagement feature
  • Downstream: Load circuit protected and isolated by the switchgear, with operator confirmation of switch state via the handle position

Industries and Scenarios Where This Handle Is Specified

The 31052 appears most often in industrial manufacturing facilities running ComPact INS or INV switchgear as part of their power distribution or machine feed isolation strategy. A failed or damaged rotary handle in this context means the connected load cannot be safely isolated, halting production or creating a compliance gap.

Facilities undergoing LOTO compliance upgrades frequently add or replace rotary handles to incorporate padlock capability on existing ComPact switchgear. This is a common scenario in pharmaceutical and chemical plants where regulatory audits identify inadequate isolation point documentation.

Panel builders and system integrators incorporating ComPact switchgear into new machine builds specify the 31052 as part of the OEM spare parts kit, ensuring a like-for-like replacement is available for field service without requiring a distributor search during a breakdown event.

Data centers and utility substations using ComPact load break switches for section isolation and maintenance switching maintain the 31052 as a stocked spare given the consequences of unplanned downtime in those environments.

Application Typical Deployment
Planned preventive maintenance Replacement of aging or worn rotary handle on ComPact INS/INV as part of scheduled switchgear service
Emergency breakdown replacement Rapid procurement after handle failure stops manual isolation capability during production operation
LOTO compliance upgrade Retrofitting padlock-in-OFF capability on ComPact switchgear that previously lacked a compliant handle
Panel retrofit or relocation Replacement during enclosure modification where the existing handle is removed or damaged
OEM spare parts kit New machine builds incorporating ComPact control, with 31052 stocked as a field-serviceable spare
Data center and utility isolation Maintenance switching handle replacement on section isolation switchgear where downtime consequence is high

Key Specifications and Compatibility Matrix

Parameter Value Notes
Handle Type Extended rotary handle Standard (shorter) handles are a separate SKU; not interchangeable
Length 490 mm Verify panel cutout clearance before ordering
Color Black Front plate and handle both black
Weight 1.29 kg Relevant for shipping and enclosure load calculations
Mounting Style Front-mounted, door-coupled Interfaces with ComPact switchgear front door; not for side-mounted arrangements
Padlock Capability Padlock in OFF position Only available when switch mechanism is fully closed; not available when switch is open
Standards Compliance IEC 60947-1, IEC 60947-3 Load break switch separation standards
Use Categories AC21A, AC22A, AC23A Confirm application duty cycle before ordering
EAN Code 3303430310525 Cross-reference with distributor to prevent substitution of a different variant
Warranty 18 months Standard Schneider Electric manufacturer coverage from date of purchase

Full technical specifications are available on the product page at LeadTime.ca.

Extended vs. Standard Handle: Which One Does Your Panel Actually Need?

The most common ordering mistake for the ComPact rotary handle family is selecting the wrong length variant. The 31052 is the extended model at 490 mm — the most frequently specified configuration for standard front-door panel installations. Standard (shorter) handles are a separate catalog item with a different part number and a different mechanical interface length. These two variants are not interchangeable: installing the wrong length creates either a clearance problem where the handle cannot complete a full rotation, or a protrusion that creates a safety or enclosure fit issue.

Variant Compatibility Notes When to Use
Schneider Electric 31052 (this part) ComPact INS320, INS400, INS630, INV320, INV400, INV630, INSJ400 Extended handle, 490 mm, black, front-door-coupled Standard front-door panel with space for extended handle travel
ComPact INS/INV Standard Handle (shorter variant) Same switchgear family — different mechanical interface length Shorter length for compact panel mounting Space-constrained installations where 490 mm handle conflicts with panel dimensions
ComPact NG rotary handle Mechanically incompatible with INS/INV family Newer product family; cannot retrofit to INS/INV New installations on ComPact NG only; never for INS/INV retrofit
Third-party generic rotary handle No verified OEM fit confirmed No manufacturer warranty; may fail under load Not recommended under any ComPact application

If your panel clearance does not accommodate a 490 mm extended handle, the standard variant is the correct path — confirm the alternative part number with your distributor before ordering. Check current availability of the 31052 at LeadTime.ca and contact the team if you need help confirming which variant fits your installation.

Expert Verdict: Is the 31052 the Right Part for Your Situation?

The Schneider Electric 31052 is a precision-fit OEM component with no flexibility on compatibility — and that characteristic is exactly what makes it the right choice when your application is confirmed. For a maintenance technician holding a failed rotary handle off a ComPact INS400 or INS630, this is the only correct replacement. The mechanical design ensures true switch position feedback to the operator, the padlock-in-OFF feature enables genuine LOTO compliance, and the 18-month manufacturer warranty confirms Schneider Electric stands behind this component under normal operating conditions. OEM panel builders specifying ComPact switchgear and facilities managers retrofitting existing installations for LOTO compliance will find the 31052 fits every requirement without compromise — provided the switchgear model is confirmed and the handle type is verified before ordering.

The real limitations here are not product limitations — they are application verification requirements. If your switchgear is a ComPact NG rather than an INS or INV, the 31052 will not physically mount regardless of how it is forced. If your panel requires the shorter standard handle, the 490 mm length of the 31052 creates a fit problem that cannot be resolved on-site. And if the door coupler on your existing switchgear is cracked or mechanically worn, a new handle will not restore safe operation — the coupler must be assessed independently. Buyers who need a standard-length handle should specifically request the shorter ComPact INS/INV handle SKU from their distributor and confirm the part number explicitly before the order is placed.

From a procurement standpoint, the 31052 is a standard stock item at authorized Schneider Electric distributors with typical lead times of 1-2 business days — fast enough for most maintenance scenarios, but not a reason to skip compatibility verification. Because this is an OEM-specific spare part, sourcing through an authorized distributor with Schneider certification is not optional if warranty coverage and part authenticity matter. Generic or unauthorized channels carry real risk of incorrect variant substitution or non-OEM product. View current pricing and stock status for the Schneider Electric 31052 at LeadTime.ca — we ship worldwide and can confirm compatibility before your order ships.

For volume pricing or to verify lead time against your build schedule, contact the LeadTime.ca team directly — we ship worldwide and can support urgent procurement requirements.

Why Specialist Advice Matters When Ordering the Schneider Electric 31052

The 31052 is not the kind of component that generates broad community discussion on automation forums or public Q&A boards. That absence is not a signal of product obscurity or reliability concerns — it reflects exactly how this class of OEM spare part is specified and sourced. Buyers who need it already know what switchgear they have and what component has failed. The questions that arise are handled directly through Schneider Electric technical channels and authorized distributors, not in open community threads. When a ComPact rotary handle fails at 2 AM on a production line, the maintenance technician is not posting on Reddit — they are calling their distributor.

What that means for buyers is that the collective intelligence for this product lives in specialist distributor knowledge, not publicly indexed forum posts. The failure modes, the ordering mistakes, and the compatibility traps are well-documented in manufacturer technical documentation — but navigating them requires either prior hands-on experience with the ComPact family or access to a distributor who can cross-reference your exact switchgear configuration against the correct handle variant. The three most common ordering errors — choosing the wrong handle length, ordering for the wrong switchgear generation, and installing a new handle without assessing the door coupler condition — are all preventable with a single verification call to a specialist.

LeadTime.ca maintains access to Schneider Electric technical documentation and can cross-reference your switchgear nameplate details against the correct handle SKU before an order ships. If you are at all uncertain whether the 31052 is the right variant for your installation, that is precisely the situation where a specialist distributor conversation saves time and avoids a costly return. Submit your switchgear model number and we can confirm compatibility before your order is placed.

Installation and Wiring Overview

The 31052 is a mechanical component with no electrical terminations — installation involves mechanical alignment and fastener torque only. The following overview covers the critical steps engineers should verify before and during installation. For full installation procedures, refer to the Schneider Electric ComPact INS installation manual.

  • Before removing the old handle, isolate and de-energize the switchgear following your facility LOTO procedure — verify de-energization with a multimeter if local regulations require it
  • Inspect the existing door coupler interface for cracks, bent metal, or excessive wear before installing the new handle; a damaged coupler must be assessed independently and may require replacement before the handle can function correctly
  • Align the 31052 handle with the door coupling interface using any orientation guides or alignment marks on both the handle and the coupler — hand-tighten all fasteners before final torque to allow alignment adjustment
  • Cycle the handle through a full ON-to-OFF rotation before final tightening to confirm smooth movement with no binding, grinding, or resistance; stop immediately if any abnormal resistance is felt and re-check alignment
  • After full installation, verify that the internal switch state changes in sync with handle position — any disconnect between handle position and switch state indicates a coupling integrity issue requiring investigation before the switchgear is returned to service

Wrong-Part Prevention Checklist Before Ordering the Schneider Electric 31052

The following checklist is drawn directly from verified manufacturer documentation and common field ordering errors. Work through each item before placing your order:

  1. Confirm your switchgear is a ComPact INS, INV, or INSJ model (not IEC 60947-6-2 motor starters or other families)
  2. Verify the specific model number: INS320, INS400, INS630, INV320, INV400, INV630, or INSJ400
  3. Confirm this is an extended-handle variant (most common); standard handles exist and are NOT interchangeable
  4. Check that your panel has a front-door-coupled configuration (some installations use different control arrangements)
  5. Verify the door hinge type matches your switchgear assembly (coupling interface must align)
  6. Confirm the load break switch is not mechanically damaged; a failed handle often indicates internal switch wear

If you cannot confirm every item on this checklist from the switchgear nameplate and visual inspection alone, contact the team at LeadTime.ca before ordering. View the Schneider Electric 31052 product page or reach out directly with your switchgear model number for compatibility confirmation.

Frequently Asked Questions

Can the 31052 be used on a ComPact NG or Masterpact switchgear if the physical size looks similar?

No. The 31052 is specifically designed for ComPact INS, INV, and INSJ models. ComPact NG and Masterpact product families use different mechanical interfaces and coupling designs. The fastener holes, shaft coupling geometry, and door interface are not interchangeable across these families. Attempting to force-fit the 31052 on a non-compatible switchgear risks damage to the door coupler and creates an unsafe operating condition. Confirm your switchgear model from the nameplate before ordering.

What is the difference between the 31052 extended handle and the standard (shorter) handle — and how do I know which one I have?

The 31052 extended handle measures 490 mm in length. Standard handles are shorter and have a different mechanical profile length, making them non-interchangeable with the extended variant. To confirm which type you have, measure your existing handle or compare it against dimensional drawings available in the Schneider Electric ComPact INS technical documentation. If your existing handle appears long relative to the panel door, it is likely the extended version. Never assume; verify against the 490 mm specification before ordering the 31052.

The rotary handle is stuck or not turning freely — does that mean the handle has failed or is it the internal switchgear mechanism?

A stuck or stiff handle does not automatically indicate the handle itself has failed. The 31052 is a mechanical drive component; resistance during operation can originate from the internal switch mechanism, the door coupler, or the handle itself. Before ordering a replacement, test whether the handle moves at all, whether any internal movement is felt in the switch when the handle is forced slightly, and whether the coupling interface between the handle and the door appears intact. If the handle feels completely disconnected from the switch mechanism, the coupler may be broken. If the handle moves but the switch does not respond, the internal mechanism may be the failure point. An authorized Schneider technician can assist in distinguishing the failure source.

Can I engage the padlock in the OFF position if the circuit is live upstream?

The padlock engagement point on the 31052 is mechanically available when the handle is turned to the OFF position and the switch mechanism is fully closed. The design physically prevents locking when the switch is open — this is an intentional safety feature. However, whether the upstream circuit is live or de-energized at the time of locking is a facility LOTO procedure responsibility, not a function of the handle itself. Always follow your facility's complete LOTO procedure, including upstream isolation verification, before applying any lockout device. The 31052 supports IEC 60947-1 and IEC 60947-3 compliance but does not replace a complete LOTO program.

Does the 31052 include the door coupling assembly, or is that a separate purchase?

The 31052 is the rotary handle itself, designed to couple to the existing door coupler assembly on your ComPact switchgear. Whether the door coupler is included or requires a separate order depends on your specific installation condition. If your door coupler is intact and mechanically sound, the 31052 handle is all that is needed. If the coupler itself is damaged — cracked, bent, or worn — it must be assessed and potentially replaced independently. Confirm the condition of your existing door coupler before ordering, and contact your distributor if you are unsure whether additional components are required.

What is the expected lead time for the 31052 through an authorized distributor?

The 31052 is a standard stock item at authorized Schneider Electric distributors with typical lead times of 1-2 business days from stock. Regional availability varies, and distributor inventory levels change. In Canada and the US, authorized distributors typically maintain stock of common ComPact accessories including this handle. For confirmed lead time before committing to a production schedule or repair timeline, contact the distributor directly with your order details. LeadTime.ca ships worldwide and can provide current stock status before your order is placed.

Why Order the Schneider Electric 31052 From LeadTime.ca

  • Authorized industrial distributor — OEM part authenticity and full 18-month manufacturer warranty honored
  • Ships worldwide — North America, Europe, and international destinations served from one source
  • Compatibility verification available before order ships — provide your switchgear nameplate details and we confirm the correct variant
  • Urgent sourcing support for breakdown and emergency procurement scenarios where lead time directly affects production
  • Volume pricing available for OEM spare parts kits and multi-unit orders

At-a-Glance Summary: Schneider Electric 31052

  • Official product name: Extended rotary handle, front control, ComPact INS/INV 320-630, INSJ400, black
  • Handle length: 490 mm (extended variant — not interchangeable with standard shorter handle)
  • Handle color: Black (front plate and handle)
  • Weight: 1.29 kg
  • Compatible switchgear: ComPact INS320, INS400, INS630, INV320, INV400, INV630, INSJ400
  • Not compatible with: ComPact NG, Masterpact, or any non-ComPact INS/INV switchgear family
  • Mounting: Front-mounted, door-coupled configuration only
  • Standards: IEC 60947-1, IEC 60947-3
  • Use categories: AC21A, AC22A, AC23A
  • Padlock in OFF position: Yes — only when switch mechanism is fully closed
  • EAN: 3303430310525
  • Warranty: 18 months from date of purchase
  • Typical lead time from authorized distributors: 1-2 business days
  • Critical pre-order check: Confirm switchgear model from nameplate, verify extended handle type, inspect door coupler condition
