Schneider 28912 — Compact INS160 160A Isolation Switch Guide

By Abdullah Zahid
13 min read

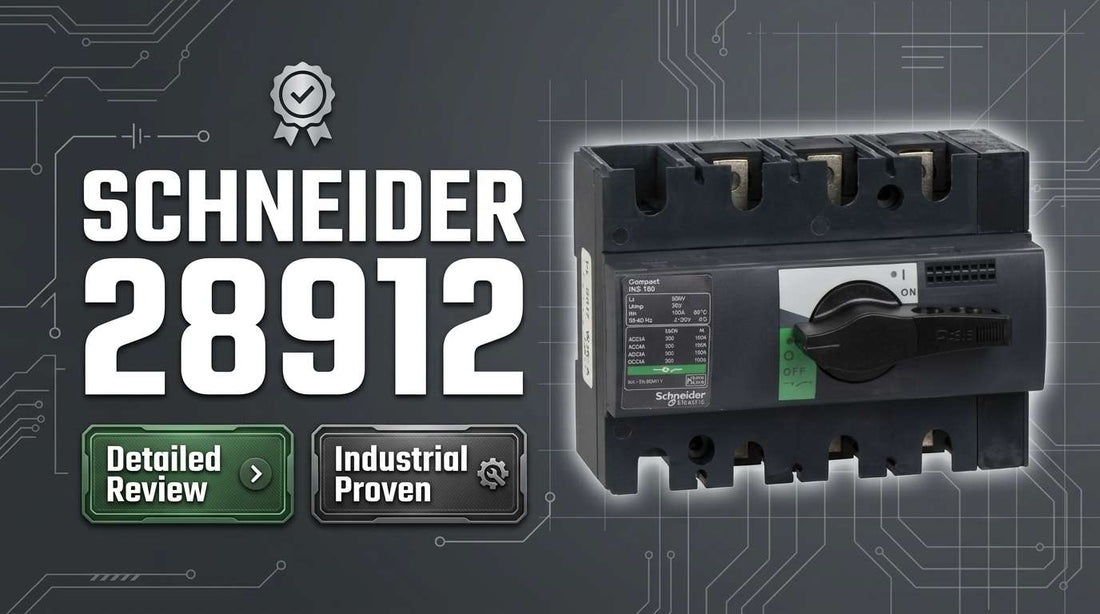

Schneider Electric 28912 Compact INS160 3-pole 160A switch-disconnector black rotary handle industrial switchboard

Schneider 28912 Switch Disconnector, Compact INS160 – 3 Poles – 160 A, Standard Version with Black Rotary Handle: Specs, Pricing & Selection Guide

Electrical engineers and controls specifiers evaluating isolation devices for 160 A three-phase industrial applications arrive at the Schneider 28912 because they need a compact, proven switch-disconnector that fits constrained switchboard layouts and coordinates reliably with upstream protection. This guide gives you the technical validation and selection clarity to complete that decision — confirmed specifications, coordination context, variant comparison, and the one verification you must do before the purchase order goes out.

If your upstream protection is confirmed and the 3-pole 160 A unfused specification matches your design, check current pricing and availability for the Schneider 28912 at LeadTime.ca — ships worldwide.

Is the Schneider 28912 the Right Switch-Disconnector for Your Installation?

This model is the correct specification when all of the following conditions apply:

  • Operational current is 160 A at 415 VAC (AC-22A or AC-23A utilization category) — not 63 A, 100 A, or 250 A
  • Supply voltage is 690 VAC 50/60 Hz or 250 VDC — both are within rated limits
  • Three-pole configuration is required — this model does not provide a four-pole option
  • Unfused operation is acceptable — the 28912 has no integral fusing; a separate upstream circuit breaker or fuse is mandatory
  • Panel enclosure accommodates 100 mm (H) × 135 mm (W) × 62.5 mm (D) footprint with adequate handle clearance
  • An upstream protection device is rated for coordination at 154 kA @ 690 VAC — or your system fault level is confirmed below the 28912's standalone 20 kA capacity

If your current requirement is 100 A, choose model 28911. If fused switching is mandatory, specify Schneider 28712. If 250 A capacity is needed, move to model 28913. Exact alternatives are covered in the variant table below.

On this page:

What the Schneider 28912 Does — and What It Does Not Do

The Schneider 28912 is a manual switch-disconnector — its sole purpose is safe, reliable isolation of electrical equipment from its power source. Rotating the black rotary handle to the OFF position opens all three poles simultaneously, disconnecting the load from the 690 VAC or 250 VDC supply and enabling lockout/tagout for maintenance access. It is not a circuit breaker. It does not trip on overcurrent, does not interrupt fault current automatically, and cannot substitute for upstream protective devices. That distinction is the most operationally critical fact about this component.

What it delivers is rated operational current of 160 A continuous at 415 VAC in the AC-22A and AC-23A utilization categories, a compact 100 × 135 × 62.5 mm footprint that integrates into space-constrained switchboards without sacrificing access or handle ergonomics, and a short-circuit withstand capacity of 154 kA at 690 VAC when an upstream protection device is in place. Without upstream protection, the standalone rating drops to 20 kA — a specification that must be verified against the actual fault level at the point of installation before the 28912 is accepted into any design.

The Compact INS160 family has established itself as a standardized isolation device across EU and North American industrial installations precisely because the specification is straightforward, the form factor is consistent across the current range, and the coordination with Schneider Electric circuit breakers is documented and testable.

Typical System Architecture

The Schneider 28912 sits between the incoming supply and the protected equipment, downstream of the upstream circuit breaker and upstream of the load terminals or motor starter. A typical deployment chain looks like this:

  • Three-phase 690 VAC supply → upstream circuit breaker or fuse rated for system fault level (mandatory — not optional)
  • Upstream protective device output → Schneider 28912 input terminals (labeled 1, 3, 5 on top)
  • Schneider 28912 output terminals (labeled 2, 4, 6 on bottom) → load conductors to motor starter, distribution sub-board, or equipment panel
  • Black rotary handle at front face of device → accessible for manual ON/OFF operation and padlock LOTO
  • Enclosure ground bus → device chassis ground (mandatory for IP20 front-face protection to be effective)

Where the Schneider 28912 Gets Specified

In industrial switchboards, the 28912 serves as a main or sub-main isolation point in 400/690 V three-phase power distribution. Plant maintenance teams rely on it as the safe disconnection point before working on downstream equipment — a function that requires both mechanical reliability and an unambiguous visual indication of ON/OFF state, which the rotary handle provides.

Machine tool isolation is a primary application in manufacturing environments. A 160 A switch-disconnector mounted on or adjacent to a machine provides the lockout point required by electrical safety standards before maintenance personnel can open enclosures or service drive components. The compact dimensions allow panel-door mounting in many cases without enclosure upsizing.

Power distribution board retrofits represent a significant share of 28912 procurement. Aged isolation switches in existing switchboards — many predating modern IEC 60947-3 standards — are replaced with the Compact INS160 to restore compliant isolation capability while fitting the original panel layout. The 100 mm height allows most legacy installations to accept the 28912 without drilling new holes.

OEM control cabinet builders standardize on the Compact INS family across product lines because technician familiarity is high, replacement parts are stocked at distributors worldwide, and the consistent form factor simplifies documentation and spare parts management across multiple machine models.

Application Typical Deployment
Industrial switchboard main isolation Downstream of main circuit breaker; upstream of sub-distribution or large motor starters at 400/690 V
Machine tool maintenance isolation Panel-door or enclosure-mounted; LOTO point before mechanical or electrical servicing
Distribution board retrofit Replacement for aged isolation switches; fits legacy layout at 100 mm height without enclosure modification
OEM control cabinet sub-assembly Standardized isolation device across product lines; coordinates with upstream breakers in documented configuration
Backup generator disconnect Manual transfer isolation point between utility supply and generator output in hybrid power systems

Key Technical Specifications for the Schneider 28912

Parameter Specification Notes
Rated Operational Current 160 A at 415 VAC AC-22A / AC-23A utilization category; verify against actual load current
Rated Voltage (AC) 690 VAC 50/60 Hz Maximum line-to-line voltage; compatible with 400 V and 690 V systems
Rated Voltage (DC) 250 VDC DC applications — confirm polarity and load type before ordering
Short-Circuit Capacity (coordinated) 154 kA @ 690 VAC Requires rated upstream protection device; verify coordination curve
Short-Circuit Capacity (standalone) 20 kA @ 690 VAC Without upstream breaker — confirm system fault level does not exceed this
Pole Configuration 3-pole Three-phase AC or two-conductor DC — no 4-pole option on this model number
Dimensions (H × W × D) 100 × 135 × 62.5 mm Verify panel depth and width before ordering
Handle Type Black rotary knob Standard version; ergonomic ON/OFF indication with LOTO provision
Protection Rating IP20 (front face, when panel-mounted) Enclosure required for full environmental protection
Standards Compliance IEC 60947-3, CE, RoHS EU-harmonized; suitable for international industrial projects

Full technical specifications are available on the product page at LeadTime.ca.

Schneider 28912 vs. Same-Family Variants and Competitor Equivalents

Model Poles Current Fused Primary Use Case Notes
Schneider 28910 3 63 A No Small motors, light loads Smallest footprint in family
Schneider 28911 3 100 A No Moderate machinery isolation Mid-range standard
Schneider 28912 3 160 A No Large industrial equipment Primary focus — this model
Schneider 28913 3 250 A No Major switchboard isolation High-capacity; larger footprint
Schneider 28712 3 160 A Yes Where integral fusing required Fused variant of 28912 — same current class
Eaton M22-PDQ-MS 3 160 A No Direct competitor, similar form Different manufacturer; wiring and coordination details differ
ABB OS160D3S 3 190 A No Higher-capacity alternative Slightly larger footprint; verify panel fit

If your load requires fused switching, the Schneider 28712 is the correct same-family alternative. If current demand is 100 A, specify 28911. Confirm the correct model and check availability at LeadTime.ca before releasing to procurement.

Expert Verdict: Who Should Specify This Device and Who Shouldn't

The Schneider 28912 earns its place in standard industrial designs through a combination of proven specifications and practical advantages that matter at the panel layout stage. At 100 × 135 × 62.5 mm, it fits switchboard layouts where larger isolation devices force enclosure upsizing — a cost-avoidance benefit that compounds across multi-unit installations and retrofit projects where the existing enclosure is fixed. The 154 kA coordinated short-circuit capacity with upstream Schneider breakers gives designers a defensible, documented protection coordination, and the Compact INS family's widespread stocking across North American distributors means replacement availability is not a long-term concern. For plant engineers standardizing isolation devices in 690 VAC three-phase systems, OEM cabinet builders needing a repeatable 160 A isolation specification, and electrical contractors retrofitting aged switchgear, the 28912 is a low-risk, well-supported choice.

Where the 28912 has firm limits: it is exclusively a manual isolation device and provides zero overcurrent protection. Specifying it without a properly rated upstream circuit breaker is a design error, not a cost saving — and the consequence is a system limited to 20 kA standalone withstand capacity, which is insufficient at many industrial supply points where available fault current exceeds that figure. Applications requiring fused switching must go to the Schneider 28712 fused variant. Four-pole requirements, hazardous area (ATEX Zone 0 or 1) installations, and any need for remote or automatic switching operation all take the 28912 out of scope entirely.

From a procurement standpoint, the standard black rotary handle version maintains broad stock availability across authorized distributors with typical lead times of 3–7 business days from stock. Variant configurations — fused versions, alternate handle styles — may require 2–4 weeks factory lead time. Buying through a specialist distributor gives you pre-sales coordination confirmation and a documented supply chain for the device's operational life. View current pricing and stock status for the Schneider 28912 at LeadTime.ca — ships worldwide.

For volume pricing or lead time confirmation before committing to a project deadline, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Verify Before Ordering the Schneider 28912

The Schneider 28912 is a mature, standardized industrial component — the kind of device that generates minimal online troubleshooting discussion precisely because when it is specified correctly and installed per the datasheet, it operates without incident for decades. Community forum archives across r/PLC, PLCTalk, PLCS.net, and MrPLC return no significant discussion specific to this model number or the Compact INS family, which reflects the device's nature: it is a workhorse isolation switch, not a programmable component where configuration questions arise. The specification decisions happen at the design stage, not the commissioning stage.

That means the risk is entirely front-loaded into the ordering decision. Three mistakes occur repeatedly with switch-disconnectors of this class. The first is treating the 28912 as a protective device and omitting the upstream circuit breaker — the device cannot interrupt fault current, and the design is non-compliant until an upstream breaker rated for the system fault level is added. The second is ordering the wrong current rating or pole count because the BOM lists "Compact INS 160 A" without the full model number, leaving procurement to guess between 28912 (3-pole, unfused) and 28712 (3-pole, fused) or adjacent current ratings. The third is neglecting the 20 kA vs. 154 kA coordination question: if the upstream protection device is not rated for coordination with the 28912, the 154 kA figure is irrelevant, and the actual withstand capacity of the installation may be below the available fault current at that supply point.

When community data is sparse and the component is going into a high-fault-current switchboard, a specialist distributor who can verify upstream coordination before the order ships is worth more than the marginal price difference over a generic channel. The verification takes minutes; the redesign after a failed commissioning inspection does not.

Wiring, Mounting and LOTO Overview

  • Mount in a switchboard or distribution enclosure on DIN rail or bolt-down terminals; orient so the rotary handle is front-accessible with minimum 100 mm clearance on all sides for operation and future LOTO access
  • Connect three source conductors (L1, L2, L3) to top terminals labeled 1, 3, 5; connect three load conductors to bottom terminals labeled 2, 4, 6; torque M8 screw terminals to specification (refer to installation manual — typically 6–8 Nm); do not energize until a second qualified person has verified all connections
  • For LOTO: rotate handle to OFF position, insert padlock through the handle lockout provision or a cable loop through the handle aperture, attach a tag with technician name, date, time, and reason; verify zero volts at all load terminals with a calibrated multimeter before opening any downstream enclosure
  • Ground the device chassis and enclosure to the common ground bus before energization — IP20 front-face protection is effective only when the enclosure provides full rear and side enclosure
  • Annual inspection: verify handle rotates smoothly with no binding or grinding, retorque terminals per maintenance plan, inspect for mechanical damage or corrosion; no routine maintenance is required under normal operating conditions

For full wiring diagrams, terminal torque tables, and mounting templates, refer to the official Schneider Electric Compact INS160 installation manual available at se.com.

Wrong-Part Prevention Checklist — Verify Before You Order

Confirm each item before submitting the purchase order. Each point below corresponds to a documented failure mode in switch-disconnector procurement:

  1. Is your upstream protection device rated for coordination with this switch-disconnector (154 kA at 690 V AC with protection; 20 kA alone)?
  2. Do you need a 3-pole or 4-pole configuration? This model is 3-pole only.
  3. Is your operational current 160 A or less at your supply voltage (690 VAC or 250 VDC)?
  4. Are you certain you need an unfused switch-disconnector, or should you specify a fused version?
  5. Does the 100 × 135 × 62.5 mm footprint fit your switchboard layout?
  6. Have you confirmed 50/60 Hz AC operation requirement (not DC-only)?

If any item above is unresolved, contact the LeadTime.ca team before ordering — we confirm model compatibility and coordination requirements before the shipment goes out.

Frequently Asked Questions

What is the difference between the Schneider 28912 (unfused) and a fused version?

The 28912 is an unfused switch-disconnector — it provides manual isolation only and relies entirely on an upstream circuit breaker or fuse for overcurrent and short-circuit protection. The Schneider 28712 is the fused variant in the same current class, integrating fuse holders directly into the switch body. Specify 28712 if your design requires integral fusing for sub-circuit protection within the disconnector itself; specify 28912 when upstream protection is handled separately and only manual isolation is needed at this point in the circuit.

Can the Schneider 28912 protect against overcurrent, or do I need a separate circuit breaker?

A separate upstream circuit breaker or fuse is mandatory — the 28912 provides zero overcurrent protection. It is classified as a manual isolation device under IEC 60947-3, not a protective device. If a short circuit occurs downstream, the 28912 will not trip. Upstream protection rated for your system fault level must be present for the 154 kA coordinated withstand rating to apply; without it, the standalone rating of 20 kA is the effective limit.

How do I know if my upstream protection is rated for 154 kA coordination?

Request the selectivity and coordination tables from your upstream circuit breaker manufacturer, or consult the Schneider Electric coordination guide for the Compact INS160 family. The upstream device must be rated to clear fault currents at or above your system's available fault current, and the combination must be documented as a tested coordination pair. If unsure, Schneider Electric technical support can provide combination verification. Do not assume coordination — document it in your design file.

Is the Schneider 28912 suitable for DC applications, or only AC?

The 28912 is rated for 250 VDC as well as 690 VAC 50/60 Hz. For DC applications, verify your system voltage is at or below 250 VDC and confirm the load type — DC circuits with inductive loads (motor drives, electromagnets) require careful consideration of arc interruption at opening. Consult the datasheet for DC-specific derating or application conditions before specifying for DC use.

What is the typical lead time for this model from a North American distributor?

The standard black rotary handle version (28912) is typically available from stock with a 3–7 business day lead time from authorized distributors. Fused variants, non-standard handle configurations, and special-order versions may require 2–4 weeks factory lead time. Confirm current stock status with your distributor before committing to an installation deadline — availability varies by warehouse location and seasonal demand.

Can I use the Schneider 28912 in a hazardous or classified location?

No. The 28912 is not ATEX certified and is not suitable for Zone 0 or Zone 1 hazardous area classifications. It is rated for standard industrial environments (IP20 front-face protection, -5°C to +40°C ambient, 5–95% non-condensing humidity) installed within an enclosure. For hazardous location isolation requirements, consult Schneider Electric's ATEX-rated product range.

Why Order From LeadTime.ca

  • Ships worldwide — no regional restrictions on sourcing or delivery
  • Pre-sales technical review: coordination verification, model confirmation, and upstream compatibility check before the order is placed
  • Access to full Compact INS family — 28910 through 28913 and fused variants stocked or available on short lead time
  • Volume pricing for multi-unit orders — contact for quote on switchboard builds requiring multiple isolation devices
  • Authorized distributor channel: factory warranty registration, documented supply chain, and after-commissioning support

At-a-Glance Summary

  • Device: Schneider 28912 — Compact INS160 switch-disconnector, 3-pole, 160 A, unfused, black rotary handle
  • Rated voltage: 690 VAC 50/60 Hz or 250 VDC
  • Rated operational current: 160 A at 415 VAC (AC-22A / AC-23A utilization category)
  • Short-circuit capacity: 154 kA coordinated (upstream protection required) / 20 kA standalone
  • Dimensions: 100 mm (H) × 135 mm (W) × 62.5 mm (D) — compact switchboard form factor
  • Standards: IEC 60947-3, CE marked, RoHS compliant
  • Operating temperature: -5°C to +40°C ambient; storage -25°C to +55°C
  • Not suitable for: fused applications (use 28712), 4-pole requirements, ATEX hazardous areas, automatic/remote switching
  • Critical pre-order check: confirm upstream protection coordination rating before purchase
  • Lead time: 3–7 business days from stock (standard version); 2–4 weeks factory for variants
  • Pricing and availability: current figures on the product page at LeadTime.ca — ships worldwide
