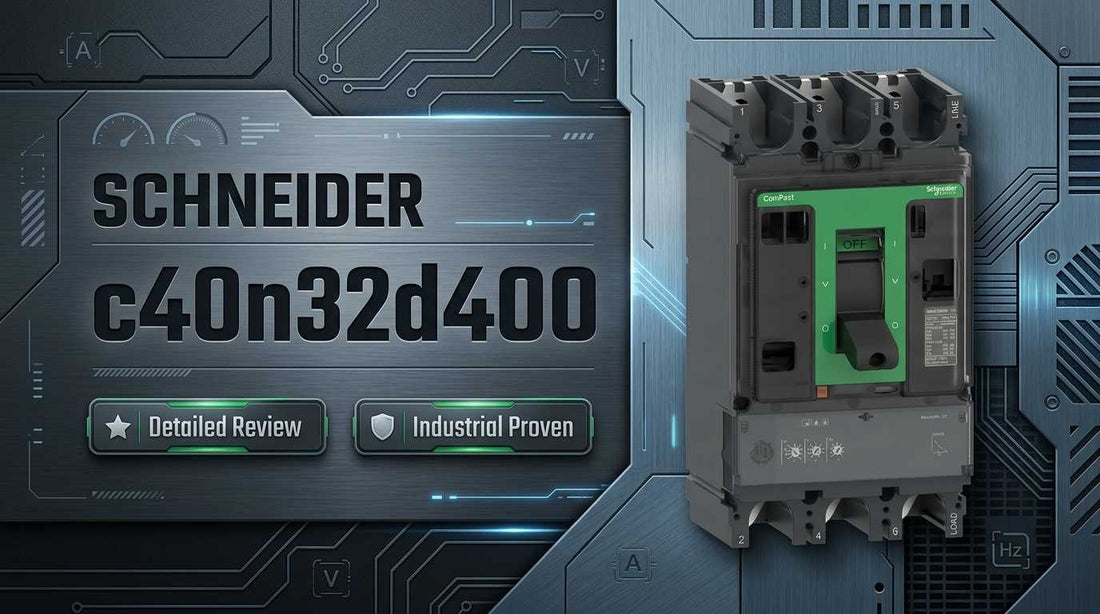

Schneider C40N32D400 ComPacT NSX400N 400A 3-pole MCCB with MicroLogic 2.3 trip unit for industrial feeder protection

Schneider C40N32D400 ComPacT NSX400N Circuit Breaker: Specs & Selection Guide

When a plant engineer or procurement specialist is validating a 400A feeder protection device for a coordinated industrial distribution scheme, the decision usually comes down to two questions: does the breaking capacity cover the actual fault level at this point in the system, and does the trip unit offer enough adjustability to keep the right breaker tripping for the right fault? The Schneider C40N32D400 — a 3-pole, 400A molded case circuit breaker from the ComPacT NSX400N family, rated 50kA at 415VAC with a MicroLogic 2.3 electronic trip unit — is built to answer both questions with a single SKU that satisfies IEC 60947-2 and UL 60947-4-1 simultaneously.

If you have already confirmed this is the correct part for your system, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the C40N32D400 — and Who Shouldn't

The Schneider C40N32D400 is the right choice for engineers and procurement specialists designing or upgrading coordinated feeder protection in industrial facilities. It is a strong fit when all of the following apply to your system:

  • Continuous load current at the feeder is at or below 400A at a 40°C ambient temperature
  • System voltage is 690VAC maximum on an AC 50/60Hz network
  • The calculated 3-phase fault current at the installation point is at or below 50kA at 415VAC (or within the corresponding breaking capacity at your actual operating voltage)
  • Protection selectivity is required — multiple breakers in series need coordinated trip settings to prevent upstream devices from tripping during downstream faults
  • Both IEC 60947-2 and UL 60947-4-1 compliance are required, either for mixed-origin equipment or cross-standard project specifications
  • Mounting is fixed-type and the enclosure accommodates a 140mm x 255mm x 110mm form factor

If your load is below 400A, consider the 250A or 320A variants within the ComPacT NSX family to avoid over-specification. If selectivity is not a design requirement and cost is the primary driver, a thermal-magnetic trip unit variant will deliver overload and short-circuit protection at a lower initial cost without the 9-position electronic adjustability of the MicroLogic 2.3.

On this page:

What the C40N32D400 Actually Does in Your Distribution System

The Schneider C40N32D400 is a molded case circuit breaker (MCCB) occupying the feeder or distribution tier of a medium-voltage AC protection scheme. Its primary function is to interrupt fault current before it can propagate to equipment, personnel, or upstream infrastructure — but what separates it from a basic thermal-magnetic MCCB is how precisely it does that job. The MicroLogic 2.3 electronic trip unit provides three distinct protection functions — long-time (L), short-time (S), and instantaneous (I), collectively the LSoI scheme — each targeting a different segment of the fault-current spectrum.

The long-time function (Ir) covers sustained overloads in the 160–400A range across 9 discrete adjustment positions, with built-in delay curves that accommodate motor inrush without nuisance tripping. The short-time function (Isd) targets intermediate faults at 1.5 to 10 times Ir, also across 9 positions, enabling tight coordination with upstream and downstream devices. The instantaneous function (Ii) is fixed at 4800A and provides unconditional high-speed response to extreme fault events. A thermal memory feature, active for 20 minutes before and after a trip event, prevents the cumulative thermal effect of repeated near-faults from distorting the protection response in cyclic-duty applications.

The C40N32D400 is rated for use as an isolating device per EN/IEC 60947-2, meaning it can serve as the maintenance isolation point for the circuit it protects — not just a protection device. Its 800VAC insulation voltage provides a transient withstand margin above the 690VAC operational ceiling, and the fixed-mounting form factor at 140mm x 255mm x 110mm fits standard industrial panel and switchgear enclosure layouts.

Typical System Architecture for the C40N32D400

The C40N32D400 sits at the feeder or sub-distribution level, downstream of a main incoming circuit breaker or transformer secondary, and upstream of motor starters, drive panels, or load centers. Here is where it typically appears in the system chain:

  • Utility or generator supply feeds a main incoming MCCB or fused switch rated above 400A at the service entrance
  • The C40N32D400 appears as a feeder breaker on one of several outgoing ways from the main distribution board, protecting a branch rated for up to 400A continuous
  • Downstream of the C40N32D400: motor control centers, variable frequency drives, heating loads, or sub-distribution panelboards
  • The MicroLogic 2.3 trip settings are coordinated against both the main upstream breaker (to prevent upstream tripping for local faults) and downstream MCCBs or contactors (to ensure downstream devices handle minor faults first)
  • Control supply to the electronic trip unit is sourced from a stable 24VDC or 110VAC auxiliary supply within the enclosure, separate from the main power circuit

Industries and Applications Where This Breaker Fits

In heavy manufacturing environments — automotive assembly plants, metal fabrication, chemical processing — the C40N32D400 is frequently specified as the feeder protection device on 400A branch circuits serving multiple motor loads or large heating elements. The combination of 50kA breaking capacity at 415VAC and adjustable short-time delay makes it well-suited to installations close to transformer secondaries, where fault levels are highest.

Facilities running parallel utility feeds or on-site generation — tie-line and bus coupler applications — benefit from the electronic adjustability of the MicroLogic 2.3. In these topologies, the short-time coordination between the tie breaker and feeder breakers must be precisely managed to prevent bus faults from cascading; the 9-position Isd setting provides the granularity needed without replacing hardware when load profiles change.

North American facilities operating European-origin equipment at 415VAC represent a specific use case where dual IEC/UL compliance eliminates the need to stock two different breaker types. Data centers, pharmaceutical manufacturing plants, and pulp and paper mills that run 415VAC IEC-standard switchgear alongside North American UL-rated infrastructure find that a single C40N32D400 satisfies both compliance audits.

The C40N32D400 is also a common choice for retrofitting existing ComPacT NSX enclosures where a 400A slot is available and the original thermal-magnetic trip unit is being upgraded to electronic for improved selectivity. The fixed-mounting form factor is compatible with the existing NSX400 enclosure dimensions.

Application Typical Deployment
Industrial feeder protection 400A outgoing feeder in main distribution board serving motors and process loads in manufacturing plant
Transformer secondary protection Incoming breaker on secondary side of 415VAC transformer where fault level approaches 50kA
Parallel generator / utility tie Bus coupler breaker in dual-feed system; coordinates with both upstream and downstream devices using adjustable Isd
IEC/UL mixed-standard facility Single breaker SKU satisfying both European and North American compliance audits in multinational plant
NSX switchgear retrofit Electronic trip upgrade in existing ComPacT NSX400 enclosure replacing thermal-magnetic unit
Data center or pharmaceutical plant Critical feeder protection where nuisance tripping must be minimized through precise LSoI coordination

Key Electrical Ratings and Breaking Capacity

Parameter Value Notes
Rated Continuous Current 400A at 40°C Derate at ambient temperatures above 40°C
Rated Operational Voltage 690VAC, 50/60Hz Maximum; AC networks only
Rated Insulation Voltage 800VAC Transient withstand margin above operational ceiling
Breaking Capacity at 220/240VAC 85kA (IEC 60947-2); 85kA (UL 60947-4-1) Highest breaking capacity in the voltage range
Breaking Capacity at 380/415VAC 50kA (IEC 60947-2) Primary specification for industrial distribution
Breaking Capacity at 440VAC 42kA (IEC); 50kA (UL 60947-4-1) North American industrial standard voltage
Breaking Capacity at 660/690VAC 10kA (IEC 60947-2) Significantly reduced at maximum operational voltage
Number of Poles 3P Three-phase configuration
Dimensions (W x H x D) 140mm x 255mm x 110mm Fixed mounting; verify enclosure clearance
Compliance Standards EN/IEC 60947-2; UL 60947-4-1 Dual-standard compliance; IEC and North American

Full technical specifications are available on the product page at LeadTime.ca.

MicroLogic 2.3 Trip Unit: Protection Settings and Coordination Logic

The MicroLogic 2.3 electronic trip unit is what differentiates the C40N32D400 from lower-cost thermal-magnetic alternatives in the ComPacT NSX400 frame. Both the long-time pickup (Ir) and short-time pickup (Isd) are adjustable across 9 discrete positions — a design that allows protection engineers to align the breaker's response curve with the specific load profile and upstream coordination requirements of the system without replacing any hardware.

The long-time function covers the 160–400A range with fixed delay curves: at 1.5 times Ir, the trip delay is 400 seconds; at 6 times Ir, it reduces to 16 seconds; at 7.2 times Ir, to 11 seconds. These delay curves are predefined by the trip unit firmware and do not require field adjustment — they are engineered to tolerate motor inrush and other legitimate current transients without tripping. The short-time function (Isd) operates in the range of 1.5 to 10 times Ir on a predefined fast-response curve, providing sub-cycle protection for intermediate faults while preserving selectivity with upstream devices. The instantaneous function (Ii) is fixed at 4800A — it cannot be adjusted and is intended as unconditional backup for extreme short-circuit events.

The thermal memory feature deserves specific attention for cyclic-duty applications. Active for 20 minutes both before and after a trip event, it prevents the electronic trip unit from being fooled by the cumulative thermal effect of repeated near-faults or frequent load cycling. Without thermal memory, a breaker that has seen multiple near-overload events in quick succession might trip on the next legitimate load start even though no single event exceeded the thermal threshold. The 20-minute window clears this accumulated state and resets the protection baseline — an important consideration for loads that cycle frequently, such as large HVAC compressors or batch process heating elements.

C40N32D400 vs. Other ComPacT NSX Variants: Which One Do You Need?

Model Current Rating Trip Unit Type Breaking Capacity (415VAC) Best For Key Limitation
C40N32D400 (this model) 400A MicroLogic 2.3 Electronic 50kA Coordinated feeder protection; adjustable selectivity; IEC/UL dual compliance Premium cost over thermal-magnetic; requires control supply
C40N32D250 (250A variant) 250A MicroLogic 2.3 Electronic 50kA Lower current rating for smaller loads or tighter downstream coordination Not suitable where load reaches 400A
C40N25D320 (320A variant) 320A MicroLogic 2.3 Electronic 50kA Mid-range current; when 400A exceeds system requirements Not a drop-in if 400A slot must be fully utilized
NSX400 with StandardTripUnit 400A Thermal-Magnetic 50kA Cost-sensitive applications; simple non-coordinated distribution Fixed settings; less selectivity; wider trip hysteresis
NSX400 with EverLink 400A Electronic (communication-capable) 50kA Smart grid or remote monitoring; advanced coordination with SCADA integration Requires IT infrastructure; more complex commissioning

If your load requires the full 400A continuous rating and protection selectivity is critical to your coordination scheme, the C40N32D400 with MicroLogic 2.3 is the correct choice — check current availability at LeadTime.ca. If your actual load is below 400A, review the 250A or 320A variants to avoid over-specification and the associated cost premium.

Expert Verdict: Is This the Right MCCB for Your Project?

The Schneider C40N32D400 belongs in the hands of plant engineers and electrical contractors who are building or retrofitting multi-tier protection schemes where nuisance tripping is a real operational cost. The MicroLogic 2.3 trip unit's 9-position adjustability for both Ir and Isd means the protection curves can be tuned to the actual system — not approximated with fixed thermal-magnetic thresholds. The dual compliance with both IEC 60947-2 and UL 60947-4-1 is not a marketing note; it is a genuine procurement advantage for North American facilities running European-origin switchgear, eliminating the need to maintain two separate breaker SKUs for the same frame size. The 50kA breaking capacity at 415VAC, combined with the instantaneous fixed at 4800A, means this breaker belongs in high-fault-level environments — near transformer secondaries, in parallel-feed tie applications, and in installations where fault levels have been calculated and confirmed to reach that threshold.

Where the C40N32D400 is the wrong choice: if your load is well below 400A continuous, you are paying for a rating margin that adds cost without operational benefit — look at the 250A or 320A NSX variants. If your system is a single-level non-coordinated distribution with no upstream or downstream protection interdependencies, the thermal-magnetic StandardTripUnit variant delivers the necessary overload and fault protection at a meaningfully lower initial cost. The 9-position electronic adjustability adds no value in a system with one protection tier. For applications demanding 65kA or higher breaking capacity at 415VAC, the ComPacT NSX PowerPact H frame is the appropriate step up — it is not a drop-in replacement for the NSX400 footprint, but it serves the higher fault level. Also verify that a control supply voltage is available for the electronic trip unit; without it, the MicroLogic 2.3 cannot function as designed.

From a procurement standpoint, industrial-class MCCBs in the 400A electronic trip category typically carry lead times in the 2–6 week range depending on distributor stock position — order early if this device is on a project critical path. The cost premium over thermal-magnetic alternatives is real, typically in the 20–30% range, but for coordinated systems the reduction in nuisance trips and unplanned outages frequently recovers that premium within the first year of operation. To confirm current stock status and lead time before committing to a project timeline, view the product page at LeadTime.ca — the team ships worldwide and can advise on availability before you finalize your order.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the C40N32D400

Because community discussion specific to the C40N32D400 is sparse in the standard industrial automation forums, the most reliable pre-order guidance comes from the technical documentation and from the experience of specialist distributors who configure and commission this class of breaker regularly. What follows reflects the patterns engineers encounter most often when specifying a 400A electronic MCCB in coordinated industrial systems — the details that do not appear on the datasheet but matter at the point of commissioning.

The single most frequent source of field problems with the MicroLogic 2.3 is not hardware failure — it is misconfigured trip coordination. Engineers who accept factory-default Ir and Isd settings without mapping them against the upstream and downstream protection curves end up with the wrong breaker tripping during sub-fault events. The long-time setting at its factory position may not account for the actual peak demand profile of the connected load, and the short-time setting may overlap with the upstream device's response zone. The 9-position adjustability of both functions is only valuable if the settings are deliberately chosen against a protection coordination plan. If you do not have time-current curve data for every device in the protection chain, this is the moment to request it from the system designer or consult a specialist before commissioning.

The second pattern is the ambient temperature oversight. The 400A continuous rating is referenced to 40°C ambient. In enclosures located near furnaces, in tropical climates, or in poorly ventilated switchrooms, actual ambient can reach 55°C or higher. At those temperatures the effective continuous current capacity is reduced — and if the Ir setting has not been adjusted downward to compensate, the breaker will trip during legitimate peak load events that would have been well within its derated capacity. Verify the actual enclosure ambient temperature before finalizing the Ir setting. The rated operating range is -25°C to +70°C, but the 400A continuous figure applies specifically at 40°C.

When community data is thin and documentation questions arise at the point of order, specialist distributors like LeadTime.ca provide technical guidance that generic electrical supply channels typically do not — including coordination worksheets, confirmation of trip unit configuration requirements, and cross-checking against your existing ComPacT NSX or third-party infrastructure. That consultation is part of why specifying through a specialist distributor matters for this class of device, not just the order itself.

Installation and Wiring Overview

  • Verify system voltage, calculated 3-phase fault current, and ambient temperature against the C40N32D400's ratings before mounting; do not proceed if fault current exceeds breaking capacity at your operating voltage
  • Route incoming phase conductors to the top (line-side) terminals and load conductors to the bottom (load-side) terminals; observe the 140mm x 255mm x 110mm form factor clearance requirements within the enclosure
  • Configure the MicroLogic 2.3 Ir selector (9-position, 160–400A range) and Isd selector (9-position, 1.5–10x Ir) per the protection coordination plan before energizing — do not leave at factory default without review
  • Connect control supply voltage to the electronic trip unit terminals if external tripping or release functions are required; without control supply, external coil functions will not operate
  • Perform a manual toggle trip test after installation and before load connection to verify mechanical operation; confirm toggle returns to OFF position instantly and resets cleanly

Engineers requiring full wiring diagrams, conductor sizing tables, and detailed installation procedures should refer to the Schneider Electric installation manual for the ComPacT NSX400N series.

Wrong-Part Prevention Checklist

Before placing an order for the Schneider C40N32D400, work through each of the following checks to confirm this is the correct device for your application:

  1. Verify system operational voltage matches 690VAC maximum rating; do not use in systems above this voltage
  2. Confirm breaking capacity required is 50kA or below at your actual system voltage (50kA at 415VAC; 42kA at 440V; 30kA at 500V; 22kA at 525V; 10kA at 660/690V per IEC 60947-2)
  3. Confirm load current does not exceed 400A continuous at 40°C ambient temperature
  4. Verify mounting method is fixed-type and compatible with your panel or enclosure design
  5. Check that control voltage for electronic trip unit is available (no manual-only override option)
  6. Ensure application is AC network (not DC) with 50/60Hz frequency
  7. Confirm front-face electrical shock protection (Class II) and IP40 degree of protection meet environmental requirements
  8. Verify 18-month warranty period is acceptable or confirm extended warranty availability before ordering

If any item on this checklist raises a question about fit, contact the LeadTime.ca team before ordering — the team can confirm compatibility and help identify the correct variant if a different specification is required.

Frequently Asked Questions

Does the C40N32D400 breaking capacity of 50kA apply at all system voltages, or does it change?

The 50kA breaking capacity applies specifically at 380/415VAC per IEC 60947-2. The rating scales with voltage: 85kA at 220/240VAC, 42kA at 440VAC, 30kA at 500VAC, 22kA at 525VAC, and 10kA at 660/690VAC. Always verify the breaking capacity at your actual system voltage — not the headline 50kA figure — before confirming this breaker meets your fault-level requirement.

Can the instantaneous trip threshold (Ii) on the MicroLogic 2.3 be adjusted in the field?

No. The instantaneous function (Ii) is fixed at 4800A and cannot be adjusted by the user. Only the long-time (Ir) and short-time (Isd) functions offer 9-position adjustment. If your protection scheme requires a different instantaneous threshold, a different trip unit type or frame may be required — consult with a protection engineer before specifying.

Is the C40N32D400 a direct replacement for an existing ComPacT NSX400 with a thermal-magnetic trip unit?

The C40N32D400 uses the same NSX400 fixed-mounting frame at 140mm x 255mm x 110mm, so it physically fits in an existing ComPacT NSX400 enclosure designed for fixed mounting. However, the MicroLogic 2.3 electronic trip unit requires a control supply voltage that a thermal-magnetic installation may not have wired. Verify that control supply is available and that existing conductors are sized appropriately before treating it as a direct swap.

What does the thermal memory feature actually prevent, and when does it matter?

Thermal memory retains the accumulated thermal state of the electronic trip unit for 20 minutes before and after a trip event. In cyclic-duty applications — loads that start and stop frequently, or systems that have experienced repeated near-fault events — this prevents the trip unit from falsely interpreting a legitimate load start as an overload because the internal thermal model has already been partially charged. It is most relevant in applications like large HVAC compressors, batch process heating loads, or systems with frequent manual starts. In steady-state continuous loads, its effect is minimal.

What ambient temperature range is the C40N32D400 rated for, and how does high ambient affect the 400A rating?

The C40N32D400 operates across -25°C to +70°C ambient temperature. The 400A continuous current rating is referenced specifically to 40°C ambient. At higher ambient temperatures the effective current capacity decreases — if installed in a location where ambient regularly exceeds 40°C, the Ir setting and load sizing must account for this derating to avoid nuisance tripping under legitimate load conditions. Consult the Schneider Electric derating curves in the product documentation for precise values at your installation temperature.

Does the C40N32D400 meet both IEC and UL standards, and does that matter for a North American installation?

Yes — the C40N32D400 conforms to both EN/IEC 60947-2 and UL 60947-4-1. For a North American facility operating European-origin equipment at 415VAC, or for a project that must satisfy both standard families during inspection and compliance audit, this dual rating means a single SKU covers both requirements. It also reduces spare parts inventory complexity in multinational operations where both standard families are present in the same facility.

Why Order From LeadTime.ca

  • Ships worldwide — no geographic restriction on order origin or delivery destination
  • Specialist industrial automation distributor with technical familiarity across ComPacT NSX configurations and MicroLogic trip unit variants
  • Volume pricing available on request for project or panel builder quantities
  • Responsive quoting for lead time confirmation before project timelines are committed
  • Sourcing support for hard-to-find variants and accessories within the ComPacT NSX family

At-a-Glance Summary

  • Schneider C40N32D400: 3-pole, 400A continuous at 40°C ambient, 690VAC maximum operational voltage
  • Breaking capacity: 85kA at 220/240VAC, 50kA at 415VAC, 42kA at 440VAC, 10kA at 660/690VAC per IEC 60947-2
  • MicroLogic 2.3 electronic trip unit: Ir adjustable 160–400A across 9 positions; Isd adjustable 1.5–10x Ir across 9 positions; Ii fixed at 4800A
  • Thermal memory: 20-minute window before and after trip event for cyclic-duty coordination
  • Rated insulation voltage: 800VAC; IP40 environmental protection; IK07 mechanical impact rating
  • Overvoltage category III; pollution degree 3 per IEC 60664-1; ambient operating range -25°C to +70°C
  • Dual compliance: EN/IEC 60947-2 and UL 60947-4-1; suitable for mixed IEC/North American facilities
  • Fixed mounting type; dimensions 140mm x 255mm x 110mm; net weight 6.05 kg
  • 18-month manufacturer warranty from date of shipment
  • Typical lead time for this class of MCCB: 2–6 weeks depending on distributor stock; verify before committing project timeline
