Schneider C63N32D630 ComPacT NSX630N — 630A MCCB Selection Guide

By Abdullah Zahid
13 min read

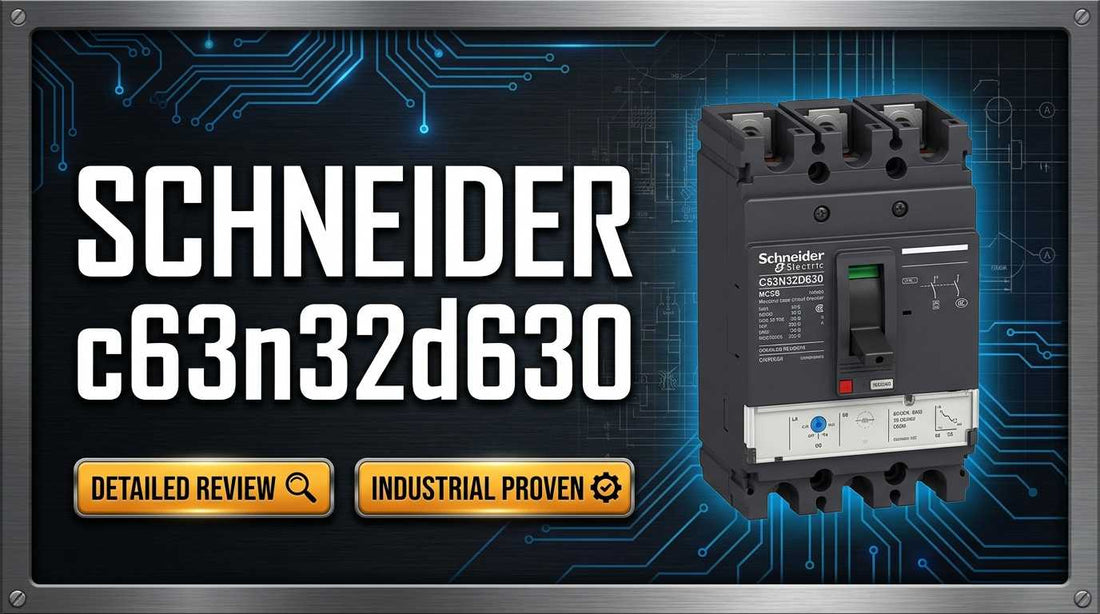

Schneider Electric C63N32D630 ComPacT NSX630N 630A molded case circuit breaker with MicroLogic 2.3 trip unit for industrial power distribution

Schneider C63N32D630 Circuit Breaker ComPacT NSX630N, 50kA at 415VAC, MicroLogic 2.3 Trip Unit 630A, 3 Poles 3d — Specifications, Pricing, and Selection Guide

When an electrical engineer or procurement specialist searches for the Schneider C63N32D630, the decision is typically already well advanced — the system voltage is known, the load is calculated, and the question is whether this specific molded case circuit breaker meets the fault interruption and protection requirements before the purchase order is placed. The C63N32D630 is a 630A three-phase MCCB from the ComPacT NSX new generation family, rated for 50 kA breaking capacity at 415V AC and equipped with a MicroLogic 2.3 electronic trip unit that adds load diagnostics and precise fault detection to a fixed-mount breaker built for heavy industrial distribution duty.

If you have already confirmed this is the right part, check current pricing and availability for the C63N32D630 at LeadTime.ca — ships worldwide.

Who Should Buy the C63N32D630 — and Who Shouldn't

This breaker is the right choice for engineers and panel builders specifying main protection in three-phase industrial or commercial power distribution systems where continuous load approaches 630A and site fault levels are confirmed below 50 kA at 415V AC.

  • Your system continuous load current matches or approaches 630A at 40°C ambient
  • Available fault current at the installation point has been verified at or below 50 kA at 415V AC
  • Application requires a 3-pole, 3-phase configuration — not single-phase
  • Electronic trip protection with MicroLogic 2.3 LSoI diagnostics is specified or preferred over thermal-magnetic alternatives
  • Fixed mounting is acceptable and the panel accommodates a 16.0 cm wide, 29.5 cm deep ComPacT NSX form factor
  • EN/IEC 60947-2 isolation compliance is required for equipment maintenance isolation

If your site fault level exceeds 50 kA, this model is not the correct choice — a higher-capacity variant such as the C63N32D800 (80 kA rated) is required. If your load is substantially below 630A, lower-rated models in the same family (C63N25D630 at 250A or C63N16D630 at 160A) reduce cost without sacrificing protection quality.

On this page:

What the C63N32D630 Actually Does in a Power System

The Schneider C63N32D630 is a molded case circuit breaker — the class of device that serves as both the overcurrent protection element and the manual isolation point for large industrial and commercial circuits. In a three-phase distribution system, it sits between the upstream supply and the downstream loads or sub-distribution panels, and its job is twofold: carry up to 630A continuously without tripping, and interrupt fault currents up to 50 kA at 415V AC fast enough to prevent equipment damage and electrical hazard.

What distinguishes this model from lower-cost thermal-magnetic alternatives is the MicroLogic 2.3 electronic trip unit. Where a thermal-magnetic breaker relies on bimetallic strips and magnetic coils with fixed response curves, the MicroLogic 2.3 uses electronic sensors and programmable thresholds to deliver LSoI protection — Load monitoring, Short-circuit protection, Overload protection, and Isolation function. This means the trip unit can be configured with specific overload and short-circuit pickup levels rather than depending on fixed factory calibration, and it can provide condition data that maintenance teams and facility management systems can act on proactively.

The ComPacT NSX form factor lives up to its name in dense distribution panels. At 16.0 cm wide and 29.5 cm deep, and weighing 5.67 kg, the C63N32D630 offers genuine space efficiency for a 630A breaker, which matters in retrofit projects where enclosure real estate is already constrained. Fixed mounting means it bolts directly into the distribution panel or switchgear frame — there is no withdrawable cassette mechanism, which simplifies the installation but means replacement requires a panel shutdown rather than hot-swap.

Typical System Architecture for the NSX630N

The C63N32D630 typically sits at the feeder protection or sub-main level of a three-phase industrial distribution system, downstream of the main incoming supply and upstream of motor control centers, distribution boards, or large process loads.

  • Utility or generator supply feeds the main incoming switchboard or transformer secondary
  • Upstream protective device (main incomer breaker or fuse) provides upstream backup protection and selectivity coordination
  • C63N32D630 installed as feeder or sub-main breaker protecting the downstream distribution zone, motor control center, or process section
  • MicroLogic 2.3 trip unit connects to facility SCADA or building management system for load monitoring and fault data (if monitoring integration is specified)
  • Downstream loads: large motors, sub-distribution panels, process equipment drawing up to 630A continuous three-phase current

Typical Applications and Deployment Scenarios

In manufacturing environments, the C63N32D630 appears most frequently as a feeder breaker in motor control centers protecting large drive systems, compressors, or process line equipment drawing heavy three-phase loads. The 50 kA breaking capacity at 415V AC handles the fault levels typical in medium to large industrial facilities where transformer impedance is low and fault current can be significant.

Utilities and large commercial operators use the NSX630N as a zone protection device in distribution boards serving production floors, data center UPS feeds, or campus sub-distribution — anywhere a 630A main requires electronic trip diagnostics for predictive maintenance rather than reactive failure response.

Retrofit projects are a strong use case. Facilities upgrading from older thermal-magnetic breakers to gain load monitoring and predictive maintenance capability find the C63N32D630 a practical upgrade path within the ComPacT NSX footprint, particularly where the compact form factor fits existing enclosures without structural modification.

Chemical processing, pharmaceutical, and food processing plants specify this model where EN/IEC 60947-2 isolation compliance is mandatory for safe equipment lockout — the breaker's rated isolation function meets this requirement by the manufacturer's own compliance documentation.

Application Typical Deployment
Manufacturing plant motor control center Sub-main feeder protection for large drive and motor loads, 415V three-phase
Utility or power distribution operator Zone distribution breaker in switchgear with MicroLogic diagnostics for load management
Retrofit and upgrade project Replacing legacy thermal-magnetic breaker to add electronic trip and load monitoring capability
Chemical or pharmaceutical facility Main protection with EN/IEC 60947-2 isolation for safe equipment lockout and maintenance
Large commercial building or data center Sub-distribution main breaker for high-density three-phase load zones
New facility or plant expansion design Designed-in feeder protection where fault levels are known and space optimization is a requirement

Key Technical Specifications and Variant Comparison

Parameter Value
Rated Current (In) 630 A at 40°C ambient
Rated Voltage (Ue) 690 V AC, 50/60 Hz
Breaking Capacity (Icu) 50 kA at 415V AC — Performance Level N
Network Type AC 3-phase
Trip Unit MicroLogic 2.3 — electronic, LSoI functions
Poles / Protected Poles 3P / 3D (all three phases protected)
Utilisation Category Category A — general industrial distribution
Suitability for Isolation Yes — conforms to EN/IEC 60947-2
Width / Depth 16.0 cm / 29.5 cm, fixed mounting
Weight 5.67 kg

Full technical specifications are available on the product page at LeadTime.ca.

Model Current Rating Trip Unit Poles Best For
C63N16D630 160 A MicroLogic 2.0 3P Smaller industrial feeder circuits
C63N25D630 250 A MicroLogic 2.0 3P Medium load distribution panels
C63N32D630 630 A MicroLogic 2.3 3P Heavy industrial circuits — this model
Higher ratings 1000 A+ Various 3P Very large industrial systems

If your continuous load sits comfortably below 630A and the MicroLogic 2.3 diagnostic functions are not required, the C63N25D630 or C63N16D630 reduce cost while staying within the same ComPacT NSX product family. If your site fault level approaches or exceeds 50 kA, a higher-capacity variant is the correct specification — check availability and confirm the right model at LeadTime.ca.

Expert Verdict: Is the C63N32D630 Worth the Premium Over Thermal-Magnetic?

The C63N32D630 is unambiguously the right product for industrial and large commercial engineers who need a 630A fixed-mount MCCB with confirmed fault interruption capacity at 50 kA and electronic trip diagnostics they can actually use. The MicroLogic 2.3 trip unit's LSoI protection functions — providing load monitoring alongside short-circuit, overload, and isolation capability — represent a meaningful operational advantage in facilities where maintenance teams are moving toward predictive maintenance and SCADA integration. Panel builders specifying reliable protection for motor control centers or distribution boards in manufacturing, chemical processing, pharmaceutical, or utility environments will find the ComPacT NSX form factor a practical choice, particularly in retrofit projects where the 16.0 cm width and 29.5 cm depth fit existing enclosures without structural changes.

The honest limits are equally straightforward. The C63N32D630's 50 kA breaking capacity at 415V AC is adequate for most medium-to-large industrial environments, but facilities with available fault levels that approach or exceed 50 kA must step up to a higher-capacity variant — there is no safety margin to negotiate away, and this is the single specification that must be verified before any order is placed. For cost-sensitive applications where load monitoring and electronic trip diagnostics are not required, thermal-magnetic breakers in the same current class deliver the core overcurrent protection function at lower capital cost. Similarly, sites with available fault levels substantially below 50 kA may find 630A to be oversized if the actual continuous load is closer to 250A or 400A — the C63N25D630 or an appropriately rated thermal-magnetic alternative may be the more economical specification.

From a procurement standpoint, 630A molded case circuit breakers are not commodity shelf items. Lead times for industrial-grade MCCBs in this class can range from weeks to months depending on regional stock and current demand — verifying real-time availability before finalizing a project schedule is worth doing early in the procurement cycle. Sourcing through a specialist industrial distributor provides pre-sales technical validation that confirms the correct part number and breaking capacity against your system data, avoiding the cost and schedule impact of a return or re-specification. Check current stock status and pricing for the C63N32D630 at LeadTime.ca — the team ships worldwide and can confirm lead time before you commit to a build schedule.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the C63N32D630

Community forum discussions on the C63N32D630 and ComPacT NSX630N family are sparse — this is not the kind of product that generates hobbyist debate or general-purpose troubleshooting threads. It is a specialist industrial protection device, and the questions that matter most when ordering it are technical and project-specific. What follows draws on the documented ordering mistakes and specification traps that apply to this model category, based on the kind of pre-sales questions specialist distributors handle routinely.

The most consequential confusion in this product class is between the breaking capacity figure and the continuous current rating. The 50 kA value printed on the specification sheet refers to the maximum instantaneous fault current the breaker can safely interrupt — it is not the operating current. The continuous current rating is 630A. Procurement teams working from partial specification notes sometimes transpose these figures, leading to incorrect specifications reaching the purchase order stage. When reviewing any quote or order for the C63N32D630, confirm explicitly that the order references 630A continuous rating and 50 kA interrupting capacity as two distinct values.

The second category of ordering error involves the MicroLogic trip unit version. The C63N32D630 ships with MicroLogic 2.3 as standard. Earlier versions — MicroLogic 2.0 and 2.2 — have different diagnostic capability profiles and may create compatibility issues if mixed into a system where monitoring integration is planned. If a supplier quotes a variant with a different trip unit designation, treat it as a potential substitution requiring explicit technical review before accepting. The exact catalog number C63N32D630 locks the MicroLogic 2.3 specification; a different suffix means a different product. When in doubt, the LeadTime.ca team can cross-reference catalog numbers and confirm the correct unit before an order is placed.

Installation and Wiring Overview

The following points cover the essential installation considerations for the C63N32D630. For complete wiring diagrams, torque specifications, and full commissioning procedures, refer to the official Schneider Electric installation documentation for the ComPacT NSX series.

  • The C63N32D630 uses fixed mounting — it bolts directly to the distribution panel or switchgear frame; confirm the enclosure accepts the ComPacT NSX630N form factor at 16.0 cm wide and 29.5 cm depth before installation
  • Feeder cables must be sized for 630A continuous current per applicable electrical codes; cable sizing must be coordinated with the breaker rating, not the other way around
  • The MicroLogic 2.3 trip unit requires configuration after installation — overload pickup and short-circuit protection levels should be set in coordination with upstream and downstream protection devices to maintain selectivity
  • If SCADA or facility management system integration is planned, verify control voltage compatibility and communication interface requirements before mounting and terminating
  • After installation, perform a functional test verifying MicroLogic 2.3 trip unit response to test signals and confirm isolation function operates correctly per EN/IEC 60947-2 compliance requirements before energizing the downstream circuit

Wrong-Part Prevention Checklist Before Ordering the C63N32D630

Run through every item on this checklist before finalizing your order — each point corresponds to a real specification mismatch that has resulted in incorrect orders or unsafe installations in this product class.

  1. Confirm system operating voltage is 415V AC 50/60 Hz
  2. Verify continuous load current matches or approaches 630A rating
  3. Check available fault level at installation site does not exceed 50 kA breaking capacity
  4. Ensure application requires 3-pole 3-phase configuration (not single-phase)
  5. Confirm installation space accommodates 16 cm width and 29.5 cm depth fixed mounting
  6. Validate trip unit is MicroLogic 2.3 (not earlier versions 2.0 or 2.2)
  7. Verify compatibility with control voltage and monitoring system requirements
  8. Confirm existing distribution panel accepts ComPacT NSX630N form factor

If any item on this checklist raises a question before your order is confirmed, contact the LeadTime.ca team — pre-sales technical validation is part of the service, and it costs nothing to verify before you commit.

Frequently Asked Questions

Does the 50 kA breaking capacity of the C63N32D630 mean it can carry 50 kA continuously?

No — these are two entirely separate ratings. The 50 kA figure is the maximum instantaneous fault current (Icu) the breaker can safely interrupt in a short-circuit event. The continuous current rating is 630A at 40°C ambient. Confusing these two values is the most common ordering error in this product class. Always match your continuous system load to the 630A rating and your site fault level to the 50 kA breaking capacity independently.

What happens if the available fault current at my installation site exceeds 50 kA — can I still use the C63N32D630?

No. If the available fault level at the installation point exceeds the 50 kA rated breaking capacity, the C63N32D630 is not suitable for that location. An under-rated breaker may fail to interrupt the fault safely, creating a serious electrical hazard. In this scenario, specify a higher-capacity variant — the C63N32D800 (80 kA) is the referenced alternative — or implement current-limiting devices upstream to reduce the available fault current below 50 kA at the breaker location.

Can I use a MicroLogic 2.0 or 2.2 trip unit as a substitute to reduce cost on a C63N32D630 installation?

The C63N32D630 is specified with MicroLogic 2.3 as the integral trip unit — the catalog number itself encodes this. Substituting a different MicroLogic version creates compatibility risks with control systems and eliminates the diagnostic and load monitoring capability that differentiates this model from lower-cost alternatives. If cost reduction is the objective, consider specifying a lower current-rated model (such as C63N25D630) rather than substituting trip unit technology.

Is the C63N32D630 rated for isolation duty — can I use it as a maintenance lockout isolation point?

Yes. The C63N32D630 is confirmed suitable for isolation, conforming to EN/IEC 60947-2 international safety standard. This means it can legally and safely serve as a manual isolation point for equipment maintenance and lockout/tagout procedures in systems designed to that standard. Verify that local electrical codes and facility safety procedures recognize EN/IEC 60947-2 compliance for your specific application.

What is a realistic lead time for the C63N32D630, and should I build buffer into my project schedule?

Lead times for 630A industrial MCCBs in this class can range from weeks to months depending on regional stock levels and current market demand — this is not a product where same-week delivery can be assumed without confirming live inventory. Building procurement lead time into your project schedule is strongly recommended. Check current availability at LeadTime.ca early in the project cycle to avoid schedule impact.

Is the C63N32D630 a direct physical replacement for an older ComPacT NSX630 breaker in an existing enclosure?

The ComPacT NSX new generation maintains consistent form factor dimensions within the product family, which is a key benefit in retrofit applications. However, before treating it as a drop-in replacement, confirm the existing enclosure mounting accepts the 16.0 cm width and 29.5 cm depth of the fixed-mount configuration, and verify that the MicroLogic 2.3 trip unit interfaces correctly with any existing control wiring or monitoring connections from the original installation. Consult the Schneider Electric documentation for the specific predecessor model to confirm dimensional and wiring compatibility.

Why Order From LeadTime.ca

  • Ships worldwide — no geographic restriction on sourcing industrial automation and power distribution components
  • Real-time inventory visibility on hard-to-find industrial MCCBs and specialist protection devices where marketplace channels offer no stock confirmation
  • Pre-sales technical support validates catalog numbers, breaking capacity requirements, and trip unit compatibility before you place the order
  • Volume pricing available — contact the team directly for project quantities or repeat procurement programs
  • Specialist distributor expertise covers post-sale questions on MicroLogic trip unit configuration and commissioning that standard retail channels cannot address

C63N32D630 At-a-Glance Summary

  • Molded case circuit breaker: ComPacT NSX630N, 3-pole 3-phase, fixed mounting
  • Continuous current rating: 630A at 40°C ambient
  • Breaking capacity (Icu): 50 kA at 415V AC — Performance Level N per IEC standard
  • Rated voltage (Ue): 690V AC, 50/60 Hz
  • Trip unit: MicroLogic 2.3 electronic — LSoI protection (Load, Short-circuit, Overload, Isolation)
  • Utilisation Category A — general industrial power distribution duty
  • Suitability for isolation: Yes, EN/IEC 60947-2 compliant
  • Physical dimensions: 16.0 cm wide, 29.5 cm deep, 5.67 kg
  • Key ordering check: verify site fault level does not exceed 50 kA before finalizing specification
  • Alternative for higher fault levels: C63N32D800 (80 kA variant)
  • Alternative for lower loads: C63N25D630 (250A) or C63N16D630 (160A)
