Schneider C16F3TM160 — 160A 36kA MCCB Specs & Buyer's Guide

By Abdullah Zahid
15 min read

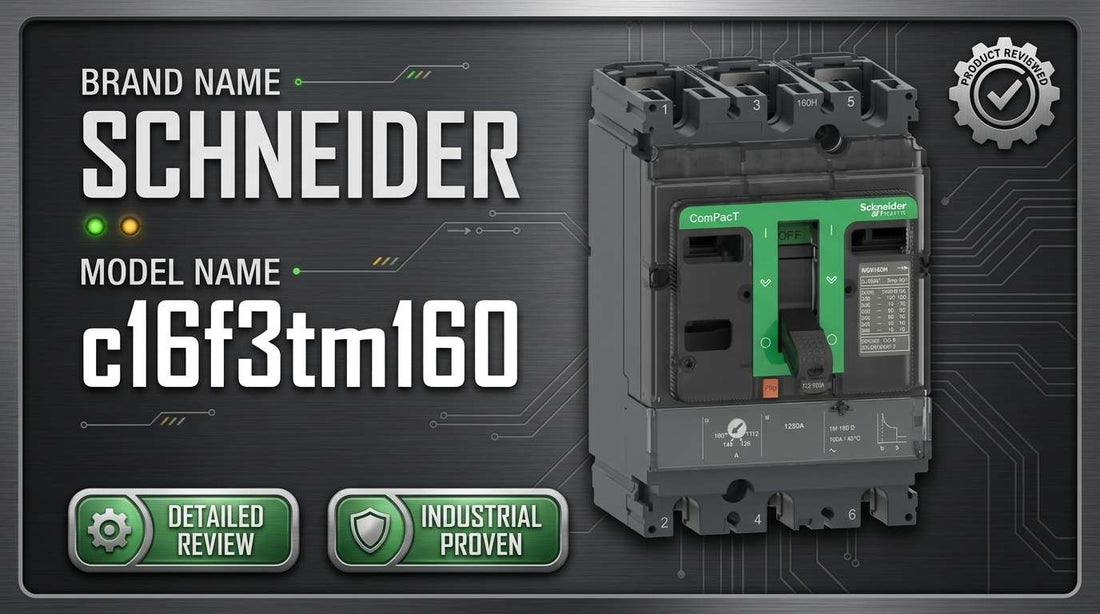

Schneider Electric C16F3TM160 ComPacT NSX160F 160A 36kA 3-pole molded case circuit breaker for industrial distribution panels

Schneider Electric C16F3TM160 Circuit Breaker: 160A 36kA 3-Pole ComPacT NSX160F Specs, Alternatives and Buyer's Guide

If you are sourcing a three-pole molded case circuit breaker for a 415VAC industrial distribution system and the part number C16F3TM160 is on your bill of materials, this guide gives you what you need to confirm the specification, avoid the most costly ordering mistakes, and move your procurement forward with confidence. The Schneider Electric C16F3TM160 is a fixed-frame three-pole MCCB from the ComPacT NSX160F platform, rated at 160 amperes continuous with a 36 kA breaking capacity at 415VAC and a fixed TMD thermal-magnetic trip unit — a combination that covers the vast majority of transformer secondary and main feeder protection requirements in industrial and commercial three-phase installations.

If you have already confirmed this is the correct part for your system, check current pricing and availability for the C16F3TM160 at LeadTime.ca — we ship worldwide.

Who Should Buy the C16F3TM160 — and Who Shouldn't

The Schneider Electric C16F3TM160 is the right choice for engineers and procurement teams who can confirm all of the following:

  • System line-to-line voltage is 415VAC three-phase (not 380VAC, 480VAC, or any single-phase supply)
  • Circuit load current requires exactly 160A nominal continuous protection — not 100A, 125A, or 200A
  • Available fault current at the point of installation does not exceed 36 kA at 415VAC
  • A fixed TMD thermal-magnetic trip unit is appropriate — no adjustable or electronically programmable settings are required
  • The ComPacT NSX160F frame size fits the existing or planned switchgear cabinet opening
  • Project schedule accommodates a 4 to 12 week lead time from order to delivery

If your system voltage is 480VAC, your fault level exceeds 36 kA, or you need adjustable trip settings, this is not the correct variant. The TM-D adjustable trip unit variant or the NSX250 frame are more appropriate alternatives — both discussed in the comparison section below.

On this page:

What the C16F3TM160 Does in a Real Electrical System

The Schneider Electric C16F3TM160 is a molded case circuit breaker — a class of device distinctly different from miniature circuit breakers (MCBs) used for branch circuits. MCBs typically handle currents under 63A and are used downstream in lighting or small power circuits. The C16F3TM160 sits upstream, handling the heavy work: protecting the main feeder, the transformer secondary, or the generator output circuit from both sustained overload and high-energy short-circuit faults. Its 36 kA breaking capacity means it can safely interrupt a fault current of up to 36,000 amperes at 415VAC without catastrophic failure — a capability certified to IEC 60947-2, the international standard for industrial circuit breakers.

The TMD trip unit inside this breaker is a fixed thermal-magnetic device. The thermal element — a bimetallic strip — responds to sustained overloads over a period of seconds to minutes, heating up and deflecting until it triggers a trip. The magnetic element — a solenoid coil — responds to short-circuit currents within milliseconds, giving near-instantaneous disconnection during a fault. These two mechanisms work together without any programming, dials, or commissioning adjustments. The fixed setting at 160A is precisely what makes this model appropriate for standard distribution where load characteristics are known and stable. If your circuit requires protection coordination with upstream or downstream relays, or if load characteristics vary and you need to tune trip curves, the fixed TMD is the wrong choice — that application calls for the TM-D adjustable variant or a Micrologic electronic trip unit.

The 3P 3d configuration means all three poles are present (three-phase protection) and all three poles physically disconnect simultaneously during a trip or manual operation. This simultaneous disconnection is a safety requirement in most industrial three-phase applications, preventing single-phasing of downstream motors or equipment during a fault event.

Typical System Architecture and Signal Chain

In a standard industrial distribution system, the C16F3TM160 sits at the incoming protection point for a distribution board or motor control center — between the upstream transformer or generator and the downstream branch circuit breakers or motor starters.

  • Upstream source: 415VAC three-phase transformer secondary or standby generator output terminal
  • Incoming supply cables (typically 70–95 mm² copper for 160A runs at standard distances) connect to the top bolt terminals of the C16F3TM160
  • The C16F3TM160 provides 36 kA fault interruption and 160A overload protection at this point in the chain
  • Load-side terminals (bottom) feed the distribution busbars, motor control center, or individual feeder circuits downstream
  • Downstream devices — branch breakers, contactors, variable frequency drives, or distribution boards — receive protected 415VAC from the breaker's load terminals

Where the C16F3TM160 Is Typically Installed

Transformer secondary protection is the most common deployment for this model. In manufacturing plants with step-down transformers supplying 415VAC three-phase distribution boards, the C16F3TM160 acts as the first line of overcurrent protection on the low-voltage secondary, isolating the transformer from downstream faults without requiring the upstream high-voltage protection to operate.

Standby generator and UPS system protection is another frequent application. Generators with 415VAC three-phase output use the C16F3TM160 to protect the generator windings and output conductors from fault currents that would otherwise damage expensive rotating equipment. The 36 kA breaking capacity is typically adequate for generator systems where the available fault current is limited by the machine's own impedance.

Main distribution feeders in commercial HVAC systems, industrial water treatment facilities, and data center power distribution units also use this platform. Where a 160A three-phase feeder supplies a fan coil array, pump station, or server room PDU, the C16F3TM160 provides reliable overload and short-circuit protection without complex relay coordination requirements.

Panel builders and OEM equipment suppliers designing motor control centers for automotive assembly lines, food and beverage processing machinery, and pulp and paper equipment frequently specify this model as the incoming main protection device, with downstream branch breakers sized for individual motor circuits.

Application Typical Deployment
Transformer secondary protection 415VAC main feeder protection on step-down transformer LV secondary in manufacturing distribution boards
Standby generator output protection Generator terminal protection in emergency power systems and standby power installations
Motor control center incoming main Main breaker for 415VAC MCC in automotive assembly, mining, or processing plants
Commercial HVAC distribution Three-phase main protection for large fan coil arrays, chillers, or air handling units
Industrial water treatment Main feeder breaker for pump station switchboards on 415VAC three-phase supply
Data center power distribution Incoming protection for 415VAC PDU feeding server room branch circuits

Key Electrical Ratings and Technical Specifications

Parameter Value Notes
Voltage Rating (Phase-to-Phase) 415 VAC Verify local utility voltage before ordering — some regions use 380VAC or 480VAC
Frequency 50/60 Hz Standard industrial frequency compatibility
Number of Poles 3 Three-phase protection only — not suitable for single-phase or DC
Pole Configuration 3P 3d All three poles disconnect simultaneously on trip or manual operation
Rated Current 160 A Continuous thermal rating across all three poles
Breaking Capacity (Icu) 36 kA @ 415VAC Certified per IEC 60947-2; maximum fault current the breaker can safely interrupt
Trip Unit Type TMD (Fixed Thermal-Magnetic) Non-adjustable; no field settings possible — order TM-D variant for adjustable protection
Platform / Frame ComPacT NSX160F Fixed frame; verify cabinet opening compatibility before ordering
Mounting Style DIN rail / bolt-down (switchboard panel) Universal industrial cabinet compatibility
Operating Temperature Range -5°C to +60°C ambient Standard industrial range

Full technical specifications are available on the product page at LeadTime.ca.

NSX160F Variant Comparison: Current Ratings, Trip Units, and Alternatives

Within the ComPacT NSX160F family, the primary differentiation is current rating and trip unit type. The table below covers the most common alternatives and when each is the correct choice.

Trip Unit Variant Adjustment Range Thermal Pickup Magnetic Release Best For
TMD — this model (C16F3TM160) Fixed at 160A 1.0 x In Approx. 10x In Standard distribution circuits; general-purpose protection with known stable loads
TM-D (adjustable) 0.7 to 1.0 x In thermal + adjustable magnetic Adjustable range User-adjustable Circuits requiring coordination flexibility; loads that vary or require fine tuning
Micrologic electronic Full digital adjustment Programmable curves Programmable Complex protection logic; SCADA integration; facilities with protection relay coordination requirements
Model Rated Current Breaking Capacity @ 415VAC Trip Unit When to Choose
C16F3TM100 (NSX100F) 100 A 36 kA TMD fixed Circuit load is 100A or less; same protection class, lower current rating
C16F3TM125 (NSX125F) 125 A 36 kA TMD fixed Circuit load sits between 100A and 125A; avoids oversizing to 160A
C16F3TM160 — this model 160 A 36 kA TMD fixed Circuit load requires 160A nominal; 415VAC system with fixed protection requirements
C16F3TM200 (NSX160F 200A) 200 A 36 kA TMD fixed Load current exceeds 160A; same frame, higher current rating
NSX250 variants 250 A 50 kA TMD / TM-D / Micrologic System fault current exceeds 36 kA, or load requires 250A protection

If your load current exceeds 160A or your system's available fault current is above 36 kA, the NSX250 frame is the correct next step — check current availability and discuss the correct variant with the LeadTime.ca team.

Expert Verdict: Is the C16F3TM160 Right for Your Project?

The Schneider Electric C16F3TM160 earns its place in industrial distribution panels through a combination of factors that matter in real-world procurement: the ComPacT NSX160F platform's compact footprint allows it to fit in tightly packed switchgear, the 36 kA breaking capacity at 415VAC satisfies IEC 60947-2 requirements for the vast majority of transformer secondary and feeder applications, and the fixed TMD thermal-magnetic trip unit delivers reliable protection without the commissioning overhead of adjustable or electronic alternatives. This model is the right purchase for plant engineers replacing a failed breaker in an existing 415VAC system, panel builders specifying new MCCs with stable 160A load profiles, and procurement teams ordering for preventive maintenance stock where a known fixed-trip specification is already approved in the design.

There are real limits to acknowledge honestly. The fixed TMD trip unit cannot be adjusted in the field — if your installation inherits a load profile that drifts or requires coordination with upstream relays, you will need the TM-D adjustable variant instead. The 36 kA breaking capacity, while sufficient for most manufacturing distribution applications, is not adequate for high-fault systems where available short-circuit current exceeds this threshold; those installations require the NSX250 frame or larger. For North American facilities operating on 480VAC three-phase supply, this 415VAC-rated model is simply the wrong part — the correct order is the NSX160F variant rated for 480VAC. Urgent projects with days-only delivery windows should evaluate ABB SACE Emax or Eaton Cutler-Hammer HKG5160M alternatives, which have reported shorter availability windows through some channels.

From a procurement standpoint, the C16F3TM160 is consistently classified as a non-stock, special-order item through most North American channels, with lead times running 4 to 12 weeks from authorized distributors. That reality is not a flaw in the product — it is a sourcing constraint that project managers must plan around. Ordering through a specialist industrial distributor rather than a generic online channel matters here: specialist distributors provide voltage and configuration verification before the PO is issued, direct coordination with Schneider logistics that can often compress lead times, and warranty and return support that generic marketplaces do not reliably provide. Review current lead time and pricing for the C16F3TM160 at LeadTime.ca before committing your project schedule to a generic channel estimate.

For volume pricing or to confirm availability before locking in your project build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the C16F3TM160

Because verified community discussion specific to the C16F3TM160 is sparse across public automation forums, the most valuable pre-order intelligence comes from the documented patterns of ordering errors and specification mismatches that arise across the ComPacT NSX160F product family. The issues below are not theoretical — they reflect the categories of mistakes that cause project delays, incorrect installations, and costly return logistics for engineers and procurement teams ordering in this part family. LeadTime.ca's technical team handles these exact questions before orders are placed, and the guidance here reflects what specialist distributors catch that generic channels miss.

The single most common and consequential mistake in ordering this model is voltage mismatch. The C16F3TM160 is rated 415VAC three-phase. Buyers in North America operating 480VAC systems, or those sourcing replacement parts for equipment relocated from European to North American facilities, routinely request this exact model number without first verifying the actual system voltage. The result is a non-functional installation: a 415VAC-rated breaker installed on a 480VAC system will not provide correct overload protection and may not interrupt fault currents safely. The fix is simple — measure the line-to-line voltage at the installation point before issuing the purchase order — but it requires the discipline to stop and verify before assuming.

The second pattern involves trip unit confusion. Engineers who specify TMD and contractors who commission the installation sometimes discover, after delivery, that they expected adjustable dials or screws to set the thermal and magnetic thresholds. The TMD suffix means fixed — there are no field-adjustment points. If any party in the design or installation chain expects to tune protection curves after installation, the TM-D adjustable variant is the correct order. This distinction needs to be communicated explicitly in the installation work package and confirmed during the design review, not discovered during commissioning.

Current rating oversizing is a subtler problem. The C16F3TM160 at 160A is occasionally ordered when the actual circuit load is 120A or lower, on the reasoning that a higher-rated breaker provides a safety margin. In practice, oversizing the breaker relative to the circuit's conductor rating and connected equipment means the overload protection threshold is higher than the wire or equipment can safely sustain. If your confirmed load is 100A or 125A, the C16F3TM100 or C16F3TM125 is the technically correct selection, not the 160A model. Proper sizing is protection engineering, not conservatism.

Wiring and Installation: What to Verify Before You Connect

  • Verify system line-to-line voltage is 415VAC ±10% using a calibrated voltmeter across all three phases before any installation work begins — do not assume voltage from nameplate data on older equipment
  • Confirm system available short-circuit current at the point of installation does not exceed 36 kA; if fault level data is unavailable, obtain it from the utility or electrical drawings before proceeding
  • Incoming supply conductors connect to the top bolt terminals of the C16F3TM160; load-side conductors connect to the bottom terminals — reversing supply and load sides affects protection behavior and is a common installation error
  • Neutral and ground conductors must not be connected to the main breaker poles — route these separately through the neutral bus and ground bus in the switchgear cabinet
  • Apply lockout/tagout (LOTO) to the upstream source before making any terminal connections; confirm with a meter that all three phases are de-energized before touching terminals

Full installation and commissioning procedures are contained in the Schneider Electric C16F3TM160 technical manual. Engineers requiring step-by-step wiring diagrams, torque specifications, and functional test procedures should reference the official manufacturer documentation directly.

Wrong-Part Prevention Checklist: Verify These Six Points Before You Order

Before issuing a purchase order for the Schneider Electric C16F3TM160, confirm each of the following without exception. This checklist reflects the six most common and costly ordering errors for this model family.

  1. Confirm system voltage is 415VAC three-phase (not 380VAC, 480VAC, or single-phase supply)
  2. Verify load current requirement is exactly 160A nominal (not 100A, 125A, 200A, or other rating)
  3. Confirm breaking capacity requirement is minimum 36 kA (higher-fault systems need NSX250 or larger frames)
  4. Check that TMD fixed thermal-magnetic trip is appropriate (not requiring adjustable or electronic trip units)
  5. Verify 3P 3d configuration matches cabinet (all three poles must disconnect simultaneously — required for safety)
  6. Confirm ComPacT NSX160F frame size fits existing switchgear opening (not NSX100H or NSX630 frame)

If any item on this checklist cannot be confirmed before ordering, contact the LeadTime.ca technical team — we verify part number accuracy against your system parameters before the order is placed, at no charge.

Frequently Asked Questions

Can I order the C16F3TM100 instead of the C16F3TM160 if I want a lower trip threshold?

Only if your circuit's actual load current is 100A or less. Using the 100A variant on a 160A circuit will cause nuisance tripping under normal operating load — the thermal element will trip before the circuit reaches a genuine fault condition. Breaker current rating must match or slightly exceed the circuit's maximum continuous load, not be undersized for trip sensitivity. If your load sits between 100A and 160A, verify the exact running current and choose the rating that reflects the actual load plus a reasonable margin.

What does the 3P 3d designation on the C16F3TM160 mean in practical terms?

3P means three poles — this breaker protects all three phases of a three-phase AC system simultaneously. 3d means all three poles physically disconnect at the same time during any trip or manual operation. This simultaneous three-pole disconnection prevents single-phasing, a condition where only one or two phases are disconnected while the third remains live — which can damage three-phase motors and equipment. The 3d designation is a safety and equipment protection requirement in most industrial three-phase applications.

The C16F3TM160 arrived and I cannot find any adjustment screws or dials — is it defective?

No. The TMD suffix in the model number indicates a fixed thermal-magnetic trip unit. There are no field-adjustable settings on this device — no thermal adjustment, no magnetic threshold dial. This is by design for standard distribution applications where load characteristics are known and stable. If your application requires adjustable protection curves, the TM-D variant of the NSX160F is the correct order. Attempting to modify or access internal components of the TMD unit voids the device certification and creates a safety hazard.

What is a realistic lead time for the C16F3TM160 and how should I plan around it?

The C16F3TM160 is a non-stock, special-order item through most North American channels. Typical lead times run 4 to 12 weeks from authorized distributors under standard ordering conditions. Expedited orders through select specialist distributors can reduce this to 2 to 4 weeks, typically at a premium. For planned maintenance, new construction, or capital projects, ordering 6 to 8 weeks before the installation date is the minimum safe planning horizon. For emergency replacement scenarios, contact a specialist distributor immediately — generic online channels often have longer actual lead times than advertised.

Will this breaker work on a 380VAC or 480VAC system if I cannot get the exact 415VAC model?

No — do not substitute voltage ratings in circuit protection equipment. The C16F3TM160 is rated for 415VAC. Installing it on a 380VAC or 480VAC system means the breaker's trip characteristics, insulation ratings, and breaking capacity certifications are no longer valid for that system voltage. The correct approach is to identify and order the NSX160F variant specifically rated for your actual system voltage. Using an incorrect voltage-rated breaker is both an electrical safety risk and a compliance violation under IEC 60947-2 and local electrical codes.

Is the C16F3TM160 a direct replacement for an older Schneider breaker in an existing switchgear cabinet?

Generally yes, provided the ComPacT NSX160F frame size matches the existing cabinet opening and the voltage, current, and breaking capacity ratings align. The NSX160F platform has a well-established footprint in industrial switchgear globally. However, older Schneider breaker frames — particularly legacy Compact C-series or earlier NS-frame products — may have different mounting profiles or terminal arrangements. Verify the physical frame dimensions and terminal type against your cabinet drawings before ordering, and consult Schneider Electric's migration documentation or a specialist distributor for retrofit compatibility confirmation.

Why Order the C16F3TM160 From LeadTime.ca

  • Specialist industrial distributor — technical pre-sale support to verify part number, voltage, and configuration accuracy before the order ships, not after
  • Global shipping — LeadTime.ca sources and ships worldwide; no geographic restriction on orders
  • Non-stock special-order coordination — direct logistics relationships with Schneider Electric supply chain to optimize lead time on non-stock items like the C16F3TM160
  • Volume and project pricing available — contact for current pricing on multi-unit orders or scheduled deliveries for capital projects
  • Warranty and return support — authorized distributor backing on defects and specification mismatches, without the risk of grey-market warranty gaps

C16F3TM160 At-a-Glance Summary

  • Official product name: Circuit breaker, ComPacT NSX160F, 36kA/415VAC, 3 poles, TMD trip unit 160A
  • Rated continuous current: 160A across all three poles
  • Breaking capacity: 36 kA at 415VAC, certified per IEC 60947-2
  • Voltage rating: 415VAC three-phase — not suitable for 380VAC, 480VAC, or single-phase systems
  • Trip unit: TMD fixed thermal-magnetic — no field-adjustable settings; order TM-D variant for adjustable protection
  • Pole configuration: 3P 3d — all three poles disconnect simultaneously on trip or manual operation
  • Platform: ComPacT NSX160F fixed frame — verify cabinet opening dimensions before ordering
  • Operating temperature range: -5°C to +60°C ambient
  • Typical lead time: 4 to 12 weeks from authorized distributors (non-stock special order)
  • Critical pre-order check: Measure system line-to-line voltage with a calibrated meter — voltage mismatch is the single most common and costly ordering error for this model
