Schneider ATV630D37N4 — 37kW VFD Specs, Pump Control & Buying Guide

By Abdullah Zahid
15 min read

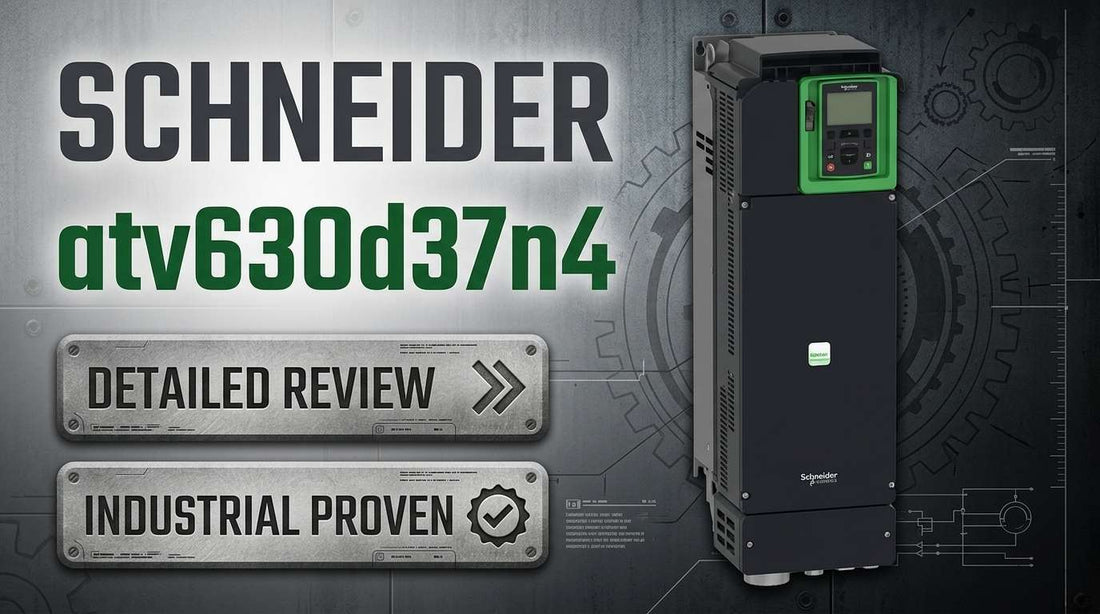

Schneider ATV630D37N4 Altivar Process 37kW 380-480V IP21 variable frequency drive for industrial pump control

Schneider ATV630D37N4 Variable Speed Drive, Altivar Process ATV600/ATV630, 37kW, 50hp, 380-480V AC, IP21, UL Type 1 — Specifications, Performance, and Pump Control Review

Controls engineers and plant managers searching for the Schneider ATV630D37N4 are typically at the final validation stage — confirming that this 37kW, 380-480V AC variable frequency drive matches their motor rating, checking whether the integrated energy monitoring and Stop & Go function are worth the mid-range price, and deciding which distributor can actually deliver on time. This article gives you the verified specifications, honest variant comparison, and procurement reality you need to close that decision confidently.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the ATV630D37N4 — and Who Shouldn't

The ATV630D37N4 is the right choice for operations engineers and plant managers controlling variable-load pump systems with existing 3-phase power infrastructure and a need for integrated energy visibility. This drive belongs in your project if:

  • Your motor nameplate power rating does not exceed 37kW at normal duty continuous operation (or 30kW if the application demands sustained 150% overload)
  • Your supply voltage is confirmed as 380-480V AC, 3-phase — not single-phase, not 600V
  • Your installation is non-hazardous (ATEX Zone 2/22 or better — this model is NOT rated for Zone 0 or Zone 1)
  • You require real-time energy monitoring, predictive maintenance alerts, and embedded Ethernet without purchasing separate hardware
  • Your motor is a standard 3-phase asynchronous or synchronous AC type — not DC, not single-phase
  • Your enclosure environment is compatible with IP21 — protected indoor installation in a control cabinet or on a sheltered wall

If your motor exceeds 37kW continuous or your application requires ATEX Zone 0/1 certification, this is not the right model. The ATV630 larger-frame variants or the Altivar ATV900/ATV950 series are the correct step-up, and a specialist distributor can confirm the right catalog number before you commit.

On this page:

What the ATV630D37N4 Actually Does in a Process System

The ATV630D37N4 is a wall-mounted AC variable frequency drive from the Altivar Process ATV600/ATV630 family, rated at 37kW (50hp normal duty) and designed to control 3-phase asynchronous and synchronous motors in industrial process applications. Its core function is modulating the frequency and voltage delivered to the motor — allowing variable-speed operation instead of the fixed full-speed or off cycling that wastes energy in pump and fan systems.

What separates this drive from basic VFDs in the same power class is what it does beyond speed control. The ATV630D37N4 includes an embedded energy measurement dashboard accurate to within 5% deviation against a Class 1 power meter standard, real-time predictive maintenance tracking via PT100/PT1000 temperature probe inputs and fan condition monitoring, and a Stop & Go function that the manufacturer documents as delivering up to 30% energy savings during standby compared to continuous low-speed operation in pump applications. Embedded Ethernet, two serial RJ45 ports, and Modbus TCP support come standard — no optional communication card required for most industrial network integrations.

The NEMA 1 / IP21 enclosure is rated for indoor control cabinet or wall-mount installation in a protected environment. UL Type 1 and CSA Class 4162-2 certifications cover North American industrial installations. For operations running 380-480V AC power in facilities outside hazardous zones, this drive is a complete motor control and monitoring hub without requiring additional instrumentation hardware.

Typical System Architecture for Pump Control

The ATV630D37N4 sits between the facility's AC supply bus and the motor, functioning as both the speed controller and the primary monitoring node for the pump or process loop it serves.

  • 3-phase 380-480V AC supply bus → input line reactor (recommended 3-5%) → ATV630D37N4 input terminals L1, L2, L3
  • ATV630D37N4 output terminals U, V, W → shielded motor cable (routed separately from signal cables) → 3-phase AC motor (asynchronous or synchronous)
  • Embedded Ethernet RJ45 port → plant industrial network or SCADA system (Modbus TCP; web browser dashboard access available)
  • Serial RJ45 ports → field instruments, HMI panels, or Modbus RTU device chain
  • Optional PT100/PT1000 probe inputs → motor winding or fluid temperature sensors feeding predictive maintenance alerts

Where This Drive Gets Deployed: Industries and Use Cases

Wastewater treatment plants are among the most common installations for this drive. The Stop & Go function allows pump discharge speed to match variable influent flow, halting rotation during non-peak hours while keeping the drive energized and ready — eliminating the standby energy waste of continuous low-speed operation without the mechanical wear of repeated full stops and cold starts.

Food and beverage processors use the ATV630D37N4 to control circulation pumps in pasteurization loops and cooling circuits, where process demand varies continuously and the embedded Ethernet port feeds real-time consumption data directly to central SCADA dashboards. The energy measurement capability — rated at less than 5% deviation — supports process validation and utility cost allocation without a separate power analyzer.

In oil and gas facilities and general industrial plants, the predictive maintenance inputs (PT100/PT1000 temperature probe, fan condition monitoring) allow operations teams to detect bearing wear and thermal anomalies before equipment failure. Combined with drift detection during standby, this creates a low-cost condition monitoring layer for pump systems that would otherwise require dedicated instrumentation.

Retrofit projects — replacing fixed-frequency drives or direct-on-line motor starters with this drive — represent a significant portion of installations. The ATV630D37N4 can be installed without replacing the existing motor-pump assembly, providing variable-speed control, energy visibility, and Stop & Go capability where none existed before.

Application Typical Deployment
Wastewater treatment pump control Variable discharge pump, Stop & Go during non-peak influent flow, energy dashboard to utilities manager
Food and beverage circulation loop Pasteurization or cooling pump speed matched to process demand; Ethernet feed to plant SCADA
Oil and gas facility pump monitoring Pump speed control with PT100 temperature monitoring and predictive maintenance alerts
General industrial pump retrofit Replacing fixed-speed starter with VFD for partial-load energy savings and process visibility
HVAC variable-volume system Chilled water or heating pump speed control matched to building load; sensorless flow estimation reduces external metering cost
Pharmaceutical / chemical processing Controlled pump speed for batch feed loops; Ethernet integration for process data logging and compliance reporting

Key Electrical and Physical Specifications

Specification Value Notes
Motor Power — Normal Duty 37 kW / 50 hp Continuous operation at up to 120% overload
Motor Power — Heavy Duty 30 kW / 40 hp Applications requiring sustained 150% overload
Input Voltage 380-480V AC, 3-phase -10% to +10% tolerance; single-phase not supported
Current Rating — Normal Duty @ 380V / 480V 66.2 A / 57.3 A Full-load sustained current at respective supply voltages
Current Rating — Heavy Duty @ 380V / 480V 54.8 A / 48.3 A 150% overload capacity at respective supply voltages
Output Frequency Range 0-600 Hz Adjustable via control parameters
Dimensions (W × H × D) 226 mm × 673 mm × 271 mm 8.9" × 26.5" × 10.67"; verify cabinet clearance before ordering
Weight 28.2 kg (62 lbs) Two-person installation or lift-assist recommended
Enclosure Rating NEMA 1 / IP21 Indoor, protected environments only; not outdoor-rated
ATEX Classification Zone 2/22 only NOT rated for Zone 0 or Zone 1 hazardous locations

Full technical specifications are available on the product page at LeadTime.ca.

ATV630D37N4 vs. Competing 37kW Drives: Side-by-Side Comparison

Model Power Supply Voltage Energy Monitoring Ethernet Standard ATEX Option Typical Lead Time
Schneider ATV630D37N4 37 kW / 50 hp 380-480V, 3-phase Built-in, <5% deviation Yes — standard Zone 2/22 only 2-4 weeks
Siemens SINAMICS G120C 37 kW 37 kW / 50 hp 380-480V, 3-phase Optional module Optional add-on Available separately 3-6 weeks
ABB ACS580 37 kW 37 kW / 50 hp 380-480V, 3-phase Built-in Yes — standard Available separately 2-4 weeks
Eaton SVX9000H 37 kW 37 kW / 50 hp 380-480V, 3-phase Limited Optional Zone 1 certified 3-5 weeks
Schneider ATV320 22 kW 22 kW / 30 hp 380-480V, 3-phase Not built-in Optional No 1-3 weeks
Soft Starter (Siemens 3RW4 — up to 37 kW) Up to 37 kW 380-480V, 3-phase None None No 1-2 weeks

If your application requires ATEX Zone 1 certification and standard variable-speed control, the Eaton SVX9000H is the correct choice over this model — check the ATV630D37N4 availability at LeadTime.ca or contact us to confirm the right variant for your hazardous-area requirement.

Expert Verdict: Is This the Right Drive for Your Project?

The ATV630D37N4 hits the practical mid-market target directly. For operations managers and plant engineers running variable-load pump systems in wastewater treatment, food and beverage processing, or general industrial facilities — where 3-phase 380-480V AC supply is already in place and the motor is within the 30-37kW range — this drive delivers integrated energy monitoring, predictive maintenance capability, and embedded Ethernet connectivity without requiring additional instrumentation hardware. The Stop & Go function, documented at up to 30% standby energy savings in pump applications, and the energy dashboard accurate to within 5% deviation against a Class 1 power meter make this a genuinely capable monitoring hub, not just a motor speed controller. The three RJ45 ports (one Ethernet, two serial) and native Modbus TCP support mean the drive connects directly to most plant networks without additional gateways — a real commissioning time saver.

There are clear limits, and they matter for the purchase decision. If your motor exceeds 37kW continuous or 30kW at sustained 150% overload, step up to the ATV630 larger-frame variant or the Altivar ATV900/ATV950 series before ordering. If your supply is single-phase or below 380V, the ATV320 series is the correct fit. If your installation is classified ATEX Zone 0 or Zone 1, the standard ATV630D37N4 is not compliant — you need either the specialized Altivar ATEX variant or the Eaton SVX9000H, which carries Zone 1 certification. For budget-first retrofits where energy monitoring and predictive maintenance have no value in the application, a soft starter in the Siemens 3RW4 class at a substantially lower price is the more honest recommendation. The ATV630D37N4 is not the cheapest option and not the most feature-rich, but it occupies the practical middle ground where buyers get solid monitoring and energy efficiency without paying for enterprise-level capabilities they will not use.

From a procurement standpoint, this drive benefits from specialist distributor support in a way that generic channel purchasing does not provide. Ethernet configuration, motor data entry, Stop & Go threshold setup, and predictive maintenance calibration all require a commissioning layer that commodity e-commerce channels cannot offer. Ordering through a specialist distributor gives you pre-delivery compatibility validation, wiring guidance, and post-delivery technical support during startup — a meaningful difference when a commissioning delay costs more per day than the drive itself. View current pricing and availability for the ATV630D37N4 at LeadTime.ca — we ship worldwide and stock hard-to-find industrial automation parts.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ATV630D37N4

Open forum discussions and community reviews for the ATV630D37N4 specifically — and the Altivar Process ATV630 family broadly — are sparse. This is characteristic of mid-range industrial VFDs serving specialized process sectors: buyers in wastewater treatment, pharmaceutical processing, and oil and gas typically resolve technical questions through distributor application engineers, official Schneider documentation, and on-site commissioning support rather than public forums. The absence of crowd-sourced feedback does not reflect a problem with the product — it reflects the typical information channel for industrial equipment at this specification and price tier.

What that means for buyers is that the right pre-purchase validation comes from directly consulting a specialist distributor who knows this product family, not from scanning forum threads. The questions that recur in the industrial VFD category — voltage range misspecification (ordering for a 380V system without confirming the actual supply), confusion between normal-duty and heavy-duty amperage ratings, and IP21 enclosure assumptions in environments that actually need higher ingress protection — do not get resolved by community posts. They get resolved by a distributor engineer who asks the right three questions before the purchase order is processed.

The Stop & Go energy saving function is one of the most commonly misunderstood features in this family. It is not a sleep mode and does not de-energize the drive — the drive stays powered and ready, but motor rotation halts during true idle periods. Standard 3-phase induction motors are fully compatible; no special winding or motor modification is required. Similarly, the Ethernet port supports Modbus TCP and web browser dashboard access natively, but PROFINET and EtherCAT require a separate optional communication card — a detail that catches some integrators off guard during network commissioning. Confirming these specifics with a distributor engineer before the order ships is the fastest way to avoid a costly retrofit trip back to the control cabinet.

Wiring and Installation: What to Verify Before You Begin

  • The unit mounts on a wall or inside a control cabinet (DIN rail adapter available separately — confirm part number with your distributor before ordering materials); allow minimum clearance on all sides for natural convection cooling, which is adequate for ambient temperatures at or below 40°C
  • Connect 3-phase AC supply (380-480V nominal) to input terminals L1, L2, L3; connect motor power to output terminals U, V, W using shielded cable or minimum twisted pairs routed at least 3 feet (1 meter) away from all signal cables — Ethernet, serial, and sensor inputs
  • Bond motor ground wire and drive frame ground to building electrical ground; a 3-5% input line reactor between the supply bus and the drive input terminals is strongly recommended to limit inrush surge and protect the rectifier section on power-up
  • Shield all serial RJ45 signal cables with shielded twisted-pair; bond cable shields to the drive ground at the drive end only to avoid ground loops; standard unshielded Ethernet cabling is acceptable for the Ethernet RJ45 port
  • Before connecting load, enter motor nameplate data (kW, voltage, frequency) via keypad and run a no-load verification at 10-15 Hz to confirm correct motor rotation direction and absence of winding fault indicators before bringing the system to operating pressure

Compatible Modules and System Expansion

The ATV630D37N4 includes three RJ45 ports as standard — one Ethernet and two serial — covering Modbus TCP and Modbus RTU/ASCII without additional hardware. For applications requiring other fieldbus protocols, optional communication add-on modules extend connectivity:

  • PROFINET communication card — optional add-on module; not included in standard model; required for PROFINET-based plant networks
  • EtherCAT communication card — optional add-on module; not included in standard model; required for EtherCAT motion or process networks
  • PT100/PT1000 temperature probe inputs — external sensors; drive includes integrated signal conditioning for predictive maintenance temperature monitoring of motor windings or process fluid
  • DIN rail mounting adapter — ordered separately; required if installing in DIN rail cabinet rather than wall-mount bracket configuration; confirm part number with distributor before finalizing cabinet design
  • Schneider Altivar Companion software — available free from se.com; used for remote HMI access, parameter configuration, real-time energy dashboard setup, and data logging configuration via Ethernet

Wrong-Part Prevention Checklist

Before finalizing your purchase order for the ATV630D37N4, work through each of these checks against your motor nameplate and installation documentation:

  1. Verify motor nameplate power rating does NOT exceed 37kW (normal duty) or 30kW (high overload 150%)
  2. Confirm supply voltage is exactly 380-480V AC, 3-phase; if single-phase or different voltage, this model will not operate
  3. Check motor type is standard 3-phase asynchronous or synchronous AC; DC motors or single-phase motors are incompatible
  4. Confirm installation location is NOT classified as ATEX Zone 0 or 1 (requires different certification); this model is Zone 2/22 only
  5. Verify enclosure environment matches IP21 rating; if ingress protection higher than IP21 needed, confirm cabinet provides additional protection or order higher-rated frame
  6. Confirm control cabinet has 3 RJ45 ports available (or supply own ports); standard model includes Ethernet + 2 serial ports built-in

If any of these six points raises a flag, contact the LeadTime.ca team before ordering — our application engineers can confirm the correct model or identify the right alternative part number for your project.

Frequently Asked Questions

Can the ATV630D37N4 connect directly to an existing SCADA system via Ethernet without a gateway?

Yes — the embedded Ethernet RJ45 port supports Modbus TCP natively, allowing direct connection to most industrial SCADA and DCS platforms without an additional communication gateway. Web browser access to the energy dashboard is also available via the same port. PROFINET and EtherCAT require an optional add-on communication card that is not included in the standard model.

Does Stop & Go require any modification to the motor or pump assembly?

No motor or pump modification is required. Stop & Go is a software function within the drive that halts motor rotation during idle periods while keeping the drive energized and ready to restart. Standard 3-phase asynchronous induction motors are fully compatible. The idle timer and minimum holding pressure thresholds are configured via the drive keypad or Schneider Altivar Companion software during commissioning.

What happens if supply voltage fluctuates across the full 380V to 480V range during operation?

The ATV630D37N4 is rated for the full 380-480V input range with a -10% to +10% tolerance, and the drive automatically adjusts its output to maintain stable motor torque across that range. The current ratings differ by supply voltage — 66.2A at 380V versus 57.3A at 480V at normal duty — so verify your sizing against the amperage at your actual supply voltage, not a midpoint estimate.

Is the ATV630D37N4 a direct replacement for an older fixed-frequency drive without rewiring the motor cable?

In most retrofit scenarios, the motor power cable connections (to U, V, W output terminals) are compatible, but the input wiring, grounding arrangement, and signal cable routing should be reviewed against current installation requirements before assuming a direct swap. A 3-5% input line reactor is strongly recommended on new and retrofit installations and may not be present in older fixed-frequency drive installations. Confirm wiring compliance with the Schneider installation documentation before commissioning.

What does the LED display show during a fault condition, and how do I interpret it?

The 4-digit LED display on the front panel shows fault codes and parameter values during normal and fault operation. Fault codes are documented in the Schneider Altivar Process commissioning and troubleshooting manual, available from se.com or via the QR code on the drive enclosure (the QR code links to firmware-contextual documentation). For persistent faults during startup, the most common causes are motor nameplate data entry errors, incorrect branch circuit protection, or signal cable EMI interference — the wrong-part checklist and wiring guidance above address all three.

What is the typical lead time for the ATV630D37N4 and can I get it shipped internationally?

Typical lead time from stock is 2-4 weeks at major distributors; Canadian availability is typically 1-3 weeks from regional Schneider Electric distribution. LeadTime.ca ships worldwide — contact the team to confirm current stock status and lead time for your location before finalizing your project schedule, as stock levels can vary.

Why Order From LeadTime.ca

  • Ships worldwide — the ATV630D37N4 and compatible accessories are available for international delivery, not limited to any single region
  • Specialist distributor support — application engineers who can validate motor compatibility, confirm variant selection, and advise on communication card requirements before the order ships
  • Hard-to-find parts sourcing — access to Schneider Electric catalog items including optional communication modules and mounting accessories that generic channels do not stock
  • Volume pricing available — contact for pricing on multi-unit orders; common for wastewater treatment, food processing, and plant-wide retrofit projects
  • Responsive lead time confirmation — check stock status before committing to a project schedule

ATV630D37N4 At-a-Glance Summary

  • Variable frequency drive rated at 37kW / 50hp (normal duty) and 30kW / 40hp (heavy duty at 150% overload)
  • Supply voltage: 380-480V AC, 3-phase — not compatible with single-phase supply
  • Full-load current ratings: 66.2A at 380V and 57.3A at 480V (normal duty); 54.8A at 380V and 48.3A at 480V (heavy duty)
  • Stop & Go function delivers up to 30% energy savings during standby compared to continuous low-speed pump operation
  • Embedded energy measurement accurate to within 5% deviation against Class 1 power meter standard
  • Three RJ45 ports standard: one Ethernet (Modbus TCP), two serial (Modbus RTU/ASCII) — no communication card required for most industrial networks
  • PROFINET and EtherCAT require optional add-on communication card
  • Enclosure: NEMA 1 / IP21 — indoor, protected installation only; ATEX Zone 2/22 (NOT Zone 0/1)
  • Dimensions: 226mm × 673mm × 271mm; weight 28.2 kg — verify cabinet space before ordering
  • UL Type 1 and CSA Class 4162-2 certified for North American industrial installations
  • PT100/PT1000 temperature probe inputs support predictive maintenance temperature monitoring without external signal conditioning hardware
  • Typical distributor lead time: 2-4 weeks (1-3 weeks Canadian availability from regional Schneider distribution)
