Schneider Electric ATV630D45N4 — 45 kW VFD Buyer's Guide

By Abdullah Zahid
15 min read

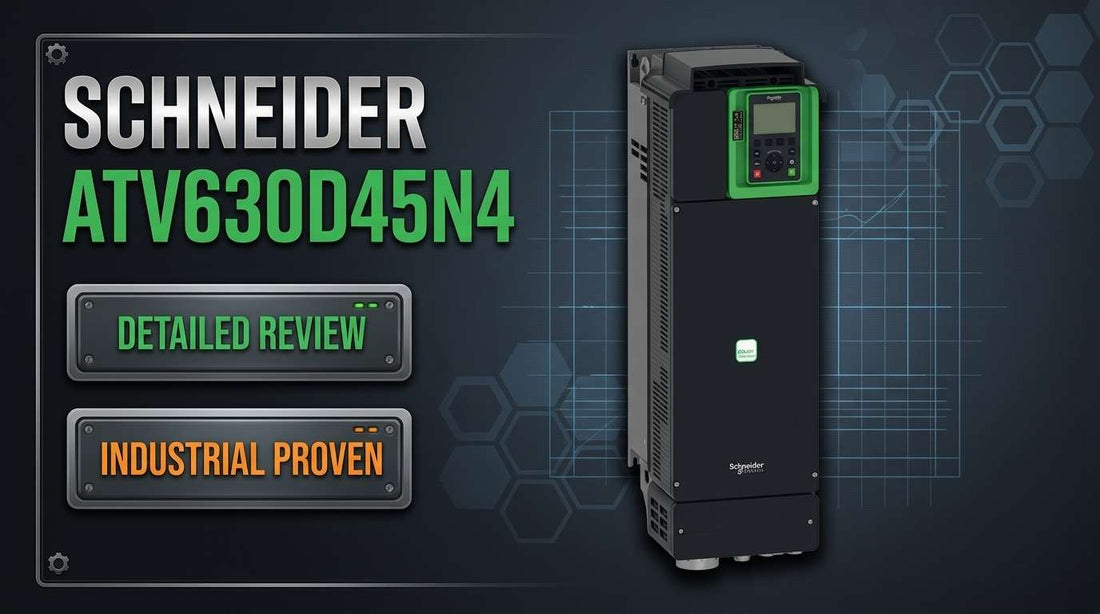

Schneider Electric ATV630D45N4 Altivar Process 45 kW variable frequency drive for pump and HVAC motor control

Schneider Electric ATV630D45N4 Altivar Process Variable Frequency Drive — 45 kW Specifications, Pricing, and Buyer's Guide

Controls engineers and maintenance supervisors searching for a 45 kW variable frequency drive in the 380–480V three-phase class often arrive at the Schneider Electric ATV630D45N4 through one of two routes: an emergency field replacement of a failed drive on a municipal pump, or a deliberate specification decision for a new HVAC or process installation where integrated Ethernet monitoring is a hard requirement. The ATV630D45N4 is a member of the Altivar Process ATV630 series — a U-type converter drive rated for 88 A output current, with built-in Ethernet, ModBus TCP/IP, three RJ45 communication ports, and four-quadrant operation capability out of the box. Whether you are confirming a drop-in replacement or validating a first-time installation, this guide covers the specifications, overload ratings, communication setup, and sourcing reality you need before committing to a purchase order.

If you have already confirmed this is the correct part, check current pricing and availability for the ATV630D45N4 at LeadTime.ca — ships worldwide.

Who Should Buy the ATV630D45N4 — and Who Shouldn't

The ATV630D45N4 is the right drive for engineers and procurement specialists whose application fits the following profile:

  • Motor nameplate confirms three-phase AC asynchronous or synchronous type rated at or below 45 kW for variable torque (light overload, 120%) or 37 kW for constant torque (heavy overload, 150%)
  • Site supply voltage is 380–480V AC three-phase — not 208V, 240V single-phase, or any other voltage class
  • Control architecture uses Ethernet, ModBus TCP/IP, or CanOpen (via optional module) for PLC communication
  • Motor full-load current does not exceed 88 A output current rating
  • Physical enclosure can accommodate 673 mm height, 226 mm width, 271 mm depth with a minimum 150 mm clearance above the unit for forced convection cooling
  • Application is pump, fan, HVAC, or process control where IP21 protection is adequate

If your motor exceeds 45 kW under light overload conditions, or if your installation demands IP54 or higher enclosure protection, the ATV630 50 kW variant or an ATV900 series drive is the correct specification — not this model.

On this page:

What the ATV630D45N4 Actually Does in Your System

The ATV630D45N4 is an AC variable frequency drive belonging to Schneider Electric's Altivar Process ATV630 series. Its core function is motor speed regulation: it takes a fixed 380–480V AC three-phase supply, converts and modulates that power electronically using a U-type converter topology, and delivers a variable voltage and frequency output — up to 500 Hz — to control the speed of an AC induction or synchronous motor. The result is precise, stepless speed control without mechanical throttling devices.

In practical terms, this replaces the energy waste of valve or damper throttling in pump and fan applications. When a centrifugal pump running at full speed is throttled by a downstream valve to reduce flow, the motor continues drawing near-full power while the valve dissipates energy as heat and pressure drop. The ATV630D45N4 eliminates that waste by directly reducing motor speed — and because pump power scales with the cube of speed, even modest speed reductions deliver significant energy savings. Stop and Go mode operation can deliver energy savings up to 30% in variable load applications compared to continuous operation or valve throttling, according to Schneider Electric's official distributor specification data.

The drive's four-quadrant operation capability extends its usefulness beyond simple speed control. In regenerative braking scenarios — such as conveyor deceleration, wind turbine pitch adjustment, or descending elevator motors — the ATV630D45N4 can return energy to the supply network rather than dissipating it as heat in a braking resistor. This reduces thermal stress on the cabinet and the motor, and lowers net energy consumption in dynamic duty cycles.

Typical System Architecture for the ATV630D45N4

The ATV630D45N4 sits between the three-phase power supply and the motor load, acting as the active speed and torque regulation layer in the control chain. Here is how a typical installation is structured:

  • Upstream: three-phase 380–480V AC power supply feeds through an external disconnect switch and upstream breaker or fuse protection (not integrated in the drive)
  • Input terminals of the ATV630D45N4 receive supply power; the built-in EMC filter manages conducted emissions without requiring an external filter module
  • The drive's Ethernet RJ45 port and two additional serial ports connect to the plant PLC or SCADA system via ModBus TCP/IP or Ethernet network switch
  • Output terminals deliver variable frequency, variable voltage power to the AC motor via shielded motor cable
  • Downstream: motor drives the mechanical load — pump impeller, fan, conveyor, or process machine — with speed commanded from the controller over the network

Typical Applications and Deployment Scenarios

Water and wastewater treatment facilities represent the largest installed base for the ATV630D45N4. Municipal pump stations running 45 kW circulation or transfer pumps benefit directly from the drive's pump curve visualization feature — technicians can scan the built-in QR code to display pressure and flow data without external instrumentation. When a drive fails in a live pump station, the need for a replacement with a 1–3 week lead time from authorized distributors rather than a 6–8 week manufacturer lead time is precisely the scenario the ATV630D45N4 is stocked for.

HVAC integrators specifying chilled water pump drives for commercial buildings and industrial facilities find the integrated Ethernet web server particularly valuable. Remote diagnostics via web browser — without needing a separate communication module — reduces service call frequency and enables predictive maintenance monitoring from a building management system or dedicated SCADA workstation.

Marine installations represent a specialized but well-documented application. The ATV630 family, including the ATV630D45N4, carries marine certifications for all vessel types. This makes it one of a limited number of drives that can be specified for engine room and onboard industrial system integration without requiring a separate certification waiver or custom enclosure assessment.

System integrators and OEM equipment builders standardizing on the Altivar Process platform use the ATV630D45N4 as a modular building block in pump packages, fan control panels, and cooling tower systems. The consistent physical footprint — 673 mm x 226 mm x 271 mm — and identical communication interface across the ATV630 family simplifies panel design and reduces commissioning documentation overhead across multiple units.

Application Typical Deployment
Municipal water supply pump station 45 kW centrifugal pump, light overload duty, ModBus TCP/IP to SCADA
HVAC chilled water loop 45 kW pump motor, Ethernet web server for BMS integration and remote diagnostics
Marine vessel engine room Onboard industrial motor control with marine certification, Ethernet monitoring
Industrial cooling tower fan 37–45 kW fan motor, variable torque load, ModBus integration from plant PLC
OEM pump package build Modular panel with ATV630D45N4 as standard drive platform, integrated diagnostics
Soft-starter replacement Existing 45 kW motor, same cabinet, VFD substitution for reduced mechanical shock at start

ATV630D45N4 Specifications and Variant Comparison

Key Purchase-Decision Specifications

Specification Value
Power Rating — Light Overload (120%) 45 kW
Power Rating — Heavy Overload (150%) 37 kW
Rated Output Current 88 A
Input Voltage 380–480V AC, three-phase
Input Frequency 50/60 Hz (±5% tolerance)
Maximum Output Frequency 500 Hz
Converter Topology U-type
Enclosure Protection IP21
Dimensions (H x W x D) 673 mm x 226 mm x 271 mm
Communication (Standard) Ethernet RJ45 (x1), 3 RJ45 ports total, ModBus TCP/IP built-in

Full technical specifications are available on the product page at LeadTime.ca.

ATV630D45N4 vs. Key Alternatives

Specification ATV630D45N4 ATV630 50 kW Variant ATV900 Series
Power Rating 45 kW (LO) / 37 kW (HO) 50 kW Higher power class
Input Voltage 380–480V AC 380–480V AC 380–480V AC
Rated Output Current 88 A Higher than 88 A Application-dependent
Communication (Standard) Ethernet + ModBus TCP/IP built-in Ethernet + ModBus TCP/IP built-in Ethernet + advanced options
IP Protection IP21 IP21 IP21 and above
Four-Quadrant Capable Yes Yes Yes
Marine Certification Optional Optional Optional
Best For Pump/fan duty, integrated monitoring, light-to-moderate overload Heavy overload applications where 45 kW is insufficient High-power or demanding constant torque applications
Not Ideal For Motors above 45 kW LO or 37 kW HO Light duty applications (oversized) Standard pump/fan with budget constraints
Typical Lead Time (authorized distributor) 1–3 weeks in-stock 2–3 weeks Verify with distributor

If your motor power exceeds 45 kW under light overload conditions or requires more than 150% overload capacity, the ATV630 50 kW variant or the ATV900 series is the correct next step — confirm the right model with the LeadTime.ca team before ordering.

Expert Verdict: Is the ATV630D45N4 the Right Drive for Your Project?

The ATV630D45N4 earns its position in water utility and HVAC control panels by delivering a genuinely useful set of integrated features — Ethernet web server, pump curve visualization via QR code, pressure and flow unit display, and ModBus TCP/IP without any external module purchase — in a footprint that fits standard panel construction. For maintenance technicians replacing an end-of-life drive on a 45 kW circulation pump, or for HVAC integrators connecting chilled water pump control into an existing Ethernet infrastructure, this drive removes commissioning friction. The four-quadrant operation capability and Stop and Go mode, which Schneider Electric's official distributor data associates with energy savings up to 30% in variable load applications, make it technically appropriate for the variable torque duty cycles found in centrifugal pumps and fans. Marine certification availability extends its reach to vessel applications that generic drives cannot serve.

That said, the ATV630D45N4 has real limits that buyers should weigh honestly. The IP21 enclosure rating means it cannot be installed in washdown, outdoor, or corrosive environments without a separately rated cabinet enclosure — for those applications, an IP54-rated model or a purpose-enclosed variant is required. CanOpen protocol users should be aware that ModBus TCP/IP is native and built-in, while CanOpen requires purchasing an optional COM bus module separately — a step that adds both cost and lead time if not anticipated at the order stage. And while 45 kW covers a wide range of pump and fan applications under light overload, any motor requiring constant torque above 37 kW (heavy overload at 150%) will be outside this drive's capacity; in those cases, the ATV630 50 kW variant or an ATV900 series model is the correct specification.

From a procurement standpoint, the ATV630D45N4 is one of the better-stocked drives in its power class at authorized industrial distributors in North America, with typical in-stock lead times of 1–3 weeks — a meaningful advantage when an unplanned pump failure is the reason for the order. Buying through a specialist industrial distributor rather than a generic online channel ensures you have access to technical support for commissioning questions, warranty processing without friction, and confirmation that you are receiving the correct part number before the shipment leaves the warehouse. Check current availability and pricing for the ATV630D45N4 at LeadTime.ca — we ship worldwide and maintain inventory specifically for water utility and HVAC applications where lead time matters.

For volume pricing, project-level quotes, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide and respond quickly on industrial automation inquiries.

What Engineers Need to Know Before Ordering the ATV630D45N4

Because community forums contain little model-specific discussion of the ATV630D45N4 — a reflection of the fact that this is a specialized industrial drive purchased through engineering channels rather than hobbyist communities — the most useful pre-order intelligence comes from the technical constraints that consistently generate wrong-part returns and commissioning delays in the field. The following points represent the decision criteria that matter most at the time of purchase.

Motor sizing and overload category selection is the single most consequential decision. The ATV630D45N4 carries two distinct power ratings: 45 kW under light overload (120% for variable torque loads like centrifugal pumps and fans), and 37 kW under heavy overload (150% for constant torque loads like positive displacement pumps or conveyors). Engineers familiar with rating a drive in horsepower should note that 45 kW corresponds to approximately 60 HP, but the overload category must be matched to the load curve — not just the nameplate power. A 40 kW motor on a positive displacement pump may require the heavy overload rating and therefore fall outside the ATV630D45N4's capacity at 37 kW. The output current limit of 88 A is the hard ceiling: if the motor's full-load current exceeds this figure at any point in its operating cycle, a larger drive is required.

Communication protocol mismatches are the second most common source of commissioning delays. ModBus TCP/IP and Ethernet are built into the ATV630D45N4 with no additional hardware required — three RJ45 communication ports and one dedicated Ethernet RJ45 port are standard on every unit. CanOpen, however, requires an optional COM bus module that must be ordered separately and typically adds 2–4 weeks to the commissioning timeline if not planned in advance. Engineers integrating into a PROFIBUS or other fieldbus environment should confirm module availability and part number with their distributor at the same time as the drive order, not after the drive arrives on site. Specialist distributors familiar with the ATV630 family can confirm which optional modules are required and whether they are in stock alongside the drive itself — which is precisely the conversation worth having with LeadTime.ca before the purchase order is submitted.

Wiring and Installation Overview for the ATV630D45N4

  • Three-phase supply (380–480V AC) connects to input power terminals; an external disconnect switch and upstream short-circuit protection (breaker or fuse) must be installed ahead of the drive — these are not integrated in the ATV630D45N4
  • Motor output terminals connect via shielded motor cable; cable shielding is strongly recommended to prevent EMI interference on adjacent control signal wiring — the EMC filter is already built into the drive and does not require a separate add-on
  • The three RJ45 communication ports and the dedicated Ethernet RJ45 port connect to the plant network or PLC; verify IP address assignment (DHCP or static) matches network policy before powering up
  • Minimum 150 mm clearance above the drive mounting location is required for forced convection cooling fan exhaust — measure the cabinet interior before finalizing the mounting position
  • Grounding and bonding of cable shields and equipment frame must comply with local electrical installation code; a motor thermal overload relay is recommended as an additional safety layer even though the drive includes internal motor monitoring

Full wiring diagrams, terminal assignments, and commissioning procedures are provided in the Schneider Electric ATV630 installation manual available through the manufacturer's documentation portal.

Compatible Modules and System Expansion

The ATV630D45N4 is designed around a modular communication architecture. The following expansion options are relevant to buyers integrating into non-Ethernet or non-ModBus control environments:

  • CanOpen COM bus module — optional add-on enabling CanOpen fieldbus communication; must be ordered separately and is not included in the standard ATV630D45N4 configuration
  • ModBus TCP/IP — built-in standard; no additional module required for basic Ethernet and ModBus network integration
  • Ethernet web server — built-in standard; accessible via web browser using the drive's IP address for pump curve visualization, pressure/flow display, and remote diagnostics
  • QR code dynamic interface — built-in standard; provides pump curve and digital monitoring access without external instrumentation or software installation

Buyers requiring PROFIBUS, DeviceNet, or other fieldbus protocols should confirm module availability and part numbers with LeadTime.ca at time of order to avoid commissioning delays.

Wrong-Part Prevention Checklist for the ATV630D45N4

Before submitting a purchase order for the ATV630D45N4, verify each of the following items against your motor nameplate data and site conditions. This checklist prevents the most common wrong-part selections and field returns:

  1. Motor nameplate confirms three-phase AC asynchronous or synchronous type, not DC or single-phase
  2. Motor full-load current does not exceed 88 A output current rating of the drive
  3. Motor power rating at chosen overload capacity: confirm 45 kW (120% overload light duty) or 37 kW (150% overload heavy duty) is appropriate for your load curve
  4. Supply voltage available on-site is 380–480V AC three-phase; not 208V or 240V single-phase
  5. Communication protocol already in use on the PLC or master controller matches ModBus, CanOpen, or Ethernet standard
  6. Physical space available in control cabinet can accommodate 673 mm height plus 150 mm clearance above for heat dissipation
  7. Supply frequency is 50 Hz or 60 Hz (ATV630D45N4 supports both; verify no 400 Hz or variable frequency supply)
  8. Confirm cable gland and connector types already in use match RJ45 (3 standard) and Ethernet RJ45 (1 standard) on the drive

If any item on this checklist cannot be confirmed before ordering, contact the LeadTime.ca team — our technical team can help verify compatibility against your motor data and site drawings before the order is placed.

Frequently Asked Questions

Can the ATV630D45N4 drive a motor rated at 50 kW?

No. The ATV630D45N4 is rated for 45 kW under light overload (120%) and 37 kW under heavy overload (150%). A 50 kW motor application requires the ATV630 50 kW variant. Attempting to run a 50 kW motor on this drive risks nuisance thermal trips, reduced motor lifespan, and potential damage to the drive under sustained load. Always cross-check motor full-load current against the 88 A output current ceiling before confirming the model.

What is the practical difference between the 45 kW light overload and 37 kW heavy overload ratings?

Light overload (120%) applies to variable torque loads — centrifugal pumps and fans — where peak demand is moderate and brief. Heavy overload (150%) applies to constant torque loads — positive displacement pumps, conveyors — where the motor must develop full torque continuously from standstill. If your application is a centrifugal pump or HVAC fan, the 45 kW light overload rating applies. If it is a positive displacement pump or compressor, use the 37 kW heavy overload figure to select the correct drive size.

Does the ATV630D45N4 require an external EMC filter or input reactor?

No external EMC filter is required — it is already integrated in the ATV630D45N4. However, an external upstream disconnect switch and short-circuit protection device (breaker or fuse) are mandatory and must be installed ahead of the drive input terminals. A motor thermal overload relay at the drive output is also recommended as an additional protective layer even though the drive includes internal motor monitoring functions.

Is CanOpen communication available without purchasing an optional module?

No. ModBus TCP/IP and Ethernet are built-in standard on the ATV630D45N4 with no additional hardware. CanOpen requires an optional COM bus module ordered and installed separately. If your control system uses CanOpen as its primary fieldbus, confirm the module part number and availability with your distributor at the same time as the drive order — sourcing it separately later typically adds 2–4 weeks to your commissioning timeline.

Is the ATV630D45N4 approved for use in marine vessel applications?

The ATV630 family, including the ATV630D45N4, holds marine certifications for all vessel types according to Schneider Electric's official product documentation. However, marine certification status should be verified at order time since specific class notation requirements vary by vessel type and classification society. Contact your distributor to confirm the certification documentation matches your vessel's regulatory requirements before specifying this model in a marine build.

What does the IP21 protection rating mean for installation environment selection?

IP21 means the drive is protected against solid objects larger than 12.5 mm and against vertically dripping water — it is suitable for general indoor industrial environments with clean, dry air. It is not rated for washdown, outdoor exposure, high humidity, or corrosive atmospheres. For those environments, the ATV630D45N4 must be installed inside a separately rated IP54 or higher enclosure cabinet. If your installation site requires higher inherent IP protection, consult with your distributor about the correct enclosure solution before ordering.

Why Order the ATV630D45N4 From LeadTime.ca

  • Global shipping — LeadTime.ca ships the ATV630D45N4 and compatible accessories worldwide, not limited to any single country or region
  • Specialist inventory focus — authorized industrial automation distributor stocking Altivar Process drives specifically because water utility and HVAC integrators depend on rapid turnaround for both planned projects and emergency replacements
  • Technical pre-order support — confirm motor sizing, overload category, and communication module requirements before the purchase order is submitted, not after the drive arrives on site
  • Volume and project pricing — OEM builders and system integrators can request project-level pricing for multi-unit ATV630 builds
  • Faster lead times than generic channels — authorized distributor stock typically delivers in 1–3 weeks; generic online marketplace sourcing commonly extends to 6–8 weeks for this model class

ATV630D45N4 At-a-Glance Summary

  • Altivar Process ATV630 series variable frequency drive — 45 kW light overload (120%) / 37 kW heavy overload (150%)
  • Rated output current: 88 A — hard ceiling for motor full-load current compatibility
  • Input: 380–480V AC, three-phase, 50/60 Hz (±5% frequency tolerance)
  • Maximum output frequency: 500 Hz — supports high-speed motor applications
  • U-type converter topology with four-quadrant operation capability for regenerative braking
  • Stop and Go mode operation delivers energy savings up to 30% in variable load applications per Schneider Electric distributor specification data
  • Built-in Ethernet RJ45 (x1), three RJ45 communication ports, ModBus TCP/IP native — no external communication module required for standard network integration
  • CanOpen requires optional COM bus module — order at the same time as the drive to avoid commissioning delays
  • Dimensions: 673 mm H x 226 mm W x 271 mm D — requires 150 mm clearance above for forced convection cooling
  • IP21 enclosure protection — general indoor industrial use only; not washdown-rated
  • Marine certification available for all vessel types — verify class notation at order time
  • Integrated EMC filter — no external filter add-on required; external disconnect and upstream short-circuit protection are mandatory
  • Typical in-stock lead time from authorized distributors: 1–3 weeks
