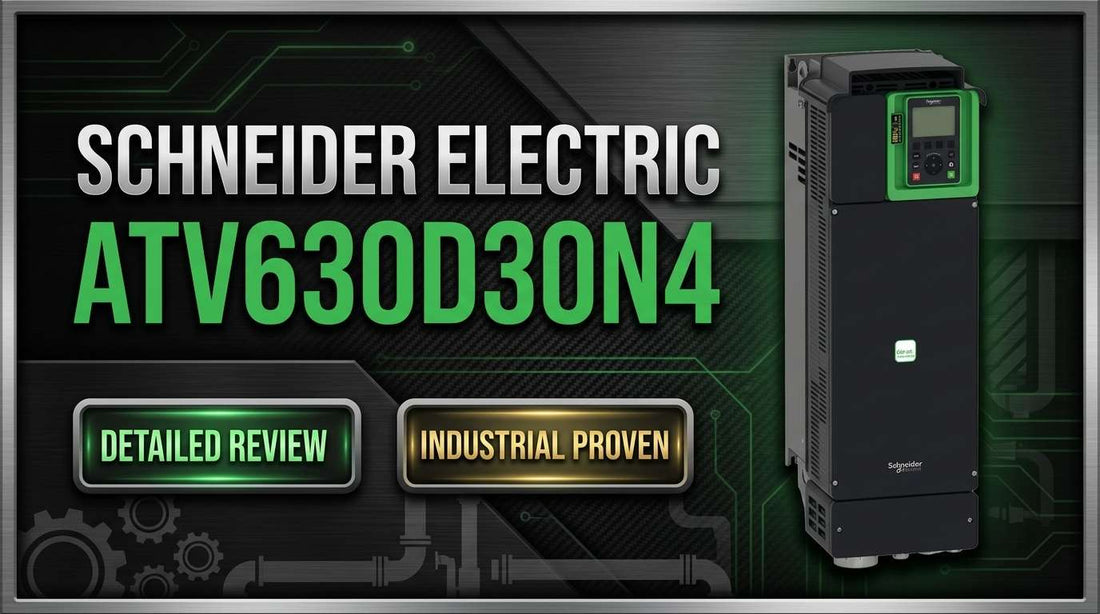

Schneider Electric ATV630D30N4 Altivar Process 30 kW variable frequency drive for industrial pump and motor control applications

Schneider Electric ATV630D30N4 Altivar Process ATV600 Series 30 kW / 40 HP Variable Speed Drive: Specifications, Installation, and Selection Guide

If you have already identified the Schneider Electric ATV630D30N4 as the variable frequency drive for your next pump station, mixer, or process motor application, this review gives you everything needed to confirm the specification, avoid the most expensive ordering mistakes, and move to procurement with confidence. The ATV630D30N4 is a 30 kW / 40 HP three-phase AC drive rated for 380–480 VAC input, built around embedded energy monitoring and an automatic Stop-and-Go idle shutdown function that sets it apart from commodity VFDs in the same power class. The drive carries IP21 and UL Type 1 enclosure ratings, ATEX Zone 2/22 certification, and supports Ethernet, Modbus TCP, and Modbus serial communication — a combination that covers the majority of process plant integration scenarios without additional gateway hardware.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the ATV630D30N4 — and Who Should Not

This drive is the right choice for plant engineers and integrators specifying a 30 kW / 40 HP AC drive for continuous process applications where energy efficiency monitoring and networked control are non-negotiable. It fits the following profile precisely:

  • Three-phase 380–480 VAC site supply is confirmed available at the installation point
  • Motor is a three-phase asynchronous or synchronous unit rated for variable frequency operation — single-phase motors are not compatible
  • Installation environment is indoor or adequately enclosed for IP21 / UL Type 1 — splash or washdown environments require a different variant
  • ATEX Zone 2/22 coverage is sufficient — Zone 0 or Zone 1 classified areas require a dedicated hazardous-rated drive
  • Control architecture uses Modbus serial, Modbus TCP, Ethernet SCADA, hardwired discrete inputs, or analog speed reference — all are supported natively
  • Wall-mount footprint of 226 mm wide × 673 mm high × 271 mm deep and a 28 kg mounting load can be accommodated on the installation surface

If your application requires 40 kW or higher continuous output, an IP54 sealed enclosure, or ATEX Zone 0/1 certification, this is not the correct model. The ATV640 series handles higher power ratings and IP54, while hazardous-rated variants cover Zone 0/1 requirements.

On this page:

What the ATV630D30N4 Actually Does in a Running System

The ATV630D30N4 is an AC variable frequency drive that regulates motor speed and torque by varying the frequency and voltage of the three-phase power it delivers to the connected motor. At 30 kW normal duty and 22 kW heavy duty, it covers the motor power range commonly found in mid-sized pump stations, industrial mixers, packaging line drives, and fan systems across wastewater treatment, food and beverage processing, oil and gas, and mining applications.

What distinguishes the ATV630D30N4 from a basic speed controller is its embedded power measurement dashboard and drift monitoring capability. Real-time power consumption data is available directly from the drive without a separate energy meter, which matters in multi-motor installations where deploying individual metering hardware across five to ten motors adds material cost and wiring complexity. The Stop-and-Go function takes this further by automatically halting the motor during detected idle periods, then restarting it on demand — reducing peak energy draw during downtime without operator intervention. In intermittent-duty applications such as batch mixing or pump stations that cycle with demand, this function addresses a genuine operational cost driver rather than being a marketing feature.

The drive supports both asynchronous (induction) motors and synchronous (permanent-magnet) motors, covering the two motor technologies most commonly found in industrial process upgrades and new installations. Output frequency range is 0.0001–0.5 kHz, enabling ultra-low speed operation for precision applications without gear reduction. Switching frequency is 4 kHz, which affects motor thermal behaviour and acoustic noise in enclosed installations.

One constraint to understand from the outset: the ATV630D30N4 does not include a built-in circuit breaker, harmonic filter, or surge protection device. An external reactor is strongly recommended by Schneider Electric to mitigate harmonic distortion and protect the drive from voltage surges on the supply. This is not optional for long-term reliable operation — it is a system design requirement that must be budgeted separately.

Typical System Architecture for the ATV630D30N4

The ATV630D30N4 sits between the three-phase power supply and the driven motor, with external protection hardware upstream and control signals arriving either through hardwired discrete inputs or over the network. A typical deployment chain looks like this:

  • Three-phase 380–480 VAC supply panel → main disconnect switch (required by NEC/CEC) → surge protection device (recommended for lightning-prone sites)
  • External line reactor → ATV630D30N4 drive input terminals (L1, L2, L3 / R, S, T)
  • ATV630D30N4 output terminals (U, V, W) → motor cable → three-phase asynchronous or synchronous motor
  • Control signals: Ethernet or Modbus TCP from PLC/SCADA → RJ45 communication port on drive, or hardwired analog (0–10 VDC potentiometer) to analog input terminals for standalone speed control
  • Relay outputs (3 relays) → status signals back to PLC or control panel (run / fault / ready)

Where the ATV630D30N4 Gets Deployed: Industries and Use Cases

Wastewater treatment is the primary deployment scenario for this drive. Pump speed modulation to match flow demand reduces peak energy draw measurably compared to fixed-speed pump operation, and the ATEX Zone 2/22 certification covers the occasional methane atmosphere present in most municipal wastewater facilities. The embedded energy dashboard gives plant operators direct visibility into pump energy consumption, supporting utility cost tracking and regulatory reporting without additional metering infrastructure.

Food and beverage plants use the ATV630D30N4 to control mixer, agitator, and packaging line motors where smooth acceleration and programmable multi-speed operation are required. The 16 preset speeds available through discrete input configuration handle most recipe-driven speed profiles without requiring Modbus programming, which reduces commissioning time for control panel builders who prefer hardwired setups.

In oil and gas applications — particularly remote pump stations and offshore platforms — the DNV-GL certification alongside CE, CSA, and UL marks means a single SKU satisfies multiple regional and marine regulatory frameworks. Modbus serial communication over shielded RS-485 cable supports reliable long-cable-run integration with existing RTUs, which is a common requirement in upstream oil and gas facilities where cable runs regularly exceed 100 m.

Mining mineral processing plants and district cooling pump stations round out the application picture. In both cases, multi-motor coordination via Ethernet and the Stop-and-Go idle shutdown function address the two operational priorities that plant managers most frequently identify: communication reliability across large facilities and energy cost reduction during off-peak periods.

Application Typical Deployment
Wastewater treatment pump station Variable-speed pump control with ATEX Zone 2/22 coverage and embedded energy monitoring
Food and beverage mixer / agitator 16-preset-speed hardwired control for recipe-driven batch operations
Oil and gas remote pump station Modbus serial over RS-485 for long cable runs; DNV-GL certified for offshore platforms
Mining mineral processing Multi-motor Ethernet coordination with Stop-and-Go idle shutdown during shift breaks
District cooling / heating pump station Speed-modulated pump control with automatic idle shutdown during off-peak demand periods
HVAC large facility air handling Fan speed control with Modbus TCP integration into building management systems

Key Electrical and Mechanical Specifications

Parameter Normal Duty Heavy Duty
Rated Power 30 kW / 40 HP 22 kW / 30 HP
Supply Voltage 380–480 VAC three-phase 380–480 VAC three-phase
Supply Frequency 50–60 Hz (±5%) 50–60 Hz (±5%)
Input Current @ 380V 53.3 A 40.5 A
Input Current @ 480V 45.9 A 35.8 A
Continuous Output Current @ 4 kHz 61.5 A 46.3 A
Output Frequency Range 0.0001–0.5 kHz 0.0001–0.5 kHz
Enclosure / IP Rating IP21 / UL Type 1 IP21 / UL Type 1
Dimensions (W × H × D) 226 mm × 673 mm × 271 mm 226 mm × 673 mm × 271 mm
Weight 28 kg (62 lbs) 28 kg (62 lbs)

Full technical specifications are available on the product page at LeadTime.ca.

ATV630D30N4 vs. Related Variants: Which Model Do You Actually Need?

Model Rated Power (Normal Duty) Enclosure ATEX Key Differentiator
ATV630D30N4 30 kW / 40 HP IP21 / UL Type 1 Zone 2/22 Embedded energy dashboard, Stop-and-Go, wall-mount
ATV630D22N4 22 kW / 30 HP IP21 / UL Type 1 Zone 2/22 Same feature set, lower power — verify motor nameplate before stepping down
ATV630D11N4 11 kW / 15 HP IP21 / UL Type 1 Zone 2/22 Smaller footprint and lower cost for lighter motor loads
ATV640 series 40 kW+ (varies) IP54 available Zone 2/22 Higher power and IP54 sealed option for wash-down environments
ATV650 series Higher power range IP54 / IP55 Zone 2/22 Larger installations requiring higher enclosure protection
Altivar 320 / ATV330 Under 22 kW IP20 Not rated Compact footprint for panel-mount applications with space constraints

If your motor nameplate shows 40 kW or above, or if your installation requires IP54 sealed protection, the ATV640 series is the correct step up — contact LeadTime.ca to confirm the right variant for your application.

Expert Verdict: Is the ATV630D30N4 Worth the Investment?

The ATV630D30N4 delivers clear, measurable value for plant engineers at wastewater treatment facilities, food and beverage plants, and oil and gas pump stations where energy consumption monitoring and networked motor control are operational requirements rather than optional extras. The embedded power measurement dashboard eliminates the need for separate energy meters across multi-motor installations — a genuine cost and wiring saving in facilities running five to ten motors. The Stop-and-Go function performs as designed in intermittent-duty applications: it automatically halts the motor during idle periods and restarts on demand, directly addressing the peak demand charges that drive energy budgets in pump and batch-mix applications. The triple-protocol communication stack — Ethernet at 10/100 Mbps, Modbus TCP, and Modbus serial — means this drive integrates into both modern Ethernet-based SCADA architectures and legacy RS-485 Modbus networks without an additional gateway. For organizations with ESG reporting obligations, the independently verified lifecycle carbon footprint of 25,517 kg CO2 equivalent (per Schneider Environmental Data, ISO 14040/14044) provides auditable data that a commodity drive cannot supply.

Where the ATV630D30N4 has real limits is equally important to state clearly. The IP21 / UL Type 1 enclosure is not suitable for splash-prone, washdown, or outdoor environments — buyers who need sealed protection must move to the ATV640 series with IP54 rating. The ATEX Zone 2/22 certification covers occasional flammable vapours but explicitly excludes Zone 0 and Zone 1 classified areas where continuous explosive atmospheres are present; specifying this drive in a Zone 1 environment is a compliance failure, not just a poor choice. Forced-convection cooling means the drive cannot be installed in a sealed, passively-cooled enclosure — an active ventilation path is mandatory. And the absence of a built-in harmonic reactor or circuit breaker means the external reactor is not an optional upgrade; it is a prerequisite for reliable long-term operation and warranty coverage. Buyers who approach the ATV630D30N4 as a drop-in commodity purchase without budgeting for external protection hardware will encounter commissioning problems and, potentially, premature drive failure.

From a procurement standpoint, the ATV630D30N4 is generally available through authorized distributors with typical lead times from stock or two to four weeks for special configurations. The single most important step before committing to a purchase order is confirming that an external reactor has been sized and quoted by your electrical integrator — reactor inductance depends on your site's short-circuit capacity in kVA, and getting this wrong delays commissioning and risks drive damage. Buying through a specialist distributor rather than a generic online channel gives you access to pre-order compatibility verification, reactor sizing support, and warranty clarity that protects the project. Check current pricing and lead time for the ATV630D30N4 at LeadTime.ca — the team ships worldwide and can assist with accessory specification before your order ships.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ATV630D30N4

No publicly indexed forum discussions, distributor Q&A threads, or community posts were found specifically addressing the ATV630D30N4 during research. This is not unusual for a mid-range industrial VFD at this power level — specifying engineers typically work directly with distributors and integrators rather than posting to public forums. What this means in practice is that the knowledge gap gets filled at the point of sale or at the point of commissioning, and that is precisely where ordering mistakes happen. The pattern is consistent: an engineer or procurement specialist confirms the power rating and voltage, places the order, and discovers on-site that a critical external protection requirement was not included in the scope or the budget.

The three mistakes that come up most consistently in this product class are worth naming directly. First, the external reactor is ordered as an afterthought — or not at all. Schneider Electric documentation explicitly recommends an external reactor to mitigate harmonics and protect the drive input from voltage surges. Omitting it to save cost in the short term introduces voltage distortion risk, potential drive failure, and a warranty dispute that is expensive to resolve. Second, model number suffix confusion leads to wrong-power-class orders. The ATV630 range uses a numeric suffix that encodes the power rating: D30 is 30 kW, D22 is 22 kW, D11 is 11 kW. These suffixes are visually similar and easy to misread in a parts list or email. Always verify the full model number against the motor nameplate before placing the order. Third, the three-phase supply requirement catches buyers in facilities that have only single-phase power available. This drive requires three-phase 380–480 VAC at the input terminals — there is no workaround within this product. If your site has only single-phase supply, a phase converter or a different product class is required before this drive can be commissioned.

LeadTime.ca's role in this process is not just fulfilment — it is verification. When you contact a specialist distributor before ordering, you get a pre-order confirmation that your motor is compatible, your supply voltage is correct, your enclosure rating is appropriate, and your external reactor is in scope. That conversation costs nothing and prevents the kind of commissioning failures that cost significantly more than the drive itself to resolve. For applications where community guidance is sparse, specialist distributor expertise is the practical substitute.

Wiring and Installation Overview

The following points cover the key requirements and pre-installation checks. Full wiring diagrams and step-by-step procedures are available in the Schneider Electric ATV630 installation manual, which should be consulted before any electrical work begins.

  • Mount the drive vertically on a structural wall surface capable of supporting 28 kg; ±10 degree tilt tolerance is the maximum — confirm mounting surface rigidity before installation
  • Provide unobstructed forced-convection airflow above and below the drive; do not mount in a sealed cabinet without active ventilation, as passive cooling is not sufficient for this drive class
  • Install the external reactor between the three-phase supply and drive input terminals (L1, L2, L3 / R, S, T) before energizing — reactor connection polarity must match terminal markings
  • Connect motor output terminals (U, V, W) to the motor using cable gauge appropriate for the rated current at the cable run length; verify motor is rated for three-phase variable frequency operation before connecting
  • For Modbus serial (RS-485) communication, terminate the cable with a 120-ohm resistor at each end of the bus; for Ethernet / Modbus TCP, use a standard RJ45 connection and confirm IP address assignment matches your SCADA network configuration

Compatible Accessories and External Protection Components

The ATV630D30N4 is designed to operate with external protection and filtering components that must be specified and sourced separately. The following accessories are referenced in Schneider Electric documentation for this drive and power class:

  • External line reactor — required for harmonic mitigation and voltage surge protection; inductance value depends on site short-circuit capacity (kVA); typical range for 30 kW at 480V is 7–15 mH — confirm sizing with your integrator
  • External EMC filter — required for compliance with EN/IEC 61800-3 Category C2 (cable runs up to 50 m) or Category C3 (cable runs up to 150 m); specify based on your motor cable routing plan
  • Surge protection device (SPD) — recommended for sites with lightning exposure or unstable utility supply; install upstream of the drive input
  • Main disconnect switch — required by NEC and CEC upstream of the drive; must be sized for the drive's input current at the supply voltage in use
  • Motor thermal overload protection — the drive provides software-based overload protection, but the motor must also have its own thermal protection device appropriate for VFD-driven operation

Wrong-Part Prevention Checklist

Before placing your order for the ATV630D30N4, verify every item on this checklist. These are the conditions that cause commissioning failures, warranty disputes, and costly site re-engineering when missed at the ordering stage.

  1. Confirm your motor is rated for variable frequency output (standard for modern three-phase motors; NOT suitable for single-phase input motors)
  2. Verify your site has three-phase 380-480 VAC available; this is NOT a single-phase or lower-voltage drive
  3. Check that your control system supports Modbus, Ethernet, or discrete relay logic (Modbus is standard but verify compatibility)
  4. Confirm ATEX/hazardous-area requirement: this model is Zone 2/22 only; do NOT use in Zone 0 or Zone 1
  5. Plan for external reactor installation (NOT built-in) to mitigate harmonics — verify available space and electrical routing
  6. Ensure forced-convection cooling airflow is available (NOT suitable for sealed/explosion-proof enclosures requiring passive cooling)
  7. Check wall-mount surface is suitable for 28 kg and vertical installation (±10 degree angle tolerance)
  8. Confirm operating ambient temperature is 50-60°C with derating; if hotter, verify derating curve with distributor

If any item on this checklist raises a question you cannot answer with certainty, contact the LeadTime.ca team before ordering — confirming compatibility before shipment is faster and less expensive than resolving it after delivery.

Frequently Asked Questions

What size external reactor do I need for the ATV630D30N4, and can I skip it to reduce cost?

Skipping the reactor is not recommended and may void the warranty if drive damage is traced to harmonic distortion or voltage surge on the supply. Reactor inductance depends on your site's short-circuit capacity measured in kVA at the point of common coupling — typical values for a 30 kW drive at 480V fall in the range of 7–15 mH, but the correct value must be calculated by your integrator using your specific supply data. Budget for the reactor as a standard line item from the start of the project, not as an optional accessory.

Can the ATV630D30N4 be installed in a wastewater treatment facility with methane risk?

Yes, with an important qualification. The drive carries ATEX Zone 2/22 certification, which covers areas where flammable vapours are present occasionally but not continuously — the classification that describes the majority of wastewater treatment pump rooms and wet wells. It is explicitly not certified for Zone 0 or Zone 1 environments where flammable atmospheres are present continuously or for long periods. Verify your area classification with your safety engineer before specifying this model for any hazardous-area installation.

Does the ATV630D30N4 support both Modbus and hardwired speed control simultaneously?

Yes. The drive supports Modbus serial (RTU/ASCII), Modbus TCP over Ethernet, hardwired discrete inputs for up to 16 preset speeds, and analog inputs (0–10 VDC or equivalent) for potentiometer-based speed reference. The control source priority and fallback behaviour are configurable in the drive parameters. Integrators retrofitting older plants with a mix of legacy Modbus serial RTUs and newer Ethernet SCADA systems can use both communication interfaces within the same installation.

Is the ATV630D30N4 a direct replacement for a fixed-speed motor starter, and what changes at the panel?

The drive replaces the starter function and adds speed control, but the panel design changes significantly. A fixed-speed direct-on-line starter does not require an external reactor, EMC filter, or forced-convection airflow clearance. When retrofitting with the ATV630D30N4, you must add the external reactor between the supply and drive input, verify that motor cables are rated for VFD output (screened cable is recommended to manage EMC emissions), and ensure the mounting location provides unobstructed airflow for the forced-convection cooling system. Work with your panel builder to confirm these requirements are addressed before the panel is built.

What does the lifecycle carbon footprint figure of 25,517 kg CO2 equivalent mean for ESG reporting?

This figure represents the total lifecycle greenhouse gas emissions of the ATV630D30N4, measured across manufacturing, use, and end-of-life phases per ISO 14040/14044 lifecycle assessment methodology, as published in the Schneider Electric Environmental Database. For organizations with carbon accounting obligations or ESG disclosure requirements, this verified figure can be used directly in product-level emissions reporting. The drive is also noted as eligible for R2/e-Stewards certified recycling at end of life, and packaging uses recycled cardboard materials.

Why Order the ATV630D30N4 Through LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships industrial automation components worldwide, not limited to any single region
  • Pre-order compatibility verification — specialist team confirms motor type, supply voltage, enclosure rating, and external reactor requirement before your order ships
  • Hard-to-find parts sourcing — access to authorized stock for Altivar 630 series drives and compatible accessories, including reactors and EMC filters
  • Volume pricing available — contact directly for project quantities or multi-drive orders requiring a firm quotation
  • Warranty clarity — all drives supplied through authorized channels with standard manufacturer warranty coverage confirmed at time of order

At-a-Glance Summary

  • Model: ATV630D30N4 — Altivar Process ATV600 series, 30 kW / 40 HP AC variable frequency drive
  • Supply voltage: 380–480 VAC three-phase; supply frequency 50–60 Hz ±5% — three-phase input only
  • Normal duty output: 30 kW / 40 HP continuous; heavy duty: 22 kW / 30 HP
  • Continuous output current at 4 kHz: 61.5 A normal duty, 46.3 A heavy duty
  • Input current at 380V: 53.3 A (normal duty), 40.5 A (heavy duty)
  • Output frequency range: 0.0001–0.5 kHz — supports ultra-low speed operation
  • Dimensions: 226 mm wide × 673 mm high × 271 mm deep; weight 28 kg
  • Enclosure: IP21 / UL Type 1 — indoor use only; IP54 requires ATV640 series
  • ATEX: Zone 2/22 certified — not suitable for Zone 0 or Zone 1
  • Communication: Ethernet 10/100 Mbps, Modbus TCP, Modbus serial (RTU/ASCII), 8 discrete inputs, 3 analog inputs, 3 relay outputs
  • Certifications: CE, CSA, UL, DNV-GL, TUV — dual North American and European compliance from a single SKU
  • Lifecycle carbon footprint: 25,517 kg CO2 equivalent (Schneider Environmental Database, ISO 14040/14044)
  • External reactor: mandatory — must be sized by integrator based on site short-circuit capacity
  • Cooling: forced convection — sealed or passively-cooled enclosures are not compatible
  • Typical lead time: from stock or 2–4 weeks for special configurations
