Schneider Electric ATV630D11N4 — 11 kW VFD Selection Guide

By Abdullah Zahid
18 min read

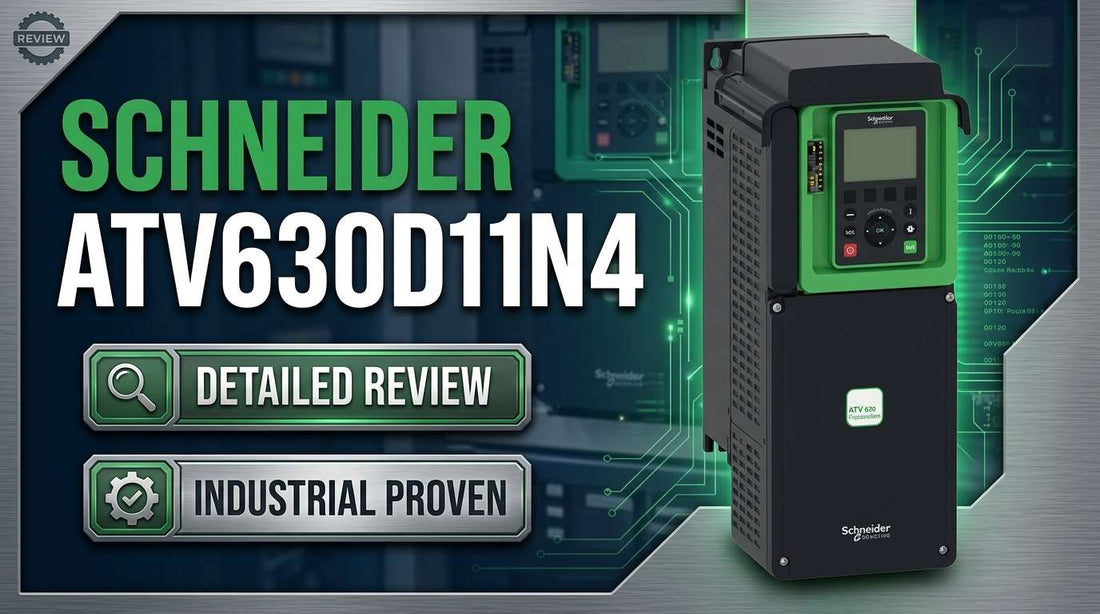

Schneider Electric ATV630D11N4 Altivar Process 11 kW variable speed drive for industrial pump and HVAC fan motor control

Schneider Electric ATV630D11N4 Altivar Process ATV600 Series Variable Speed Drive (11 kW / 15 hp, 380-480 V AC): Specs, Applications, and Selection Guide

If you are specifying or procuring an 11 kW variable frequency drive for a process pumping, HVAC fan, or light-industrial motor application and the Schneider Electric ATV630D11N4 is on your shortlist, the core questions are usually the same: Does the duty cycle rating match your actual run hours? Will the embedded Modbus TCP port talk to your existing SCADA without a gateway? And is IP21 the right enclosure for your installation environment? This guide answers all three — drawing directly from verified manufacturer specifications and distributor data — so you can make or reject this purchasing decision with confidence. The ATV630D11N4 is a wall-mounted AC variable frequency drive rated for 11 kW normal duty or 7.5 kW heavy duty, supplied from 380-480 V AC three-phase, with integrated energy monitoring, SIL 3 Safe Torque Off, and Modbus TCP over Ethernet RJ45 built in as standard.

If you have already confirmed this is the right part, check current pricing and availability for the ATV630D11N4 at LeadTime.ca — ships worldwide.

Who Should Buy the ATV630D11N4 — and Who Should Not

This drive is the right choice for process engineers and procurement specialists who need all of the following:

  • Motor power rating of 11 kW for normal duty or 7.5 kW for heavy duty — confirm which applies to your application before ordering
  • Three-phase AC supply voltage of 380-480 V (single-phase supply cannot power this drive)
  • Modbus TCP over Ethernet RJ45 and/or Modbus serial RS-485 for integration with existing SCADA or PLC infrastructure
  • IP21 / UL Type 1 enclosure suitable for a standard dry industrial cabinet environment — not washdown, not outdoor spray
  • ATEX zone 2/22 certification coverage for non-classified industrial environments
  • Integrated energy monitoring and Stop and Go idle-reduction without purchasing a separate power meter or software module

If your application runs 24/7 in ambient temperatures above 60°C, requires a compact DIN-rail form factor, involves DC or servo motors, or demands an IP66 washdown enclosure, the ATV630D11N4 is not the correct variant. See the variant comparison table below for the models that are.

On this page:

What the ATV630D11N4 Actually Does in a Process System

The ATV630D11N4 is an AC variable frequency drive from Schneider Electric's Altivar Process ATV600 series — a product family built specifically for process and utility applications rather than general-purpose motion control. Its fundamental job is to sit between a 380-480 V AC three-phase supply and the motor it controls, modulating output frequency across a range of 0.1 to 500 Hz to vary motor speed and torque on demand. It supports both asynchronous (induction) and synchronous (permanent magnet or wound-rotor) three-phase motors, which covers the vast majority of process motor types in pumping, fan, and compressor applications.

What separates this drive from simpler VFDs in the same power class is what is built into the hardware as standard. The embedded power measurement and energy dashboard give real-time consumption data per shift or zone without requiring a separate power meter or additional licensing. The Stop and Go function automatically pauses motor output during idle periods — particularly useful in HVAC and demand-driven pumping where the motor is not always at full load. The SIL 3 certified Safe Torque Off function, implemented via dual-channel discrete safety relay, allows maintenance isolation without mechanical lockout/tagout in many jurisdictions, reducing planned downtime. Embedded asset monitoring provides drift detection — early warning of bearing wear, seal leakage, or motor degradation — enabling maintenance teams to schedule intervention before a failure stops production.

The drive is certified against a broad set of regional and safety standards including ATEX zone 2/22, DNV-GL, TUV, CSA, and UL, which matters for facilities that need to demonstrate compliance across multiple regulatory frameworks without specifying separate certified hardware for each.

Typical System Architecture: Where This Drive Sits in Your Signal Chain

The ATV630D11N4 occupies the power conversion and motor management layer — between the supply switchgear and the motor terminals — while simultaneously sitting on the plant communication network through its Ethernet RJ45 port.

  • Three-phase AC supply (380-480 V) feeds through a feeder breaker (minimum 24.75 A for normal duty at 380 V) into the drive's input terminals
  • The ATV630D11N4 modulates output frequency (0.1-500 Hz) and current (up to 23.5 A normal duty) to the motor terminals, controlling speed and torque
  • Ethernet RJ45 connects the drive to the plant network switch, making drive status, speed reference, and energy data available to SCADA, PLC, or cloud platform via Modbus TCP
  • Discrete I/O — 16 preset speed inputs, 3 relay outputs, 3 analog inputs — connect to field instruments, selector switches, or logic modules for local control and feedback
  • Safe Torque Off dual-channel safety relay connects to the plant safety circuit, enabling maintenance isolation verified to SIL 3 per IEC 61508

Industries and Applications: Where the ATV630D11N4 Is Deployed

In water and wastewater treatment, the ATV630D11N4 is used to modulate pump speed in real time to match distribution demand. Rather than running a pump at full speed and throttling with a valve — wasting energy through restriction — the drive varies output frequency to deliver exactly the flow required. The embedded energy dashboard allows operators to track consumption per shift or per zone, which is increasingly required for utility reporting and rate optimization.

HVAC engineers deploy this drive to modulate supply and return fan speeds based on temperature or pressure set-points in large commercial or industrial facilities. The Stop and Go function makes a measurable difference in intermittent-duty buildings: during unoccupied hours, the drive pauses the motor automatically rather than running at minimum speed, then resumes on demand. Output frequency is adjustable down to 0.1 Hz, giving fine control across the full speed range.

In food and beverage processing, the drive controls batch mixer and blending motors where torque consistency matters. The Modbus TCP interface allows the production scheduler or MES to send speed references and receive load feedback in real time, enabling recipe-driven motor control without custom gateway development. SIL 3 Safe Torque Off provides the maintenance isolation required in facilities operating under strict hygiene and safety protocols.

Compressed air system integrators use the ATV630D11N4 to modulate compressor motor speed against tank pressure rather than cycling the compressor on and off at full power. The drift monitoring function detects valve leakage that causes the compressor to over-run, alerting maintenance before energy waste becomes significant or mechanical damage occurs.

Industrial fan and conveyor applications benefit from the 16 preset speed profiles accessible via discrete logic inputs — useful where a multi-speed conveyor or fan system is sequenced by a simple PLC without continuous analog reference. Modbus TCP adds the option to move to continuous speed reference over network when system complexity increases.

Application Typical Deployment
Water distribution pump control Drive modulates pump speed to match demand; energy dashboard tracks consumption per zone or shift
HVAC supply/return fan modulation Variable fan speed based on temperature set-point; Stop and Go pauses motor during unoccupied periods
Food and beverage batch mixing Modbus TCP delivers recipe-driven speed references from MES; SIL 3 STO provides maintenance isolation
Compressed air demand-response Compressor motor modulated to maintain tank pressure; drift monitoring detects valve leakage
Industrial conveyor speed control 16 preset speed profiles via discrete inputs; Modbus TCP for real-time load reporting to supervisory system
Process fluid agitation and blending Torque and speed control for mixer motors; embedded power measurement quantifies energy per batch

Key Specifications: What Engineers Need to Make the Purchase Decision

Parameter Value Notes
Motor Power — Normal Duty 11 kW (15 hp) Continuous rating; confirm application run hours before specifying
Motor Power — Heavy Duty 7.5 kW For 24/7 continuous or high-ambient operation
Supply Voltage 380-480 V AC three-phase Tolerance: -15% to +10% per supply frequency; single-phase supply not supported
Output Frequency Range 0.1-500 Hz Verify motor cooling method supports upper range before setting
Output Current — Normal Duty 23.5 A @ 4 kHz Continuous; derating applies at 12 kHz switching frequency
Output Current — Heavy Duty 16.5 A @ 4 kHz Continuous; use for 24/7 applications or ambient above 50°C
Communication Protocols Modbus TCP (Ethernet RJ45), Modbus serial RS-485 2-wire Both available simultaneously; configured via embedded web interface
Safe Torque Off SIL 3 per IEC 61508 / ISO 13849-1 PLd Dual-channel configuration required to achieve SIL 3 rating
Enclosure IP21 / UL Type 1, wall-mount Not suitable for washdown or outdoor spray environments
Dimensions (W × H × D) 171 mm × 409 mm × 233 mm Weight: 7.7 kg; fixed wall-mount — no DIN-rail or modular option

Full technical specifications are available on the product page at LeadTime.ca.

ATV630D11N4 vs. Other ATV630 Variants: Which Power and Duty Rating Do You Need?

Model Normal Duty Heavy Duty Supply Voltage Output Current (ND) Best For
ATV630D11N4 11 kW 7.5 kW 380-480 V AC 23.5 A @ 4 kHz Process pumps, HVAC fans, light-industrial motors running ≤16 h/day typical
ATV630D15N4 15 kW 11 kW 380-480 V AC Higher — see datasheet Applications needing 15 kW normal duty or 11 kW continuous 24/7 operation
ATV630D22N4 22 kW 15 kW 380-480 V AC Higher — see datasheet Larger pumps, compressors, and fans requiring more than 15 hp at full continuous load

If your motor is rated above 11 kW or your application runs 24/7 and the 7.5 kW heavy-duty rating of the ATV630D11N4 is insufficient, the next variant up is the correct choice. Check current availability and confirm the right variant at LeadTime.ca.

ATV630D11N4 vs. ABB, Danfoss, and Siemens: Honest Comparison

Specification Schneider Electric ATV630D11N4 ABB ACH580 (11 kW) Danfoss VLT FC 300 (11 kW) Siemens SINAMICS G120C (11 kW)
Supply Voltage 380-480 V AC 380-480 V AC 380-480 V AC 380-480 V AC
Output Frequency 0.1-500 Hz 0-500 Hz 0.1-500 Hz 0-500 Hz
Modbus TCP Yes — standard Yes Yes Yes
SIL 3 Safe Torque Off Yes — standard Yes Yes Yes
Integrated Energy Monitoring Built-in dashboard — standard Optional add-on Built-in dashboard Optional add-on
Stop and Go Function Yes — standard No No No
Enclosure Standard IP21 wall-mount IP21 wall-mount IP21 or IP66 variant available IP21 wall-mount
Compact or Modular Option No — fixed wall-mount only Fixed wall-mount Compact DIN-rail variant available Distributed I/O module option
Market-Typical Lead Time 1-2 weeks 1-2 weeks 2-3 weeks 2-3 weeks

Choose the ATV630D11N4 if embedded energy monitoring and the Stop and Go function are important, if you are already operating within a Schneider ecosystem, or if strong distributor support from an authorized Schneider partner is a priority. Choose the Danfoss VLT FC 300 if a compact DIN-rail form factor or IP66 enclosure variant is required without custom housing. Choose the Siemens SINAMICS G120C if distributed I/O expansion or a Siemens-standardized spare-parts inventory is more important than out-of-box energy dashboarding. The ABB ACH580 is a strong alternative for buyers who already have ABB technician training and established spare-parts stocking.

Expert Verdict: Is the ATV630D11N4 the Right Drive for Your Project?

The Schneider Electric ATV630D11N4 is a mature, well-specified variable frequency drive that delivers genuine value for process automation engineers in water treatment, HVAC, food and beverage, and light-industrial fan or pump applications. Its most practical advantage over simpler VFDs at this power class is that the embedded energy dashboard, Stop and Go idle function, and SIL 3 Safe Torque Off are all available immediately at commissioning — no additional hardware modules, no software licensing, no integration work. For facilities that need to track energy consumption per shift, demonstrate safety certification for maintenance procedures, or detect motor degradation before it causes unplanned downtime, the ATV630D11N4 delivers those capabilities at a mid-market price point that is competitive against both ABB and Danfoss equivalents. The ATEX zone 2/22, DNV-GL, TUV, CSA, and UL certifications also reduce the compliance burden for facilities operating across multiple regulatory frameworks.

Where this drive has real limits: the normal-duty 11 kW rating is not the right specification for 24/7 continuous operation in high-ambient environments — that scenario requires verifying the heavy-duty 7.5 kW rating or stepping up to the ATV630D15N4 or ATV630D22N4, which offer 15 kW and 22 kW normal-duty ratings respectively. The fixed wall-mount form factor at 171 mm × 409 mm × 233 mm means there is no DIN-rail or modular alternative within this model — engineers with space-constrained enclosures should evaluate the Danfoss VLT FC 300 compact variant instead. The IP21 enclosure rating is firm: do not install this drive in washdown areas or outdoor spray environments without specifying the correct IP66 variant. Cable runs beyond 150 m from drive to motor require an external EMC filter beyond the integrated category C2 filter, which adds cost and engineering work that should be scoped before the order is placed.

From a procurement standpoint, the ATV630D11N4 is a standard catalog item with a typical market lead time of 1-2 weeks through authorized distributors — shorter than the Danfoss and Siemens equivalents benchmarked above. Ordering through a specialist industrial distributor rather than a generic online channel gives you pre-sales technical verification (confirming duty cycle, environmental rating, and communication compatibility before the order ships), warranty administration without navigating manufacturer support queues, and access to compatible commissioning accessories bundled at package pricing. For buyers anywhere in the world, LeadTime.ca ships the ATV630D11N4 globally with the technical support that a generic reseller cannot provide. View current pricing and availability for the ATV630D11N4 at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a project build schedule, contact the LeadTime.ca team directly — we ship worldwide and can advise on duty cycle, enclosure, and communication compatibility before the order is placed.

What Engineers Need to Know Before Ordering the ATV630D11N4

Because community discussion for this specific model number is limited in public forums — typical for mature, stable industrial automation hardware that is deployed quietly and reliably rather than troubleshot publicly — the most valuable pre-purchase insights come from the technical details that catch buyers off-guard at the ordering stage. The patterns below reflect the specification traps that specialist distributors and systems integrators encounter most often with this product family, and they are worth reviewing carefully before placing an order.

The single most common ordering error with the ATV630D11N4 is treating the normal-duty 11 kW rating as universally applicable regardless of application run hours. Engineers familiar with simpler VFDs sometimes assume the nameplate figure (15 hp) represents available continuous output in all operating conditions. It does not. The normal-duty rating supports continuous operation in typical intermittent or scheduled applications; for 24/7 continuous operation or environments where ambient temperature exceeds 50°C, the heavy-duty rating of 7.5 kW applies, with a corresponding reduction in output current from 23.5 A to 16.5 A at 4 kHz switching frequency. Specifying the wrong duty mode for a 24/7 cooling pump or compressor application leads to repeated thermal faults within months — and warranty disputes that are time-consuming to resolve mid-production.

A second area where specialist advice adds clear value is EMC filter scoping and motor cable length. The integrated EMC filter in the ATV630D11N4 is rated to category C2 at 50 m cable length. Beyond 150 m, an external EMC filter is required (category C3). Sites where the drive is installed in a remote motor control center and the motor is located 200 m or more away in a pump room or rooftop plant have encountered intermittent Modbus TCP communication loss attributable to high-frequency switching noise coupling into network cables — a problem that is straightforward to prevent at the design stage and expensive to diagnose and retrofit after installation. Before ordering, measure the actual cable run from drive to motor, identify all signal cables running parallel to the power cable, and confirm filter category with your distributor or a Schneider-authorized engineer. LeadTime.ca's technical team can assist with this scoping before the order ships, so the right accessories are included from the start rather than identified after commissioning.

Wiring and Installation: What to Verify Before You Commission

  • Confirm site supply is genuinely 380-480 V AC three-phase with actual voltage measurement using a true RMS multimeter — single-phase supply cannot power this drive, and supply outside the ±10-15% tolerance range must be reported to facility engineering before proceeding
  • Verify motor nameplate power and type (asynchronous or synchronous AC); the ATV630D11N4 is not suitable for DC or BLDC motors regardless of power rating
  • Ensure cooling airflow path delivers a minimum of 27,210 US Gal/hr (103 m³/h) forced convection with no obstructions within 150 mm of drive intake and exhaust vents; blocked ventilation voids thermal protection and leads to premature thermal shutdown
  • Size the feeder breaker with a 25% safety margin above line current: at 380 V normal duty, line current is 19.8 A — minimum breaker is 24.75 A, specify 30 A; wire gauge must be selected per applicable electrical code for the feeder distance and current rating
  • The integrated EMC filter supports 50 m motor cable (category C2); for cable runs up to 150 m, verify category C3 compliance; for runs exceeding 150 m, an optional external EMC filter is required — do not commission without confirming this against actual site cable lengths

Compatible Accessories and System Expansion

The ATV630D11N4 supports a range of accessories and communication configurations relevant to system integrators building process control panels:

  • External EMC filter (optional): Required for motor cable runs beyond 150 m to maintain category C3 compliance per EN/IEC 61800-3; consult Schneider Electric or LeadTime.ca for site-specific filter part number selection
  • Discrete safety relay module: Required in dual-channel configuration to achieve SIL 3 Safe Torque Off rating per IEC 61508 and ISO 13849-1 PLd — single-channel STO does not meet SIL 3
  • 16 preset speed profiles via discrete logic inputs: Compatible with external selector switches, logic modules, or PLC discrete output cards; no additional expansion hardware required
  • Analog input accessories: Three analog inputs (0-10 V or 0-20 mA) support field instruments including pressure transducers, temperature sensors, and flow meters for closed-loop speed control without external PID controller
  • Modbus TCP network accessories: Standard Ethernet RJ45 connects to plant network switches at 10/100 Mbps; RS-485 2-wire Modbus serial supports legacy SCADA integration at 9.6-19.2 kbps in star or daisy-chain topology

Wrong-Part Prevention: Six Checks Before You Place the Order

Before submitting your purchase order for the ATV630D11N4, verify every item on this checklist. These are the six points most likely to result in a wrong-part return, installation delay, or in-service failure if overlooked:

  1. Verify actual motor power rating in kW; do not assume nameplate hp directly converts — heavy-duty mode is 7.5 kW, not 11 kW
  2. Confirm site supply voltage is genuinely 380-480 V AC three-phase; single-phase supply cannot power this drive
  3. Check that the motor is asynchronous (induction) or synchronous type; do not use for DC or BLDC motors
  4. Ensure communication protocol required (Modbus TCP, Ethernet) matches existing plant infrastructure
  5. Verify enclosure environment matches IP21 / UL Type 1 rating; do not use in washdown areas or hazardous zones beyond ATEX zone 2/22
  6. Confirm cooling capacity (27,210 US Gal/hr = 103 m³/h forced convection airflow) is available at installation site; blocked ventilation voids thermal protection

If any of these checks raises a question you cannot resolve from the datasheet alone, contact the LeadTime.ca technical team before ordering — pre-sales specification support is available for customers worldwide, and it is faster than a wrong-part return.

Frequently Asked Questions

What is the actual difference between normal duty and heavy duty on the ATV630D11N4, and how do I know which one my application needs?

Normal duty allows 11 kW continuous output with a rated current of 23.5 A at 4 kHz switching frequency — appropriate for applications that do not run at 100% load 24 hours a day, or where there is a daily maintenance window that allows the drive to cool. Heavy duty is rated at 7.5 kW continuous with 16.5 A output current, and is specified for applications running at sustained full load 24/7 or in ambient temperatures exceeding 50°C. The nameplate figure of 15 hp can mislead buyers into assuming 11 kW is available in all conditions; it is not. If your facility runs the motor continuously without a scheduled stop, specify and verify the heavy-duty rating before ordering — or step up to the ATV630D15N4 which provides 11 kW heavy-duty rating.

Can the ATV630D11N4 control a synchronous permanent magnet motor, or is it induction motors only?

The ATV630D11N4 supports both asynchronous (induction) and synchronous three-phase AC motors, including permanent magnet and wound-rotor synchronous types. It cannot be used with DC motors or brushless DC (BLDC) servo motors — those applications require a different Schneider Electric drive family. Confirm your motor nameplate specifies an AC motor type before specifying this drive.

Is the EMC filter integrated, or do I need to order it separately?

The EMC filter is integrated as standard in the ATV630D11N4. The integrated filter is compliant with EN/IEC 61800-3 category C2 for motor cable lengths up to 50 m. For cable runs up to 150 m, category C3 compliance is achievable with the optional external filter. For any cable run exceeding 150 m, an external EMC filter must be specified — consult Schneider Electric or LeadTime.ca for the correct external filter part number based on your site cable layout.

Does the ATV630D11N4 support both Modbus TCP and Modbus serial simultaneously, or do I have to choose one?

Both protocols are available simultaneously. The Ethernet RJ45 port provides Modbus TCP at 10/100 Mbps for integration with modern SCADA, PLC, or cloud platforms. The RS-485 2-wire port provides Modbus serial at 9.6-19.2 kbps for legacy SCADA systems. Both are configured via the embedded web interface accessible through the Ethernet port. No external gateway or protocol converter is required for either protocol.

Is the standard ATV630D11N4 suitable for washdown environments or classified hazardous areas?

No. The standard ATV630D11N4 is rated IP21 / UL Type 1, which is appropriate for dry industrial cabinet environments. It is not suitable for washdown areas — those require an IP66 or higher enclosure variant. The drive carries ATEX zone 2/22 certification, meaning it is certified for use in non-classified areas and areas where explosive atmospheres are unlikely under normal operation. Do not install this drive in ATEX zone 0 or zone 1 classified areas, or in any washdown environment, without specifying the correct variant for that environment.

What happens if the cooling airflow is restricted during operation?

The ATV630D11N4 relies on forced convection cooling requiring 27,210 US Gal/hr (103 m³/h) of unobstructed airflow. If ventilation is blocked or ambient temperature exceeds the operating threshold, the drive's thermal sensors will trigger a thermal overload fault and shut the drive down to protect the hardware. Repeated thermal faults in an improperly ventilated installation will eventually cause component degradation. Ensure no obstructions exist within 150 mm of drive intake and exhaust vents, and verify cabinet-level cooling is adequate for the enclosure ambient temperature before commissioning.

Why Order the ATV630D11N4 Through LeadTime.ca

  • Global shipping on industrial automation hardware — the ATV630D11N4 ships to customers worldwide, not limited to any single region
  • Pre-sales technical support to verify motor compatibility, duty cycle, enclosure rating, and communication protocol fit before the order ships — avoiding costly wrong-part returns
  • Access to hard-to-source variants and accessories including external EMC filters and safety relay modules compatible with the ATV630D11N4
  • Volume pricing available for project quantities — contact the team for current pricing on multi-unit orders
  • Fast response for emergency replacement inquiries — if a drive fails mid-production, lead time clarity and same-business-day response matter

At-a-Glance Summary

  • Model: Schneider Electric ATV630D11N4 — Altivar Process ATV600 Series Variable Speed Drive
  • Normal duty power rating: 11 kW (15 hp); heavy duty rating: 7.5 kW — confirm which applies before ordering
  • Supply voltage: 380-480 V AC three-phase only — single-phase supply not supported
  • Output frequency range: 0.1 to 500 Hz — verify motor cooling method supports upper range
  • Output current: 23.5 A normal duty / 16.5 A heavy duty at 4 kHz switching frequency
  • Communication: Modbus TCP over Ethernet RJ45 (10/100 Mbps) and Modbus serial RS-485 2-wire — both available simultaneously
  • Safety: SIL 3 Safe Torque Off per IEC 61508 / ISO 13849-1 PLd — dual-channel configuration required
  • Enclosure: IP21 / UL Type 1 wall-mount — not suitable for washdown or outdoor spray; no DIN-rail variant
  • Dimensions: 171 mm × 409 mm × 233 mm; weight: 7.7 kg
  • Cooling: Forced convection, minimum 27,210 US Gal/hr (103 m³/h) — blocked ventilation voids thermal protection
  • Certifications: ATEX zone 2/22, DNV-GL, TUV, CSA, UL — valid only within certified zone definitions
  • Integrated EMC filter: Category C2 at 50 m cable length; external filter required beyond 150 m
  • Built-in energy dashboard and Stop and Go function — no additional hardware or licensing required
  • Market-typical lead time: 1-2 weeks through authorized distributors — verify before committing to project schedule
