Schneider ATV630D15N4 — 15kW Process VFD Buying Guide

By Abdullah Zahid
14 min read

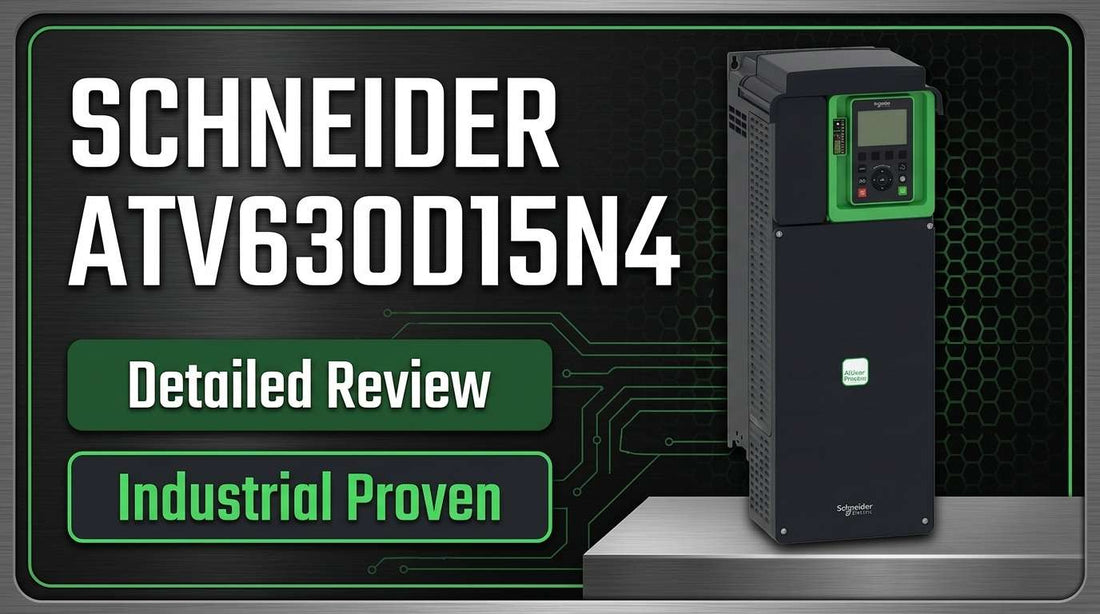

Schneider Electric ATV630D15N4 15kW Altivar Process ATV600 variable frequency drive for industrial pump and conveyor control

Schneider Electric ATV630D15N4 Variable Speed Drive, Altivar Process ATV600 Series, 15kW/20HP, 380-480V, IP21, UL Type 1 — Industrial VFD Buying Guide

When a controls engineer or procurement specialist searches for the Schneider Electric ATV630D15N4 by catalog number, the buying decision is rarely far off. This is a 15kW (20HP) wall-mounted variable frequency drive from Schneider Electric's Altivar Process ATV600 series, accepting 380-480V three-phase input and delivering variable-frequency output to three-phase asynchronous or synchronous motors. It covers the mid-range power bracket that water treatment plants, food processing lines, and light mining operations routinely need — with native Ethernet, Modbus TCP, and Modbus serial connectivity built in, and a Safe Torque Off function rated to SIL 3 under IEC 61508.

If you have already confirmed this is the right part, check current pricing and availability for the ATV630D15N4 at LeadTime.ca — we ship worldwide.

Who Should Buy the ATV630D15N4 — and Who Shouldn't

The ATV630D15N4 is the right choice for engineers and buyers who can confirm all of the following:

  • Your site supplies three-phase power within the 380-480V range (±5% tolerance); single-phase input is not supported
  • The connected motor does not exceed 15kW on normal duty or 11kW on continuous heavy duty (20+ hours per day)
  • The installation environment is indoor and protected — IP21 means vertically dripping water only; washdown bays, outdoor mounting, and high-humidity environments require an IP54 or IP55 alternative
  • Your facility runs Ethernet, Modbus TCP, or RS-485 Modbus serial for SCADA integration; isolated or USB-only systems need a gateway
  • Available wall space accommodates the 211mm W x 546mm H x 232mm D footprint with at least 100mm clearance on all sides for forced convection airflow

If your motor load exceeds 20HP normal duty, or you need outdoor or washdown-rated enclosure protection, the ATV630D18N4, ATV630D22N4, or an IP54/IP55 variant is the correct specification — not this model.

On this page:

What the ATV630D15N4 Actually Does in a Process System

The ATV630D15N4 sits between the main three-phase power supply and the motor it controls, converting fixed-frequency AC power into variable-frequency output across a range of 0.1 to 500Hz. That wide output frequency range means the drive can run a motor at crawling pace for positioning tasks as well as full speed for continuous throughput — all under closed-loop control tied to process sensors or SCADA setpoints.

What distinguishes this model within the Altivar Process ATV600 line is the integration of energy monitoring and process dashboards directly in the drive firmware. Rather than requiring a separate power meter or energy management module, the ATV630D15N4 exposes power measurement data over its native Ethernet port to whatever SCADA or BMS is already on site. For a water treatment plant that bills energy costs by process zone, or a food processing facility tracking energy per production run, that built-in instrumentation has genuine dollar value — it eliminates a hardware layer that a competitive drive at the same power rating might require as an add-on.

The drive also carries a hardware Safe Torque Off function rated to SIL 3 per IEC 61508. In process applications where an emergency stop must disable motor torque without relying on software, this matters — the STO circuit operates independently of the drive's control processor, which is exactly what safety-circuit reviewers and machinery directive assessors want to see documented.

Typical System Architecture

The ATV630D15N4 typically occupies the motor speed control layer in a multi-tier process architecture, sitting downstream of the main distribution panel and upstream of the motor terminal box.

  • SCADA or DCS master (Modbus TCP over Ethernet or Modbus RTU over RS-485) sends speed reference and reads drive status and energy data
  • Main distribution panel feeds three-phase 380-480V AC through an external three-pole disconnect and thermal magnetic breaker (sized to 40A typical for 15kW normal duty)
  • Optional input reactor (3-5% impedance) installed between disconnect and drive input terminals to suppress harmonics and protect against upstream surges
  • ATV630D15N4 converts fixed-frequency input to variable-frequency output (0.1-500Hz) and delivers it to the motor via VFD-rated shielded cable
  • Three-phase asynchronous or synchronous motor drives the end load — pump, fan, conveyor, or compressor — with speed and torque precisely matched to process demand

Industries and Applications Where This Drive Belongs

Water and wastewater treatment facilities represent one of the most natural fits for the ATV630D15N4. Variable-speed centrifugal pumps running at matched speed rather than full throttle with a valve in the outlet line reduce energy consumption measurably — and the drive's built-in energy dashboard makes that saving visible in real time rather than estimated at year end. The STO feature also supports the safety circuit requirements that modern water utility engineers are increasingly required to document.

Food and beverage processing lines that switch between product runs benefit from the drive's Stop and Go function, which reduces energy draw during idle periods between batches. Conveyors, mixers, and filling lines operating on 8-16 hour intermittent cycles fall within the normal duty 15kW rating without needing to apply the heavy duty derate.

In light mining and minerals handling, the drive controls slurry pump speed to match ore concentrate flow to flotation circuit demand. For these continuous-duty applications, the 11kW heavy duty rating applies — and an external input reactor is not optional; it is critical to protecting the drive from the power quality disturbances common in mining electrical systems.

HVAC fan speed control in industrial facilities and small-to-medium oil and gas wellhead pump control round out the typical deployment list, both leveraging the 0.1-500Hz output frequency range for low-speed operation and the Ethernet connectivity for integration into plant-wide control networks.

Application Typical Deployment
Water / Wastewater Pumping Variable-speed centrifugal pump control; continuous or intermittent duty; STO wired to safety relay for emergency stop
Food Processing Conveyor Intermittent duty, 8-16 hours/day; Stop and Go function active between product runs; Ethernet to line SCADA
Mining Slurry Pump Continuous heavy duty (11kW derate applies); input reactor mandatory; monthly heat sink cleaning in dusty environments
HVAC Fan Speed Control Intermittent duty; wide 0.1-500Hz range enables very low-speed fan operation for minimum ventilation setpoints
Oil and Gas Wellhead Pump Continuous duty; SIL 3 STO integrated into emergency shutdown circuit; Modbus TCP to DCS

Purchase-Decision Specifications and Variant Comparison

Parameter ATV630D15N4 Value
Power Rating — Normal Duty 15 kW (20 HP)
Power Rating — Heavy Duty 11 kW (15 HP)
Input Voltage (3-phase) 380-480V AC ±5%
Input Frequency 50-60 Hz
Output Frequency Range 0.1-500 Hz
Max Output Current — Normal Duty 31.7 A at 4 kHz
Max Output Current — Heavy Duty 23.5 A at 4 kHz
Protection Rating IP21 (IEC 60529, IEC 61800-5-1); UL Type 1
Communication Protocols Ethernet 10/100 Mbps, Modbus TCP, Modbus Serial RS-485 (4800-38.4 kbps)
Dimensions (W x H x D) / Weight 211 mm x 546 mm x 232 mm / 13.6 kg

Full technical specifications are available on the product page at LeadTime.ca.

Feature ATV630D15N4 ATV630D18N4 / D22N4 IP54/IP55 Variant
Power Rating (Normal Duty) 15 kW / 20 HP 18 kW or 22 kW and above Same power range, higher enclosure rating
Input Voltage 380-480V 3-phase 380-480V 3-phase 380-480V 3-phase
Protection Rating IP21 — indoor only IP21 IP54 or IP55 — washdown / outdoor capable
Communication Ethernet, Modbus TCP, Modbus Serial Ethernet, Modbus TCP, Modbus Serial Ethernet, Modbus TCP, Modbus Serial
Safety Rating SIL 3 (IEC 61508) SIL 3 SIL 3
Best Fit 15kW indoor process applications Higher motor power requirements Outdoor, washdown, or humid environments

If your load exceeds the 15kW normal duty or 11kW heavy duty envelope, the ATV630D18N4 or ATV630D22N4 is the correct next step — check current availability and confirm the right model at LeadTime.ca.

Expert Verdict: Strengths, Limits, and When to Choose Something Else

The ATV630D15N4 earns its place in the mid-range process drive category for three concrete reasons. First, the 15kW normal duty / 11kW heavy duty dual rating gives engineers flexibility to deploy the same hardware in both intermittent and continuous-duty applications without moving to the next power class — a practical cost advantage for facilities standardizing spare parts across multiple process lines. Second, native Ethernet with Modbus TCP and Modbus serial support means the drive connects directly to the vast majority of industrial SCADA platforms without purchasing a gateway module, which for a 15kW drive application is a meaningful reduction in total installed cost. Third, the SIL 3 STO function is a genuine differentiator for process plants where machinery safety documentation is reviewed by a certifying body — it is hardware-based, not firmware-dependent, and meets IEC 61508 and IEC 13849-1 requirements out of the box.

Where the ATV630D15N4 has real limits, engineers should be direct with themselves before specifying. The IP21 rating is the most common source of misapplication — it protects against vertically dripping water only, which means any installation where the drive sees spray, condensation cycles, or outdoor humidity will degrade faster than rated life. For those environments, an IP54 or IP55 enclosure variant is the honest answer. On power sizing, the 11kW continuous heavy duty derate is not a negotiating point — a 15kW nameplate motor running 20+ hours per day on this drive will eventually trip overcurrent protection, and the fix is specifying the ATV630D18N4 or ATV630D22N4 at the design stage rather than in the field. Buyers sourcing on catalog number alone without checking the heavy duty threshold are the most common wrong-part scenario for this model.

From a procurement standpoint, the ATV630D15N4 is a standard catalog item with broad distributor coverage, and in-stock units typically ship in two to five business days for expedited orders. For critical process applications, carrying a backup unit on the shelf is sound practice — motor control drives in continuous process service can be failure points with significant production impact if replacement takes days. Ordering through a specialist distributor who can verify your application parameters, confirm current stock status, and support technical questions before and after commissioning is worth more than saving a small percentage on the unit price. View current pricing and stock status for the ATV630D15N4 at LeadTime.ca — we ship to facilities worldwide.

For volume pricing on multiple units, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide and work with procurement teams across industries.

What Engineers Need to Know Before Ordering the ATV630D15N4

Community discussion specifically on the ATV630D15N4 by catalog number is limited — buyers searching this exact model number are typically experienced with variable frequency drives and are confirming a specification rather than evaluating the technology category. That means the pre-order mistakes that matter most are technical and procurement-specific, not general usage questions. LeadTime.ca's sourcing specialists regularly support engineers at exactly this stage of the process, and the wrong-part patterns that come up most often cluster around three areas.

The first and most frequent is power duty classification. Engineers familiar with motor nameplates sometimes read the 15kW rating and confirm the motor match — without applying the 11kW heavy duty derate to their actual duty cycle. If the application runs continuously for 20 or more hours per day, the relevant rating is 11kW, not 15kW. The second common mistake is environmental rating. IP21 protects against vertically dripping water — it does not protect against spray, condensation from temperature cycling, or outdoor humidity exposure. Facilities that have similar drives installed in washdown areas sometimes assume the same model applies everywhere in the plant; it does not. The third area is communication infrastructure. The ATV630D15N4 communicates natively over Ethernet (Modbus TCP) and RS-485 Modbus serial. Facilities running USB-only HMI connections or completely isolated control panels need gateway hardware before this drive will integrate into their SCADA layer — that cost and lead time should be in the project budget before the drive is ordered.

When community data is sparse and the specification is this precise, the most reliable pre-order verification step is a direct conversation with a distributor who works with these drives regularly. The LeadTime.ca team is available to cross-check your motor nameplate, duty cycle, site voltage measurements, and communication topology against the ATV630D15N4 specification before any purchase is committed.

Wiring and Installation Overview

The following points cover the key requirements engineers should verify before and during installation. For complete wiring diagrams and terminal assignments, refer to Schneider Electric's official installation guide for the Altivar Process ATV600 series.

  • Main power input requires three-phase 380-480V AC; an external three-pole disconnect and thermal magnetic breaker rated for 31.7A continuous (approximately 40A breaker for normal duty 15kW) must be installed — there is no integrated circuit breaker in the drive
  • Protective earth connection is required; minimum 6-8mm² copper wire; verify site grounding scheme before connecting signal and power grounds to avoid ground loops
  • VFD-rated shielded cable is recommended for the power run between drive output and motor; Ethernet cable runs up to 50m unshielded (EN/IEC 61800-3 Category C2) or up to 150m shielded (Category C3)
  • STO circuit must be wired and function-tested before motor startup; the STO function operates independently of drive firmware and requires dedicated safety-rated wiring per IEC 13849-1
  • Forced convection cooling requires unobstructed airflow on all sides of the unit; minimum 100mm clearance must be maintained; exhaust air must vent away from adjacent heat-sensitive equipment

Compatible System Expansion and Input Protection

The ATV630D15N4 is designed to work within a broader system that includes upstream harmonic mitigation and downstream motor protection. The following accessories and associated components are referenced in Schneider Electric documentation for this drive series.

  • External input reactor (3-5% impedance) — recommended upstream of the drive to reduce harmonic reflections onto the supply network and protect drive input components from power surges; cost is typically 10-15% of drive cost and extends component service life
  • Three-pole motor-rated disconnect or contactor rated for 31.7A continuous (normal duty) — external protection is mandatory; no internal breaker is fitted
  • Shielded VFD-rated power cable — specified for the motor cable run to suppress radiated EMI from the drive's 4 kHz switching frequency
  • Schneider graphic display terminal — accessible via the drive's front interface for local commissioning, parameter entry, and fault code reading without requiring Ethernet access

Wrong-Part Prevention Checklist

Before placing an order for the ATV630D15N4, verify each of the following items against your site and motor documentation:

  1. Confirm site has three-phase power available (ATV630D15N4 requires 3-phase input; single-phase installations need different model)
  2. Verify input voltage is within 380-480V range; confirm measured voltage at installation site matches spec
  3. Check motor nameplate power rating does not exceed 15kW continuous normal duty or 11kW heavy duty; oversized motors trip overcurrent protection
  4. Confirm IP21 rating is acceptable for the installation environment (adequate for indoor use only; not rated for water spray, outdoor mounting, or dusty washdown areas)
  5. Ensure site has Ethernet network infrastructure OR wired RS-485 Modbus capability; USB-only or isolated systems require additional gateway hardware
  6. Check load duty cycle: If duty is continuous operation (20+ hours/day), apply 11kW derate and verify motor can run within that envelope

If any item on this checklist raises a question, contact LeadTime.ca before ordering — our team can verify compatibility against your site parameters and confirm the correct model.

Frequently Asked Questions

Can the ATV630D15N4 accept single-phase power input?

No. The ATV630D15N4 requires three-phase input exclusively. It does not support single-phase power supply under any configuration or derating scenario. Facilities with only single-phase power available must select a different drive from Schneider Electric's lower-power ranges.

What is the practical difference between the 15kW normal duty and 11kW heavy duty ratings — and which applies to my application?

Normal duty (15kW) applies to applications with intermittent or cyclic motor load, typically 8-16 hours per day with off-periods that allow thermal recovery. Heavy duty (11kW) applies to continuous operation of 20 or more hours per day where the drive has no opportunity to cool between cycles. If your process runs continuously, the 11kW heavy duty rating governs — specifying based on the 15kW nameplate alone will result in thermal tripping under sustained load.

Is an external input reactor required, or just recommended?

Schneider Electric recommends rather than mandates an external input reactor, but the practical case for installing one is strong. Without a 3-5% impedance reactor upstream, power surges and harmonic reflections from the drive's 4 kHz switching frequency can degrade drive input components over two to three years of service. The reactor cost is typically 10-15% of drive cost and the protection it provides across continuous-duty applications is well-documented. For mining slurry pump and oil and gas wellhead applications, it should be treated as mandatory.

How do I connect the ATV630D15N4 to a legacy SCADA system that uses Modbus RTU only?

The drive supports Modbus serial communication over RS-485 at data rates from 4800 to 38.4 kbps. Connect a two-wire shielded twisted-pair cable from your SCADA master's RS-485 port to the drive's Modbus serial connector, then assign the drive's Modbus address and communication parameters during commissioning. No external gateway is required for RS-485 Modbus RTU integration.

What does the SIL 3 Safe Torque Off rating mean in practice for my safety circuit design?

The STO function disables motor torque output independently of the drive's control firmware — it operates at the hardware level, which is what IEC 61508 SIL 3 classification requires. In practice, this means you can wire the STO input into a safety relay or emergency stop circuit and achieve a certified safe state without relying on software response time. For applications requiring IEC 13849-1 safety documentation, the ATV630D15N4's STO meets the hardware requirement; third-party safety circuit certification review is still required for the complete installation.

What happens if the connected motor's power rating is higher than 15kW?

The drive will trip on overcurrent during startup or sustained high-load operation. The ATV630D15N4 is rated to 31.7A maximum continuous output current at normal duty — a motor pulling more than this will trigger overcurrent protection and shut down. The correct solution is to specify the ATV630D18N4 or ATV630D22N4 at design time, not to attempt to derate the motor or increase trip settings on the existing drive.

Why Order From LeadTime.ca

  • LeadTime.ca ships the ATV630D15N4 worldwide — no geographic restriction on orders
  • Specialist distributor focus on industrial automation and controls means technical questions get answered by people who work with these drives, not generalist fulfillment staff
  • Volume pricing available for multi-unit procurement — contact for current pricing on orders of two or more units
  • Sourcing support for hard-to-locate models within the Altivar Process ATV600 family, including adjacent power ratings and IP54/IP55 variants
  • Backup unit stock recommendation service for critical process applications where a failed drive means production stoppage

At-a-Glance Summary

  • Catalog number: ATV630D15N4 — Altivar Process ATV600 series, Schneider Electric
  • Power: 15kW (20HP) normal duty; 11kW (15HP) heavy duty continuous
  • Input: 380-480V AC ±5%, three-phase only, 50-60 Hz
  • Output frequency range: 0.1-500 Hz
  • Maximum output current: 31.7A normal duty / 23.5A heavy duty at 4 kHz switching frequency
  • Protection rating: IP21 — indoor industrial environments only; not rated for spray, outdoor, or washdown
  • Communication: Ethernet 10/100 Mbps (dual RJ45), Modbus TCP, Modbus serial RS-485 (4800-38.4 kbps)
  • Safety: SIL 3 hardware Safe Torque Off (IEC 61508); IEC 13849-1 compliant; UL 508C listed
  • Dimensions: 211mm W x 546mm H x 232mm D; weight 13.6 kg; wall-mounted only
  • Operating temperature: -15 to +50°C standard; -50 to +60°C with derating; storage -40 to +70°C
  • Cooling: Forced convection — continuous fan operation; minimum 100mm clearance required on all sides
  • External input reactor recommended (3-5% impedance); no integrated circuit breaker — external protection mandatory
  • Typical applications: water/wastewater pumping, food processing conveyors, mining slurry pumps, HVAC fan control, oil and gas wellhead pumps
